Sensor - Air Temperature - Duct - Driver (Remove and Replace)
Correction code
18109202
1.32
NOTE: Unless otherwise explicitly
stated in the procedure, the above correction code and FRT reflect all of the work
required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate Times to learn
more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com.
NOTE: See Personal Protection to make sure proper PPE is worn when
performing the below
procedure.
Remove
-
Remove the instrument panel
sub-assembly from the vehicle. See Sub Assembly - Instrument Panel (Remove and Replace).
NoteIt is not necessary to remove components from the sub-assembly after the entire assembly has been removed from the instrument panel.
- Remove the driver instrument panel duct. See Duct - Instrument Panel - Driver (Remove and Replace).
-

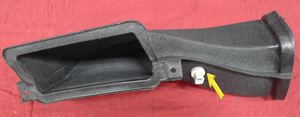

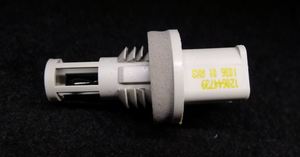

Remove the driver duct air temperature
sensor from the panel duct.
Install
-
Install the driver duct air temperature sensor into the panel duct.
- Install the driver instrument panel duct. See Duct - Instrument Panel - Driver (Remove and Replace).
- Install the instrument panel sub-assembly into the vehicle. See Sub Assembly - Instrument Panel (Remove and Replace).
