Reflector - Door Trim - Front - LH (Remove and Replace)
Correction code
15130602
0.06
NOTE: Unless otherwise explicitly
stated in the procedure, the above correction code and FRT reflect all of the work
required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate Times to learn
more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com.
NOTE: See Personal Protection to make sure proper PPE is worn when
performing the below
procedure.
Remove
- Open the LH front door.
-

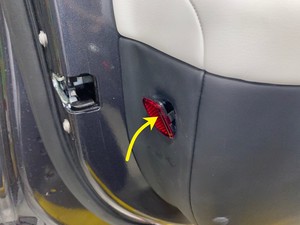

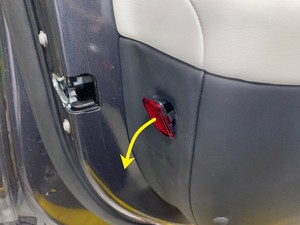

Release the tabs that attach the door
reflector to the LH front door panel, and then remove the reflector from the
vehicle.
Install
-
Install the door reflector onto the LH
front door panel.
- Close the LH front door.
