Carpet - Side Panel - Center Console - LH (Remove and Replace)
Correction code
15196802
0.12
NOTE: Unless otherwise explicitly
stated in the procedure, the above correction code and FRT reflect all of the work
required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate Times to learn
more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com.
NOTE: See Personal Protection to make sure proper PPE is worn when
performing the below
procedure.
Remove
- Open the LH front door and lower the LH front window.
- Move the driver seat rearward.
- Remove the LH front floor mat.
- Remove the driver outboard footwell cover. See Cover - Footwell - Outboard - Driver (Remove and Replace).
- Remove the driver inboard footwell cover. See Cover - Footwell - Inboard - Driver (Remove and Replace).
-

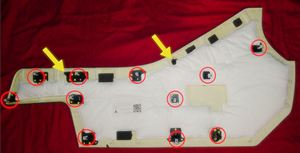

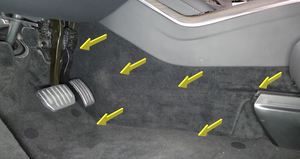

Release the clips (x11) that attach
the LH center console side panel carpet to the vehicle, and then remove the carpet from
the vehicle.
Install
-

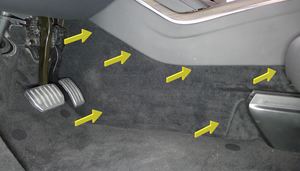

Position the LH center console side panel carpet into the vehicle, and then secure
the clips (x11) that attach the carpet to the vehicle.
- Install the driver inboard footwell cover. See Cover - Footwell - Inboard - Driver (Remove and Replace).
- Install the driver outboard footwell cover. See Cover - Footwell - Outboard - Driver (Remove and Replace).
- Install the LH front floor mat.
- Move the drier seat to the original position.
- Raise the LH front window and close the LH front door.
