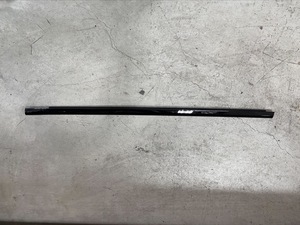

Seal - Outer Belt - Rear Door - LH (Remove and Replace)

Correction code 11704402 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

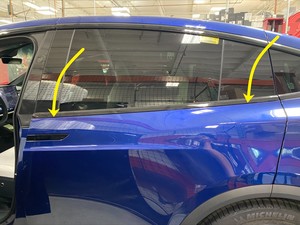

  1. Open the LH front door and lower the LH front window.
  2. Starting from the rear edge, lift and roll the LH rear door outer belt trim outward slowly and evenly to remove it from the LH rear door assembly.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Be careful not to bend or damage components.

Install

  1. Install LH rear door outer belt trim

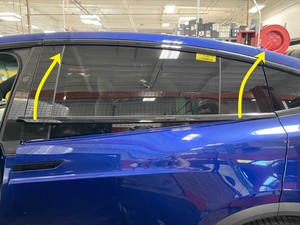

  2. Raise the LH front window and close the LH front door.
