Shear Plate - Rear Subframe - LH (Remove and Replace)

Correction code 30012002 0.42 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.

Remove

  1. Move the vehicle to a 2 post lift. See Raise Vehicle - 2 Post Lift.
  2. Remove the mid aero shield panel. See Panel - Aero Shield - Mid (Remove and Replace).

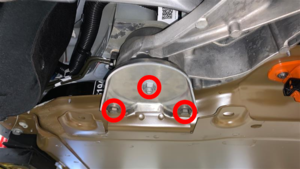

  3. Remove the nut that attaches the LH rear subframe shear plate to the rear subframe.
  4. Remove the bolts (x2) that attach the LH rear subframe shear plate to the HV battery, and then remove the shear plate from the HV battery.

Install

  1. Install the LH rear subframe shear plate onto the stud on the rear subframe, and then install the bolts (x2) that attach the shear plate to the HV battery.
    30 Nm (22.1 lbs-ft)
  2. Install the nut that attaches the LH rear subframe shear plate to the rear subframe.
    60 Nm (44.2 lbs-ft)
  3. Install the mid aero shield panel. See Panel - Aero Shield - Mid (Remove and Replace).
  4. Remove the vehicle from the 2 post lift. See Raise Vehicle - 2 Post Lift.
