Trim - A-Pillar - Sun Visor Bezel - LH (Remove and Replace)

Correction code 15184402 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the LH front door and lower the LH front window.
  2. Move the driver seat rearward.

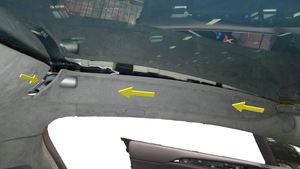

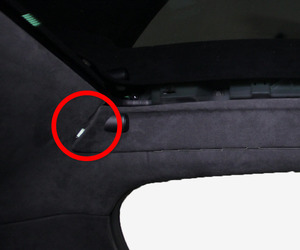

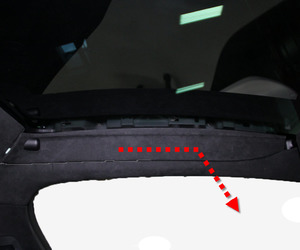

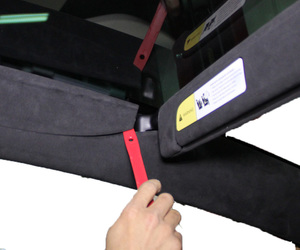

  3. Release the clips (x6) and tabs (x5) that attach the LH sun visor bezel A-pillar trim to the vehicle, and then slide the trim forward to release it from the vehicle.

Install

  1. Position the LH sun visor bezel A-pillar trim into the vehicle, and then secure the tabs (x5) and clips (x6) that attach the trim to the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    Insert the tabs, slide the bezel rearward, and then secure the clips.
  2. Move the driver seat to the original position.
  3. Raise the LH front window and close the LH front door.
