NVH Insulator - Floor - Rear Trunk (Remove and Replace)
Correction code
15308202
0.12
NOTE: Unless otherwise explicitly
stated in the procedure, the above correction code and FRT reflect all of the work
required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate Times to learn
more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com.
NOTE: See Personal Protection to make sure proper PPE is worn when
performing the below
procedure.
Remove
- Open the LH front door.
- Lower the LH front window.
- Open the liftgate.
- Remove the rear trunk load floor. See Trunk Load Floor - Rear (Remove and Replace).
- Remove the LH and RH side rear trunk garnishes. See Garnish - Rear Trunk - Side - LH (Remove and Replace).
- Remove the trunk sill trim. See Trim - Sill - Trunk (Remove and Replace).
-
Remove the clips (x6) that attach the
rear wall load support to the vehicle.
-

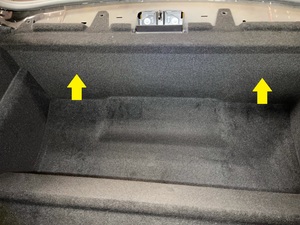

Remove the trunk tub floor.
-

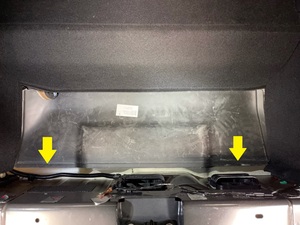

Remove the rear trunk floor NVH
insulator.
Install
-

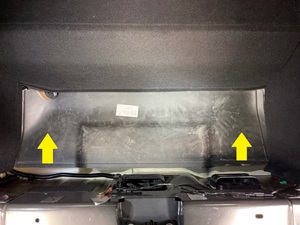

Install the rear trunk floor NVH
insulator.
-

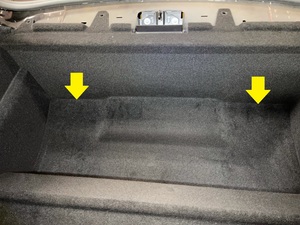

Install the trunk tub floor.
-
Install the clips (x6) that attach the
rear wall load floor support to the vehicle.
- Install the trunk sill trim. See Trim - Sill - Trunk (Remove and Replace).
- Install the LH and RH side rear trunk garnishes. See Garnish - Rear Trunk - Side - LH (Remove and Replace).
- Install the rear trunk load floor. See Trunk Load Floor - Rear (Remove and Replace).
