Gas Strut - Liftgate (Remove and Replace)

Correction code 11334402 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the liftgate.

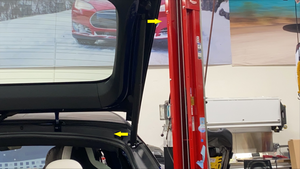

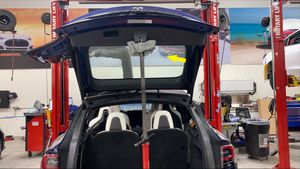

  2. Use an underhoist stand to support the liftgate.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Place a towel between the underhoist stand and the liftgate to prevent damage to the liftgate trim.

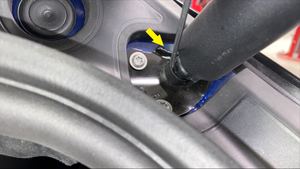

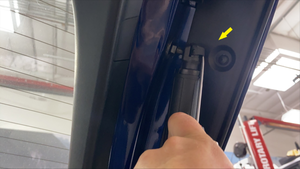

  3. Use a small flathead screwdriver to release the rear upper and lower liftgate gas strut C-clips.
    Informational PurposesAn informational icon, calling your attention
    Note
    The liftgate gas strut is located on the RH side of the vehicle.

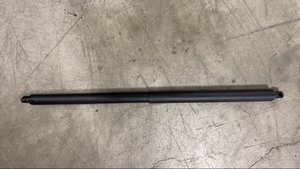

  4. Push each end of the liftgate gas strut away from the mounting points, and then remove the gas strut from the vehicle.

Install

  1. Position the liftgate gas strut into the vehicle, and then firmly push each end of the strut onto the liftgate ball studs.
  2. Remove the liftgate support.
  3. Close the liftgate.
