Carpet - Podium (Remove and Replace)
Correction code
15300032
1.26
NOTE: Unless otherwise explicitly
stated in the procedure, the above correction code and FRT reflect all of the work
required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate Times to learn
more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com.
NOTE: See Personal Protection to make sure proper PPE is worn when
performing the below
procedure.
Remove
- Open all the doors.
- Remove the LH and RH front seats from the vehicle. See Seat Assembly - 1st Row - LH (Remove and Install).
- Remove the center console assembly. See Center Console Assembly - 1st Row (Remove and Install).
- Remove the driver podium LH and RH inner covers. See Cover - Inner - Podium - Driver (Remove and Replace).
-

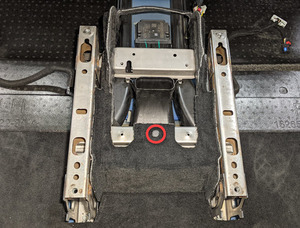

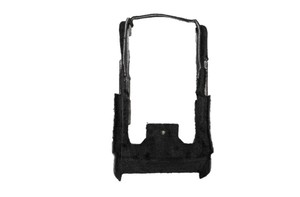

Remove the push clip that attaches the
podium carpet to the vehicle, and then remove the carpet from the vehicle.
Install
-
Position the podium carpet into the vehicle, and then install the push clip that
attaches the carpet to the vehicle.
- Install the driver podium LH and RH inner covers. See Cover - Inner - Podium - Driver (Remove and Replace).
- Install the center console assembly. See Center Console Assembly - 1st Row (Remove and Install).
- Install the LH and RH front seats. See Seat Assembly - 1st Row - LH (Remove and Install).
- Connect LV power. See LV Power (Disconnect and Connect).
- Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
-
Calibrate the rear doors.
NoteIf the "Calibration Needed" message appears on the vehicle touchscreen, touch and hold Calibrate to calibrate the rear doors.NoteThe rear door must be closed during calibration.
