Sensor - Air Temperature - Duct - Footwell - RH (Remove and Replace)

Correction code 18107912 0.30 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.

Remove

  1. Open the RH front door.
  2. Move the front passenger seat rearward.
  3. Remove the RH front floor mat.
  4. Remove the passenger footwell cover. See Cover - Footwell - Passenger (Remove and Replace).
  5. Remove the RH center console side panel carpet. See Carpet - Side Panel - Center Console - LH (Remove and Replace)
  6. Remove the RH front sill panel trim. See Trim - Sill Panel - Front - LH (Remove and Replace)
  7. Remove the RH instrument panel end cap. See End Cap - Instrument Panel - LH (Remove and Replace).
  8. Remove the RH middle A-pillar trim. See Trim - A-Pillar - Middle - LH (Remove and Replace).
  9. Remove the RH lower A-pillar trim. See Trim - A-Pillar - Lower - LH (Remove and Replace).
  10. Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
  11. Disconnect LV power. See LV Power (Disconnect and Connect).
  12. Remove the front passenger knee airbag assembly. See GUID-A1D9FA86-1206-4809-A20E-6E26D876BD31.html.
    Informational PurposesAn informational icon, calling your attention
    Note
    It is not necessary to remove components from the airbag assembly after the assembly has been removed from the instrument panel.

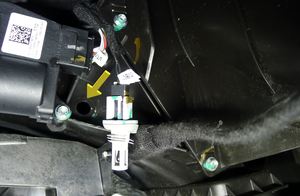

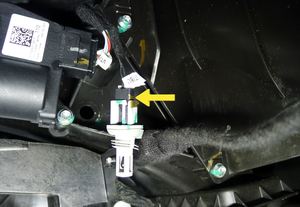

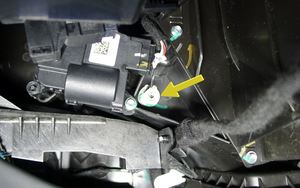

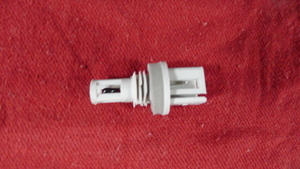

  13. Release the RH footwell duct air temperature sensor from the HVAC assembly, disconnect the electrical connector, and then remove the sensor from the vehicle.

Install

  1. Position the RH footwell duct air temperature sensor into the vehicle, and then connect the electrical connector.
  2. Install the RH footwell duct air temperature sensor into the HVAC assembly.
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure the sensor is flush to the HVAC assembly.
  3. Install the front passenger knee airbag assembly. See GUID-A1D9FA86-1206-4809-A20E-6E26D876BD31.html.
    Informational PurposesAn informational icon, calling your attention
    Note
    It is not necessary to remove components from the airbag assembly after the assembly has been removed from the instrument panel.
  4. Install the RH center console side panel carpet. See Carpet - Side Panel - Center Console - LH (Remove and Replace)
  5. Install the passenger footwell cover. See Cover - Footwell - Passenger (Remove and Replace).
  6. Install the RH lower A-pillar trim. See Trim - A-Pillar - Lower - LH (Remove and Replace).
  7. Install the RH middle A-pillar trim. See Trim - A-Pillar - Middle - LH (Remove and Replace).
  8. Install the RH instrument panel end cap. See End Cap - Instrument Panel - LH (Remove and Replace).
  9. Install the RH front sill panel trim. See Trim - Sill Panel - Front - LH (Remove and Replace)
  10. Install the RH front floor mat.
  11. Connect LV power. See LV Power (Disconnect and Connect).
  12. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
  13. Move the front passenger seat to the original position.
  14. Calibrate the rear doors.
    Informational PurposesAn informational icon, calling your attention
    Note
    If the "Calibration Needed" message appears on the vehicle touchscreen, touch and hold Calibrate to calibrate the rear doors
