Lever - Recliner - 2nd Row - LH (Remove and Replace)
Correction code
13083302
0.06
NOTE: Unless otherwise explicitly
stated in the procedure, the above correction code and FRT reflect all of the work
required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate Times to learn
more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com.
NOTE: See Personal Protection to make sure proper PPE is worn when
performing the below
procedure.
Remove
- Open the LH falcon wing door.
-

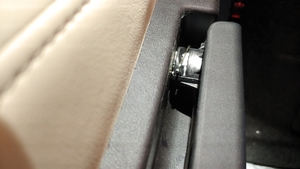

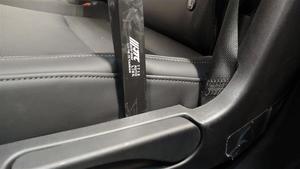

Carefully insert a wedge between the
LH 2nd row seat and the LH 2nd row recliner cover.
-

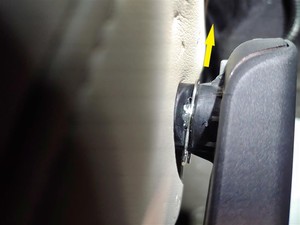

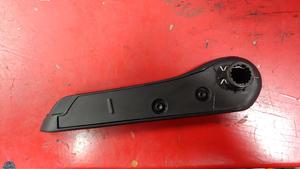

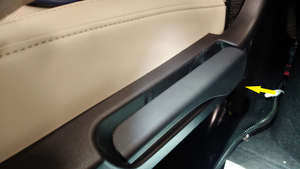

Release the clip that attaches the LH
2nd row recliner lever to the seat assembly, and then pull the lever away from the seat
assembly to release it.
Install
-

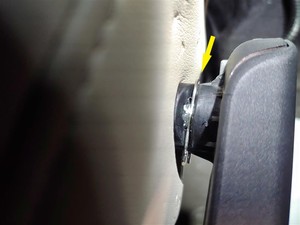

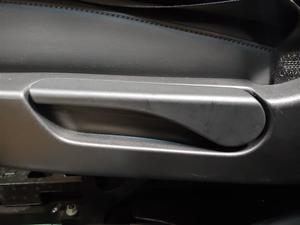

Position the LH 2nd row recliner lever onto the seat assembly, and then install the
clip that attaches the lever to the seat assembly.
- Close the LH falcon wing door.
