Carpet - 1st Row (Remove and Replace)
Correction code
15302502
2.04
NOTE: Unless otherwise explicitly
stated in the procedure, the above correction code and FRT reflect all of the work
required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate Times to learn
more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com.
NOTE: See Personal Protection to make sure proper PPE is worn when
performing the below
procedure.
Remove
- Remove the LH and RH front sill trims. See Trim - Sill Panel - Front - LH (Remove and Replace).
- Remove the 1st row podium. See Podium - 1st Row (Remove and Replace).
-

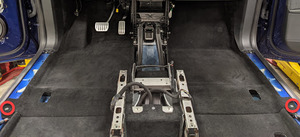

Remove the push clips (x2) that attach

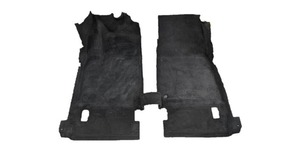

the 1st row carpet to the vehicle, and then remove the carpet from the vehicle.

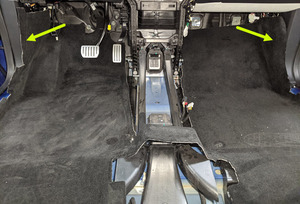

NotePosition the LH and RH sides of carpet away from the front sill trims.
Install
-
Position the 1st row carpet into the
vehicle, position the LH and RH side sides of the carpet behind the front sill trims,
and then install the clips (x2) that attach the carpet to the vehicle.
- Install the 1st row podium. See Podium - 1st Row (Remove and Replace).
- Install the LH and RH front sill trims. See Trim - Sill Panel - Front - LH (Remove and Replace).
