Sensor - Air Temperature - Duct - Front Passenger (Remove and Replace)

Correction code 18109402 0.54 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Remove the glove box. See Glove Box (Remove and Replace).

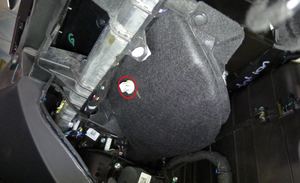

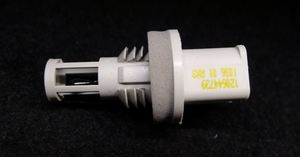

  2. Disconnect the front passenger IP duct air temperature sensor electrical connector, and then remove the sensor from the duct.

Install

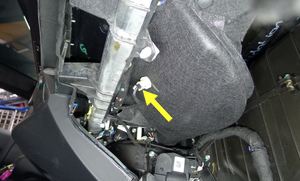

  1. Position the front passenger IP duct air temperature into the vehicle, install the sensor into the duct, and then connect the electrical connector.
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure the sensor is fully seated into the duct.
  2. Install the glove box. See Glove Box (Remove and Replace).
