Trim - A-Pillar - Middle - LH (Remove and Replace)

Correction code 15182602 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the LH front door and lower the LH front window.

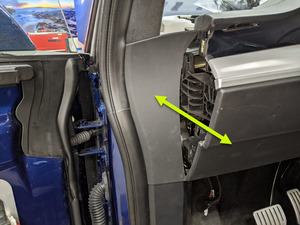

  2. Remove the LH instrument panel end cap. See End Cap - Instrument Panel - LH (Remove and Replace).

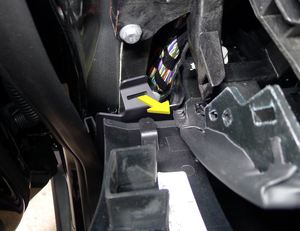

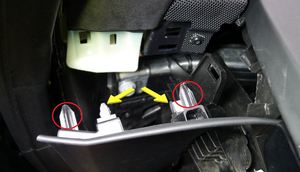

  3. Release the clips (x2) that attach the LH middle A-pillar trim to the LH upper A-pillar trim and instrument panel sub assembly, and then lift the trim upward and out of the LH lower A-pillar trim to remove it from the vehicle.

Install

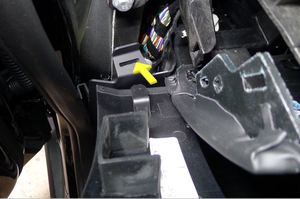

  1. Position the LH middle A-pillar trim into the LH lower A-pillar trim, and then secure the clips (x2) that attach the middle trim the LH upper A-pillar trim and instrument panel sub assembly.
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure the weather seal is seated properly.
  2. Install the LH instrument panel end cap. See End Cap - Instrument Panel - LH (Remove and Replace).
  3. Raise the LH front window and close the LH front door.
