Actuator - Panel - RH (Remove and Replace)

Correction code 18102422 0.66 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Remove the front passenger instrument panel duct. See Duct - Instrument Panel - Front Passenger (Remove and Replace).

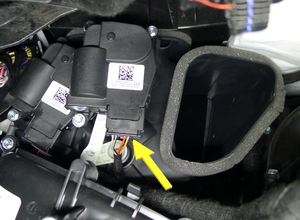

  2. Disconnect the RH panel actuator electrical connector.

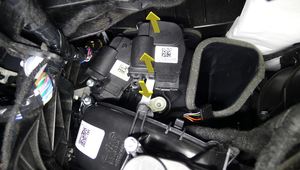

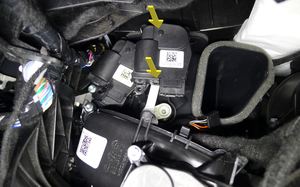

  3. Remove the screws (x2) that attach the RH panel actuator to the vehicle, and then remove the actuator from the vehicle.
    2.3 Nm (1.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note
    Hold the actuator arm while removing the actuator.
    Informational PurposesAn informational icon, calling your attention
    Note

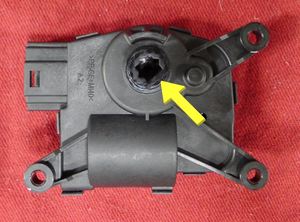

    Take note of the actuator arm keyed angle upon removal.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 socket

Install

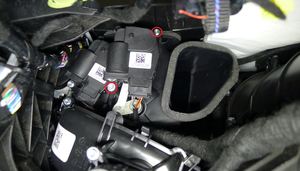

  1. Position the RH panel actuator into the vehicle, and then install the screws (x2) that attach the actuator to the vehicle.
    2.3 Nm (1.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note

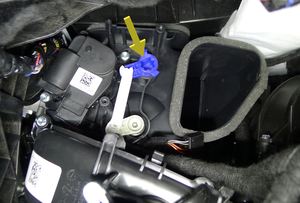

    The actuator is keyed to HVAC assembly. Align the actuator before installing the screws.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 socket
  2. Connect the RH panel actuator electrical connector.
  3. Install the front passenger instrument panel duct. See Duct - Instrument Panel - Front Passenger (Remove and Replace).
