Trim - C-Pillar - Lower - LH (Remove and Replace)

Correction code 15185802 0.15 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the LH falcon wing door.
  2. Remove the LH rear sill panel trim. See Trim - Sill Panel - Rear - LH (Remove and Replace).
  3. Open the liftgate.
  4. Release the clips (x4) that attach the LH trunk sill side trim to the body, and then remove the side trim from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Plastic trim tool
  5. Remove the LH mid C-pillar trim. See Trim - C-Pillar - Mid - LH (Remove and Replace).

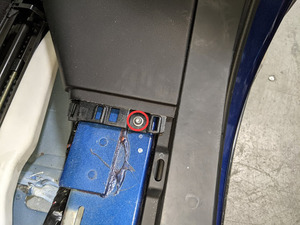

  6. Remove and discard the bolt that attaches the LH lower C-pillar trim to the vehicle.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Flex head ratchet/flex head torque wrench
    • Torx T25 socket

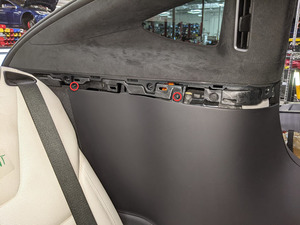

  7. Remove the screws (x2) that attach the LH lower C-pillar trim to the LH mid C-pillar zone bracket, and then remove the trim from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 4 in extension
    • Flex head ratchet/flex head torque wrench
    • Torx T20 socket

Install

  1. Position the LH lower C-pillar trim on the vehicle, and then install the screws (x2) that attach the trim to the LH mid C-pillar bracket.
    2 Nm (1.5 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 4 in extension
    • Flex head ratchet/flex head torque wrench
    • Ratchet/torque wrench
    • Torx T20 socket
  2. Install a new bolt that attaches the LH lower C-pillar trim to the vehicle.
    2.5 Nm (1.8 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Flex head ratchet/flex head torque wrench
    • Ratchet/torque wrench
    • Torx T25 socket
  3. Install the LH mid C-pillar trim. See Trim - C-Pillar - Mid - LH (Remove and Replace).
  4. Install the clips (x4) that attach the LH trunk sill side trim to the vehicle.
  5. Close the liftgate.
  6. Install the LH rear sill panel trim. See Trim - Sill Panel - Rear - LH (Remove and Replace).
  7. Close the LH falcon wing door.
