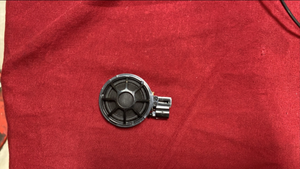

Tweeter - Liftgate - LH (Remove and Replace)
Correction code
21213302
0.06
NOTE: Unless otherwise explicitly
stated in the procedure, the above correction code and FRT reflect all of the work
required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate Times to learn
more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com.
NOTE: See Personal Protection to make sure proper PPE is worn when
performing the below
procedure.
Remove
- Open the LH front door and lower the LH front window.
- Open the liftgate.
- Remove the lower liftgate trim. See Trim - Liftgate - Lower (Remove and Replace).
- Remove the liftgate speaker grille. See Grille - Speaker - Liftgate (Remove and Replace).
-

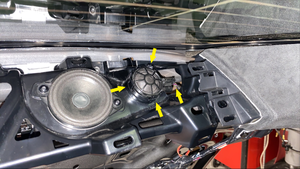

Release the clips (x3) that attach the
LH liftgate tweeter to the liftgate, disconnect the electrical connector, and then
remove the tweeter from the liftgate.
Install
-
Position the LH liftgate tweeter onto
the liftgate, connect the electrical connector, and then secure the clips (x3) that
attach the tweeter to the liftgate.
- Install the liftgate speaker grille. See Grille - Speaker - Liftgate (Remove and Replace).
- Install the lower liftgate trim. See Trim - Liftgate - Lower (Remove and Replace).
- Close the liftgate.
- Raise the LH front window and close the LH front door.
