Garnish - Lower - Door Trim - Rear - LH (Remove and Replace)

Correction code 15132502 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the LH front door and lower the LH front window.
  2. Open the LH falcon wing door.

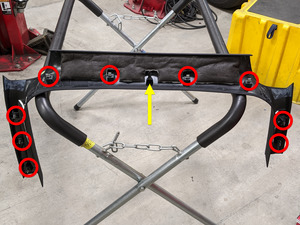

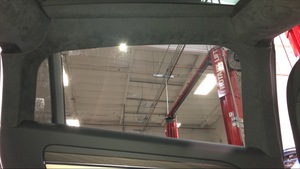

  3. Release the V-clips (x9) that attach the LH rear door trim lower garnish to the LH rear door, and then remove the garnish from the door.
    Informational PurposesAn informational icon, calling your attention
    Note
    Replace any damaged or missing V-clips.
    Informational PurposesAn informational icon, calling your attention
    Note
    Take care not to damage door trim panel during removal.

Install

  1. Position the LH rear door trim lower garnish onto the LH rear door, and then secure the V-clips (x9) that attach the garnish to the door.
  2. Close the LH falcon wing door.
  3. Raise the LH front window and close the LH front door.
