Closeout - Cup Holder - Seat - 3rd Row (Remove and Replace)

Correction code 13092022 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

  • 2026-06-26: Revised steps.

Remove

  1. Open all the doors and lower the LH and RH front windows.
  2. Move the driver and front passenger seats fully forward.
  3. Move LH and RH 2nd row seats fully forward.

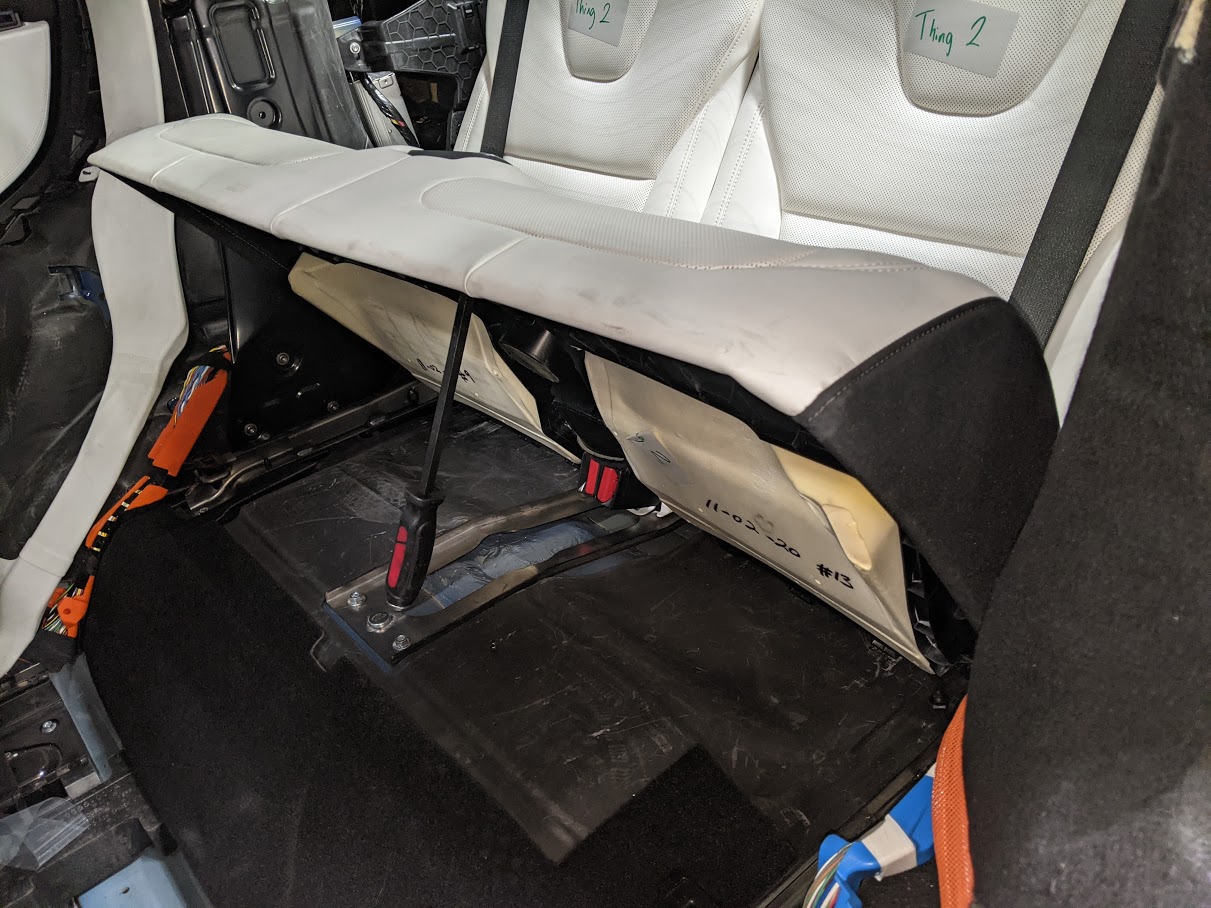

  4. Lift the 3rd row seat cushion from the seat frame.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Be careful not to damage the electrical harness that is routed onto the lower side of the seat cushion.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use a telescoping hood prop (1080562-00-A) or similar to hold up the seat cushion.

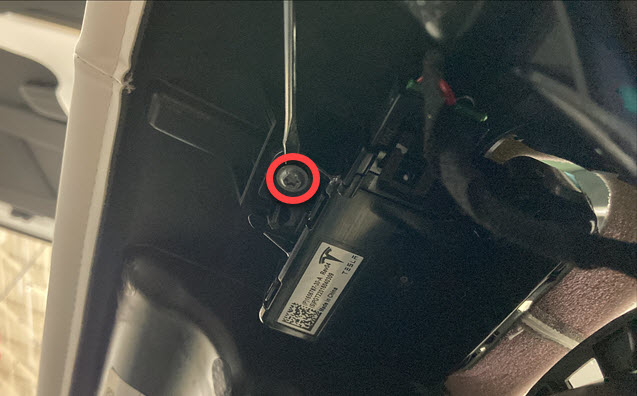

  5. Remove the screw that attaches the USB hub to the seat cushion.
    1.8 Nm (1.3 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 bit

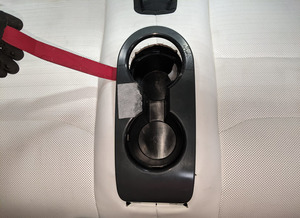

  6. Release the clips (x8) that attach the 3rd row seat cup holder closeout to the seat cushion.

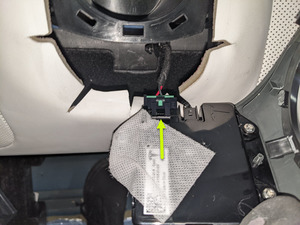

  7. Disconnect the USB hub electrical connector.

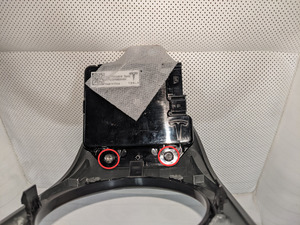

  8. Remove the screws (x2) that attach the USB hub to the 3rd row seat cup holder closeout, and then remove the hub from the closeout.
    1.8 Nm (1.3 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 bit

Install

  1. Position the USB hub onto the 3rd row seat cup holder closeout, and then install the screws (x2) that attach the hub to the closeout.
    1.8 Nm (1.3 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 bit
  2. Connect the USB hub electrical connector.

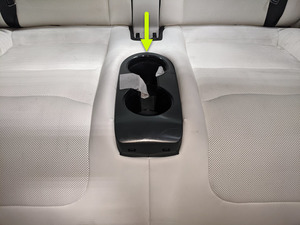

  3. Position the 3rd row seat cup holder closeout into the seat cushion, and then secure the clips (x8) that attach the closeout to the seat cushion.
  4. Install the screw that attaches the USB hub to the seat cushion.
    1.8 Nm (1.3 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 bit
  5. Secure the tabs (x2) that attach the 3rd row seat cushion to the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    Feed the seat cushion electrical harness below the seat back rest.
  6. Move the LH and RH 2nd row seats back to the original position.
  7. Move the driver and front passenger seats back to their original position.
  8. Close LH and RH front windows and close all doors.
