Seal - Liftgate (Remove and Replace)

Correction code 11702002 0.18 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the liftgate.

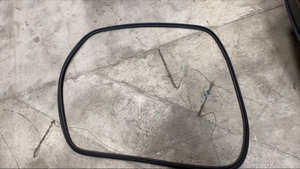

  2. Remove the liftgate seal.

Install

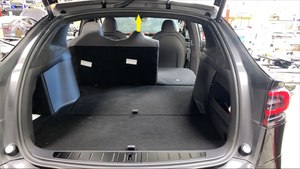

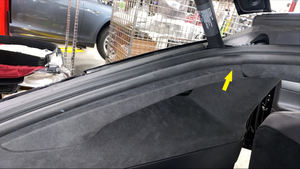

  1. Position the liftgate seal into the vehicle, align the seal seam at the top center of the liftgate, remove the adhesive backing from the seal, and then install the seal into the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure the seal is not rolled and the all edges are covered by the seal.

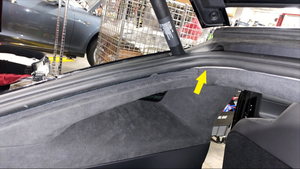

  2. Use IPA wipes to clean the liftgate seal and surrounding trim panel of any excess adhesive.
    Informational PurposesAn informational icon, calling your attention
    Note
    Allow 1 min of dry time.
  3. Close the liftgate.
