Bracket - Wiper Module (Remove and Replace)

Correction code 17500702 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Torque Specifications

Table 1. Torque Specifications: Bracket - Wiper Module (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Bolts (x4) that secure the wiper module bracket
25 Nm (18.4 lbs-ft)
  • 13 mm socket
 Reuse

Remove

  1. Remove the wiper module. See Wiper Module (Remove and Replace).

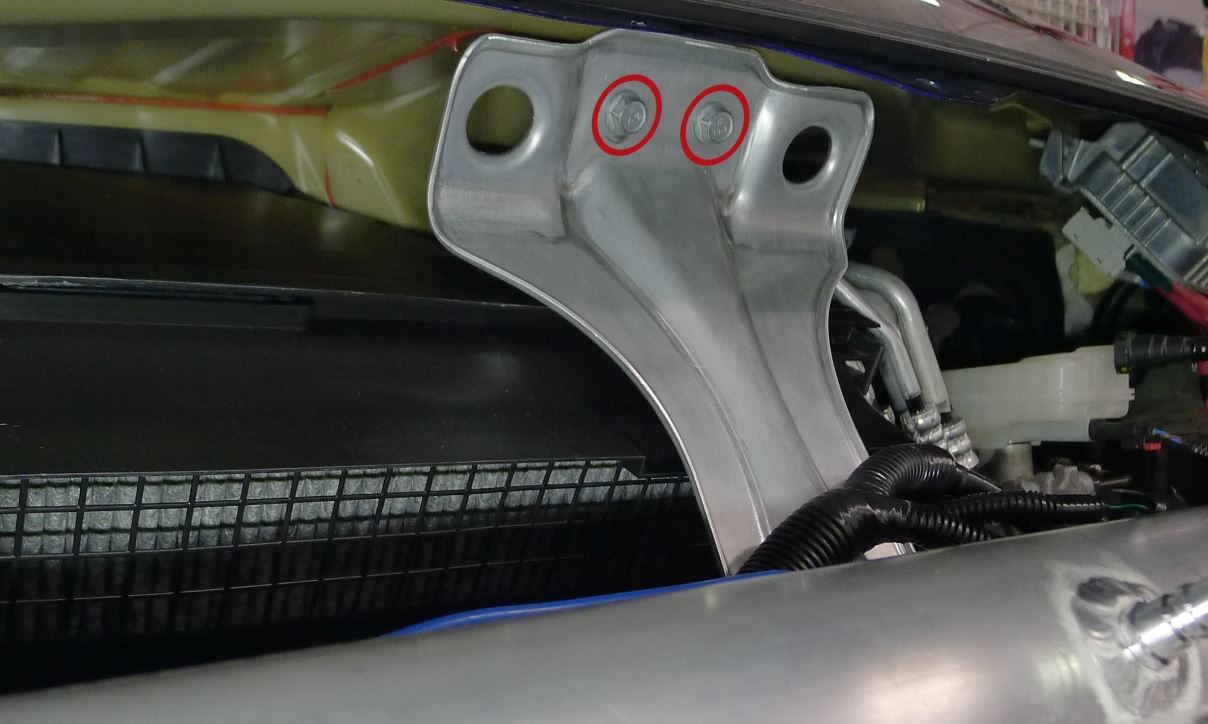

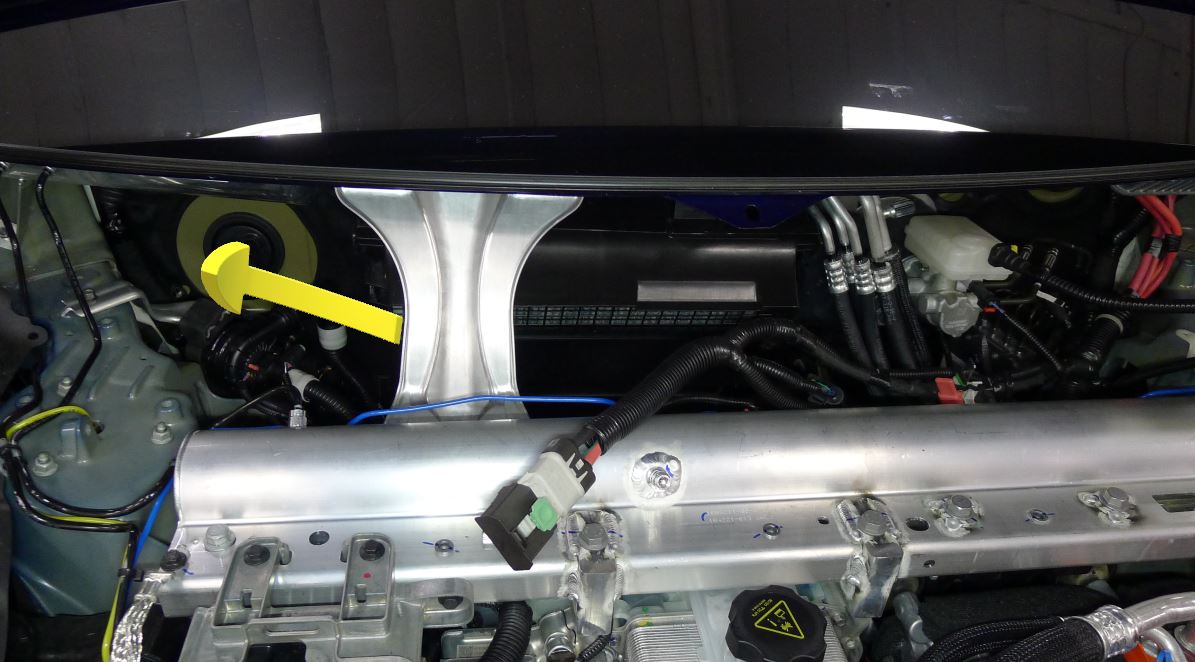

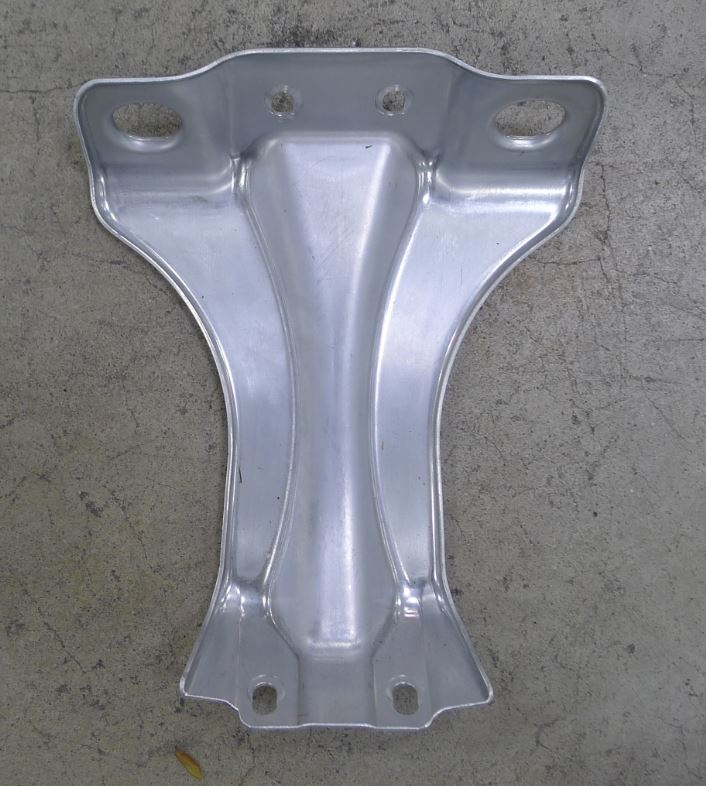

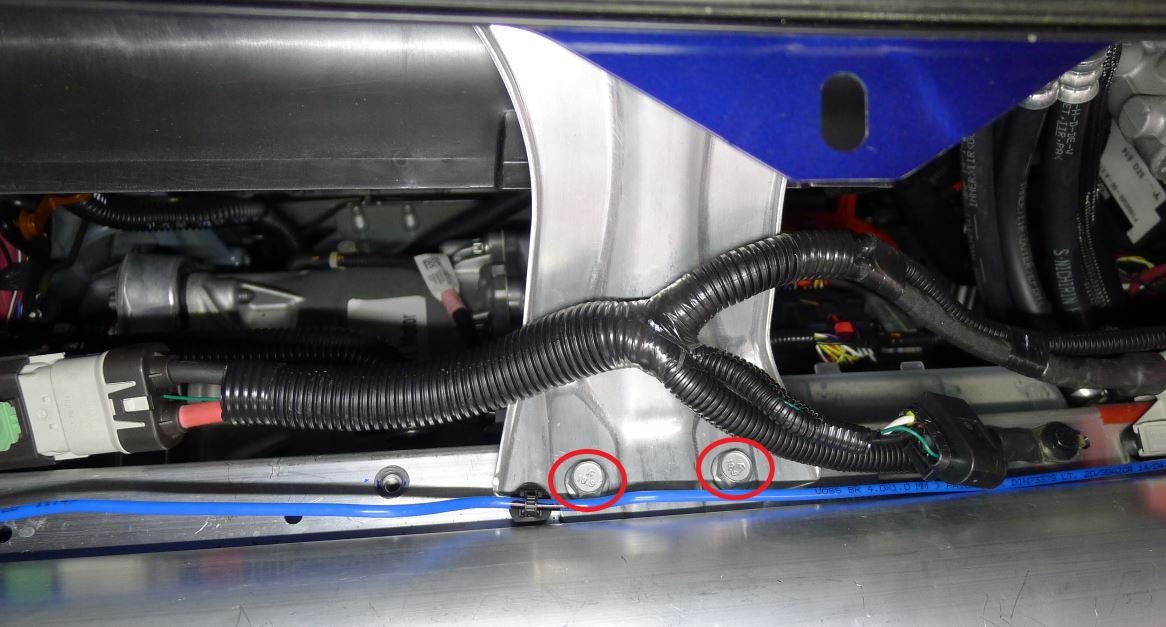

  2. Remove the bolts (x4) that secure the wiper module bracket, and then slide the bracket towards the RH shock tower along the multi-system beam to clear the HEPA filter housing to remove the bracket from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use of the following tool(s) is recommended:
    • 13 mm socket

Install

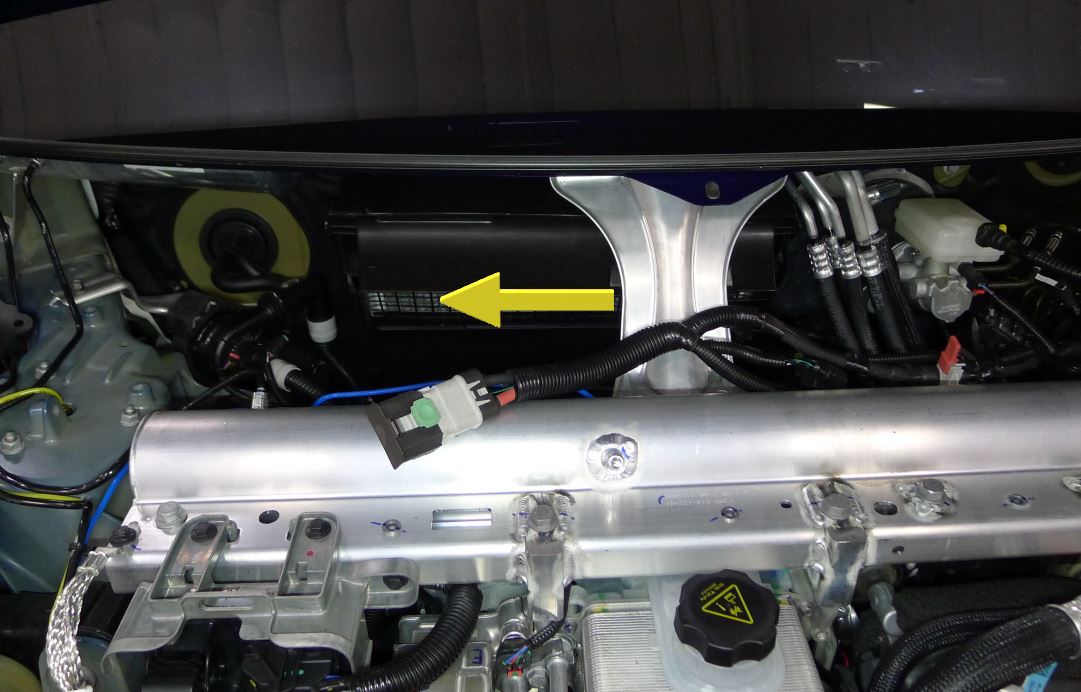

  1. Slide the wiper module bracket in from the RH shock tower area along the multi-system beam, and then install the bolts (x4) that secure the wiper module bracket.
    25 Nm (18.4 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note
    Use of the following tool(s) is recommended:
    • 13 mm socket
  2. Install the wiper module. See Wiper Module (Remove and Replace).
