Car Computer (HW4) (Remove and Install)

Correction code 21151031 0.78 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2026-05-08: Updated the procedure from performing a cooling system partial coolant refill to a cooling system vacuum refill to avoid overheating.
Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components.

Remove

  1. Open the LH front door.
  2. Lower both front windows.
  3. Open the RH front door.
  4. Move the RH front seat backward.
  5. Unlock the vehicle gateway. See Gateway (Unlock).
  6. Perform the following routine using Service Mode or Toolbox (see 0005 - Service Modes): PROC_VCFRONT_X_START-THERMAL-FILL-DRAIN-COOLANTvia Toolbox:(link)
    Informational PurposesAn informational icon, calling your attention
    Note
    This routine has a time limit of 5 hours. If it takes longer than 5 hours, perform this step again.
  7. Disconnect LV power. See LV Power (Disconnect and Connect).
  8. Remove the underhood storage unit. See Underhood Storage Unit (Remove and Install).
  9. Remove RH front floor mat
  10. Remove RH footwell cover
    Informational PurposesAn informational icon, calling your attention
    Note
    3x magnets, 1x connector, 4x datums
  11. Remove RH console side carpet
    Informational PurposesAn informational icon, calling your attention
    Note
    11x clips, 2x datums
  12. Remove RH front door sill trim panel
    Informational PurposesAn informational icon, calling your attention
    Note
    8x clips, 3x datums
  13. Remove RH IP end cap
    Informational PurposesAn informational icon, calling your attention
    Note
    3x clips
  14. Remove RH mid A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    Note
    2x clips, 3x datums, Release clips from upper A-pillar and IP sub assembly, Lift mid A-pillar trim out of lower A-pillar trim
  15. Remove RH lower A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, T25, 5 Nm, 2x clips, 1x datum
  16. Fold RH front cabin carpet aside for access
  17. Release harness from RH footrest panel
    Informational PurposesAn informational icon, calling your attention
    Note
    1x clip
  18. Release RH footrest panel
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 10mm, 5 Nm, 2x nut, 10mm, 5 Nm
  19. Remove RH footrest panel
    Informational PurposesAn informational icon, calling your attention
    Note
    Fold RH primary support carpet up, Rotate RH footrest panel out of vehicle

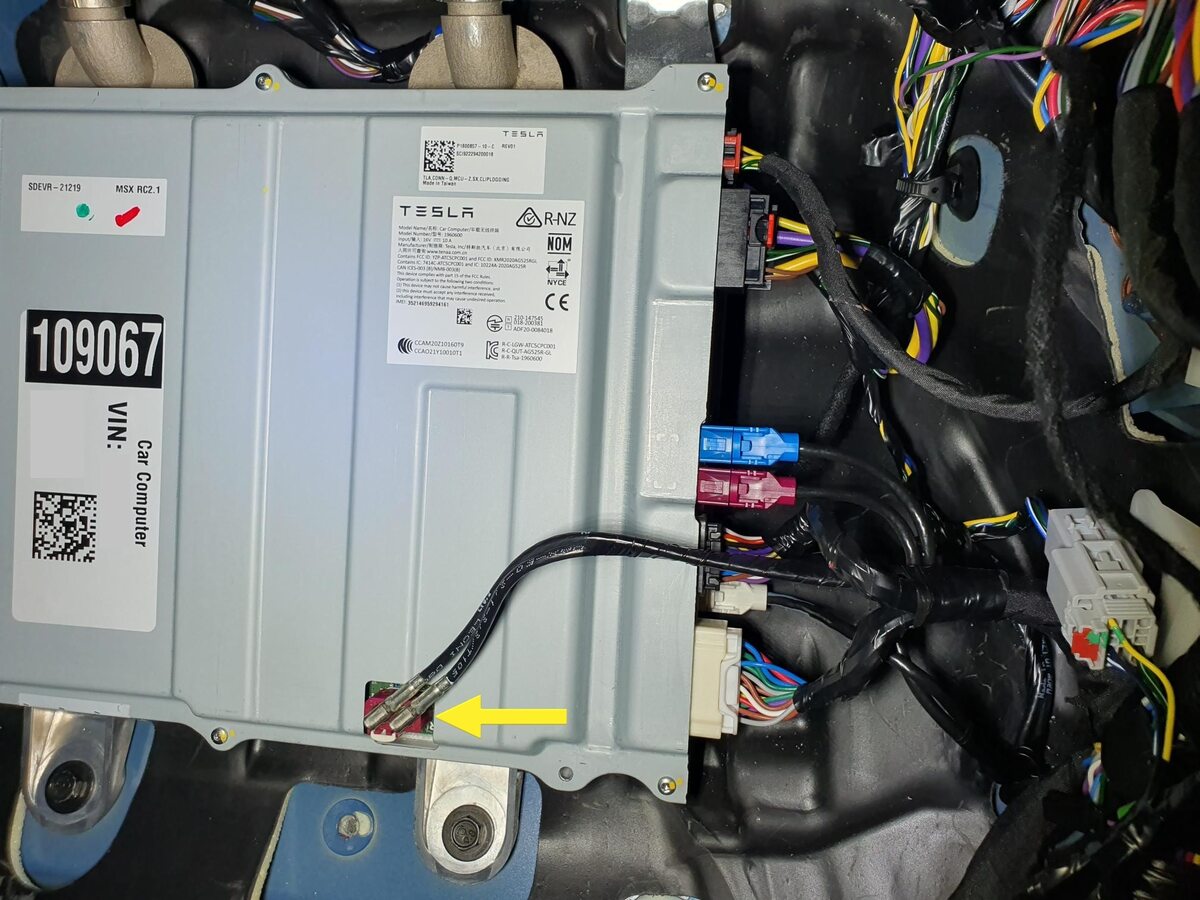

  20. Release connector to connectivity module
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Move release lock rearward before removal

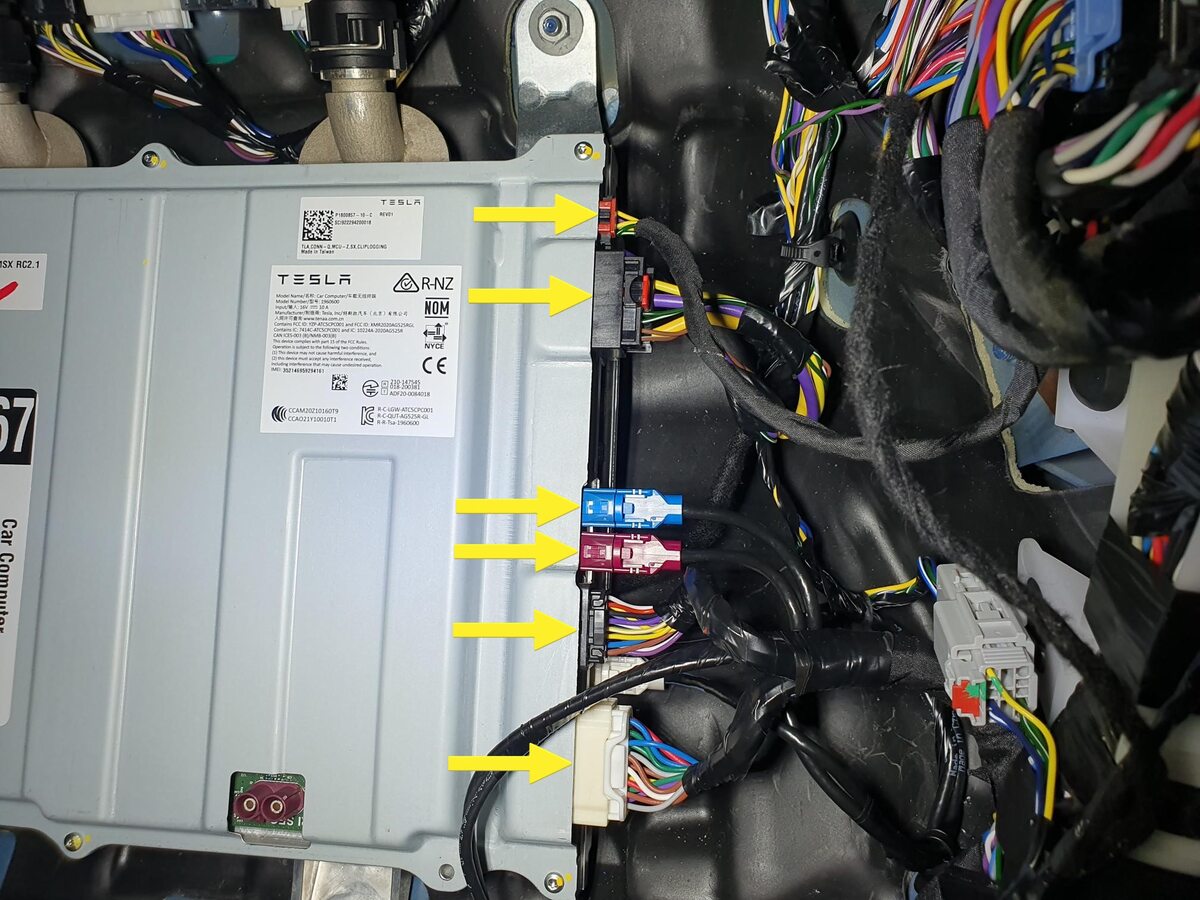

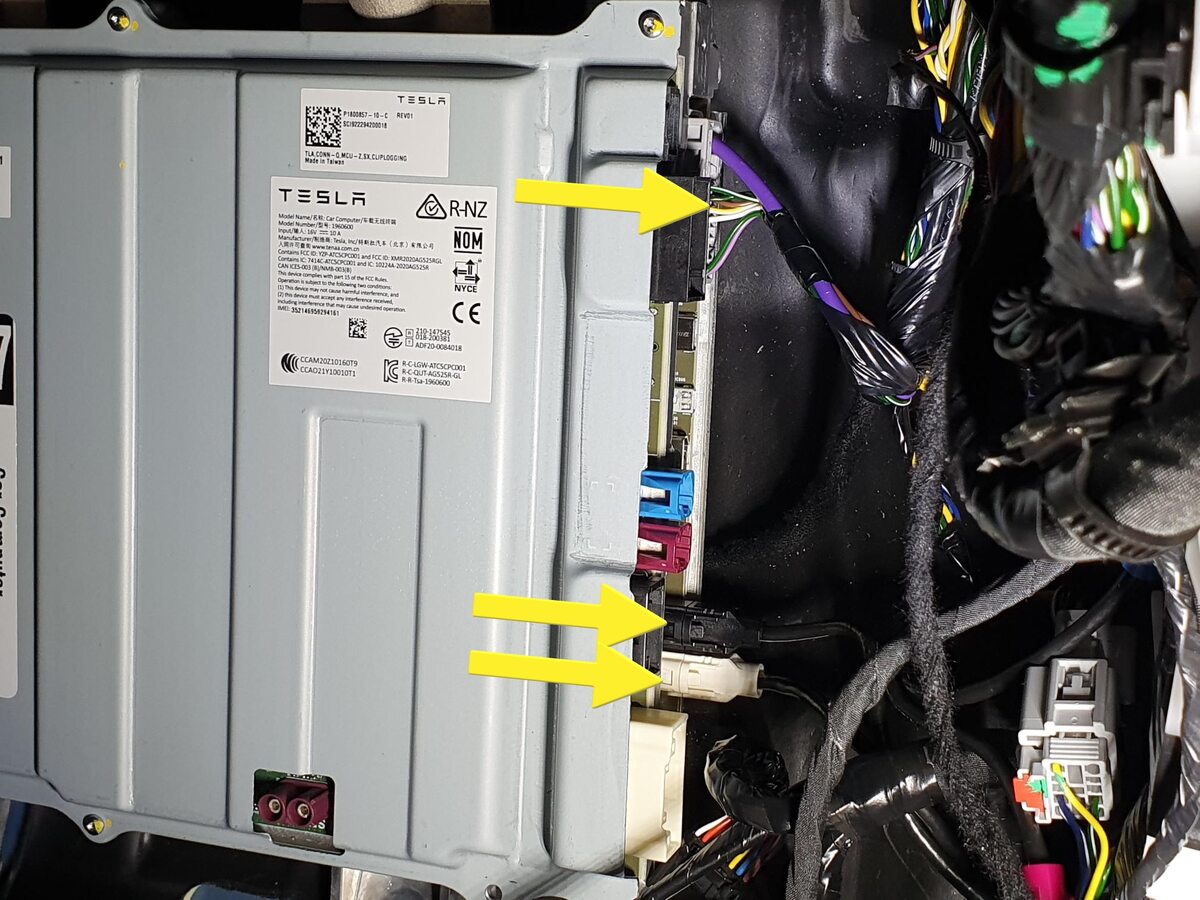

  21. Release connectors at RH side of entertainment motherboard
    Informational PurposesAn informational icon, calling your attention
    Note
    6x connectors, Release locks on connectors before removal

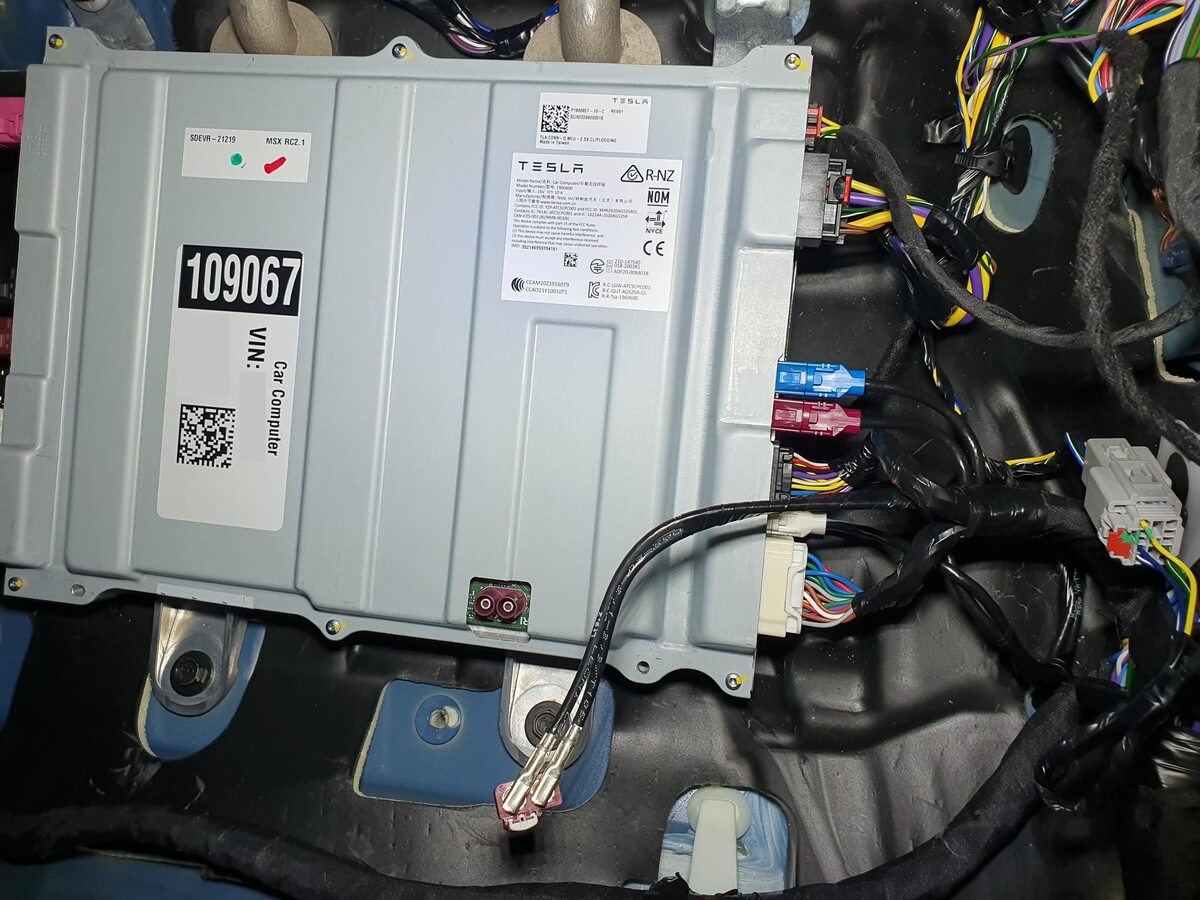

  22. Release connectors at RH side of Autopilot motherboard
    Informational PurposesAn informational icon, calling your attention
    Note
    3x connectors, Release locks on connectors before removal

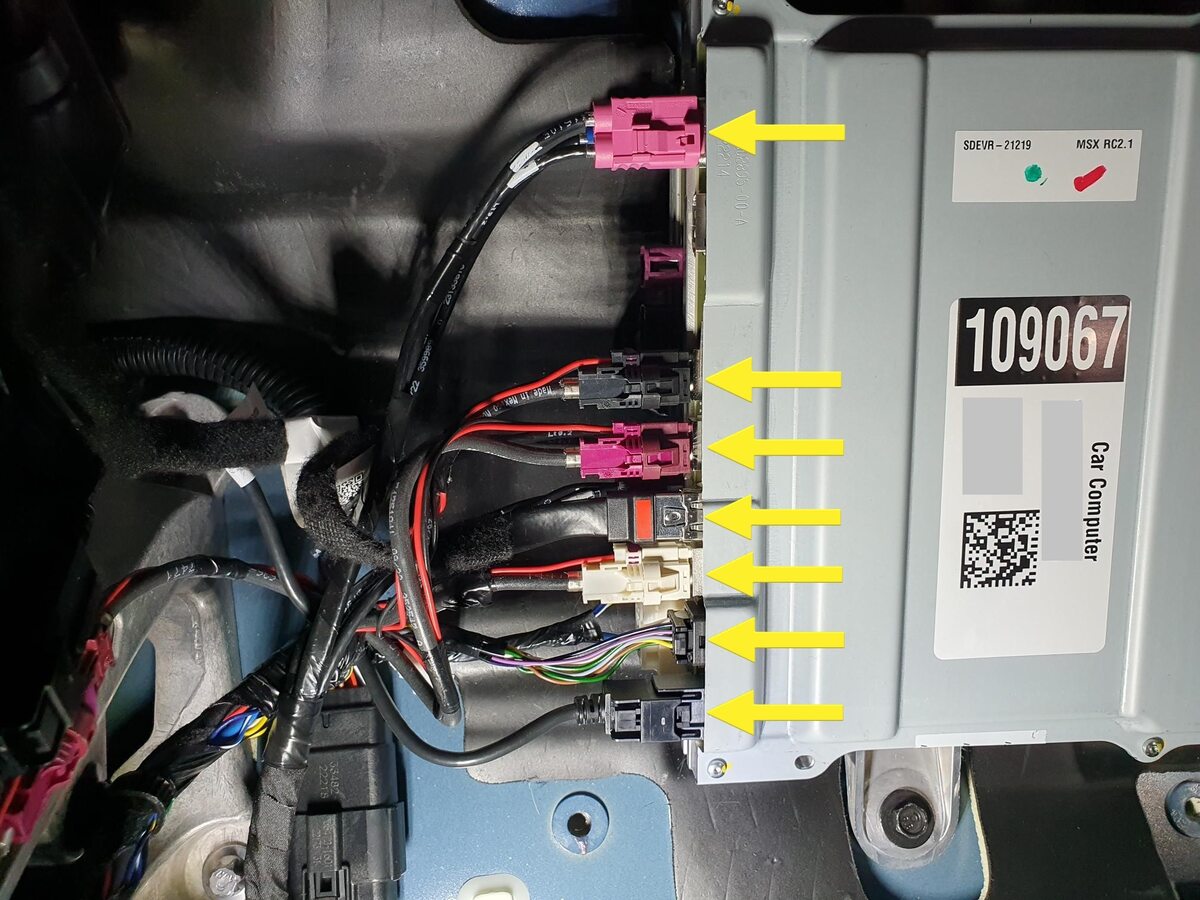

  23. Release connections at LH side of entertainment motherboard
    Informational PurposesAn informational icon, calling your attention
    Note
    7x connectors, Release locks on connectors before removal

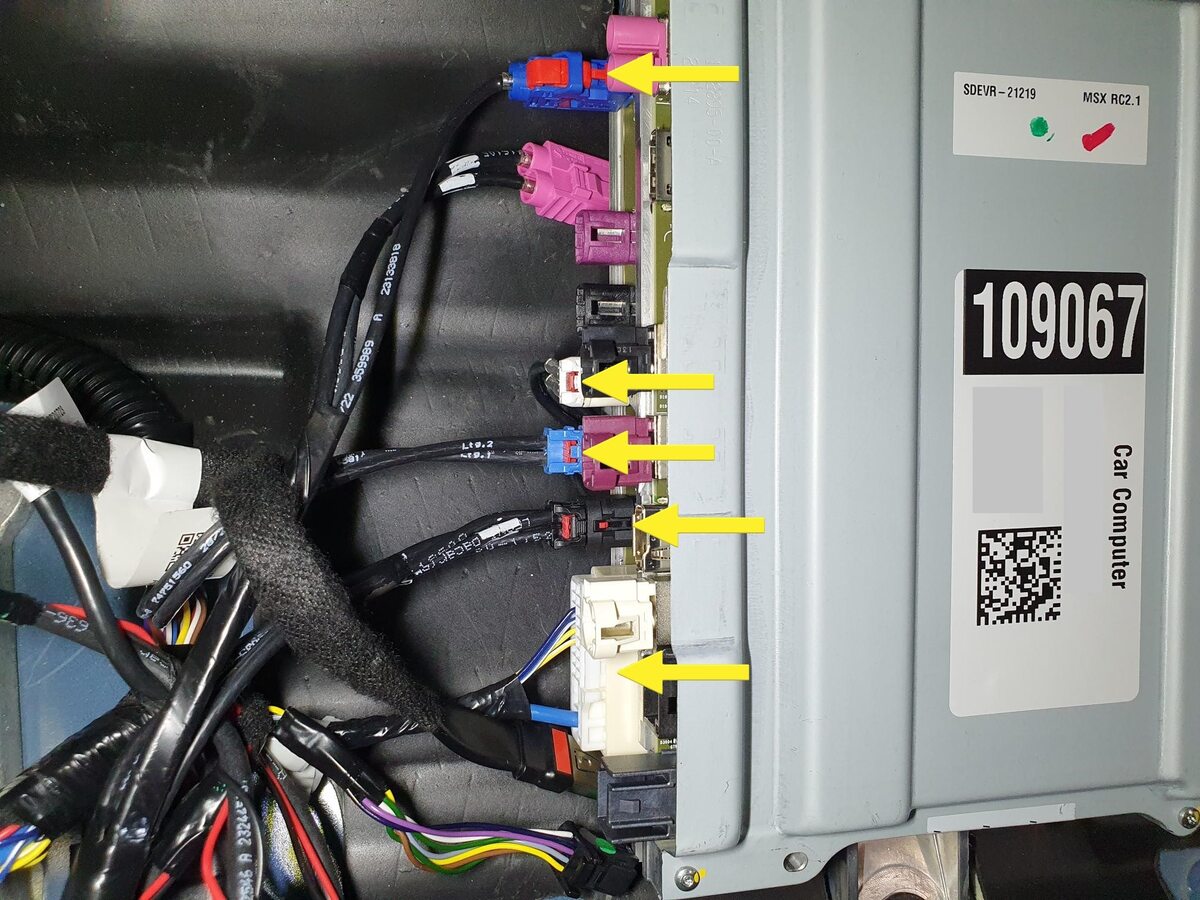

  24. Release connections at LH side of Autopilot motherboard
    Informational PurposesAn informational icon, calling your attention
    Note
    5x connectors, Release locks on connectors before removal

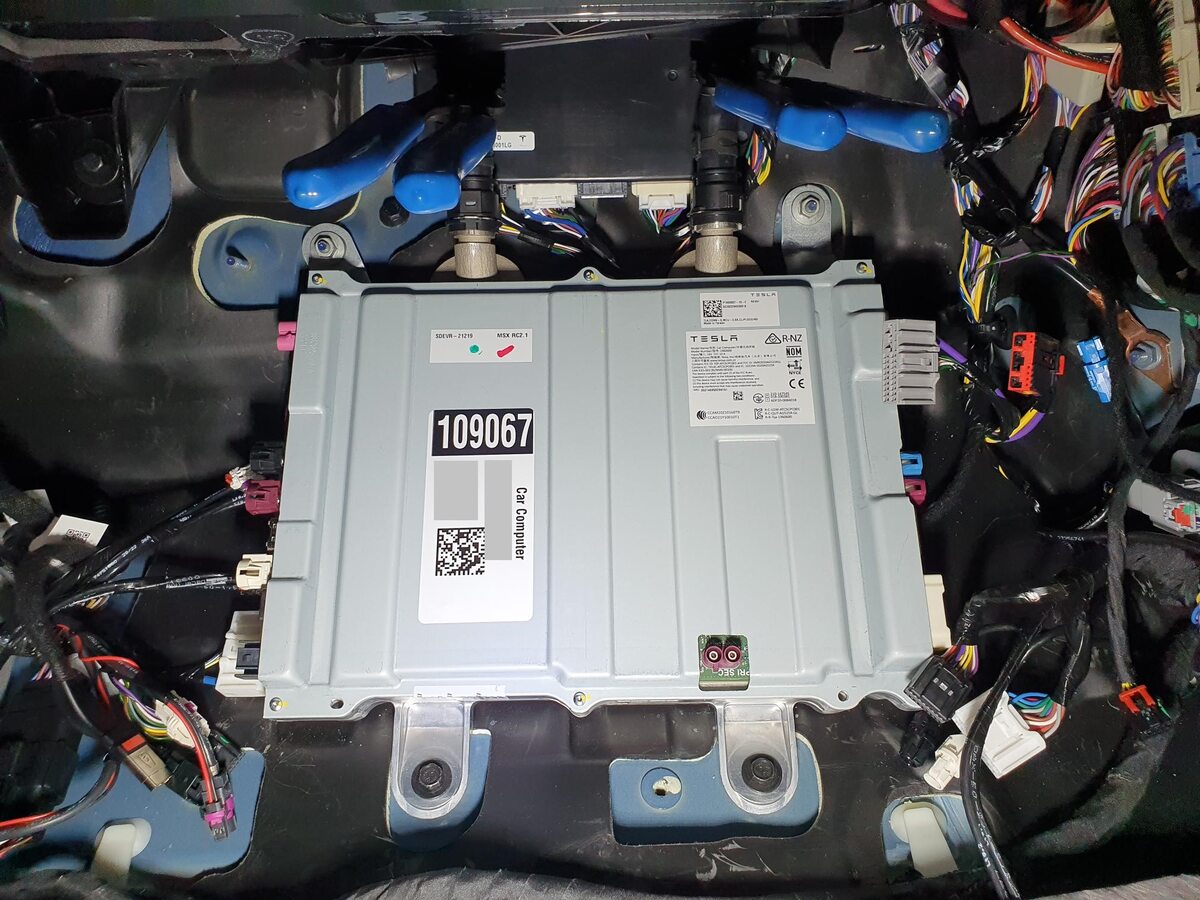

  25. Install coolant hose clamps to coldplate hoses
    Informational PurposesAn informational icon, calling your attention
    Note

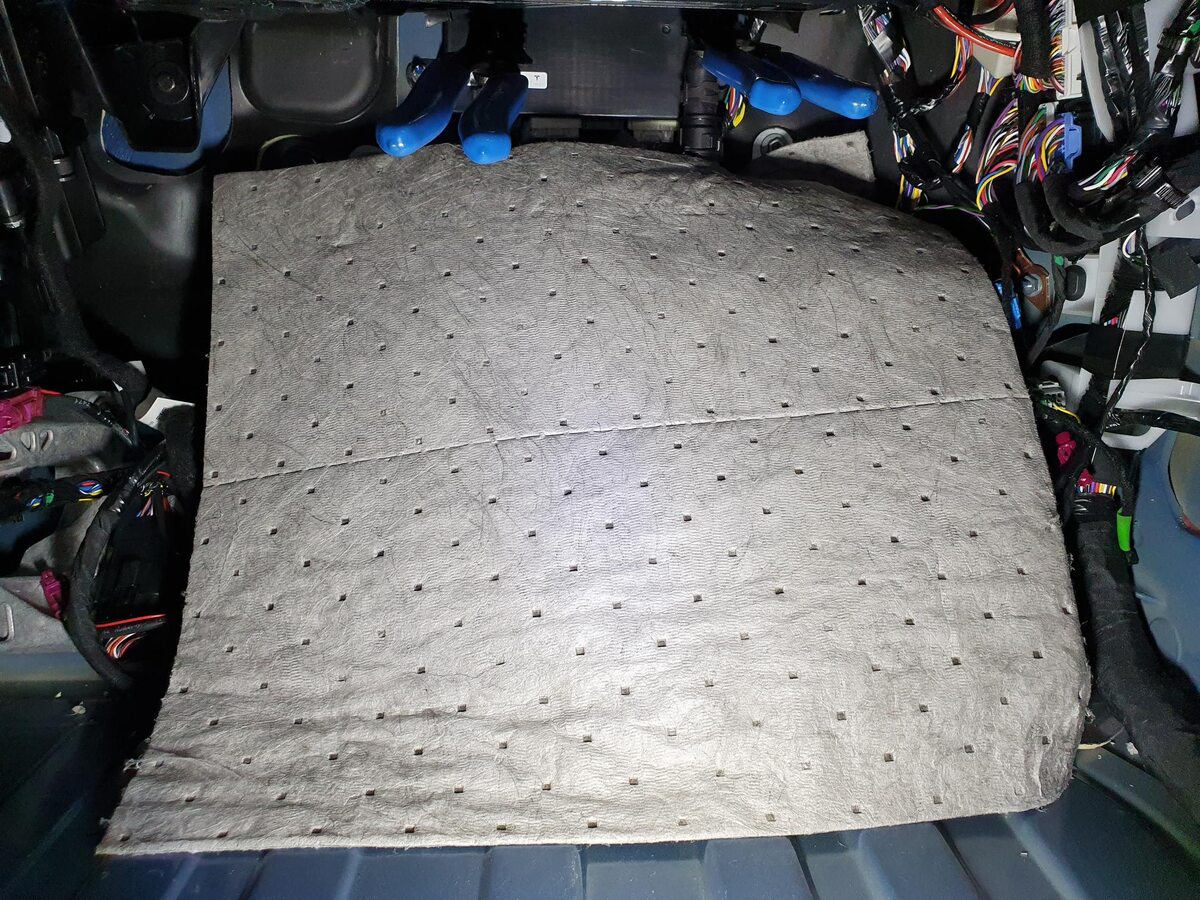

    2x hoses, Place coolant absorbent mats or rags around the car computer

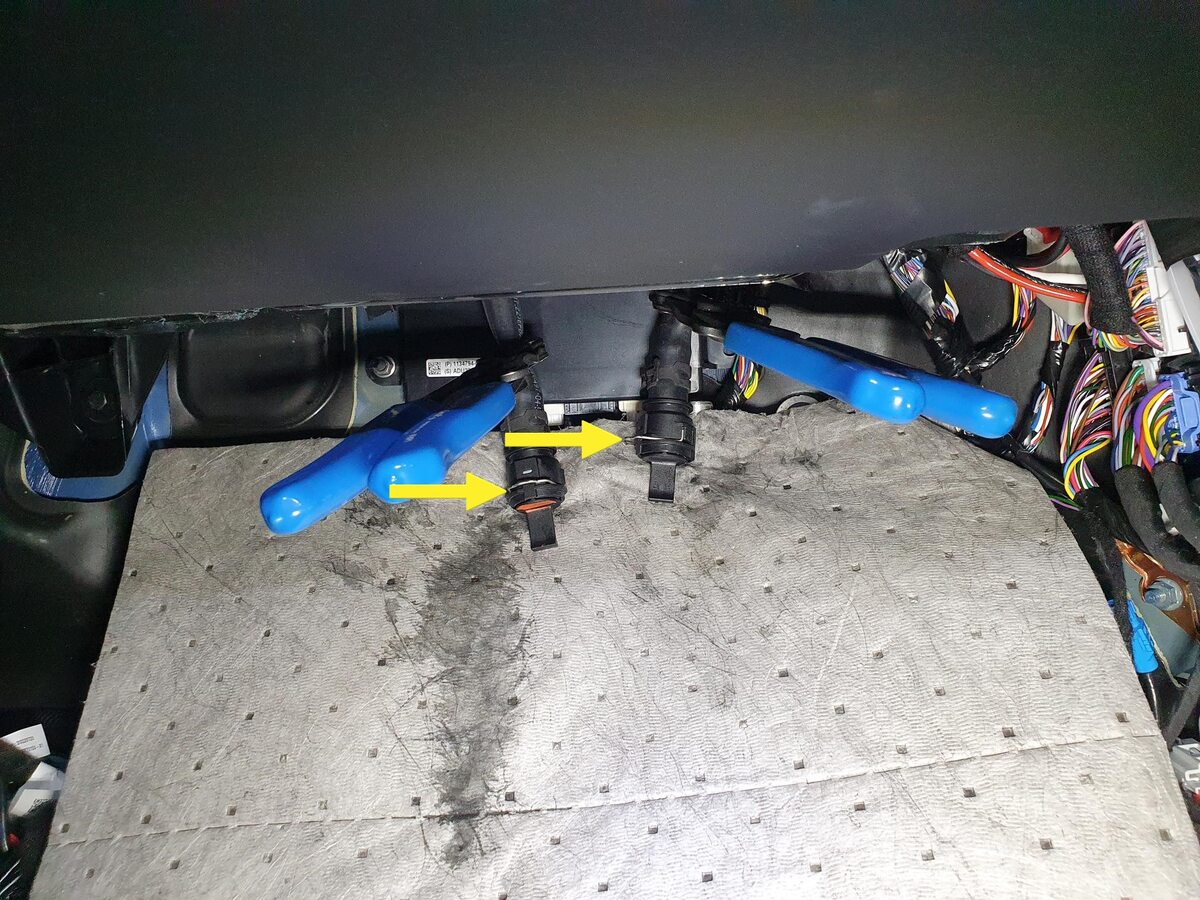

  26. Release coolant hoses from car computer coldplate assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    2x spring locks, Install coolant plugs at both hoses and car computer

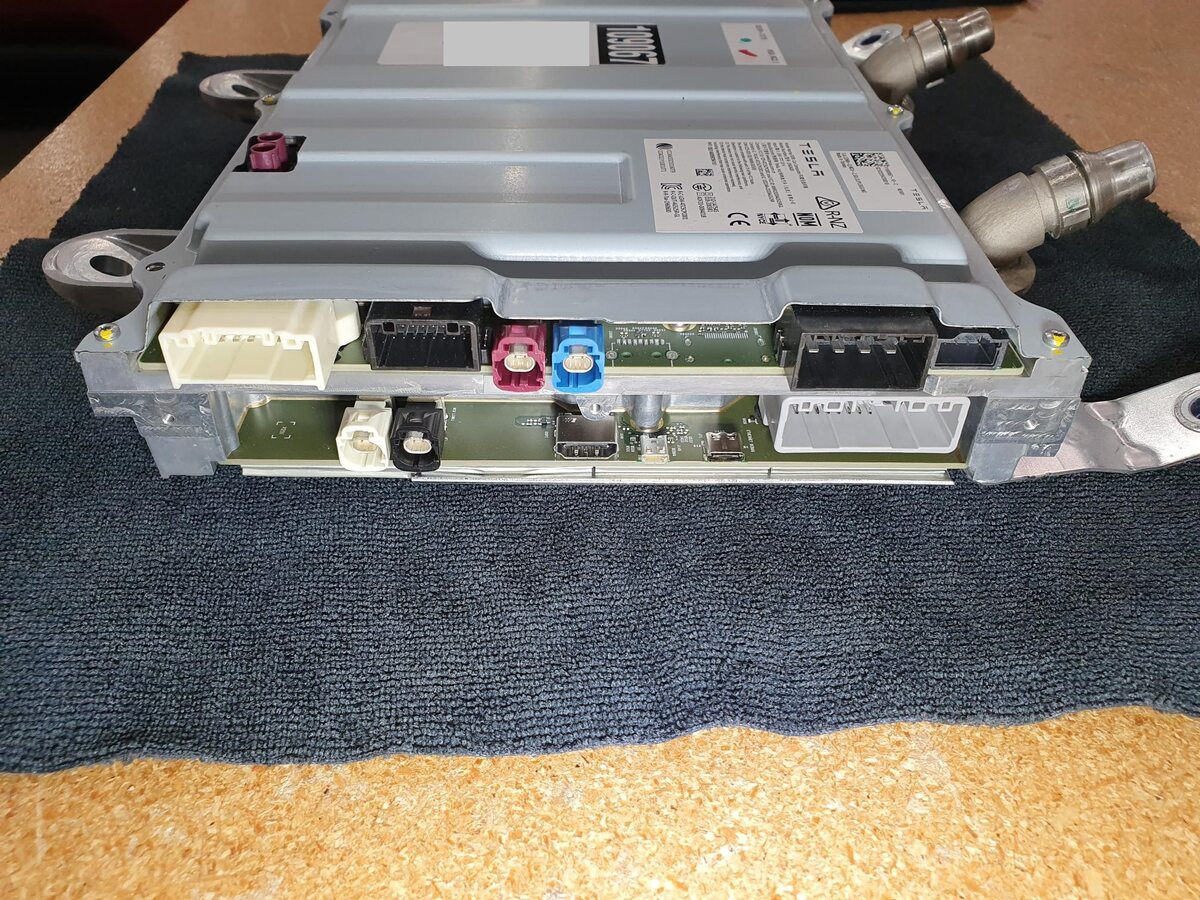

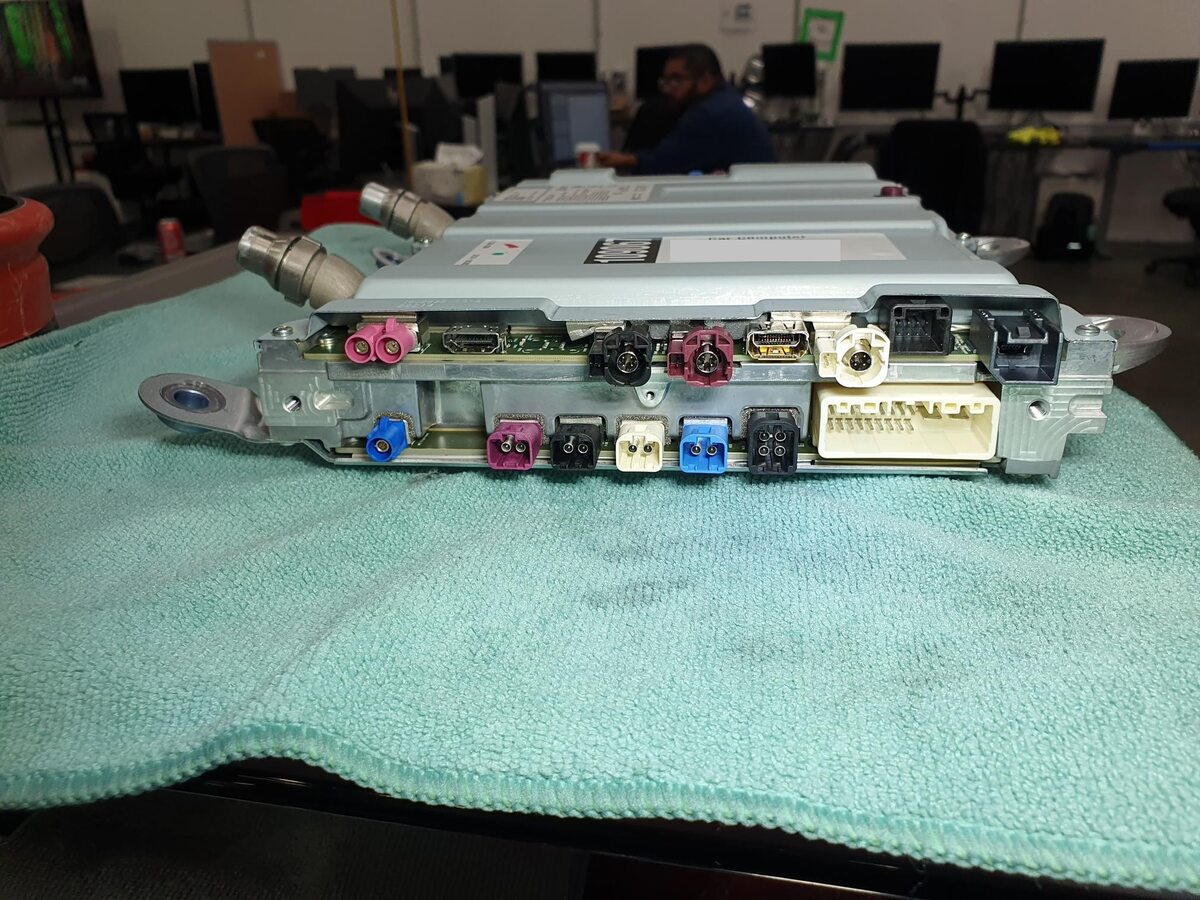

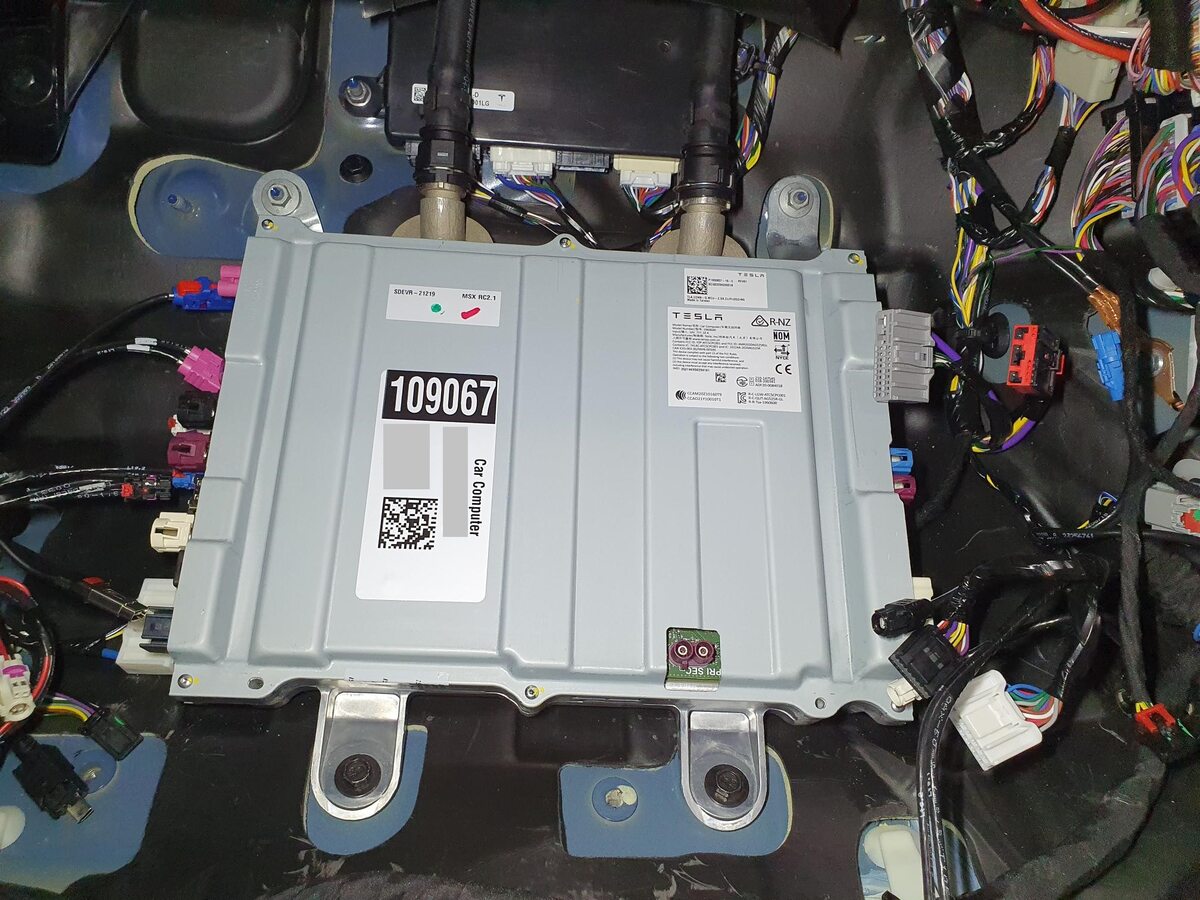

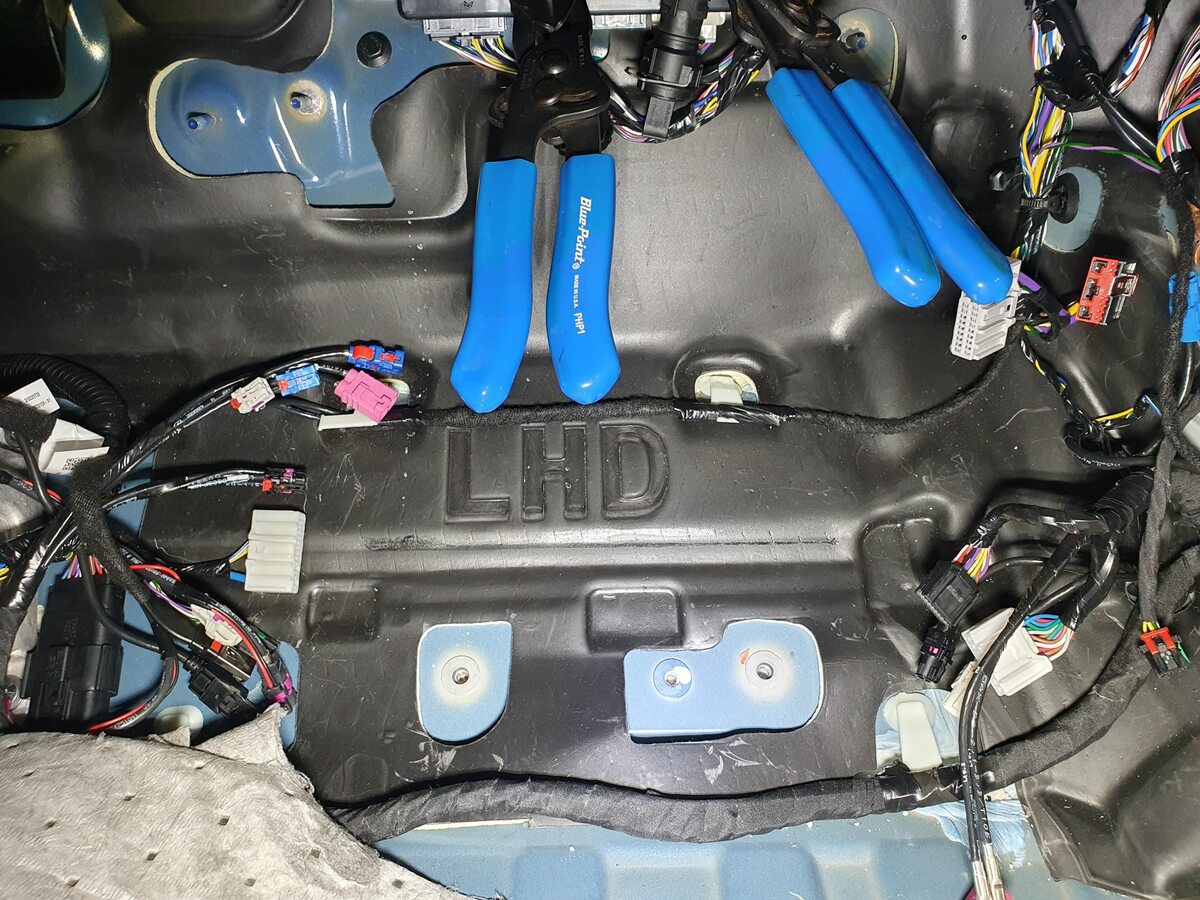

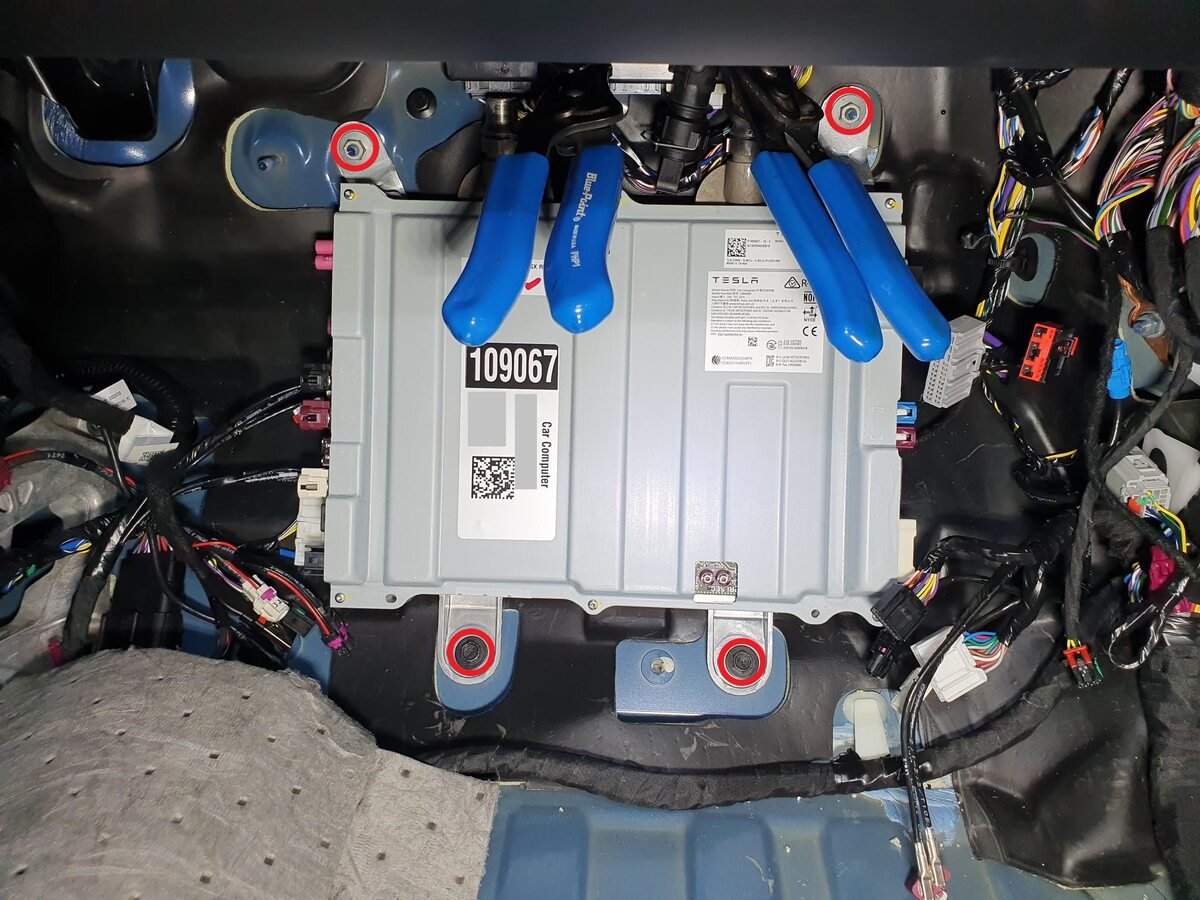

  27. Remove car computer from vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 10mm, 7 Nm, 2x nut, 10mm, 8 Nm, Remove any residual coolant from vehicle

Install

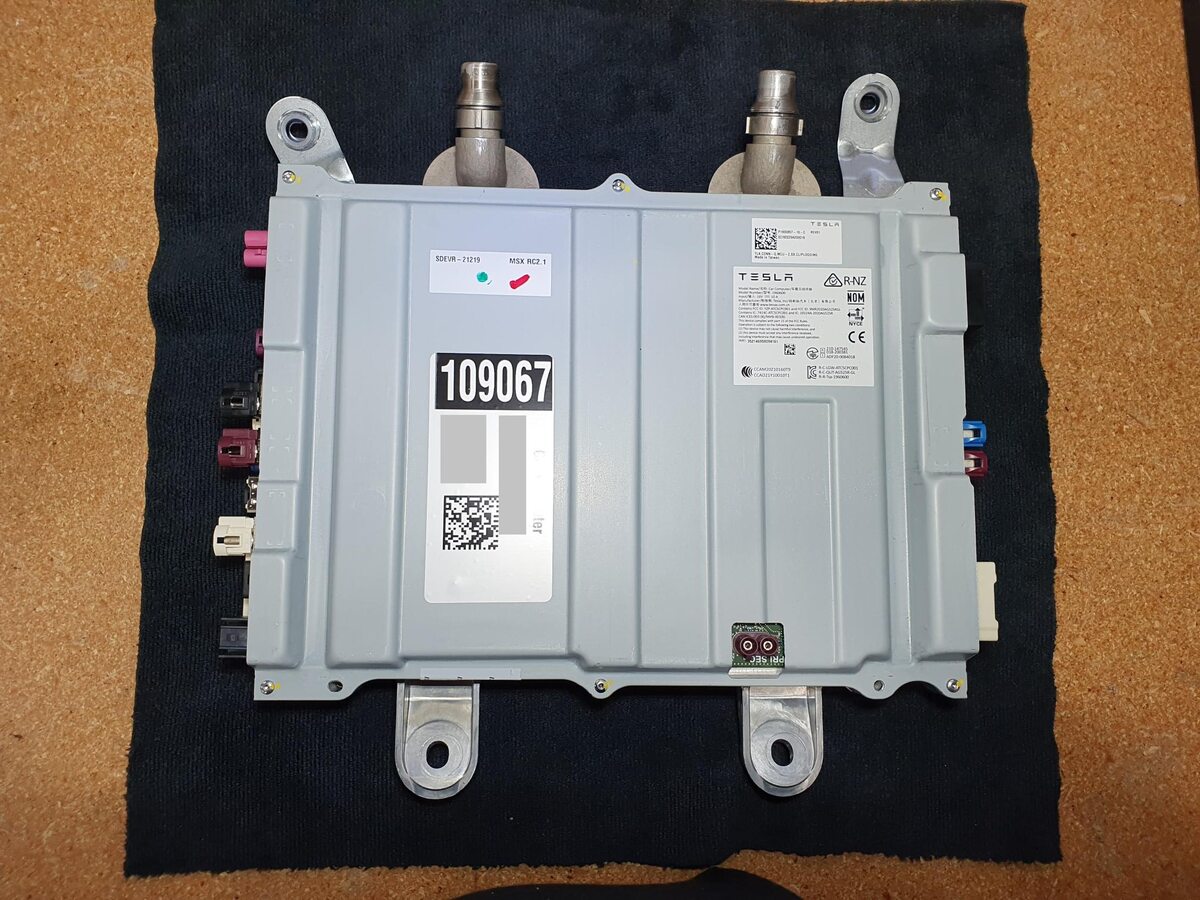

  1. Install car computer to vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 10mm, 7Nm, 1x nut, 10mm, 8Nm
  2. Secure coolant hoses to car computer coldplate assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    2x spring locks, Place coolant absorbent mats or rags around the car computer, Remove coolant plugs while leaving coolant clamps engaged, Ensure spring locks engage and perform pull-push-pull test on each hose coupling
  3. Remove coolant hose clamps
    Informational PurposesAn informational icon, calling your attention
    Note
    2x hoses, Remove absorbent material, Clean residual fluid, Inspect for leaks
  4. Install connections at LH side of Autopilot motherboard
    Informational PurposesAn informational icon, calling your attention
    Note
    5x connectors, Secure locks on connectors after install
  5. Install connections at LH side of entertainment motherboard
    Informational PurposesAn informational icon, calling your attention
    Note
    7x connectors, Secure locks on connectors after install
  6. Install connectors at RH side of Autopilot motherboard
    Informational PurposesAn informational icon, calling your attention
    Note
    3x connectors
  7. Install connectors at RH side of entertainment motherboard
    Informational PurposesAn informational icon, calling your attention
    Note
    6x connectors, Secure locks on connectors after install
  8. Install connector to connectivity module
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Slide lock underneath connector
  9. Perform a cooling system vacuum refill. See Cooling System (Vacuum Refill).
  10. Install RH footrest panel
    Informational PurposesAn informational icon, calling your attention
    Note
    Rotate RH footrest panel onto vehicle, Fold RH primary support carpet down
  11. Secure RH footrest panel
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 10mm, 5 Nm, 2x nut, 10mm, 5 Nm
  12. Secure harness to RH footrest panel
    Informational PurposesAn informational icon, calling your attention
    Note
    1x clip
  13. Fold RH main carpet back into place
  14. Install RH footwell cover
    Informational PurposesAn informational icon, calling your attention
    Note
    3x magnets, 4x datums, 1x connector
  15. Install RH lower A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, T25, 5 Nm, 2x clips, 1x datum
  16. Install RH mid A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    Note
    2x clips, 3x datums, Verify weather seal is seated properly
  17. Install RH IP end cap
    Informational PurposesAn informational icon, calling your attention
    Note
    3x clips
  18. Install RH front door sill trim panel
    Informational PurposesAn informational icon, calling your attention
    Note
    8x clips, 3x datums
  19. Install RH console side carpet
    Informational PurposesAn informational icon, calling your attention
    Note
    11x clips, 2x datums
  20. Install RH front floor mat
  21. Move the RH front seat to its original position.
  22. Calibrate the RH falcon wing door.
  23. Raise the RH front window.
  24. Close the RH front door.
  25. Install the underhood storage unit. See Underhood Storage Unit (Remove and Install).
  26. Install the rear underhood apron.
  27. Close the hood.
  28. Calibrate the LH falcon wing door.
  29. Raise the LH front window.
  30. Close the LH front door.
