Housing - Filter - HEPA (Remove and Replace)
Correction code
18105522
1.38
NOTE: Unless otherwise explicitly
stated in the procedure, the above correction code and FRT reflect all of the work
required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate Times to learn
more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com.
NOTE: See Personal Protection to make sure proper PPE is worn when
performing the below
procedure.
Warning
This procedure is a DRAFT.
Although it has been validated, Warnings and Cautions might be missing. Follow safety
requirements and use extreme caution when working on or near High Voltage systems and
components.
-

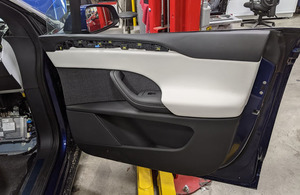

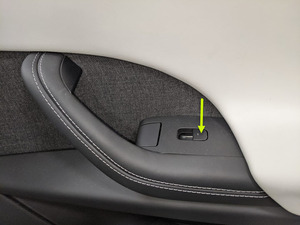

Open RH front door
-
Lower RH front window
-

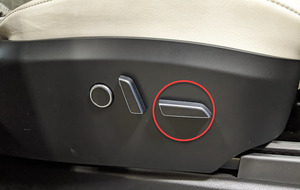

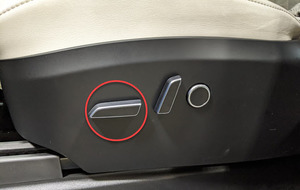

Move RH front seat backward
-

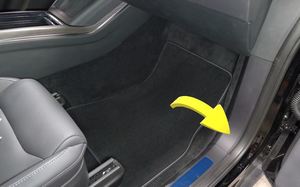

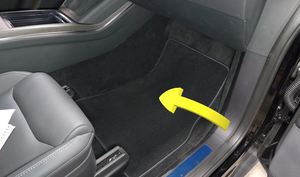

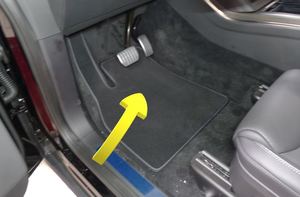

Remove RH front floor mat
-

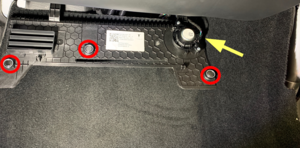

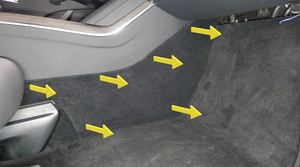

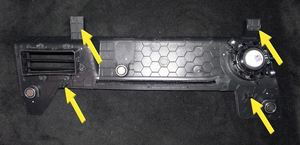

Remove RH footwell cover
Note3x magnets, 1x connector, 4x datums
-

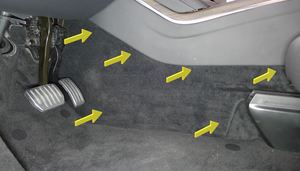

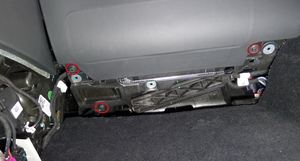

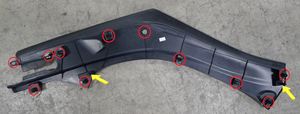

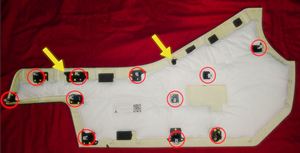

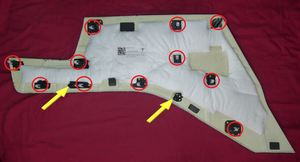

Remove RH console side carpet
Note11x clips, 2x datums
-

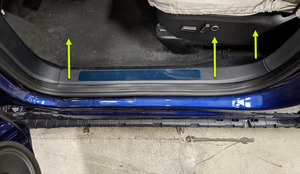

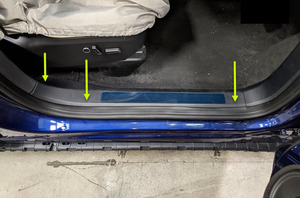

Remove RH front sill plate
Note5x clips
-

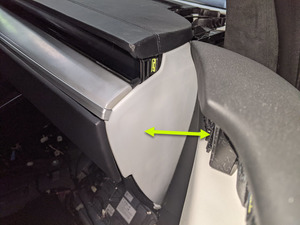

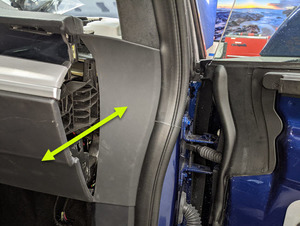

Remove RH IP end cap
Note3x clips
-
Remove RH mid A-pillar trim
Note1x clip, 1x locating clip
-

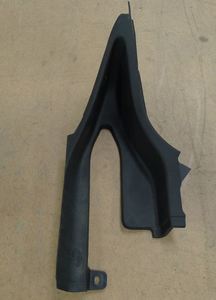

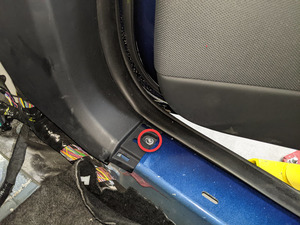

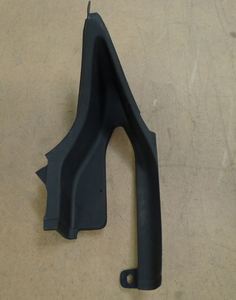

Remove RH lower A-pillar trim
Note1x bolt, T25, 5 Nm, 2x clips
-

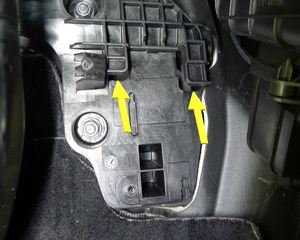

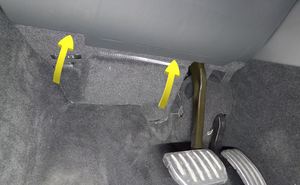

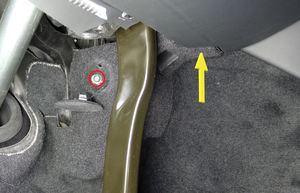

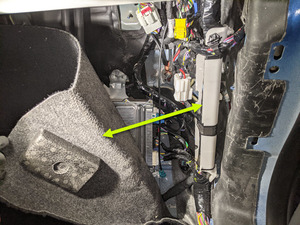

Fold RH front cabin carpet aside for access
-

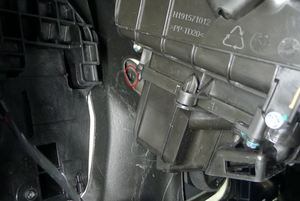

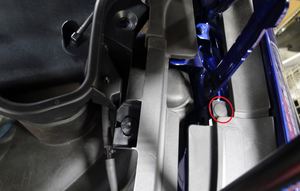

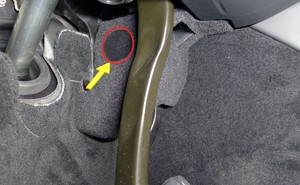

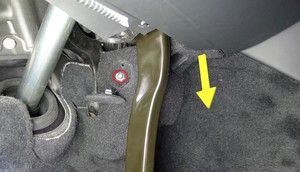

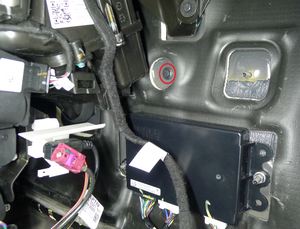

Release RH HEPA assembly lower dash bolt
Note1x bolt, 10mm, 7Nm
- Open LH front door
-
Move LH front seat backward
-

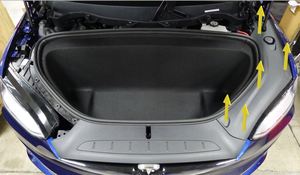

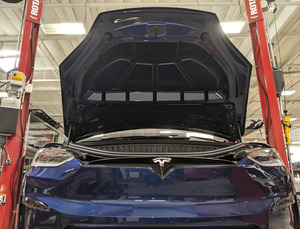

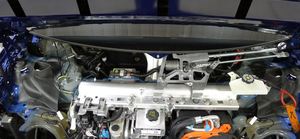

Open hood

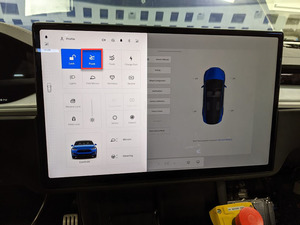

NoteVia center display > Controls > Frunk Open
-

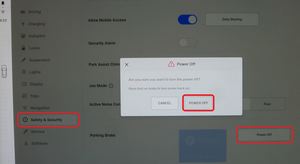

Power off vehicle via center display
NoteControls > Safety & Security > Power Off
-

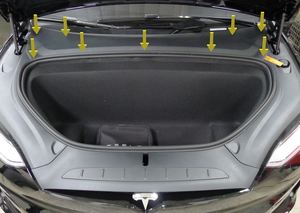

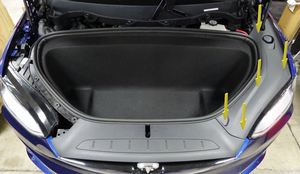

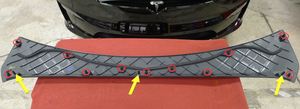

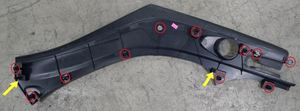

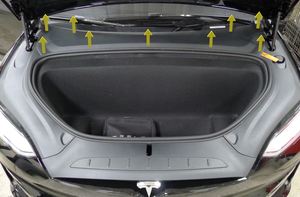

Remove rear underhood apron
Note11x clips, 2x datums
-

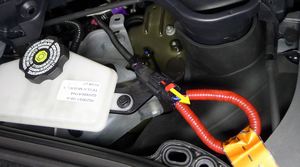

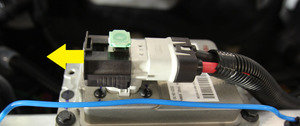

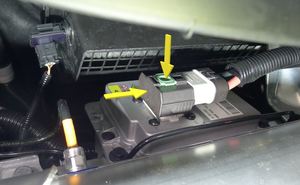

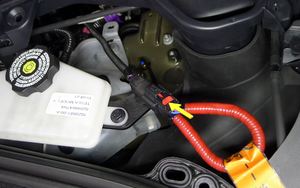

Disconnect LV battery connector and First Responder Loop
Note2x connectors, Lift up and release green locking tab, Pull black connector lock outwards to release connection, Release red lock tab on FRL
-

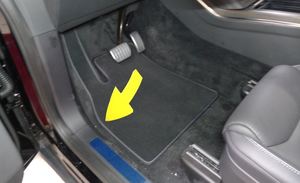

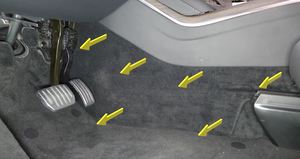

Remove LH front floor mat
-

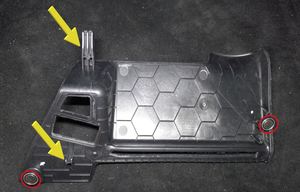

Remove LH outboard footwell cover
Note2x magnets, 2x datums
-

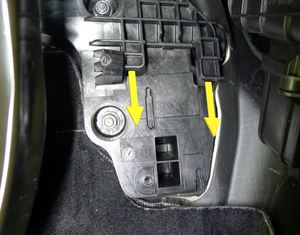

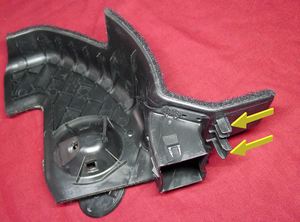

Remove LH inboard footwell cover
Note1x cover, 1x clip, 1x datum, 1x screw, 8 mm, 1 Nm
-

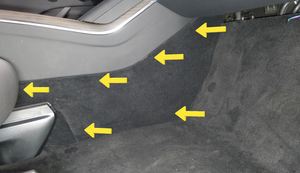

Remove LH console side carpet
Note11x clips, 2x datums
-

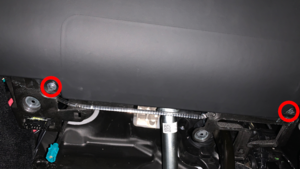

Remove fasteners securing LH knee air bag assembly to vehicle
Note2x patch bolts, E10, 8 Nm, Discard after removal
-

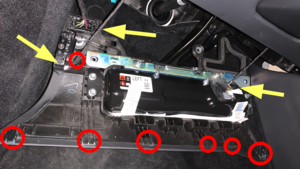

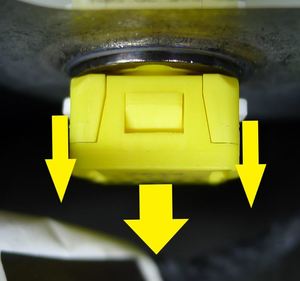

Remove the LH knee air bag assembly from vehicle
Note3x connectors, 1x clip, 6x tabs, Release 2x locking tab on airbag connector
-

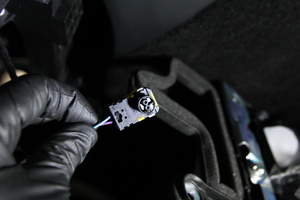

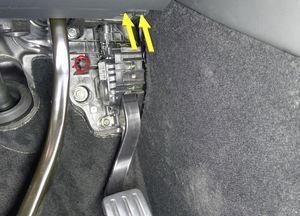

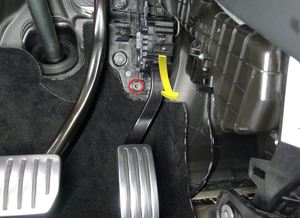

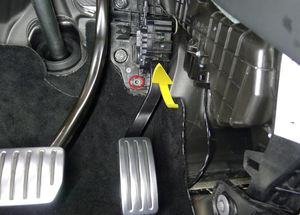

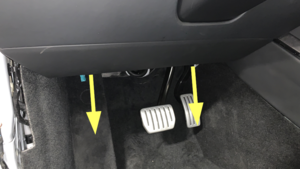

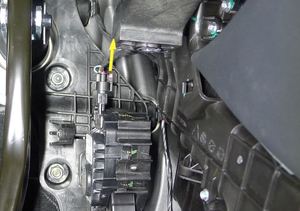

Disconnect accelerator pedal connector
Note1x connector, Do not push down on red tab, Pull red tab to disengage lock, Pull again to release connector
-

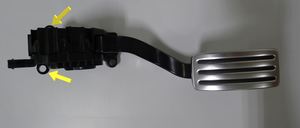

Release accelerator pedal from pedal assembly
Note1x screw, T30, 15 Nm, 2x datums, Release accelerator pedal downward out of assembly slots
-

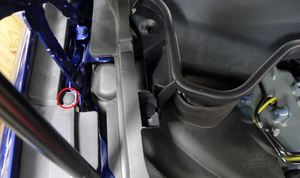

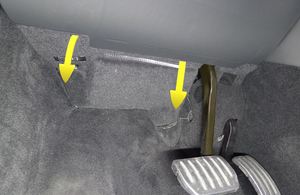

Release LH HEPA assembly lower dash bolt
Note1x bolt, 10mm, 7Nm
-

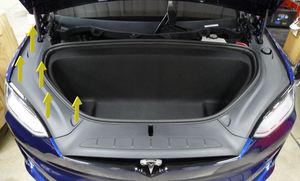

Remove RH underhood apron
Note11x clips, 2x datums, Remove brush clip at hinge cover first, Take note of clip at headlamp
-
Remove LH underhood apron
Note11x clips, 2x datums, Remove brush clip at hinge cover first, Take note of clip at headlamp
-

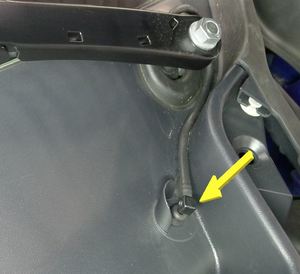

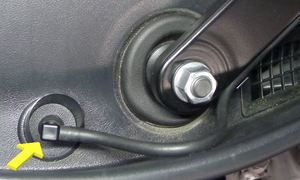

Release RH wiper arm hose nozzle
Note1x hose
-

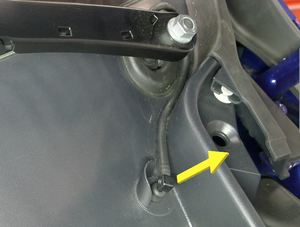

Release LH wiper arm hose nozzle
Note1x hose
-

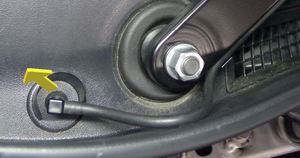

Remove LH wiper arm nut cover
Note1x cover
-
Remove RH wiper arm nut covers
Note2x cover
-

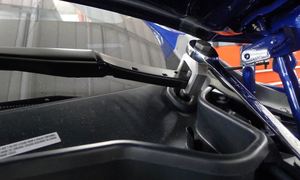

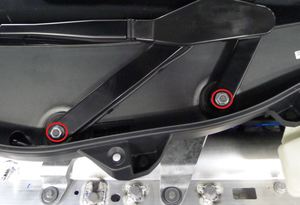

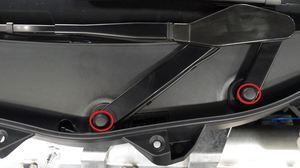

Remove RH wiper arm nuts and release assembly

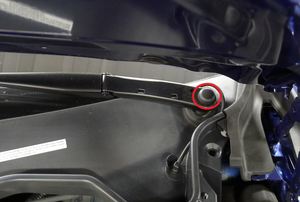

Note2x nuts, 15mm, 32 Nm, Do not flex wiper arm to remove
-

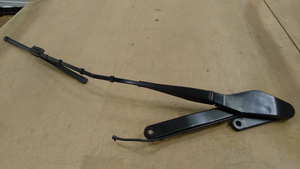

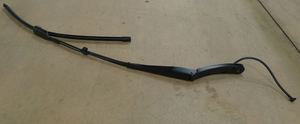

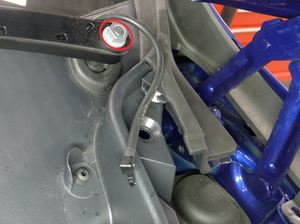

Remove LH wiper arm nut and release assembly
Note1x nut, 15mm, 32 Nm, Do not flex wiper arm to remove, Lower the hood slightly to fit wiper arm removal tool
-

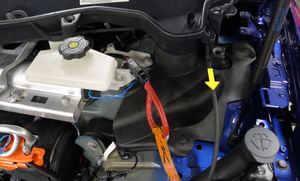

Release cowl screen washer supply hose located above LH shock tower cover
Note1x hose
-

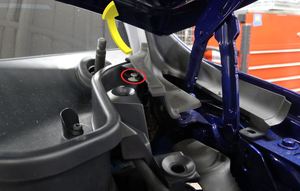

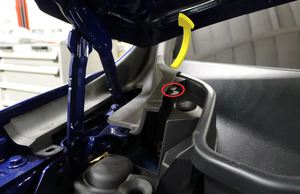

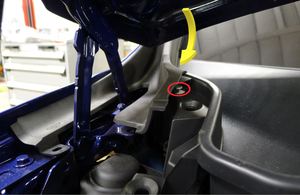

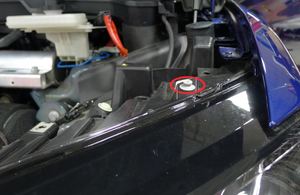

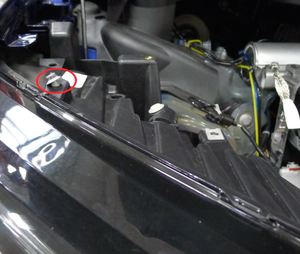

Remove LH outer hood hinge cover
Note1x clips
-
Remove RH outer hood hinge cover
Note1x clips
-

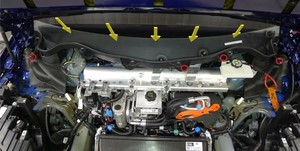

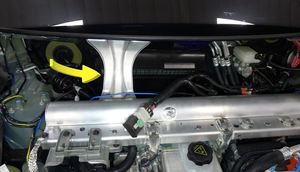

Remove wiper cowl screen panel
Note4x push clips, Pull cowl up out of lower windshield channel
-

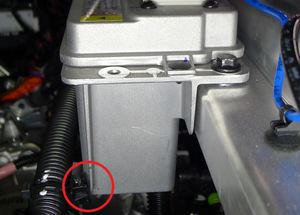

Release coolant hose from LV battery
Note1x clip
-

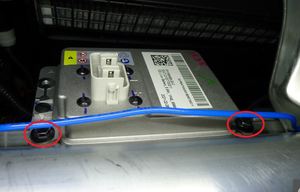

Remove fasteners securing the LV battery and remove assembly
Note3x bolts, 10mm, 9 Nm, 2x locators
-

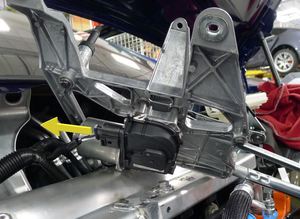

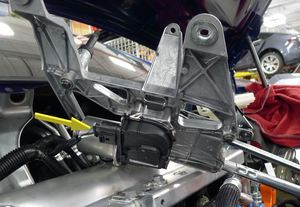

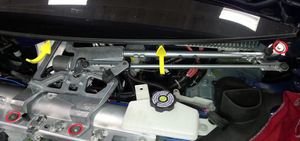

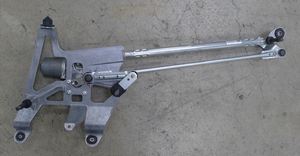

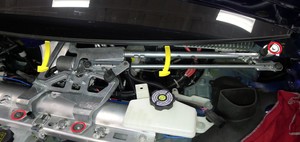

Remove wiper module
Note3x bolts, 10mm, 9 Nm, 1x connector, Rotate module forward and up to access connector
-

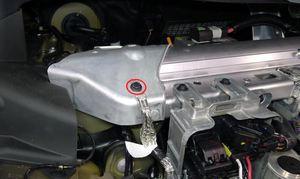

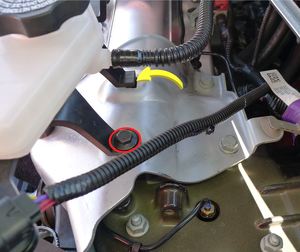

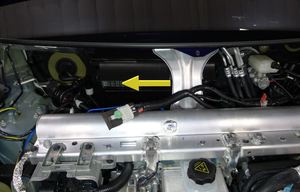

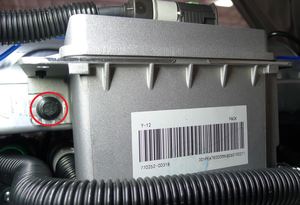

Remove bolt securing front controller ground cable
Note1x bolt, 10mm, 10 Nm
-

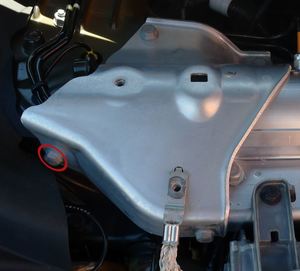

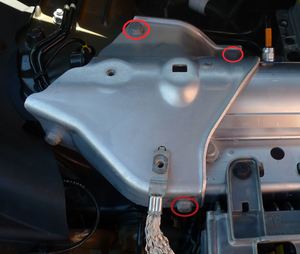

Release RH FST cap from multi-system beam
Note3x bolts, 13mm, 22 Nm
-

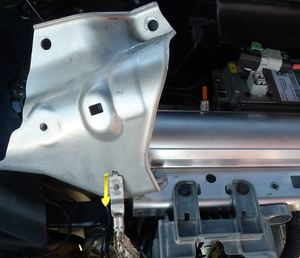

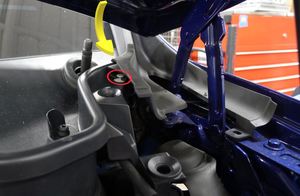

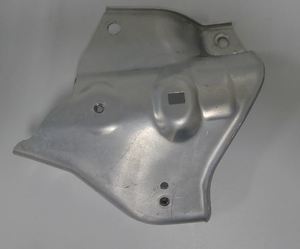

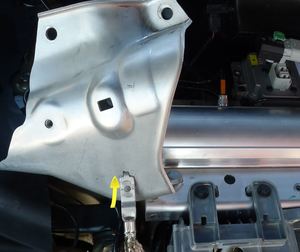

Release RH FST cap from shock tower and remove from vehicle
Note1x bolt, 13mm, 14 Nm, Release keyed ground strap from RH FST cap after removal
-

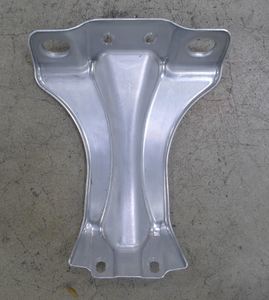

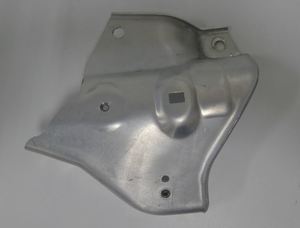

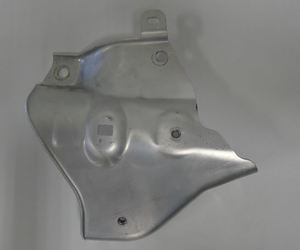

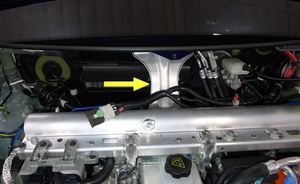

Remove wiper mount bracket
Note4x bolts, 13mm, 25 Nm, Slide bracket to towards the RH shock tower along the multi-system beam to clear the HEPA filter housing to remove
-

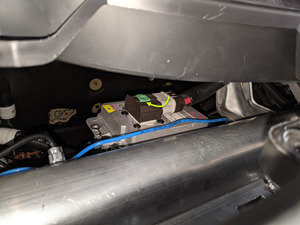

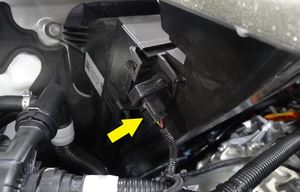

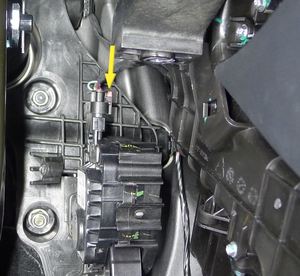

Disconnect air quality sensor harness
Note1x connector
-

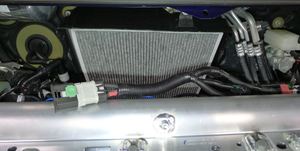

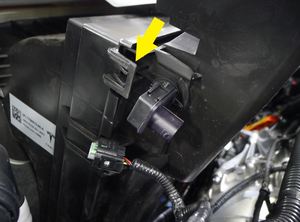

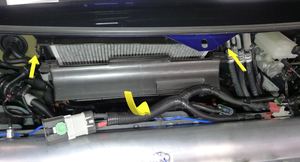

Remove HEPA filter assembly cover
Note2x tabs
-

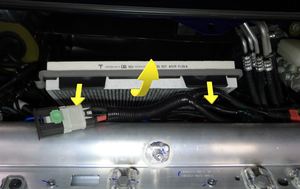

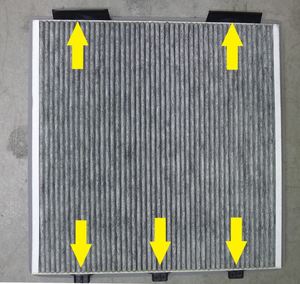

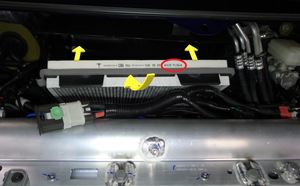

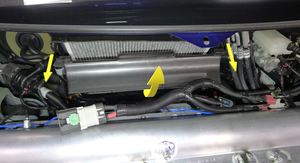

Remove HEPA filter
Note2x clips, Release clips, Pivot filter forward and out of housing
-

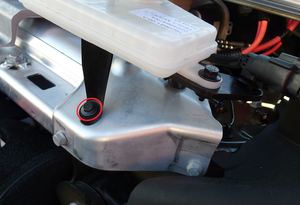

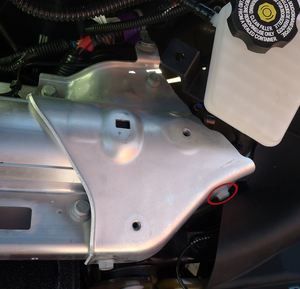

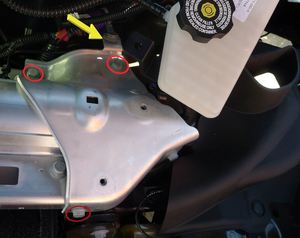

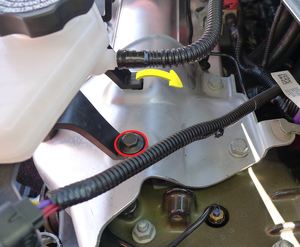

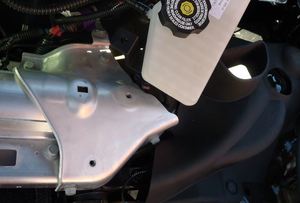

Release remote brake fluid reservoir from LH FST cap
Note2x bolts, 10mm 8 Nm, 1x datum, Rotate reservoir with bracket out of LH FST cap
-
Release LH FST cap from multi-system beam
Note3x bolts, 13mm, 22 Nm, 1x clip
-
Release LH FST cap from shock tower and remove from vehicle
Note1x bolt, 13mm, 14 Nm
-

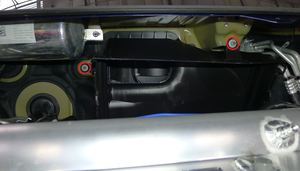

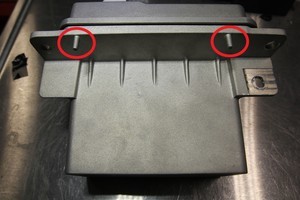

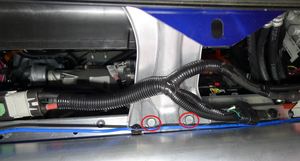

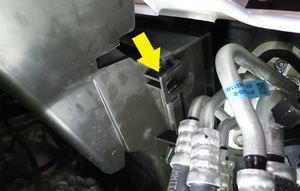

Release HEPA housing assembly
Note2x nuts, 10mm, 7 Nm
-

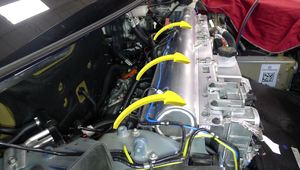

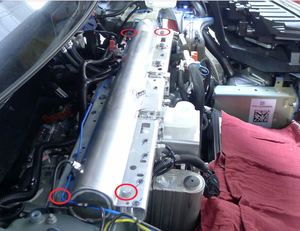

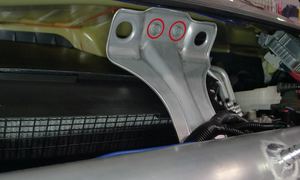

Release multi-system beam
Note4x bolts, 15mm, 31 Nm
-

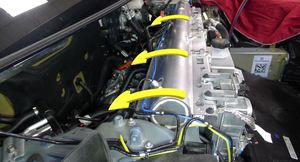

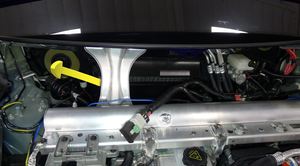

Position multi-system beam forward
NoteRecommend assistance, Lift and move multi-system beam forward and rest on front shock tower
-

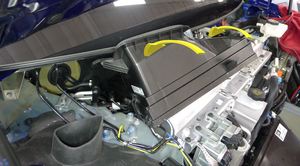

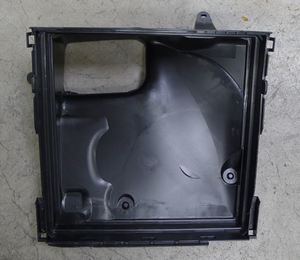

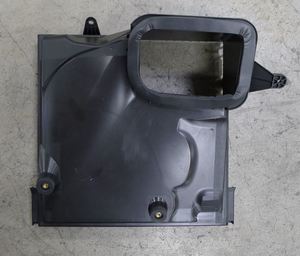

Remove HEPA Filter Housing
NoteRotate up and forward around re-positioned multi-system beam
-

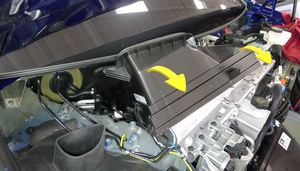

Install HEPA filter housing
NoteRotate down and rearward around multi-system beam
-
Return multi-system beam to original position
NoteRecommend assistance, Lift and move multi-system beam rearward on to front shock tower
-
Secure multi-system beam
Note4x bolts, 15mm, 31 Nm, Position beam and start bolts by hand
-
Secure HEPA housing assembly
Note2x nuts, 10mm, 7 Nm
-

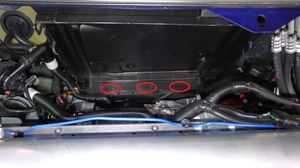

Install HEPA filter
Note3x datums, 2x clips, Align 3 datums into bottom of housing, Confirm air flow direction, Ensure clips lock and secure filter into housing
-

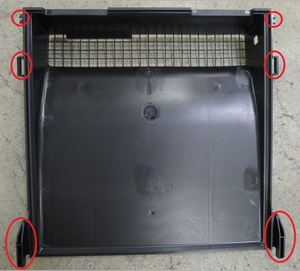

Install HEPA filter assembly cover
Note2x tabs, 2x datums, 2x slots, Fully engage seal and locking tabs
-
Connect air quality sensor harness
Note1x connector
-
Install wiper mount bracket
Note4x bolts, 13mm, 25 Nm, Slide bracket from the RH shock tower area along the multi-system beam to clear the HEPA filter housing for installation
-
Secure RH FST cap to shock tower
Note1x bolt, 13mm, 14 Nm, Insert keyed ground strap into RH FST cap before installation
-
Secure RH FST cap to multi-system beam
Note3x bolts, 13mm, 22 Nm
-
Install bolt securing front controller ground cable
Note1x bolt, 10mm, 10 Nm
-
Secure LH FST cap to shock tower
Note1x bolt, 13mm, 14 Nm
-
Secure LH FST cap to multi-system beam
Note3x bolts, 13mm, 22 Nm, 1x clip
-
Secure remote brake fluid reservoir to LH FST cap
Note2x bolts, 10mm 8 Nm, 1x datum, Rotate reservoir with bracket on to LH FST cap
-
Install wiper module
Note3x bolts, 10mm, 9 Nm, 1x connector, Secure connector before install, Rotate module rearward and up into place
-
Install LV battery to multi-system beam
Note3x bolts, 10mm, 9 Nm. 2x locators
-
Secure coolant hose to LV battery
Note1x clip
-
Install wiper cowl screen panel
Note4x push clips, Secure cowl into lower windshield channel
-
Secure cowl screen washer supply hose located above LH shock tower cover
Note1x hose
-
Install LH outer hood hinge cover
Note1x clips
-
Install RH outer hood hinge cover
Note1x clips
-

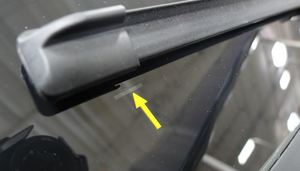

Install RH wiper arm assembly and secure nuts
Note2x nuts, 15mm, 32 Nm, Line up wiper to reference mark on windshield
-
Install LH wiper arm assembly and secure nut
Note1x nut, 15mm, 32 Nm
-
Secure LH wiper arm hose nozzle
Note1x hose, Hose is routed above the arm pivot
-
Secure RH wiper arm hose nozzle
Note1x hose, Hose is routed below the arm pivot
-
Install RH wiper arm nut covers
Note2x cover
-
Install LH wiper arm nut cover
Note1x cover
-
Install LH underhood apron
Note11x clips, 2 datums
-
Install RH underhood apron
Note11x clips, 2x datums
-
Secure LH HEPA assembly lower dash bolt
Note1x bolt, 10mm, 7Nm
-
Secure accelerator pedal to pedal assembly
Note1x screw, T30, 15 Nm, 2x datums, Secure accelerator pedal into assembly slots
-
Connect accelerator pedal connector
Note1x connector, Ensure lock fully engaged
-
Install the LH knee air bag assembly into vehicle
Note1x clip, 3x connectors, 6x tabs, Hook tabs before fully seating, Use caution not to damage the connector/harness, Support the knee air bag while connecting the connectors
-
Install fasteners securing RH knee air bag assembly to vehicle
Note2x bolts, 10mm, 8 Nm, 1x clip
-
Install LH console side carpet
Note11x clips, 2x datums
-
Install LH inboard footwell cover
Note1x cover, 1x clip, 1x datum, 1x screw, 8 mm, 1 Nm, Align datums and footwell vent before installing screw
-
Install LH outboard footwell cover
Note2x magnets, 2x datums
-
Install LH front floor mat
-
Connect First Responder Loop and LV battery connector
Note2x connectors, Secure FRL first, Seat LV battery connection and push black connector lock inwards to secure, Engage upper locking tab when fully seated
-

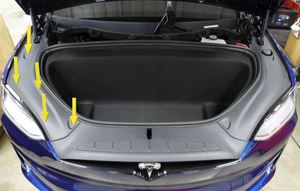

Install rear underhood apron
Note11x clips, 2x datums
-
Close hood
-
Move LH front seat to original position
-
Calibrate the rear doors.
NoteIf the "Calibration Needed" message appears on the vehicle touchscreen, touch and hold Calibrate to calibrate the rear doors.
- Close LH front door
-
Secure RH HEPA assembly lower dash bolt
Note1x bolt, 10mm, 7Nm
-
Fold RH main carpet back into place
-
Install RH console side carpet
Note11x clips, 2x datums
-
Install RH footwell cover
Note3x magnets, 4x datums, 1x connector
-
Install RH lower A-pillar trim
Note1x bolt, T25, 5 Nm, 2x clips
-
Install RH mid A-pillar trim
Note1x clip, 1x locating clip, Verify weather seal is seated properly
-
Install RH IP end cap
Note3x clips
-
Install RH front sill plate
Note5x clips
-
Install RH front floor mat
-
Move RH front seat to original position
- Raise RH front window
- Close RH front door
