Glass - Door Mirror - LH (Remove & Replace)

Correction code 12092002 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

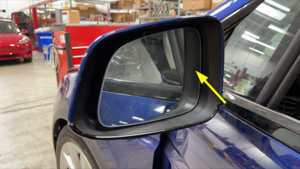

  1. Gently push the inboard side of the LH door mirror glass into the LH door mirror assembly.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Be careful not to damage any components.

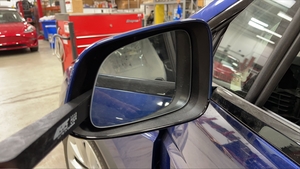

  2. Use a plastic trim tool to release the clips (x8) that attach the LH door mirror glass to the door mirror assembly, and then release the glass from the assembly.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Do not completely remove the glass from the assembly as there is still an electrical connector connected.

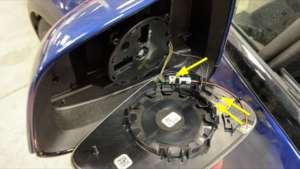

  3. Disconnect the harness electrical connectors (x3) from the rear of the LH door mirror glass, and then remove the glass from the assembly.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use a small flathead screwdriver to release the connectors.

Install

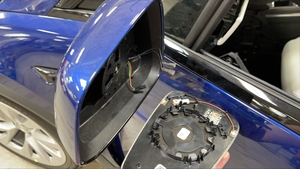

  1. Connect the harness electrical connectors (x3) to the rear of the LH door mirror glass.

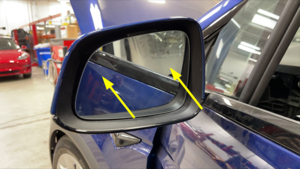

  2. Align the clips (x8) on the back of the LH door mirror glass with the LH door mirror assembly, and then press the glass into the assembly until the clips are fully secured.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Be careful not to pinch any wires or damage any mirror components.
  3. Adjust the LH door mirror glass to the center position.
