Applique - Spoiler (Remove and Replace)

Correction code 12222202 0.72 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Warning IconA warning icon, calling your attention to a possibly risky situation
CAUTION
For Europe only: Only technicians who have been trained in working with diisocyanates and have completed all required certification courses are permitted to perform procedures using urethane and other products containing diisocyanates. Proper personal protective equipment (PPE) must be worn when working with products containing diisocyanates.

Remove

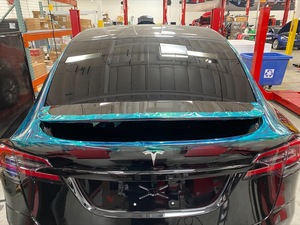

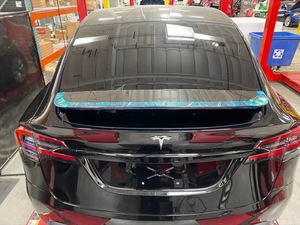

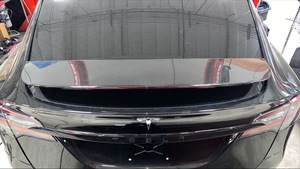

  1. Apply masking tape to the surrounding work area of the spoiler assembly to prevent damage to vehicle.

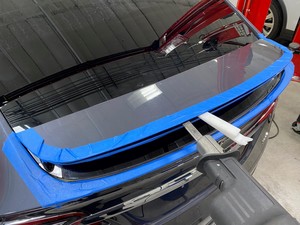

  2. Apply tape to surrounding work area of the liftgate to prevent damage to liftgate.

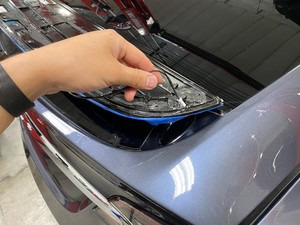

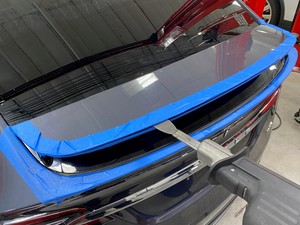

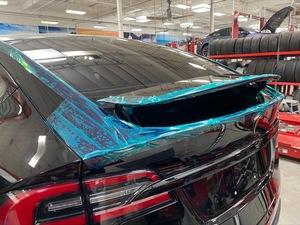

  3. Carefully insert an equalizer blade between the spoiler applique and lower spoiler to cut through the urethane, and the remove the spoiler applique from the lower spoiler.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use a wedge to help separate the applique to allow for additional clearance for the equalizer blade to access the urethane and prevent contact to the body.

Install

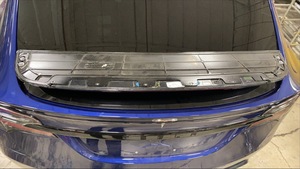

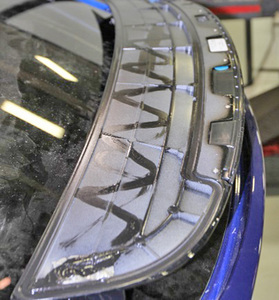

  1. Clean and remove excess urethane from the surface of the spoiler lower wing assembly.

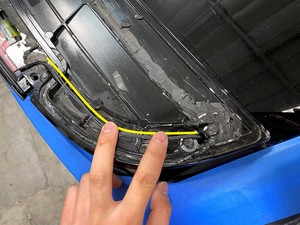

  2. Make sure the CHMSL lamp harness is routed properly on the lower spoiler assembly.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use tape to secure the harness onto the lower spoiler wing assembly.
  3. Apply beta seal primer onto the spoiler lower wing assembly.

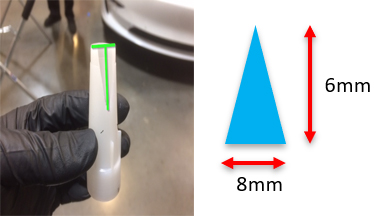

  4. Prepare the caulking gun and urethane.

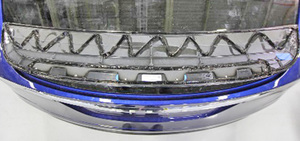

  5. Apply beta seal express onto the surface of spoiler lower wing assembly.

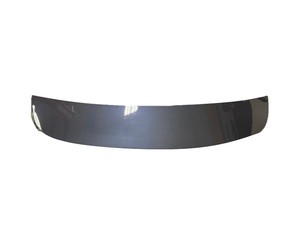

  6. Install the spoiler applique onto the spoiler lower wing assembly.
    Informational PurposesAn informational icon, calling your attention
    Note
    Check the gaps and fitment from side to side and front to back, and adjust as necessary.
    Informational PurposesAn informational icon, calling your attention
    Note
    Apply equal pressure when applying the applique.
    Informational PurposesAn informational icon, calling your attention
    Note
    If needed, use tape to attach the applique to the lower wing assembly.
    Informational PurposesAn informational icon, calling your attention
    Note
    Allow 1 hour for the urethane dry time.
    Informational PurposesAn informational icon, calling your attention
    Note
    Remove the masking tape after the dry time has passed.
