Light - Glove Box (Remove and Replace)

Correction code 17350012 0.60 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Remove the glove box assembly from the vehicle. See Glove Box (Remove and Replace).

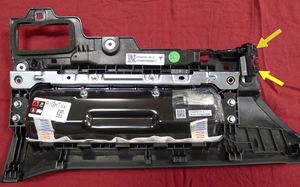

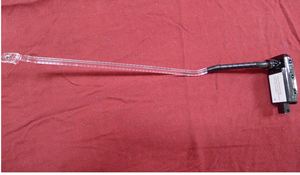

  2. Remove the screw that attaches the functional light engine to the glove box assembly, and then release the light engine from the assembly.
    2.5 Nm (1.8 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 socket

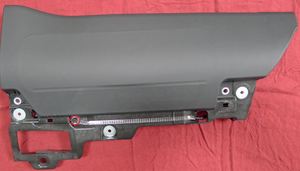

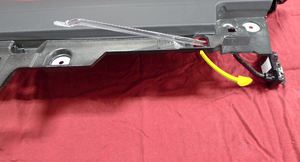

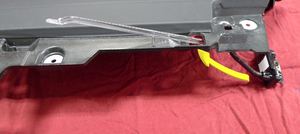

  3. Remove the screw that attaches the glove box light to the glove box assembly, and then guide the light assembly through the opening in the glove box housing to remove it from the glove box assembly.
    2.5 Nm (1.8 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 socket

Install

  1. Position the glove box light into the glove box assembly, guide the light assembly through the opening in the glove box housing, and then install the screw that attaches the light to the glove box assembly.
    2.5 Nm (1.8 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 socket
  2. Position the functional light engine into the glove box assembly, and then install the screw that attaches the light engine to the assembly.
    2.5 Nm (1.8 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 socket
  3. Install the glove box assembly into the vehicle. See Glove Box (Remove and Replace).
