Substrate - Cushion - 3rd Row (Remove and Replace)

Correction code 13093802 0.66 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the LH and RH front doors.
  2. Lower the LH and RH front windows.
  3. Open the LH and RH falcon wing doors.
  4. Move the LH and RH front seats forward.
  5. Move the LH and RH monopost seats forward.
  6. On the touchscreen, touch Controls > Frunk Open.
  7. Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
  8. Open the liftgate.
  9. Remove the rear trunk load floor. See Trunk Load Floor - Rear (Remove and Replace).
  10. Remove the rear trunk floor NVH insulator. See NVH Insulator - Floor - Rear Trunk (Remove and Replace).
  11. Remove the rear trunk carpet. See Carpet - Rear Trunk (7 Seat) (Remove and Replace).
  12. On the touchscreen, touch Controls > Safety & Security > Power Off.
  13. Disconnect LV power. See LV Power (Disconnect and Connect).
  14. Remove the LH and RH 3rd row tray harnesses. See Tray Harness - 3rd Row - LH (Remove and Replace).
  15. Remove the 3rd row seat cushion. See Cushion - Seat - 3rd Row (Remove and Replace).

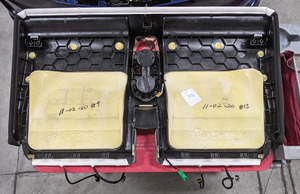

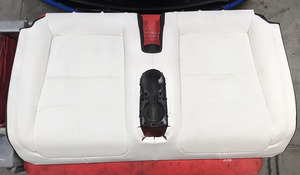

  16. Flip the 3rd row cushion over to access the bottom side of the cushion.
    Informational PurposesAn informational icon, calling your attention
    Note
    Place cushion on protected surface.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Fender cover - 115212-00-A

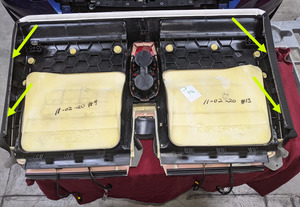

  17. Release the tabs (x4) that attach the 3rd row cushion cover to the rear corners of cushion substrate.

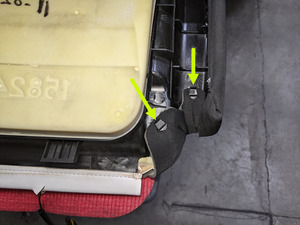

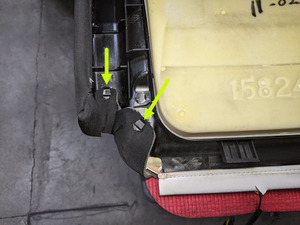

  18. Release the J-hooks (x2) that attach the 3rd row cushion cover to the rear end of the cushion substrate.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Pick Miniature Soft Grip, 90 degree tip, 6 in
  19. Feed the 3rd row cushion connectors (x4) through the rear end of the cushion cover.

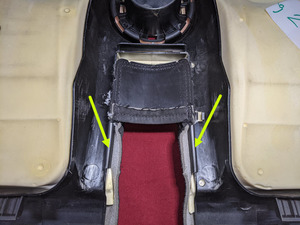

  20. Release the J-hooks (x2) that attach the 3rd row cushion cover to the cup holder.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Pick Miniature Soft Grip, 90 degree tip, 6 in

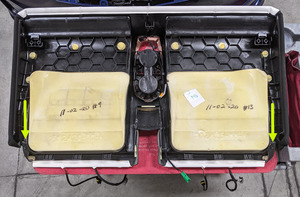

  21. Release the J-hooks (x2) that attach the 3rd row cushion cover to both sides of the 3rd row cushion substrate.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Pick Miniature Soft Grip, 90 degree tip, 6 in

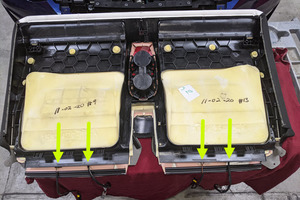

  22. Release the J-hooks (x2) that attach the 3rd row cushion cover to the front end of the 3rd row cushion substrate.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Pick Miniature Soft Grip, 90 degree tip, 6 in

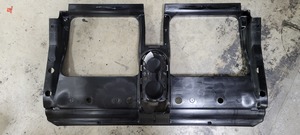

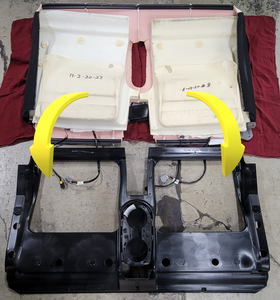

  23. Remove the 3rd row cushion substrate from the cushion cover.

Install

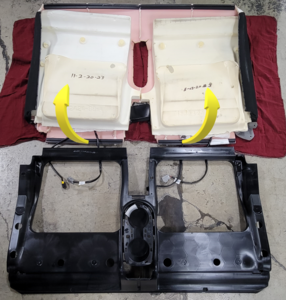

  1. Install the new 3rd row cushion substrate on the cushion cover.
  2. Flip the 3rd row cushion assembly to access the bottom side.
  3. Install the J-hooks (x2) that attach the 3rd row cushion cover to the rear end of the cushion substrate.
  4. Install the J-hooks (x2) that attach the 3rd row cushion cover to both sides of the 3rd row cushion substrate.
  5. Install the J-hooks (x2) that attach the 3rd row cushion cover to the cup holder.
  6. Feed the 3rd row cushion connectors (x4) through the cushion cover.
  7. Install the J-hooks (x2) that attach the 3rd row cushion cover to the front end of the 3rd row cushion substrate.
  8. Install the tabs (x4) that attach the 3rd row cushion cover to the rear corners of cushion substrate.
  9. Flip the 3rd row cushion assembly to access the topside, and then inspect for any fitment issues.
    Informational PurposesAn informational icon, calling your attention
    Note
    If issues are present, correct the trim fitment, and then continue the procedure.
  10. Install the 3rd row seat cushion. See Cushion - Seat - 3rd Row (Remove and Replace).
  11. Install the LH and RH 3rd row tray harnesses. See Tray Harness - 3rd Row - LH (Remove and Replace).
  12. Install the rear trunk carpet. See Carpet - Rear Trunk (7 Seat) (Remove and Replace).
  13. Install the rear trunk floor NVH insulator. See NVH Insulator - Floor - Rear Trunk (Remove and Replace).
  14. Install the rear trunk load floor. See Trunk Load Floor - Rear (Remove and Replace).
  15. Connect LV power. See LV Power (Disconnect and Connect).
  16. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
  17. Close the hood.
  18. Close the liftgate.
  19. Move the LH and RH monopost seats to original position.
  20. Move the LH and RH front seats to original position.
  21. Calibrate the rear doors.
    Informational PurposesAn informational icon, calling your attention
    Note
    If the "Calibration Needed" message appears on the vehicle touchscreen, touch and hold Calibrate to calibrate the rear doors
  22. Raise the LH and RH front windows.
  23. Close the LH and RH front doors.
