Side Shield - Inboard - Driver Seat (Remove and Replace)

Correction code 13041122 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the LH front door and lower the LH front window.
  2. Move the driver seat rearwards.
  3. Open the RH falcon wing door.

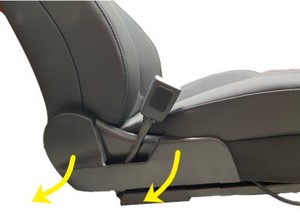

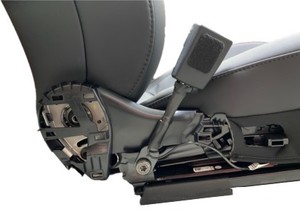

  4. Carefully release the clips (x7) that attach the driver seat inboard side shield to the seat assembly.

Install

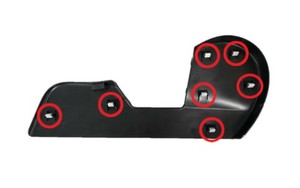

  1. Position the driver seat inboard side shield onto the seat assembly, and then fasten the clips (x7) that attach the side shield to the assembly.
  2. Close the RH falcon wing door.
  3. Move the drive seat to the original position.
  4. Raise the LH front window and close the LH front door.
