Applique - Liftgate (Remove and Replace)

Correction code 12207002 0.60 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

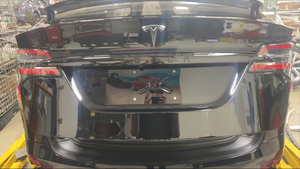

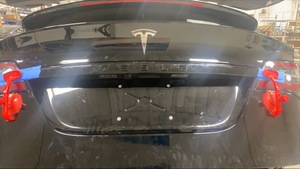

  1. Apply masking tape around the liftgate applique.

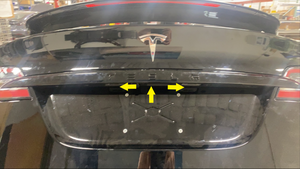

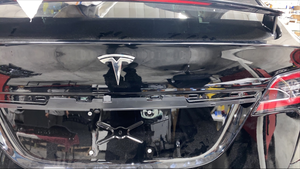

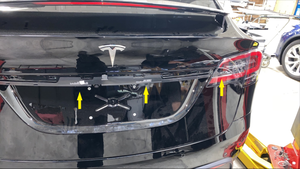

  2. Use a plastic trim tool to release the clips (x6) and a badge removal kit to separate the liftgate applique from the liftgate, and then remove the applique from the liftgate.
    Informational PurposesAn informational icon, calling your attention
    Note

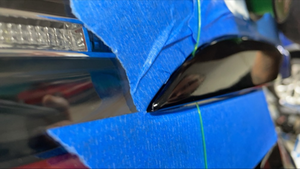

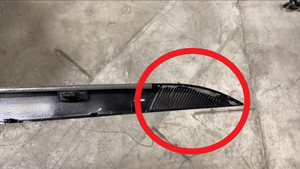

    The double sided tape is located on each end where the applique over laps the liftgate tail lights.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Be careful not to damage the body of the vehicle.
  3. Use a thumb to roll off any remaining adhesive, and then use an IPA wipe to clean any remaining residue.
    Informational PurposesAn informational icon, calling your attention
    Note
    Allow 1 minute for IPA to dry.

Install

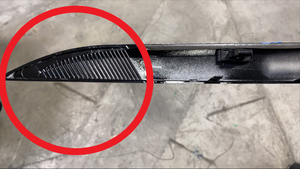

  1. Install the applique tape onto the applique bracket and applique.
    Informational PurposesAn informational icon, calling your attention
    Note
    Peel away the new adhesive film when ready to install.

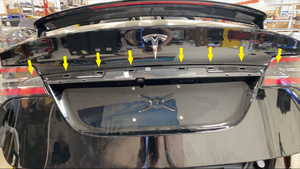

  2. Using the applique clips for alignment, position the liftgate applique onto the liftgate, secure the clips (x6) that attach the applique to the liftgate, and then secure the adhesive at each end.
    Informational PurposesAn informational icon, calling your attention
    Note
    Start at the center of the liftgate applique and work outwards.
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure the clips are fully secured before adhering the ends of the applique.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use a seam roller to adhere the applique.

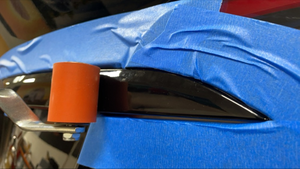

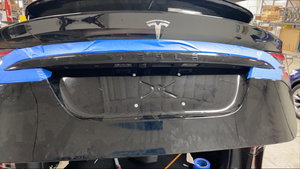

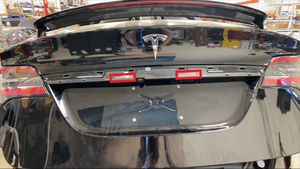

  3. After the liftgate applique clips are fully secured, apply masking tape to both ends of the liftgate applique, and then secure molding hold down fixtures to both ends of the liftgate applique. Allow the applique to set for 5 minutes.
  4. Remove the masking tape and molding hold down fixtures from the vehicle, and then remove any remaining residue from the applique.
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure the liftgate applique is thoroughly cleaned.
