Bumper - Front - Rear Door - Upper - LH (Remove and Replace)

Correction code 11339502 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the LH falcon wing door.

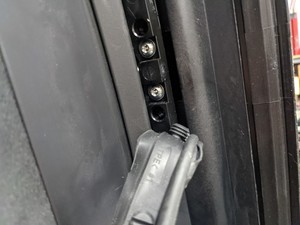

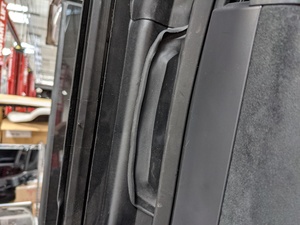

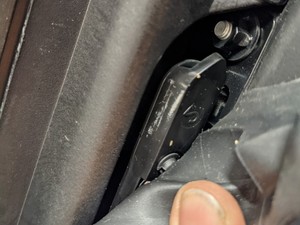

  2. Release the tabs (x2) and rubber clips (x2) that attach the LH upper rear door front bumper to the vehicle, and then remove the bumper from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note

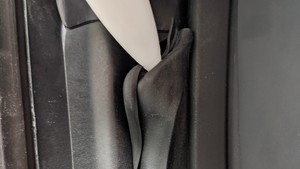

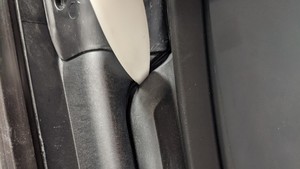

    Use a plastic trim tool to separate the bumper from the trim.
    Informational PurposesAn informational icon, calling your attention
    Note

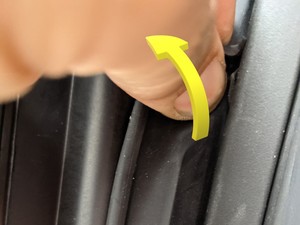

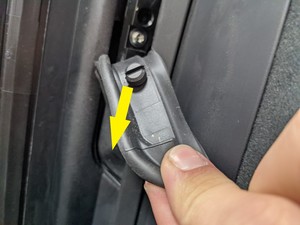

    Start from the upper tab, and then gently pull down and away from the door.

Install

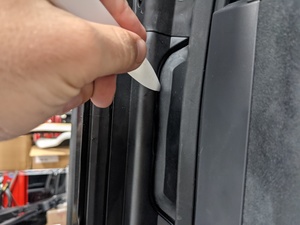

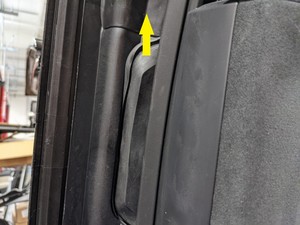

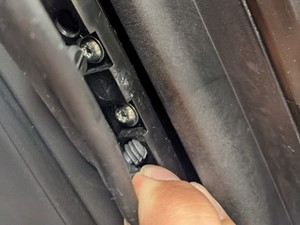

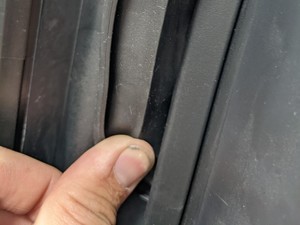

  1. Position the LH upper rear door front bumper into the vehicle, secure the lower tab, push in the lower clip, push in the upper clip, and then lift the top of the bumper over the upper tab. Use a trim tool to tuck the bumper into the upper falcon wing glass.
  2. Close the LH falcon wing door.
