Bracket - Zone - C-Pillar - Mid - LH (5 Seat) (Remove and Replace)

Correction code 15186612 0.42 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components.

Remove

  1. Open the LH rear door.
  2. Open the liftgate.
  3. Fold the 2nd row seat backs to the down position.
  4. Remove the front trunk load floor. See Trunk Load Floor - Front (Remove and Replace).
  5. Remove rear trunk gap hider. See Gap Hider - Trunk (5 Seat) (Remove and Replace).
  6. Remove the LH trunk load floor bracket cover. See Cover - Bracket - Trunk Load Floor - LH (Remove and Replace).
  7. Remove the LH side rear trunk garnish. See Garnish - Rear Trunk - Side - LH (Remove and Replace)
  8. Remove the LH mid C-pillar trim. See Trim - C-Pillar - Mid - LH (Remove and Replace).
  9. Remove the LH upper C-pillar trim. See Trim - C-Pillar - Upper - LH (Remove and Replace).
  10. Remove the LH rear sill panel trim. See Trim - Sill Panel - Rear - LH (Remove and Replace).
  11. Remove the LH lower C-pillar trim. See Trim - C-Pillar - Lower - LH (Remove and Replace).

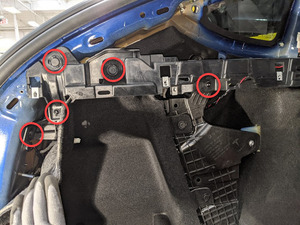

  12. Remove the push clips (x3) and screws (x2) that attach the LH mid C-pillar zone bracket to the vehicle, and then remove the bracket from the vehicle.
    2.5 Nm (1.8 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • T20 socket

Install

  1. Position the LH mid C-pillar zone bracket into the vehicle, and then install the push clips (x3) and screws (x2) that attach the bracket to the vehicle.
    2.5 Nm (1.8 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • T20 socket
  2. Install the LH lower C-pillar trim. See Trim - C-Pillar - Lower - LH (Remove and Replace).
  3. Install the LH rear sill panel trim. See Trim - Sill Panel - Rear - LH (Remove and Replace).
  4. Install the LH upper C-pillar trim. See Trim - C-Pillar - Upper - LH (Remove and Replace).
  5. Install the LH mid C-pillar trim. See Trim - C-Pillar - Mid - LH (Remove and Replace).
  6. Install the LH side rear trunk garnish. See Garnish - Rear Trunk - Side - LH (Remove and Replace).
  7. Install rear trunk gap hider. See Gap Hider - Trunk (5 Seat) (Remove and Replace).
  8. Install the LH trunk load floor bracket cover. See Cover - Bracket - Trunk Load Floor - LH (Remove and Replace).
  9. Install the front trunk load floor. See Trunk Load Floor - Front (Remove and Replace).
  10. Move the 2nd row seat backs to the original position.
  11. Close the liftgate.
