Front Door Drive Unit - LH (Remove and Replace)

Correction code 11335502 0.36 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the LH front door and lower the LH windows.
  2. Remove the LH front door trim panel. See Panel - Door Trim - Front - LH (Remove and Replace).

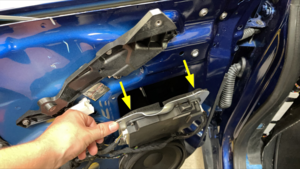

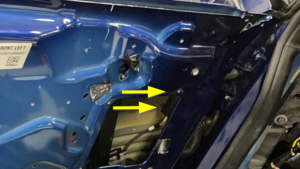

  3. Release the bolts (x4) that attach the LH front door module to the LH front door.
    6 Nm (4.4 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note
    Remove the bolts enough to lower the LH door module to gain access to the door mirror harness.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 8mm socket

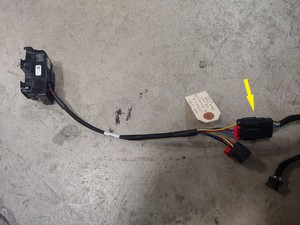

  4. Connect the window switch tool to the LH front door harness, and then raise the window fully.
    Informational PurposesAn informational icon, calling your attention
    Note
    Connect door panel x927 if the switch kit is not available.
  5. Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
  6. Disconnect LV power. See LV Power (Disconnect and Connect).

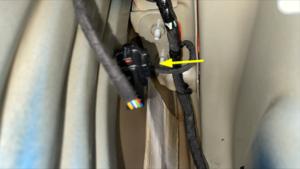

  7. Disconnect the LH front door drive unit electrical connector.

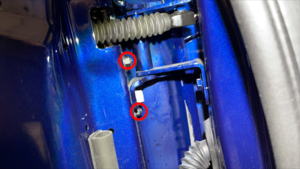

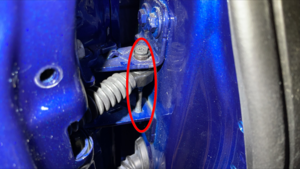

  8. Remove the pivot pin bolt and nuts (x2) that attach the LH front door drive unit to the vehicle, and then remove the drive unit from the vehicle.
    10 Nm (7.4 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • T30 socket
    • 10mm socket

Install

  1. Position the LH front door drive unit into the vehicle, and then install the pivot pin bolt and nuts (x2) that attach the drive unit to the vehicle.
    10 Nm (7.4 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • T30 socket
    • 10mm socket
  2. Connect the LH front door drive unit electrical connector.
  3. Connect LV power. See LV Power (Disconnect and Connect).
  4. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).

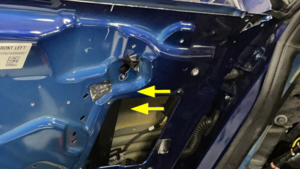

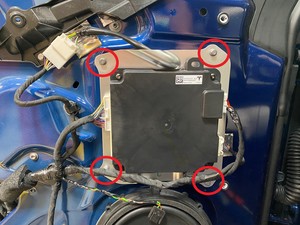

  5. Install the bolts (x4) that attach the LH front door module to the LH front door.
    6 Nm (4.4 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure to properly route the wiring for the LH mirror.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 8mm socket
  6. Install the LH front door trim panel. See Panel - Door Trim - Front - LH (Remove and Replace).
  7. Connect a laptop with Toolbox 3 to the vehicle.
  8. In Toolbox, click the "play" button next to TEST-SELF_BCFDM_FRONT-DRV_PFD-ACTUATOR-CAL-V2via Toolbox: (link), and then click Run.
    Informational PurposesAn informational icon, calling your attention
    Note
    Click the "X" at top right of the window to close once complete.
  9. Disconnect Toolbox 3 and remove the laptop from the vehicle.
  10. Raise the LH front windows and close the LH front door.
