Applique - Rear Door - Front - LH (Remove and Replace)

Correction code 12205402 0.84 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

  • 2025-01-30: Added direction to release adhesive between applique and falcon wing door, and steps to remove old adhesive from falcon wing door.

Remove

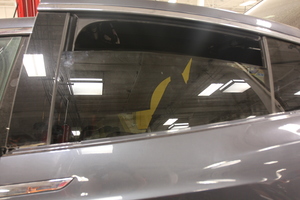

  1. Remove the LH rear door glass.Door Glass - Rear - LH (Remove and Replace)
  2. Remove the LH rear door speaker. See Speaker - Rear Door - LH (Remove and Replace).

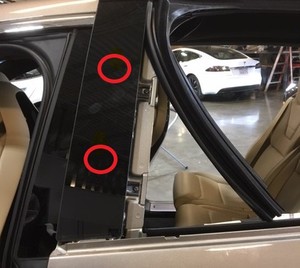

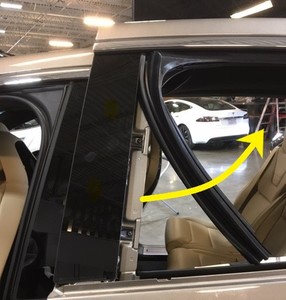

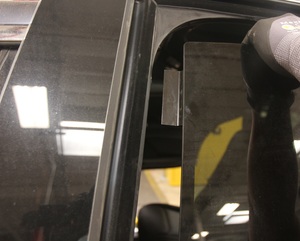

  3. Partially release the LH rear door fixed door glass seal from the LH front rear door applique.

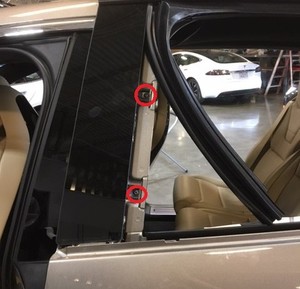

  4. Remove the screws (2) that attach the LH front rear door applique to the LH rear door assembly.
    3 Nm (2.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • T25 socket

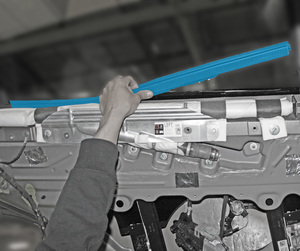

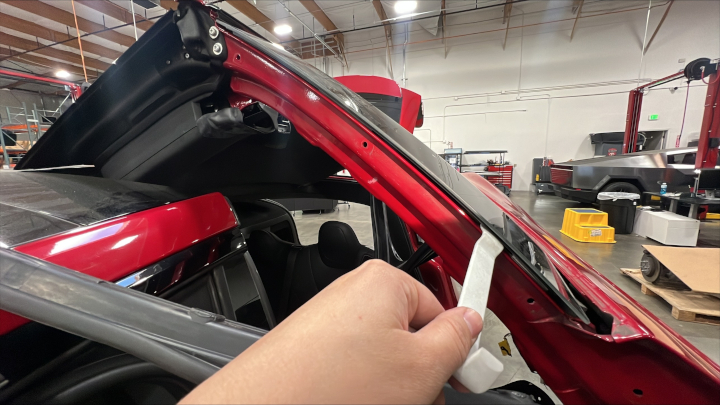

  5. Release the clips (x2) and adhesive that attach the LH front rear door applique to the LH rear door, and then remove the applique from the door.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Plastic trim tool

Install

  1. Use IPA wipes to clean any remaining adhesive from the LH front rear door applique area. Allow 1 minute dry time.
  2. Position the LH front rear door applique onto the LH rear door, and then secure the clips (2) that attach the applique to the door.
  3. Install the screws (2) that attach the LH front rear door applique to the LH rear door.
    3 Nm (2.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • T25 socket

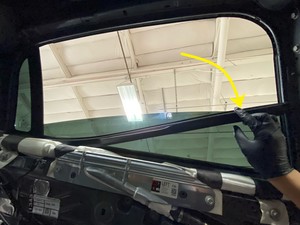

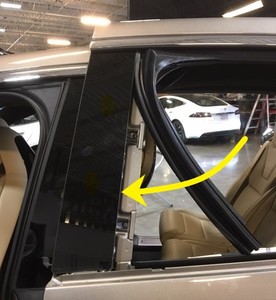

  4. Install the LH rear door fixed door glass seal onto the LH front rear door applique.

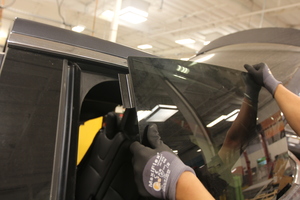

  5. With assistance, carefully position the LH rear door glass into the LH rear door, and then seat the glass into the rear clip and forward brace.

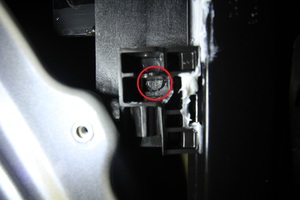

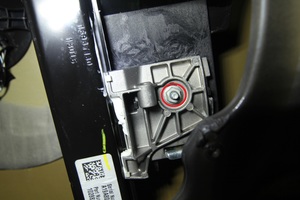

  6. Verify the LH rear door glass fitment, and then torque the nut that secures the front of the glass to the regulator.
    9 Nm (6.6 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10mm socket

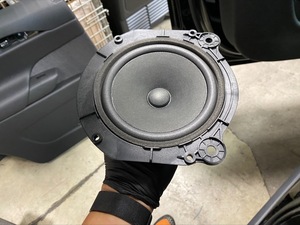

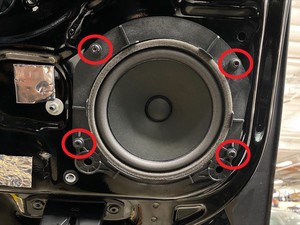

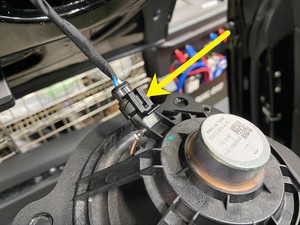

  7. Connect the LH rear door speaker electrical connector, position the speaker into the LH rear door, and then install the screws (x4) that attach the speaker to the door.
    4 Nm (2.9 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • T25 socket
  8. Feed the door release cable through the LH rear door closeout panel, and then secure the clip.
    Informational PurposesAn informational icon, calling your attention
    Note
    Lubricate the cable grommet to aid in installation.
  9. Position the LH rear door window motor onto the back of the closeout panel, and then secure the tabs that attach the motor to the closeout panel.
  10. Install the screws (x3) that attach the LH rear window motor to the LH rear door closeout panel.
    1.8 Nm (1.3 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note
    Use of the following tool(s) is recommended:
    • Torx T30 socket
  11. Install the screws (x10) that attach the LH rear door closeout panel to the LH rear door.
    1.8 Nm (1.3 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note
    Use of the following tool(s) is recommended:
    • Torx T25 socket
  12. Connect the LH falcon wing door protection ECU electrical connector, and then engage the locking tab.
  13. Connect the LH falcon wing door air bag electrical connector, and then engage the orange locking tab.
  14. Connect the electrical connectors (x2) to the LH falcon wing door module.
  15. Install the clips (x7) that attach the harnesses and connectors to the LH rear door closeout panel.
  16. Install the LH rear door inner belt seal.
  17. Connect LV power. See LV Power (Disconnect and Connect).
  18. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
  19. Calibrate the rear doors.
    Informational PurposesAn informational icon, calling your attention
    Note
    If the "Calibration Needed" message appears on the vehicle touchscreen, touch and hold Calibrate to calibrate the rear doors
  20. Install the LH rear door outer belt trim.

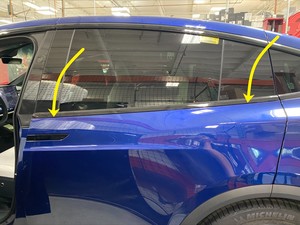

  21. Test that the LH rear window is functioning correctly.
  22. Check the LH rear window fitment and adjust as necessary.
    Informational PurposesAn informational icon, calling your attention
    Note
    Refer to CVIS for latest specifications.
  23. Open the LH falcon wing door.
  24. Install the LH rear door trim panel. See Panel - Door Trim - Rear - LH (Remove and Replace).
