Harpoon Bracket - Gap Hider - Trunk - Center (5 Seat) (Remove and Replace)

Correction code 15300062 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.

Remove

  1. Open the LH and RH front doors.
  2. Lower the LH front window.
  3. Move the driver and front passenger seats fully forward.
  4. Open the LH and RH rear doors.
  5. Fold down the LH and RH 2nd row seats.
  6. Open the liftgate.
  7. Remove the rear trunk load floor. See Trunk Load Floor - Rear (Remove and Replace).
  8. Remove the front trunk load floor. See Trunk Load Floor - Front (Remove and Replace).
  9. Remove the trunk gap hider. See Gap Hider - Trunk (5 Seat) (Remove and Replace).

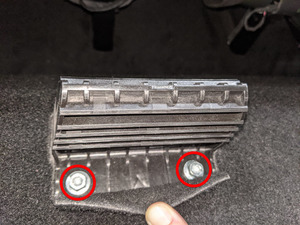

  10. Remove the bolts (x2) that attach the harpoon bracket to the vehicle.
    37 Nm (27.3 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 11 mm deep socket

Install

  1. Install the bolts (x2) that attach the harpoon bracket to the vehicle.
    37 Nm (27.3 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 11 mm deep socket
  2. Install the trunk gap hider. See Gap Hider - Trunk (5 Seat) (Remove and Replace).
  3. Install the front trunk load floor. See Trunk Load Floor - Front (Remove and Replace).
  4. Install the rear trunk load floor. See Trunk Load Floor - Rear (Remove and Replace).
  5. Fold the 2nd row seats into vertical (upright) position.
  6. Move the driver and front passenger seats back to their original position.
