Switch - 2nd Row - LH (6 Seat) (Remove and Replace)

Correction code 13024402 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Remove the LH 2nd row seat underbelly trim. See Trim - Underbelly - 2nd Row Seat - LH (6 Seat) (Remove and Replace).

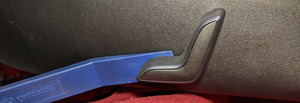

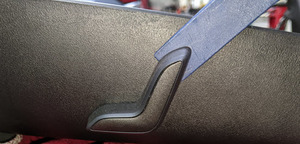

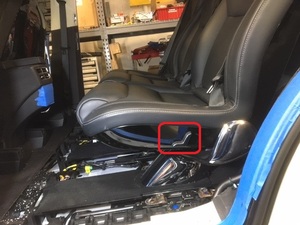

  2. Use a plastic trim tool to release the LH 2nd row seat adjust button from the underbelly trim, and then remove the button from the trim.
    Informational PurposesAn informational icon, calling your attention
    Note
    Release the button from both ends.

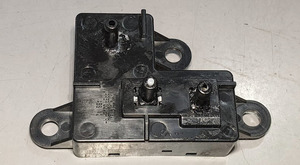

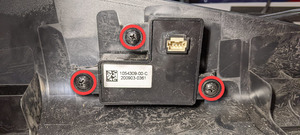

  3. Remove the screws (x2) that attach the LH 2nd row switch to the underbelly trim, and then remove the switch from the trim.
    2 Nm (1.5 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • PH2 screwdriver

Install

  1. Position the LH 2nd row switch into the underbelly trim, and then install the screws (x2) that attach the switch to the trim.
    2 Nm (1.5 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • PH2 screwdriver

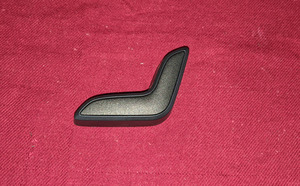

  2. Install the LH 2nd row seat adjust button onto the underbelly trim.
  3. Install the LH 2nd row seat underbelly trim. See Trim - Underbelly - 2nd Row Seat - LH (6 Seat) (Remove and Replace).
