Trim - Liftgate - Lower (Remove and Replace)

Correction code 15111302 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the LH front door and lower the LH front window.
  2. Open the liftgate.

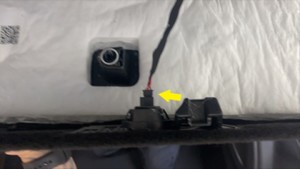

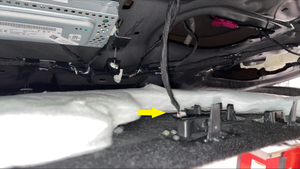

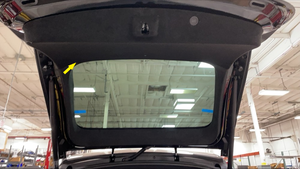

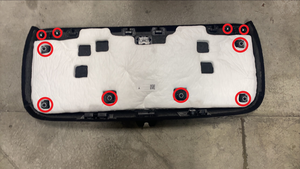

  3. Release the clips (x10) that attach the lower liftgate trim to the liftgate, carefully lower the trim from the liftgate, and then disconnect the electrical connectors (x2) to remove the trim from the liftgate.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Be careful not to damage any wiring when releasing the clips.
    Informational PurposesAn informational icon, calling your attention
    Note
    Take note of any damaged clips.

Install

  1. Position the lower liftgate trim onto the liftgate, connect the electrical connectors (x2), and then secure the clips (x10) that attach the trim to the liftgate.
    Informational PurposesAn informational icon, calling your attention
    Note
    Replace any damaged clips.
  2. Close the liftgate.
  3. Raise the LH front window and close the LH front door.
