Striker - Liftgate (Remove and Replace)

Correction code 11353402 0.18 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the LH front door and lower the LH front window.
  2. Remove the trunk load floor. See Trunk Load Floor - Rear (Remove and Replace).
  3. Remove the LH and RH side rear trunk garnish. See Garnish - Rear Trunk - Side - LH (Remove and Replace).
  4. Remove the trunk sill trim. See Trim - Sill - Trunk (Remove and Replace).

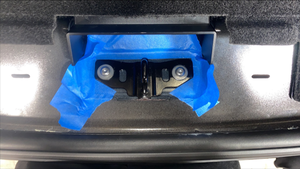

  5. Apply masking tape around the liftgate striker to mark the position.

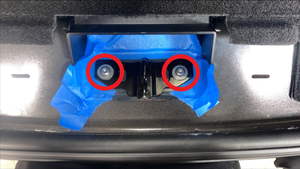

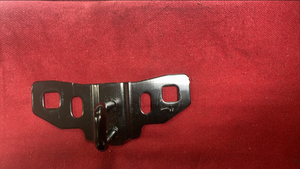

  6. Remove the bolts (x2) that attach the liftgate striker to the body, and then remove the striker from the vehicle.
    22 Nm (16.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • T30 socket

Install

  1. Position the liftgate striker into the vehicle, align the striker to the marked position, and then loosely install the bolts (x2) that attach the striker to the vehicle.
  2. Close the liftgate to check for gap/flush and that liftgate closes as expected.
    Informational PurposesAn informational icon, calling your attention
    Note
    Adjust the striker if necessary and open the trunk when done.
  3. Tighten the bolts (x2) that attach the striker to the vehicle.
    22 Nm (16.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • T30 socket
  4. Remove the masking tape around the liftgate striker area.
  5. Install the trunk sill trim. See Trim - Sill - Trunk (Remove and Replace).
  6. Install the LH and RH side rear trunk garnish. See Garnish - Rear Trunk - Side - LH (Remove and Replace).
  7. Install the trunk load floor. See Trunk Load Floor - Rear (Remove and Replace).
  8. Close the liftgate.
  9. Raise the LH front window and close the LH front door.
