Cover - Recliner - 3rd Row - Center (Remove and Replace)

Correction code 13094402 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open LH rear door and liftgate.
  2. Fold the 2nd row seats into the down position.
  3. Remove the 3rd row seat cushion. See Cushion - Seat - 3rd Row (Remove and Replace).

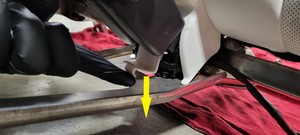

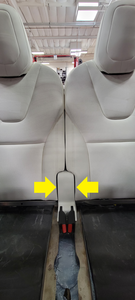

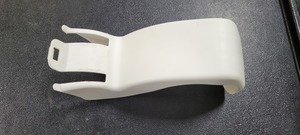

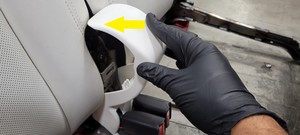

  4. Release the clips (x2) that attach the center 3rd row recliner cover to the seat back assembly, and then pull the cover outward from the top to remove it from the assembly.

Install

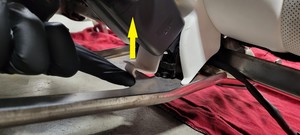

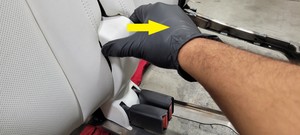

  1. Position the center 3rd row recliner cover into the seat back assembly, feed the bottom of the cover underneath the LH 3rd row seat belt buckle, and then push downward and inward to secure the clips (x2).
  2. Install the 3rd row seat cushion. See Cushion - Seat - 3rd Row (Remove and Replace).
  3. Fold the 2nd row seats to the upright position.
  4. Close the LH rear door and liftgate.
