Gearbox Fluid - Front Drive Unit (3DU) (Drain and Refill) (Machine Only)

Correction code 39300115 FRT 0.60 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See 개인 보호 to make sure wearing proper PPE when performing the below procedure.NOTE: See 인체공학적 주의 사항for safe and healthy working practices.

  • 2222393-00-A - AUTOMATIC OIL CHANGE MACHINE
  • 1130484-00-A - SKT, OIL FILTER, 63.5MM X 14

Procedure

  1. Remove the front aero shield. See Panel - Aero Shield - Front (Non-Structural Pack) (Remove and Replace).

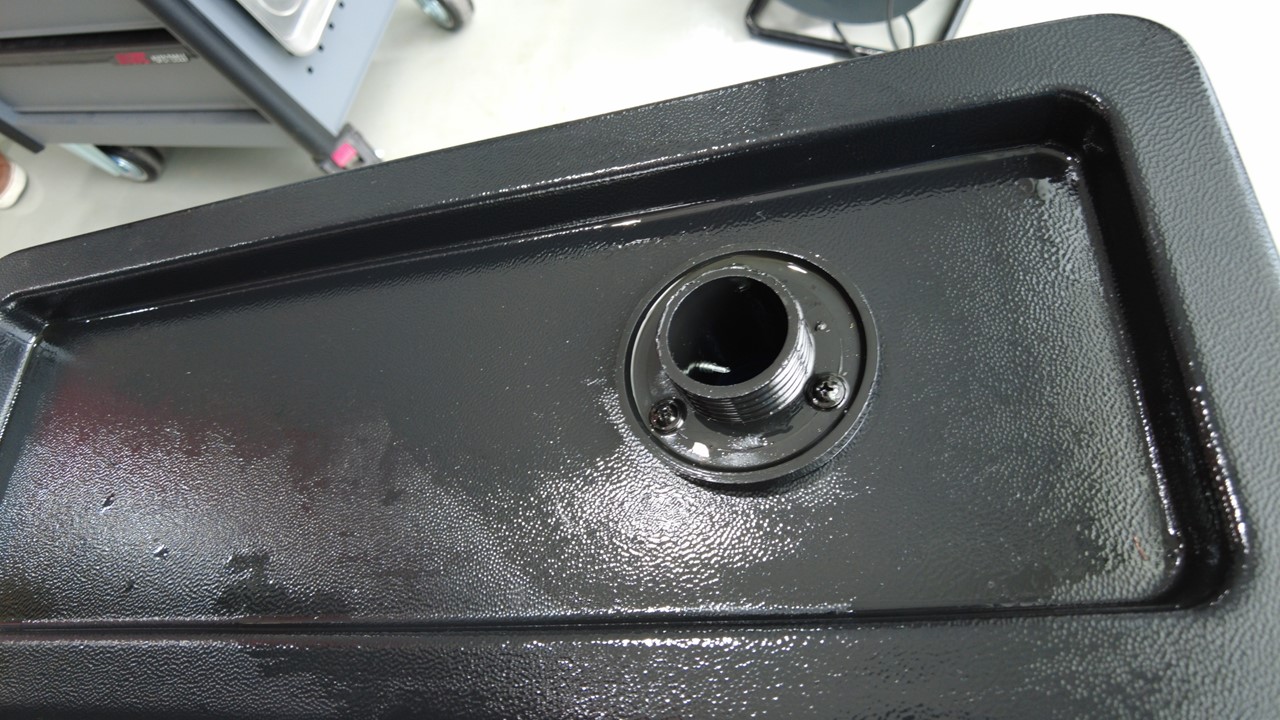

  2. Position the oil drain container underneath the drive unit oil filter area.

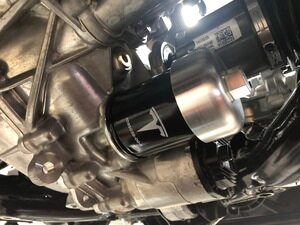

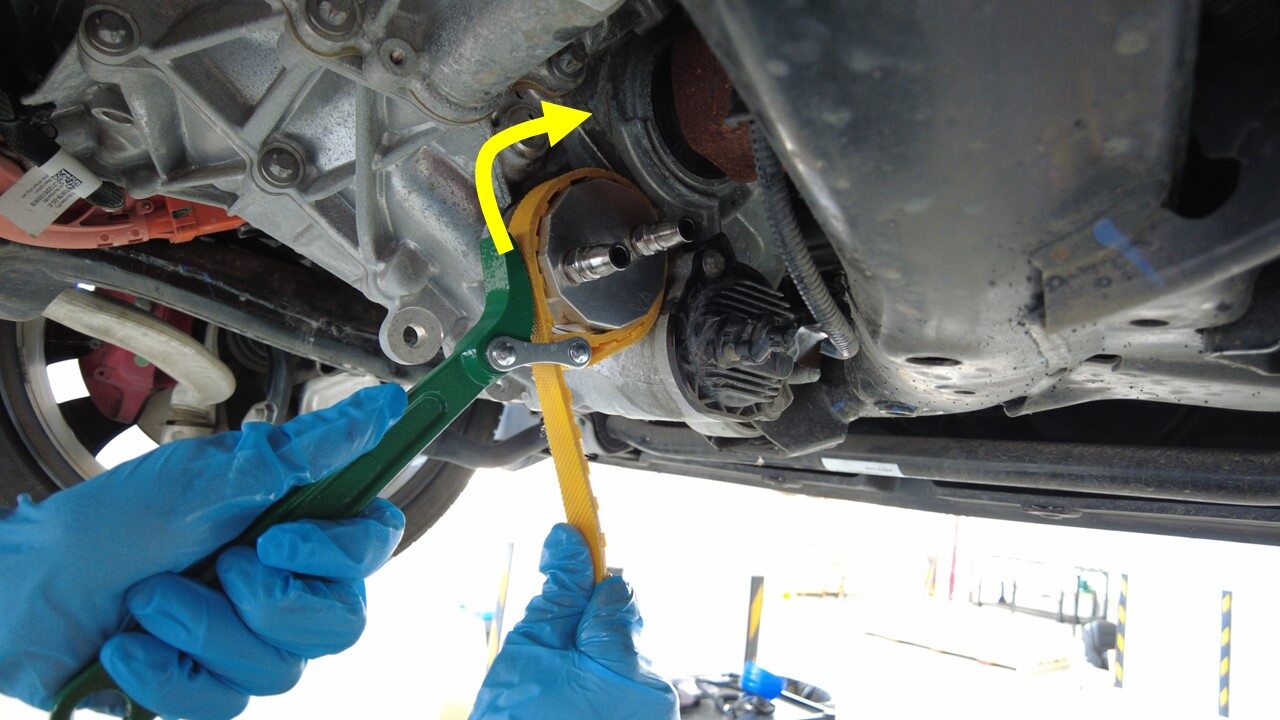

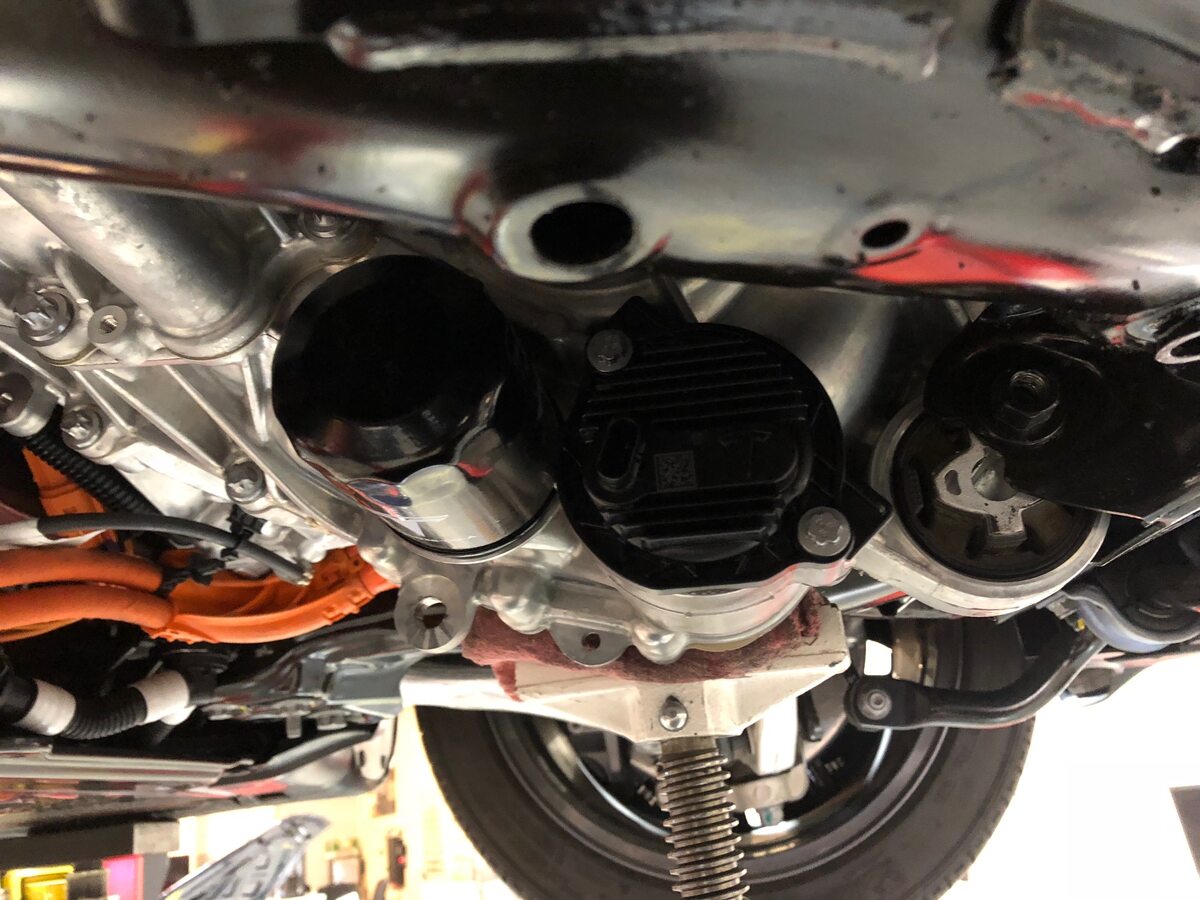

  3. Rotate the oil filter counterclockwise to remove it from the vehicle, and then discard the oil filter.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 21mm 소켓

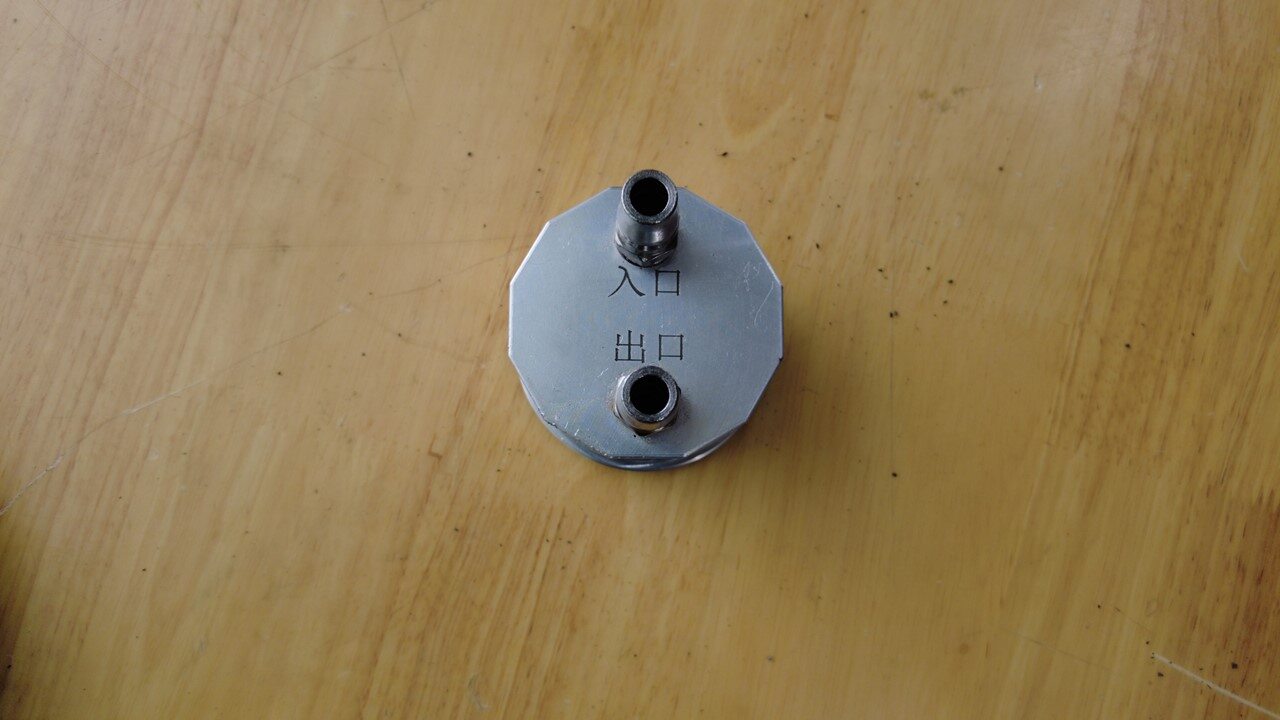

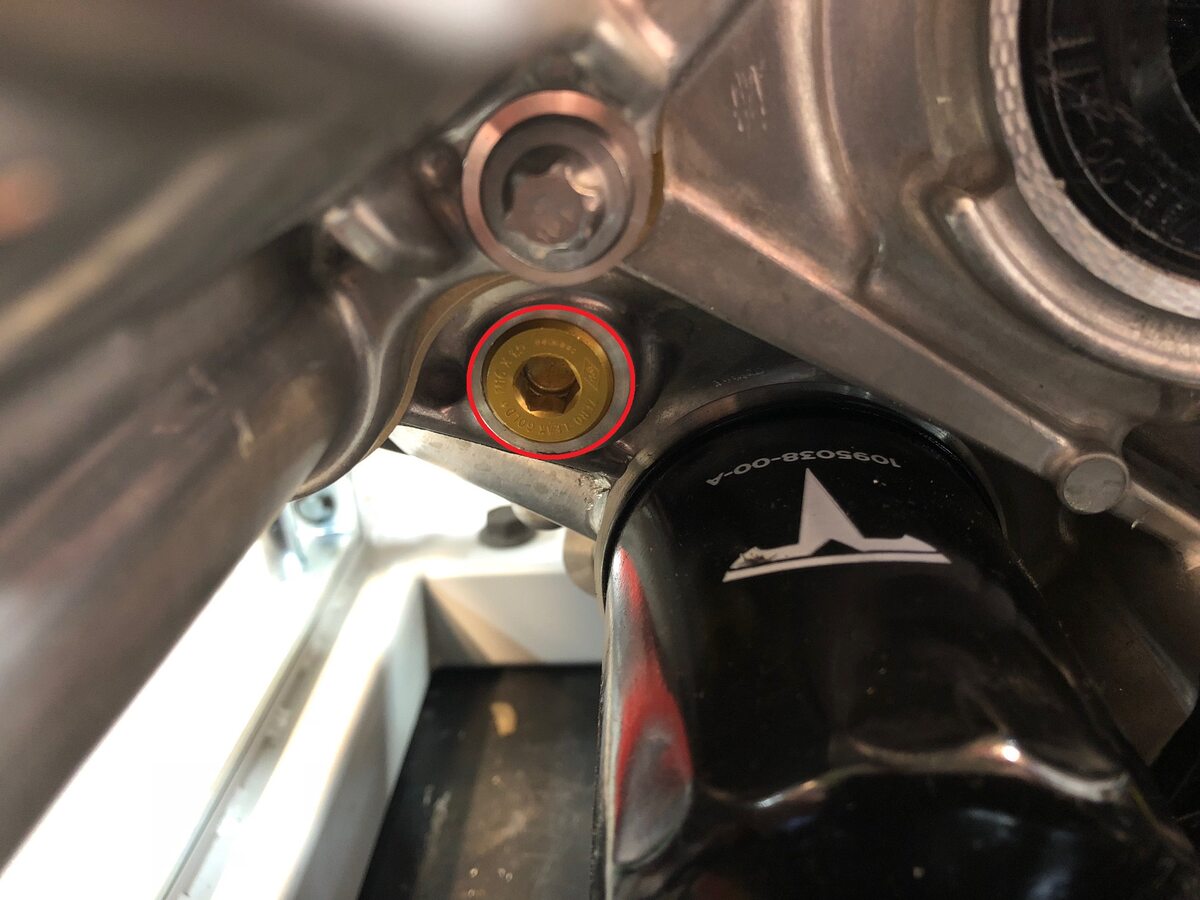

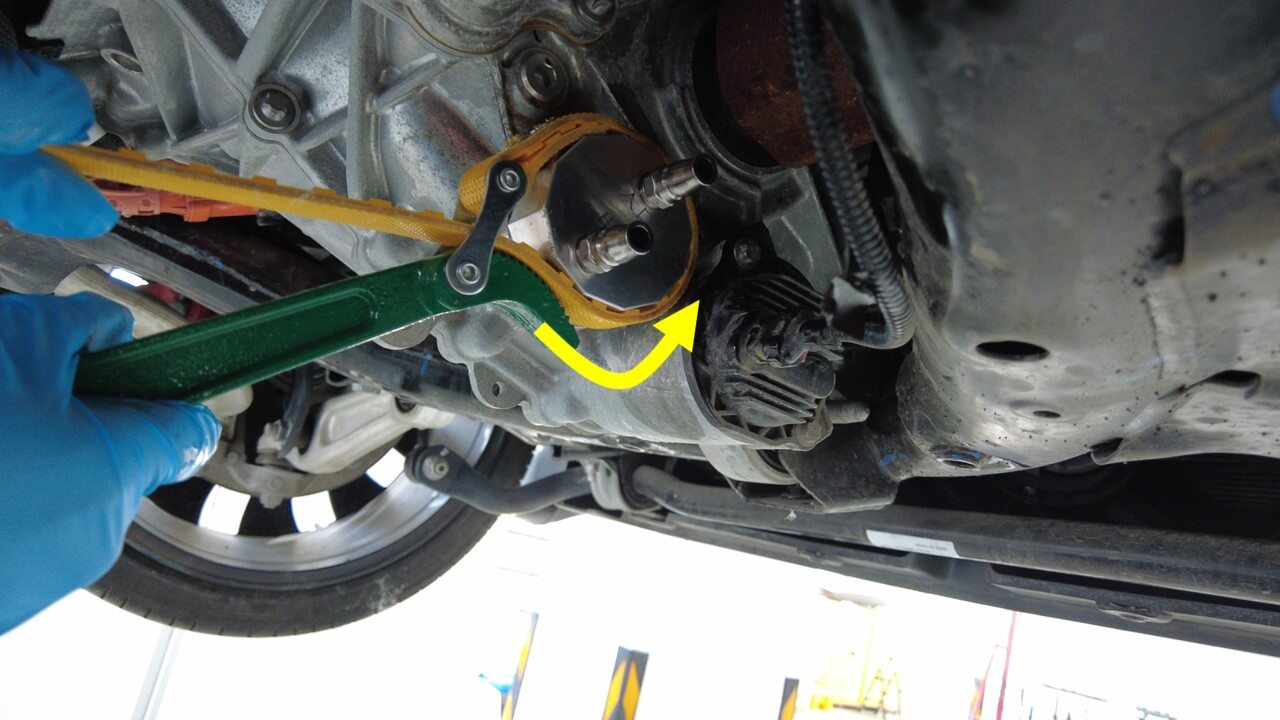

  4. Install the oil filter adapter to the vehicle, and use oil filter wrench to fully tighten the adapter.

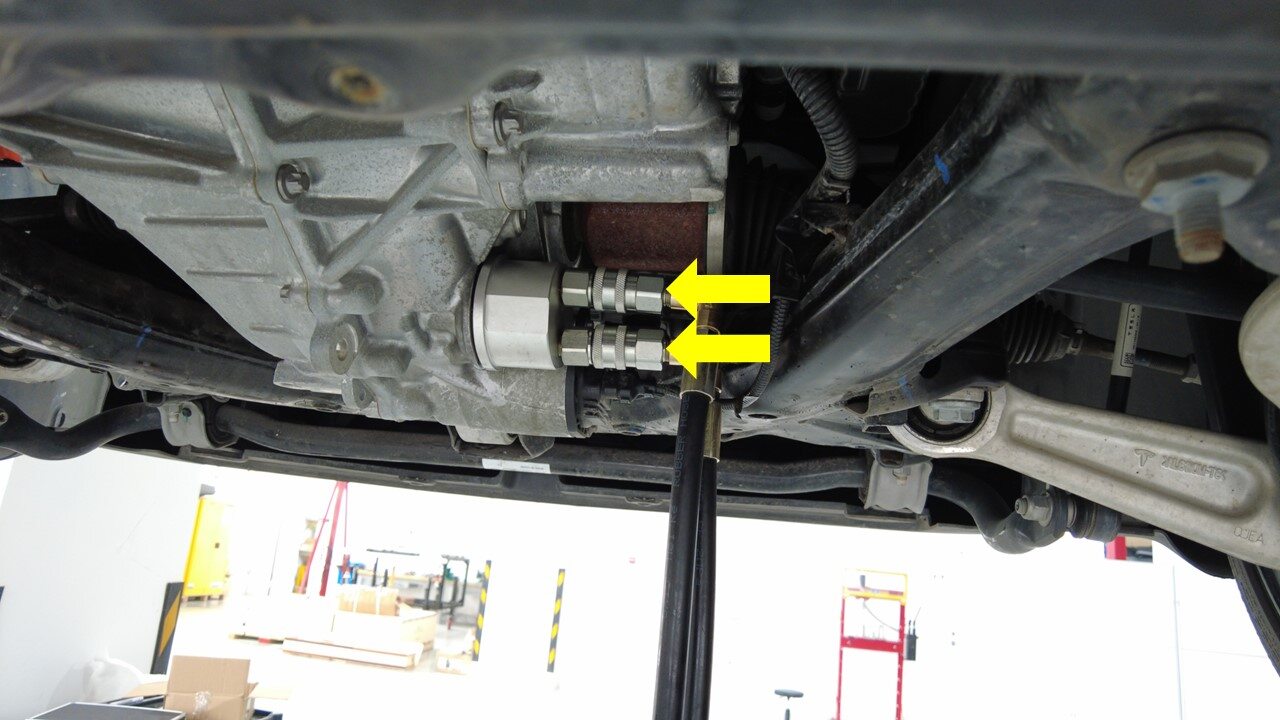

  5. Connect the oil hoses (x2) onto the oil filter adapter.
  6. Remove the oil drain container from underneath the drive unit.

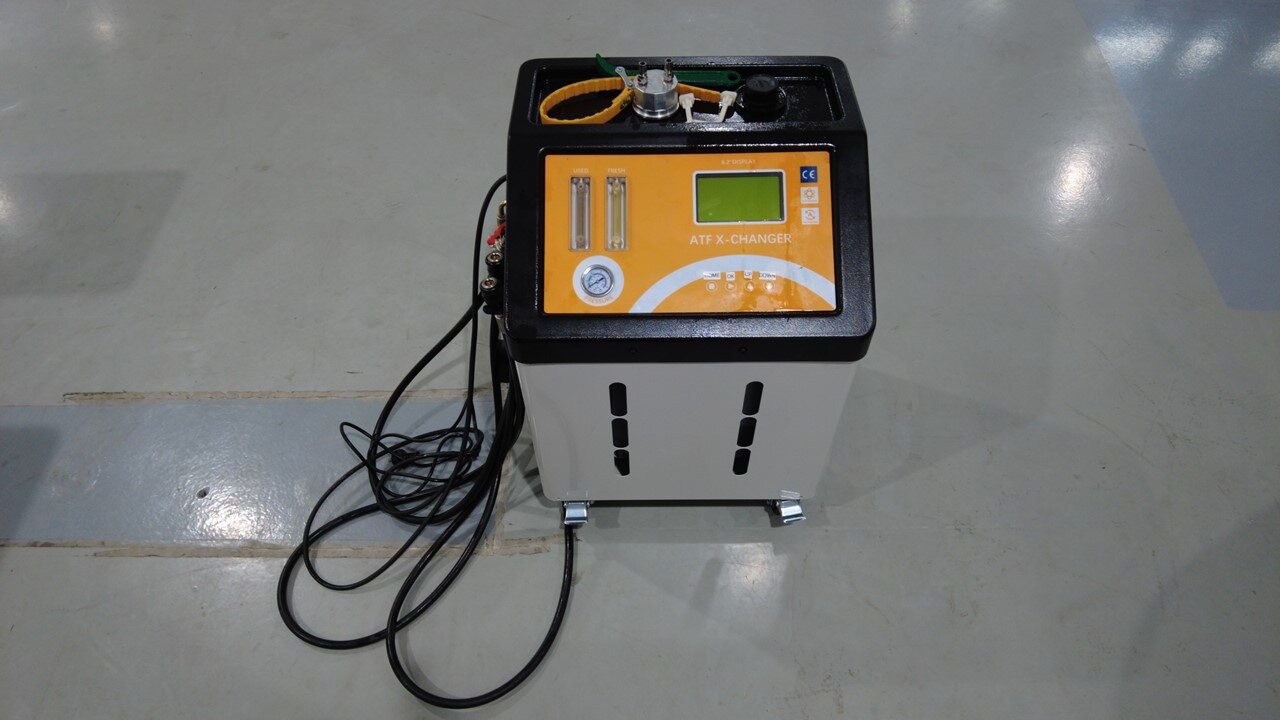

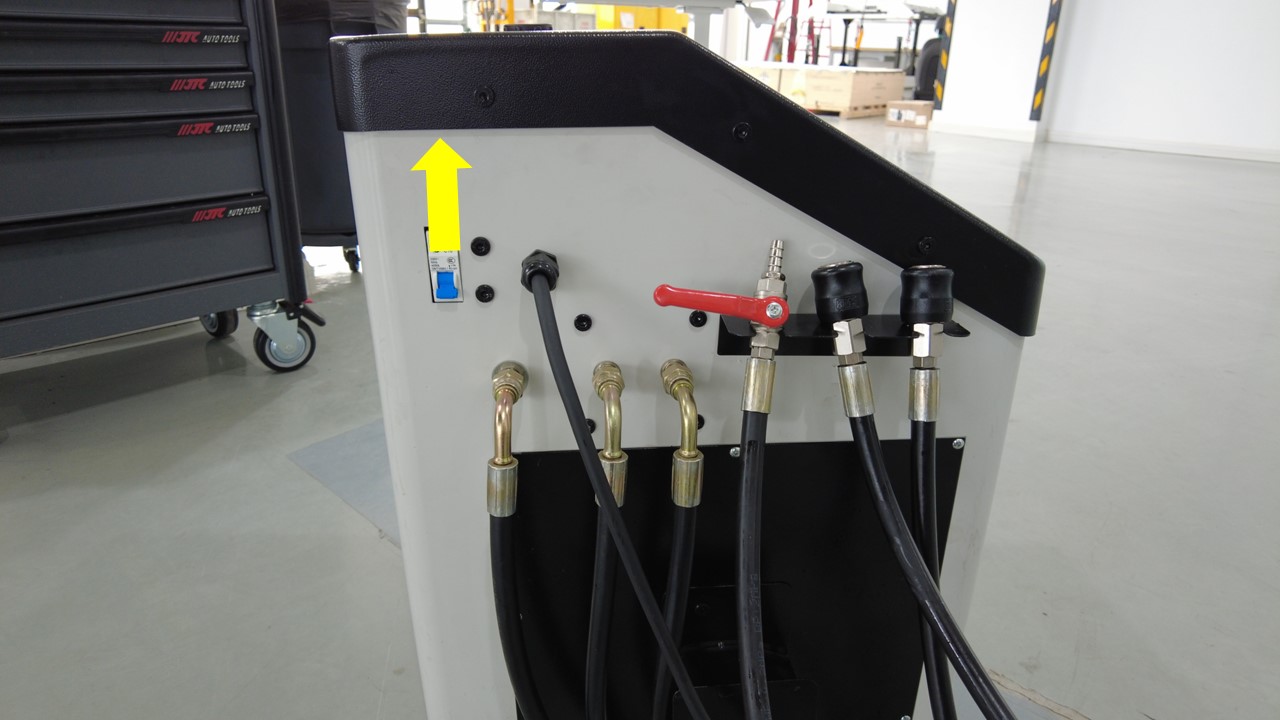

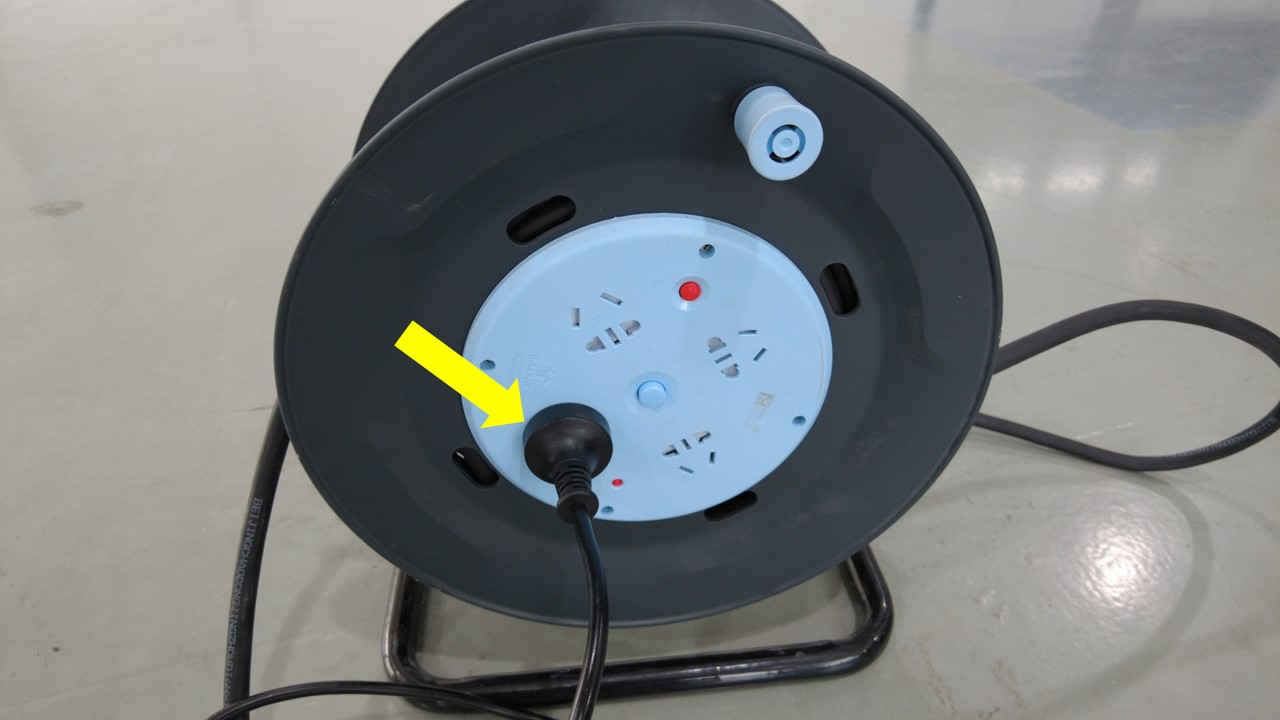

  7. Connect the automatic oil change machine to the power supply, and then pull the switch up to open the machine.

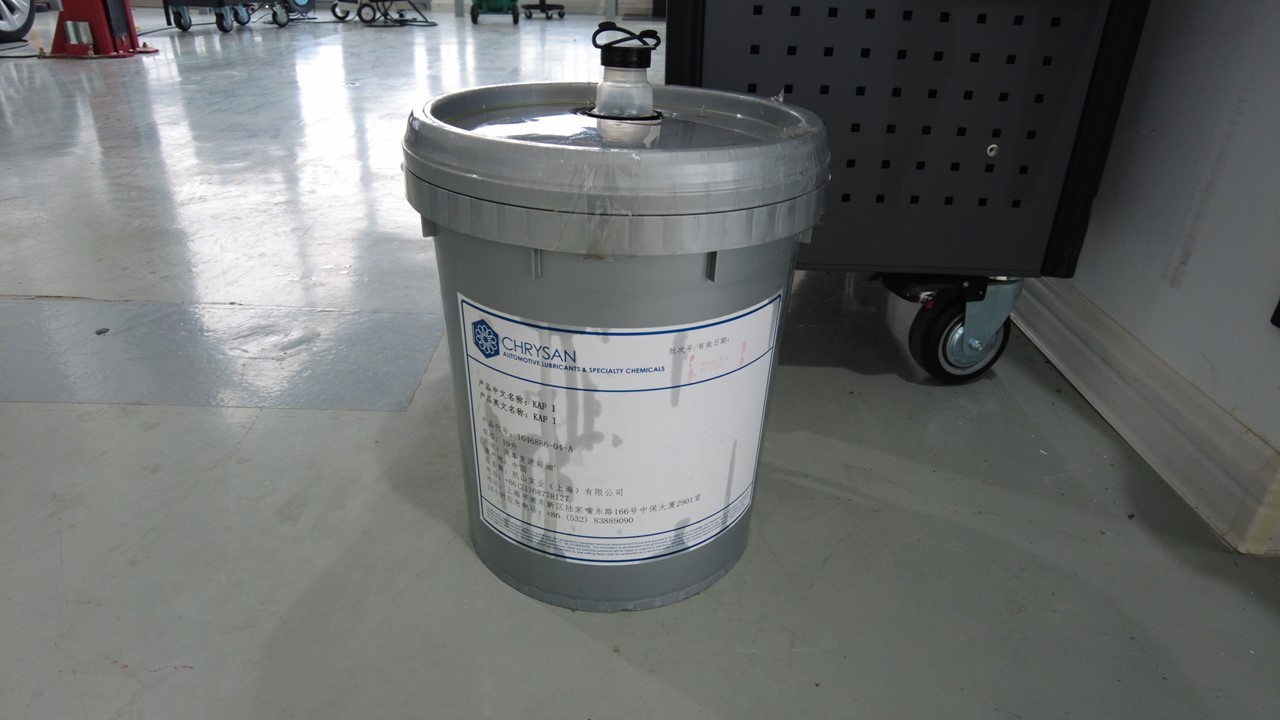

  8. Add at least 5 L new oil to the automatic oil change machine.
    Informational PurposesAn informational icon, calling your attention
    참고
    Before adding new oil to the machine, make sure that old oil is fully drained.
    Informational PurposesAn informational icon, calling your attention
    참고

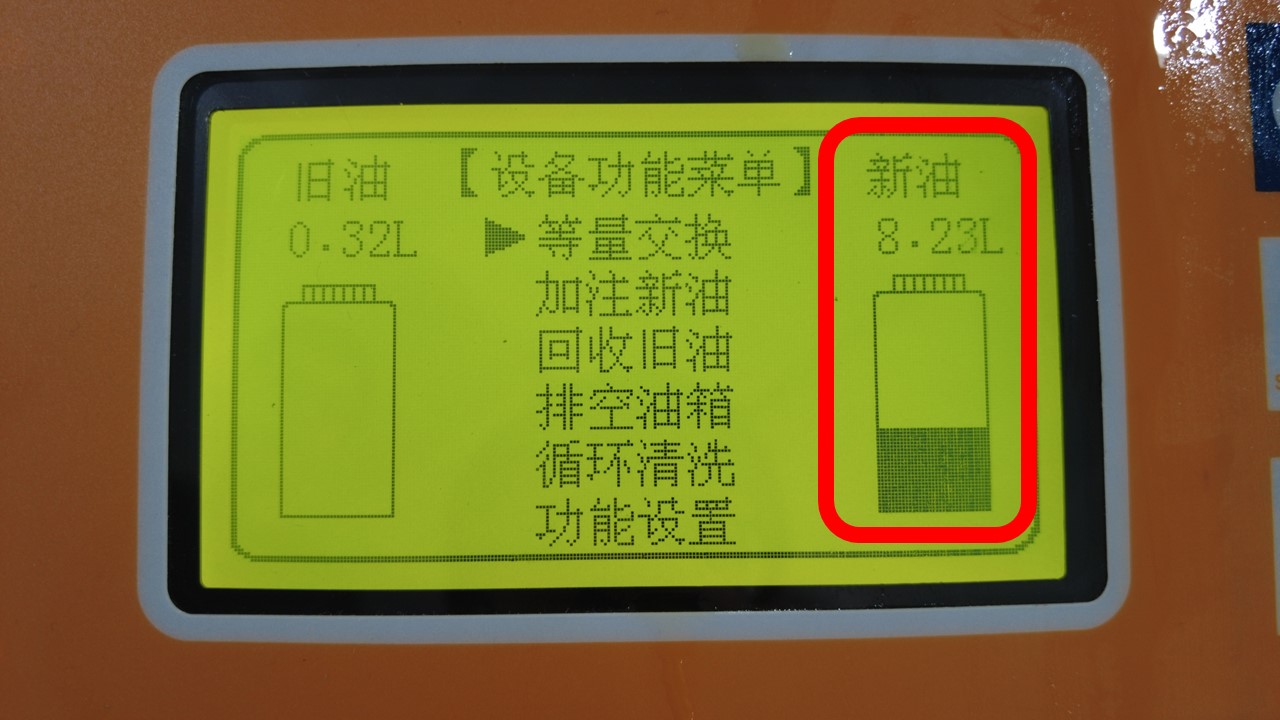

    The volume of the oil can be read via the machine UI.
  9. Lower the vehicle to a comfortable working height.
    Informational PurposesAn informational icon, calling your attention
    참고
    Make sure that the vehicle does not contact the ground.
  10. Locally connect a laptop with Toolbox 3 to the vehicle. See Toolbox 3(연결 및 연결 해제).
  11. 정비 모드 또는 Toolbox를 사용하여 다음 루틴을 수행합니다(참조 항목: 0005 - 정비 모드): PROC_ICE_X_ENTER-DYNO-MODEvia Toolbox: (link)
  12. With an assistant, place the vehicle into Drive mode and slightly press the accelerator pedal till the oil is fully drained.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    경고
    Before pressing the accelerator pedal, make sure that the vehicle does not contact the ground. Adjust the lift, if needed.

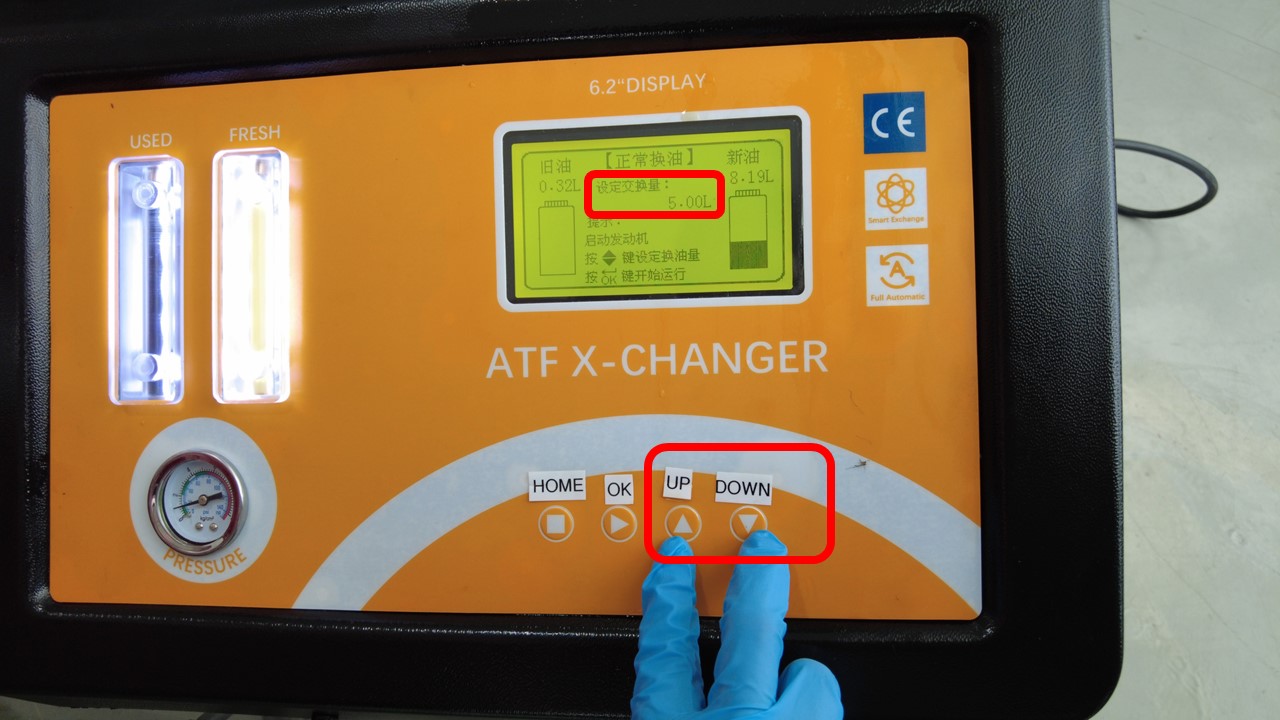

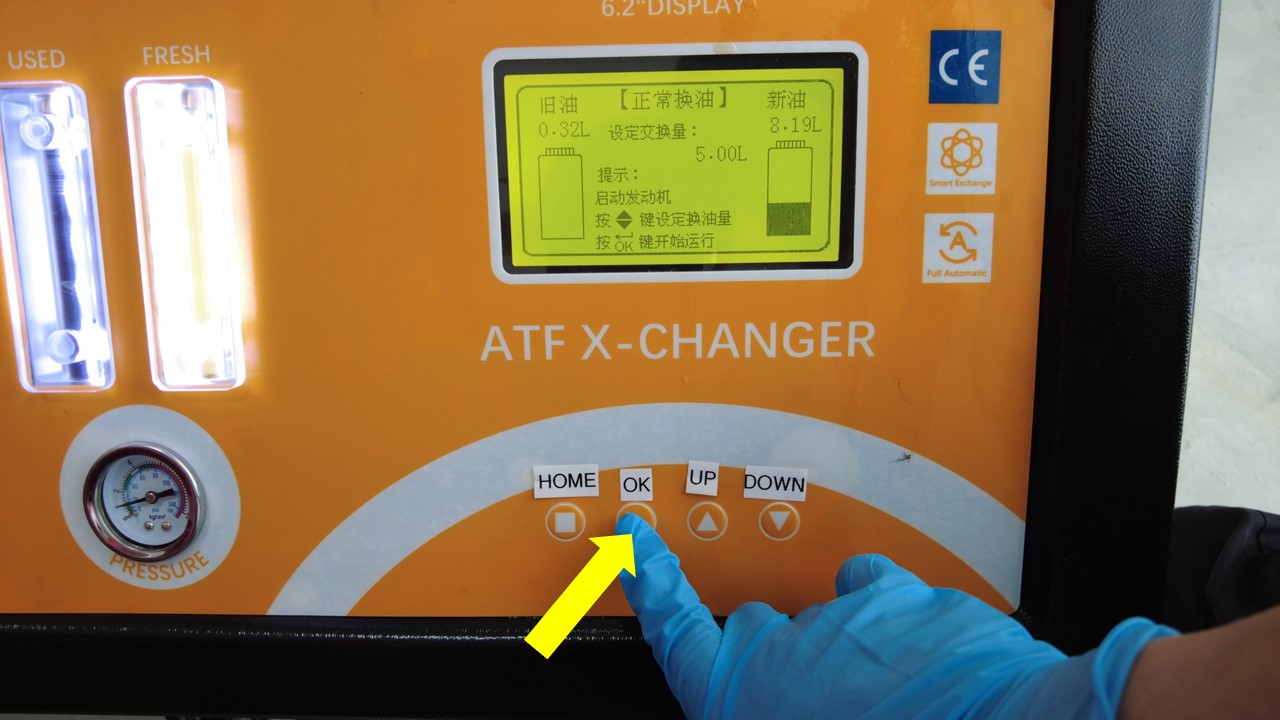

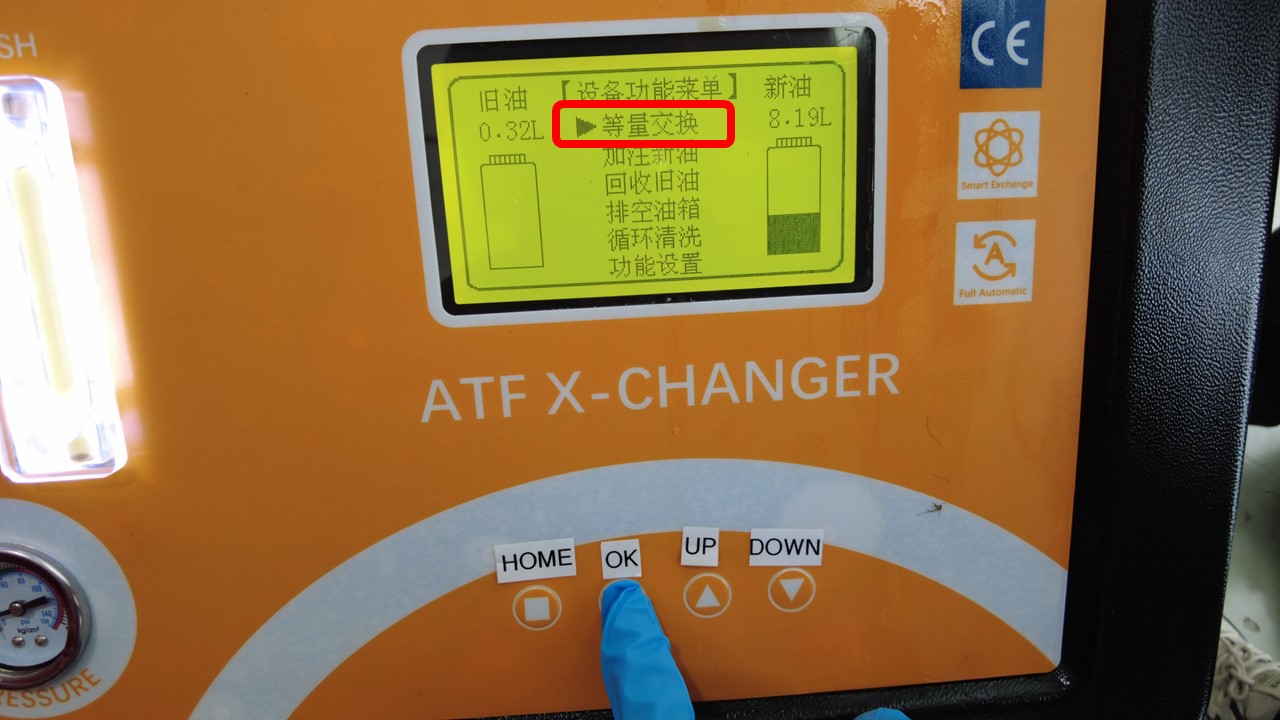

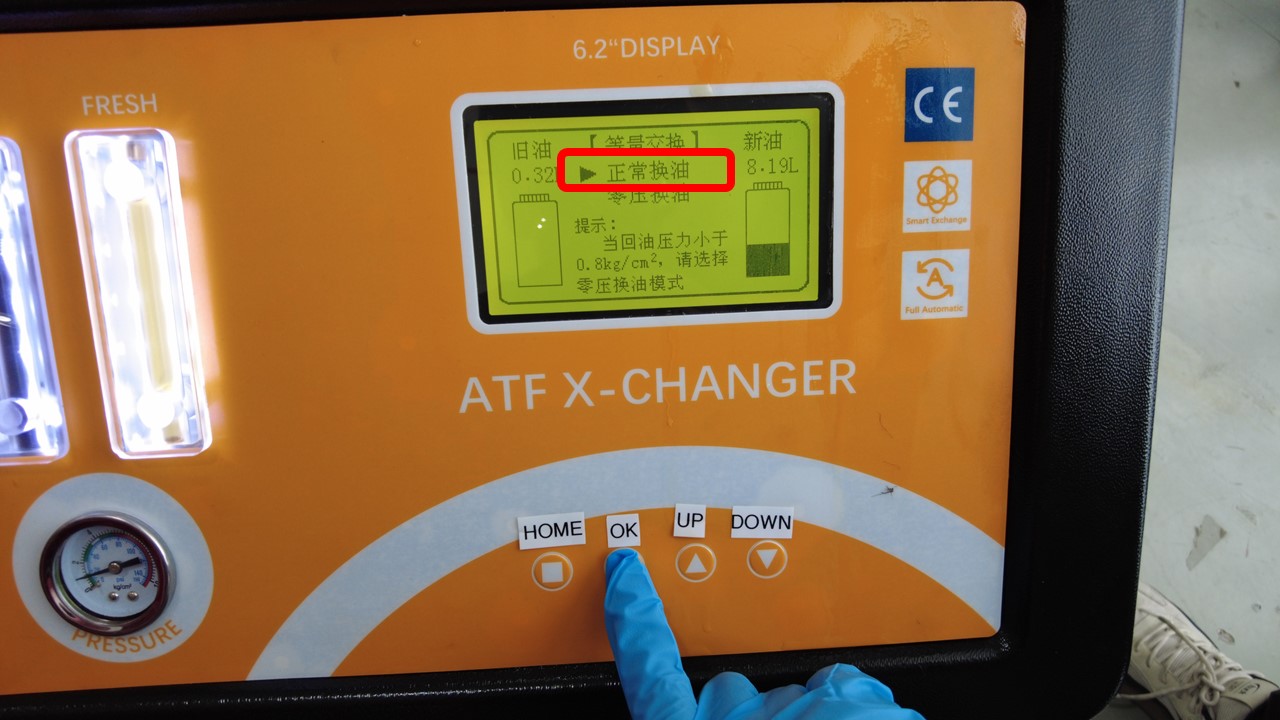

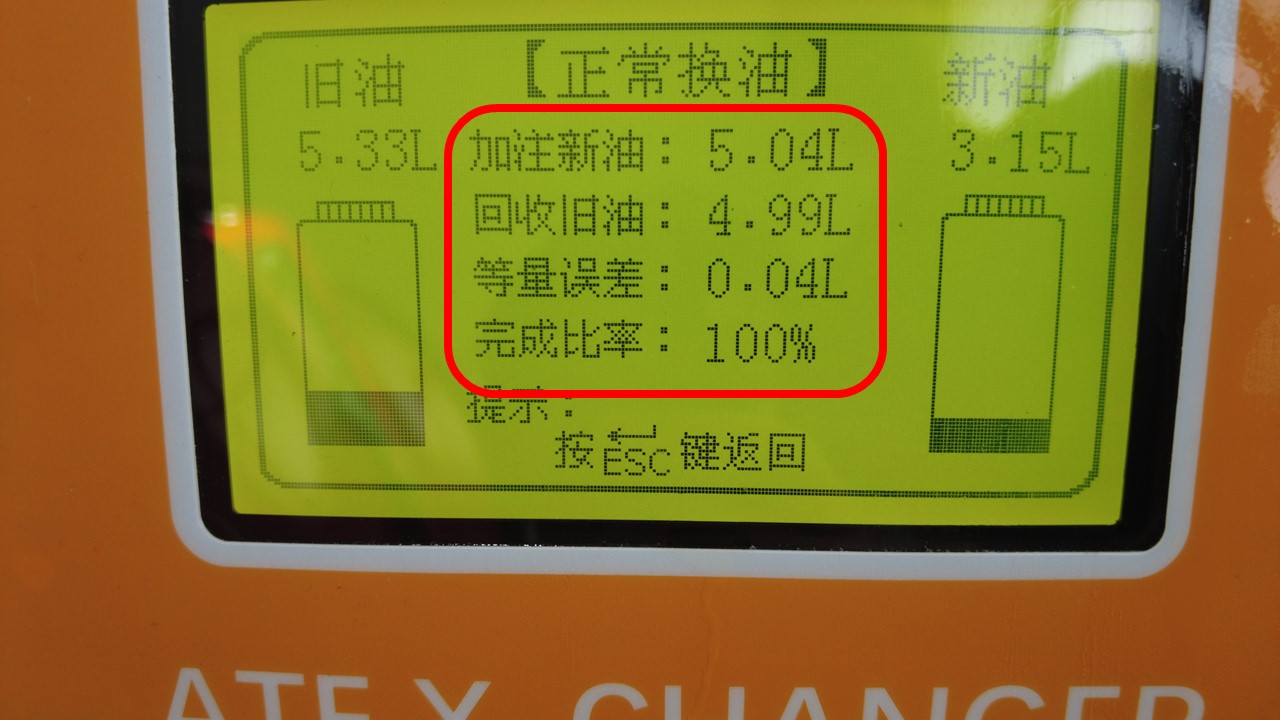

  13. When the wheels start to run, in the automatic oil change machine, select Equal Exchange > Normal Oil Change, and set the exchange volume to 5L via the up/down buttons, and then press the OK button to start the oil exchange process.
    Informational PurposesAn informational icon, calling your attention
    참고
    Once the exchange is completed, the machine will automatically stop.

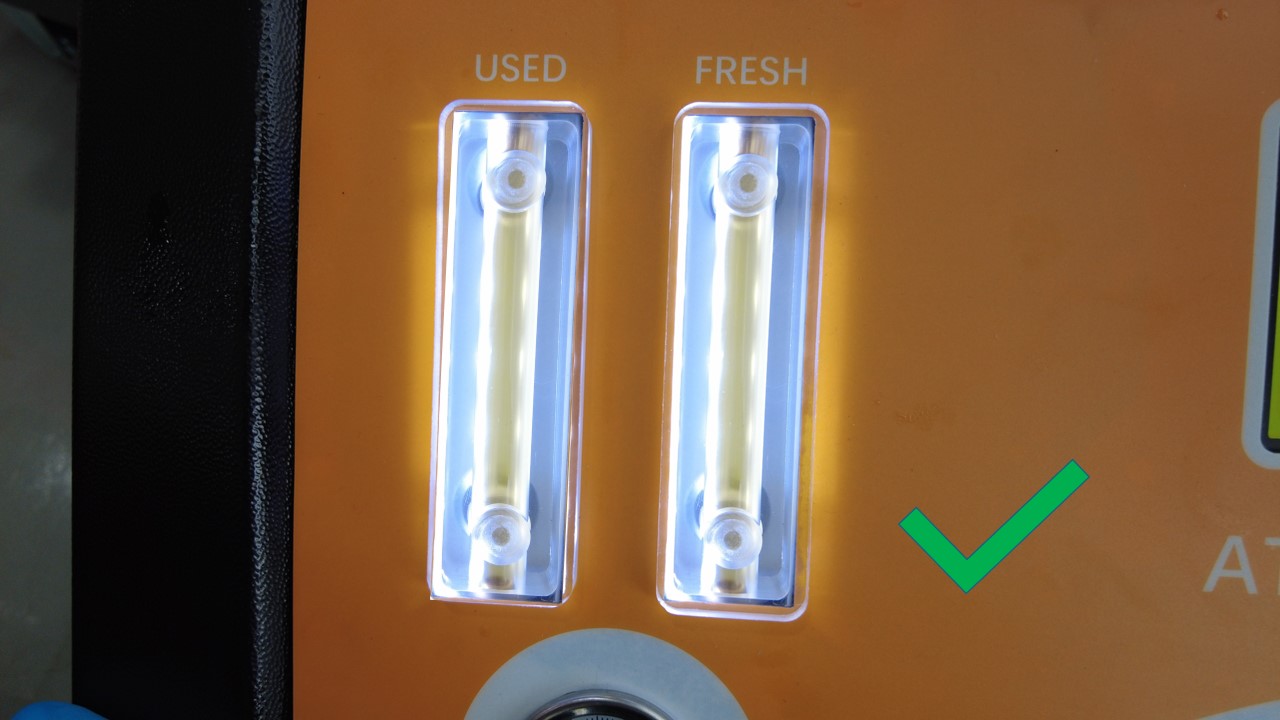

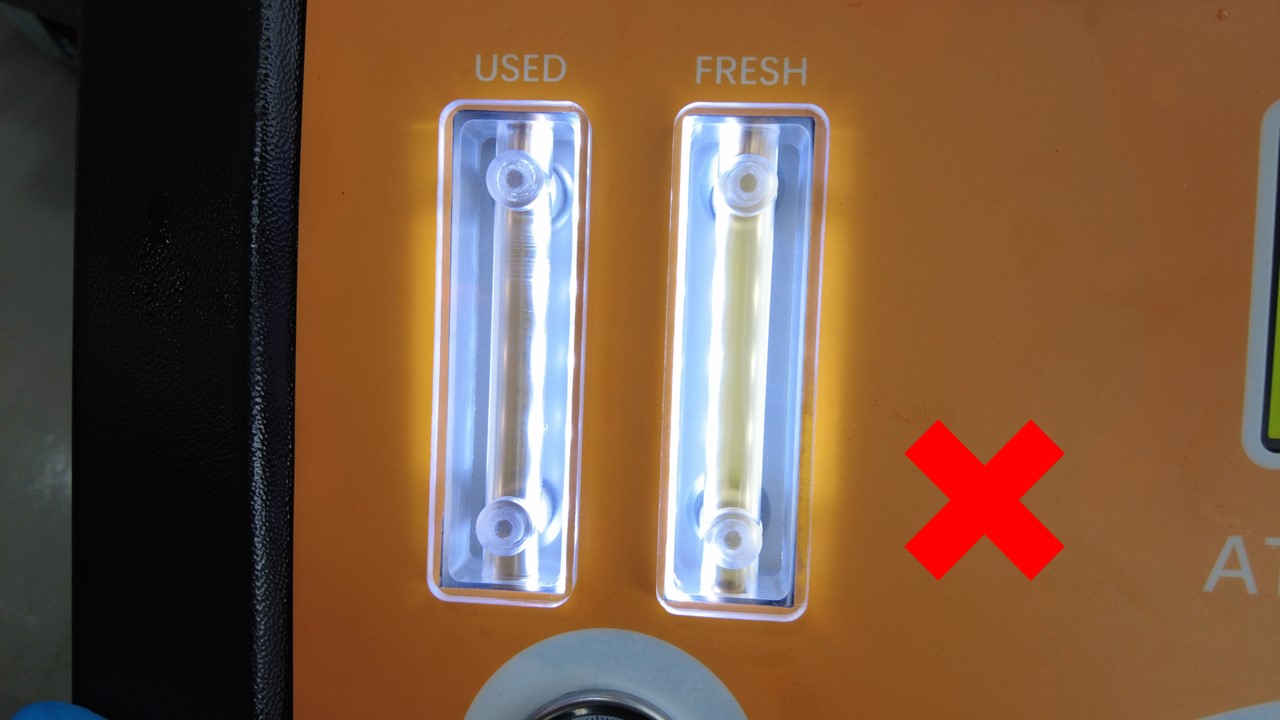

  14. Confirm the color of new oil and used oil. If the colors are extremely close, it indicates the process has been successfully completed.
    Informational PurposesAn informational icon, calling your attention
    참고
    If there is a significant color difference between the two, repeat the whole procedure.
  15. Place the vehicle into Park mode.
  16. 정비 모드 또는 Toolbox를 사용하여 다음 루틴을 수행합니다(참조 항목: 0005 - 정비 모드): PROC_ICE_X_EXIT-DYNO-MODEvia Toolbox: (link)
  17. Close the automatic oil change machine, and disconnect the machine from the power supply.
  18. Raise the vehicle to a comfortable working height.
  19. Position the oil drain container underneath the drive unit oil filter area.
  20. Disconnect the oil hoses (x2) from the oil filter adapter.
  21. Position the underhoist stand underneath the front drive unit.
    Informational PurposesAn informational icon, calling your attention
    참고

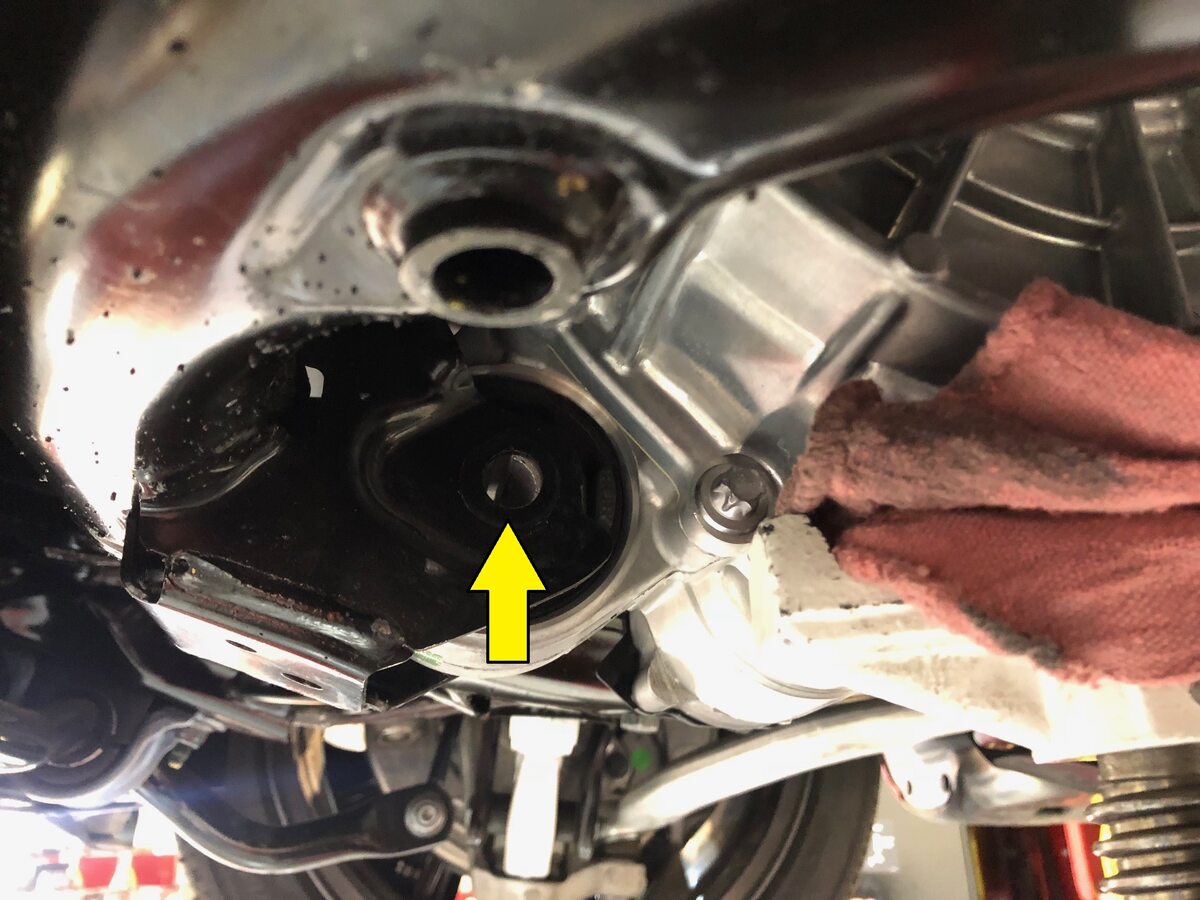

    Place a cloth in between to prevent scratches or damage to the front drive unit case.

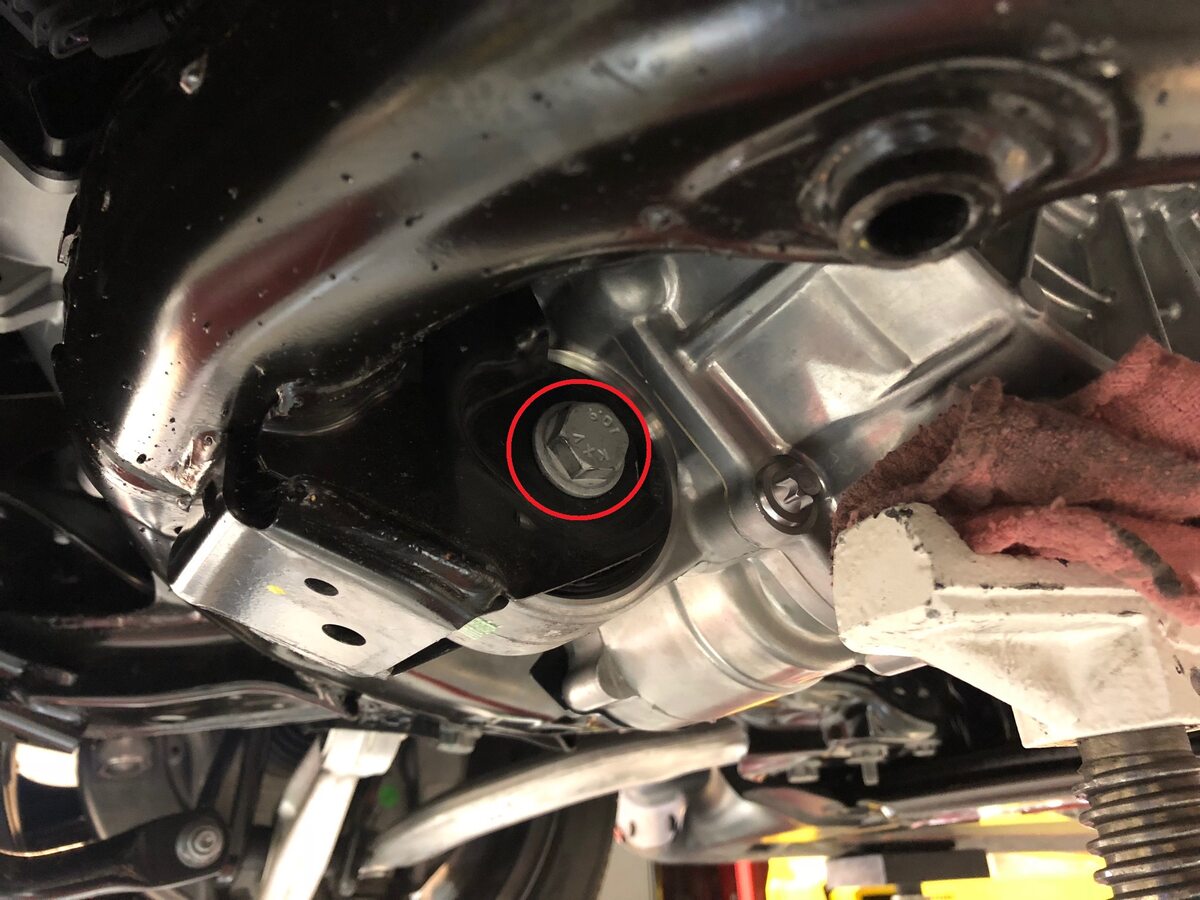

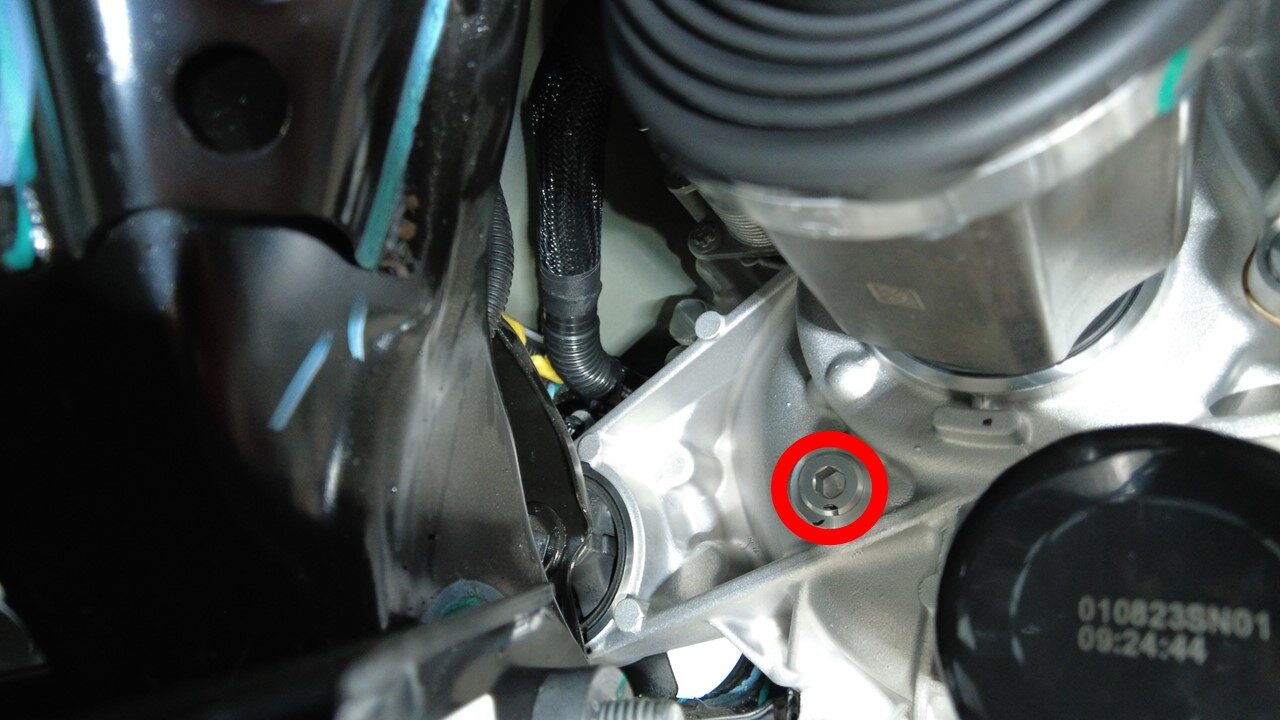

  22. Remove the bolt that attaches the front drive unit to the front subframe.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 18mm 소켓
  23. Lower the underhoist stand and the supported front drive unit, allowing sufficient space to access the oil filter adapter and install a new oil filter.

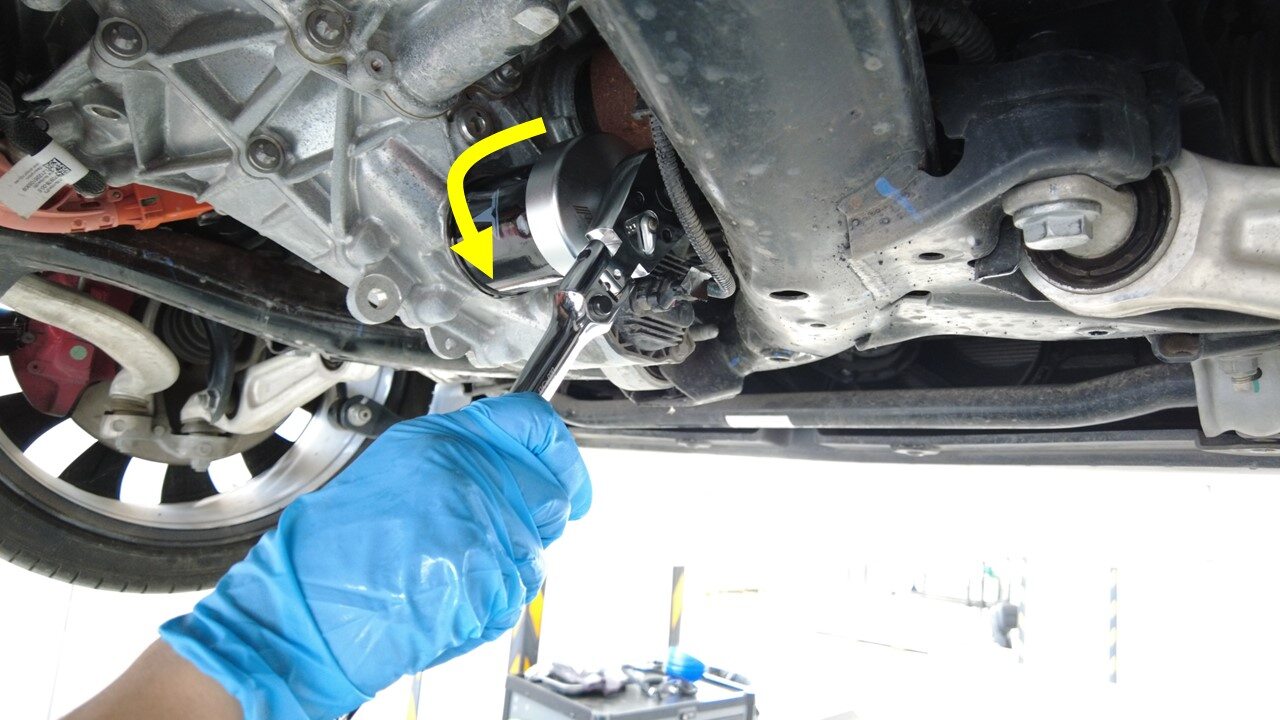

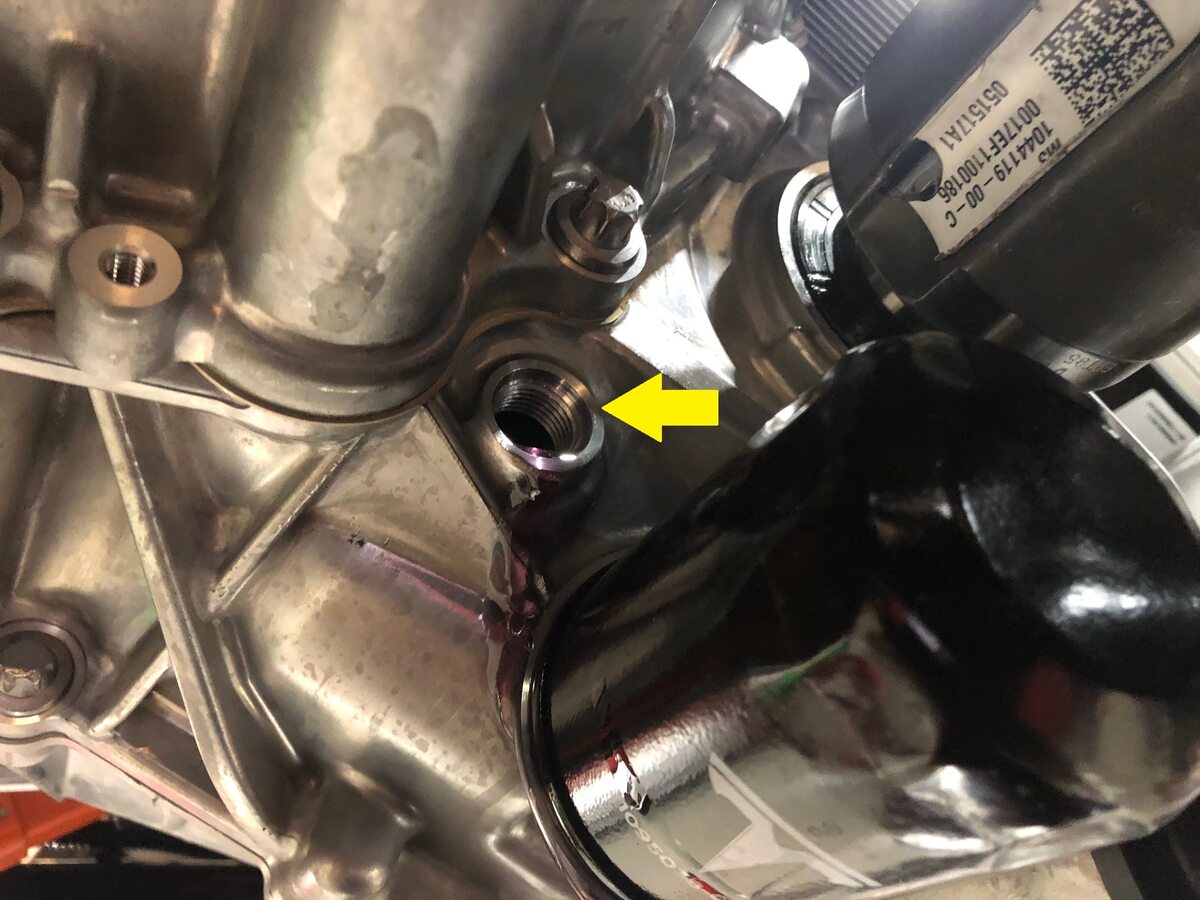

  24. Use oil filter wrench to remove the oil filter adapter from the vehicle.
  25. Lightly lubricate the new oil filter seal, and then rotate a new oil filter (1095038-00-A) clockwise by 135 degrees to install it to the vehicle.
    3 Nm (2.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 21mm 소켓
  26. Raise the front drive unit into position for installation.
  27. Install the bolt that attaches the front drive unit to the front subframe.
    80 Nm (59.0 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 18mm 소켓
  28. Remove the underhoist stand from underneath the front drive unit.

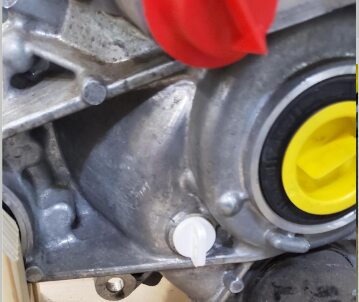

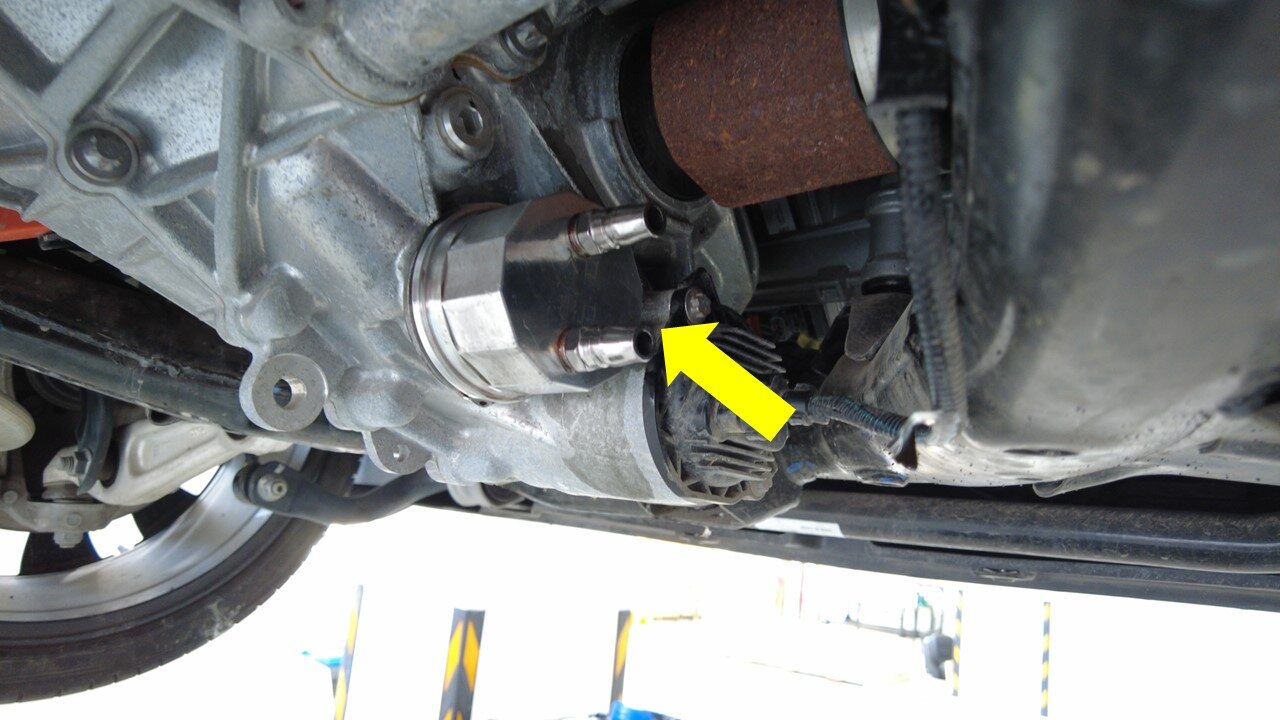

  29. Remove and discard the fill plug from the front drive unit.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 8mm 소켓

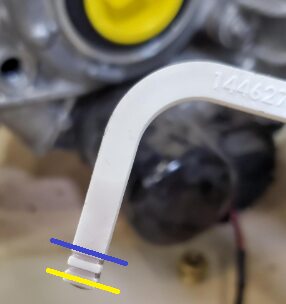

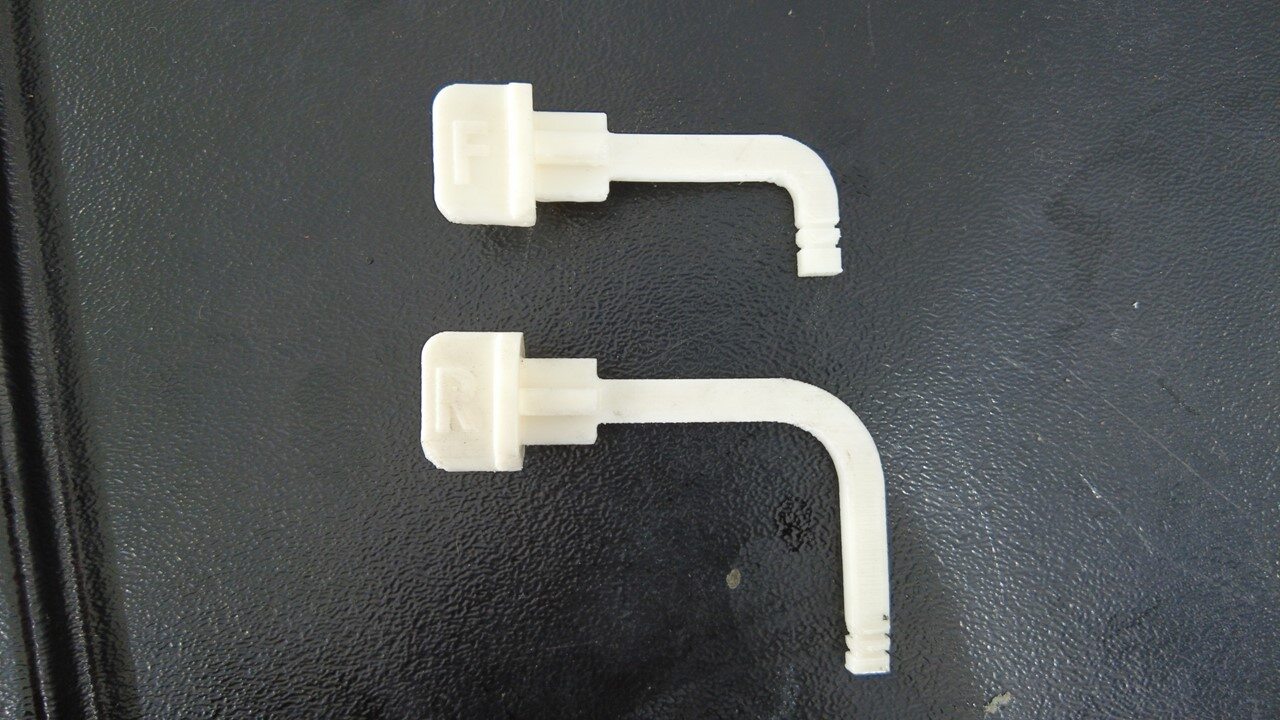

  30. Fully insert the front drive unit oil dipstick into the front drive unit through the fill plug hole, and then remove the dipstick and check the oil level is within the notches.
    Informational PurposesAn informational icon, calling your attention
    참고
    Make sure that the dipstick end is pointing down.
    Informational PurposesAn informational icon, calling your attention
    참고
    The dipstick is printed with an "F".
    Informational PurposesAn informational icon, calling your attention
    참고
    Add or drain the oil if needed.
  31. Install a new fill plug (1096865-00-B) to the front drive unit.
    15 Nm (11.1 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 8mm 소켓
  32. Install the front aero shield. See Panel - Aero Shield - Front (Non-Structural Pack) (Remove and Replace).
  33. 정비 모드 또는 Toolbox를 사용하여 다음 루틴을 수행합니다(참조 항목: 0005 - 정비 모드): TEST-SELF_DIF_X_OIL-PUMP-PRESSUREvia Toolbox: (link)
  34. 해당되는 경우 정비 모드를 종료하거나 노트북을 연결 해제합니다(참조 항목: 0005 - 정비 모드).
  35. Remove the vehicle from the lift.
  36. Raise the LH front window and close the LH front door.
