Taillight - LH (Remove and Replace)

Correction code 17402002 0.30 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See 개인 보호 to make sure wearing proper PPE when performing the below procedure. See 인체공학적 주의 사항 for safe and healthy working practices.

Warning IconA warning icon, calling your attention to a possibly risky situation
경고
The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.

Remove

  1. LH 후면 도어를 엽니다.
  2. LH 하단 C필러 트림에 겹쳐지는 LH 후면 도어 실 부분을 분리합니다.
  3. LH 2열 60 등받이를 아래로 접습니다.
    Informational PurposesAn informational icon, calling your attention
    참고
    필요한 경우 등받이 커버를 보호합니다.
  4. 후면 트렁크 적재함 바닥을 탈거합니다. 참조 항목: Trunk Load Floor - Rear (Remove and Replace).
  5. 전면 트렁크 적재함 바닥을 탈거합니다. 참조 항목: Trunk Load Floor - Front (Remove and Replace).
  6. 트렁크 실 트림을 탈거합니다. 참조 항목: Trim - Sill - Trunk (Remove and Replace).
  7. LH 트렁크 적재함 바닥 브래킷을 탈거합니다. 참조 항목: Bracket - Trunk Load Floor - LH (Remove and Replace).
  8. LH 트렁크 포켓 브래킷을 탈거합니다. 참조 항목: Bracket - Trunk Pocket - LH (Remove and Replace).
  9. LH 트렁크 사이드 트림을 탈거합니다. 참조 항목: Trim - Side - Trunk - LH (Remove and Replace).
  10. LH 리프트게이트 범프스토퍼를 위로 당겨 어셈블리로부터 탈거합니다.
  11. 커넥터 잠금 장치를 해제한 다음, 테일라이트 커넥터에서 전기 하네스를 분리합니다.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    경고
    DO NOT push down on the red locking tab. Pull the tab away from the connector until the connector is unlocked, and then continue pulling the main body of the connector to fully disconnect it.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    경고
    물 유입으로 인해 테일라이트를 교체해야 하는 경우 작업용 타월을 테일라이트 커넥터 아래에 배치하여 다른 전기 구성품에 대한 손상을 방지하십시오.
  12. 테일라이트를 차량에 고정하는 너트를 탈거합니다.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 8mm 12 포인트 딥소켓
    • ¼인치 표준 래칫
    • ¼인치 토크 렌치(장착 전용)
  13. 차량에서 LH 테일라이트 어셈블리를 탈거합니다.

Install

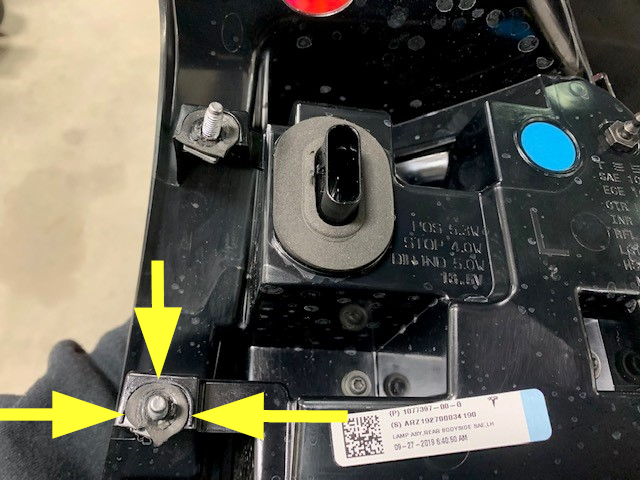

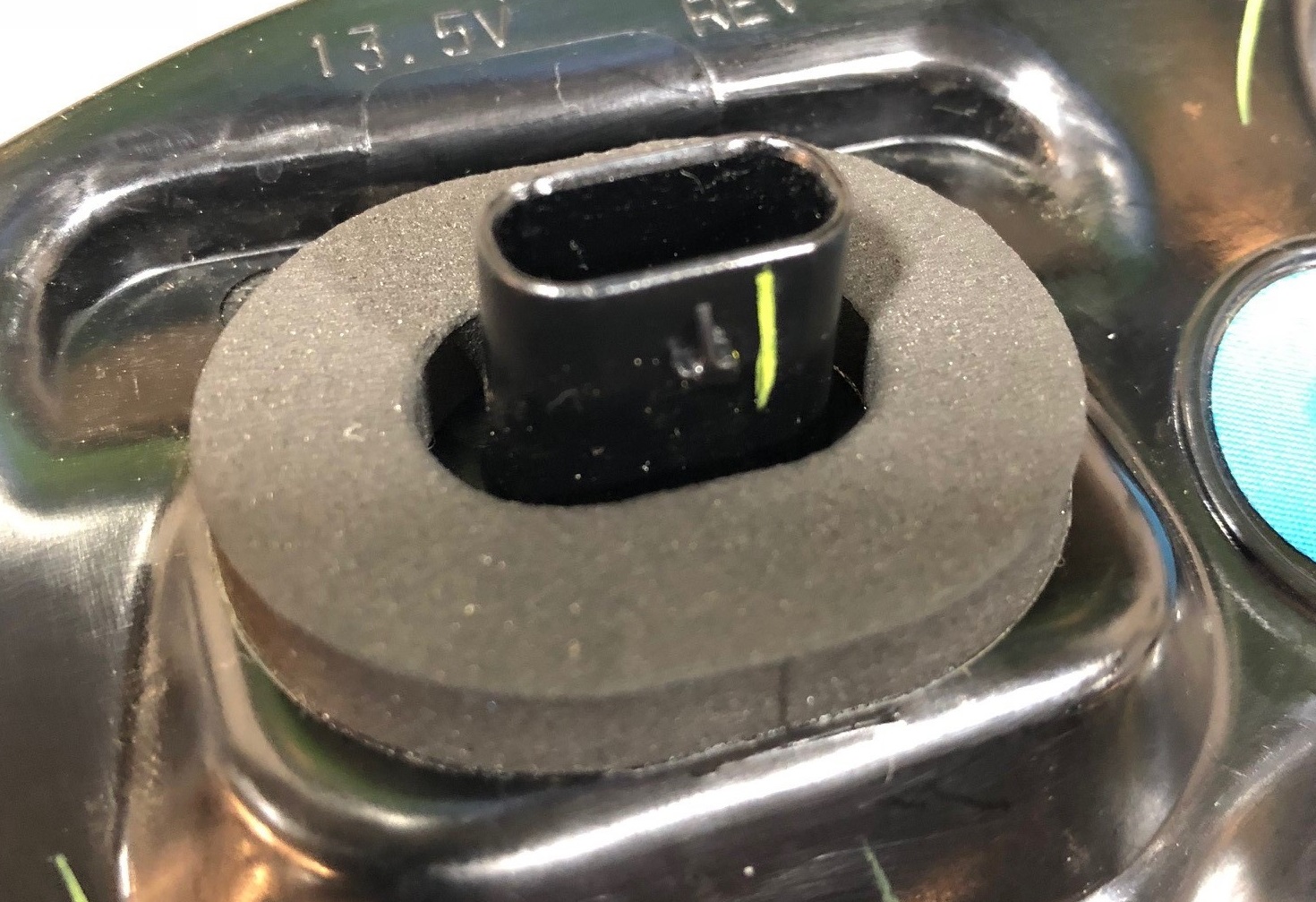

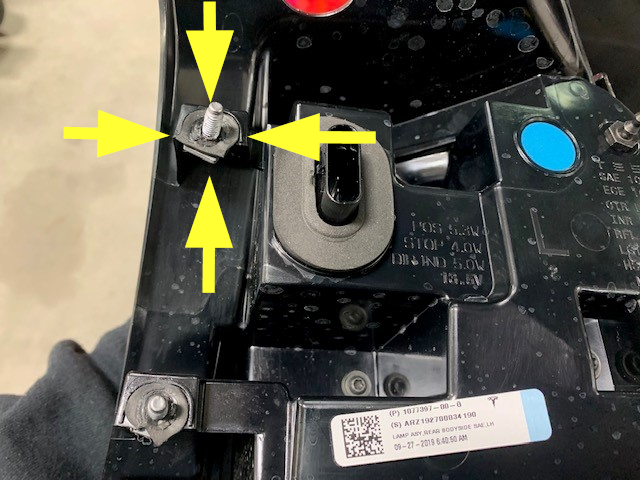

  1. 해당 테일라이트를 다시 장착해야 하는 경우 각 테일라이트 마운팅 볼트(2개) 및 테일라이트 전기 커넥터(1개) 주변에서 개스킷을 교체합니다.
  2. LH 테일라이트 스터드를 그로밋에 배치한 다음 테일라이트를 차체에 장착합니다.
  3. 테일라이트를 차량에 고정하는 너트(2개)를 장착합니다.
    3.2 Nm (2.4 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 8mm 12 포인트 딥소켓
    • ¼인치 표준 래칫
    • ¼인치 토크 렌치(장착 전용)
  4. 전기 하네스를 테일라이트 커넥터에 연결한 다음, 커넥터 잠금 장치를 체결합니다.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    경고
    커넥터에 빨간색 잠금 탭이 있는 경우: Push the red locking tab into the connector to engage the connector lock.
  5. LH 리프트게이트 범프스토퍼를 테일라이트 어셈블리에 정렬한 다음 범프스토퍼 위에서 아래로 눌러 어셈블리에 장착합니다.
  6. LH 트렁크 사이드 트림을 장착합니다. 참조 항목: GUID-6E5F19EE-348A-4512-A3A7-D5094875E651.html.
  7. LH 트렁크 포켓 브래킷을 장착합니다. 참조 항목: Bracket - Trunk Pocket - LH (Remove and Replace).
  8. LH 적재함 바닥 브래킷을 장착합니다. 참조 항목: Bracket - Trunk Load Floor - LH (Remove and Replace).
  9. 트렁크 씰 트림을 장착합니다. 참조 Trim - Sill - Trunk (Remove and Replace)
  10. 전면 트렁크 적재함 바닥을 장착합니다. 참조 항목: Trunk Load Floor - Front (Remove and Replace).
  11. 후면 트렁크 적재함 바닥을 장착합니다. 참조 항목: Trunk Load Floor - Rear (Remove and Replace).
  12. 리프트게이트를 닫습니다.
  13. LH 하단 C필러 트림에 겹쳐지는 LH 후면 도어 실 부분을 다시 안착시킵니다.
  14. LH 후면 도어를 닫습니다.
  15. Toolbox 3가 설치된 노트북을 차량에 연결합니다. 참조 항목: Toolbox 3(연결 및 연결 해제).
  16. Toolbox에서 교체한 테일라이트에 따라 다음 중 하나를 수행합니다.
    • LH 테일라이트 - Actions 탭을 클릭하고 검색 필드에 "VCLEFT"를 입력한 후 TEST-RESET_VCLEFTvia Toolbox: (link)via Service Mode Plus:
      • Chassis ➜ SCCM ➜ Reset VCLeft
      • Low Voltage ➜ Power Distribution ➜ Reset VCLEFT
      • Mid Voltage ➜ Power Distribution ➜ Reset VCLEFT
      을(를) 클릭하고 Run을 클릭한 다음 루틴이 완료될 때까지 기다립니다.
    • RH 테일라이트 - Actions 탭을 클릭하고 검색 필드에 "VCRIGHT"를 입력한 후 TEST-RESET_VCRIGHTvia Toolbox: (link)via Service Mode Plus:
      • Low Voltage ➜ Power Distribution ➜ Reset VCRIGHT
      • Mid Voltage ➜ Power Distribution ➜ Reset VCRIGHT
      을(를) 클릭하고 Run을 클릭한 다음 루틴이 완료될 때까지 기다립니다.
  17. Toolbox 3가 설치된 노트북을 차량에서 연결 해제합니다. 참조 항목: Toolbox 3(연결 및 연결 해제).
