Gearbox Fluid - Front Drive Unit (3DU) (Drain and Refill) (Machine Only)

Code de correction 39300115 FRT 0.60 REMARQUE : À moins d’indications explicites contraires dans la procédure, le code de correction et le temps forfaitaire ci-dessus représentent tout le travail à être fait pour cette procédure, notamment les procédures connexes. N’appliquez pas plusieurs codes de correction à la fois, à moins qu’il vous soit explicitement indiqué de le faire. REMARQUE : Consultez Temps forfaitaires pour en apprendre plus à propos des temps forfaitaires et de leur création. Vous pouvez transmettre par courriel vos commentaires relatifs aux valeurs des temps forfaitaires à ServiceManualFeedback@tesla.com. REMARQUE : Consultez Protection individuelle pour vous assurer de porter l’équipement de protection individuelle adéquat lors vous effectuez la procédure ci-dessous.

  • 2222393-00-A - AUTOMATIC OIL CHANGE MACHINE
  • 1130484-00-A - SKT, OIL FILTER, 63.5MM X 14

Procédure

  1. Remove the front aero shield. See Panneau - écran aérodynamique - avant (retirez et remplacez).
  2. Position the oil drain container underneath the drive unit oil filter area.

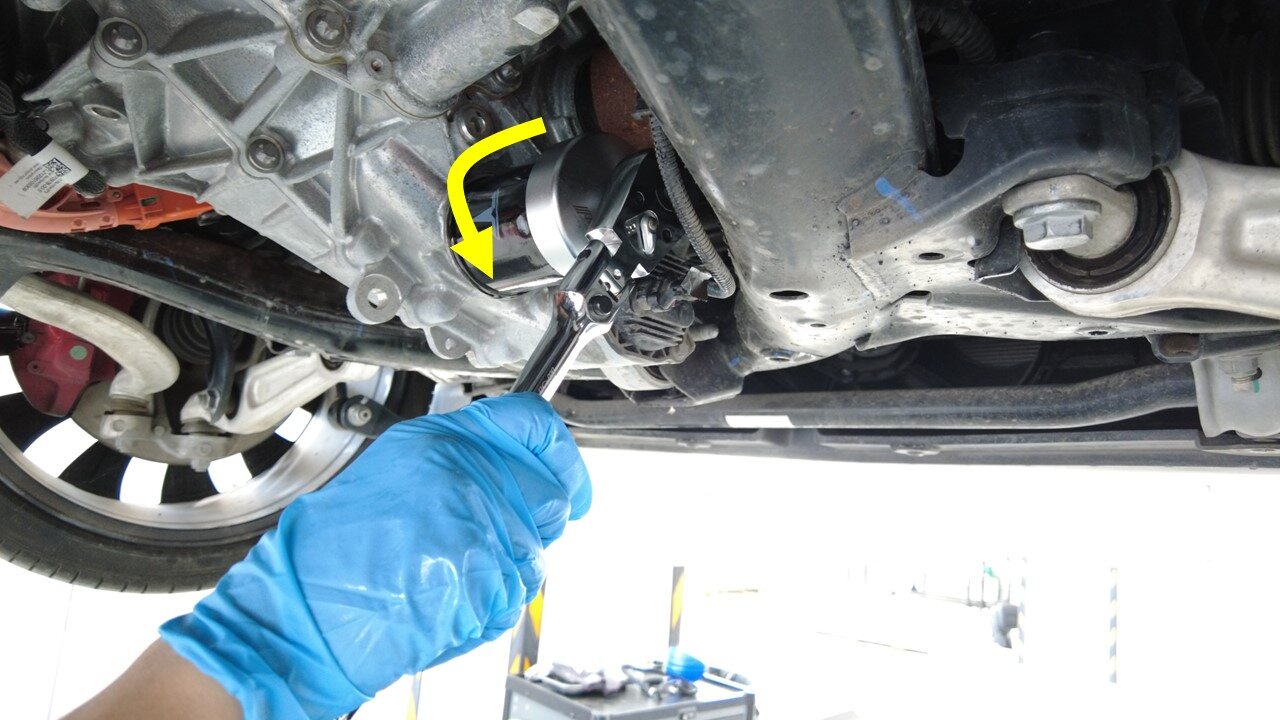

  3. Rotate the oil filter counterclockwise to remove it from the vehicle, and then discard the oil filter.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Nous recommandons l’utilisation des outils suivants :
    • Douille de 21 mm
  4. Install the oil filter adapter to the vehicle, and use oil filter wrench to fully tighten the adapter.
  5. Connect the oil hoses (x2) onto the oil filter adapter.
  6. Remove the oil drain container from underneath the drive unit.
  7. Connect the automatic oil change machine to the power supply, and then pull the switch up to open the machine.
  8. Add at least 5 L new oil to the automatic oil change machine.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Before adding new oil to the machine, make sure that old oil is fully drained.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    The volume of the oil can be read via the machine UI.
  9. Lower the vehicle to a comfortable working height.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Make sure that the vehicle does not contact the ground.
  10. Locally connect a laptop with Toolbox 3 to the vehicle. See Toolbox 3.0 (connecter et déconnecter).
  11. Exécutez la routine suivante au moyen du mode Entretien ou de Toolbox (consultez 0005 – Modes d’entretien) : PROC_ICE_X_ENTER-DYNO-MODEvia Toolbox: (link)
  12. With an assistant, place the vehicle into Drive mode and slightly press the accelerator pedal till the oil is fully drained.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    Avertissement
    Before pressing the accelerator pedal, make sure that the vehicle does not contact the ground. Adjust the lift, if needed.
  13. When the wheels start to run, in the automatic oil change machine, select Equal Exchange > Normal Oil Change, and set the exchange volume to 5L via the up/down buttons, and then press the OK button to start the oil exchange process.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Once the exchange is completed, the machine will automatically stop.
  14. Confirm the color of new oil and used oil. If the colors are extremely close, it indicates the process has been successfully completed.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    If there is a significant color difference between the two, repeat the whole procedure.
  15. Place the vehicle into Park mode.
  16. Exécutez la routine suivante au moyen du mode Entretien ou de Toolbox (consultez 0005 – Modes d’entretien) : PROC_ICE_X_EXIT-DYNO-MODEvia Toolbox: (link)
  17. Close the automatic oil change machine, and disconnect the machine from the power supply.
  18. Raise the vehicle to a comfortable working height.
  19. Position the oil drain container underneath the drive unit oil filter area.
  20. Disconnect the oil hoses (x2) from the oil filter adapter.
  21. Position the underhoist stand underneath the front drive unit.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Place a cloth in between to prevent scratches or damage to the front drive unit case.
  22. Remove the bolt that attaches the front drive unit to the front subframe.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Nous recommandons l’utilisation des outils suivants :
    • Douille de 18 mm
  23. Lower the underhoist stand and the supported front drive unit, allowing sufficient space to access the oil filter adapter and install a new oil filter.
  24. Use oil filter wrench to remove the oil filter adapter from the vehicle.
  25. Lightly lubricate the new oil filter seal, and then rotate a new oil filter (1095038-00-A) clockwise by 135 degrees to install it to the vehicle.
    3 Nm (2.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Nous recommandons l’utilisation des outils suivants :
    • Douille de 21 mm
  26. Raise the front drive unit into position for installation.
  27. Install the bolt that attaches the front drive unit to the front subframe.
    80 Nm (59.0 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Nous recommandons l’utilisation des outils suivants :
    • Douille de 18 mm
  28. Remove the underhoist stand from underneath the front drive unit.
  29. Remove and discard the fill plug from the front drive unit.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Nous recommandons l’utilisation des outils suivants :
    • Douille de 8 mm
  30. Fully insert the front drive unit oil dipstick into the front drive unit through the fill plug hole, and then remove the dipstick and check the oil level is within the notches.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Make sure that the dipstick end is pointing down.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    The dipstick is printed with an "F".
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Add or drain the oil if needed.
  31. Install a new fill plug (1096865-00-B) to the front drive unit.
    15 Nm (11.1 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Nous recommandons l’utilisation des outils suivants :
    • Douille de 8 mm
  32. Install the front aero shield. See Panneau - écran aérodynamique - avant (retirez et remplacez).
  33. Exécutez la routine suivante au moyen du mode Entretien ou de Toolbox (consultez 0005 – Modes d’entretien) : TEST-SELF_DIF_X_OIL-PUMP-PRESSUREvia Toolbox: (link)
  34. Quittez le mode Entretien ou débranchez l'ordinateur portable, le cas échéant (consultez 0005 – Modes d’entretien).
  35. Remove the vehicle from the lift.
  36. Raise the LH front window and close the LH front door.
