Mount and Bushings Set - Front Drive Unit (2nd Generation) (Remove and Replace)
Code de correction 40012812 REMARQUE : À moins d’indications explicites contraires dans la procédure, le code de correction et le temps forfaitaire ci-dessus représentent tout le travail à être fait pour cette procédure, notamment les procédures connexes. N’appliquez pas plusieurs codes de correction à la fois, à moins qu’il vous soit explicitement indiqué de le faire. REMARQUE : Consultez pour en apprendre plus à propos des temps forfaitaires et de leur création. Vous pouvez transmettre par courriel vos commentaires relatifs aux valeurs des temps forfaitaires à ServiceManualFeedback@tesla.com. REMARQUE : Consultez pour vous assurer de porter l’équipement de protection individuelle adéquat lors vous effectuez la procédure ci-dessous.
- 2025-05-07: Released new procedure.
Procedure
- Remove the front drive unit. See Unité d’entraînement – avant (Déposer et installer).

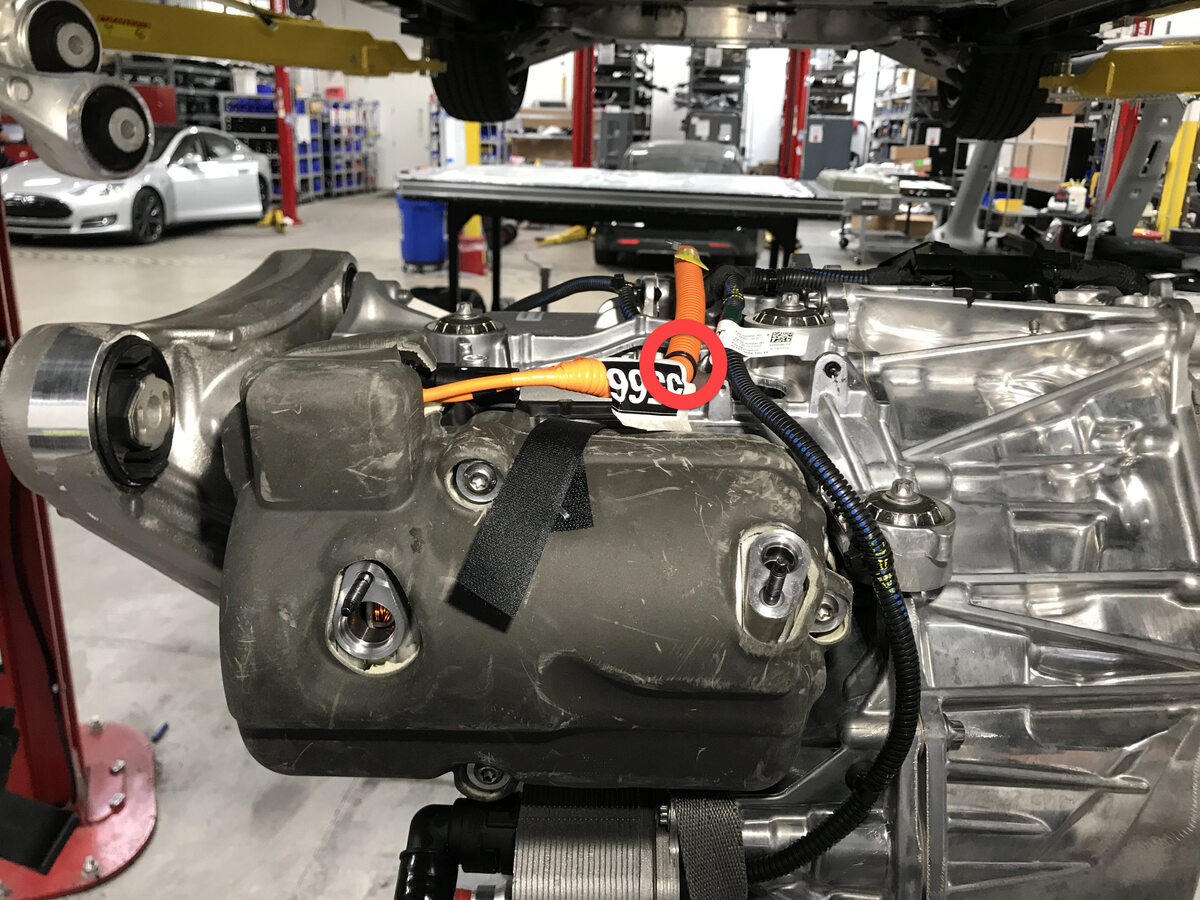

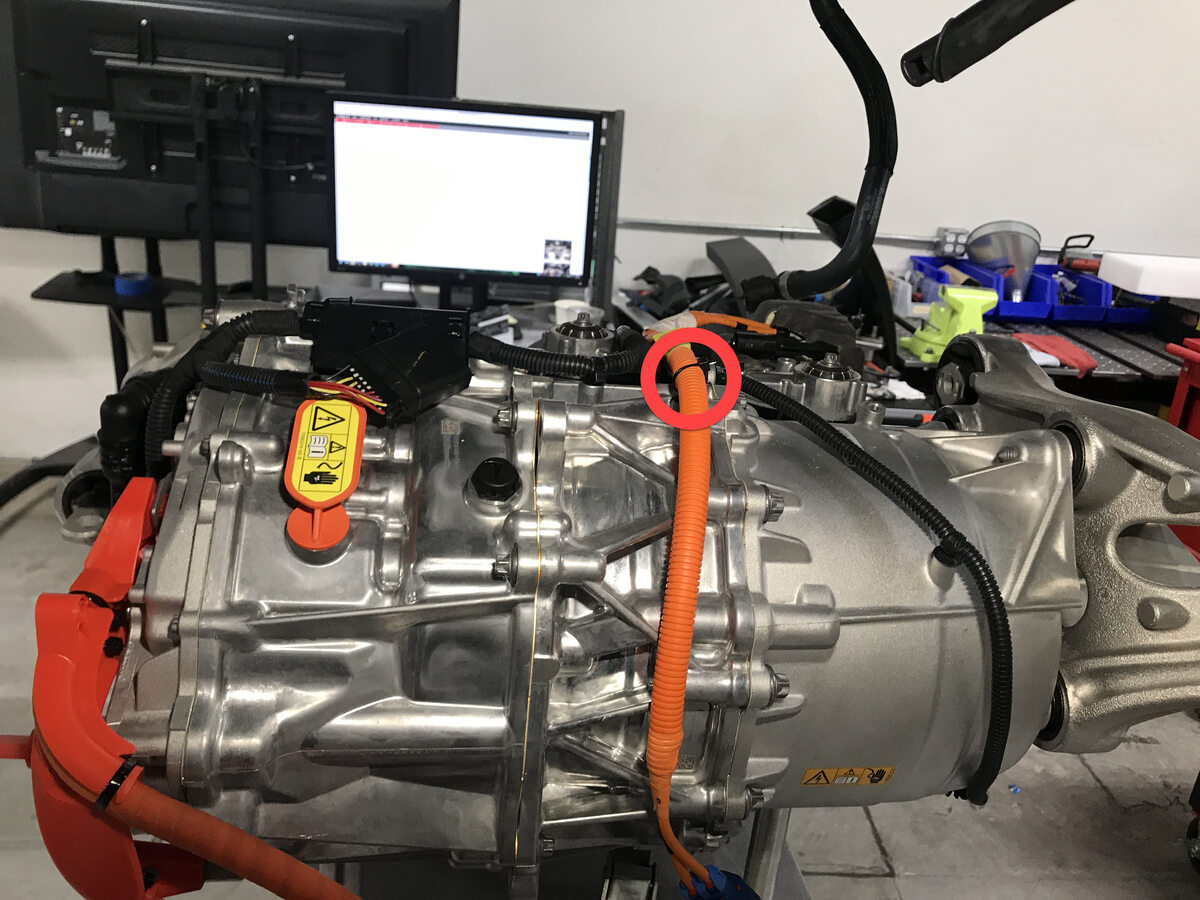

- Release the clips (x2) that attach the A/C compressor harness to the FDU.

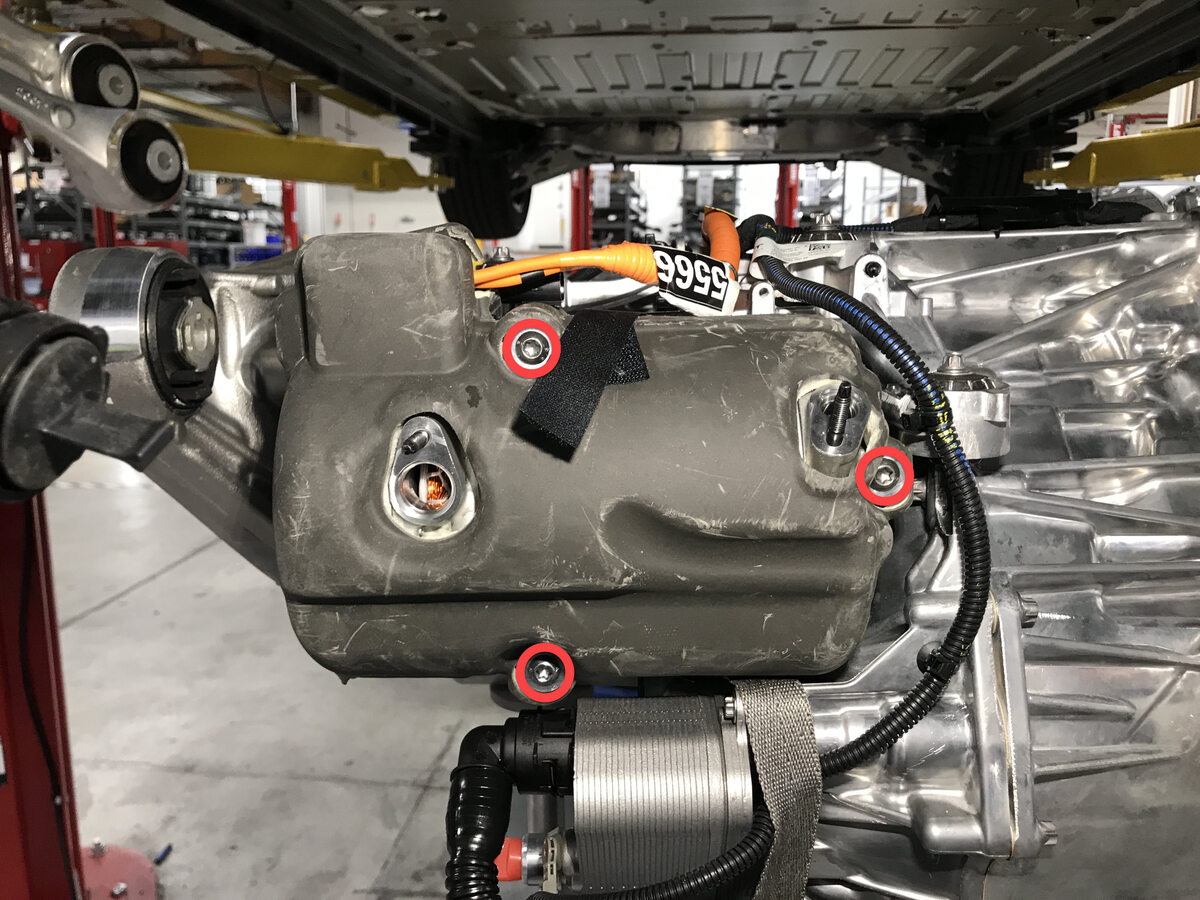

- Remove the bolts (x3) that attach the A/C compressor to the bracket assembly.
-

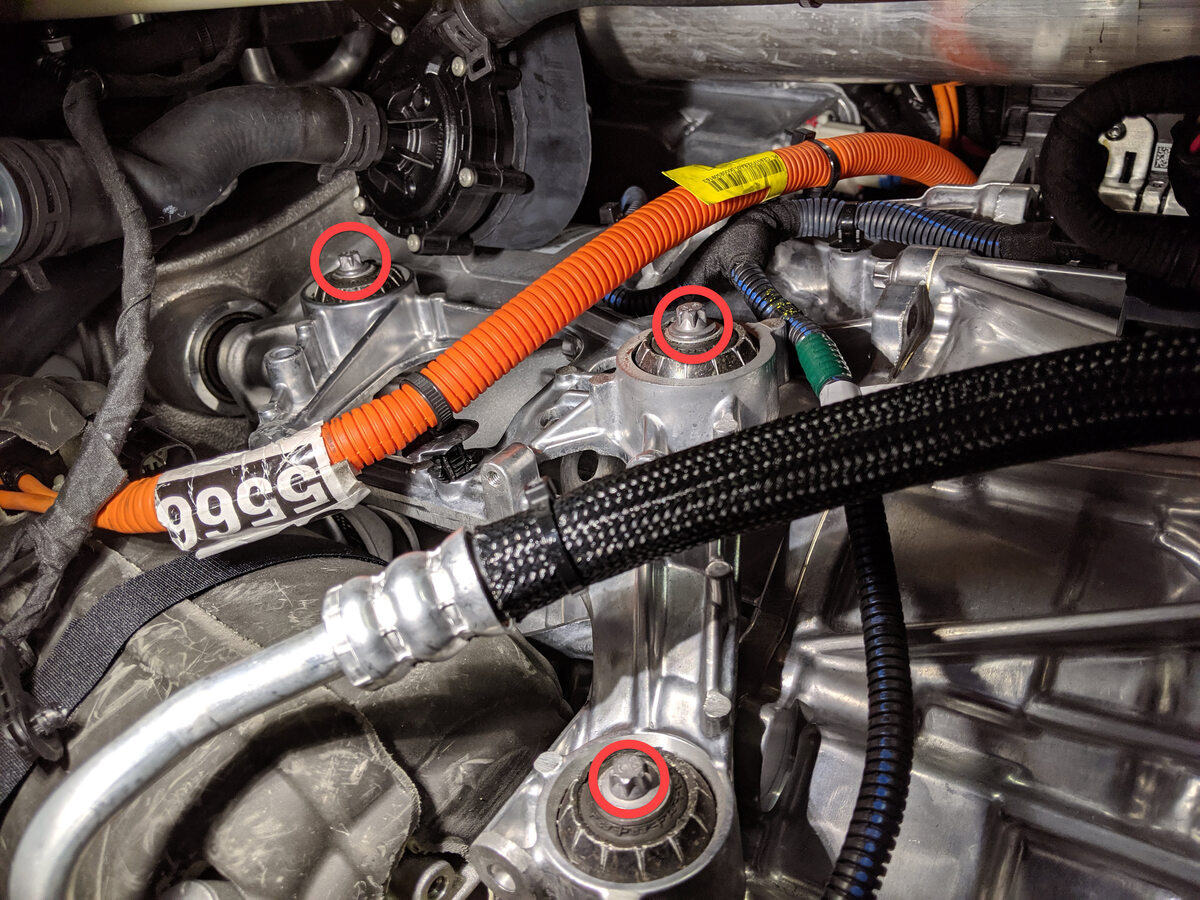

Remove the bolts (x3) that attach the A/C compressor bushing carrier assembly to the FDU.

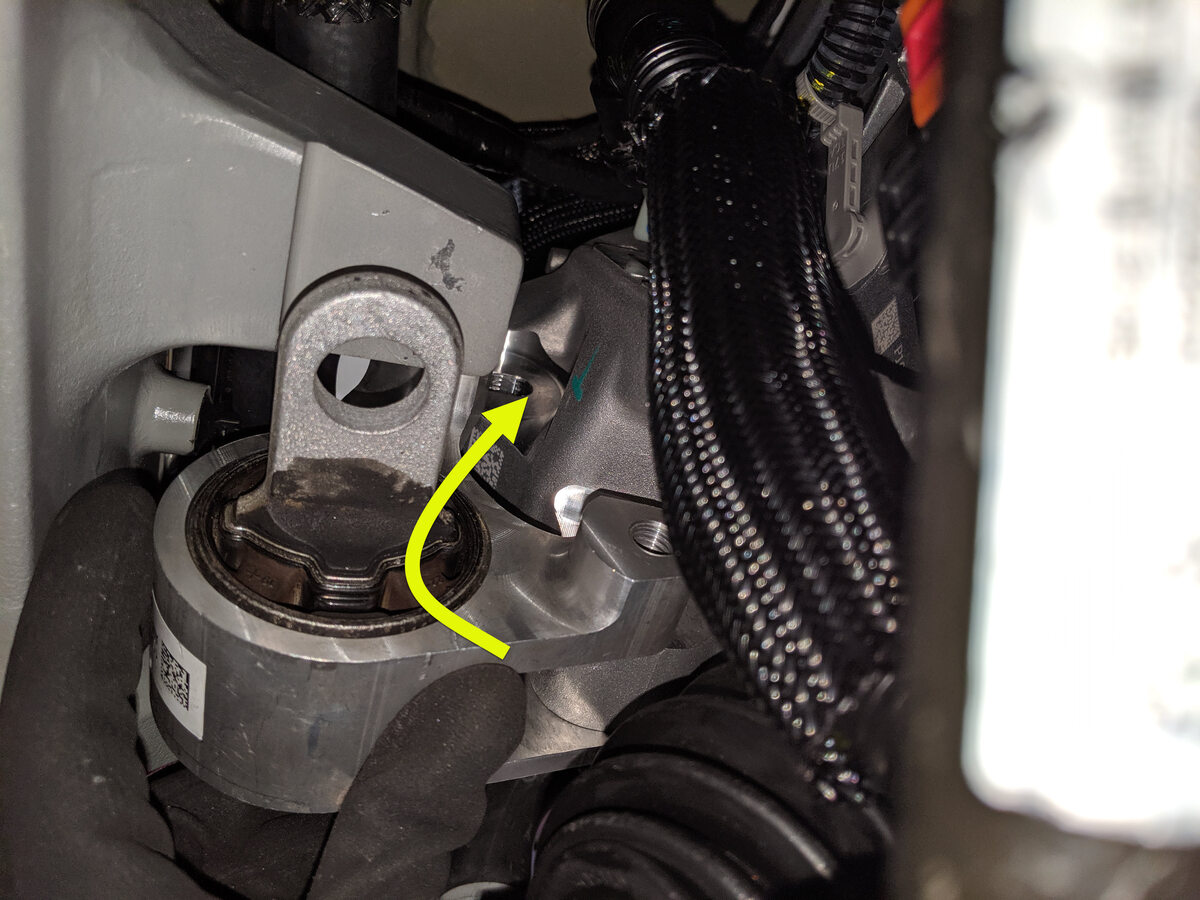

RemarqueManeuver the bushing carrier out to the RH side of the A/C compressor below the harnesses.
-
Install the bolts (x3) that attach the new A/C compressor bushing carrier assembly to the FDU (torque 10 Nm).
RemarqueManeuver the bushing carrier into position from the RH side of the A/C compressor below the harnesses.

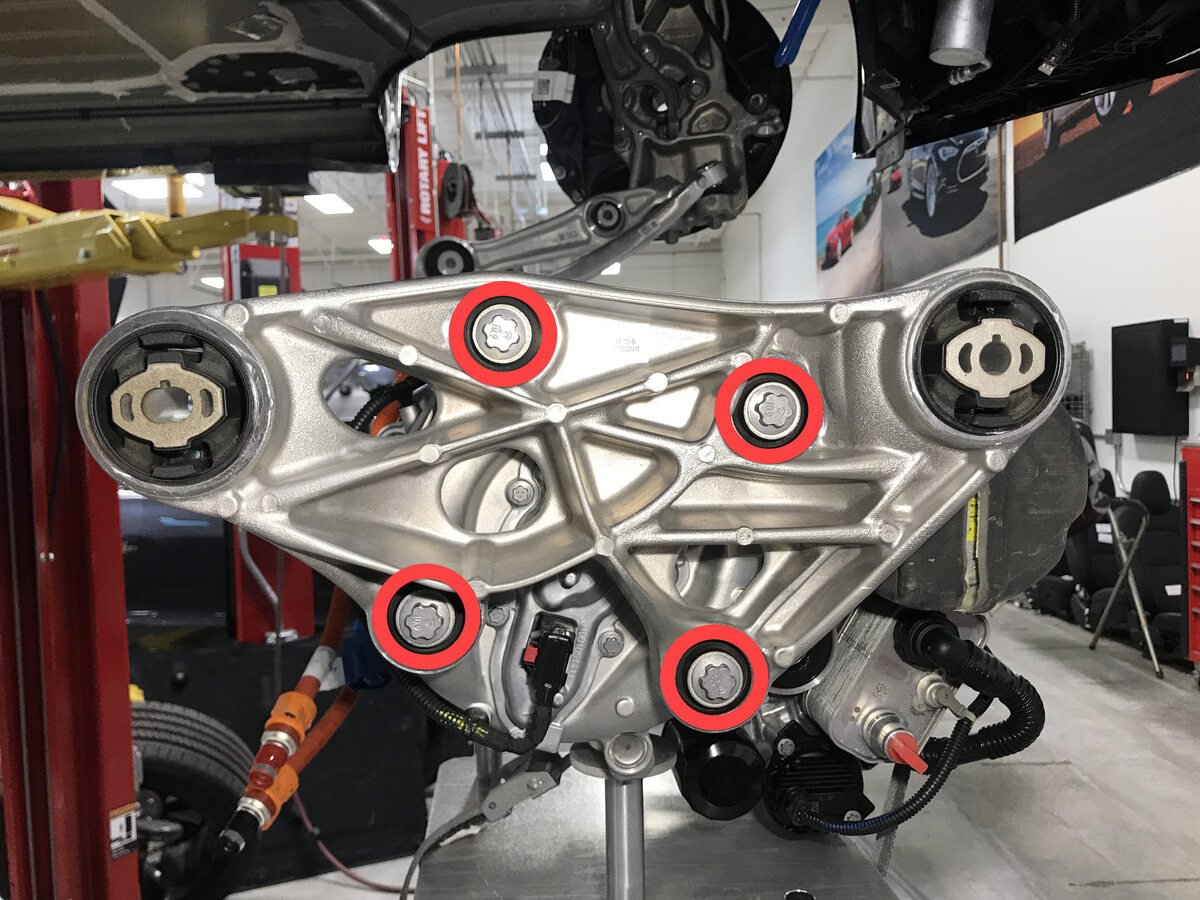

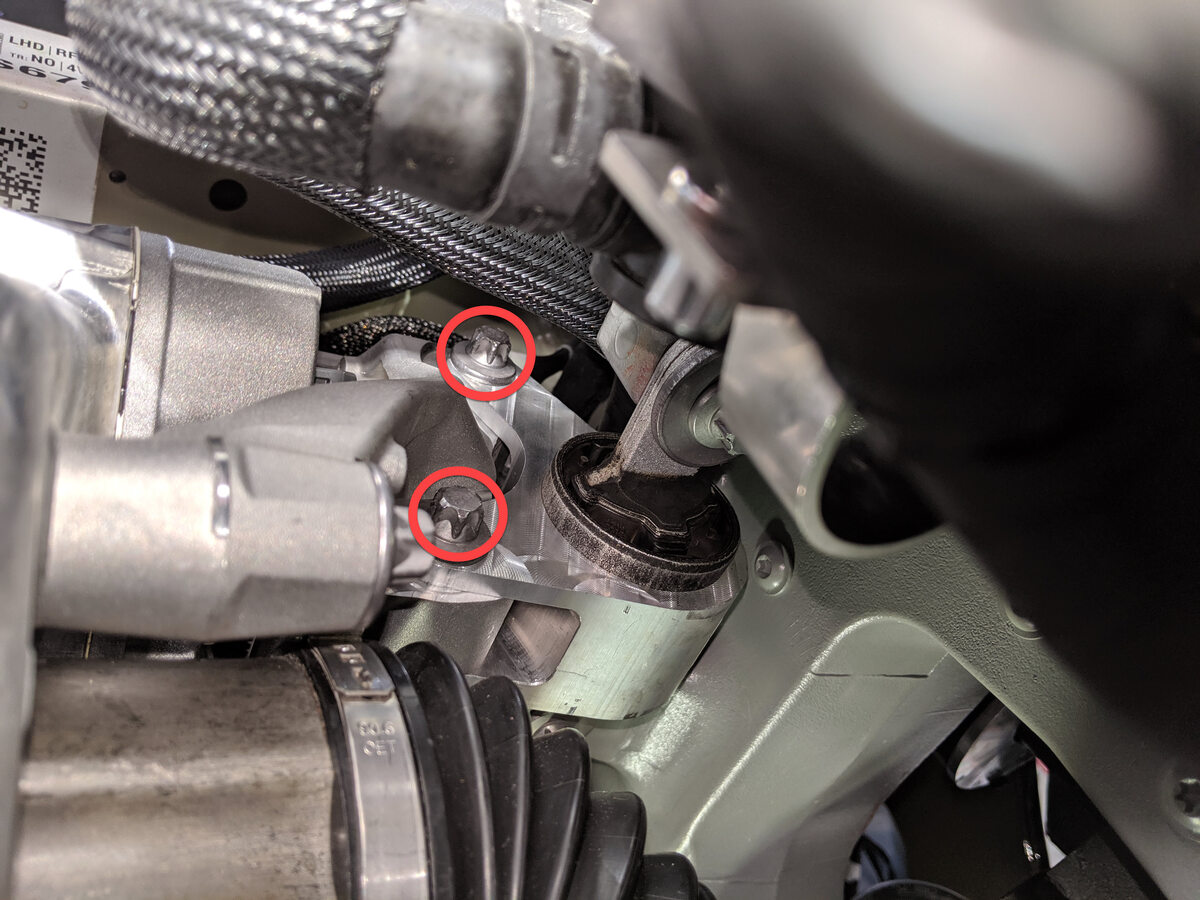

- Remove the bolts (x4) that attach the RH side mount to the FDU.
-
Position the new RH side mount, and then loosely install the bolts (x4) that attach the RH side mount to the FDU assembly.
RemarqueTorque in next step.
- Torque the bolts (x4) that attach the RH side mount to the FDU assembly (torque 60 Nm +50 degrees).
-

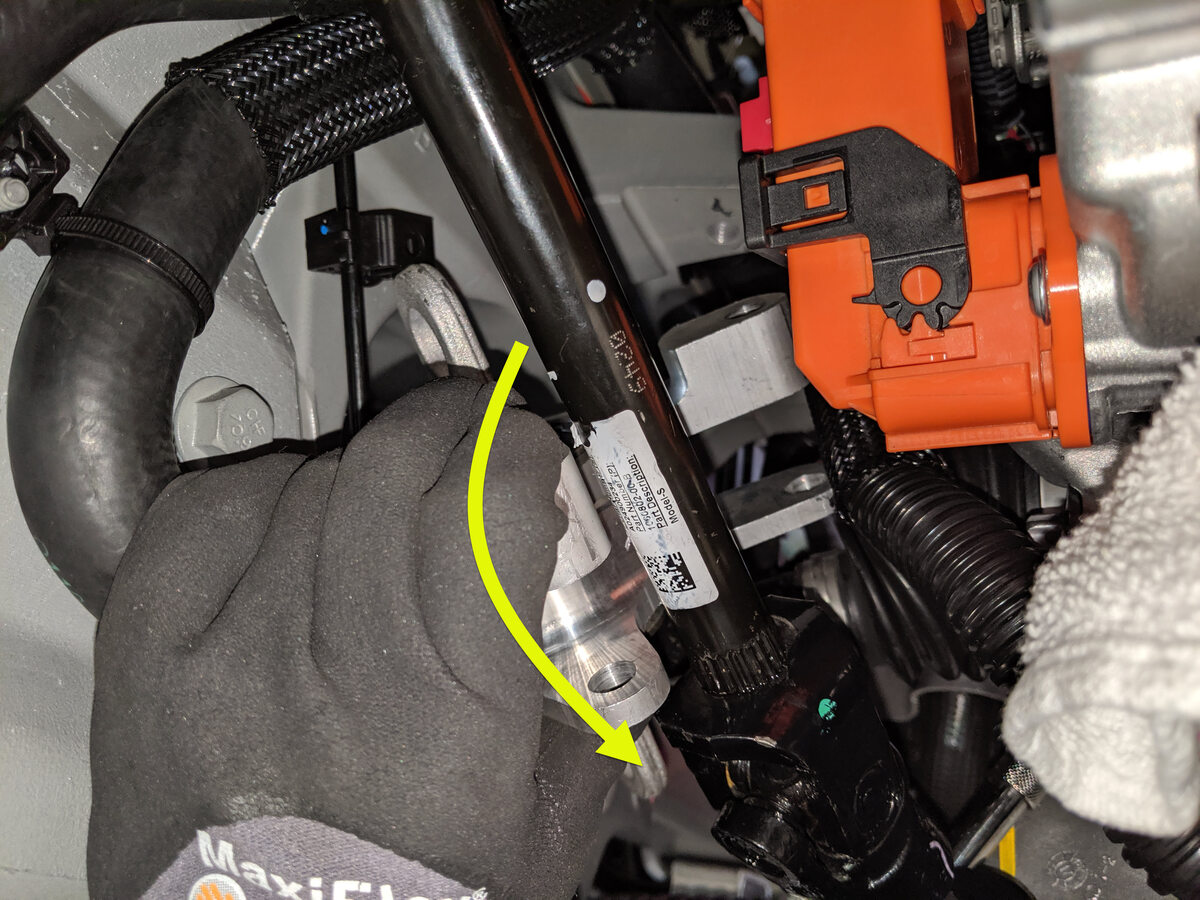

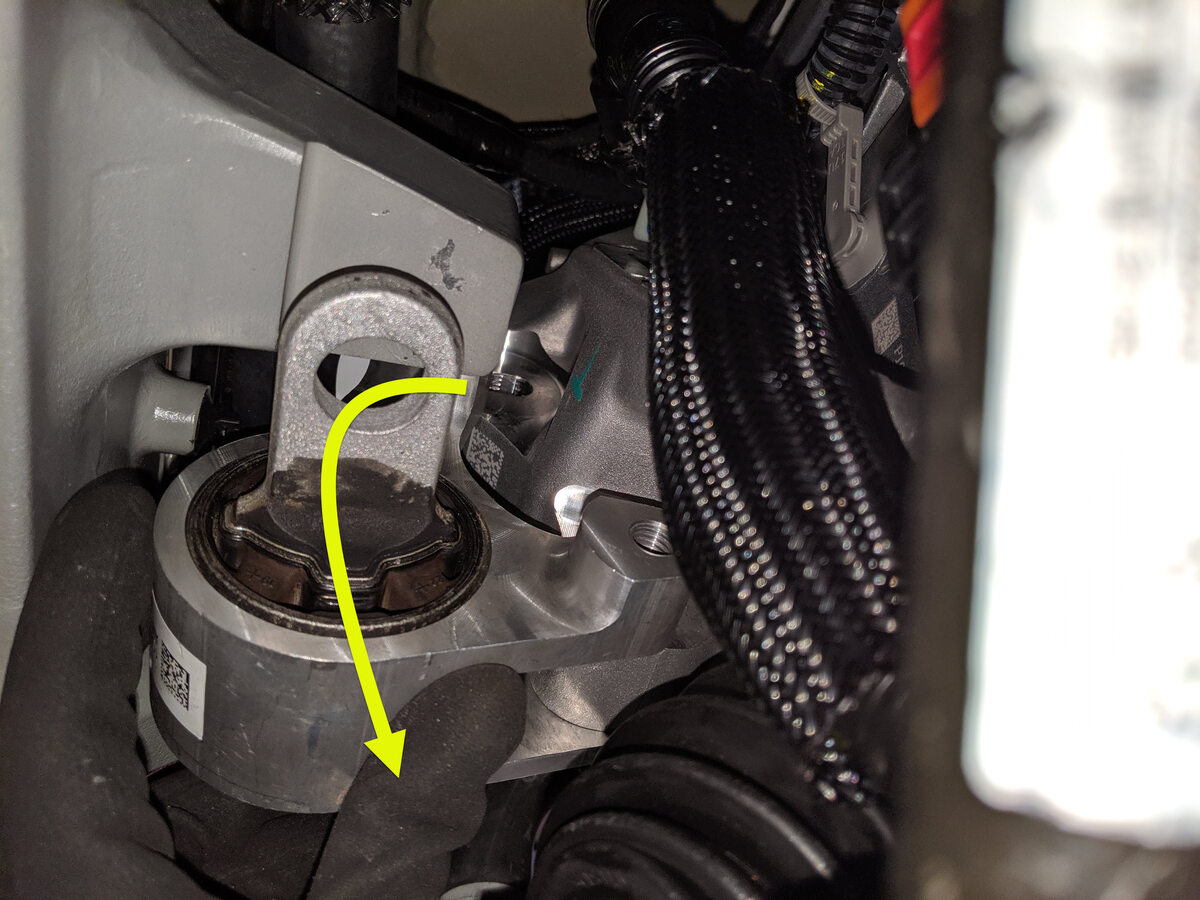

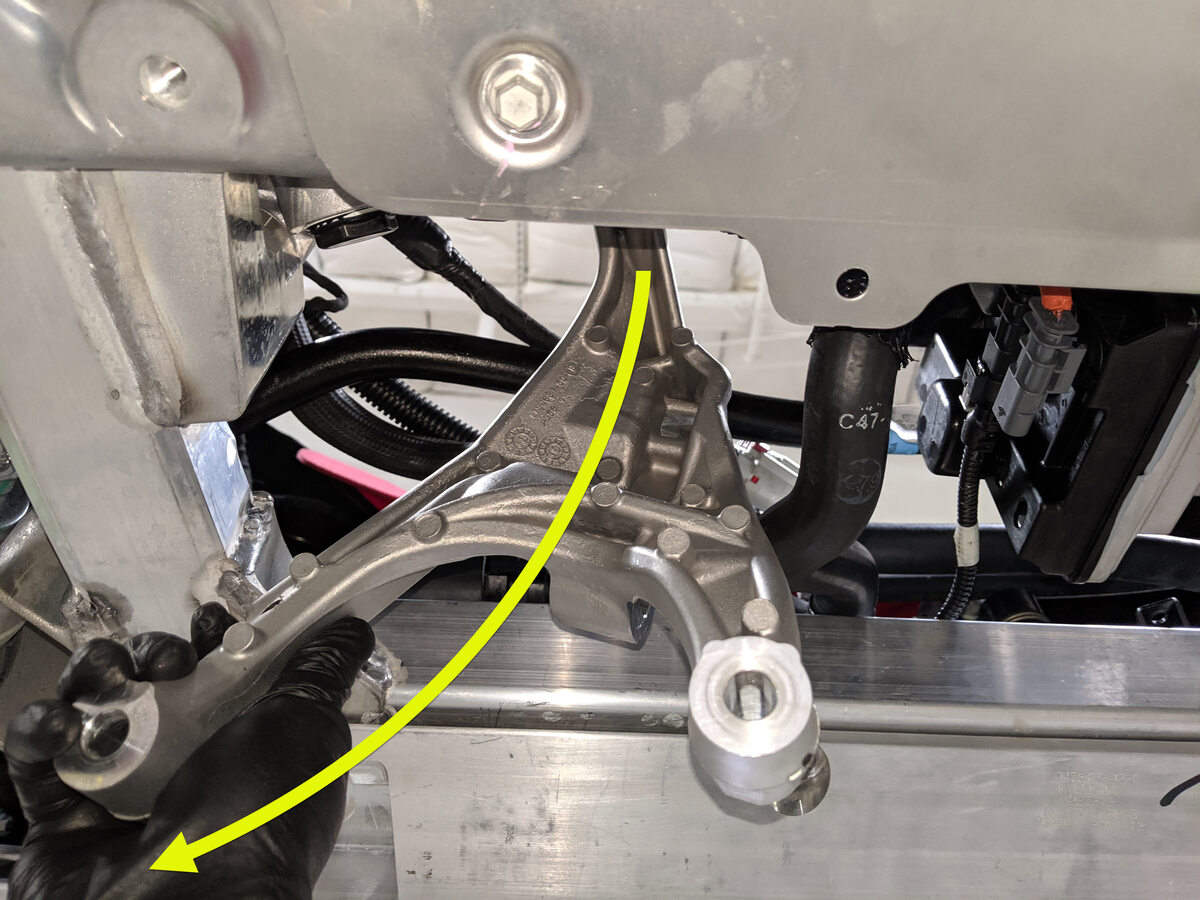

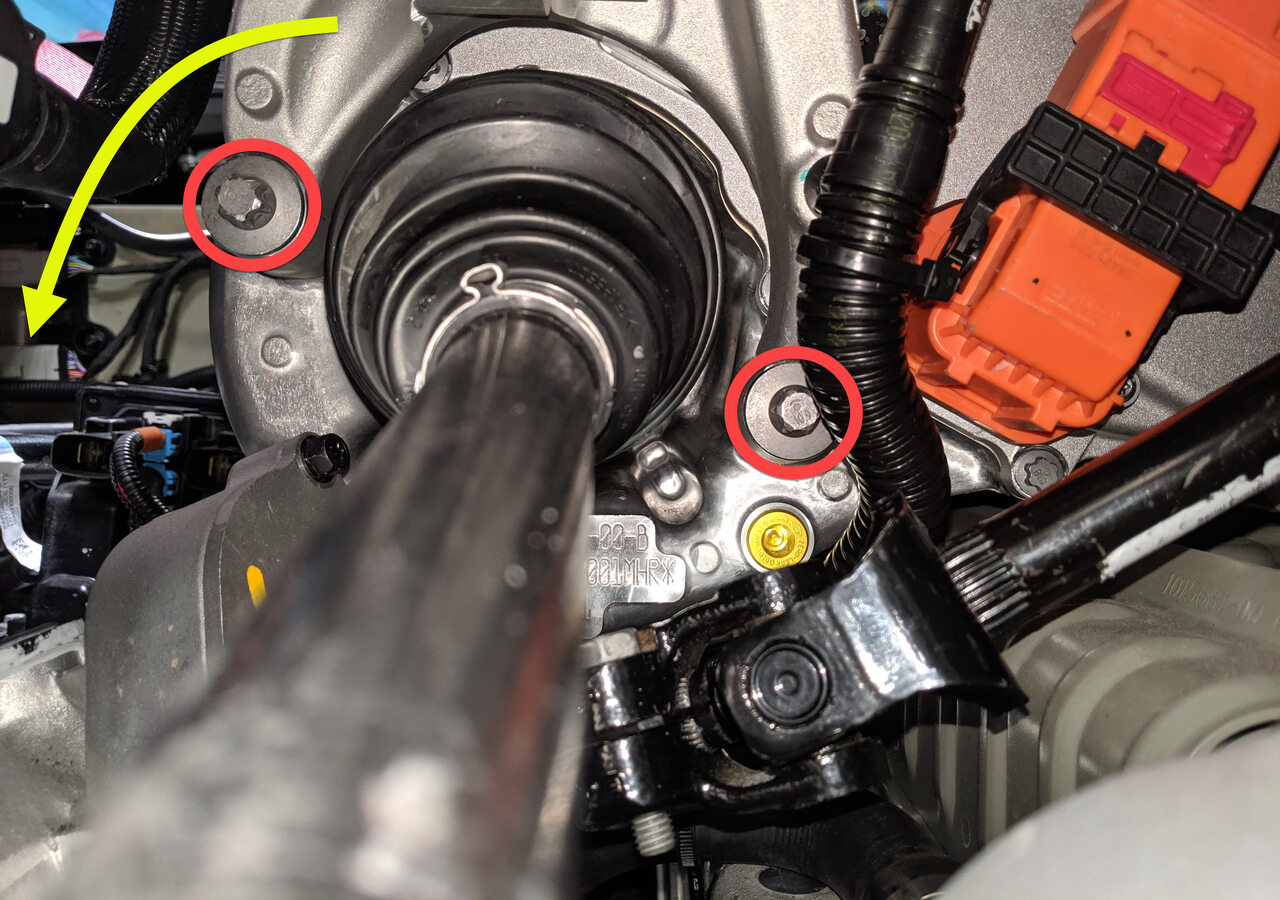

Remove the bolts (x2) that attach the clevis to the body, and then remove the mount assembly from the vehicle.

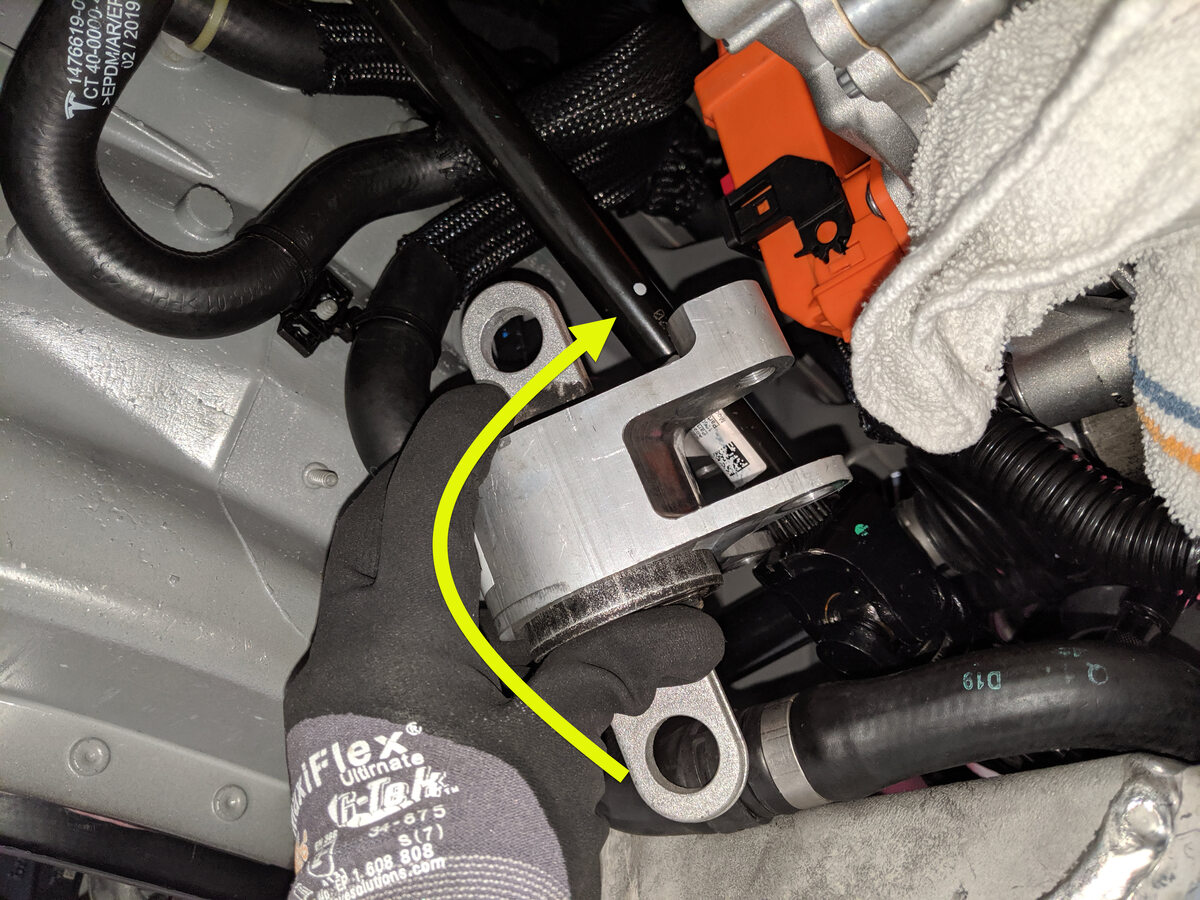

RemarqueManeuver the mount around the steering shaft to remove it from the vehicle.
-

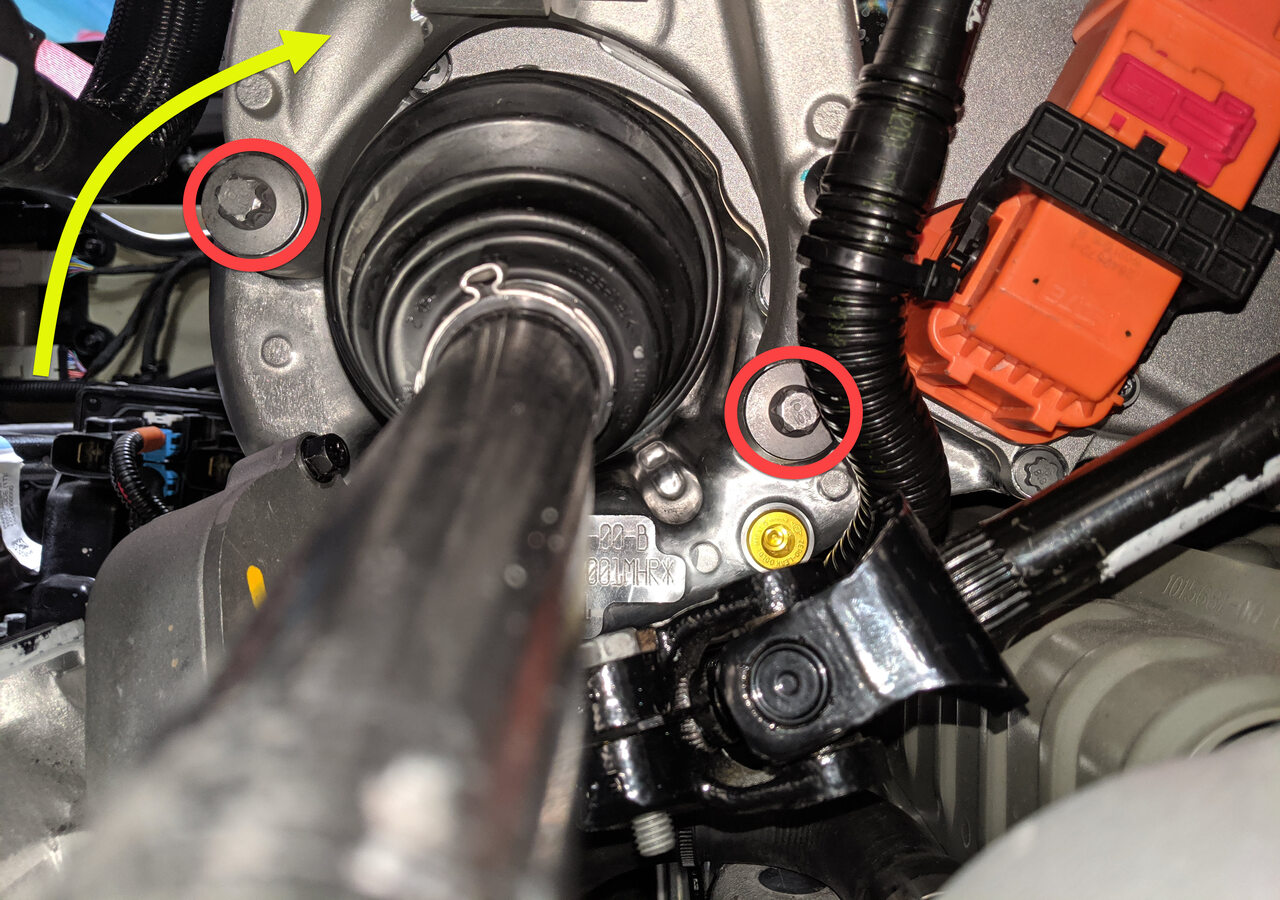

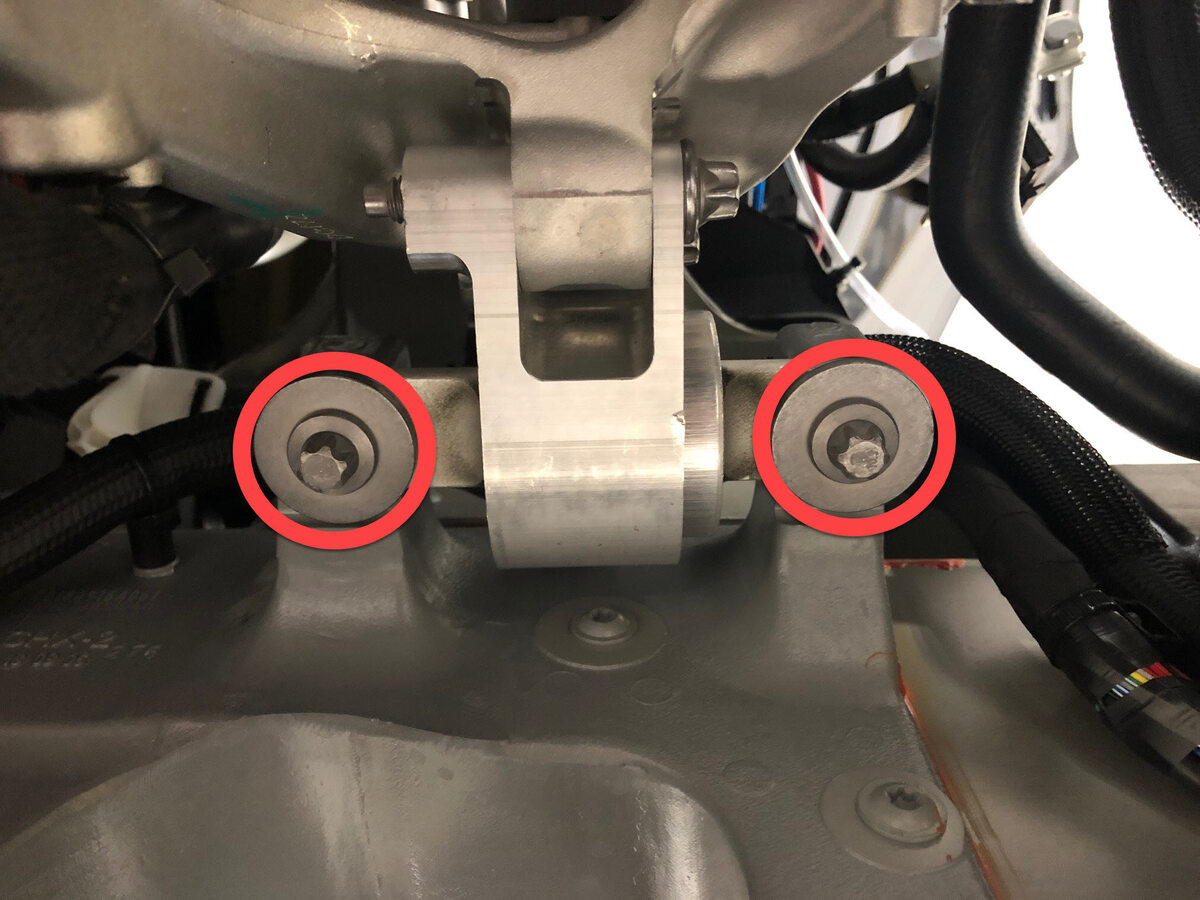

Remove the bolts (x2) that attach the LH side mount to the FDU.

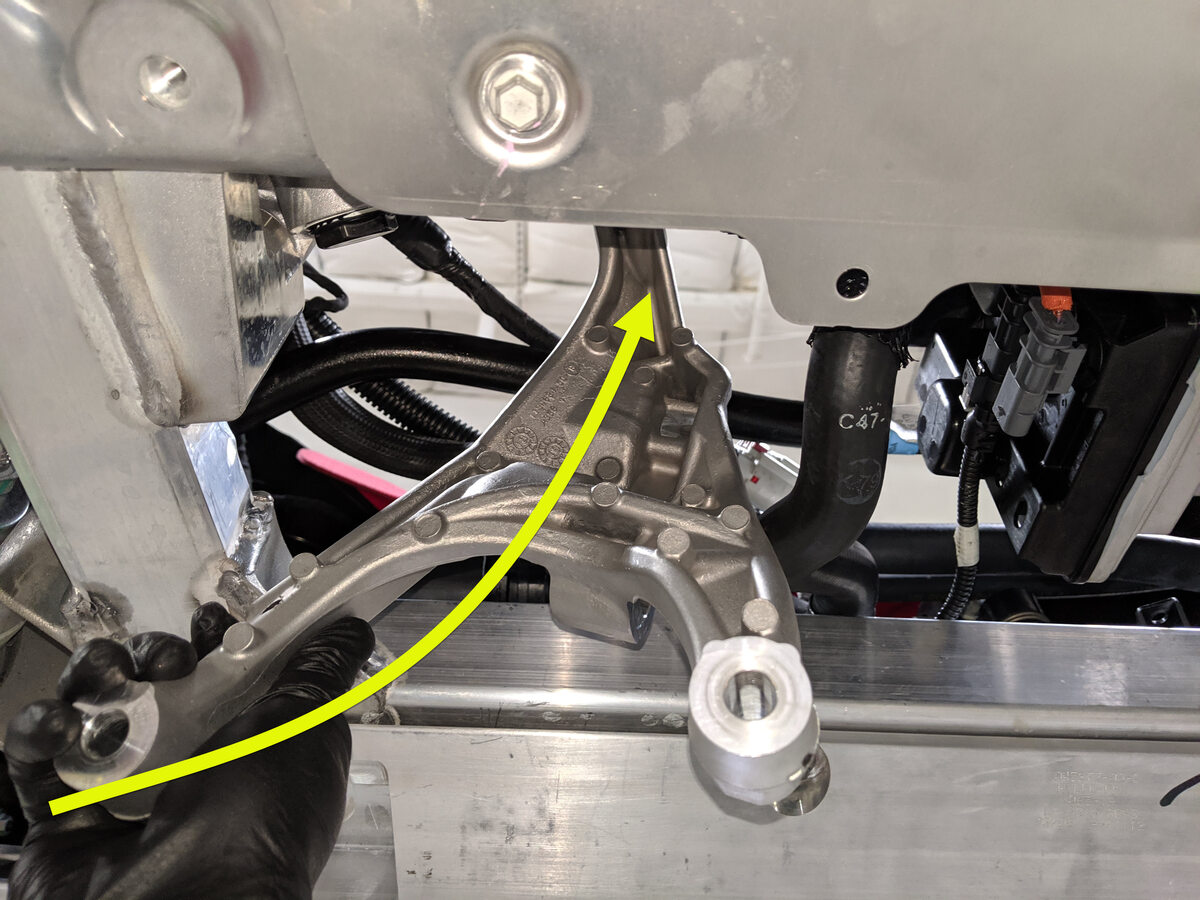

RemarqueManeuver the mount towards front of the vehicle, and then remove it from between the front subframe rails.
- Install the bolts (x2) that attach the new LH side mount onto the FDU (torque 38 Nm)..
-
Position the clevis mount into position for installation and hand tighten the bolts to the body.
RemarqueTorque at a later step. You may need to adjust the jack to align the mounting holes as needed.
- Fully tighten the clevis mount bolts to the LH FDU mount (torque 50 Nm)
- Install the bolts (x3) that attach the A/C compressor to the bracket assembly (torque 24 Nm).
- Install the clips (x2) that attach the A/C compressor harness along the FDU.
- Install the front drive unit. See Unité d’entraînement – avant (Déposer et installer).
