Noise Absorber - Motor Bay - Front (Pre-Refresh) (Remove and Replace)
Code de correction
N/A
Avertissement
Cette procédure est une PREMIÈRE VERSION. Bien qu'elle ait été validée, des avertissements et des mises en garde pourraient manquer. Respectez les exigences de sécurité et faites preuve d’une extrême prudence lorsque vous travaillez sur ou près des systèmes et des composants haute tension. Transmettez toute correction ou remarque à ServiceDevelopment@teslamotors.com.
- Open LH front door
- Lower LH front window
-

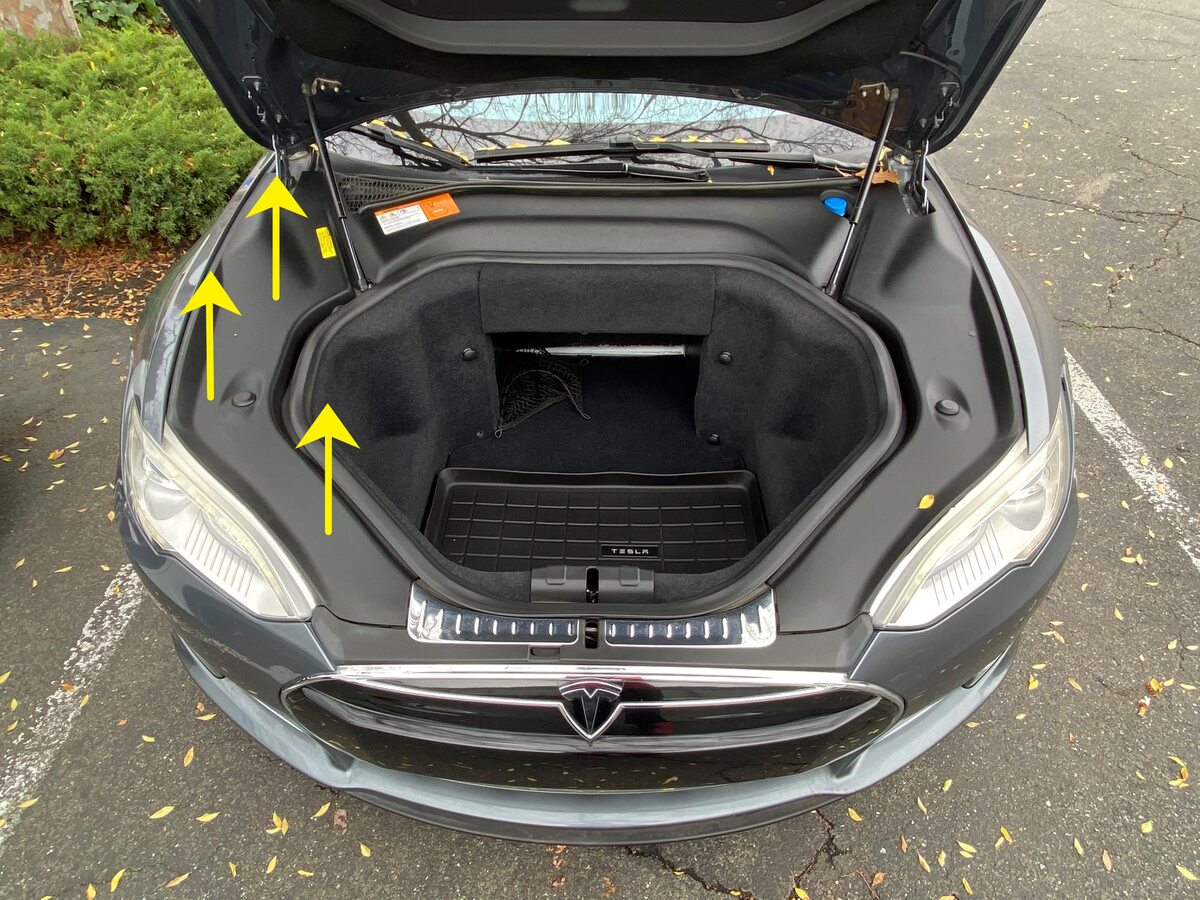

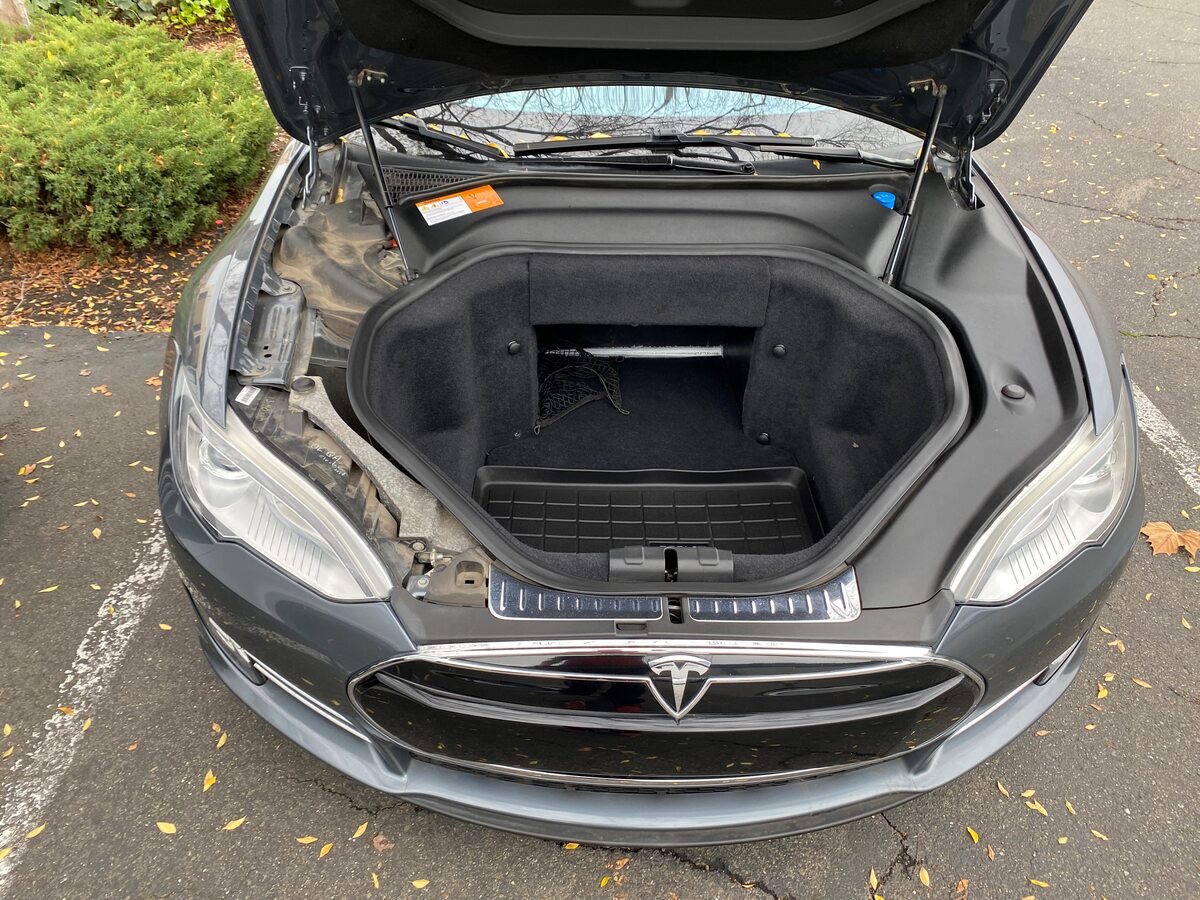

Open hood
RemarqueUsing MCU touchscreen > Controls > Frunk Trunk
-
Remove rear underhood apron
Remarque8x clips
-

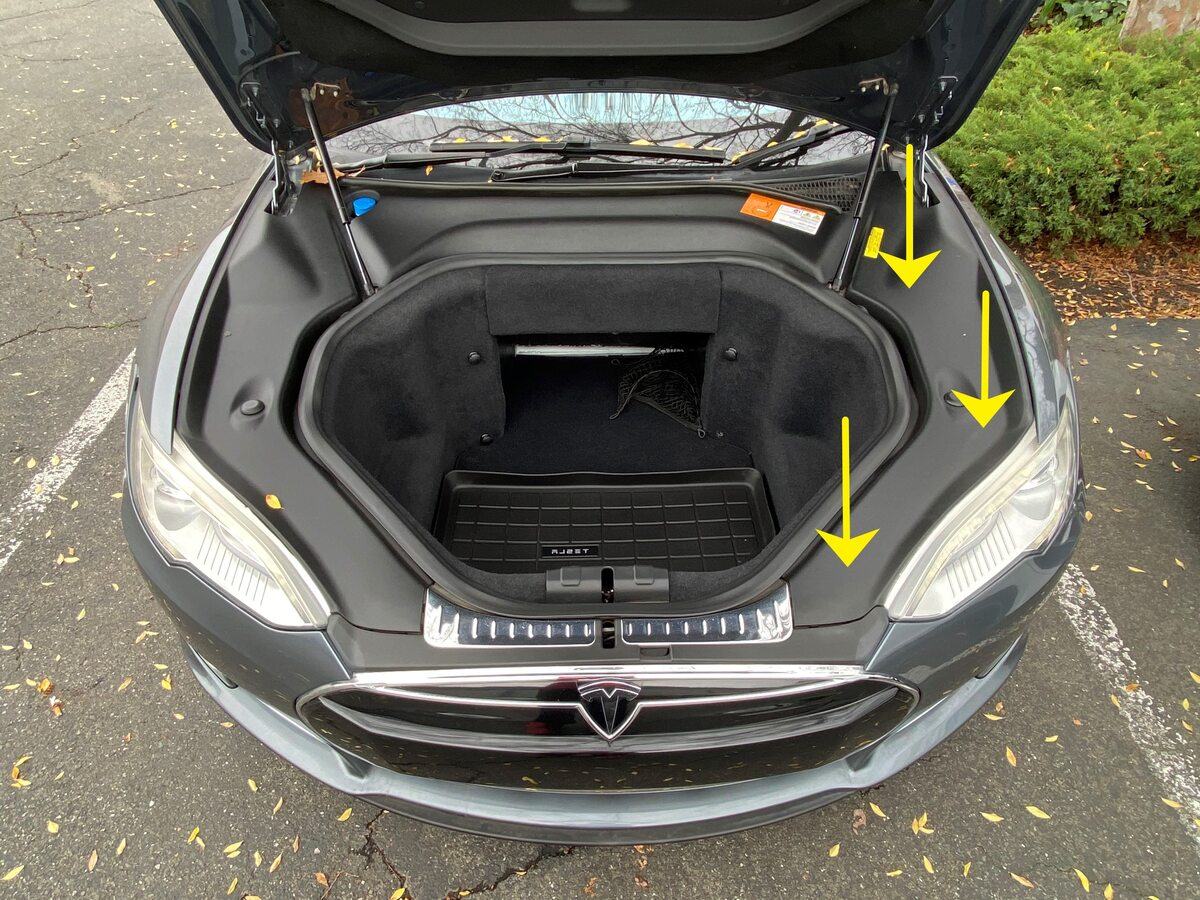

Remove LH underhood apron
Remarque9x clips
-
Remove RH underhood apron
Remarque9x clips
-

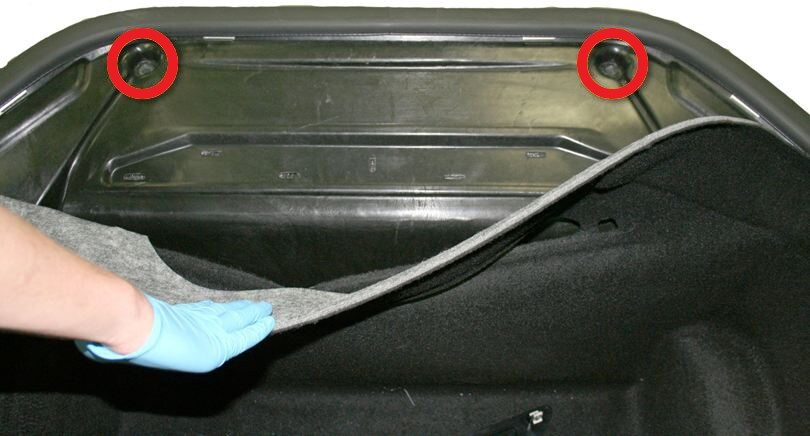

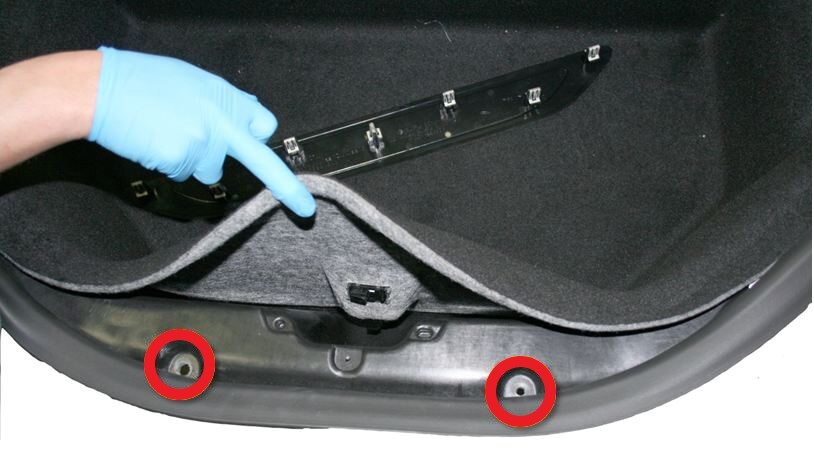

Remove rear bolts securing underhood
storage unit to body
Remarque2x bolts, 13mm, 4 Nm, Peel back carpet for access
-
Remove front nuts securing underhood
storage unit to body
Remarque2x nuts, 8mm, 8 Nm, Peel back carpet for access
-

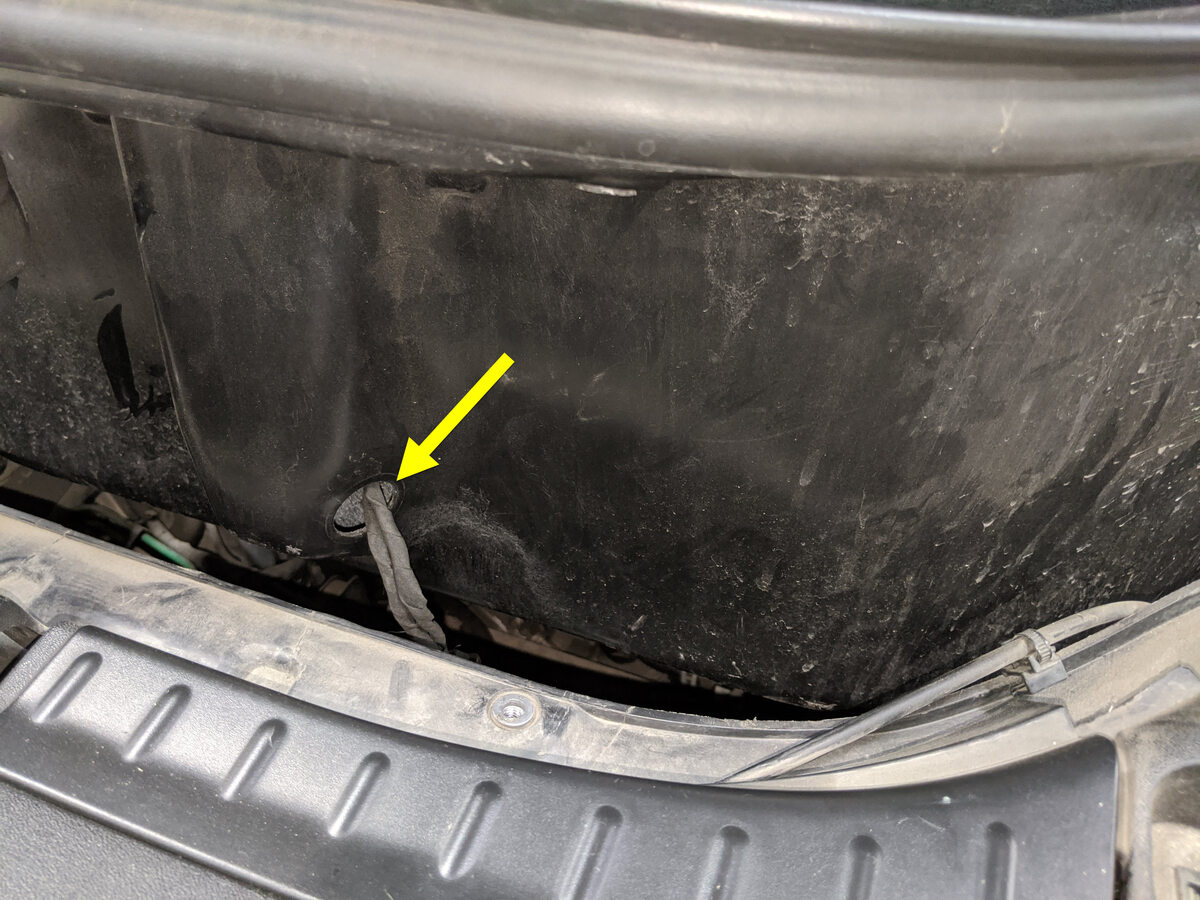

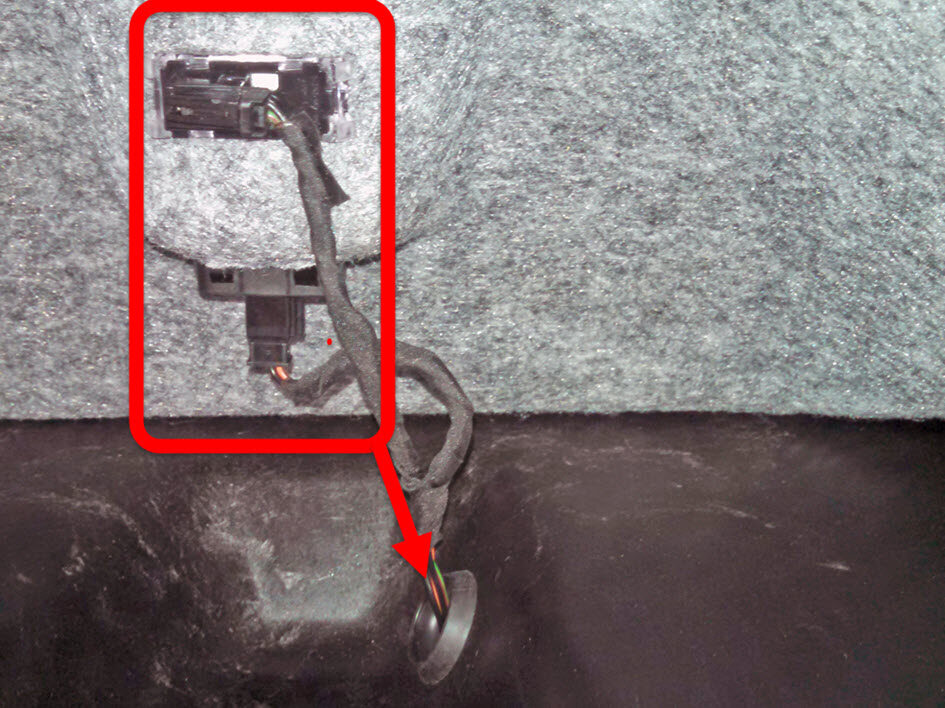

Disconnect emergency hood release and
front light harness
Remarque2x connectors, Push wiring harness grommet through underhood storage unit

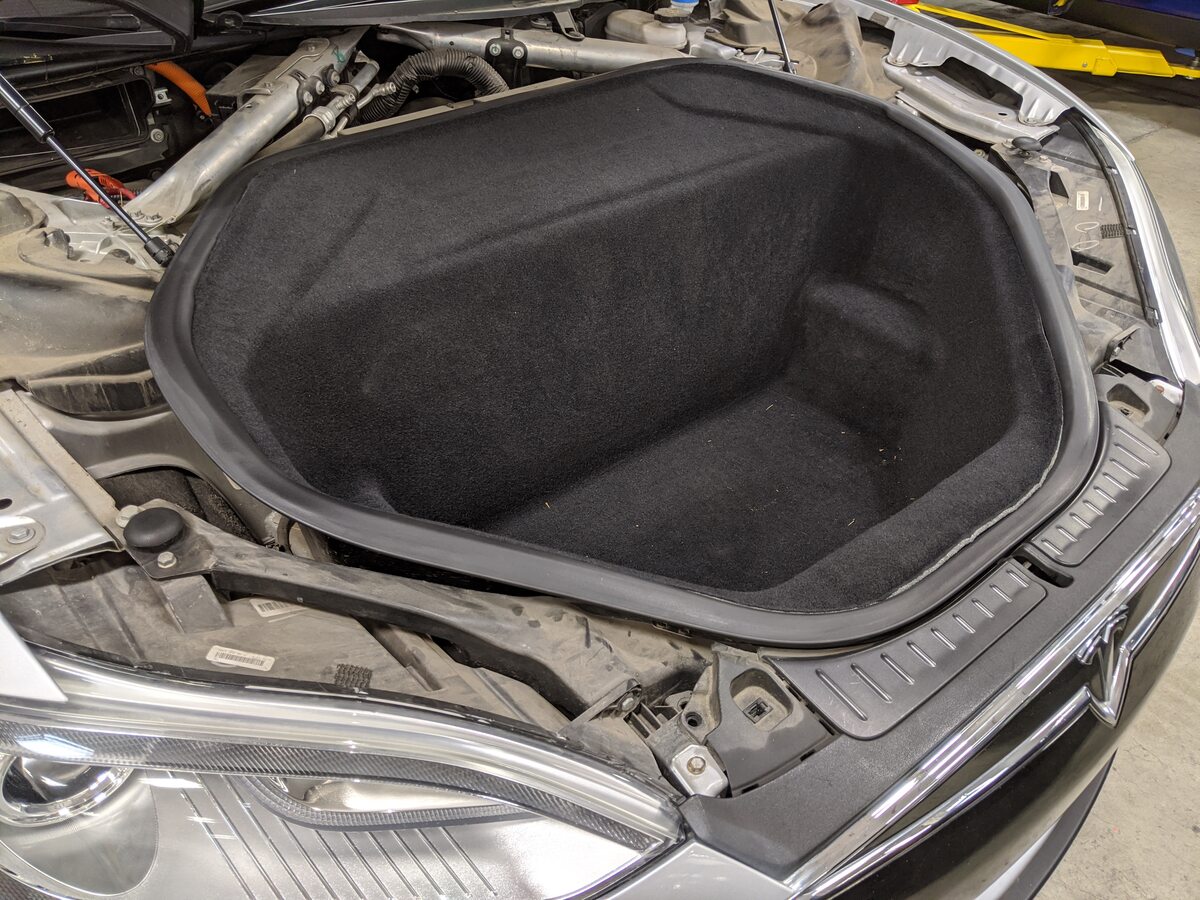

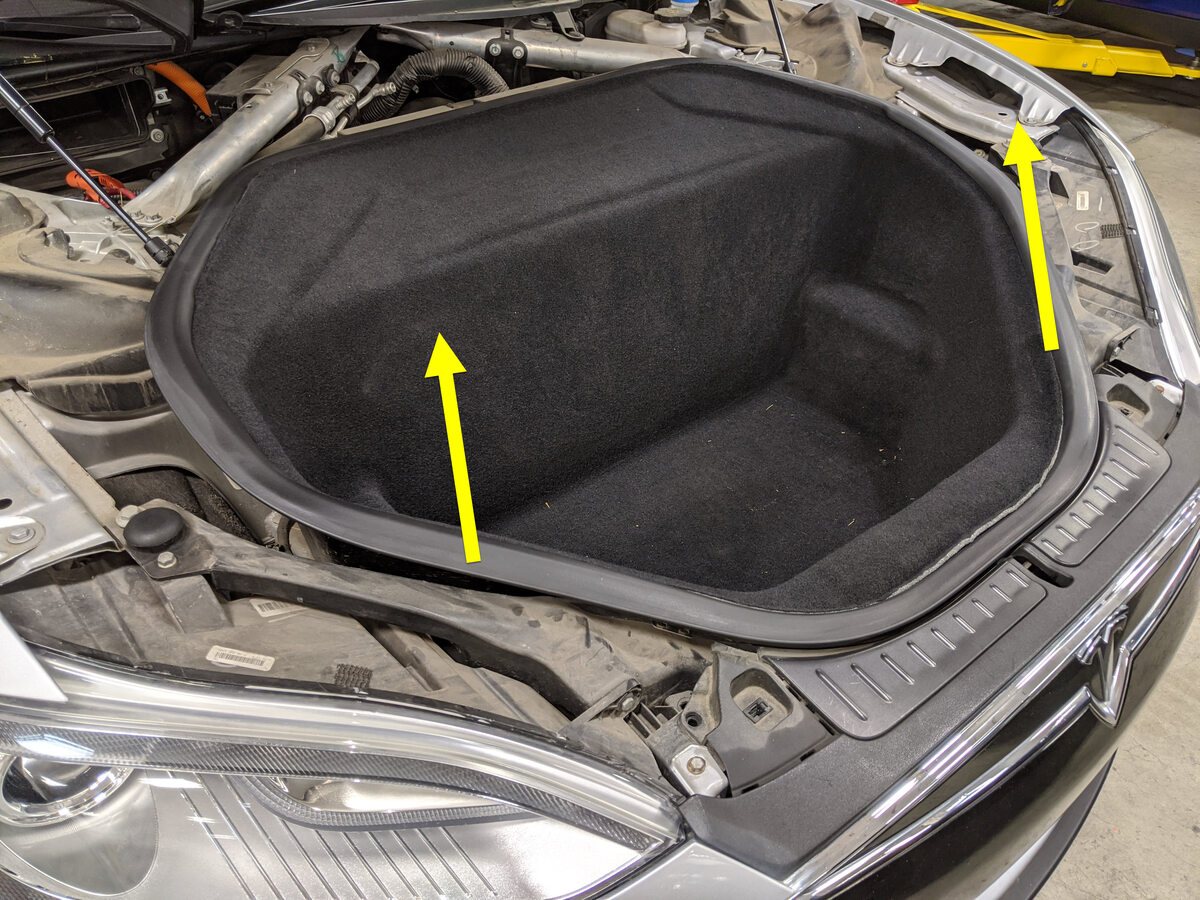

- Remove underhood storage unit from vehicle
-
Remove LH side wiper arm
Remarque1x nut, 17mm, 31 Nm
-
Remove RH side wiper arm
Remarque1x nut, 17mm, 31 Nm
-

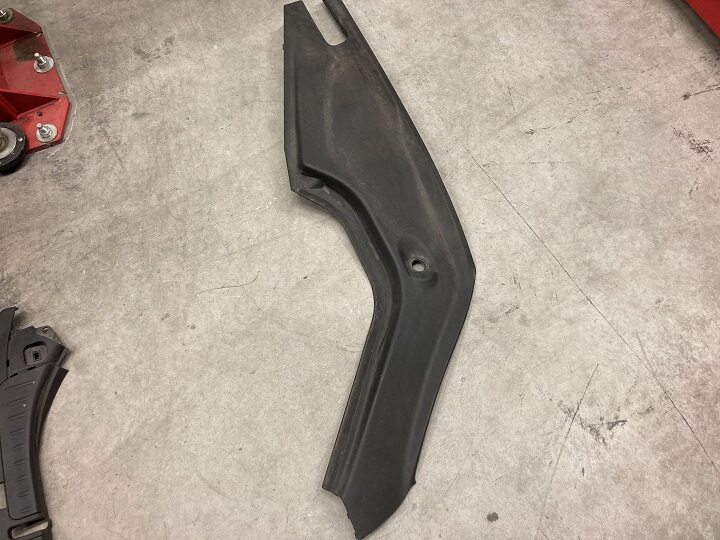

Remove cowl screen panel
Remarque4x push clips, 2x end tabs
-

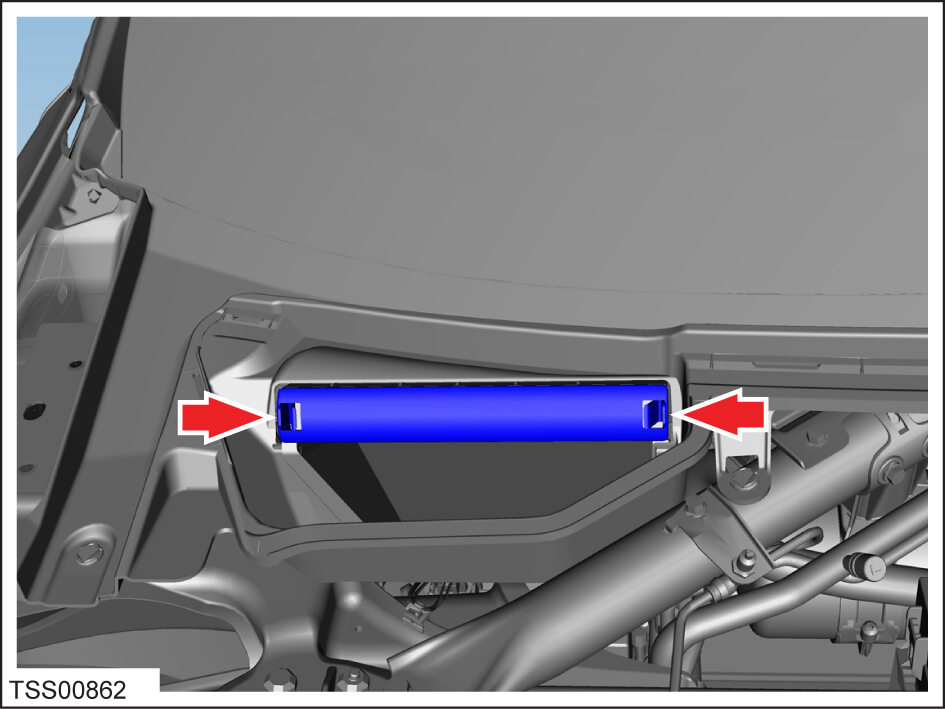

Remove HVAC filter cap
Remarque2x tabs
-
Remove bolts securing front HVAC filter
housing
Remarque2x bolts, 10mm, 1.5 Nm
-
Remove front HVAC filter housing
Remarque2x tabs
- Move LH front seat backward
- Connectez un ordinateur portable au port de diagnostic du véhicule, puis utilisez Toolbox 3 pour vous connecter localement au véhicule. Voir Toolbox 3 (Connecter et déconnecter).
- Déverrouillez la passerelle du véhicule pour la communication de diagnostic. Voir Déverrouillage de passerelle.
-
In Toolbox 3, click the Actions tab, type "Fluid fill drain"
into the search field, click PROC_THC_X_FLUID-FILL-DRAINvia Toolbox: (link), click
Start, click Coolant, click
Run, and allow the routine to complete.
ATTENTIONEnsure that the charge cable is not connected before continuing to the next step in this procedure.
-
Power off vehicle from MCU
RemarqueVia Controls > Safety & Security > Power Off
-
Disconnect the 12V negative
terminal
Remarque1x nut, 10mm, 5 Nm
- Disconnect first responder loop
-

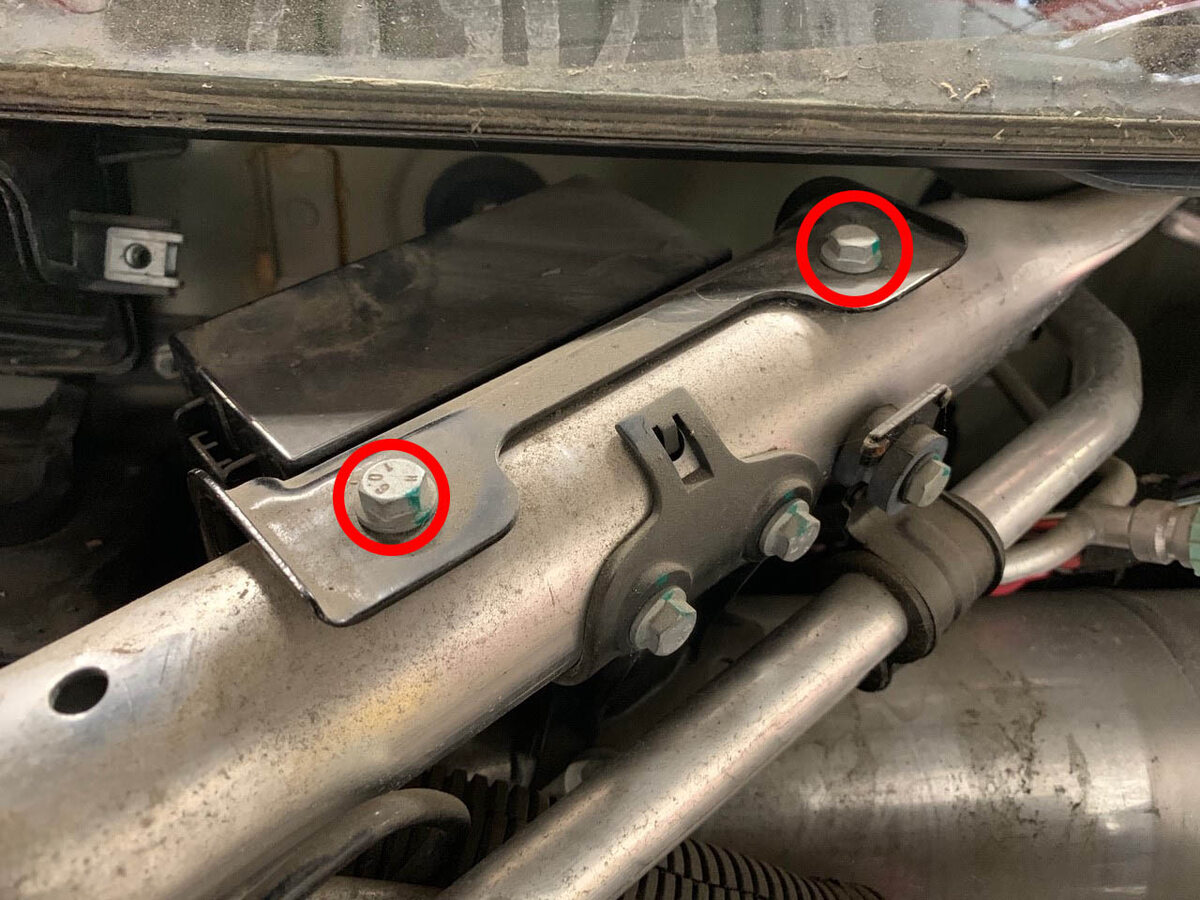

Remove fuse box mounting bolts on RH
shock brace
Remarque2x bolts, 10mm, 6 Nm
-
Remove AC line bracket bolt on RH shock
brace
Remarque1x bolt, 10mm, 6 Nm
-
Remove air suspension reservoir bracket
mounting fasteners from RH shock brace
Remarque2x bolts, 10mm, 6 Nm
-
Remove RH shock tower brace
Remarque1x bolt, 13mm, 30 Nm, 2x bolts, 13mm, 20 Nm
-

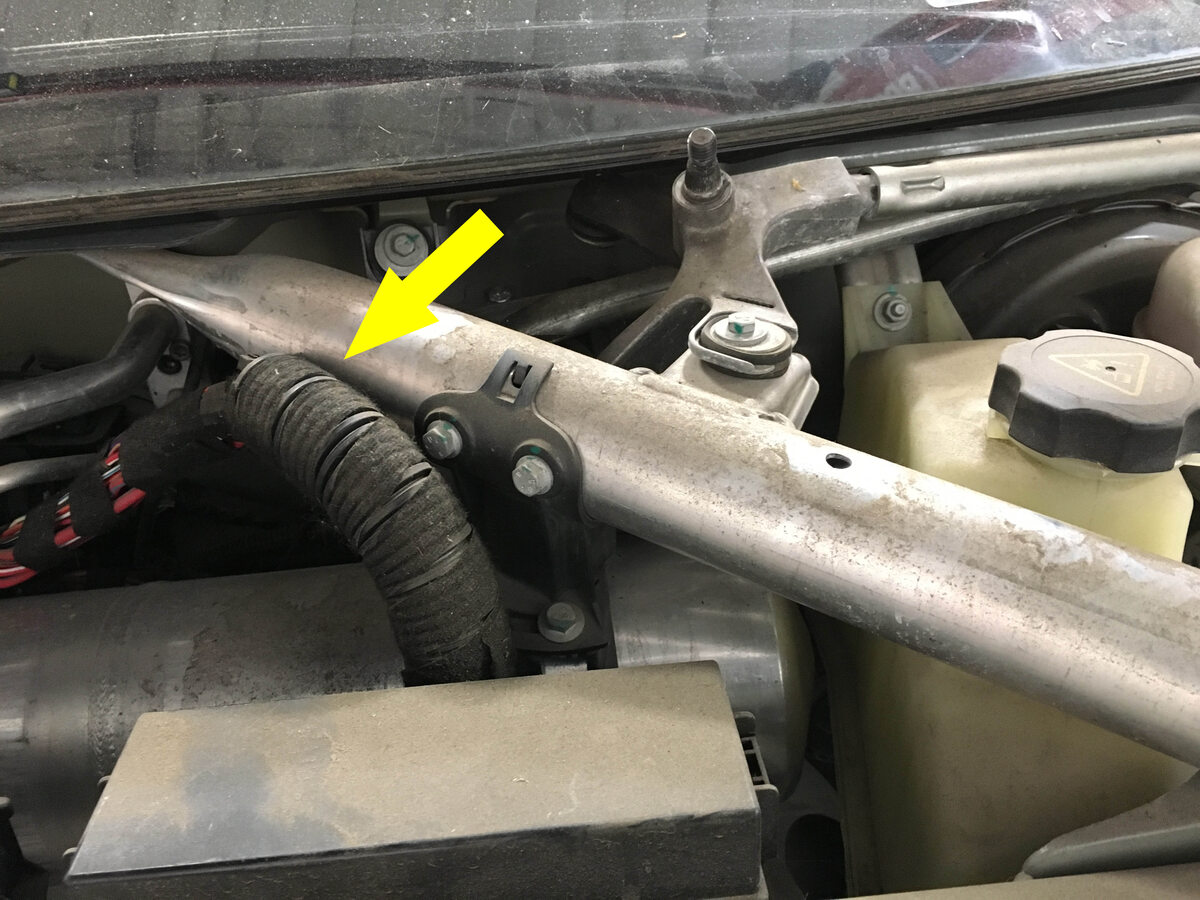

Release wire harness from LH shock
brace
Remarque1 fir tree clip
-
Remove air suspension reservoir bracket
mounting fasteners from LH shock brace
Remarque2x bolts, 10mm, 6 Nm
-

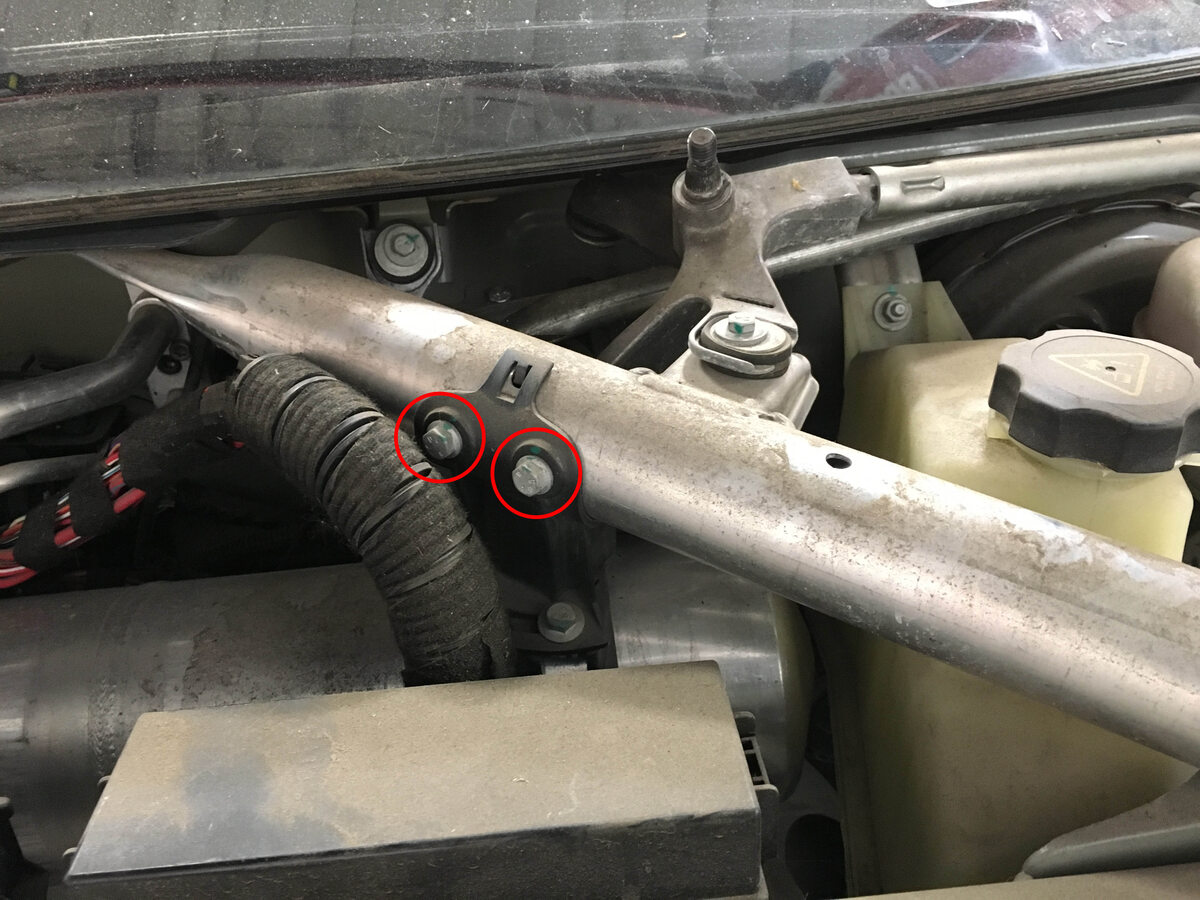

Remove wiper motor fastener mounted to
LH shock brace
Remarque1x bolt, 10mm, 6 Nm
-
Remove LH shock tower brace
Remarque1x bolt, 13mm, 30 Nm, 2x bolts, 13mm, 20 Nm
-
Remove wiper motor
Remarque3x bolts, 10mm, 6 Nm, 1x connector
-
Set air suspension reservoir aside for
access
RemarqueManeuver below AC line
-
Remove lug nut covers from LH front
wheel
Remarque5x covers
-
Remove lug nut covers from LH rear
wheel
Remarque5x covers
-
Remove lug nut covers from RH rear
wheel
Remarque5x covers
-
Remove lug nut covers from RH front
wheel
Remarque5x covers
-
Loosen LH front wheel
Remarque5x nuts, 21mm, 175 Nm
-
Loosen LH rear wheel
Remarque5x nuts, 21mm, 175 Nm
-
Loosen RH rear wheel
Remarque5x nuts, 21mm, 175 Nm
-
Loosen RH front wheel
Remarque5x nuts, 21mm, 175 Nm
-

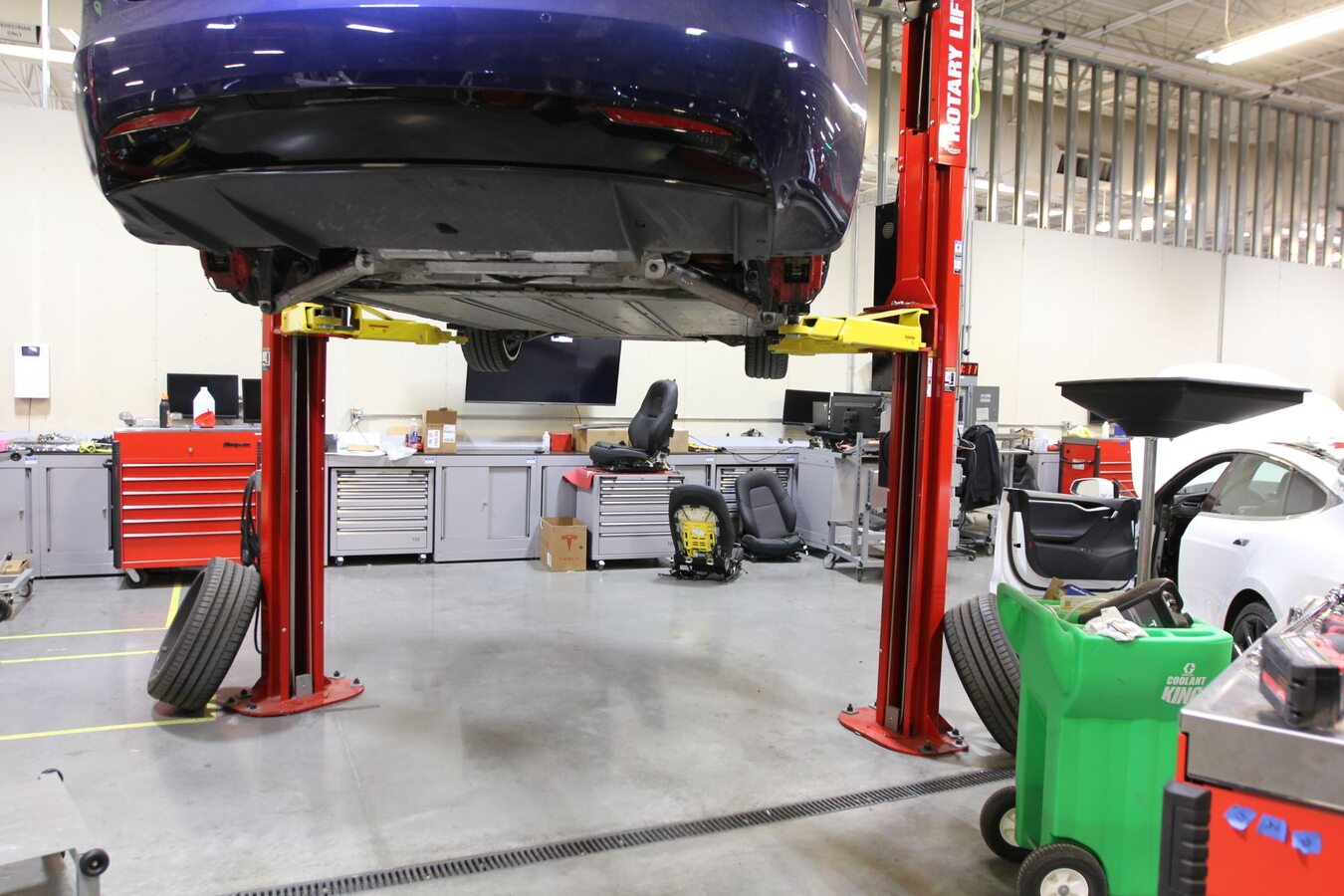

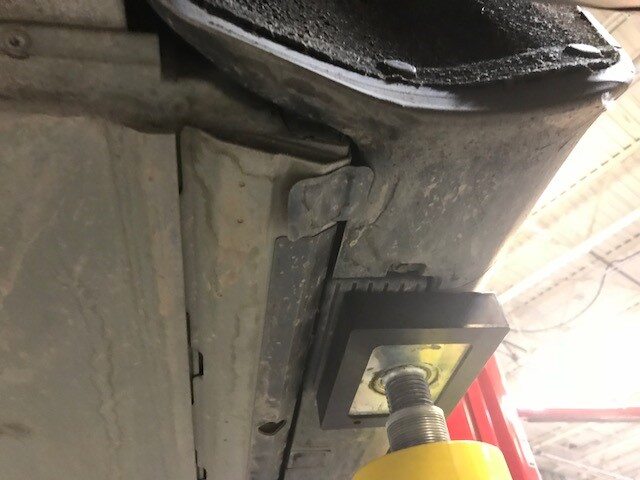

Raise vehicle partially and lower onto
locks
RemarqueSet vehicle to comfortable working height, Make sure there's an audible click of locks on both sides before lowering, otherwise vehicle may tilt to side
-
Remove LH front wheel
Remarque5x nuts, 21mm, 175 Nm
-

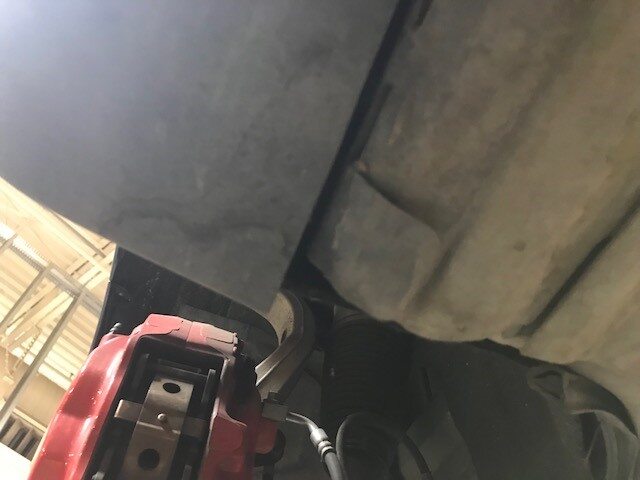

Remove clips securing rear portion of
the LH front wheel house liner and reposition to gain access
Remarque6x clips
-
Disconnect harness connectors from brake
booster assembly
Remarque2x connectors, 1x clip
-
Remove LH rear wheel
Remarque5x nuts, 21mm, 175 Nm
-
Remove RH rear wheel
Remarque5x nuts, 21mm, 175 Nm
-
Remove RH front wheel
Remarque5x nuts, 21mm, 175 Nm
-
Raise vehicle fully and lower lift onto
locks
RemarqueSet vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side
-

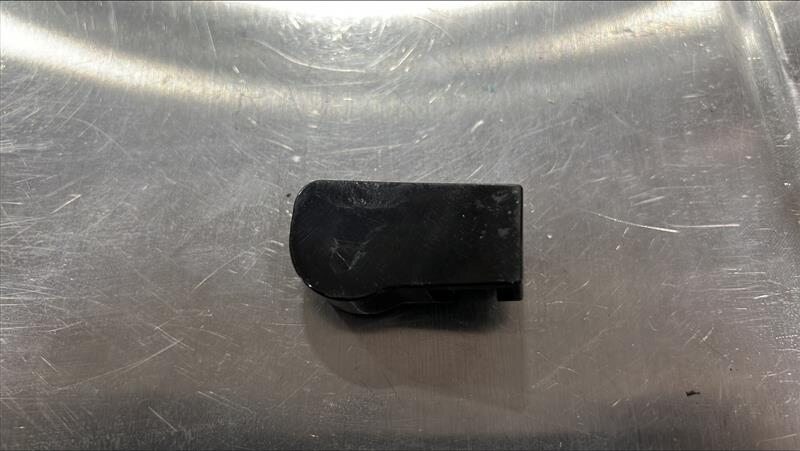

Remove vent covers from HV battery
Remarque2x vent covers
-
Remove clips securing LH shear plate to
wheel fairing
Remarque2x push clips
-

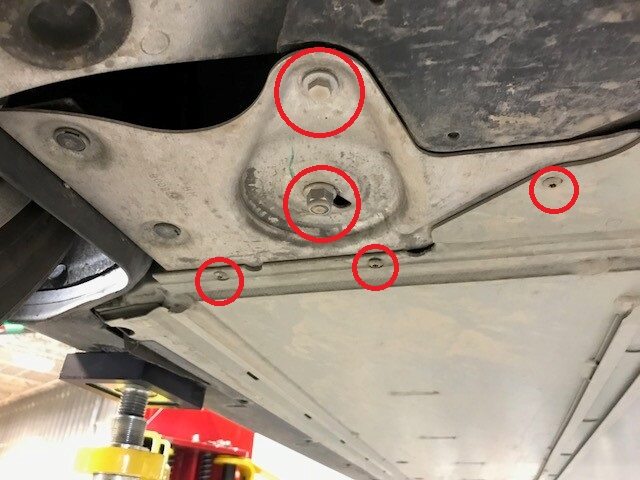

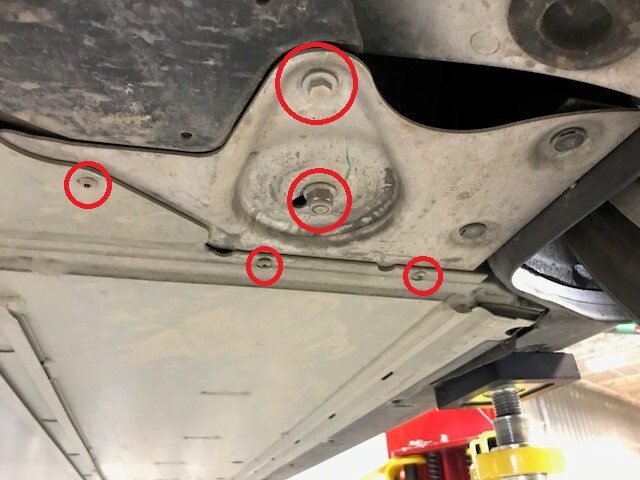

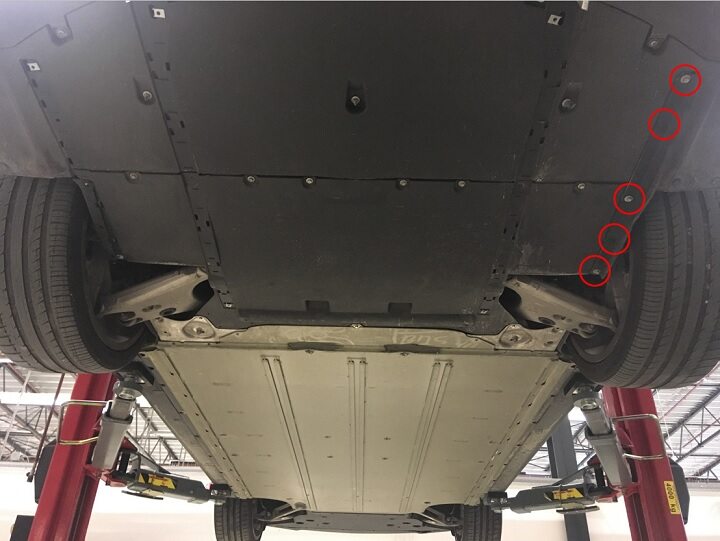

Remove the fasteners securing LH shear
plate
Remarque1x nyloc nut, 15mm, 35 Nm, 3x screws, T25, 6 Nm, 1x bolt, 10mm, 4 Nm, Discard nut after removal
-
Remove clips securing RH shear plate to
wheel fairing
Remarque2x push clips
-

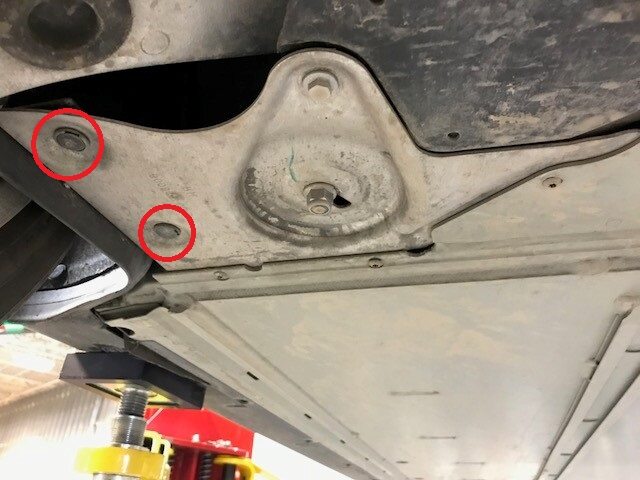

Remove fasteners securing RH shear
plate
Remarque1x nyloc nut, 15mm, 35 Nm, 3x screws, T25, 6 Nm, 1x bolt, 10mm, 4 Nm, Discard nut after removal
-

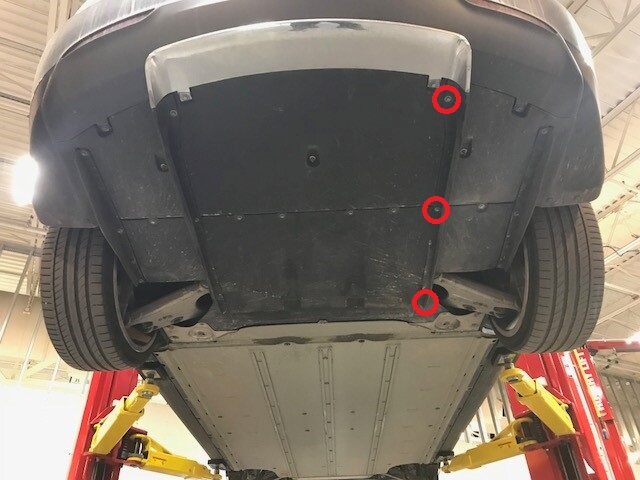

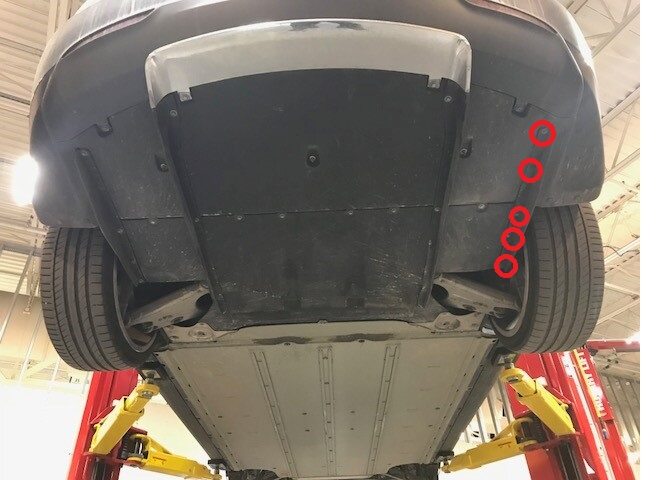

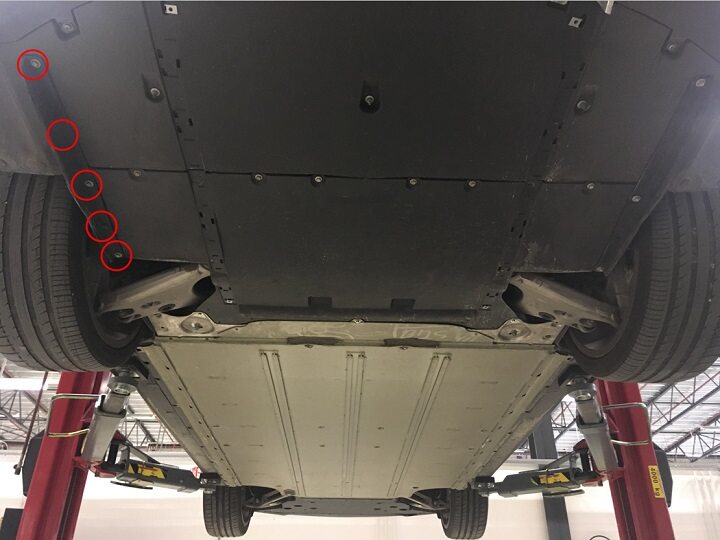

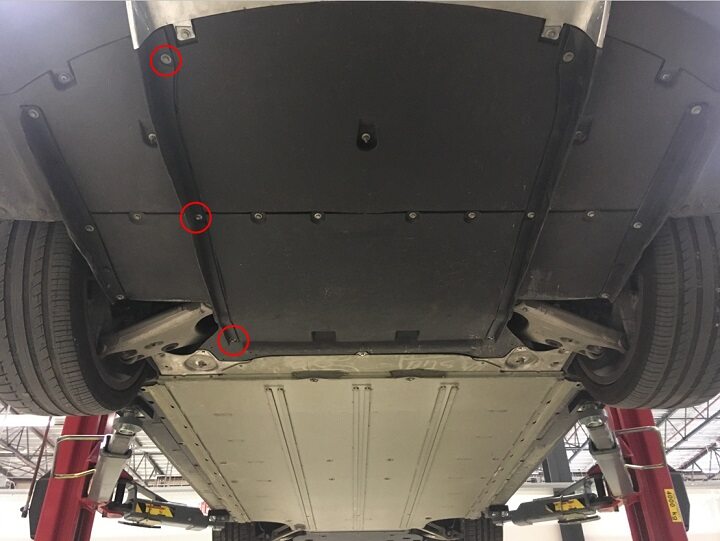

Remove LH outer diffuser rail
Remarque2x push clips, 2x self tapping bolts, 10mm, 3 Nm, 1x self tapping bolt, 10mm, 4 Nm
-
Remove LH inner diffuser rail
Remarque2x self tapping bolts, 10mm, 3 Nm, 1x bolt, 10mm, 4 Nm
-
Remove RH inner diffuser rail
Remarque2x self tapping bolts, 10mm, 3 Nm, 1x bolt, 10mm, 4 Nm
-
Remove RH outer diffuser rail
Remarque2x push clips, 2x self tapping bolts, 10mm, 3 Nm, 1x self tapping bolt, 10mm, 4 Nm
-

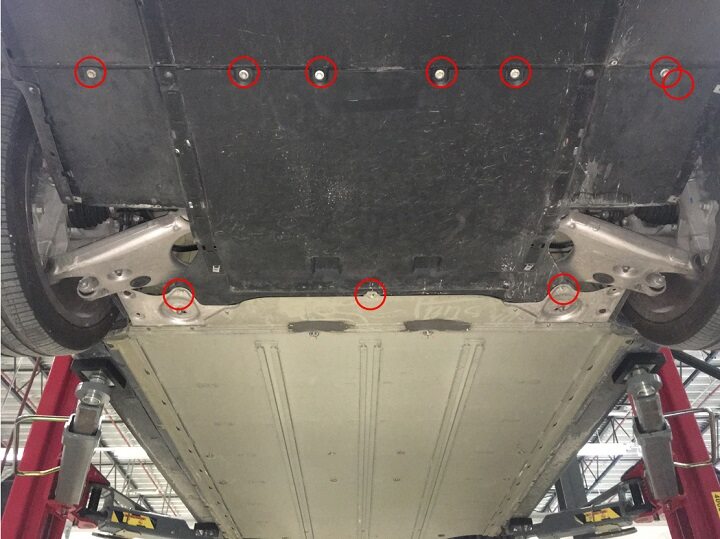

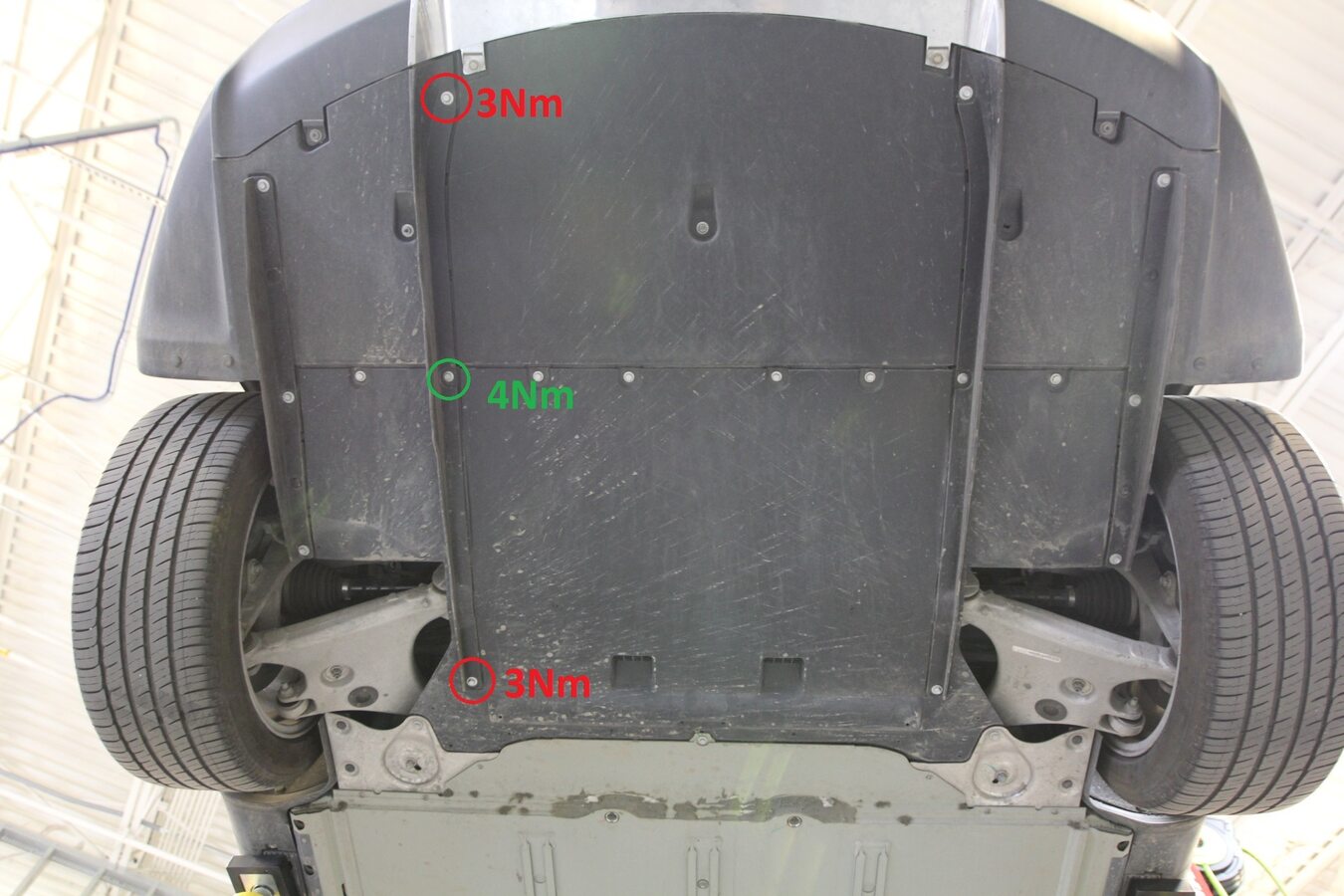

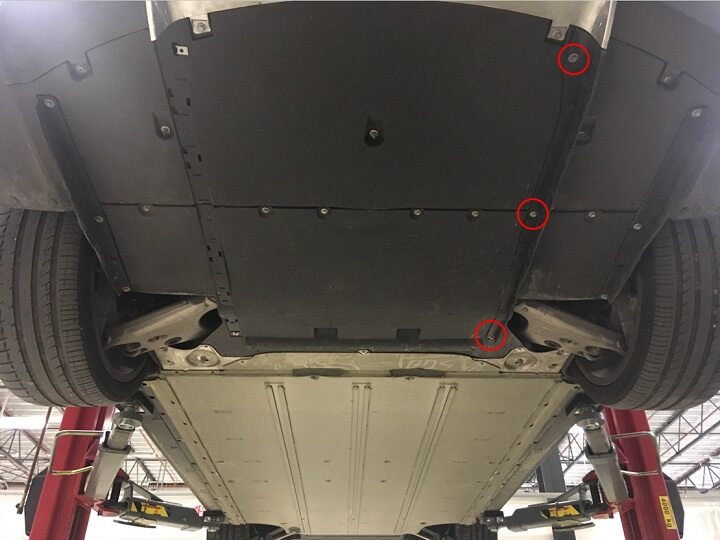

Remove mid-aero shield
Remarque9x bolts, 10mm, 4 Nm
-
Remove front lower bash plate
extrusion
Remarque2x bolts, T30, 16 Nm

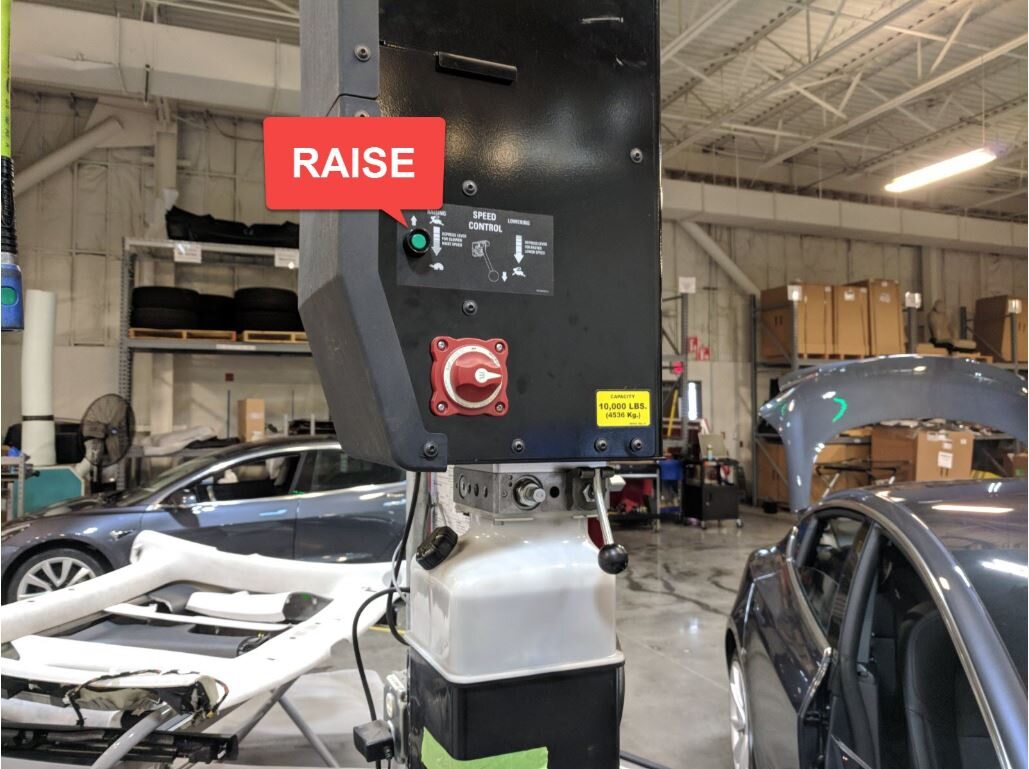

- Raise vehicle off of HV battery
-
Loosen four center bolts securing HV
battery
Remarque4x patch bolts, E12, 38 Nm, Discard after removal
-
Remove four center bolts securing HV
battery with battery powered drill
Remarque4x patch bolts, E12, 38 Nm, Discard after removal

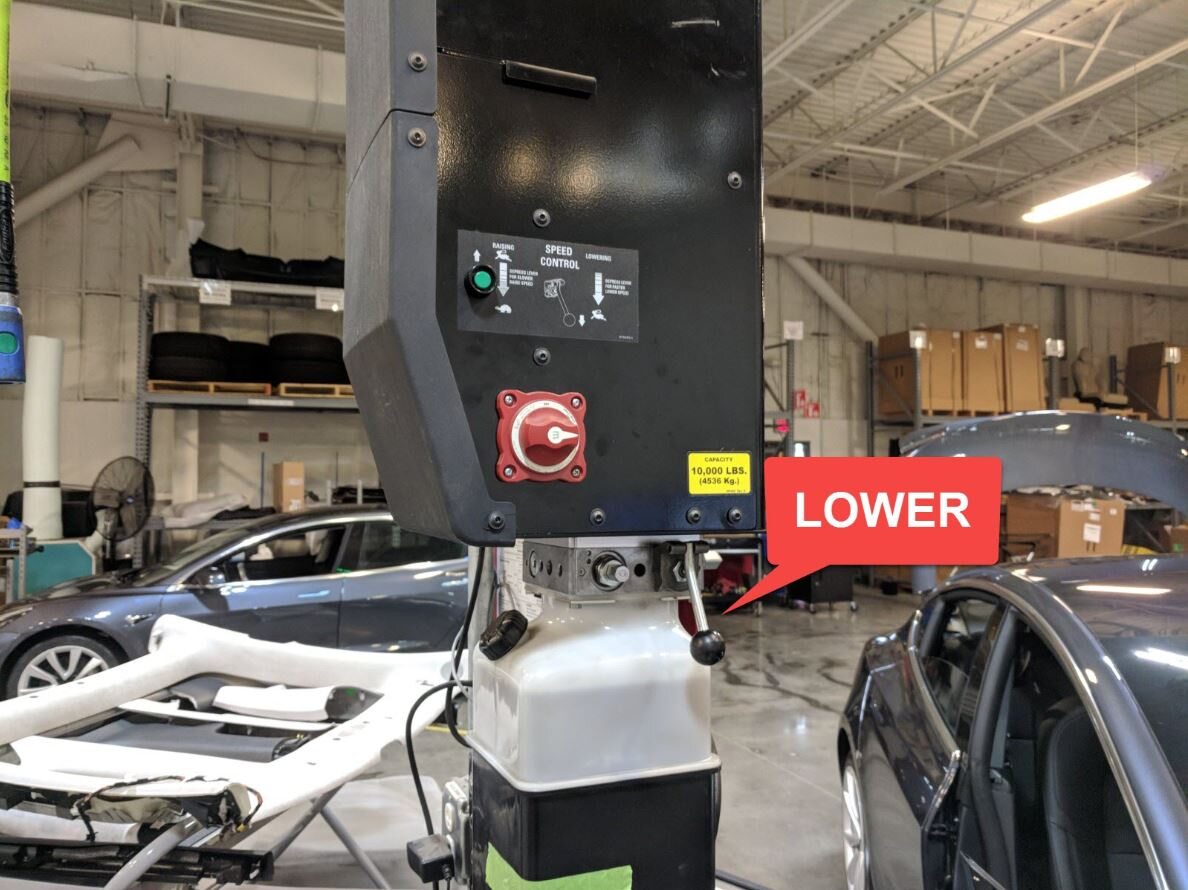

- Position battery table beneath vehicle
-
Lower vehicle to table
RemarqueRecommend assistance, Align table to vehicle and raise casters to level table if necessary
-
Loosen remaining eight center bolts
securing HV battery
Remarque8x patch bolts, E12, 38 Nm, Discard after removal
-
Remove remaining eight center bolts
securing HV battery with battery powered drill
Remarque8x patch bolts, E12, 38 Nm, Discard after removal
-
Loosen front four HV battery bolts
Remarque4x patch bolts, 13mm, 30 Nm, Discard after removal
-
Remove front four HV battery bolts with
battery powered drill
Remarque4x patch bolts, 13mm, 30 Nm, Discard after removal
-

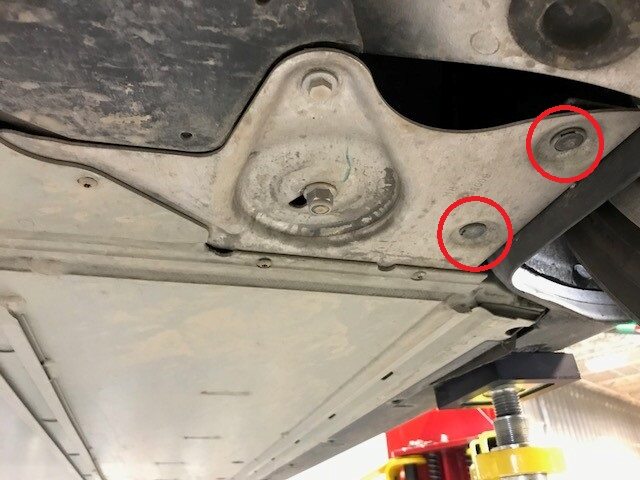

Loosen 21mm bolts securing front of HV
battery
Remarque2x bolts, 21mm, 115 Nm, Discard after removal
-
Remove 21mm bolts securing front of HV
battery with battery powered drill
Remarque2x bolts, 21mm, 115 Nm, Discard after removal
-
Loosen LH rocker bolts
Remarque8x patch bolts, 13mm, 55 Nm, Discard after removal
-
Remove LH rocker bolts with battery
powered drill
Remarque8x patch bolts, 13mm, 55 Nm, Discard after removal
-
Loosen RH rocker bolts
Remarque8x patch bolts, 13mm, 55 Nm, Discard after removal
-
Remove RH rocker bolts with battery
powered drill
Remarque8x patch bolts, 13mm, 55 Nm, Discard after removal
- Move battery away from vehicle
- Remove all items from pockets and ensure not wearing metal items
-
Inspect HV insulating gloves
RemarqueCheck gloves for damage prior to use, Refer to service document TN-15-92-003, for information on inspecting HV gloves, https://service.teslamotors.com/documents?model=&keys=TN-15-92-003&vehicle_system=&sort_by=field_date_submitted&sort_order=DESC
- Put on HV insulating gloves and leather over gloves
-
Check voltage on HV rapid mate
RemarqueB+ to ground, B- to ground, and B+ to B-, If any voltage reading is more than 10V, the pack contactors are not fully opened, Contact Engineering for support
-
Cover the high voltage connector with a
HV Rapid Mate cover, and the low voltage connector with a LV Rapid Mate cover
RemarqueIf these covers are not available, cover the Rapid Mate connectors with masking tape to prevent debris from falling in
- Remove HV insulating gloves
-
Disconnect electric battery heater logic
connector
Remarque1x connector
- Lower vehicle to comfortable working height
-
Disconnect battery heater connector from
FJB
Remarque1x connector, Disengage locking tab, then remove connector body, 1x edge clip

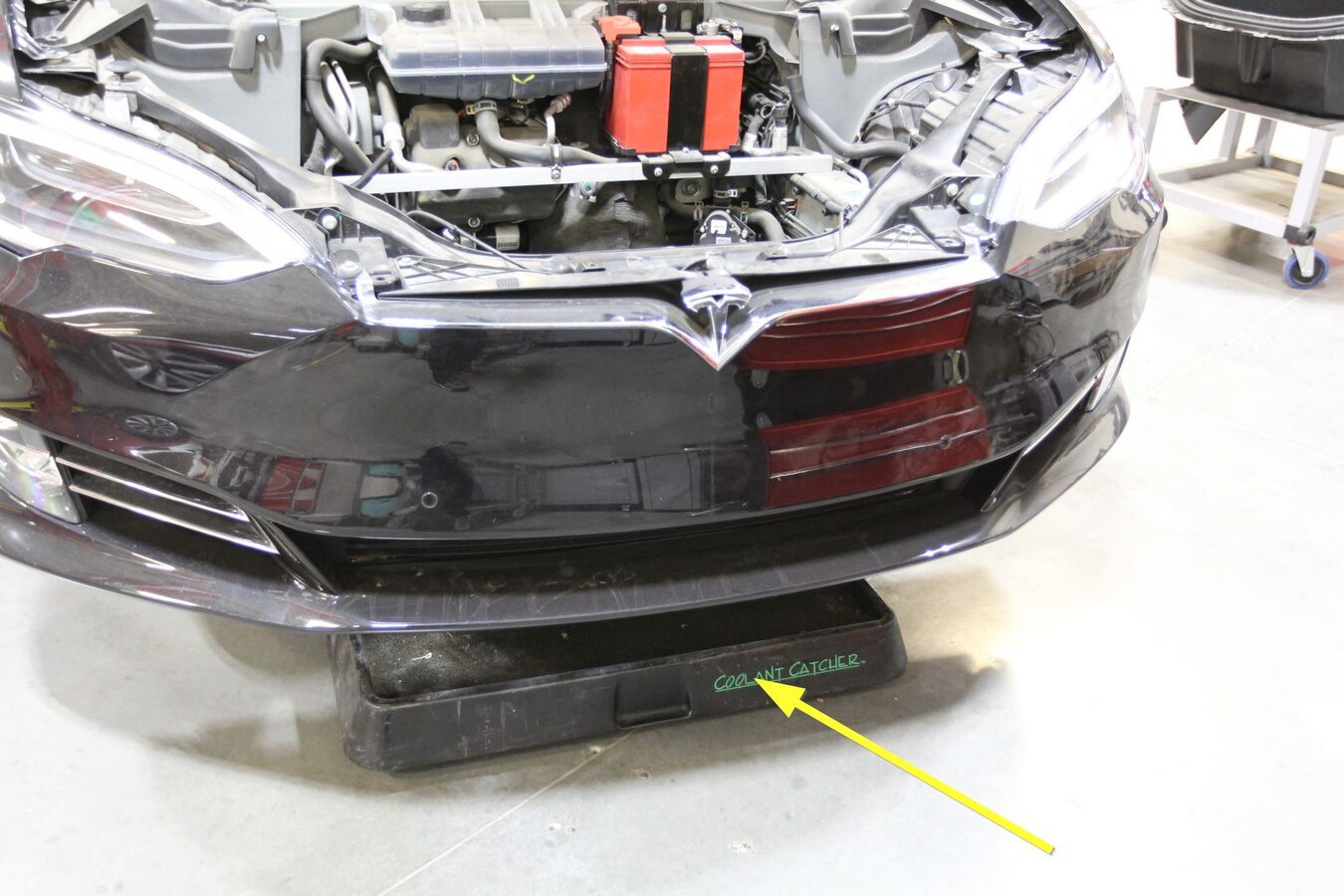

- Place coolant catcher underneath vehicle
- Clamp coolant hoses
-

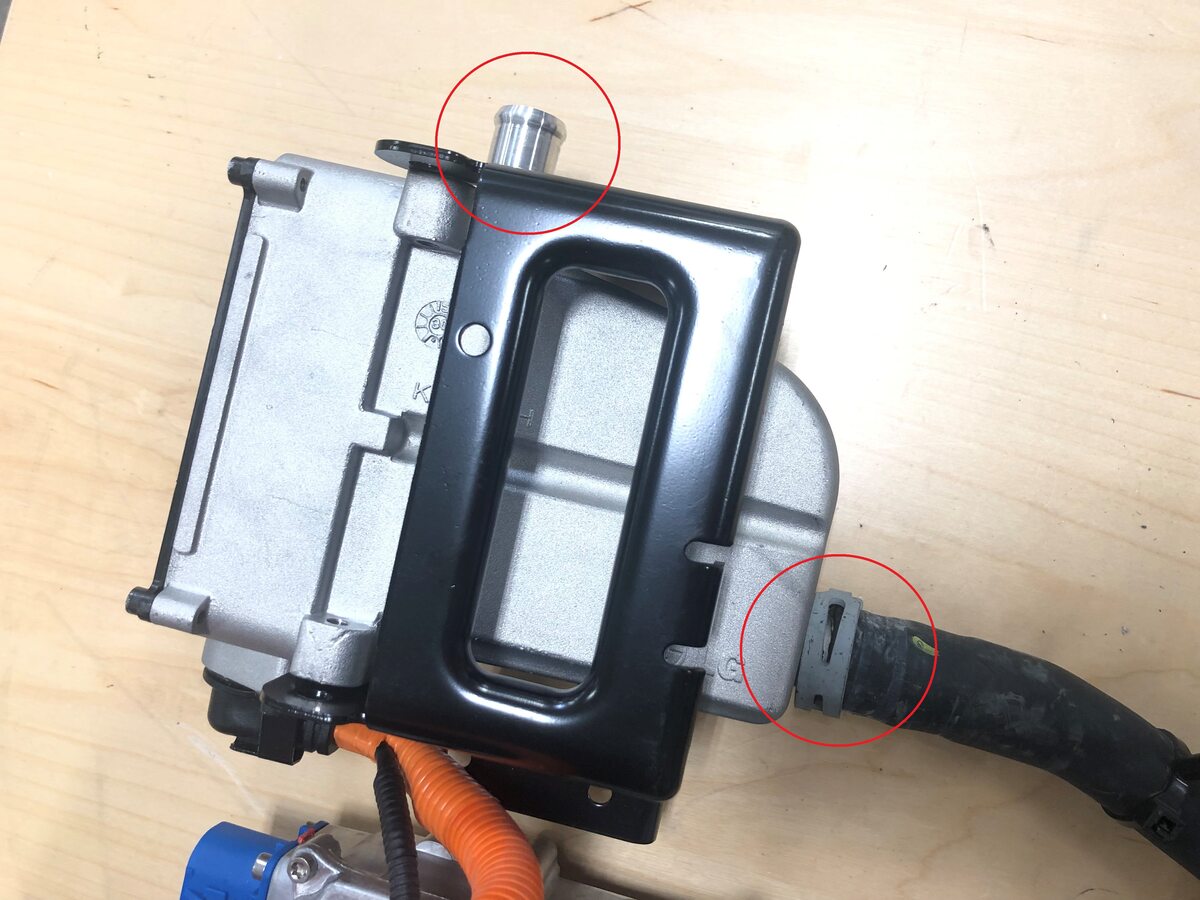

Disconnect coolant hoses to heater
assembly
Remarque2x hoses
-
Raise vehicle partially and lower onto
locks
RemarqueSet vehicle to comfortable working height, Make sure there's an audible click of locks on both sides before lowering, otherwise vehicle may tilt to side
-

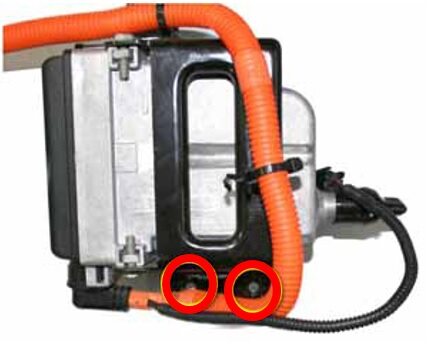

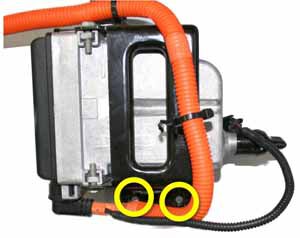

Remove bolts securing electrical battery
heater to DCDC bracket
Remarque2x bolts, 10mm, 7.7 Nm
- Lower vehicle to comfortable working height

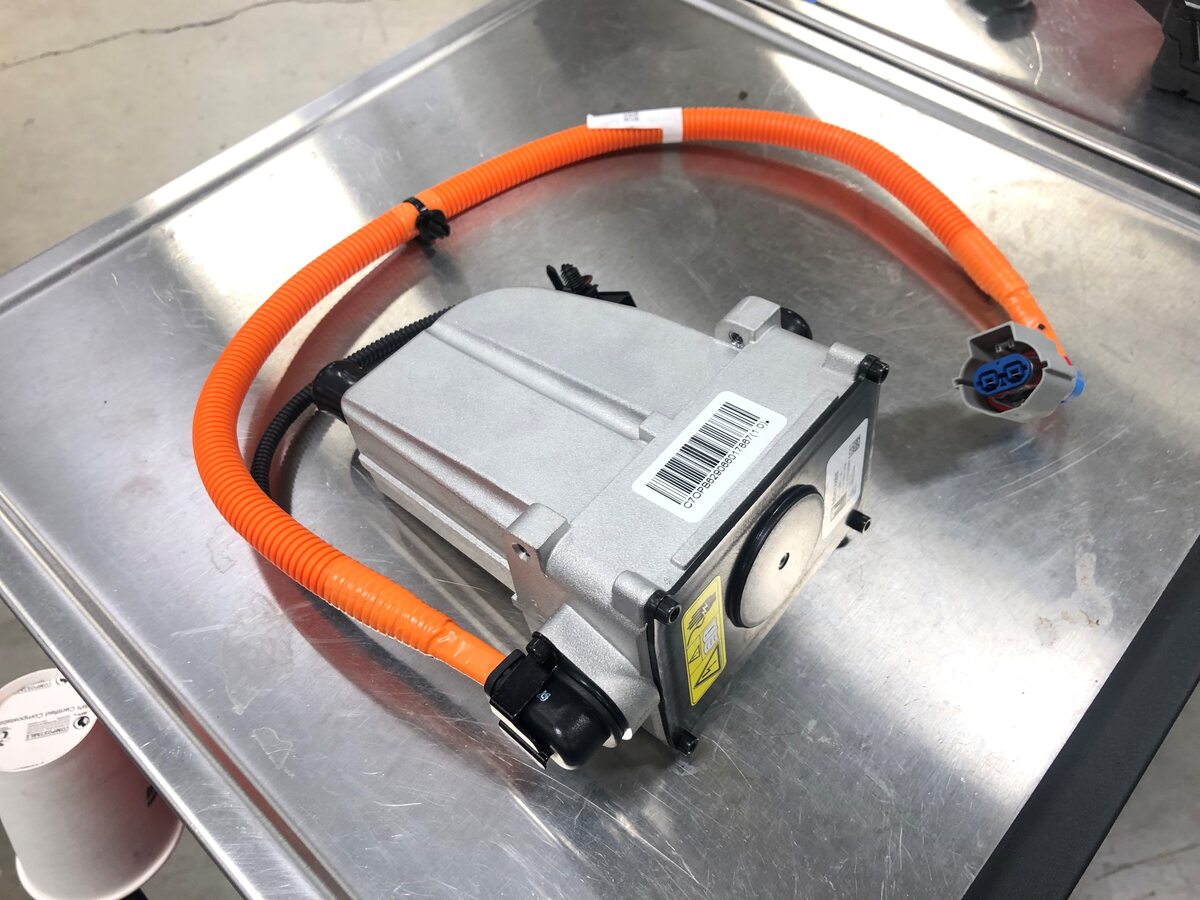

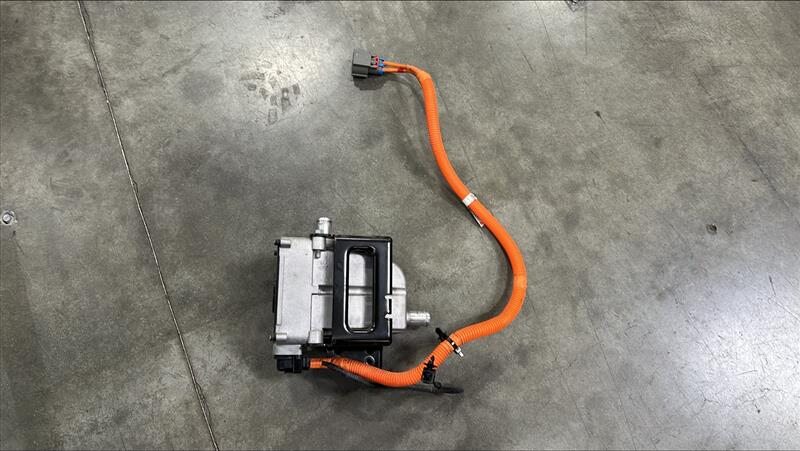

- Remove electrical battery heater assembly
-

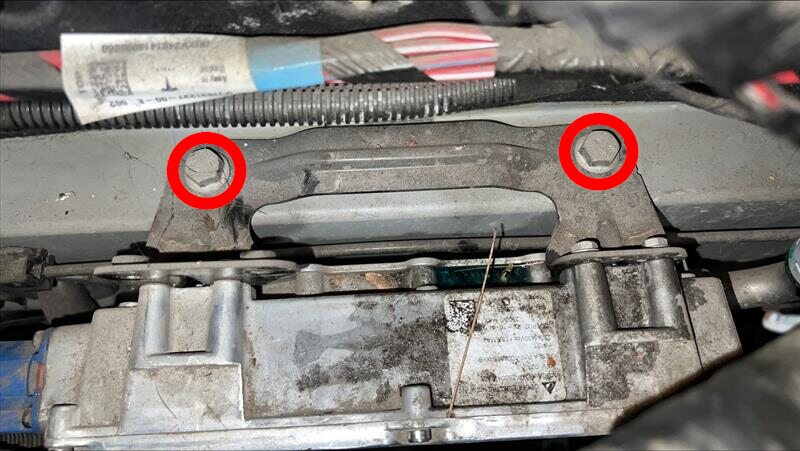

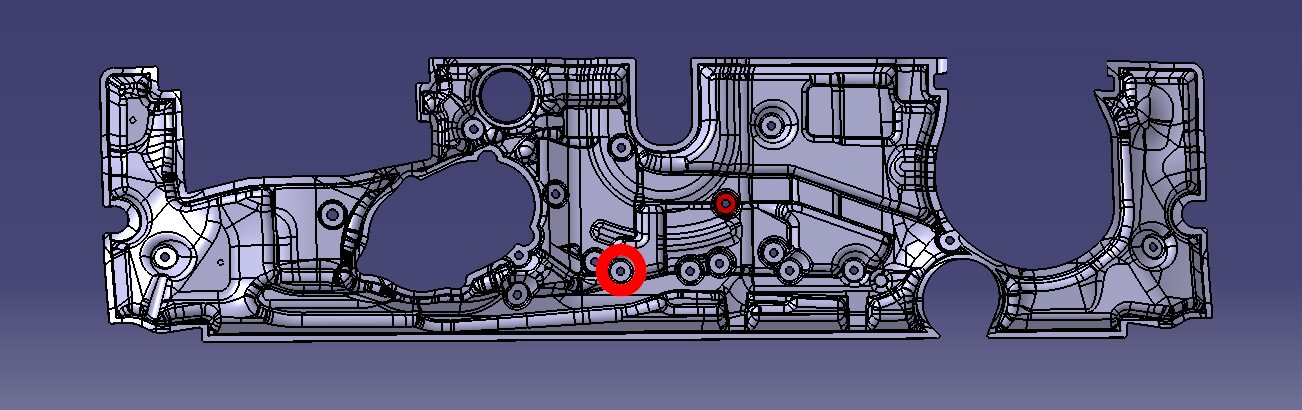

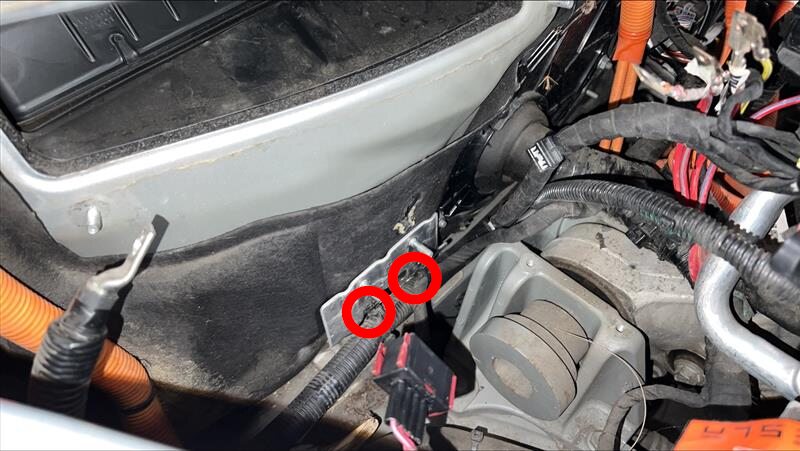

Remove the top bolts securing DCDC
bracket to body
Remarque2x bolts, 13mm, 22 Nm
-
Raise vehicle partially and lower onto
locks
RemarqueSet vehicle to comfortable working height, Make sure there's an audible click of locks on both sides before lowering, otherwise vehicle may tilt to side
-

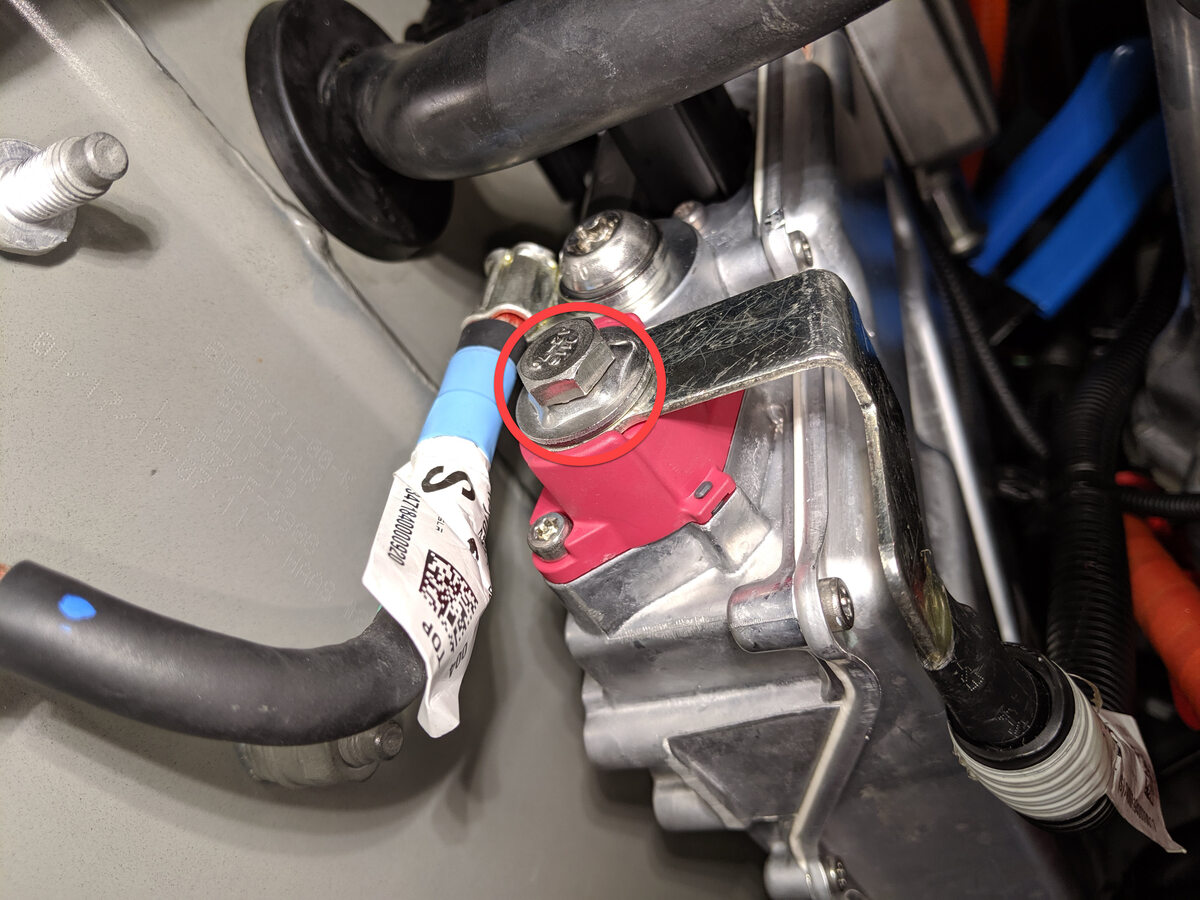

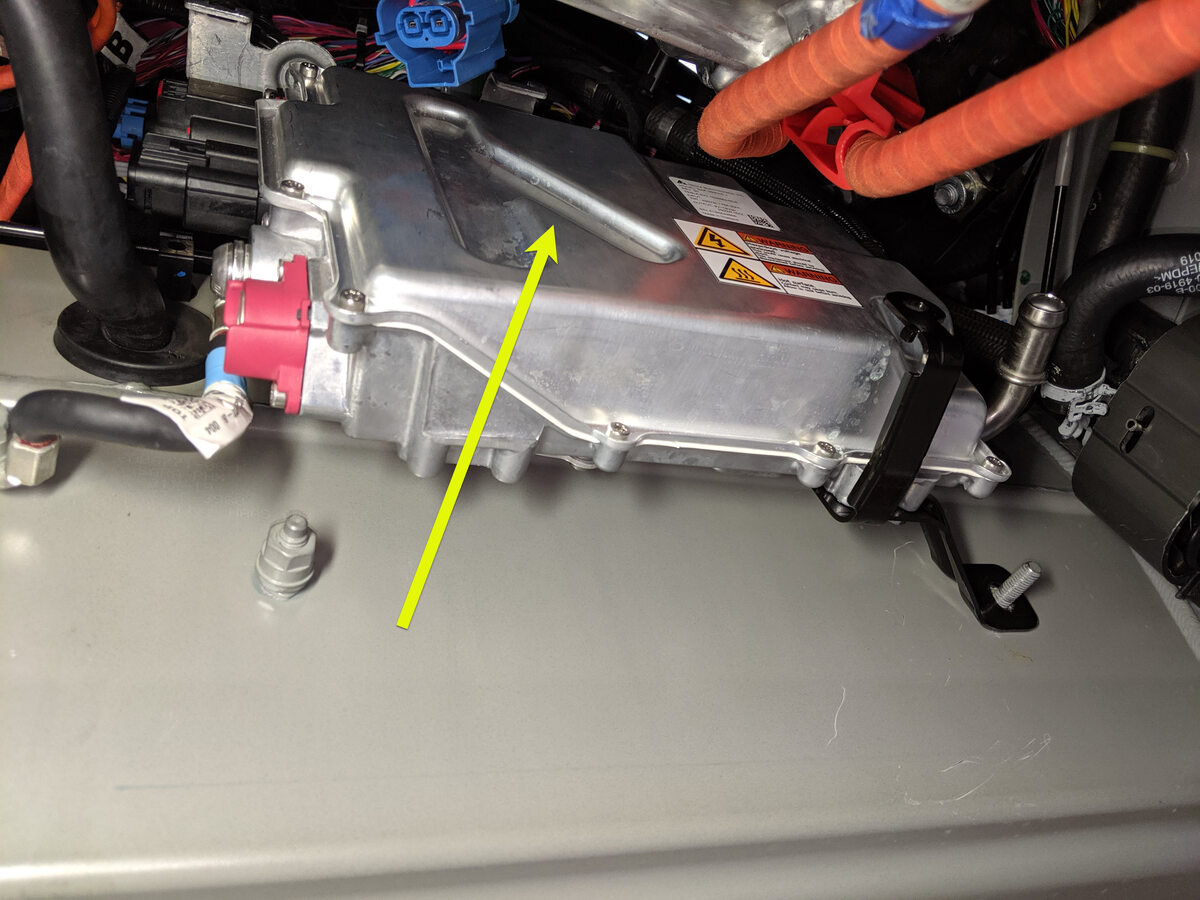

Remove 12V cable from DCDC
assembly
Remarque1x bolt, 13mm, 12 Nm
-

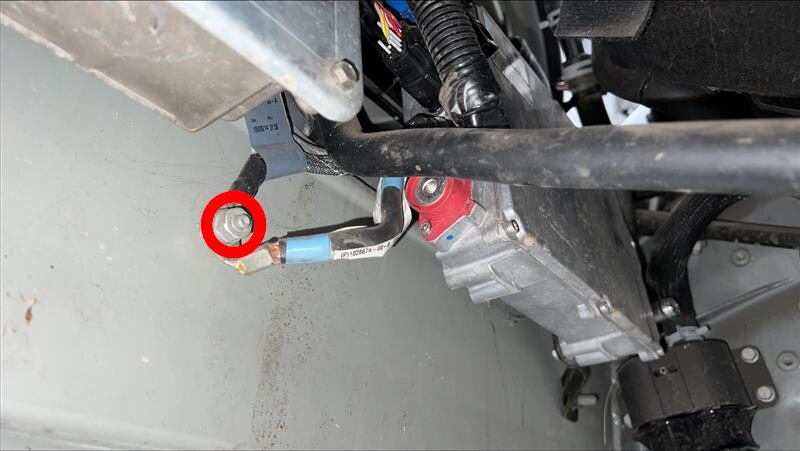

Remove nut securing DCDC ground cable to
chassis
Remarque1x bolt, 13mm, 9 Nm
-
Disconnect 12V logic connector from
DCDC
Remarque1x connector
-

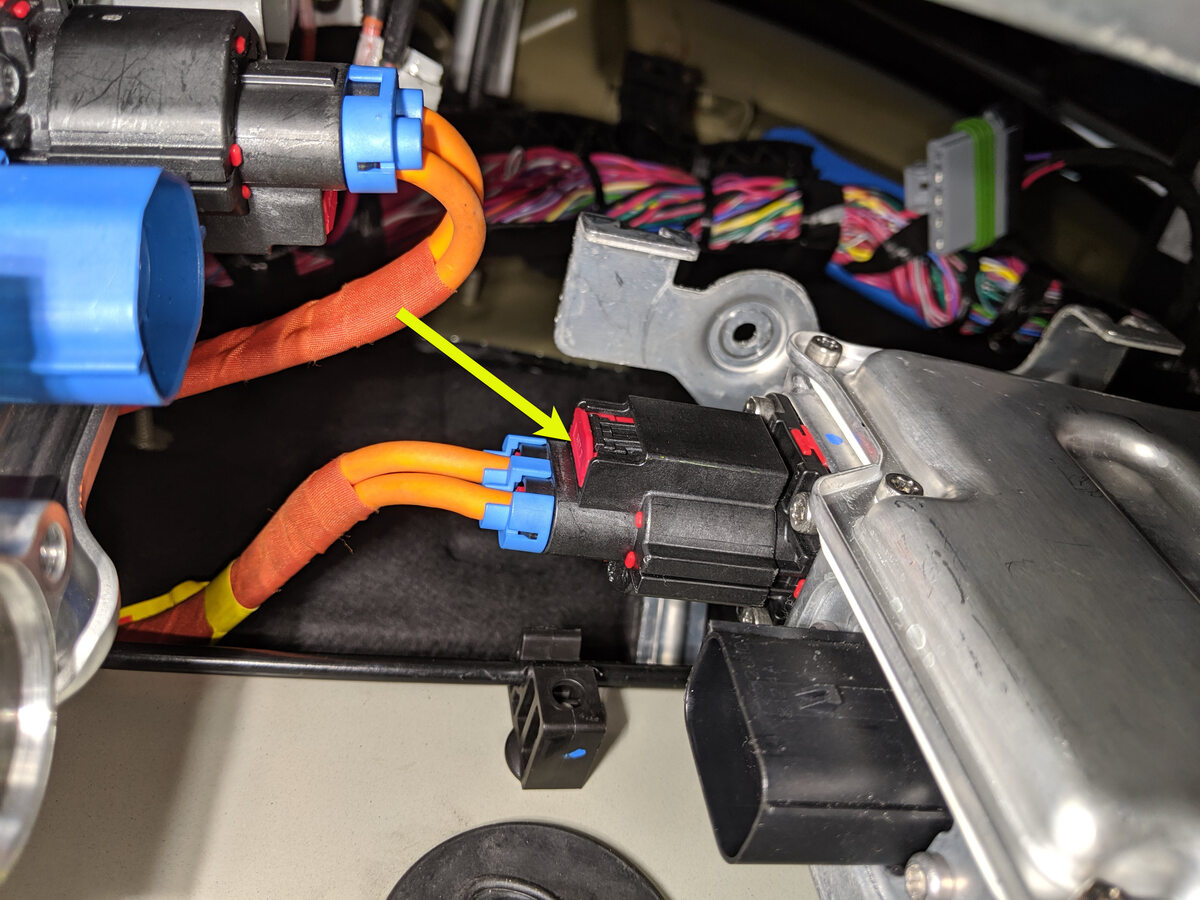

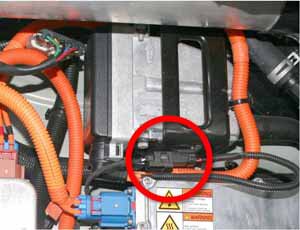

Disconnect black HV connector from
DCDC
Remarque1x connector
- Position coolant drain container under the front of the vehicle to catch vehicle coolant
-

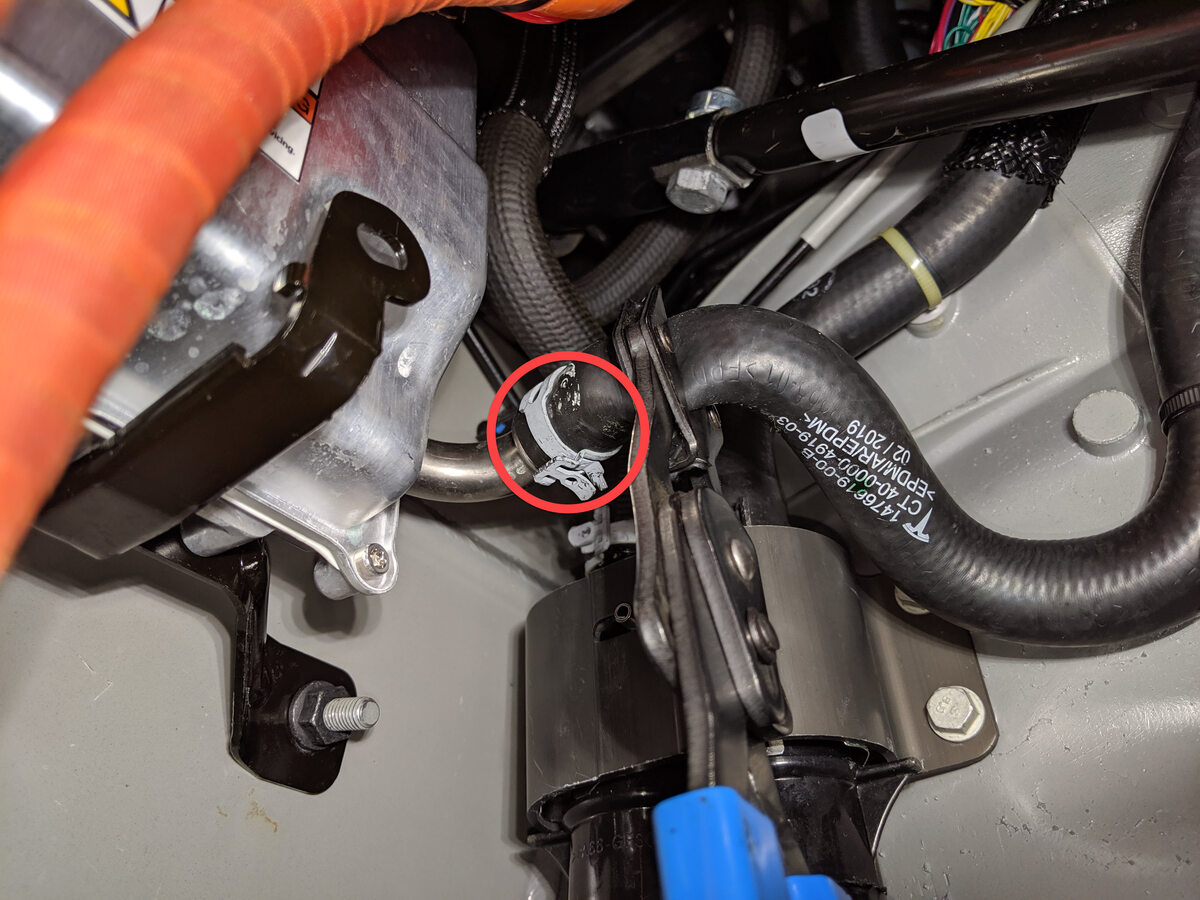

Release lower coolant hose from DCDC
Remarque1x clamp
-

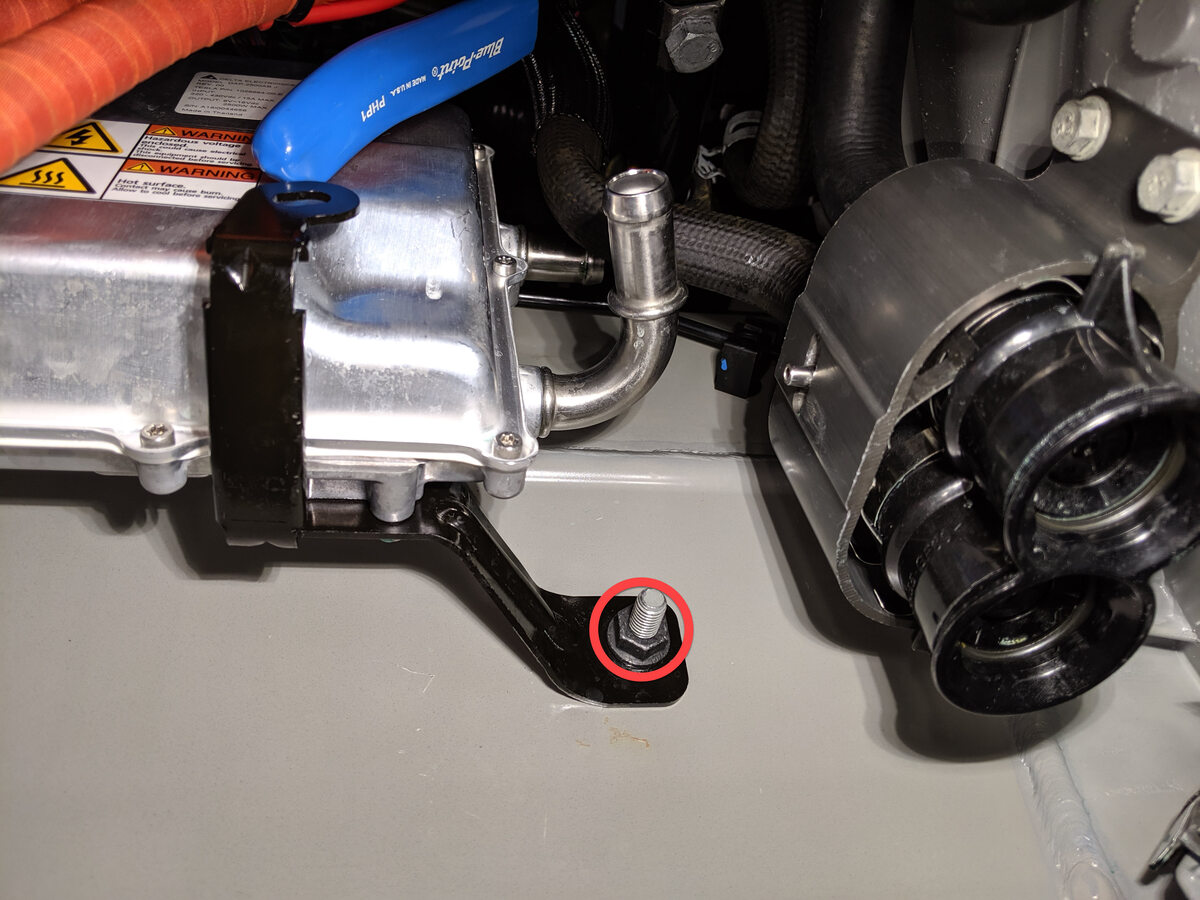

Remove nut securing bottom DCDC bracket
to body
Remarque1x nut, 13mm, 22 Nm

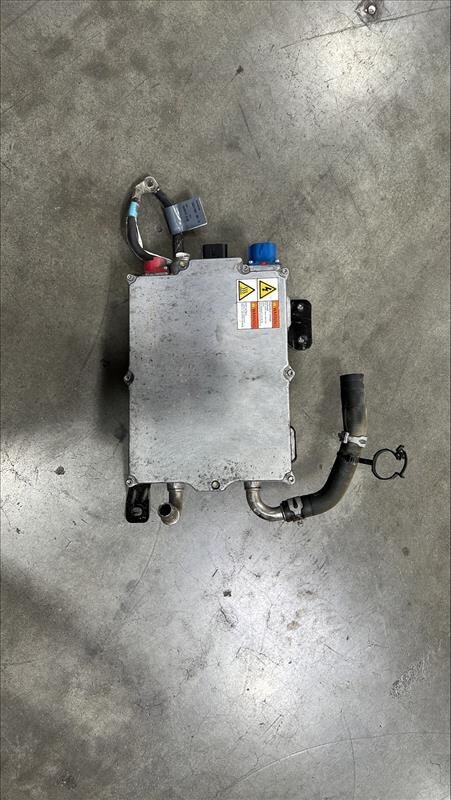

- Remove DCDC from vehicle
- Remove coolant drain container from underneath vehicle
-

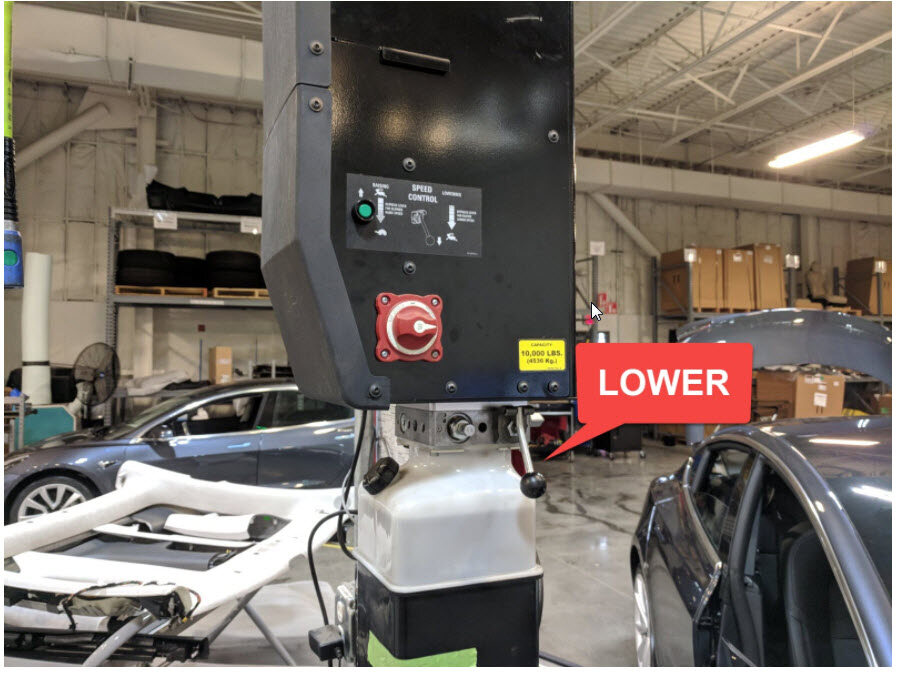

Lower vehicle partially and set lift
onto locks

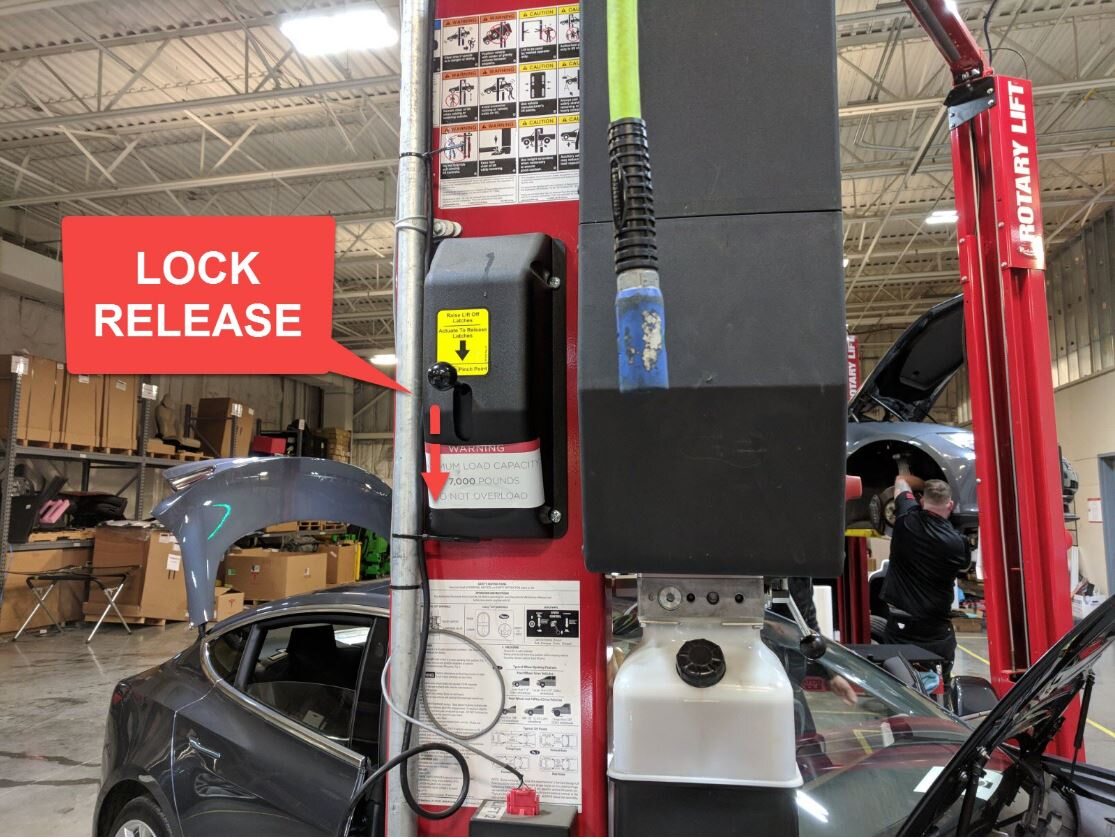

RemarqueRaise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered, Set vehicle to comfortable working height
-
Move washer bottle neck to gain access
to brake fluid level sensor
Remarque1x clip
-
Disconnect brake fluid reservoir
Remarque1x connector
- Place absorbent material underneath brake booster and reservoir area
- Clean area around brake fluid reservoir and remove cap

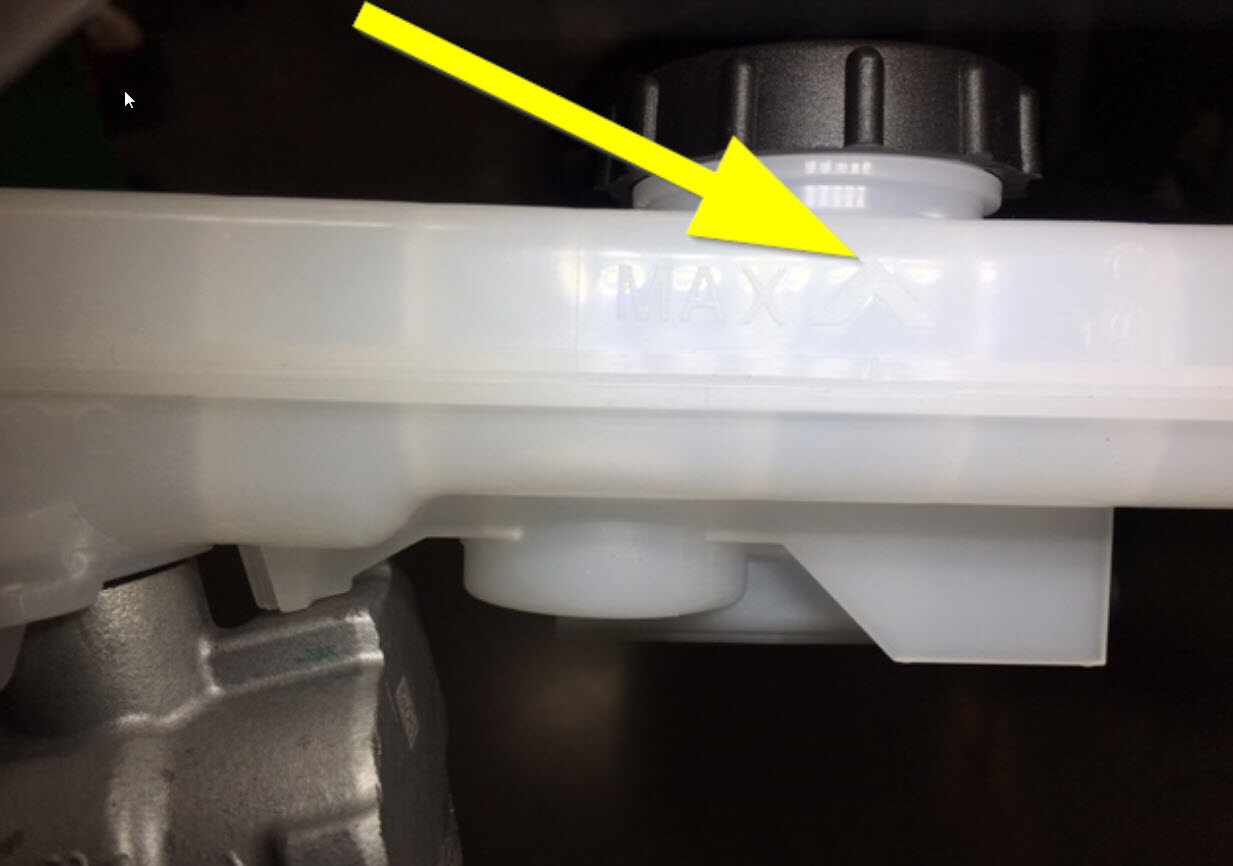

- Remove fluid from brake fluid reservoir
-
Disconnect brake lines from brake
booster
Remarque2x nuts, 12mm, 20 Nm
-
Release the front section of the LH
center console wrapped trim
Remarque10x clips, only necessary to release the front section to remove the center console carpeted closeout extension
-
Remove LH side console closeout
panel
Remarque6x clips, Pull side panel back and slide closeout panel down behind side panel
-
Remove LH lower IP trim
Remarque1x screw, T20, 2 Nm, 9x clips
-
Remove LH footwell cover
Remarque2x screws, T20, 2 Nm, 1x connector
-
Remove the spring clip from the brake
pedal clevis pin
Remarque1x spring clip
-
Remove the brake pedal clevis pin
RemarqueDepress the brake pedal for clearance
-
Remove and discard the fasteners
securing the brake pedal to the brake booster
Remarque4x nyloc nuts, 13mm, 23 Nm, Discard after removal

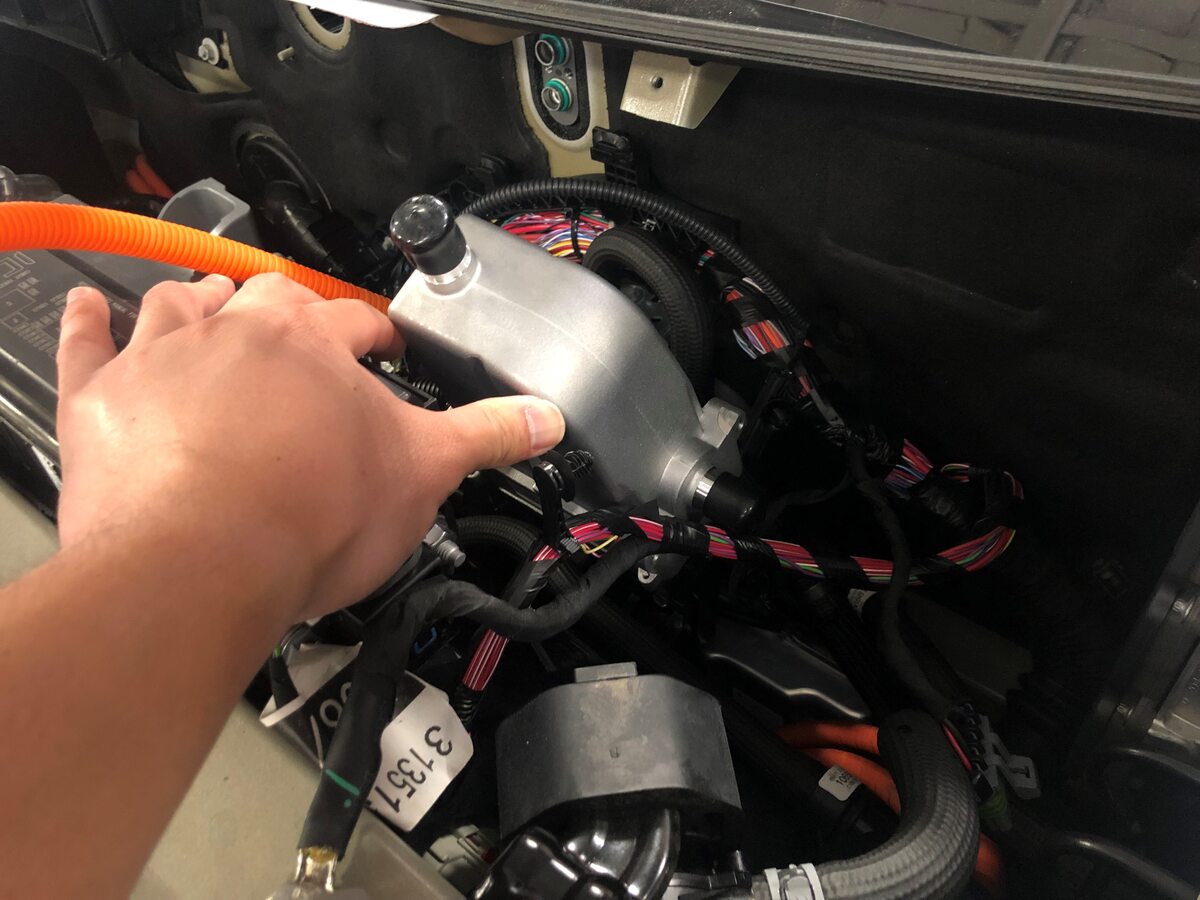

- Remove brake booster assembly from vehicle
-
Remove fuse box cover
Remarque2x bolts, 10mm, 6 Nm, 2x tabs
-

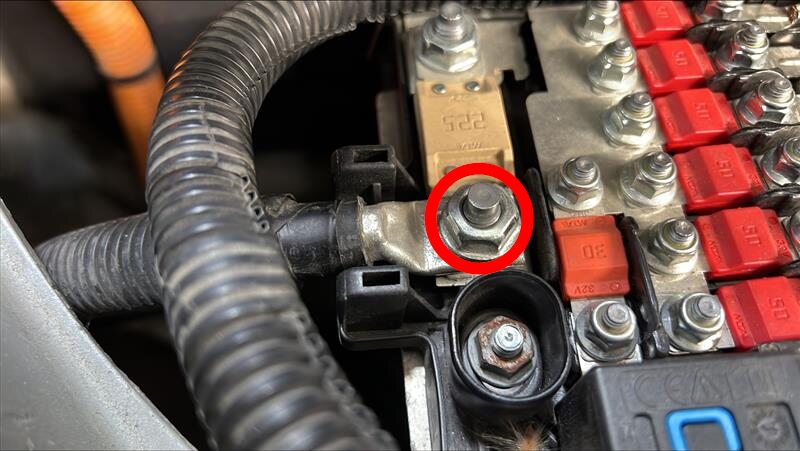

Remove power cable
Remarque1x nut, 13mm, 12 Nm
-
Remove ground cable
Remarque1x nut, 13mm, 12 Nm
-

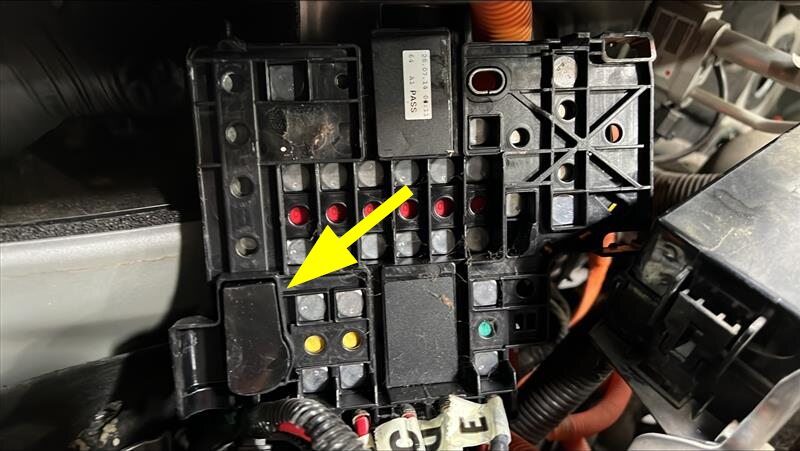

Disconnect the SRS Pyrotechnic at the
Battery Fuse Box
Remarque1x connector, Depress the 2 connector lock tabs and gently remove connector from airbag, Warning: To avoid personal injury, observe all relevant safety precautions before removing or testing any SRS components.
-

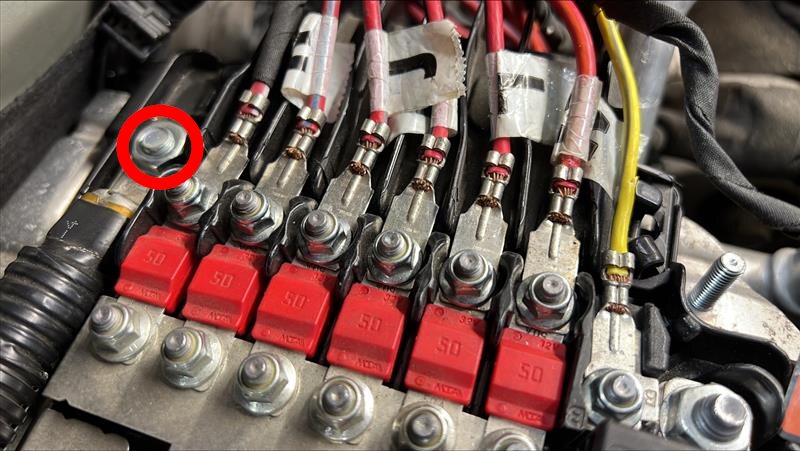

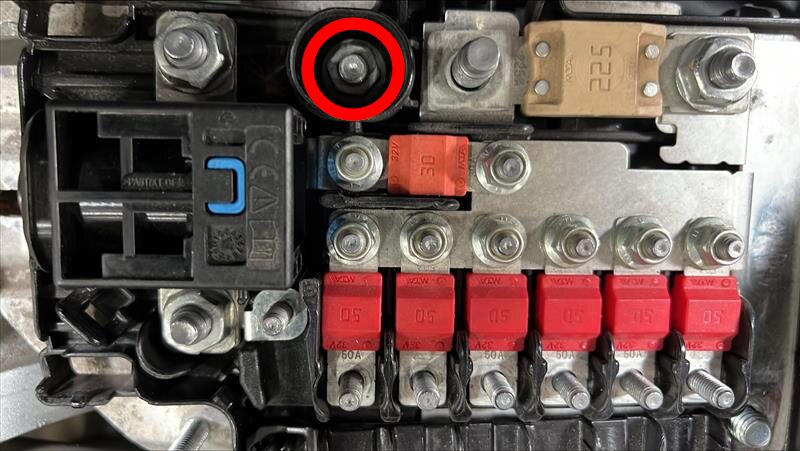

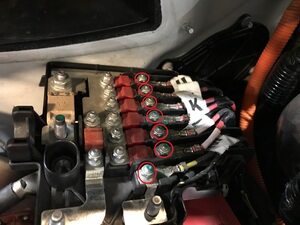

Remove terminals from fusebox
Remarque7x nuts, 8mm, 5 Nm, Wires have tags to identify where they go, remember order of wires, Take picture if necessary
-

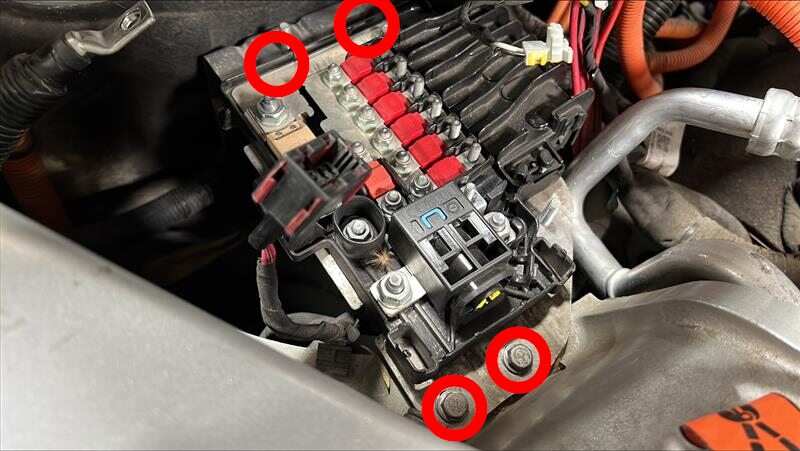

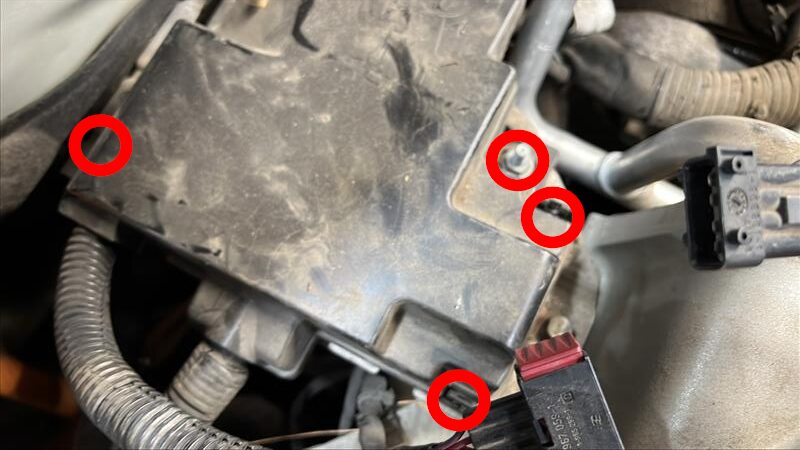

Remove fuse box assembly from body

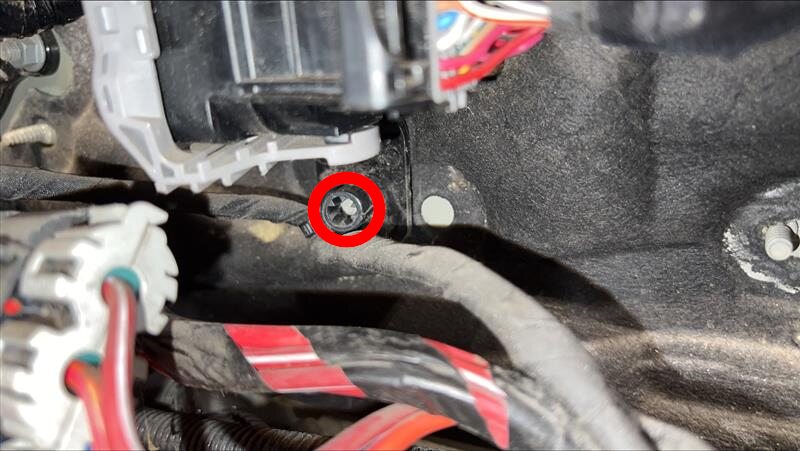

Remarque2x bolts, 2x nuts, 10mm, 5 Nm, Nuts located under fuse box against bulkhead, Move fuse box aside for access
-

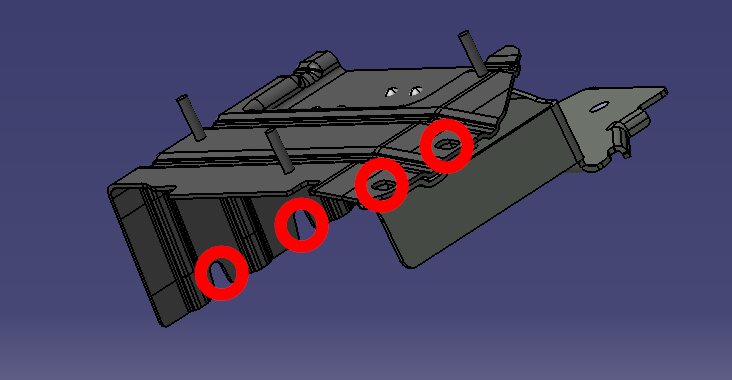

Separate bracket from fuse box

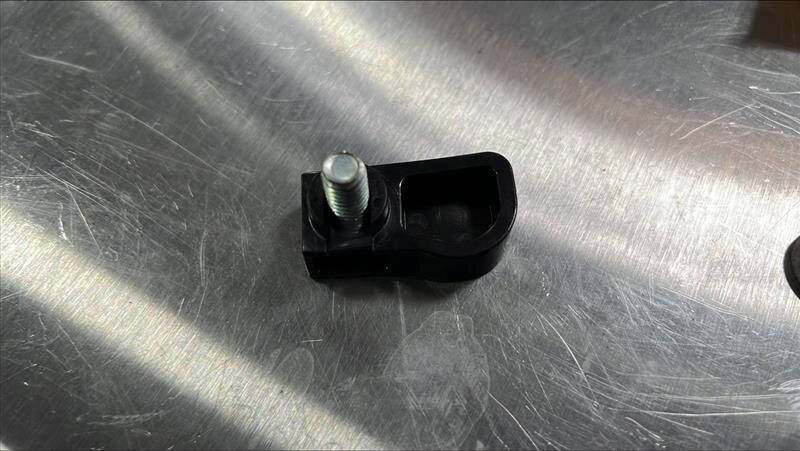

Remarque1x nut, 10mm, 5 Nm, Be cautious of plastic spacer and stud in between bracket and fuse box
-
Release harness from fuse box lower
bracket
Remarque2x fir tree clips
-

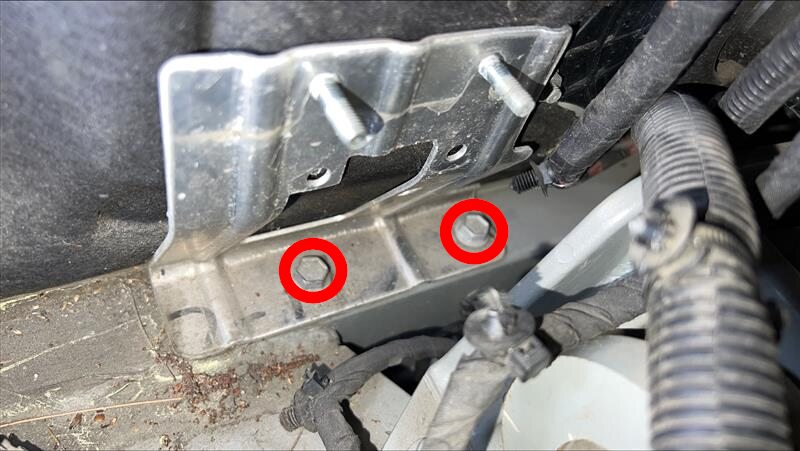

Remove lower part of fuse bracket from
body
Remarque2x bolts, 13mm, 15 Nm
-

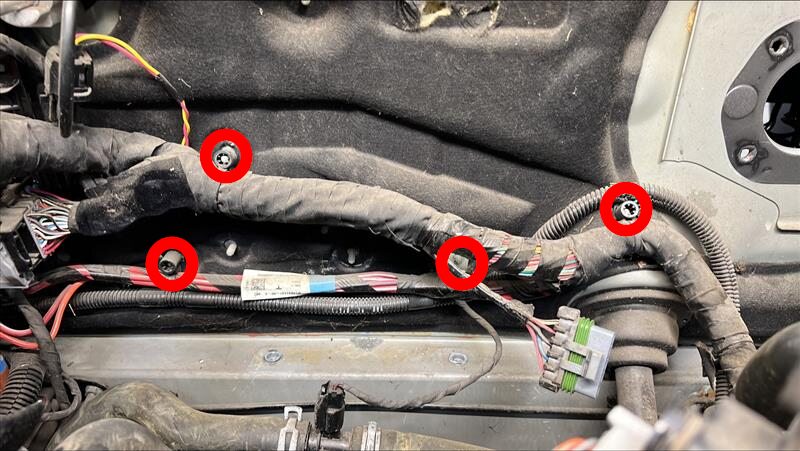

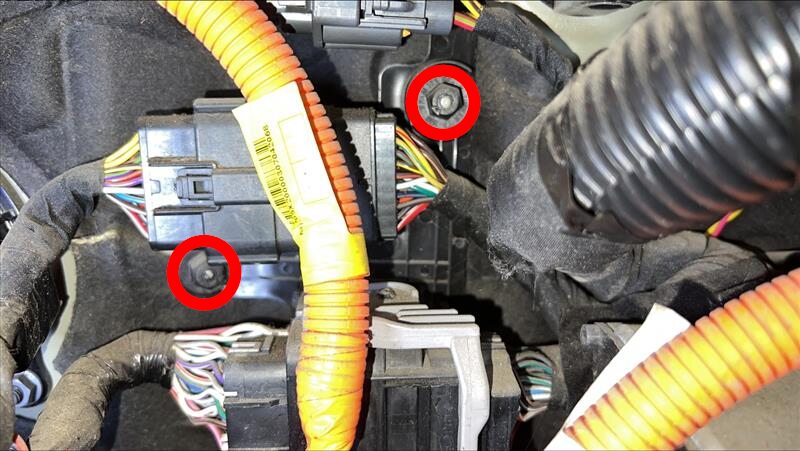

Remove screws securing harness bracket
to bulkhead
Remarque2x plastic nuts, 10mm, Hand tight, do not over torque
-

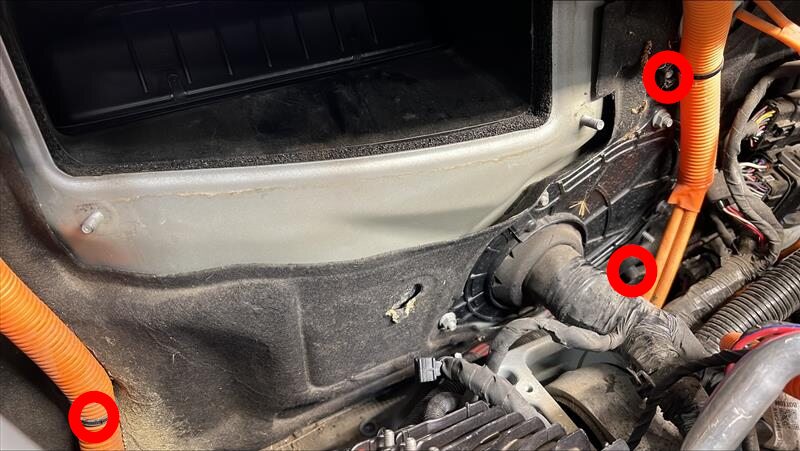

Release harness clips on LH side of
bulkhead
Remarque3x barrel clips
-
Release harness clips from RH side of
bulkhead
Remarque4x barrel clips
-

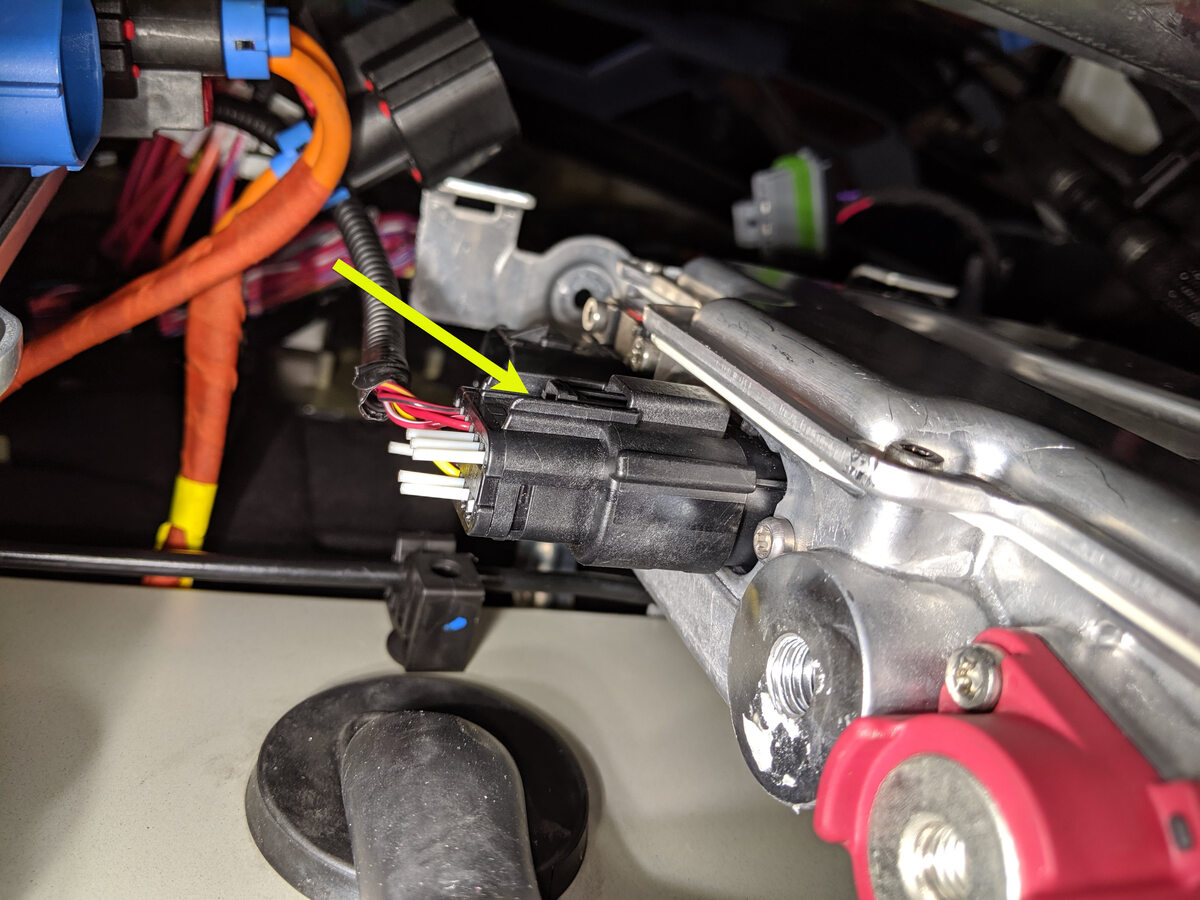

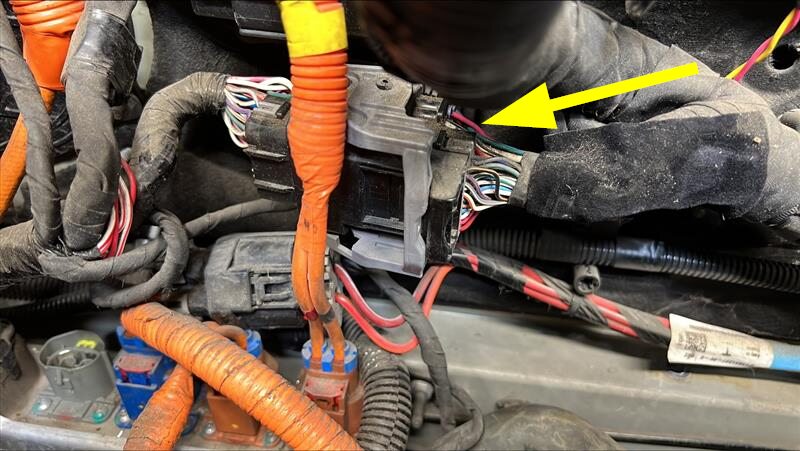

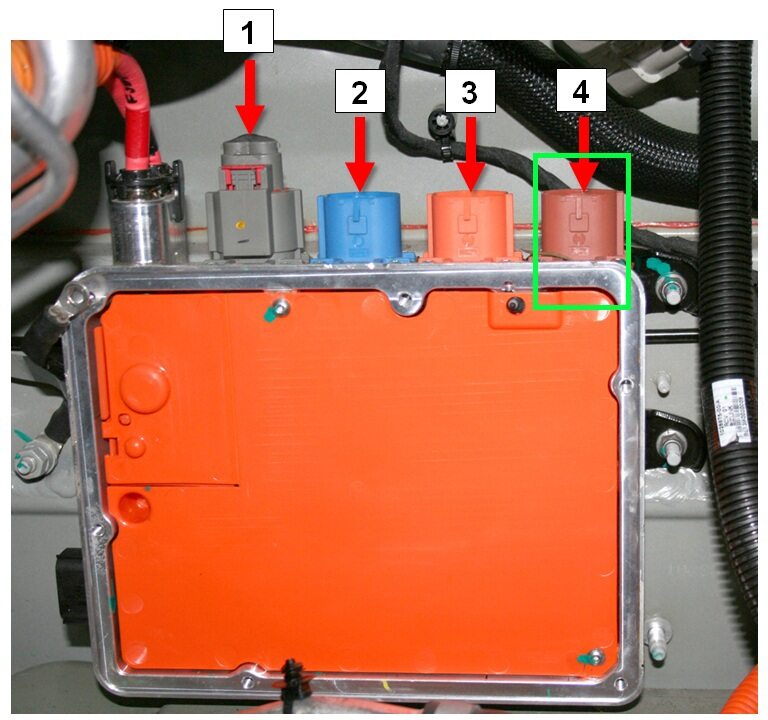

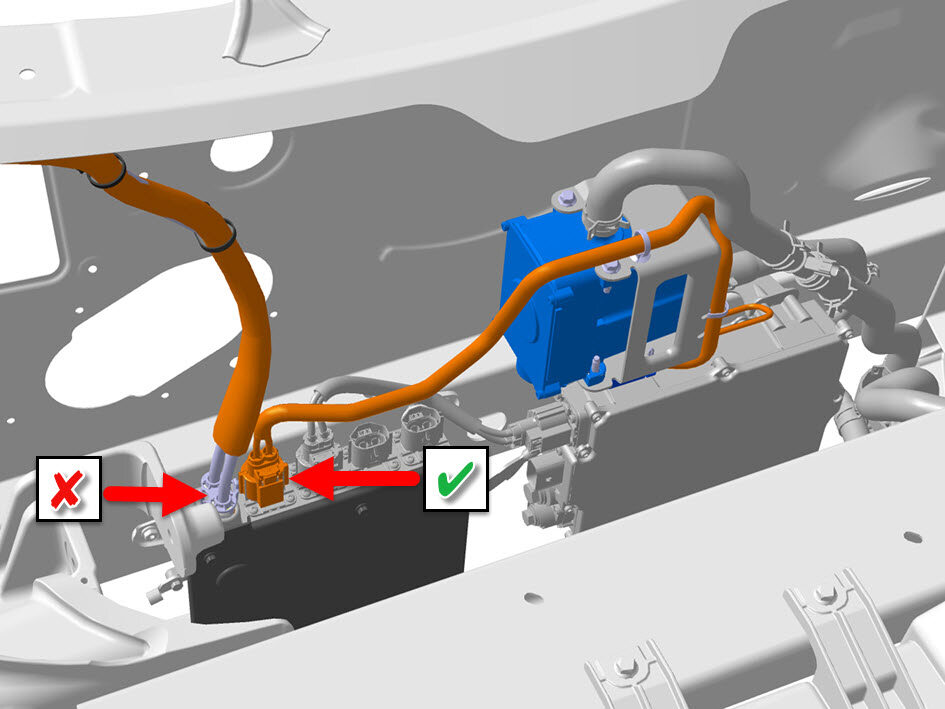

Disconnect black connector
Remarque1x connector, Disengage locking tab, Connector located above FJB
-

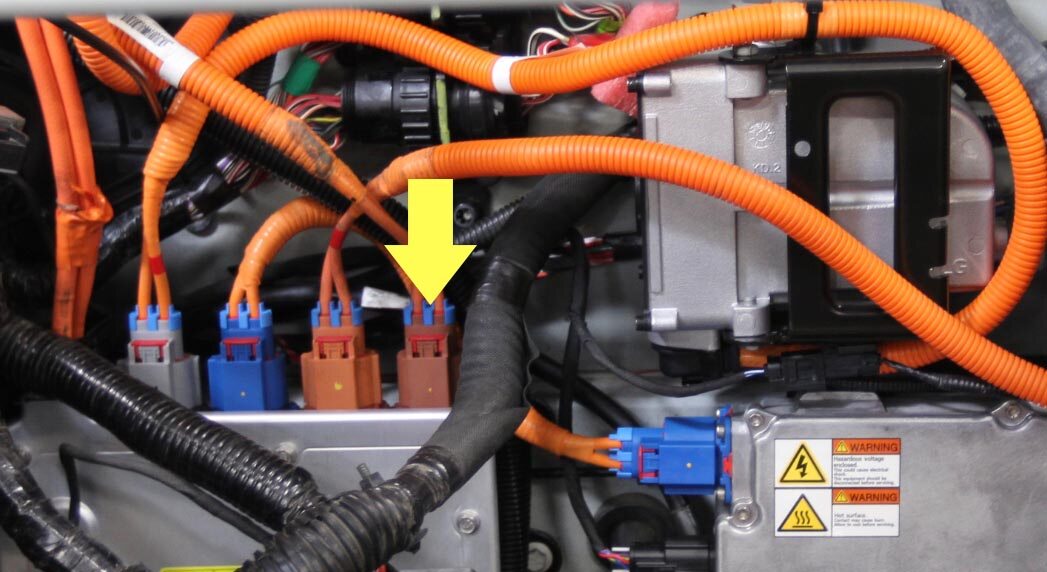

Release red locking tab and disconnect
PTC heater HV connector from FJB
Remarque1x connector
-
Release harness clip from the center of
the bulkhead
Remarque1x barrel clip
-
Cut slits into front motor bay noise
absorber
RemarqueThese cuts will aid in removal of noise absorber

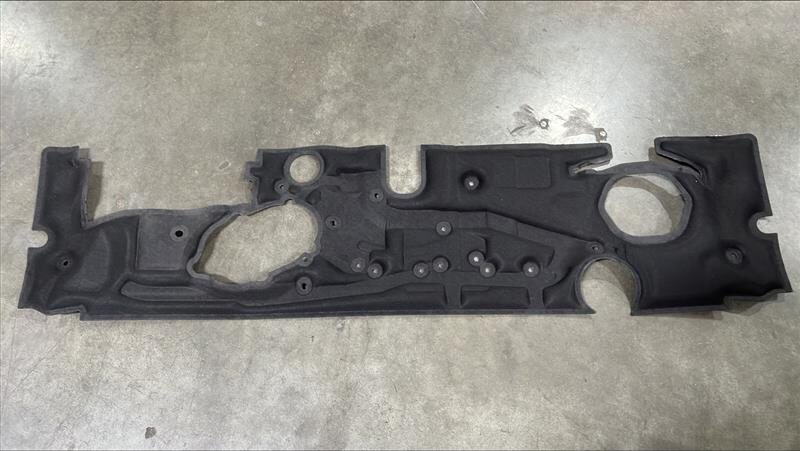

- Remove front motor bay noise absorber from vehicle
-
Cut slits into front motor bay noise
absorber
RemarqueThese cuts will aid in installation of noise absorber
-
Position front motor bay noise absorber
into vehicle
RemarqueUse caution when positioning, studs can tear absorber
-
Secure harness clips to LH side of
bulkhead
Remarque3x barrel clips
-
Secure harness clips to RH side of
bulkhead
Remarque4x barrel clips
-
Secure harness clip to the center of the
bulkhead
Remarque1x barrel clip
-
Connect PTC heater high voltage
connector
Remarque1x connector
-
Connect black front harness
connector
Remarque1x connector, Engage locking tab, Connector located above FJB
-
Secure harness bracket to bulkhead
Remarque2x plastic nuts, 10mm, Torque by hand until snug, Do not over tighten
-
Install lower portion of fuse bracket to
body
Remarque2x bolts, 13mm, 15 Nm
-
Secure harness to fuse box lower
bracket
Remarque2x fir tree clips
-
Secure fuse box bracket to fuse
box
Remarque1x nut, 10mm, 5 Nm, Position plastic spacer in between bracket and fuse box before mating
-
Secure fuse box assembly to body
Remarque2x bolts, 2x nuts, 10mm, 5 Nm
-
Secure front harness terminals to fuse
box
Remarque7x nuts, 8mm, 5 Nm, Wires have tags to identify where they need to be placed
-
Connect the SRS connector at the battery
Pyrotechnic
Remarque1x connector, Ensure harness is tucked into the correct routing on the wire separator cover
-
Connect power cable
Remarque1x nut, 13mm, 12 Nm
-
Connect ground cable
Remarque1x nut, 13mm, 12 Nm
-
Install fuse box cover
Remarque2x bolts, 10mm, 6 Nm, 2x tabs
- Position brake booster assembly into vehicle
-
Install the fasteners securing the brake
pedal to the brake booster at the bulkhead
Remarque4x nyloc nuts, 13mm, 23 Nm, Install new nyloc nuts
-
Install the brake pedal clevis pin
RemarqueDepress the brake pedal for clearance
-
Install the spring clip to secure the
clevis pin
Remarque1x spring clip
-
Reinstall LH footwell cover
Remarque2x screws, T20, 2 Nm, 1x connector
-
Install LH lower IP trim
Remarque1x screw, T20, 2 Nm, 9x clips, Replace any damaged or missing clips prior to installation
-
Install LH IP side cover
Remarque4x clips, 1x connector
-
Install LH console closeout
extension
Remarque12x clips
-
Secure LH center console wrapped trim
panel
Remarque22x clips
-
Connect brake lines into brake
booster
Remarque1x nut, 12mm, 20 Nm
-
Top off reservoir
RemarqueMake sure not get any brake fluid on paint surface, Clean brake fluid residual with shop towels
- Remove absorbent material from underneath brake booster and reservoir area
-
Connect brake fluid reservoir
connector
Remarque1x connector
-
Place washer bottle neck back into
position
Remarque1x clip
-
Raise vehicle fully and lower lift onto
locks
RemarqueSet vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side
- Position DCDC assembly into vehicle
-
Install nut securing bottom DCDC bracket
to body
Remarque1x nut,13mm, 22 Nm
-
Install lower coolant hose to DCDC
Remarque1x clamp
-
Connect black HV connector unto
DCDC
Remarque1x connector, Red locking tab
-
Connect 12V logic connector onto
DCDC
Remarque1x connector
-
Install ground cable onto body
Remarque1x bolt, 13mm, 9 Nm
-
Install DCDC into position and reinstall
upper bolts securing DCDC to body
Remarque2x bolt, 13mm, 12 Nm
-
Lower vehicle partially and set lift
onto locks
RemarqueRaise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered, Set vehicle to comfortable working height
-
Install bolts securing DCDC upper
bracket to body
Remarque2x bolts, 10mm, 6 Nm
- Position electrical battery heater into position for installation
-
Raise vehicle fully and lower lift onto
locks
RemarqueSet vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side
-
Install bolts securing electrical
battery heater to DCDC bracket
Remarque2x bolts, 10mm, 7.7 Nm
-
Lower vehicle partially and set lift
onto locks
RemarqueRaise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered, Set vehicle to comfortable working height
-
Connect coolant hoses to battery
heater
Remarque2x hoses
-
Connect electrical battery heater
connector to FJB
Remarque1x connector, Secure locking tab, 1x edge clip
-
Raise vehicle fully and lower lift onto
locks
RemarqueSet vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side
-
Connect electric battery heater logic
connector
Remarque1x connector
- Position HV battery underneath vehicle
- Remove covers or tape from LV and HV Rapid Mates
-
Lower vehicle onto pack
RemarqueAlign Rapid Mate connections before lowering fully, Recommend assistance
-
Install front bolts for HV battery with
battery powered drill
Remarque4x patch bolts, 13mm, 30 Nm, Install new patch bolts, Do not over tighten bolts, Torque at later step
-
Install 21mm bolts at front of HV
battery with battery powered drill
Remarque2x bolts, 21mm, 115 Nm, Install new bolts, Do not over tighten bolts, Torque at later step
-
Install eight outer center bolts with
battery powered drill
Remarque8x patch bolts, E12, 38 Nm, Install new patch bolts, Do not over tighten bolts, Torque at later step
-
Install LH rocker bolts with battery
powered drill
Remarque8x patch bolts, 13mm, 55 Nm, Install new patch bolts, Do not over tighten bolts, Torque at later step
-
Install RH rocker bolts with battery
powered drill
Remarque8x patch bolts, 13mm, 55 Nm, Install new patch bolts, Do not over tighten bolts, Torque at later step
-
Torque rocker HV battery bolts on both
sides
Remarque16x patch bolts, 13mm, 55 Nm
-
Torque remaining HV battery bolts
Remarque8x patch bolts, E12, 38 Nm, 2x bolts, 21mm, 115 Nm, 4x patch bolts, 13mm, 30 Nm
-
Raise vehicle and remove battery
table
RemarqueRecommend assistance
-
Install inner center HV battery bolts
with battery powered drill
Remarque4x patch bolts, E12, 38 Nm, Install new patch bolts, Do not over tighten bolts
-
Torque the inner center HV battery
bolts
Remarque4x patch bolts, E12, 38 Nm
-
Install front lower bash plate
extrusion
Remarque2x patch bolts, T30, 16 Nm
-
Place mid-aero shield for
installation
Remarque9x bolts, 10mm, 4 Nm
-
Install RH outer diffuser rail
Remarque2x clips, 2x self tapping bolts, 10mm, 3 Nm, 1x self tapping bolt, 10mm, 4 Nm
-
Install RH inner diffuser rail
Remarque2x self tapping bolts, 10mm, 3 Nm, 1x bolt, 10mm, 4 Nm
-
Install LH inner diffuser rail
Remarque2x self tapping bolts, 10mm, 3 Nm, 1x bolt, 10mm, 4 Nm
-
Install LH outer diffuser rail
Remarque2x clips, 2x self tapping bolts, 10mm, 3 Nm, 1x self tapping bolt, 10mm, 4 Nm
-
Install screws, bolt, and nut securing
RH shear plate to vehicle
Remarque3x screws, T25, 6 Nm, 1x bolt, 10mm, 4 Nm, 1x nut, 15mm, 35 Nm, Install new nut
-
Install clips securing RH shear plate to
wheel fairing
Remarque2x push clips
-
Install screws, bolt, and nut securing
LH shear plate to vehicle
Remarque3x screws, T25, 6 Nm, 1x bolt, 10mm, 4 Nm, 1x nut, 15mm, 35 Nm, Install new nut
-
Install clips securing LH shear plate to
wheel fairing
Remarque2x push clips
-
Connect harness connectors to brake
booster assembly
Remarque2x connectors, 1x clip
-
Secure rear portion of the LH front
wheel house liner to vehicle
Remarque6x clips
-
Lower vehicle partially and set lift
onto locks
RemarqueRaise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered, Set vehicle to comfortable working height
- Place air suspension reservoir into position
-
Loosely install air suspension reservoir
brackets
Remarque2x screws, T25, 2.5 Nm
-
Install LH shock tower brace
Remarque1x bolt, 13mm, 30 Nm, 2x bolts, 13mm, 20 Nm
-
Install RH shock tower brace
Remarque2x bolts, 13mm, 20 Nm, 1x bolt, 13mm, 20 Nm
-
Install wiper motor
Remarque3x bolts, 10mm, 6 Nm, 1x connector
-
Secure air suspension reservoir
brackets
Remarque2x screws, T25, 2.5 Nm

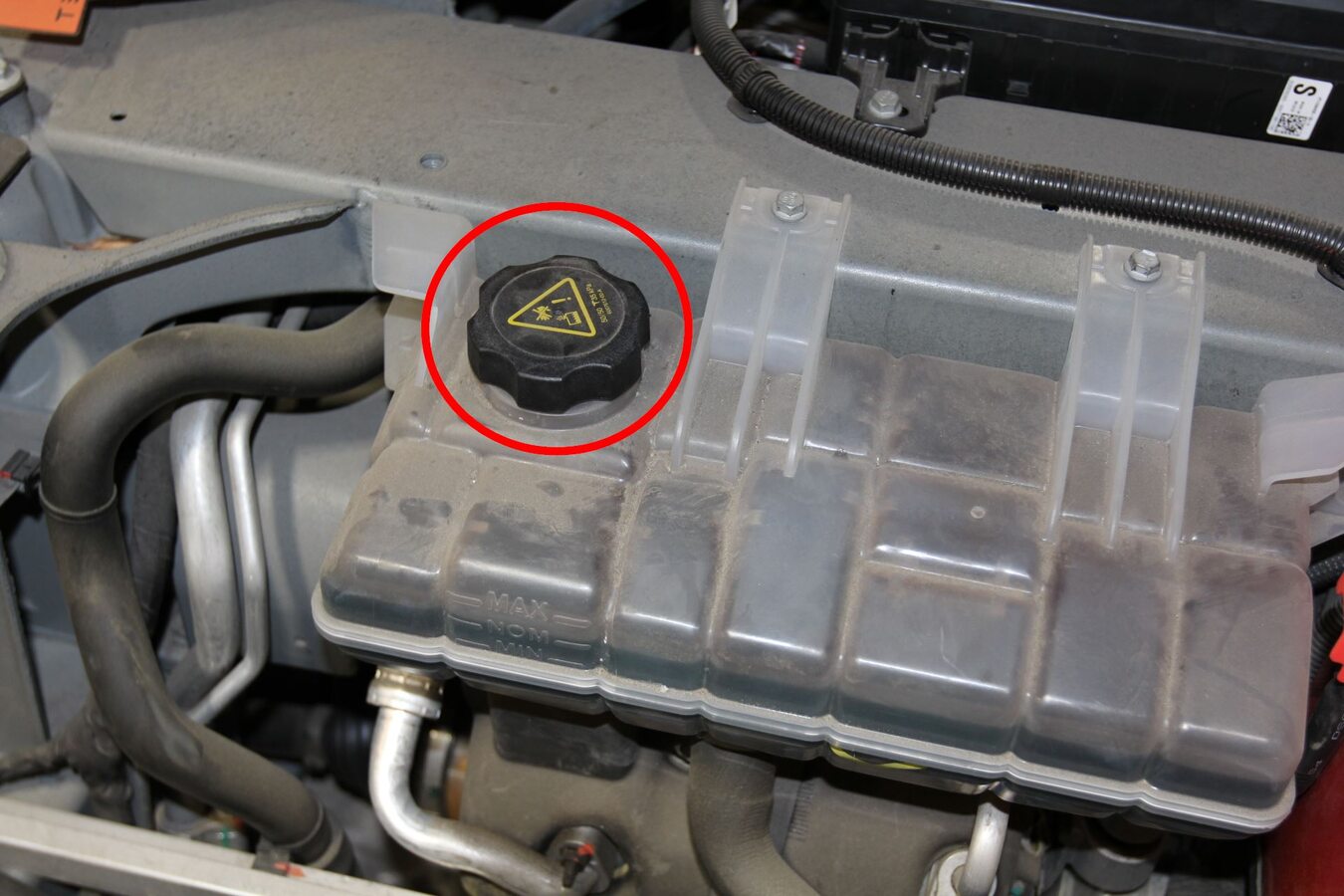

- Remove the coolant reservoir cap
-
Top up coolant reservoir
RemarqueIf necessary
-
Connect first responder loop
Remarque1x connector, Engage red locking tab
-
Connect 12V battery negative
terminal
Remarque1x nut, 10mm, 5 Nm
- Connectez un ordinateur portable au port de diagnostic du véhicule, puis utilisez Toolbox 3 pour vous connecter localement au véhicule. Voir Toolbox 3 (Connecter et déconnecter).
- Unlock the vehicle gateway for diagnostic communication. See Déverrouillage de passerelle.
- In Toolbox 3, click the Actions tab, type "Fluid fill drain" into the search field, click PROC_THC_X_FLUID-FILL-DRAINvia Toolbox: (link), click Stop, click Coolant, click Run, and allow the routine to complete.
- In Toolbox 3, click the Actions tab, type "Coolant air purge" into the search field, click PROC_THC_X_COOLANT-AIR-PURGEvia Toolbox: (link), click Run, and allow the routine to complete.
-

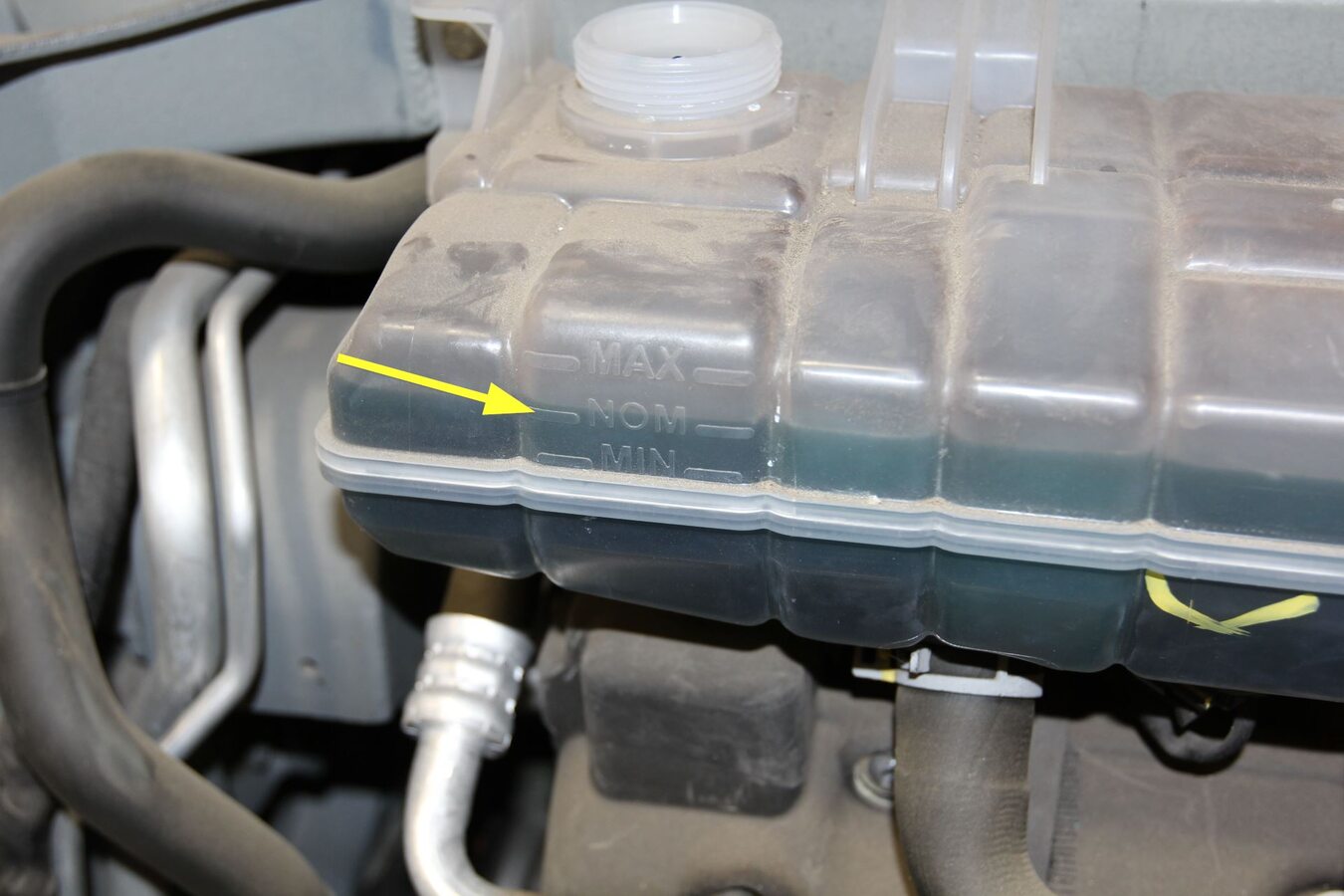

Top up coolant reservoir
RemarqueIf necessary
- Install coolant reservoir cap
-
Install front HVAC filter housing
Remarque2x tabs
-
Install bolts securing front HVAC filter
housing
Remarque2x bolts, 10mm, 1.5 Nm
-
Install cowl screen panel
Remarque4x push clips, 2x end tabs, Secure along base of windshield
-
Install RH side wiper arm
Remarque1x nut, 17mm, 31 Nm
-
Install LH side wiper arm
Remarque1x nut, 17mm, 31 Nm
- Perform the brake bleed procedure. See Procédure de purge ou de vidange – Système (retrait et remplacement).
- Once all Toolbox 3 routines have been completed, disconnect the laptop with Toolbox 3 from the vehicle. See Toolbox 3 (Connecter et déconnecter).
-
Raise vehicle partially and lower onto
locks
RemarqueSet vehicle to comfortable working height, Make sure there's an audible click of locks on both sides before lowering, otherwise vehicle may tilt to side, Always lower lift arms onto locks after raising vehicle
-
Install LH front wheel
Remarque5x nuts, 21mm, 175 Nm, Start lug nuts by hand before using power tool
-
Install LH rear wheel
Remarque5x nuts, 21mm, 175 Nm, Start lug nuts by hand before using power tool
-
Install RH rear wheel
Remarque5x nuts, 21mm, 175 Nm, Start lug nuts by hand before using power tool
-
Install RH front wheel
Remarque5x nuts, 21mm, 175 Nm, Start lug nuts by hand before using power tool
-
Lower vehicle until tires are touching
ground
RemarqueRaise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered
-
Torque RH front wheel
Remarque5x nuts, 21mm, 175 Nm
-
Torque RH rear wheel
Remarque5x nuts, 21 mm, 175 Nm
-
Torque LH rear wheel
Remarque5x nuts, 21 mm, 175 Nm
-
Torque LH front wheel
Remarque5x nuts, 21mm, 175 Nm
-
Install LH front lug nut covers
Remarque5x covers
-
Install LH rear lug nut covers
Remarque5x covers
-
Install RH rear lug nut covers
Remarque5x covers
-
Install RH front lug nut covers
Remarque5x covers
-
Position underhood storage unit into
vehicle
RemarquePush wiring harness grommet back through underhood storage unit
-
Connect emergency hood release and front
light harness
Remarque2x connectors
-
Install front nuts securing underhood
storage unit to body
Remarque2x nuts, 8mm, 8 Nm, Seat seal around carpet
-
Install rear bolts securing underhood
storage unit to body
Remarque2x bolts, 13mm, 4 Nm, Seat seal around carpet
-
Install RH underhood apron
Remarque9x clips
-
Install LH underhood apron
Remarque9 x clips
-
Install rear underhood apron
Remarque8x clips
-
Close hood
RemarquePress firmly in green highlighted areas (see image), Damage may result from pressure elsewhere on hood
-
Remove vehicle from lift
RemarqueLower rack arms fully and remove them from under vehicle, Remove air suspension from "Jack Mode" via Controls > Service > '' JACK MODE''
-
Raise both front windows
RemarqueUsing master switch on driver's door
- Close LH front door
