Code de correction New REMARQUE : À moins d’indications explicites contraires dans la procédure, le code de correction et le temps à taux fixe (FRT) connexe représentent tout le travail à accomplir pour cette procédure, y compris les procédures connexes. N’appliquez pas plusieurs codes de correction à la fois, à moins qu’il vous soit explicitement indiqué de le faire. REMARQUE : Consultez Temps forfaitaires pour en apprendre plus à propos des temps forfaitaires et de leur création. NOTE : Consultez Protection individuelle pour vous assurer de porter l’équipement de protection individuelle adéquat lorsque vous effectuez la procédure ci-dessous. REMARQUE : Voir Précautions ergonomiques pour consulter les pratiques de travail sécuritaires et saines.

1. This procedure requires refrigerant evacuation and recharge, Please add specific evacuation and recharge correction code as needed
2. Set up AC machine
   Remarque

   Touch time only, Connect to power, Turn power switch on







3. Open all four doors
4. Lower all four windows
5. Open liftgate
6. Remove cover from outer LH sun visor mount
   Remarque

   Take care not to damage the sun visor mounting cover





7. Remove LH sun visor
   Remarque

   1x screw, T20, 2.8 Nm, 1x tab, 1x connector if equipped with lighted visors







8. Remove LH sun visor center support
   Remarque

   1x screw, T15, 2.5 Nm, Release cover and remove screw





9. Remove rear view mirror lower cover
   Remarque

   4x tabs, Pull down at an angle to release the tabs





10. Disconnect rear view mirror connector
    Remarque

    1x connector



11. Remove rear view mirror
    Remarque

    Rotate mirror counterclockwise to release





12. Remove rear view mirror upper cover
    Remarque

    4x clips





13. Remove cover from outer RH sun visor mount
    Remarque

    Take care not to damage the sun visor mounting cover



14. Remove RH sun visor
    Remarque

    1x screw, T20, 2.8 Nm, 1x tab, 1x connector if equipped with lighted visors





15. Remove RH sun visor center support
    Remarque

    1x screw, T15, 2.5 Nm, Release cover and remove screw





16. Fully lower and extend steering column



17. Remove LH IP side cover
    Remarque

    4x clips, 1x connector







18. Remove LH middle A-pillar trim
    Remarque

    2x clips



19. Remove LH lower IP trim
    Remarque

    1x screw, T20, 2 Nm, 9x clips







20. Remove LH lower A-pillar trim
    Remarque

    4x clips, Number of clips securing trim may vary depending on vehicle production date, Replace any damaged or missing clips prior to re-installing sill trim







21. Remove RH IP side cover
    Remarque

    4x clips, 1x connector





22. Remove RH middle A-pillar trim



23. Remove RH instrument panel lower assembly
    Remarque

    13x clips







24. Remove glove box lower trim
    Remarque

    6x clips





25. Remove glove box from IP carrier
    Remarque

    6x screws, T20, 2.3 Nm, 3x connectors





26. Remove RH footwell cover
    Remarque

    2x screws, T20, 2 Nm, 1x connector





27. Remove RH lower A-pillar trim
    Remarque

    4x clips, The number of clips securing the trim varies depending on vehicle production date, Replace any damaged or missing clips prior to re-installing sill trim







28. Move LH front seat backward
29. Move RH front seat backward
30. Open hood
    Remarque

    Via Controls > Front Trunk
31. Remove rear underhood apron
    Remarque

    8x clips





32. Remove RH underhood apron
    Remarque

    9x clips





33. Remove LH underhood apron
    Remarque

    9x clips, (*Use this step for Model S Refresh procedures)





34. Release primary and secondary drain tubes from cabin intake duct assembly
    Remarque

    2x hoses





35. Release cabin intake duct assembly from cowl panel
    Remarque

    3x push clips



36. Remove cabin intake duct assembly
    Remarque

    2x tabs, one on each side





37. Remove HEPA filter outlet duct
    Remarque

    Lift up, Pull towards front of vehicle, Then rotate clockwise





38. Remove caps from low side and high side refrigerant service ports
    Remarque

    2x caps



39. Connect laptop to vehicle with a tethered Ethernet connection via Toolbox 3
    Remarque

    1x connector, 2x clips, Newer models will access connector below MCU with cubby removed, Older models will access port at LH side of IP with end cap removedOpen Toolbox 3 website and establish connection to vehicle, Select connection status icon at top right corner and select Connect Locally (icon will turn green when vehicle is connected), Local connection will enable service mode plus on display





40. Unlock vehicle Gateway
    Remarque

    After vehicle has been put into "Service Mode", hold down the brake pedal, while holding down brake pedal simultaneously hold the turn signal stalk fully up for at least 10 seconds, "GTW UNLOCKING" should pop up on the instrument cluster right below the VIN during these 10 seconds, once gateway is unlocked "GTW UNLOCKED 5400" will be displayed on the instrument cluster underneath the VIN, the gateway will remain unlocked for 90 minutes, follow steps on Toolbox article #5582900 for any additional information









41. Exécutez la routine ODIN PROC_VCFRONT_X_START-THERMAL-FILL-DRAIN-REFRIGERANTvia Toolbox:(link)
42. Connect A/C machine hoses to refrigerant service ports in vehicle
    Remarque

    Blue hose to the low-side port, Red hose to the high-side port, Use the coupler for this refrigerant type, Do not mix R-134a and R-1234yf fittings, After the couplers are seated open both hose valves



43. Perform refrigerant system recovery
    Remarque

    Note or print the amount of refrigerant and oil recovered, If drained oil level increased more than 1.01 oz (30 mL) refer to drained oil loss chart toolbox article 353700







44. Position wheel chocks at LH rear wheel



45. Place vehicle into "Tow Mode"
    Remarque

    Via Controls > ''Service''



46. Power off vehicle from center display
    Remarque

    Via Controls > Safety > Power Off





47. Disconnect 12V battery negative terminal and First Responder Loop
    Remarque

    1x nut, 10mm, 5 Nm, 1x connector, Wait at least 2 minutes before disconnecting modules or HV components



48. Remove LH shock tower cover
    Remarque

    4x push clips





49. Remove RH shock tower cover
    Remarque

    4x push clips





50. Remove LH side wiper arm
    Remarque

    1x nut, 17mm, 31 Nm



51. Remove RH side wiper arm
    Remarque

    1x nut, 17mm, 31 Nm



52. Release cowl screen from body
    Remarque

    4x push clips



53. Release cowl screen from windshield
    Remarque

    The cowl screen sits along the windshield, lift the corners of the cowl and lift the middle of the assembly to full remove the cowl screen from the vehicle





54. Lift cowl screen past pedestrian protection actuators





55. Remove cowl screen from vehicle
    Remarque

    Carefully flex the cowl screen to clear the hood strut and be sure not to scratch the under hood or fender





56. Remove wiper motor
    Remarque

    3x bolts, 10mm, 6 Nm, 1x connector, 1x clip, Turn the wiper module counter clockwise while removing, Keep your fingers away from any potential pinch points and moving parts while connecting and installing the wiper module, Do not attempt to test the module until it is fully installed in the vehicle









57. Remove fuse box cover
    Remarque

    2x tabs, Push tabs inwards to release and remove fuse box cover



58. Remove 12V supply cable to DCDC
    Remarque

    1x nyloc nut, 13mm, 12 Nm, 1x clip, Discard nyloc nut



59. Release clips securing 12V battery supply cable to fuse box and strut tower cross beam
    Remarque

    3x clips



60. Disconnect pyrotechnic fuse connector
    Remarque

    1x connector, Gently lift up orange lock tab to release connector



61. Remove bolts securing fuse box to body
    Remarque

    2x bolts, 10mm, 6 Nm



62. Release fuse box from body
    Remarque

    2x tabs, Slide fuse box to RH side to release tabs, then lift



63. Disconnect remaining connectors from bottom of fuse box
    Remarque

    3x connectors, Depress locking tabs on sides of flip-type connector and flip lever on connector to reseal



64. Remove clip securing harness to LH shock tower brace



65. Remove LH air suspension reservoir bracket from LH shock brace
    Remarque

    2x bolts, 10mm, 6 Nm



66. Remove LH shock tower brace
    Remarque

    1x bolt, 13mm, 30 Nm, 2x bolts, 13mm, 20 Nm





67. Remove AC line bracket bolt on RH shock brace
    Remarque

    1x bolt, 10mm, 6 Nm



68. Remove air reservoir bracket mounting bolts from RH shock brace
    Remarque

    2x bolts, 10mm, 6 Nm



69. Remove RH shock tower brace
    Remarque

    1x bolt, 13mm, 30 Nm, 2x bolts, 13mm, 20 Nm





70. Remove screws securing air suspension reservoir to bracket
    Remarque

    2x screws, T25, 2.5 Nm





71. Set air suspension reservoir aside for access
    Remarque

    Maneuver below AC line



72. Remove fasteners securing TXV to evaporator
    Remarque

    2x bolts, T30, 6 Nm, Inspect o-rings for damage if flushing, Discard o-rings and replace on install



73. Disconnect A/C hoses and TXV from HVAC unit
    Remarque

    Gently pull the lines away from the bulkhead/ HVAC box, be sure to retain the O-rings at the TXV



74. Open second row cup holder





75. Remove second row cup holder trim panel
    Remarque

    3x tabs, Slide panel straight up to remove





76. Remove RH center console panel
    Remarque

    22x clips, Replace any damaged or missing clips



77. Remove LH center console panel
    Remarque

    22x clips, Replace any damaged or missing clips



78. Remove rear center console vent
    Remarque

    2x connectors, 4x tabs, Pull vent straight out, gently release locking tabs for USB connectors and slide out







79. Close cup holder



80. Remove rear panel from console
    Remarque

    6x clips, 3x connectors







81. Remove bolts securing rear of console to body
    Remarque

    2x bolts, 10mm, 7 Nm





82. Remove LH side console closeout panel
    Remarque

    6x clips, Pull side panel back and slide closeout panel down behind side panel











83. Remove bolt securing LH front of console to IP
    Remarque

    1x bolt, 10mm, 7 Nm



84. Remove RH side console closeout panel
    Remarque

    6x clips











85. Disconnect 2 USB connectors and release from console trim
    Remarque

    2x connectors, 2x fir tree clips, RH front of console







86. Release clip securing connector and disconnect 12V harness connector
    Remarque

    1x connector, 1x clip, RH front of console, on backside of panel







87. Open console sliding door



88. Remove console floor panel



89. Remove bolts securing middle of console to body
    Remarque

    2x bolts, 10mm, 3 Nm



90. Remove center console from vehicle
    Remarque

    Lift rear of console up, pull backwards and lift up and remove from vehicle, Recommend assistance



91. Remove screw securing LH side of top pad
    Remarque

    1x screw, T20, 1 Nm



92. Remove LH upper A-pillar trim panel
    Remarque

    1x screw with washer, 7mm, 2 Nm, 1x connector, 2x locating tabs, 1x clip











93. Remove lower binnacle cover from IP area of vehicle
    Remarque

    4x clips



94. Remove screws securing top pad at binnacle area
    Remarque

    2x screws, T20, 1 Nm



95. Remove screw securing RH side of top pad
    Remarque

    1x screw, T20, 1 Nm



96. Remove RH upper A-pillar trim panel
    Remarque

    1x screw, 7mm, 2 Nm, 1x connector











97. Disconnect connectors from RH side of DAS ECU
    Remarque

    7x connectors, DAS 2.0 has 4x connectors





98. Remove fasteners securing DAS ECU to cross car beam
    Remarque

    4x nuts, 8mm, 5 Nm, Discard after removal



99. Disconnect connectors from LH side of Autopilot ECU and remove from vehicle
    Remarque

    7x connectors





100. Disconnect passenger airbag connectors
     Remarque

     2x connectors, Release locking tab





101. Remove passenger airbag mounting bolts
     Remarque

     2x bolts, 10mm, 10 Nm



102. Cover aluminum strip on top pad and MCU bezel with tape for protection





103. Release top pad at leading edge, from drivers outer finisher to inner finisher
     Remarque

     8x clips



104. Release RH side of top pad working from right to left
     Remarque

     9x clips, Use caution to not crease aluminum trim when lifting top pad



105. Release MCU ground strap
     Remarque

     1x tab





106. Release remaining clips, remove top pad from vehicle, and place onto protective surface
     Remarque

     6x clips, Recommend assistance



107. Remove defrost mesh grille assembly
     Remarque

     10x clips





108. Remove screws securing RH IP finisher
     Remarque

     2x screws, T20, 2 Nm



109. Release clips for RH IP finisher and remove from vehicle
     Remarque

     4x clips



110. Release clips securing steering gap hider to IC bezel
     Remarque

     2x clips

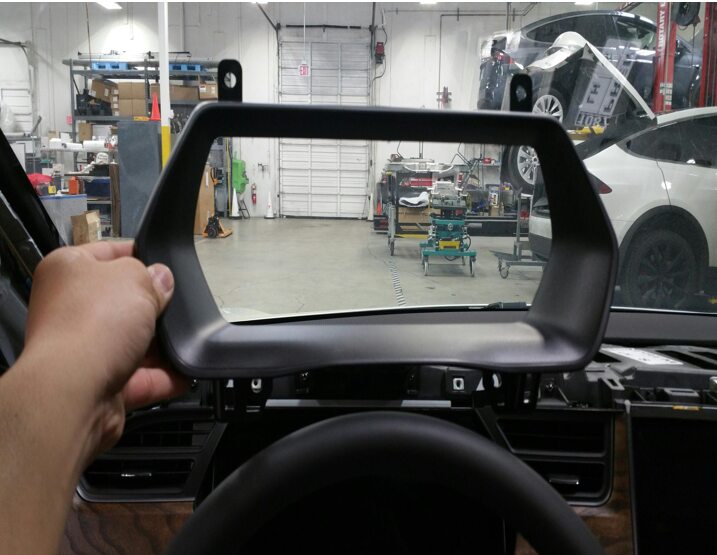

111. Remove instrument cluster bezel
     Remarque

     4x screws, T20, 2 Nm, Remove screws securing instrument cluster bezel to IP carrier and remove bezel





112. Remove screws securing LH inner IP finisher with vent to IP carrier
     Remarque

     2x screws, T20, 2 Nm, raise top pad with airbag tool if additional access is needed



113. Release clips securing LH inner IP finisher with vent to IP carrier and remove from vehicle
     Remarque

     3x clips





114. Install screws securing LH inner IP finisher with vent to IP carrier
     Remarque

     2x screws, T20, 1 Nm



115. Remove LH outer IP finisher from IP carrier
     Remarque

     2x clips



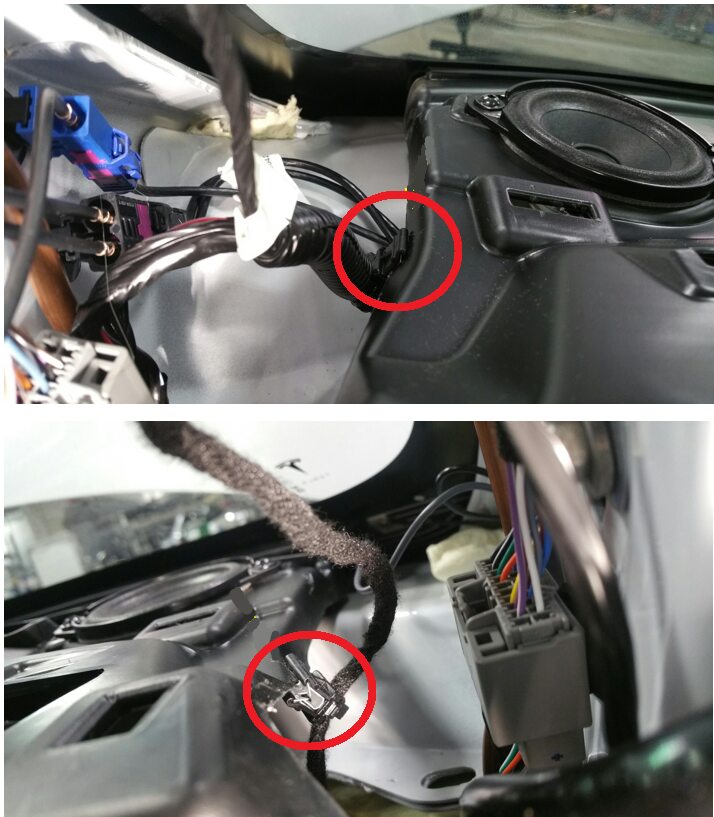

116. Release fasteners securing driver's airbag to steering wheel
     Remarque

     2x screws, T30, 7 Nm, The screws will remain inside the steering wheel, If required rotate the steering wheel to gain access to screws, Afterwards return steering wheel to straight and center position





117. Remove driver's airbag
     Remarque

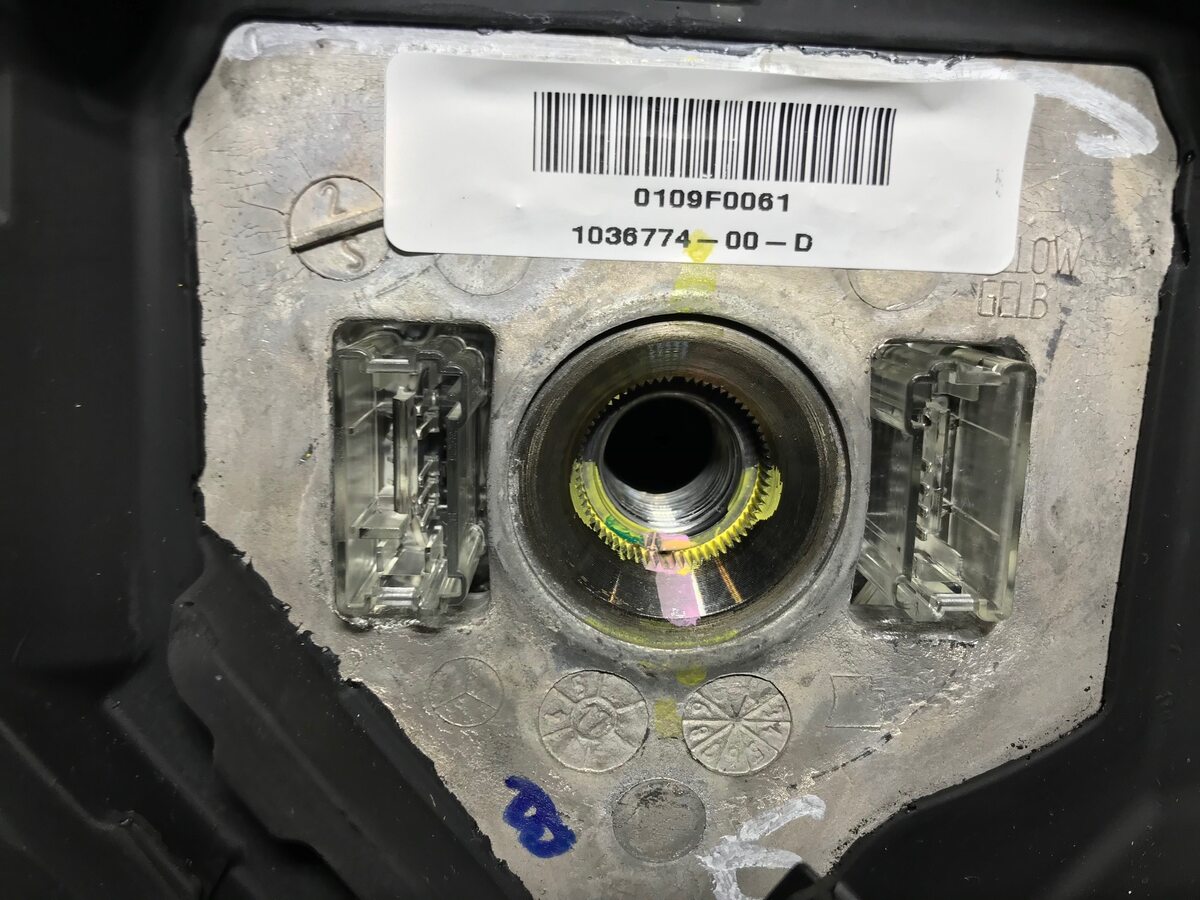

     3x connectors, disconnect the airbag and steering wheel controls



118. Remove steering wheel center bolt
     Remarque

     1x patch bolt, 10mm allen, 80 Nm, Discard after removal



119. Mark steering wheel
     Remarque

     Position the wheels straight ahead and mark the steering wheel relative position to the column



120. Remove steering wheel



121. Tape clock spring cassette to prevent rotation
     Remarque

     Do not rotate the clockspring



122. Release SCCM from steering column
     Remarque

     Rock SCCM back and forth to release from column



123. Remove SCCM
     Remarque

     1x connector, Remove black locking tab then depress connector release tab to release connector, Locking tab is one time use discard after removal



124. Remove LH footwell cover
     Remarque

     2x screws, T20, 2 Nm, 1x connector





125. Remove LH side knee airbag cover
     Remarque

     2x bolts, 10mm, 10 Nm





126. Disconnect steering column motor connectors
     Remarque

     2x connectors



127. Mark steering column relative position to lower shaft joint



128. Remove bolt securing lower shaft to steering column
     Remarque

     1x bolt, 13mm, 30 Nm



129. Release steering column from lower shaft
     Remarque

     Slide joint down lower shaft



130. Remove fasteners securing steering column to cross car beam
     Remarque

     2x bolts, 13mm, 17 Nm, 2x nuts, 13mm, 30 Nm





131. Remove steering column from vehicle



132. Remove fasteners securing instrument cluster to IP carrier
     Remarque

     4x screws, T20, 2 Nm



133. Disconnect electrical connectors from rear of instrument cluster and remove from IP carrier
     Remarque

     3x connectors, tilt the IC away from the IP carrier to access connections, Take care not to put excessive strain on the wiring and connectors to the IC (1x chime connector pulls straight out, 1x flip lock type connector, 1x coaxial connector, release tab is on the underside of the connector), After removal place the IC on ESD safe surface





134. Remove MCU mounting screws
     Remarque

     4x screw, T25, 4.5 Nm, Note locations of washers if present



135. Tilt MCU out from IP carrier at top in order to access connectors
     Remarque

     Caution: Do not pull on harnesses as it can damage the connectors





136. Disconnect all electrical connections from MCU
     Remarque

     13x connectors, Gently tilt the top of the MCU/touch screen for access, recommend assistance. All connectors are equipped with locking tabs that must be depressed prior to disconnect, Avoid putting excessive tension on the connectors and wiring harness during removal, (number of connectors may vary depending on vehicle configuration and MCU part number revision)





137. Release clips securing tweeter harnesses to IP carrier near LH and RH A-pillars
     Remarque

     2x clips



138. Remove clips securing dash harness to IP carrier
     Remarque

     2x clips



139. Remove fasteners securing IP carrier to cross car beam
     Remarque

     15x screws, T20, 2 Nm







140. Pull IP carrier forward for better access for speaker and edge clip removal
     Remarque

     Take care to avoid stressing the connectors to the dash speakers and avoid damaging components in the process of moving the IP carrier forward for better access to edge clips and connections



141. Remove RH side dash speaker
     Remarque

     2x screws, T20, 2 Nm, 1x connector





142. Remove center dash speaker
     Remarque

     2x screws, T20, 2 Nm, 1x connector





143. Remove LH dash speaker
     Remarque

     2x screws, T20, 2 Nm, 1x connector





144. Remove IP carrier from vehicle
     Remarque

     Recommend assistance, Lift up air duct from HVAC assembly, 1x center dash speaker tape to duct







145. Disconnect headliner harness at LH A-pillar and release from vehicle
     Remarque

     3x connectors, 1x clip



146. Remove cross car beam harness connectors at LH lower A-pillar
     Remarque

     7x connectors, Only release connectors that run to the harness on the cross car beam





147. Disconnect cross car beam harness connectors at RH lower A-pillar
     Remarque

     7x connectors, Only release connectors that run to the harness on the cross car beam





148. Remove fasteners securing cross car beam to HVAC assembly
     Remarque

     3x bolts, 10mm, 10 Nm





149. Remove fasteners securing cross car beam to vehicle
     Remarque

     7x bolts, 13mm, 27 Nm





150. Remove cross car beam from vehicle
     Remarque

     Recommend assistance, Exercise caution when removing the cross car beam, the brake switch is attached to the cross car beam and is susceptible to failure







151. Release bottom portion of LH lower C-pillar trim
     Remarque

     2x clips,Take care not to damage, Release the lower portion for access, Replace any damaged or missing clips







152. Remove fasteners securing LH lower B-pillar trim
     Remarque

     2x screws, T25, 2 Nm





153. Remove LH lower B-pillar trim
     Remarque

     6x plastic clips to body, 2x metal clips to upper B-pillar, Replace any damaged or missing clips, Lift the trim to clear the seat and pre-tensioner





154. Remove LH upper B-pillar trim and move it aside
     Remarque

     2x metal clips, 1x tab, First pull the lower part toward inside the vehicle to release clips, once released pull the trim downwards





155. Release bottom portion of RH lower C-pillar trim
     Remarque

     2x clips, Take care not to damage, Release the lower portion for access, Replace any damaged or missing clips







156. Remove fasteners securing RH lower B-pillar trim
     Remarque

     2x screws, T25, 2 Nm





157. Remove RH lower B-pillar trim
     Remarque

     6x plastic clips to body, 2x metal clips to upper B-pillar, Replace any damaged or missing clips





158. Remove RH upper B-pillar trim and move it aside
     Remarque

     2x metal clips, First pull the lower part toward inside the vehicle to release clips, once released pull the trim downwards





159. Disconnect thermal controller
     Remarque

     4x connectors, 1x edge clip



160. Remove AC hoses from vehicle



161. Release vacuum from AC lines
     Remarque

     2x Schrader valves, Carefully depress the schrader valves to release vacuum from AC lines





162. Remove fasteners securing TXV to evaporator
     Remarque

     2x bolts, T30, 6 Nm, Inspect o-rings for damage if flushing, Discard o-rings and replace on install



163. Disconnect A/C hoses and TXV from HVAC unit
     Remarque

     Gently pull the lines away from the bulkhead/ HVAC box, be sure to retain the O-rings at the TXV



164. Disconnect HVAC blower assembly and RKE connector and release harness clip
     Remarque

     2x connectors, 2x edge clips



165. Remove fasteners securing HVAC assembly to body
     Remarque

     5x nuts, 10mm, 6 Nm, 2x bolts, 10mm, 6 Nm







166. Release HVAC drain hose from HVAC assembly
     Remarque

     1x hose connection, Place a shop towel underneath the drain hose prior to disconnecting



167. Disconnect sensor from RH lower air duct on HVAC assembly
     Remarque

     1x connector



168. Remove fasteners securing RH lower air duct to HVAC assembly
     Remarque

     2x screws, PH2, 1 Nm



169. Remove RH lower air duct from HVAC assembly
     Remarque

     Lower left slide of duct and slide out to the left to release from HVAC assembly



170. Remove the fasteners securing the HVAC assembly cross brace
     Remarque

     2x screws, PH2, 1 Nm





171. Remove HVAC assembly cross brace
     Remarque

     Gently push brace to the left to release from HVAC box on RH side, Pull the brace towards the rear for the vehicle then side out to the right to release from HVAC assembly





172. Remove fasteners securing PTC heater to HVAC assembly
     Remarque

     3x screws, PH2, 1 Nm



173. Remove PTC heater from HVAC assembly
     Remarque

     Slide PTC heater out to the left while taking care not to strain the HV cables, Gently move the PTC heater and HV cables behind the HVAC assembly so it can be removed from the vehicle, Take necessary measures to protect the PTC heater and its cables so it can be easily moved out of the way during main body harness replacement as needed





174. Remove HVAC assembly from vehicle
     Remarque

     Recommend assistance



175. Remove parcel shelf



176. Remove LH middle C-pillar trim
     Remarque

     1x screw, T25, 3 Nm, 4x clips







177. Remove LH C-pillar upper trim
     Remarque

     4x clips





178. Remove bolt securing headliner and support strap at LH C-pillar
     Remarque

     1x bolt, 8mm, 10 Nm



179. Remove RH middle C pillar trim
     Remarque

     1x screw, T25, 3 Nm







180. Remove RH upper C-pillar trim
     Remarque

     4x clips





181. Remove bolt securing headliner and support strap at RH C-pillar
     Remarque

     1x bolt, 8mm, 10 Nm



182. Release headliner at front of vehicle
     Remarque

     6x clips



183. Release headliner at LH side of vehicle above B-pillar area
     Remarque

     1x clip, Recommend looking at reflection of clip in roof glass and using pick tool to release





184. Release headliner at RH side of vehicle above B-pillar area
     Remarque

     1x clip, Recommend looking at reflection of clip in roof glass and using pick tool to release





185. Fold 2nd row seatbacks down



186. Release rear headliner clips and lower headliner.
     Remarque

     5x clips, 3x velcro strips, Take care not to damage other components. Recommend Assistance



187. Disconnect the LH curtain airbag
     Remarque

     2x clips, 1x locking airbag connector, Lower the LH rear corner of the headliner for access, Take care not to crease the headliner



188. Disconnect the impact sensor harness connector on LH B-pillar assembly
     Remarque

     1x connector, Depress the locking tab and pull the male side of the connector away from the sensor



189. Disconnect LH seatbelt pretensioner
     Remarque

     2x connectors, Release locking tab





190. Release harness clips at B pillar
     Remarque

     3x clips



191. Remove LH exterior B-pillar finisher
     Remarque

     2x tabs





192. Remove screws securing LH B-pillar applique
     Remarque

     2x bolts, T25, 5 Nm



193. Release B-pillar seals from applique and body along length of applique



194. Pry LH applique away from body starting at the bottom
     Remarque

     2 strips of double-sided tape securing applique to body



195. Pull down to release LH applique from upper clips
     Remarque

     Use caution as camera harness does not have much slack



196. Remove LH B-pillar applique
     Remarque

     1x connector, Hold LH applique away from body and disconnect camera harness connector, then remove applique





197. Release the harness clips at the B pillar
     Remarque

     5x clips



198. Disconnect the connector tucked into the B pillar opening
     Remarque

     1x connector



199. Release the harness clips along the LH sill panel
     Remarque

     3x clips



200. Remove the ground bolt at the LH lower A pillar
     Remarque

     1x bolt, 10mm, 9 Nm



201. Remove the fasteners securing the main harness carrier at the LH lower A pillar
     Remarque

     2x nuts, 10mm, 5 Nm, Discard after removal



202. Release the A pillar harness connectors from the main harness connectors on the main harness carrier at the LH lower A pillar
     Remarque

     2x connectors, 1x clip
203. Remove the RH side footwell cover exposing the body control module and sunroof control module
     Remarque

     8x bolts, 10mm, 5 Nm, 1x edge clip
204. Disconnect harness from the sunroof control unit at the LH footwell
     Remarque

     2x connectors



205. Disconnect connectors from BCM and remove
     Remarque

     9x connnectors, The BCM may need to be tilted and moved into different postitons in order to access and disconnect all connectors



206. Remove BCM bracket with BCM and sunroof ECU
     Remarque

     The BCM with bracket will need to be moved at different angles to clear the surrounding components



207. Release the barrel clips securing the main harness in the LH side of the bulkhead
     Remarque

     4x barrel clips



208. Remove rubber protective cover above air suspension ECU



209. Remove the connectors securing the lower dash harness to the motor bay harness
     Remarque

     5x connectors



210. Disconnect RCM and move connectors aside
     Remarque

     2x connectors, Disconnect by pressing on the lock tab while pivoting the catch release, The connector will move toward you, When an audible click is heard, the catch release is fully disengaged, Disconnect the rearward connector first





211. Disconnect adaptive air suspension ECU
     Remarque

     3x connectors



212. Lift up the harness connectors and remove the air suspension ECU from the vehicle



213. Disconnect the brake switch and accelerator connector
     Remarque

     2x connectors



214. Remove the clips securing the brake and accelerator harness to the body
     Remarque

     2x edge clips, 1x fir tree clip



215. Disconnect the main harness connectors at the upper A pillar
     Remarque

     1x connector, windshield defrost, 1x connector, to headliner harness



216. Remove the RH A pillar ground connection
     Remarque

     1x bolt, 10mm, 9 Nm



217. Disconnect main harness connectors from the RH A pillar cabin fuse box
     Remarque

     5x connectors



218. Release lower RH A pillar Connector bracket from in cabin fuse box
     Remarque

     2x tabs, slide the bracket towards the rear of the vehicle to release



219. Release the front trunk connectors from the RH lower A pillar connector carrier
     Remarque

     5x connectors, Release locking tabs and pull connectors straight out of the carrier, Locking tab to carrier is on the inboard side of the connector carrier



220. Remove the main harness from the vehicle
     Remarque

     Take care not to damage surrounding components while removing the harness from the vehicle, This is a good time to compare to the new harness provided to ensure parts received are compatible with the vehicle



221. Place new main (lower dash) harness in vehicle and lay harness out to its general installation orientation inside the vehicle
     Remarque

     Recommend assistance, Take care not to damage any connectors while routing harness and moving around inside the vehicle







222. Install the front harness connectors into the connector carrier at the lower RH A pillar
     Remarque

     5x connectors, Ensure connectors are fully seated and lock into the connector carrier





223. Secure RH Lower A pillar connector carrier bracket to cabin fuse box
     Remarque

     2x tabs, Slide carrier on to tabs, Confirm the carrier is secured to the cabin fuse box



224. Reconnect all main harness connections at the in cabin fuse box
     Remarque

     5x connectors



225. Secure main harness RH A pillar ground
     Remarque

     1x bolt, 10mm, 9 Nm



226. Secure connections at RH Upper A pillar
     Remarque

     1x connector, to headliner harness, 1x connector, to windshield defrost, 2x clips



227. Connect brake switch and accelerator pedal
     Remarque

     2x connector, Ensure locking tab is disengaged prior to making connection and then engaged after fully seating connector



228. Secure the clips securing the brake and accelerator harness to the body
     Remarque

     2x edge clip, 1x fir tree clip



229. Secure main harness clips at the LH side of the bulkhead
     Remarque

     2x square clips, 2x barrel clips



230. Re-secure connections at PSRCM
     Remarque

     2x connectors, Engage connector then flip locking tab to fully seat connector



231. Lift up the Harness connectors and place the air suspension ECU into the vehicle
     Remarque

     1x control module



232. Connect air suspension ECU
     Remarque

     3x connectors



233. Connect 5 connectors securing the lower dash harness to the motor bay harness
     Remarque

     5x connectors



234. Install rubber protective cover above the Air suspension ECU



235. Place the BCM and and sunroof ECU into the BCM bracket then place the assembly into the vehicle for installation
     Remarque

     The BCM with bracket will need to be moved at different angles to clear the surrounding components



236. Secure connectors to BCM
     Remarque

     9x connnectors, The BCM may need to be tilted and moved into different postitons in order to access and connect all connectors



237. Connect harness to sunroof control unit at the LH footwell
     Remarque

     2x connectors



238. Install RH side footwell cover
     Remarque

     8x bolts, 10mm, 5 Nm, 1x edge clip



239. Place HVAC assembly back into vehicle for installation
     Remarque

     Recommend assistance, Move all loose harness connections out of the way to prevent damage while re-installing the HVAC assembly in the vehicle



240. Route PTC heater to HVAC assembly for installation and slide into HVAC assembly



241. Install fasteners securing PTC heater to HVAC assembly
     Remarque

     3x screws, PH2, 1 Nm



242. Position HVAC assembly cross brace for installation to HVAC assembly



243. Install fasteners securing HVAC assembly cross brace to HVAC assembly
     Remarque

     2x screws, PH2, 1 Nm





244. Position HVAC assembly RH lower air duct for installation



245. Install fasteners securing RH lower air duct to HVAC assembly
     Remarque

     2x screws, PH2, 1 Nm



246. Connect sensor for RH lower air duct on HVAC assembly
     Remarque

     1x connector



247. Move HVAC assembly into position for installation and secure drain hose
     Remarque

     1x hose connection



248. Install fasteners securing HVAC assembly to body
     Remarque

     5x nuts, 10mm, 6 Nm, 2x bolts, 10mm, 6 Nm







249. Connect HVAC blower assembly and RKE, and secure harness clip
     Remarque

     2x connectors, 2x edge clips



250. Connect thermal controller
     Remarque

     4x connectors, 1x edge clip



251. Connect A/C Lines with TXV to evaporator at bulkhead
     Remarque

     2x bolts, T30, 6 Nm, Install new O-rings prior to installation





252. Place air suspension reservoir into position



253. Loosely install air suspension reservoir brackets
     Remarque

     2x screws, T25, 2.5 Nm



254. Install LH shock tower brace
     Remarque

     1x bolt, 13mm, 30 Nm, 2x bolts, 13mm, 20 Nm





255. Install air suspension reservoir bracket mounting fasteners to LH shock brace
     Remarque

     2x bolts, 10mm, 6 Nm



256. Clip wire harness to LH shock brace
     Remarque

     1x fir tree clip



257. Install RH shock tower brace
     Remarque

     1x bolt, 13mm, 30 Nm, 2x bolts, 13mm, 20 Nm





258. Install air suspension reservoir bracket mounting fasteners to RH shock brace
     Remarque

     2x bolts, 10mm, 6 Nm



259. Install AC line bracket bolt on RH shock brace
     Remarque

     1x bolt, 10mm, 6 Nm



260. Secure air suspension reservoir brackets
     Remarque

     2x screws, T25, 2.5 Nm



261. Position fuse box onto body
     Remarque

     2x tabs, Slide the fuse box to LH to attach the tabs into crossbar



262. Install bolts securing fuse box to body
     Remarque

     2x bolts, 10mm, 6 Nm



263. Reconnect pyrotechnic fuse connector
     Remarque

     1x connector, Be sure to secure locking clip



264. Secure clips holding 12V battery supply cable to fuse box and strut tower beam
     Remarque

     3x clips



265. Install DCDC 12V supply cable to fuse box
     Remarque

     1x nyloc nut, 13mm, 12 Nm, Install new nyloc nut



266. Install fuse box cover
     Remarque

     2x clips



267. Install wiper motor
     Remarque

     3x bolts, 10mm, 6 Nm, 1x connector, 1x clip, Turn wiper module clockwise while installing, Keep your fingers away from any potential pinch points and moving parts while connecting and installing the wiper module, Do not attempt to test the module until it is fully installed in the vehicle









268. Position cowl screen into vehicle
     Remarque

     Carefully flex the cowl screen to clear the hood strut and be sure not to scratch the under hood or fender





269. Install LH side wiper arm
     Remarque

     1x nut, 17mm, 31 Nm



270. Install RH side wiper arm
     Remarque

     1x nut, 17mm, 31 Nm



271. Install cowl screen to windshield
     Remarque

     The cowl assembly sits along the windshield, line up the corners of the cowl up along where a A-pillars meet with the fenders and seat the cowl screen assembly properly in the groves around the windshield





272. Install cowl screen to body
     Remarque

     4x push clips



273. Install LH shock tower cover
     Remarque

     4x push clips





274. Install RH shock tower cover
     Remarque

     4x push clips





275. Install wiper arms
     Remarque

     2x nuts, 17mm, 31 Nm,  Line up wipers to reference marks on windshield







276. Connect A pillar harness connectors to main harness connectors at LH lower A pillar harness carrier
     Remarque

     2x connectors, 1x clip



277. Install the fasteners securing the LH lower A pillar main harness connector carrier to the LH lower A pillar
     Remarque

     2x nuts, 10mm, 5 Nm, Install new nyloc nuts



278. Secure the main harness ground to the LH Lower A pillar
     Remarque

     1x bolt, 10mm, 9 Nm



279. Install the harness clips along the LH front sill panel
     Remarque

     3x clips



280. Connect the main harness to the pyrotechnic at the LH seatbelt pretensioner
     Remarque

     1x connector



281. Connect the main harness to the harness inside the LH B pillar
     Remarque

     1x connector, 1x clip, after securing connector tuck harness inside of B pillar and secure with harness clip



282. Route the B pillar camera portion of the harness inside the B pillar
     Remarque

     1x connector



283. Clean LH B-pillar area with IPA wipe and allow to dry
     Remarque

     Remove any remaining adhesive



284. Install new double sided tape to the LH B-pillar applique
     Remarque

     2x strips, Remove any remaining residue before adhering tape to applique



285. Peel backing from double sided tape on LH B-pillar applique



286. Connect camera and install LH side applique
     Remarque

     1x connector, Slide applique up into clips and secure



287. Reinstall screws securing LH side applique
     Remarque

     2x screws, T25, 5 Nm



288. Reinstall cover over bottom of LH B-pillar applique
     Remarque

     2x tabs, Make sure all clips are fully seated





289. Secure main harness clips at LH lower portion of B pillar
     Remarque

     3x clips



290. Connect LH lap belt pre tensioner pyrotechnic
     Remarque

     1x connector



291. Connect LH B pillar impact sensor
     Remarque

     1x connector, secure locking tab



292. Route the curtain airbag portion of the main harness up the C-pillar and behind the headliner and connect curtain airbag
     Remarque

     1x connector, 1x fir tree clip, 1x edge clip, Ensure harness is routed behind the deployment path of the curtain airbag



293. Install LH upper B-pillar trim
     Remarque

     2x metal clips, Ensure locating tab at top of B-pillar is aligned to the opening in the body, Replace any broken or missing clips prior to installation





294. Install LH lower B-pillar trim
     Remarque

     6x plastic clips, 2x metal clips, Replace any broken or missing clips prior to installation





295. Install fasteners securing LH lower B-pillar trim
     Remarque

     2x screws, T25, 2 Nm





296. Install RH upper B-pillar trim
     Remarque

     2x metal clips, Ensure locating tab at top of B-pillar is aligned to the opening in the body, Replace any broken or missing clips prior to installation





297. Install RH lower B-pillar trim
     Remarque

     6x plastic clips, 2x metal clips, Replace any broken or missing clips prior to installation





298. Install fasteners securing RH lower B-pillar trim
     Remarque

     2x screws, T25, 2 Nm





299. Position cross car beam into vehicle for installation
     Remarque

     Recommend assistance, Exercise caution when installing the cross car beam, the brake switch is attached to the cross car beam and is susceptible to failure, Take care not to damage any surrounding components while placing the cross car beam into the vehicle







300. Install fasteners securing cross car beam to HVAC assembly
     Remarque

     3x bolts, 10mm, 10 Nm





301. Install fasteners securing cross car beam to vehicle
     Remarque

     7x bolts, 13mm, 27 Nm





302. Connect headliner harness at LH A-pillar
     Remarque

     3x connectors, 1x clip



303. Connect cross car beam harness connectors at LH lower A-pillar
     Remarque

     7x connectors, (2x coaxial brown and white at tuner)(2x coaxial blue)(1x coaxial purple)(2x connectors gray), Connectors at tuner are routed through amp and tuner bracket





304. Connect cross car beam harness to main harness connectors at RH lower A-pillar
     Remarque

     7x connectors





305. Install IP carrier into vehicle
     Remarque

     Recommend assistance



306. Install center dash speaker
     Remarque

     2x screws, T20, 2 Nm, 1x connector, Pull the IP carrier forward for better access for speakers





307. Install RH dash speaker
     Remarque

     2x screws, T20, 2 Nm, 1x connector, Pull the IP carrier forward for better access for speakers





308. Install LH dash speaker
     Remarque

     2x screws, T20, 2 Nm, 1x connector, Pull the IP carrier forward for better access for speakers





309. Install fasteners securing IP carrier to cross car beam
     Remarque

     15x screws, T20, 2 Nm,







310. Secure harness clips to IP carrier
     Remarque

     2x clips



311. Place steering column into vehicle for installation



312. Install fasteners securing steering column to cross car beam
     Remarque

     2x bolts, 13mm, 17 Nm, 2x nuts, 13mm, 30 Nm





313. Connect harness connectors for steering column motors
     Remarque

     2x connectors



314. Connect steering column to lower steering shaft joint
     Remarque

     Slide joint up onto lower shaft, Ensure that the previously indexed paint marks align between the lower steering column and shaft joint



315. Install bolt securing lower shaft to steering column
     Remarque

     1x bolt, 13mm, 30 Nm



316. Install LH side knee airbag cover
     Remarque

     2x bolts, 10mm, 10 Nm





317. Install LH footwell cover
     Remarque

     2x screws, T20, 2 Nm, 1x connector







318. Position SCCM to steering column
     Remarque

     1x connector, Install new retaining clip



319. Install SCCM onto steering column
     Remarque

     Gently jiggle the SCCM while pressing it onto the column if needed



320. Remove tape previously applied to clock spring
     Remarque

     Do not rotate the clockspring



321. Position steering wheel to column
     Remarque

     Ensure the position of the steering wheel matches the index marks previously made on the column and the wheel





322. Secure steering wheel
     Remarque

     1x patch bolt, 10mm allen, 80 Nm, Install new patch bolt



323. Position driver's airbag
     Remarque

     3x connectors



324. Install driver's airbag



325. Torque driver's airbag fasteners
     Remarque

     2x screws, T30, 7 Nm





326. Connect Instrument cluster and place IC into position for installation
     Remarque

     3x connectors, 2x alignment dowels



327. Install fasteners that secure instrument cluster to IP carrier
     Remarque

     4x screws, T20, 2 Nm



328. Position MCU into vehicle for installation





329. Connect harness connectors to MCU
     Remarque

     17x connectors, Number of connectors may vary depending on vehicle configuration and MCU part number revision







330. Install bolts securing MCU to IP carrier
     Remarque

     4x screws, T25, 4.5 Nm



331. Install RH IP finisher assembly and fasteners
     Remarque

     2x screws, T20, 2 Nm, 6x clips



332. Position LH inner IP finisher in vehicle and secure clips
     Remarque

     3x clips



333. Install LH outer IP finisher trim assembly
     Remarque

     2x clips, 3x screws, T20, 2.3 Nm, Ensure vent ducting is properly aligned to vent during installation



334. Install IC bezel and fasteners to IP carrier
     Remarque

     4x screws, T20, 2 Nm





335. Install IC bezel and fasteners to IP carrier
     Remarque

     4x screws, T20, 2 Nm





336. Install clips securing steering column gap hider to IC bezel
     Remarque

     2x clips, Replace any damaged or missing clips prior to installation





337. Install LH lower IP trim
     Remarque

     1x screw, T20, 2 Nm, 9x clips, Replace any damaged or missing clips prior to installation







338. Install defrost mesh grille to IP carrier
     Remarque

     10x clips, Replace any damaged or missing clips prior to installation





339. Set top pad in place and connect ground strap
     Remarque

     1x tab, Recommend assistance



340. Install passenger airbag connectors
     Remarque

     2x connectors, Engage locking tabs





341. Install passenger airbag connectors
     Remarque

     2x connectors, Engage locking tabs





342. Remove protective tape from aluminum trim



343. Fully seat top pad
     Remarque

     23x clips, Make sure all clips are aligned and securely fastened





344. Install airbag mounting bolts
     Remarque

     2x bolts, 10mm, 10 Nm



345. Position DAS ECU for installation and secure LH side ECU connectors
     Remarque

     7x connectors, DAS 2.5 has 6x connectors





346. Connect RH side DAS ECU connectors
     Remarque

     7x connectors, DAS 2.0 has 4x connectors, Connector "A" must be plugged in before connector "B" when reinstalling DAS ECU, If equipped with DAS ECU



347. Install fasteners securing Autopilot ECU
     Remarque

     4x nuts, 8mm, 5 Nm, Install new nuts



348. Place center console into vehicle
     Remarque

     Recommend assistance



349. Connect 2 USB connectors of console
     Remarque

     3x connectors, 1x clip





350. Install bolts securing center console to vehicle
     Remarque

     6x bolts, 10mm, 7 Nm, 1x screw,







351. Install rubber floor mat at base of console



352. Reinstall cup holder inserts
     Remarque

     If equipped



353. Install RH center console closeout extension
     Remarque

     12x clips





354. Install LH console closeout extension
     Remarque

     12x clips



355. Secure the center console side trim panels LH & RH
     Remarque

     22x clips per side





356. Install RH footwell cover
     Remarque

     2x screws, T20, 2 Nm, 1x connector





357. Connect USB module at rear console panel
     Remarque

     3x connectors





358. Install center console back panel
     Remarque

     6x clips



359. Open rear cup holder



360. Install second row cup holder trim panel
     Remarque

     3x tabs, slide panel straight downwards to install



361. Close rear cup holder



362. Install USB ports into rear air outlet



363. Install center console rear air outlet
     Remarque

     2x USB connections, 4x tabs









364. Connect First Responder Loop and 12V battery negative terminal
     Remarque

     1x connector, 1x nut, 10mm, 5 Nm, Connect First Responder Loop first



365. Remove vehicle from Tow Mode



366. Remove wheel chocks from LH rear wheel



367. Reconnect AC hoses to vehicle



368. Perform system vacuum and refrigerant refill
     Remarque

     Select 20 mins of Vacuum, Recharge refrigerant to car's specs, add oil quantity as needed, select both HP and LP for charging











369. Remove AC hoses from vehicle





370. Install caps onto AC ports
     Remarque

     2x caps



371. Move LH front seat backward



372. Move LH front seat forward



373. Move LH front seat to original position



374. Install LH lower A-pillar trim
     Remarque

     4x clips, Number of clips securing A-pillar sill trim may vary depending on vehicle production date, Replace any damaged or missing clips prior to re-installing sill trim







375. Install LH middle A-pillar trim



376. Install LH IP side cover
     Remarque

     4x clips, 1x connector







377. Move RH front seat backward



378. Move RH front seat forward



379. Move RH front seat to original position



380. Exécutez la routine ODIN PROC_ICE_X_ENTER-SERVICE-MODEvia Toolbox:(link)
381. Exécutez la routine ODIN PROC_VCFRONT_X_STOP-THERMAL-FILL-DRAINvia Service Mode:
     • Thermal ➜ Actions ➜ Stop Thermal Fill/Drain
     • Thermal ➜ Coolant System ➜ Stop Coolant Fill/Drain
     • Thermal ➜ Refrigerant System ➜ Stop Refrigerant Fill/Drain
     via Service Mode Plus:
     • Drive Inverter ➜ Front Drive Inverter Replacement ➜ Stop Fluid Fill/Drain
     • Drive Inverter ➜ Rear Drive Inverter Replacement ➜ Stop Fluid Fill/Drain
     • Drive Inverter ➜ Rear Left Drive Inverter Replacement ➜ Stop Fluid Fill/Drain
     • Drive Inverter ➜ Rear Right Drive Inverter Replacement ➜ Stop Fluid Fill/Drain
     • Drive Unit ➜ Front Drive Unit Replacement ➜ Stop Coolant Fill/Drain
     • Drive Unit ➜ Rear Drive Unit Replacement ➜ Stop Coolant Fill/Drain
     via Toolbox:(link)
382. Exécutez la routine ODIN PROC_THC_X_THERMAL-TESTvia Service Mode:Thermal ➜ Actions ➜ Thermal Testvia Toolbox:(link)
383. Install RH lower A-pillar trim
     Remarque

     4x clips, The number of clips securing the a pillar sill trim varies depending on vehicle production date, Replace any damaged or missing clips prior to re-installing sill trim







384. Install RH middle A-pillar trim



385. Install RH IP side cover
     Remarque

     3x clips, 1x connector





386. Install HEPA filter outlet duct
     Remarque

     First connect smaller end near firewall, then slide larger end onto HEPA filter assembly





387. Install cabin intake duct assembly
     Remarque

     2x tabs, One on each side





388. Secure cabin intake duct assembly to cowl panel
     Remarque

     3x push clips



389. Secure primary and secondary drain tubes to cabin intake duct assembly
     Remarque

     2x hoses





390. Install RH underhood apron
     Remarque

     9x clips





391. Install LH underhood apron
     Remarque

     9x clips





392. Install rear underhood apron
     Remarque

     8x clips





393. Close hood
     Remarque

     Press firmly in green highlighted areas (see image), Damage may result from pressure elsewhere on hood
394. Disconnect Toolbox from vehicle and install cubby
     Remarque

     1x connector, 2x clips, Ensure diagnostic cables are tucked into appropriate position then engage cubby







395. Exécutez la routine ODIN PROC_ICE_X_EXIT-SERVICE-MODEvia Toolbox:(link)
396. Raise all 4 windows
397. Close all four doors
398. This procedure requires refrigerant evacuation and recharge, Please add specific evacuation and recharge correction code as needed
