Harness - Body - RH (Remove & Replace)

Code de correction 17100902

Dépose

  1. Open all doors and lower the windows.
  2. From the touchscreen, open the hood and trunk.
  3. On the touchscreen, touch Controls > Service > Jack Mode to enable Jack Mode.
  4. On the touchscreen, touch Controls > Service, and then switch on Tow Mode.
  5. Remove the HEPA filter outlet duct. See Conduit – filtre HEPA – sortie (retrait et remplacement).
  6. Move the RH front seat forward.
  7. Disconnect 12V power. See Disconnect 12V Power.
  8. Remove the mid aero shield. See Panneau - bouclier aérodynamique - central (retirer et remplacer).

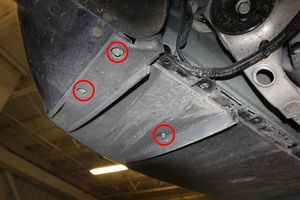

  9. Remove the bolts (x2) and nut that attach the RH rear valance to the vehicle (torque 4 Nm).

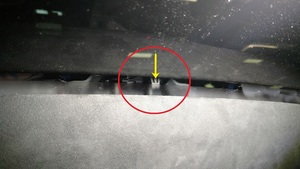

  10. Disconnect the subframe harnesses connectors (x3), and then release the harness clip.

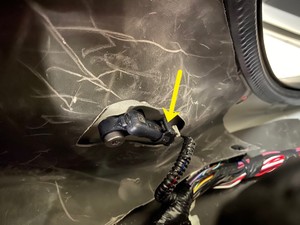

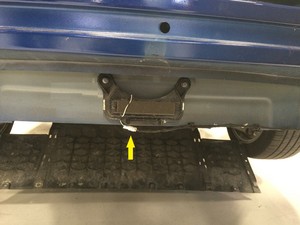

  11. Disconnect rear fascia remote keyless entry antenna connector, and then release the antenna harness from the body.

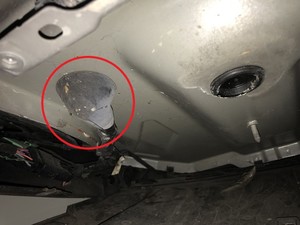

  12. Push the RH body grommet through the body, and then route the harness inside the cabin.
  13. Lower the vehicle until the tires are touching the ground.
  14. Remove the 2nd row seat bottom cushion. See Coussin de siège – inférieur – 2e rangée (retrait et installation)
    Informational PurposesAn informational icon, calling your attention
    Remarque
    The number of connectors may vary based on vehicle configuration.
  15. If equipped, remove the NVH padding from underneath the 2nd row seat cushion.

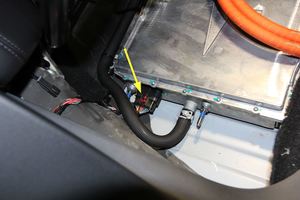

  16. Disconnect the 12V logic connector from the charger.

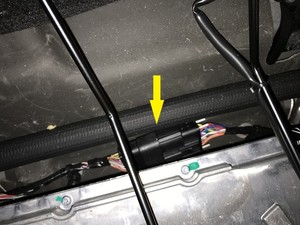

  17. Disconnect the inline charger harness connector.

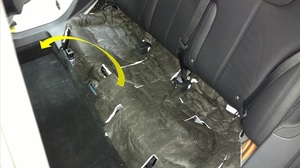

  18. Fold the 2nd row seat backs down.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    ATTENTION
    Protect the seat backs from potential damage caused by the sear frame by placing a fender cover between the seat backs and the frame.
  19. Remove the parcel shelf.
  20. Remove the trunk load floor.

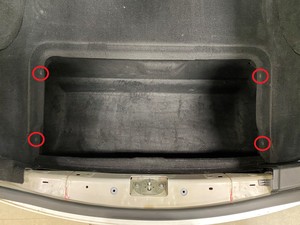

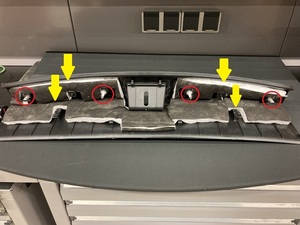

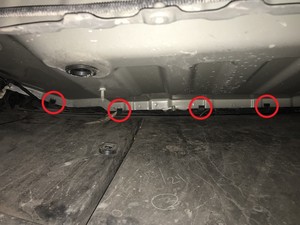

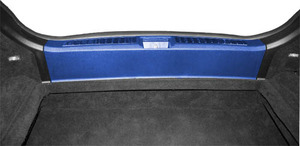

  21. Release the clips (x4) that attach the trunk sill panel to the vehicle, and then remove the trunk sill panel.
  22. Remove the RH rear trunk side trim panel. See Garniture – coffre arrière – latérale – droite (retrait et remplacement).
  23. Disconnect the RH tail lamp connector.

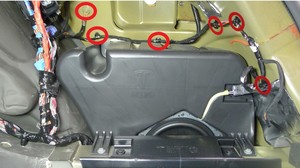

  24. Release the clips (x4) that attach the trunk floor carpet, and then remove the carpet from the vehicle.
  25. Remove the subwoofer assembly. See Ensemble de caisson de basses (retrait et remplacement).
  26. Remove RH 2nd row sear bolster. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).

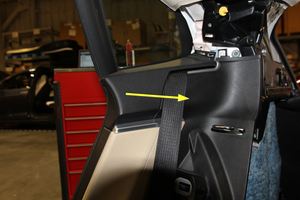

  27. Release the clips (x4) that attach the RH mid C-pillar trim, and then remove the mid C-pillar trim from the vehicle.
  28. Remove the push clips (x2) that attach the RH lower C-pillar trim panel to the vehicle.

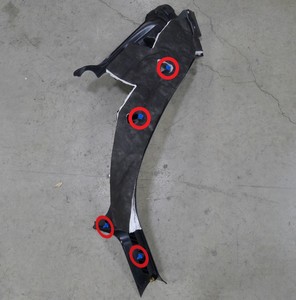

  29. Release the clips (x4) that attach the RH lower C-pillar trim, and then remove the trim panel.

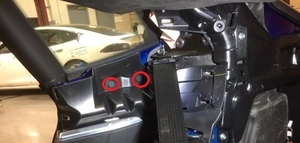

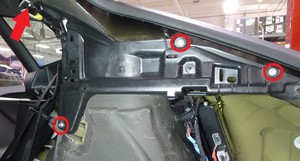

  30. Remove the bolts (x4) that attach the RH C-pillar bracket to the vehicle (torque 4 Nm), and then remove the bracket from the vehicle.
  31. Disconnect the connector for the C-pillar impact sensor.
  32. Release the TPMS ECU from the vehicle. See Module - SSPP - Continental (retrait et remplacement).

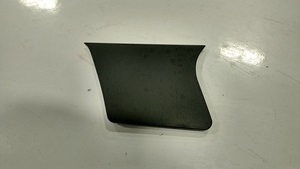

  33. Release the tabs (x4) that attach the closeout panel to the body, and then remove the closeout panel.
  34. Disconnect the connector to the RH rear door latch assembly.
  35. Release RH rear body harness and bracket from body

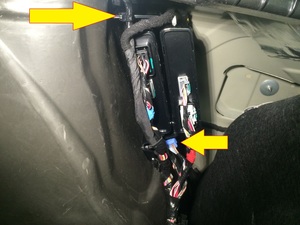

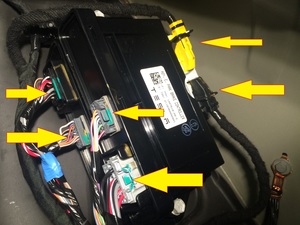

  36. Disconnect park assist, parking brake, and liftgate module connectors
  37. Remove the harness clip and testing connector from the module bracket.

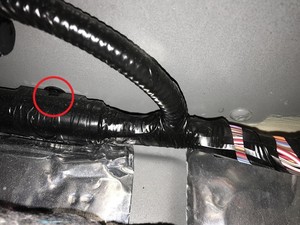

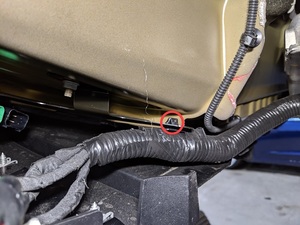

  38. Release the bolt (torque 10 Nm) and clips (x5) that attach the RH body harness to the RH quarter panel area.
  39. Remove the RH instrument panel side cover. See Ensemble - Recouvrement latéral du tableau de bord - Côté gauche (retrait et remplacement).
  40. Remove the RH middle A-pillar trim. See Panneau - Garniture de montant A - Centre - Gauche (retrait et remplacement)

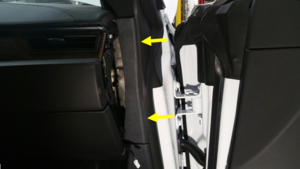

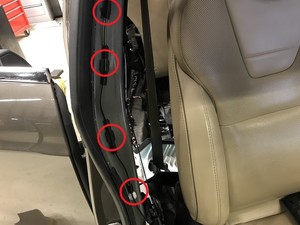

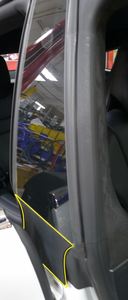

  41. Release the clips (x4) that attach the RH lower A-pillar trim, and then remove the RH lower A-pillar trim.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    The number of clips varies depending on vehicle production date.

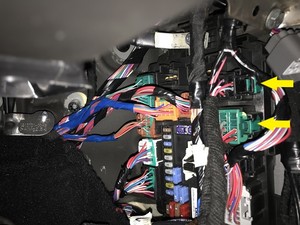

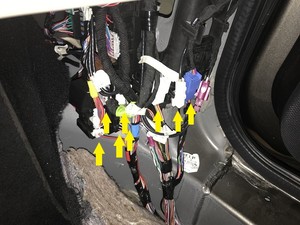

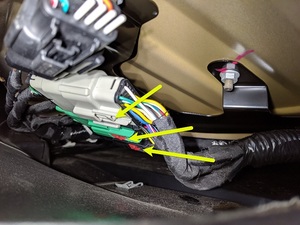

  42. Disconnect the RH body harness from the lower A-pillar.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    10x connectors
  43. Remove the RH upper B-pillar trim. See Garniture - Colonne B - Supérieure - Gauche (retirer et installer)

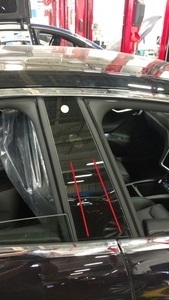

  44. Remove RH exterior B-pillar finisher

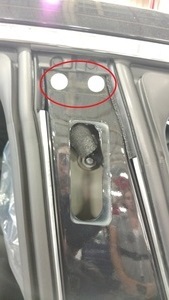

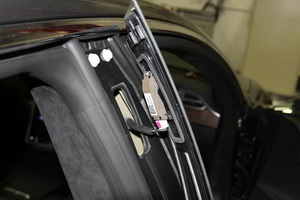

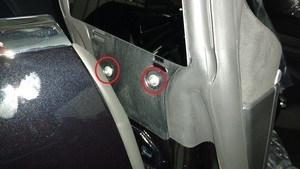

  45. Remove the bolts (x2) that attach the RH B-pillar applique to the vehicle (torque 4 Nm).

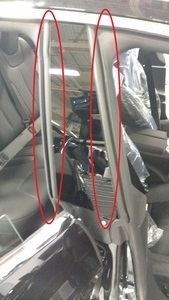

  46. Release the RH B-pillar seals from the applique and body along the length of the applique.

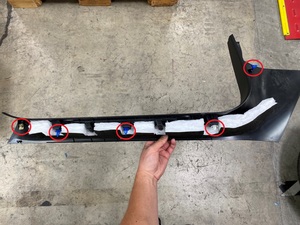

  47. Pry the RH applique away from the body starting at the bottom.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2 strips of double-sided tape attach the applique to the body.
  48. Pull down to release the RH applique from the upper clips.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    ATTENTION
    Use caution as the camera harness does not have much slack.

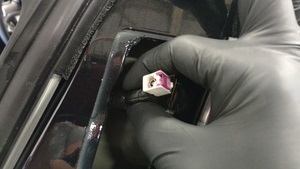

  49. Hold the RH applique away from the body, disconnect the camera harness connector, and then remove the applique.

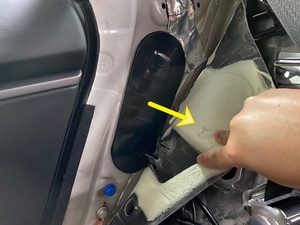

  50. Pull out the RH rear door harness to reveal the connector.

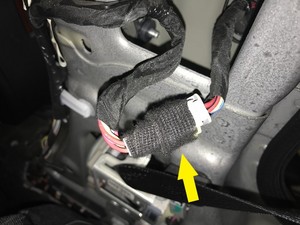

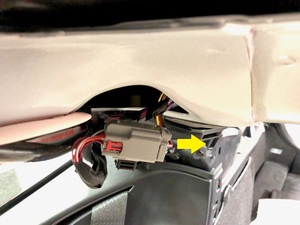

  51. Disconnect the RH rear door harness connector.

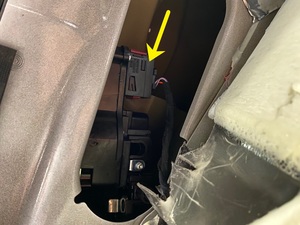

  52. Disconnect the B-pillar impact sensor.

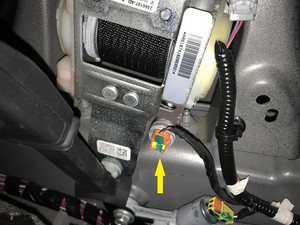

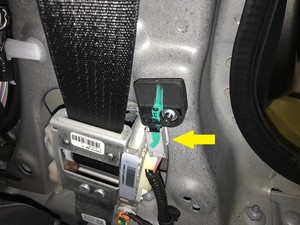

  53. Disconnect the RH seat belt reel connector and put the harness aside.

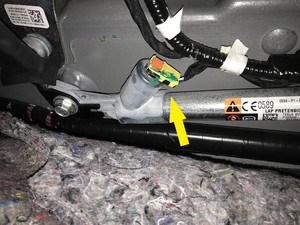

  54. Disconnect the RH pretensioner connector.

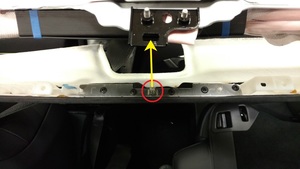

  55. Remove the bolt (torque 10 Nm) that attaches the headliner and support strap to the RH C-pillar.
  56. Release the rear portion of the headliner and lower it.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    5x clips, 3x velcro strips

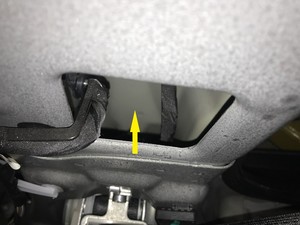

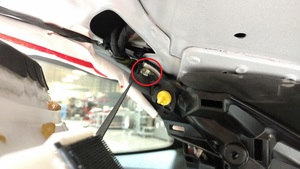

  57. Release the headliner at the RH side of the vehicle above the B-pillar area.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x clip. Recommended to look at the reflection of clip in the roof glass and using a pick tool to release it.

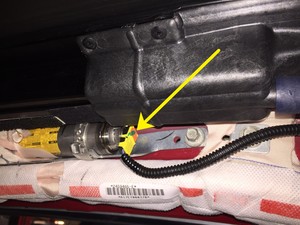

  58. Disconnect the RH curtain airbag harness connector.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    Avertissement
    To avoid personal injury, observe all relevant safety precautions before removing or testing any SRS components.
  59. Disconnect the power strut electrical harness connector.

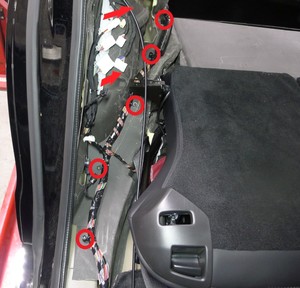

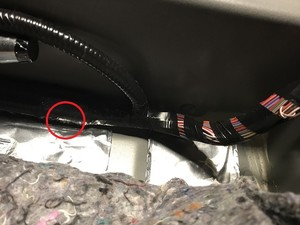

  60. Remove the remaining clips and remove the RH body harness from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x fir tree clip on the lower A-pillar, 4x fir tree clips on the B-pillar, 1x fir tree clip on the lower C-pillar.

Installation

La procédure d'installation se fait en suivant l'ordre inverse de la procédure de retrait.
