Corner Bracket - LH - Fabric Tonneau (Long Range) (Remove and Install)

Code de correction NEW REMARQUE : À moins d’indications explicites contraires dans la procédure, le code de correction et le temps forfaitaire ci-dessus représentent tout le travail à être fait pour cette procédure, notamment les procédures connexes. N’appliquez pas plusieurs codes de correction à la fois, à moins qu’il vous soit explicitement indiqué de le faire. REMARQUE : Consultez Temps forfaitaires pour en apprendre plus à propos des temps forfaitaires et de leur création. Vous pouvez transmettre par courriel vos commentaires relatifs aux valeurs des temps forfaitaires à ServiceManualFeedback@tesla.com. REMARQUE : Consultez Protection individuelle pour vous assurer de porter l’équipement de protection individuelle adéquat lors vous effectuez la procédure ci-dessous.

Warning IconA warning icon, calling your attention to a possibly risky situation
Avertissement
Cette procédure est une PREMIÈRE VERSION. Bien qu'elle ait été validée, des avertissements et des mises en garde pourraient manquer. Respectez les exigences de sécurité et faites preuve d’une extrême prudence lorsque vous travaillez sur ou près des systèmes et des composants haute tension. Transmettez toute correction ou remarque à ServiceDevelopment@teslamotors.com.
  • 2025-06-21: Released new procedure.
  1. Open tailgate
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Press button to release
  2. Remove LH sail applique
    Informational PurposesAn informational icon, calling your attention
    Remarque
    15x clips, 1x connector, 1x harness clip, Lift rear edge first to remove connector and harness clip
  3. Remove LH upper bed side wall assembly
    Informational PurposesAn informational icon, calling your attention
    Remarque
    13x clips, Start from rear, Pull from the bottom downwards

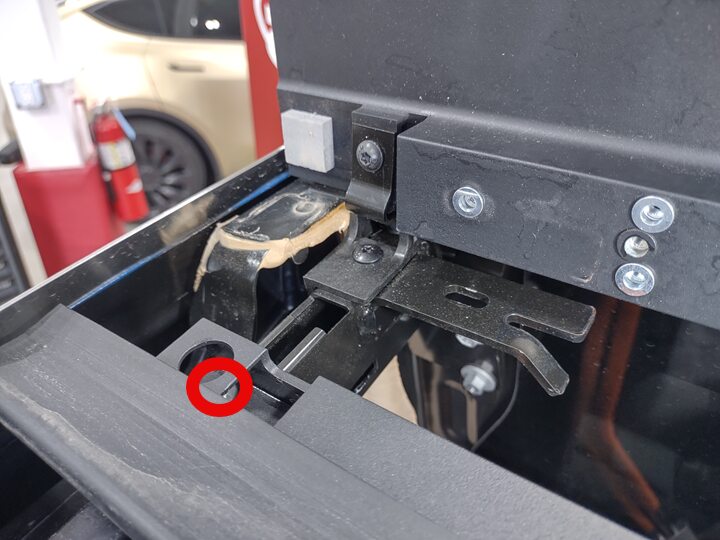

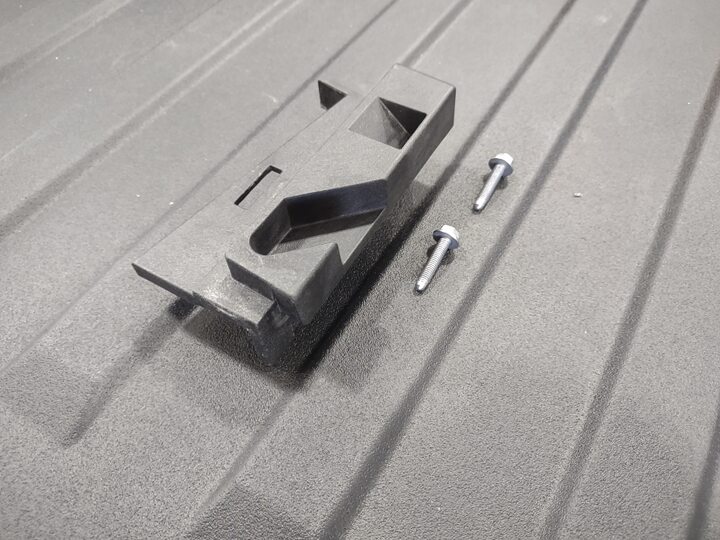

  4. Remove LH tonneau cam block
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x bolts, 8mm, 10Nm

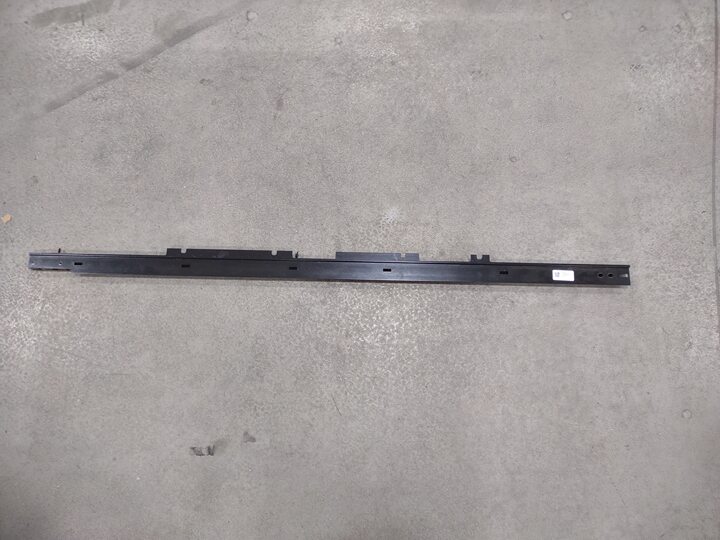

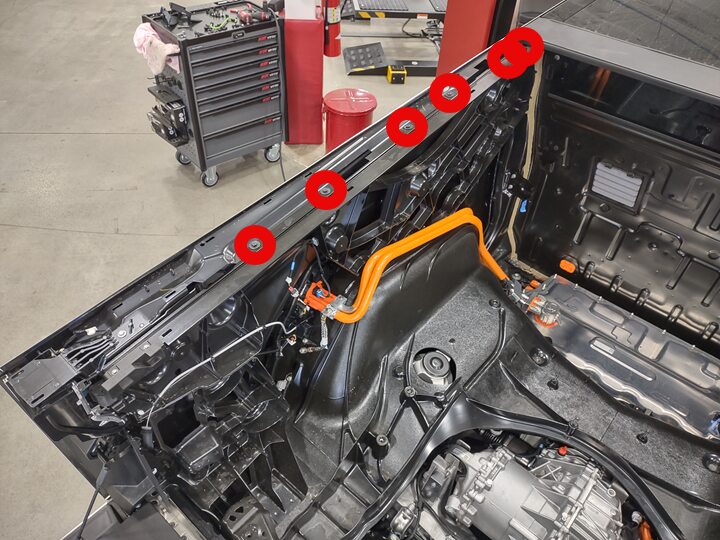

  5. Remove LH Tonneau horizon rail assembly
    Informational PurposesAn informational icon, calling your attention
    Remarque
    4x bolts, 8 mm, 10Nm, 5x bolts, 10 mm, 10Nm

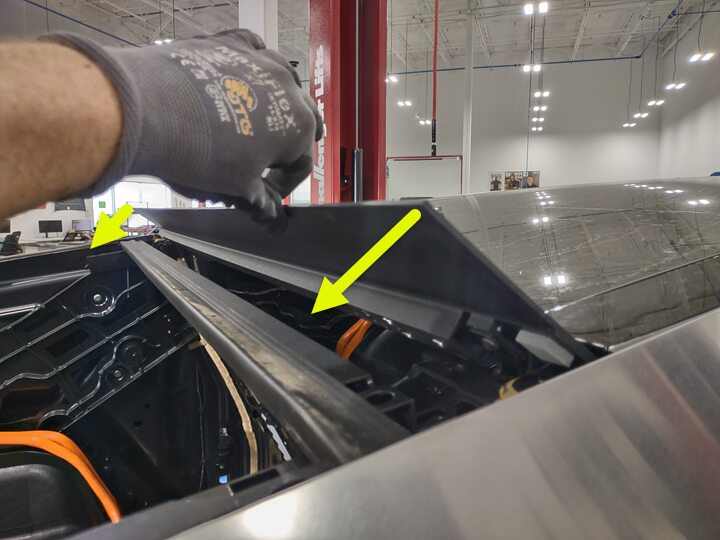

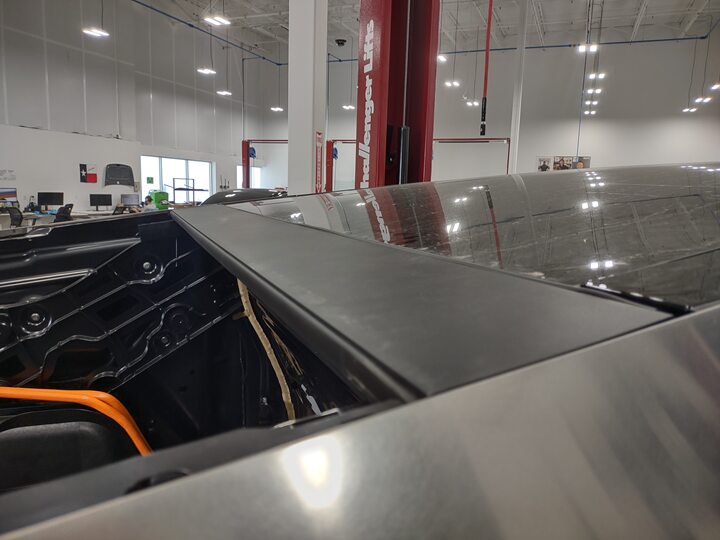

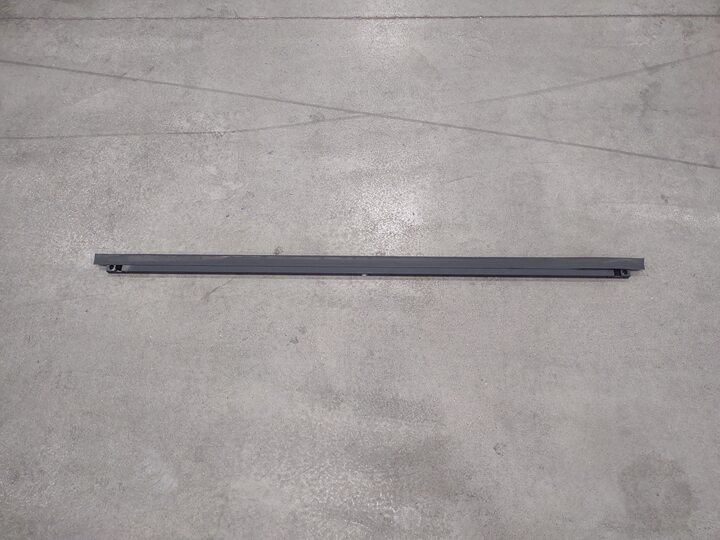

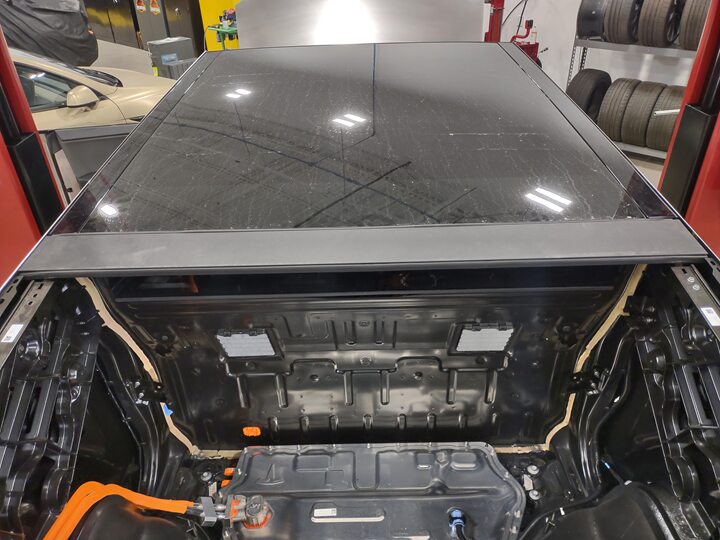

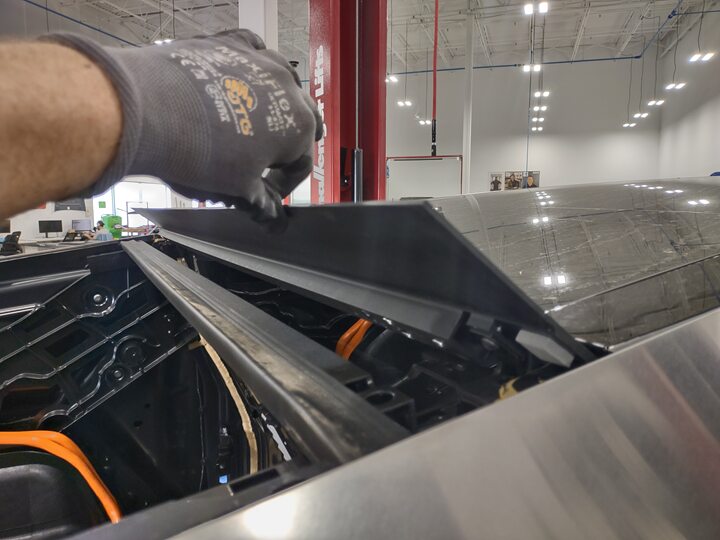

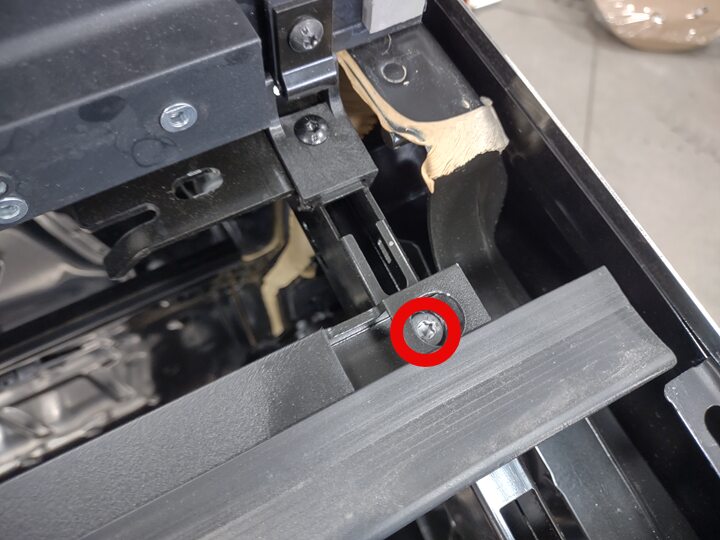

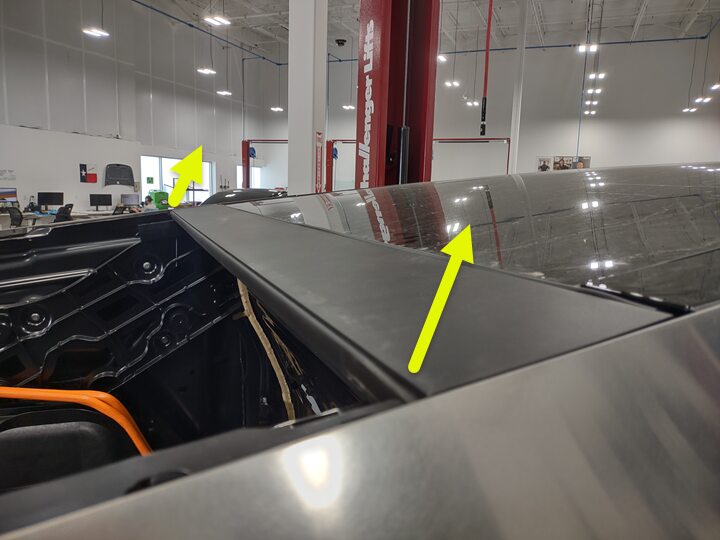

  6. Remove tonneau upper applique
    Informational PurposesAn informational icon, calling your attention
    Remarque
    4x bolts, T25, 10Nm, Release lower bolts, Pivot applique upwards, Release pivot bolts, Remove applique

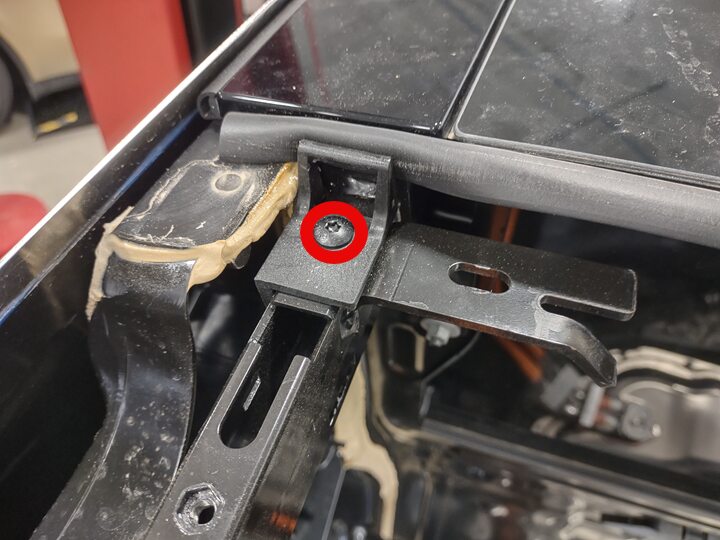

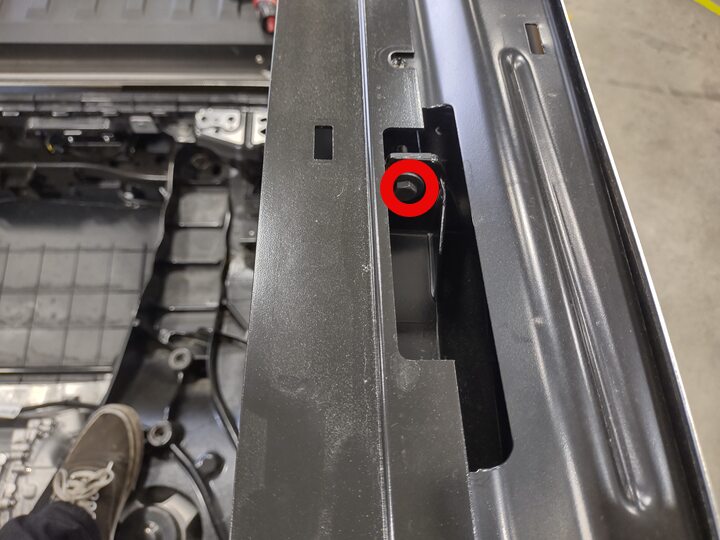

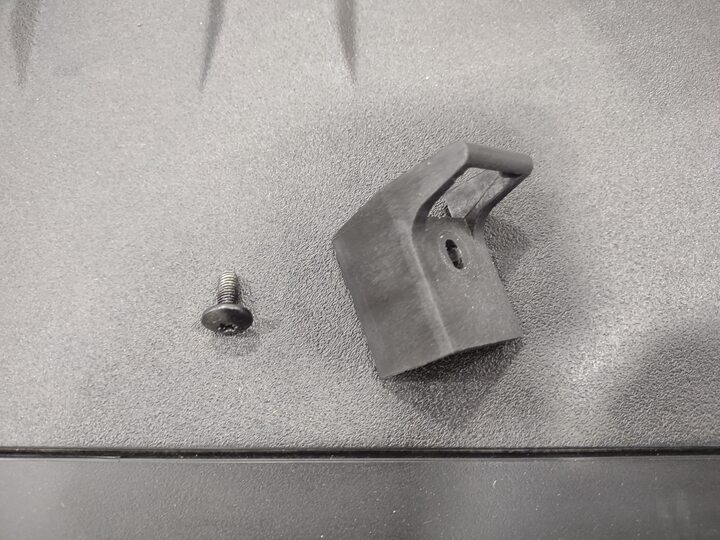

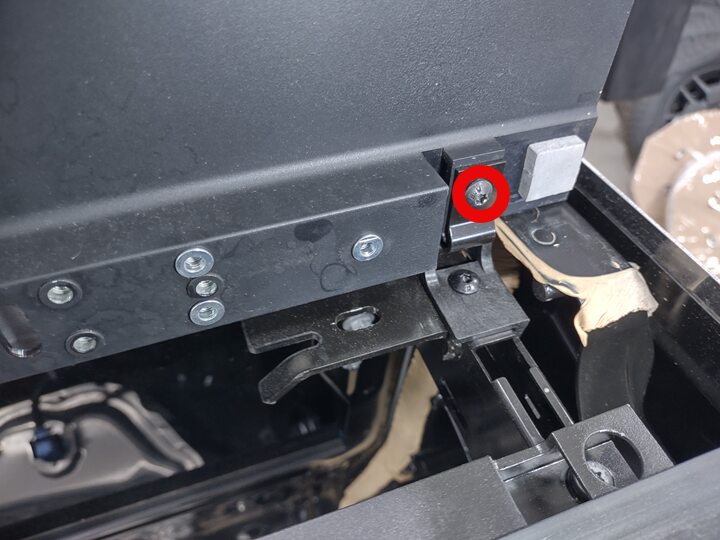

  7. Remove LH tonneau applique hinge pivot
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x bolt, T25, 10Nm

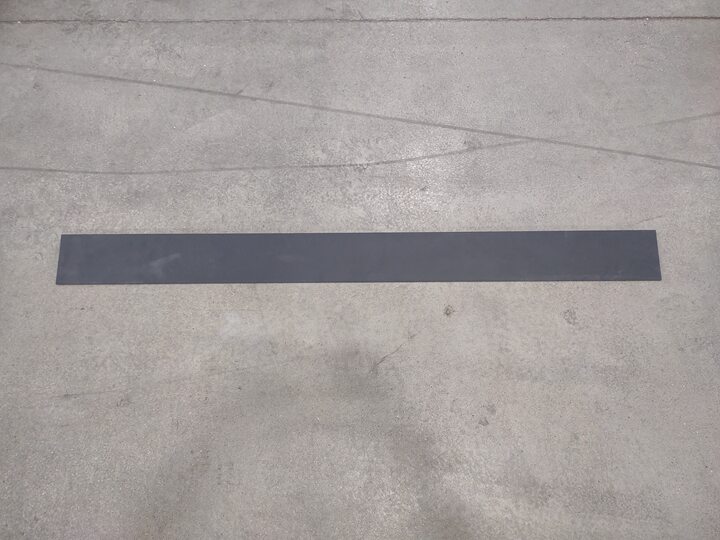

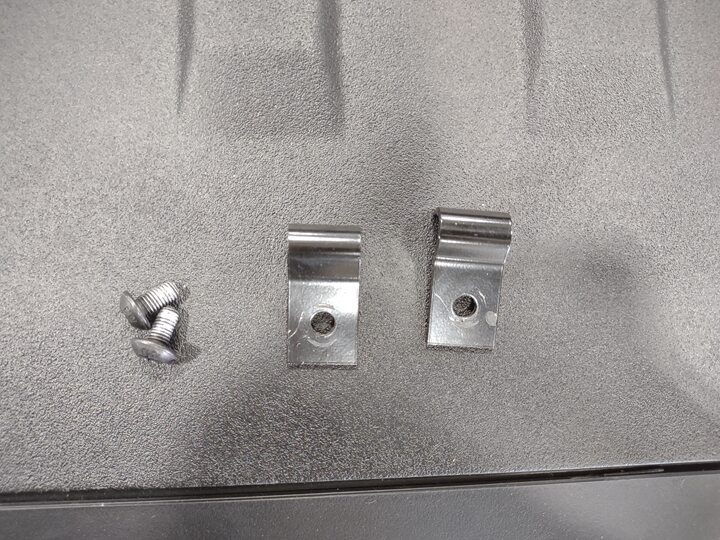

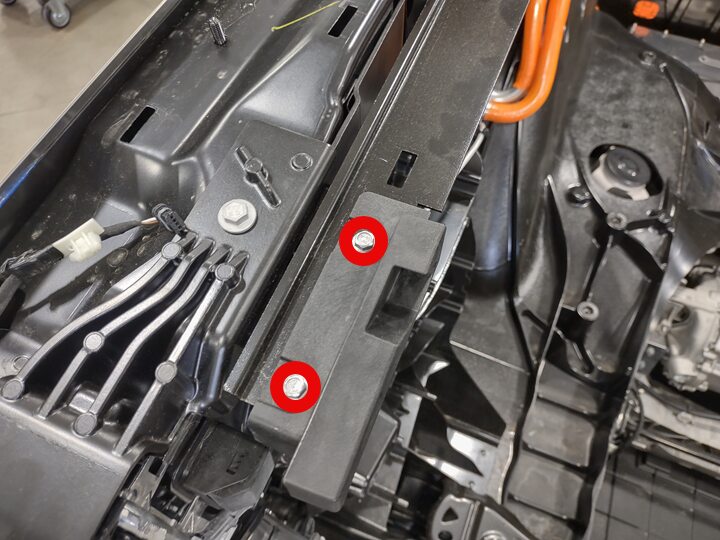

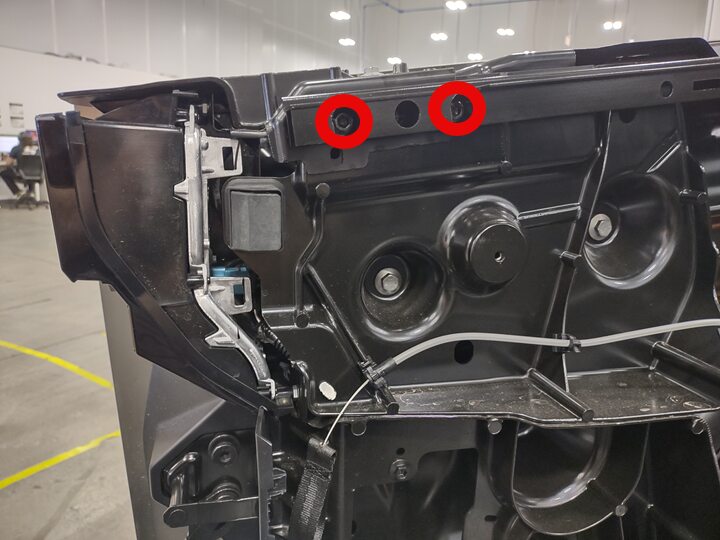

  8. Remove tonneau lower applique
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x bolts, T30, 10Nm

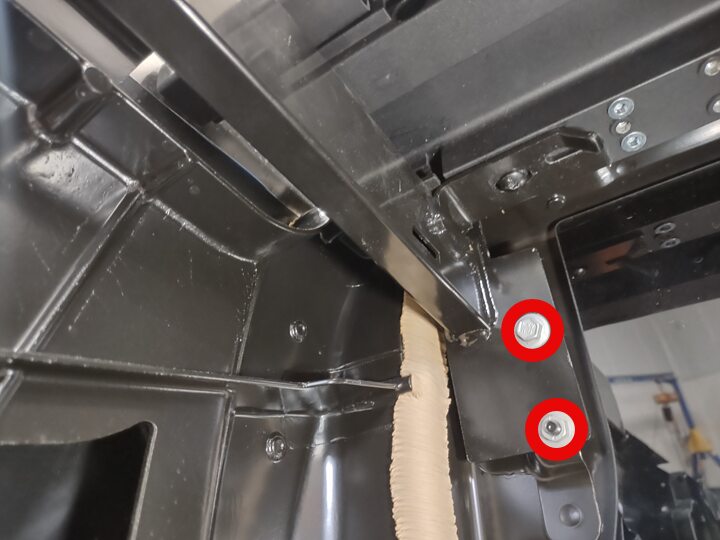

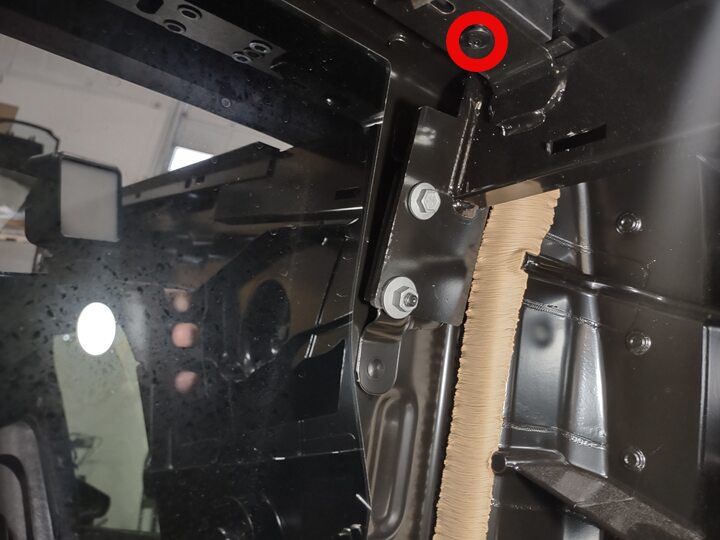

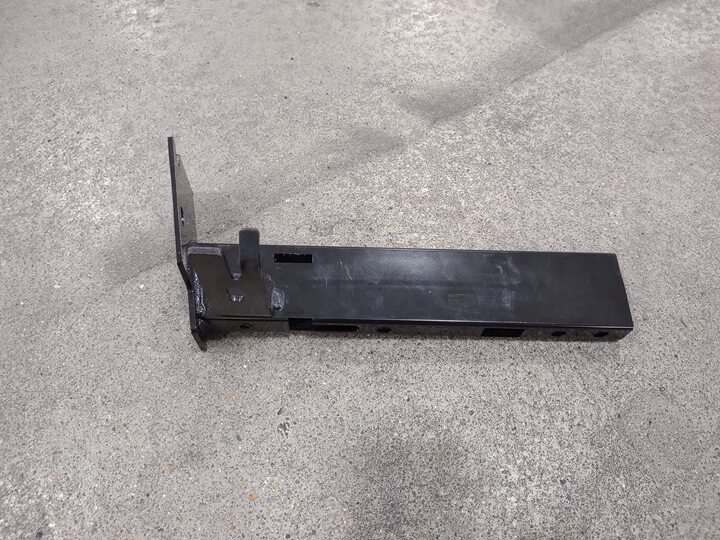

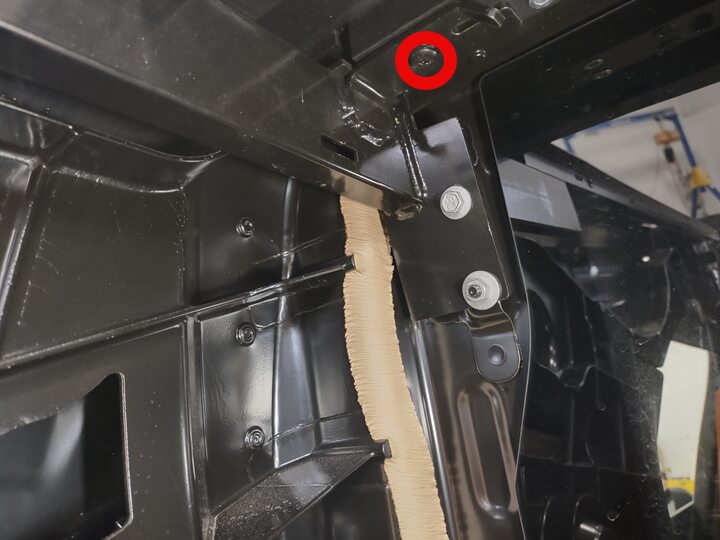

  9. Remove LH tonneau corner bracket
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x bolt, 10mm, 10Nm, 1x nut, 10mm, 10Nm
  10. Install LH tonneau corner bracket
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x bolt, 10mm, 10Nm, 1x nut, 10mm, 10Nm
  11. Install tonneau lower applique
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x bolts, T30, 10Nm
  12. Install LH tonneau applique hinge pivot
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x bolt, T25, 10Nm
  13. Install tonneau upper applique
    Informational PurposesAn informational icon, calling your attention
    Remarque
    4x bolts, T25, 10Nm, Install pivot bolts, Pivot applique downwards, Install lower bolts,
  14. Install LH Tonneau horizon rail assembly
    Informational PurposesAn informational icon, calling your attention
    Remarque
    4x bolts, 8 mm, 10Nm, 5x bolts, 10 mm, 10Nm
  15. Install LH upper bed side wall assembly
    Informational PurposesAn informational icon, calling your attention
    Remarque
    13x clips, Replace any missing or damaged clips, Lift tonneau seal as required
  16. Install LH tonneau cam block
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x bolts, 8mm, 10Nm
  17. Install LH sail applique
    Informational PurposesAn informational icon, calling your attention
    Remarque
    15x clips, 1x connector, 1x harness clip, Replace any broken clips
  18. Close tailgate
