Code de correction 00030410 REMARQUE : À moins d’indications explicites contraires dans la procédure, le code de correction et le temps forfaitaire ci-dessus représentent tout le travail à être fait pour cette procédure, notamment les procédures connexes. N’appliquez pas plusieurs codes de correction à la fois, à moins qu’il vous soit explicitement indiqué de le faire. REMARQUE : Consultez Temps forfaitaires pour en apprendre plus à propos des temps forfaitaires et de leur création. Vous pouvez transmettre par courriel vos commentaires relatifs aux valeurs des temps forfaitaires à ServiceManualFeedback@tesla.com. REMARQUE : Consultez Protection individuelle pour vous assurer de porter l’équipement de protection individuelle adéquat lors vous effectuez la procédure ci-dessous. REMARQUE : Voir Précautions ergonomiquespour consulter les pratiques de travail sécuritaires et saines.

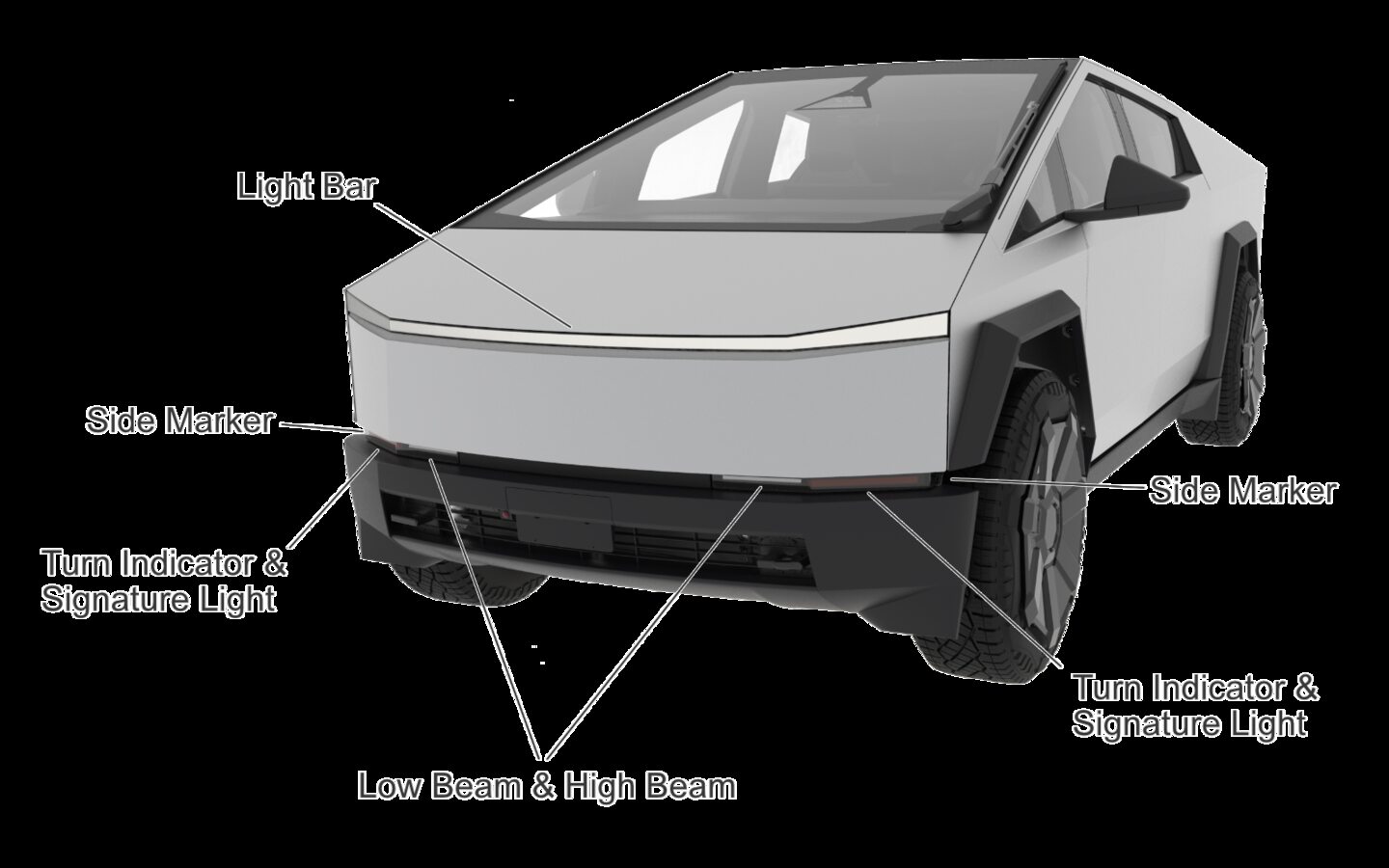

1. Inspect front external lights
   Remarque

   Look for cosmetic damages and humidity ingress

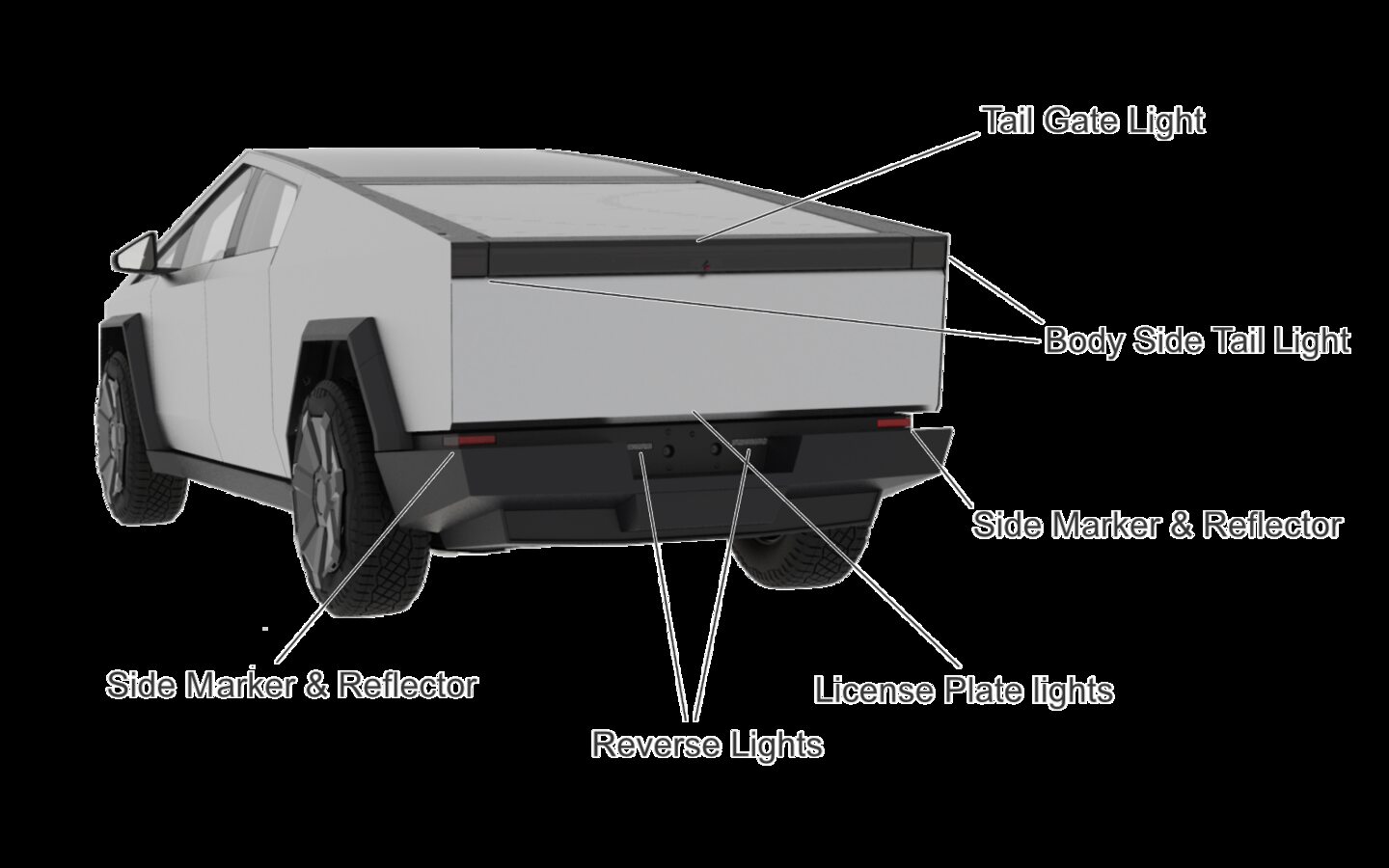

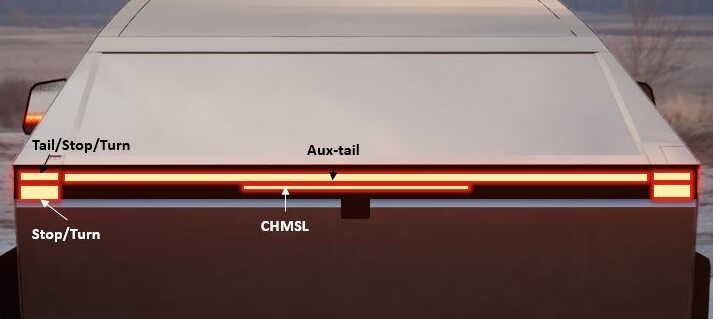

2. Inspect rear external lights
   Remarque

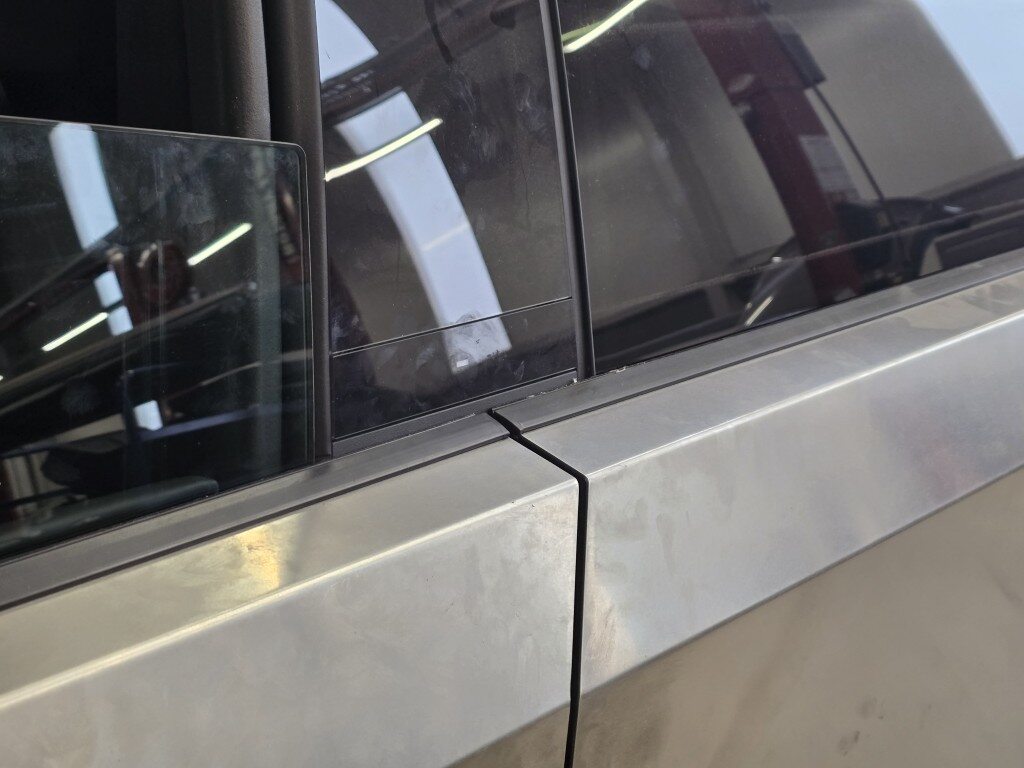

   Look for cosmetic damages and humidity ingress, it is acceptable for taillights to have some condensation





3. Link to procedure: 6786b2d5dd98ad0367624262

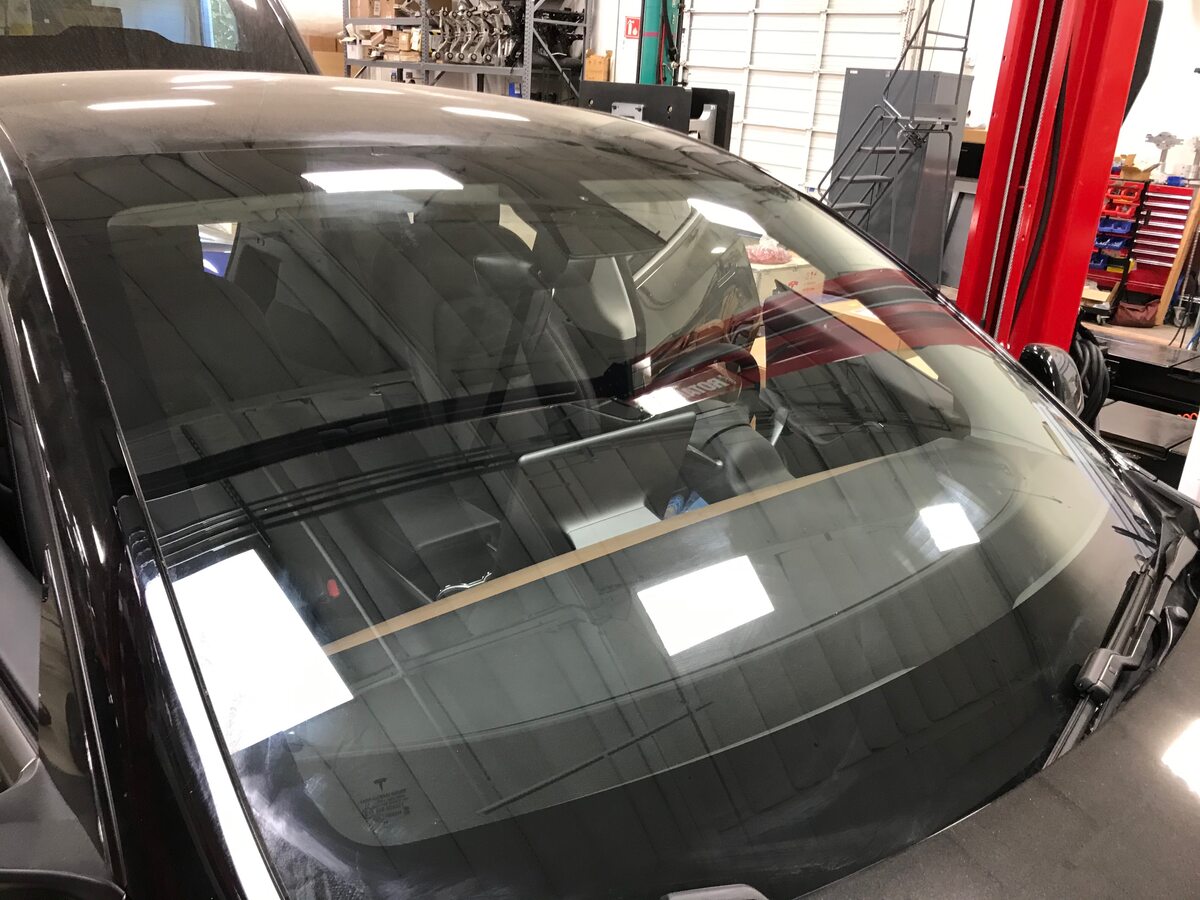

4. Inspect windshield for rock chips and cracks
   Remarque

   No damage in driver’s viewing area, airbag impact area, forward camera viewing area, or within 50 mm of edge allowed, No more than 3 cracks or chips to glass allowed



5. Check all emergency release cables and switches
   Remarque

   Front door releases, Use caution with front door releases as door glass will not drop and could damage seals or bright molding, Remove 2nd row door panel pocket cover to reveal emergency cable









6. Function check chargeport door (5 cycles)
   Remarque

   5x cycles, Inspect and note functionality full range of motion, touch to open, and indicator light. Look for interference with other components, noises such as creaks, groans and clicks, pauses or incomplete actions





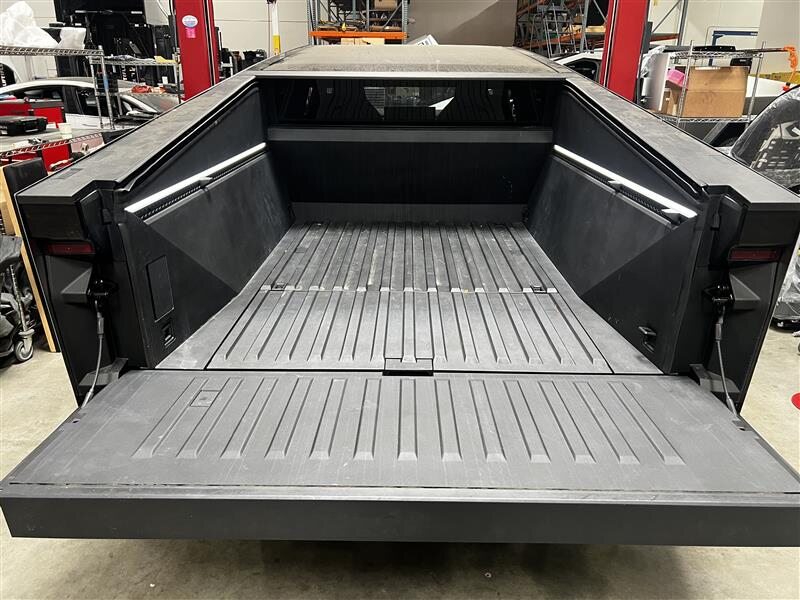

7. Open tonneau cover
   Remarque

   Press forward arrow on LH bed rail





8. Close tonneau cover





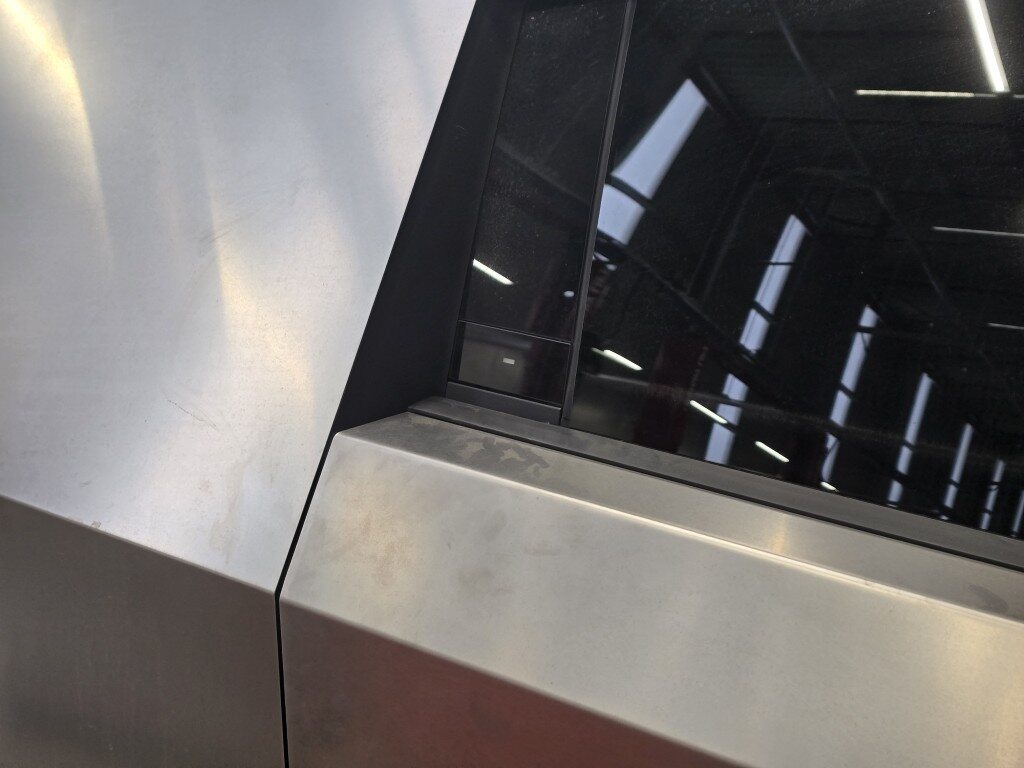

9. Function check LH front door (exterior)
   Remarque

   Inspect and note functionality for the door handle operation and full range of motion of the door, From outside look for interference with brightwork and door to body, Note any abnormalities

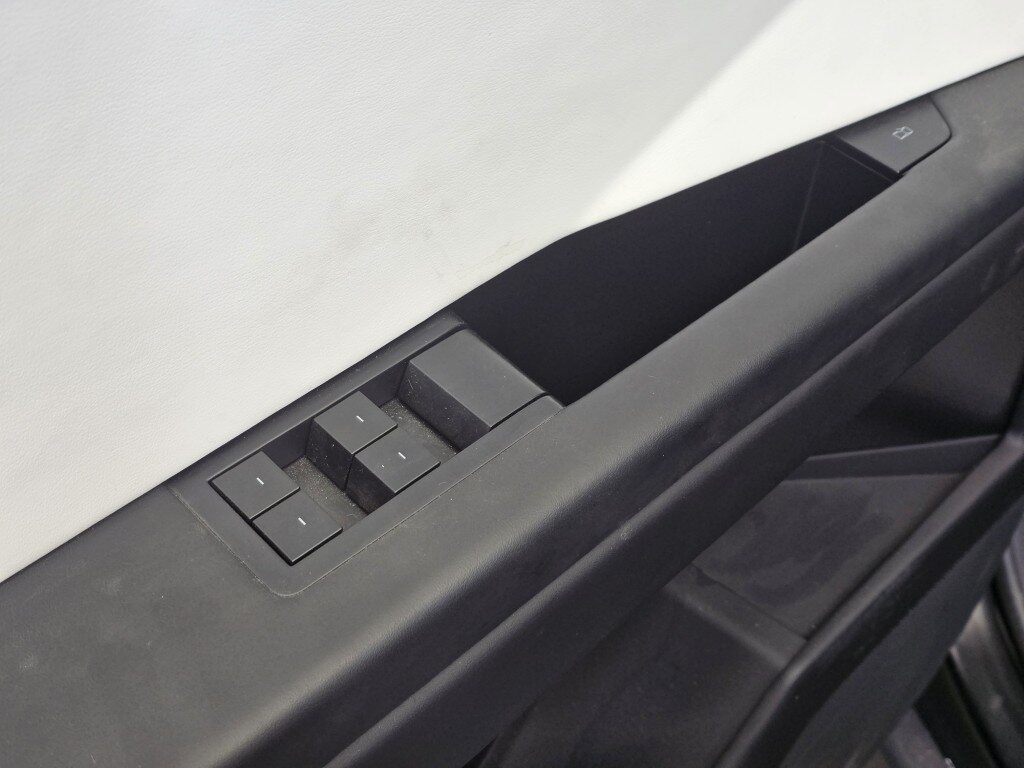

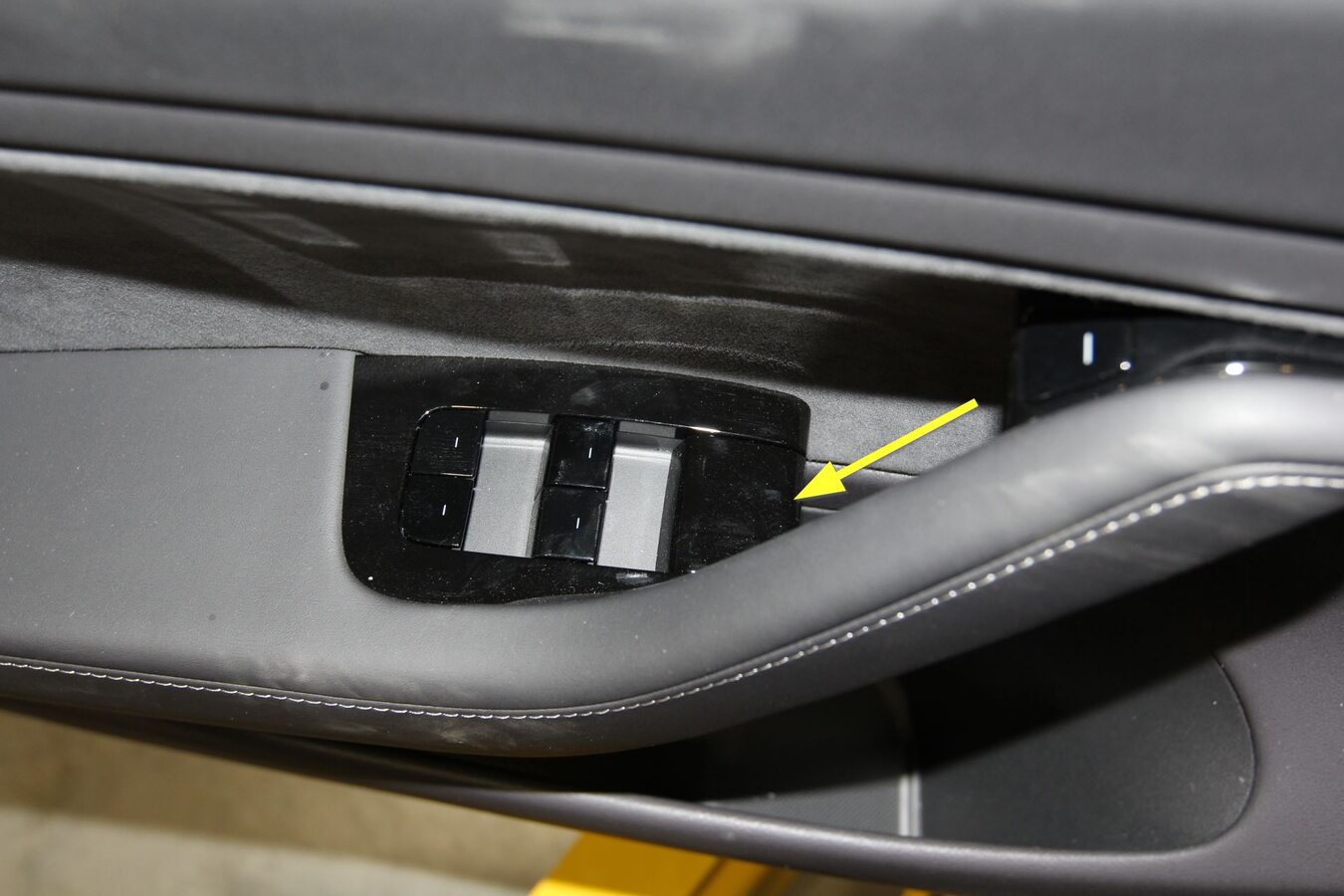

10. Function check all windows from the master switch
    Remarque

    Check operation with door closed, Document any abnormal operation/noises



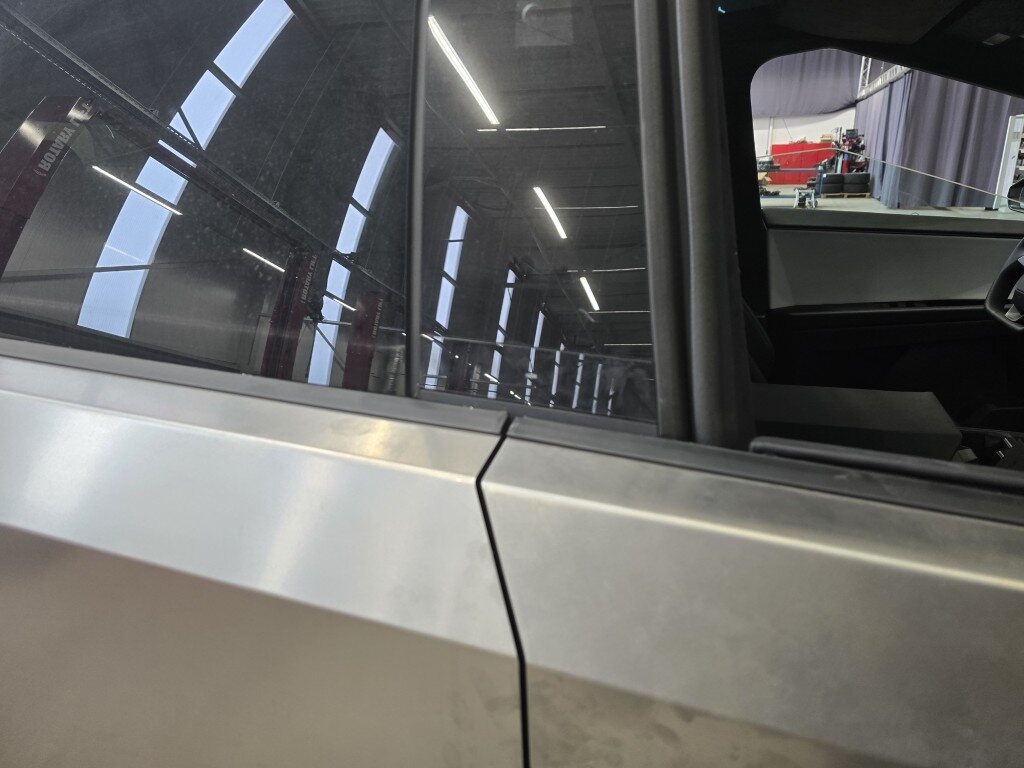

11. Function check RH rear door (exterior)
    Remarque

    Inspect and note functionality for the door handle operation and full range of motion of the door, From outside look for interference with brightwork and door to body, Note any abnormalities

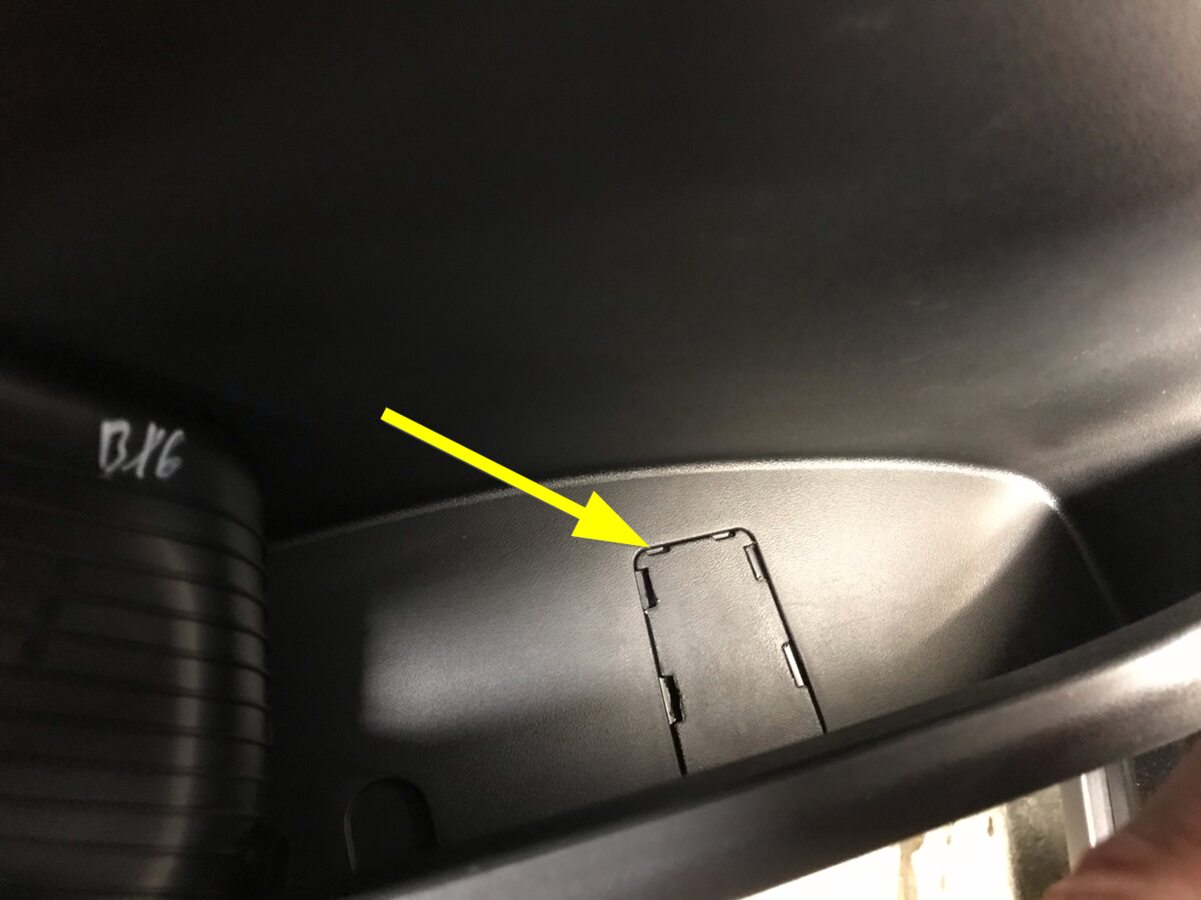

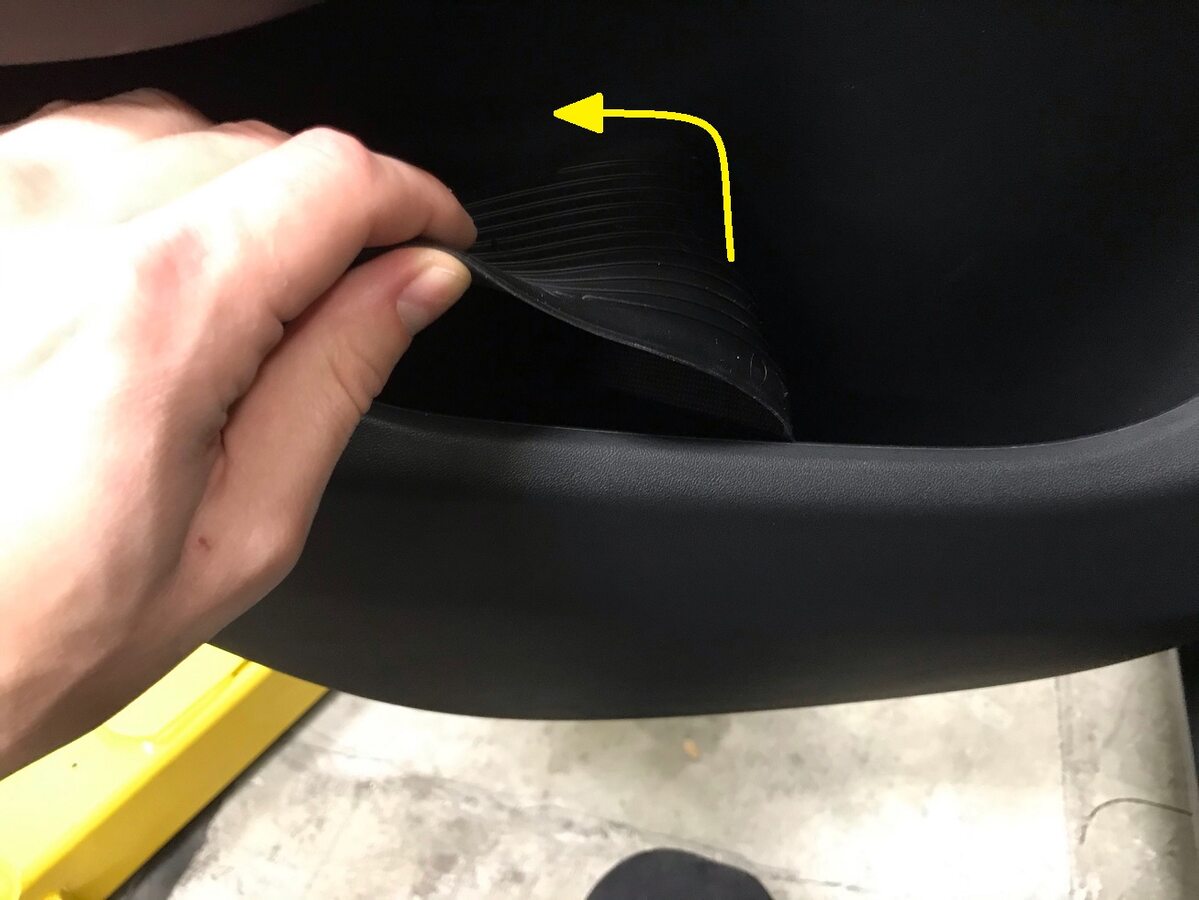

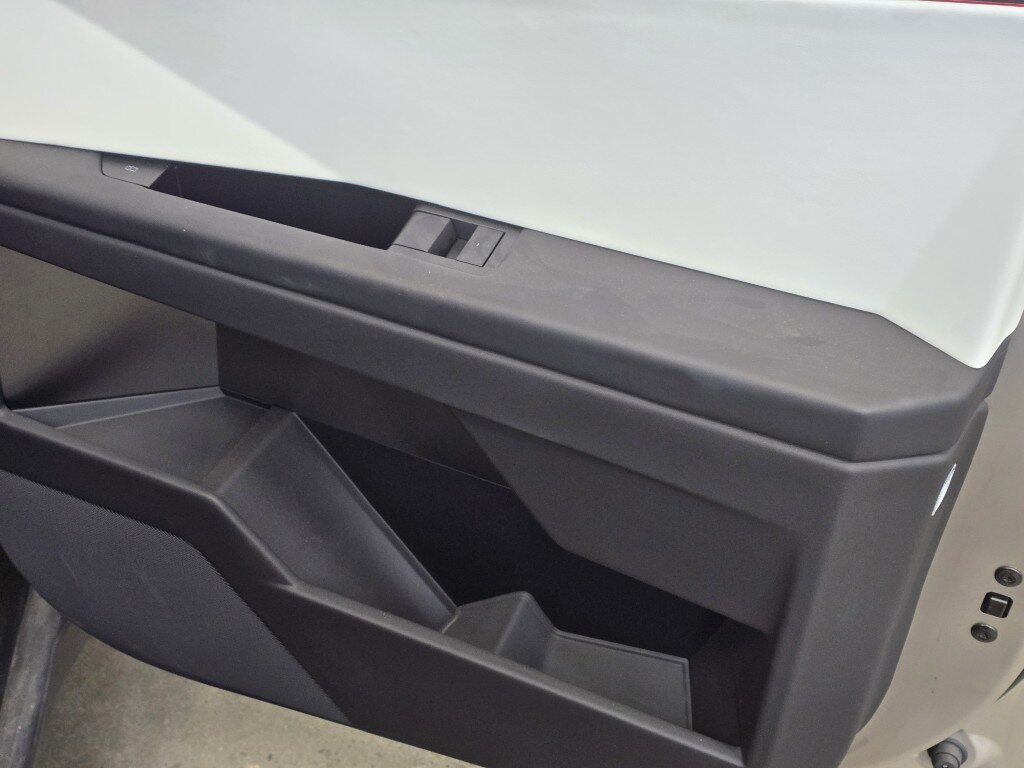

12. Function check RH rear door (interior)
    Remarque

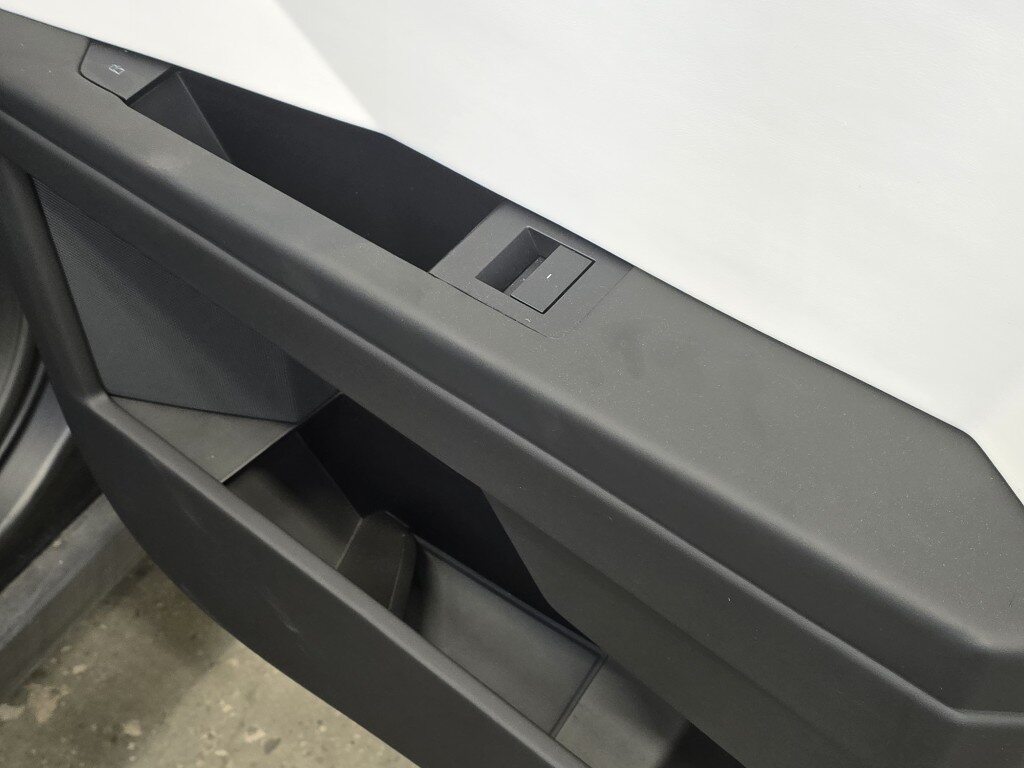

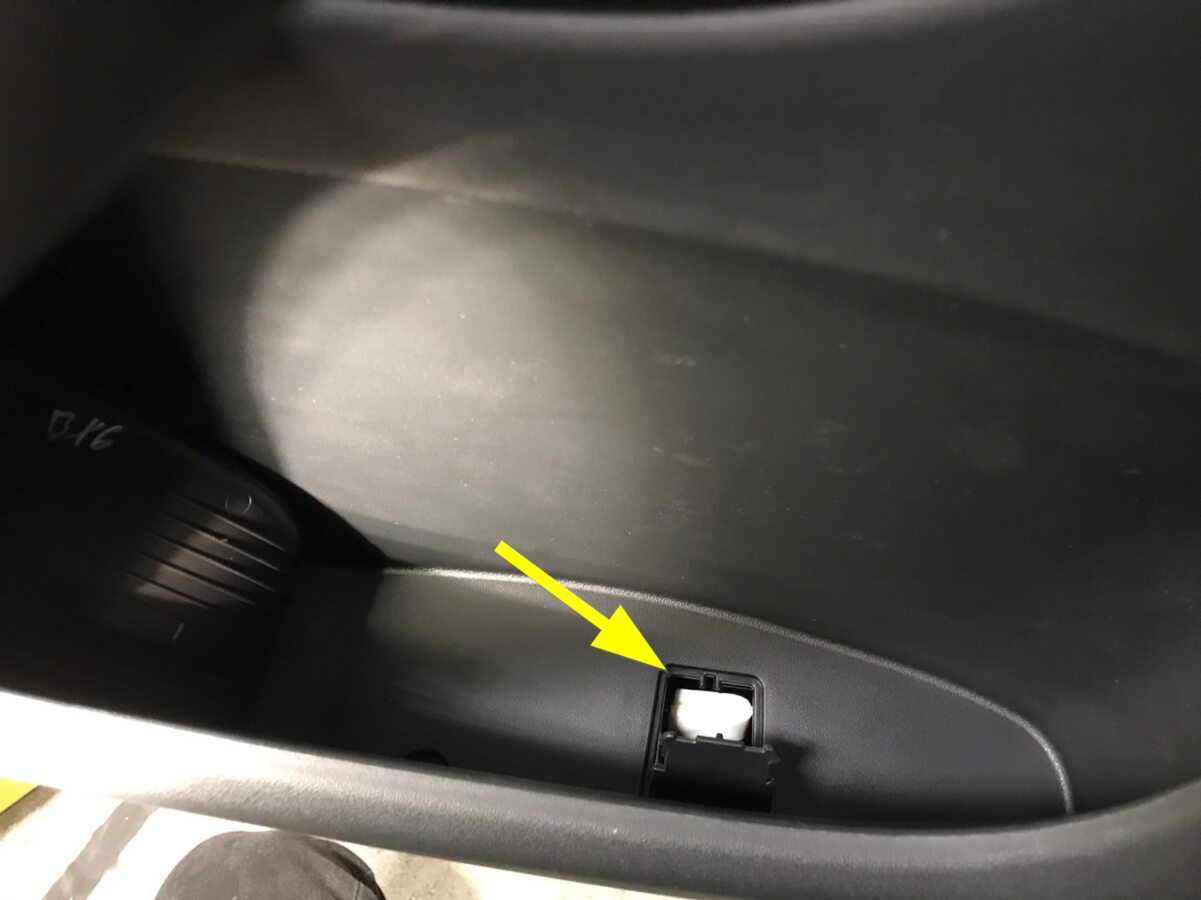

    Inspect and note functionality for the interior door release and puddle lamps, From inside look for interference with other components, noises such as creaks, groans and clicks, pauses or incomplete actions

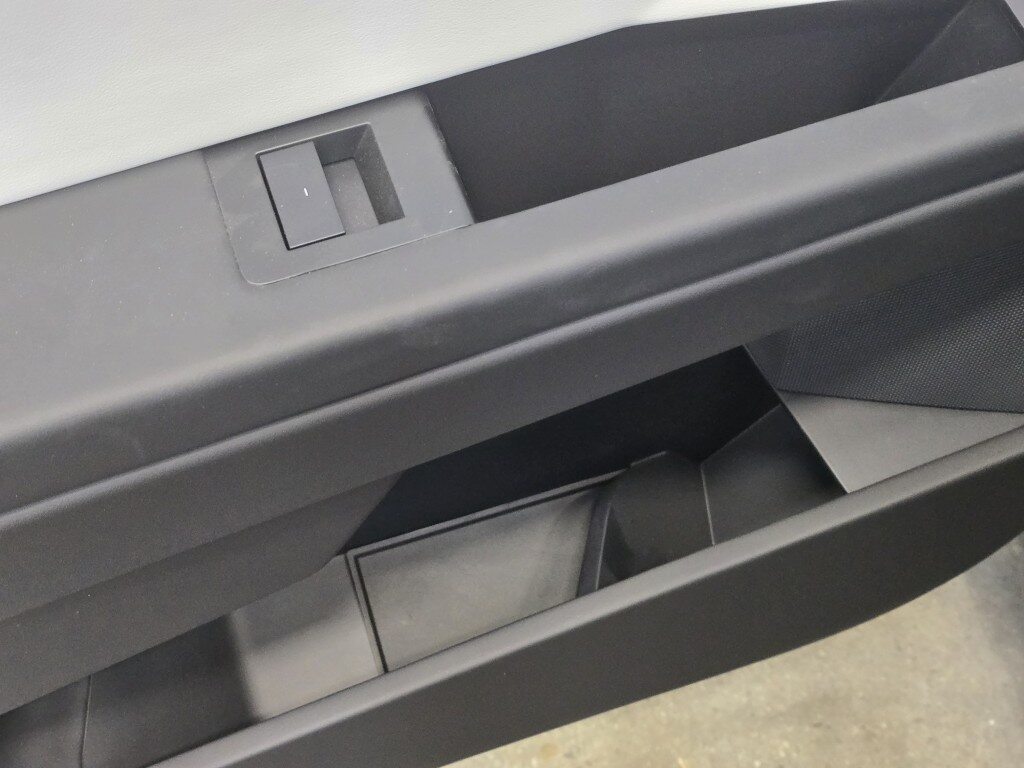

13. Function check RH rear window
    Remarque

    Inspect and note functionality for the window switch, and full range of motion of the window with door closed



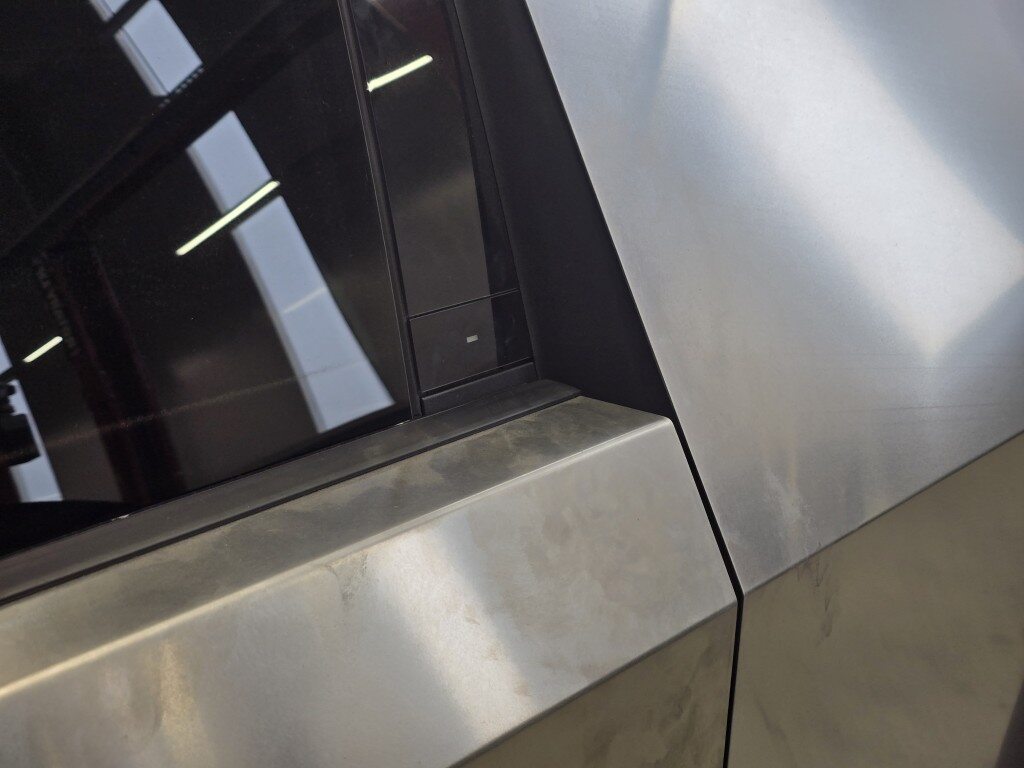

14. Function check LH rear door (exterior)
    Remarque

    Inspect and note functionality for the door handle operation and full range of motion of the door, From outside look for interference with brightwork and door to body, Note any abnormalities



15. Function check LH rear door (interior)
    Remarque

    Inspect and note functionality for the interior door switch, From inside look for interference with other components, Note any abnormalities



16. Function check LH rear window
    Remarque

    Inspect and note functionality for the window switch, and full range of motion of the window with door closed



17. Function check RH front door (exterior)
    Remarque

    Inspect and note functionality for the door handle operation and full range of motion of the door, From outside look for interference with brightwork and door to body, Note any abnormalities



18. Function check RH front door (interior)
    Remarque

    Inspect and note functionality for the interior door release, puddle lamps, and manual release cable, From inside look for interference with other components, noises such as creaks, groans and clicks, pauses or incomplete actions



19. Function check RH front window
    Remarque

    Inspect and note functionality for the window switch, and full range of motion of the window with door closed

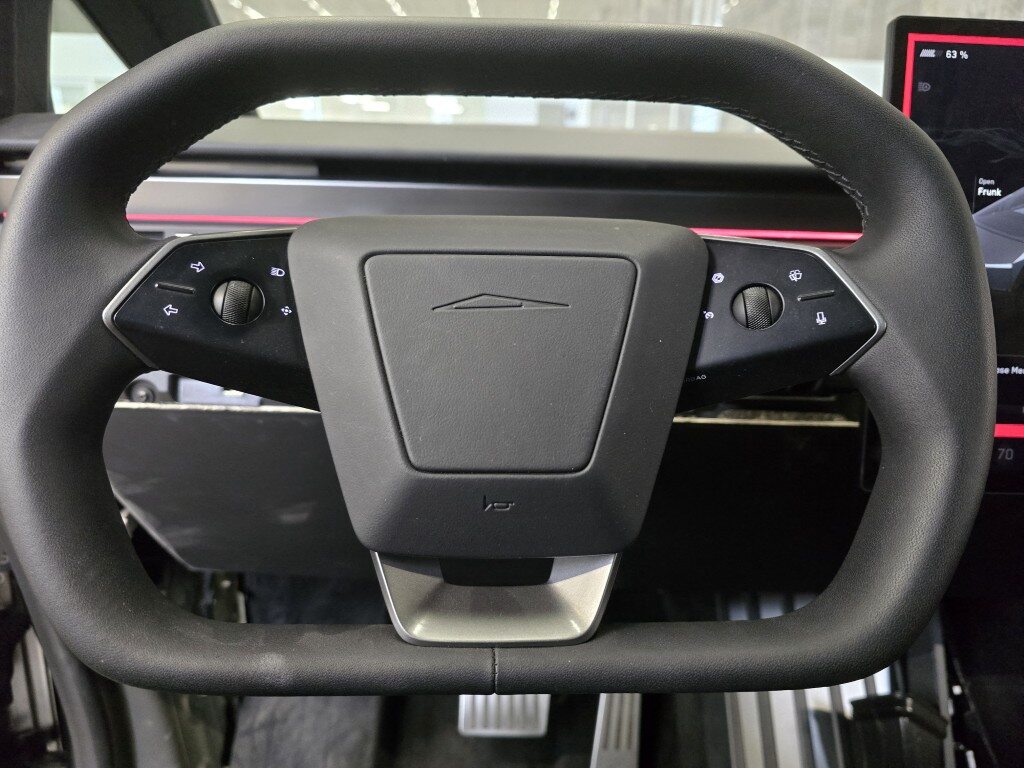

20. Function check all driver controls
    Remarque

    Turn signals, steering wheel scroll wheels, horn

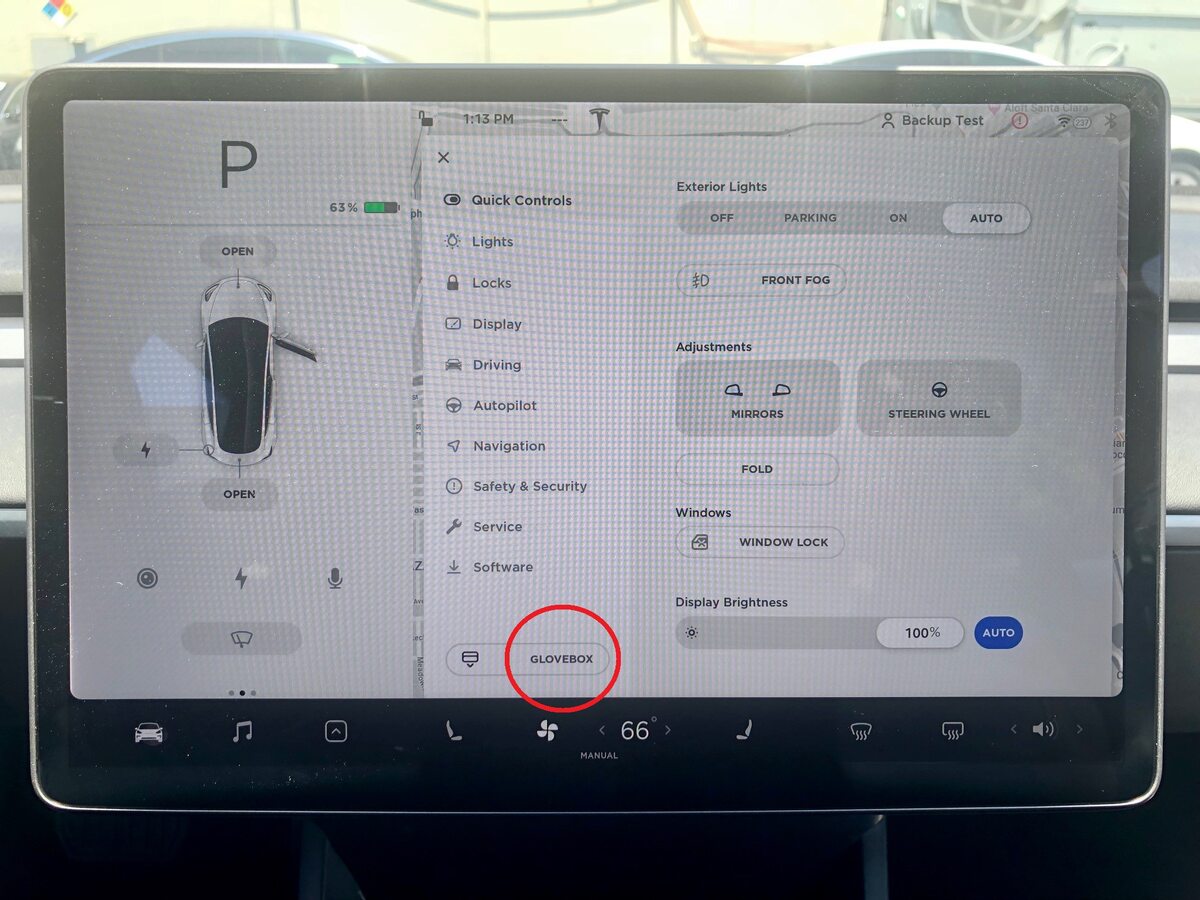

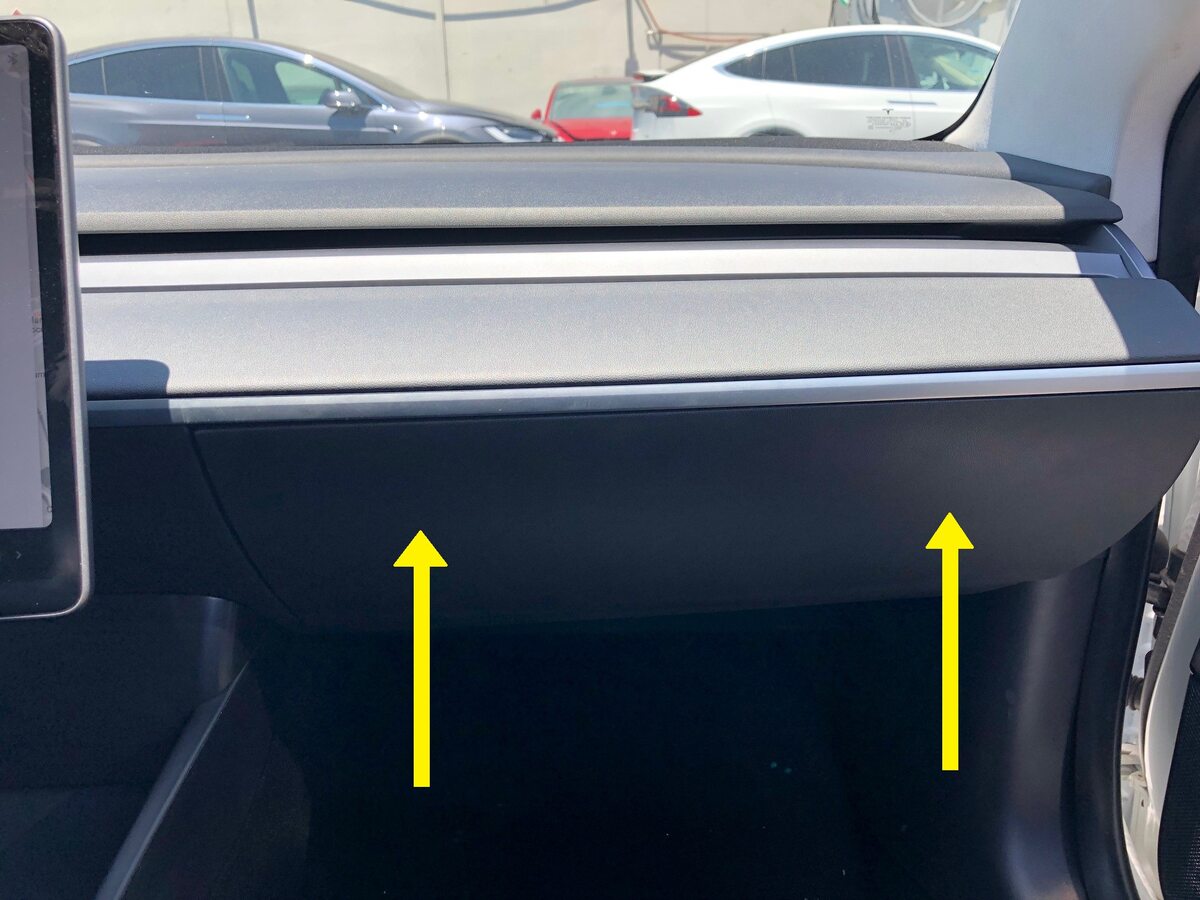

21. Open glove box through UI
    Remarque

    via Controls > Glovebox



22. Close glove box

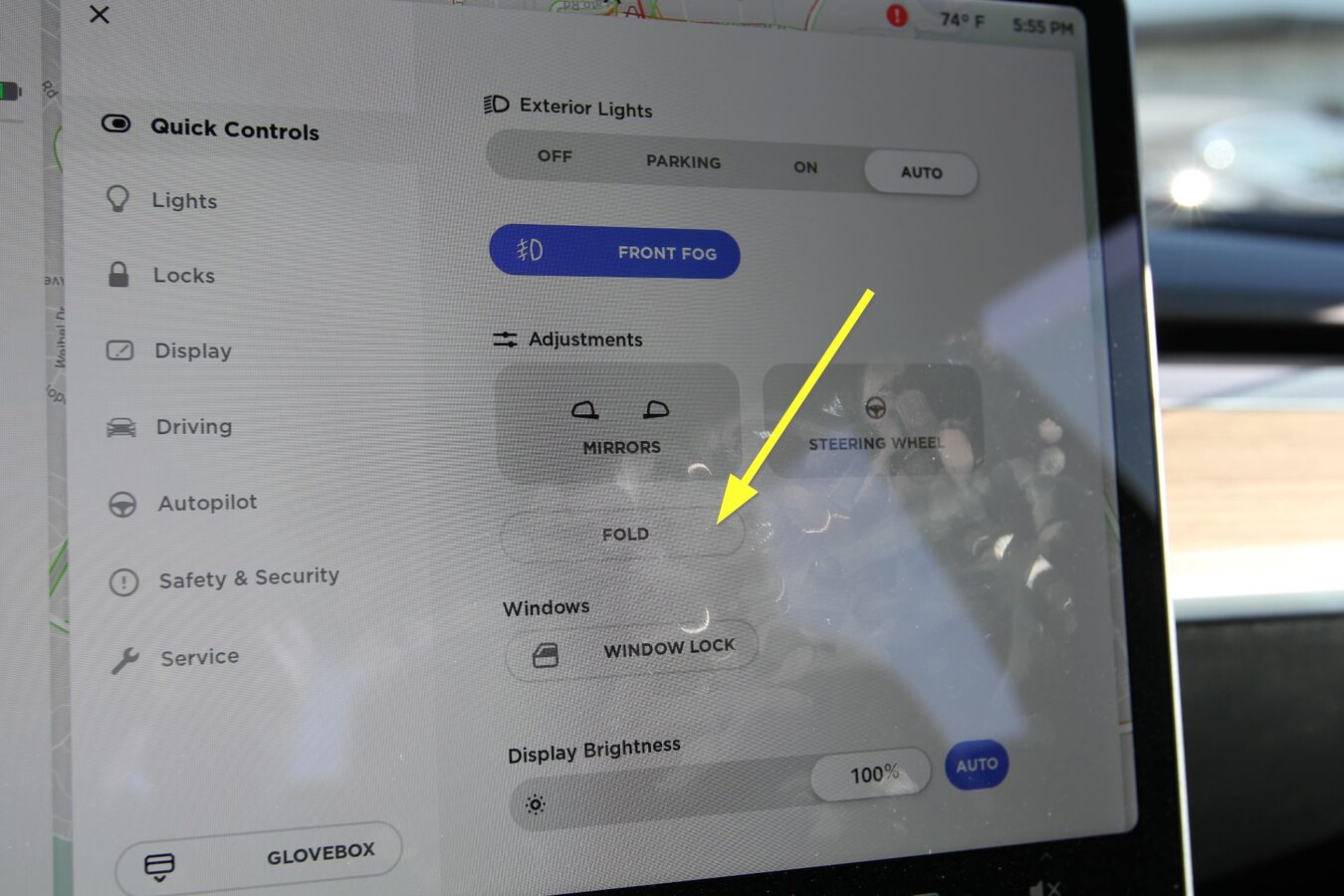

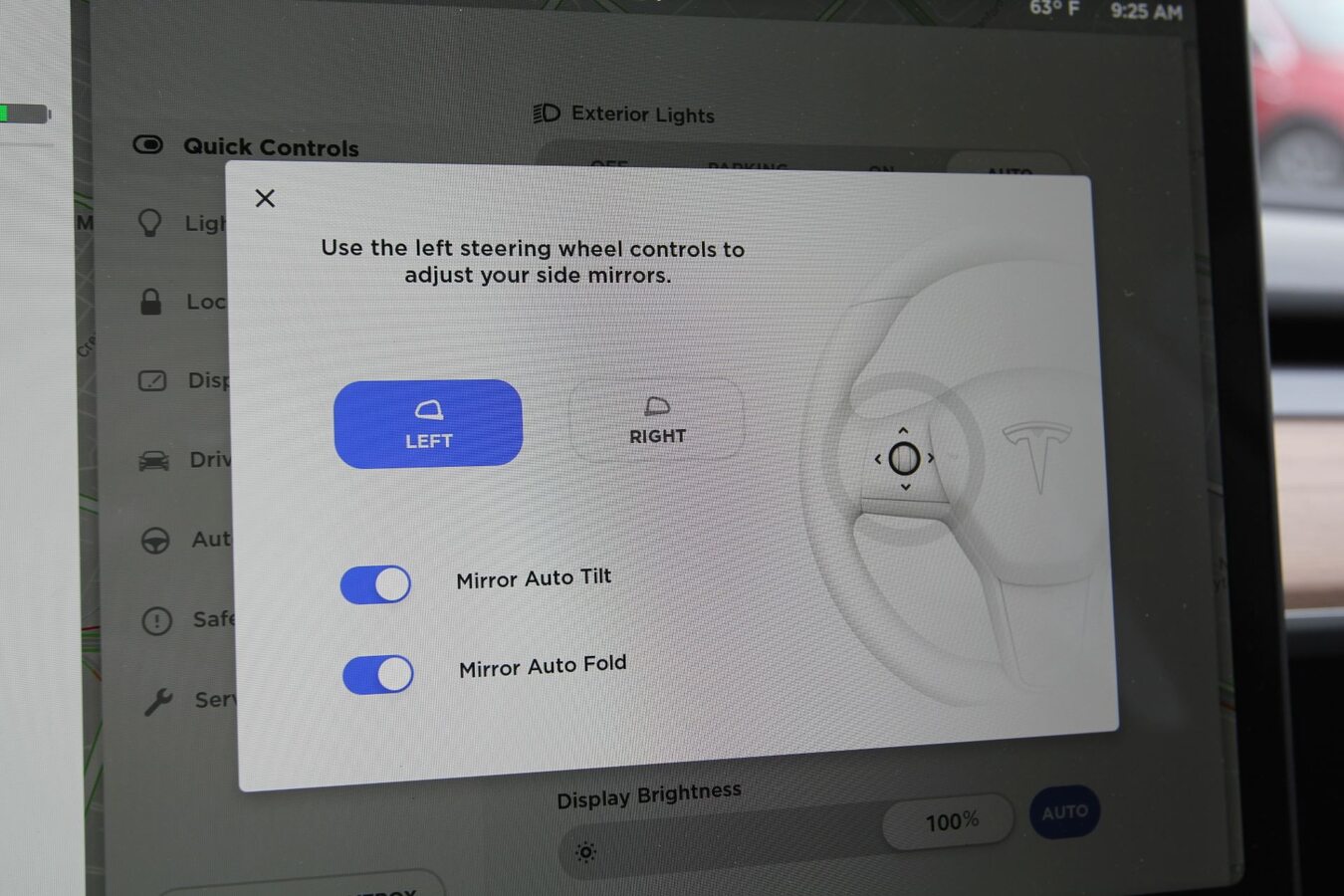

23. Function check power folding side mirrors
    Remarque

    Fold mirrors in/out, Check adjustment of glass

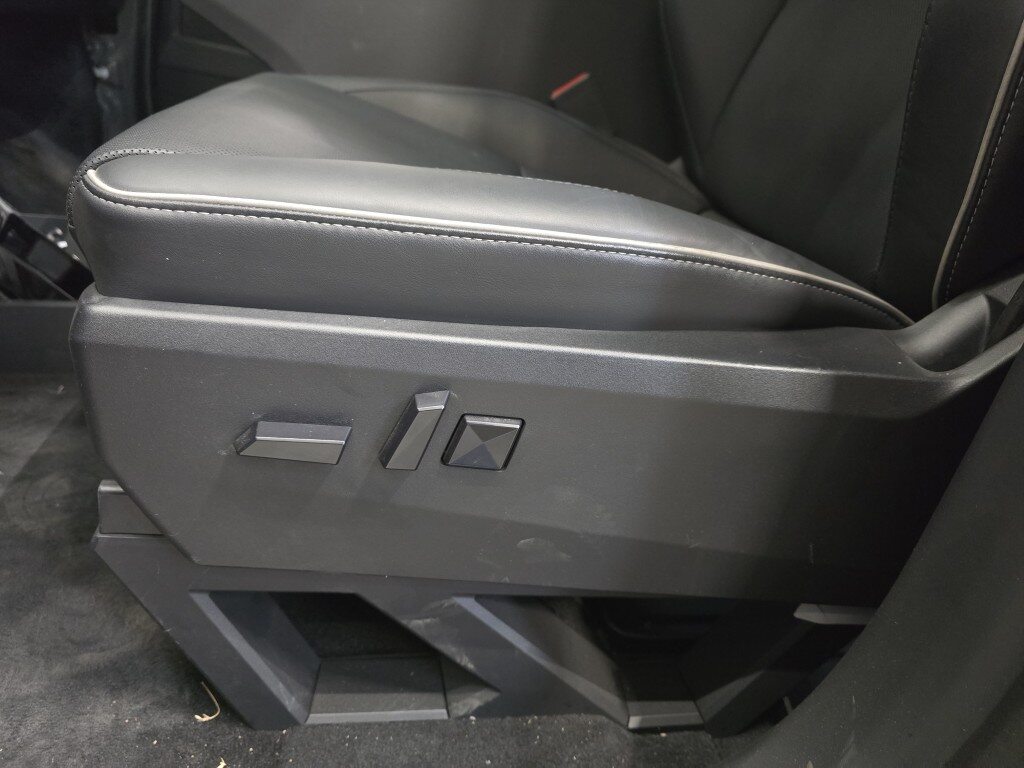

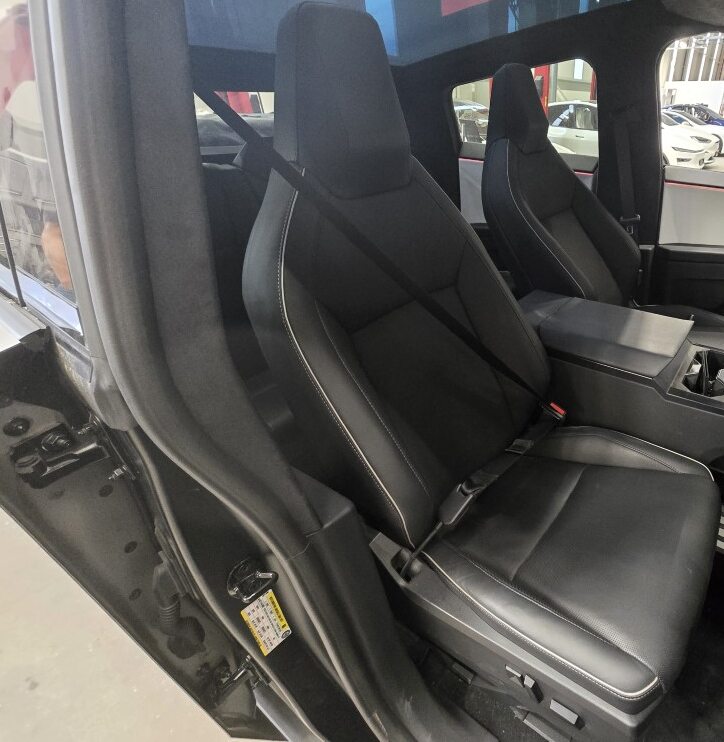

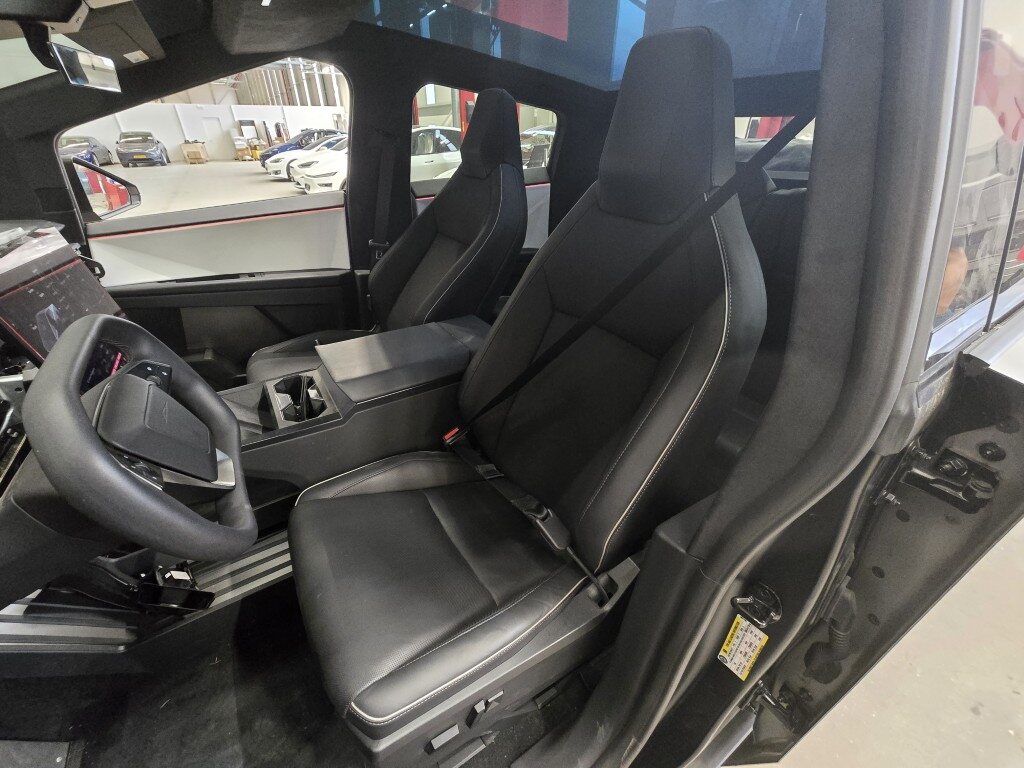

24. Function check LH front seat
    Remarque

    Check full range of motion of seat, Test lumbar and seat heat/cooling



25. Function check LH front seat belt
    Remarque

    Latch and unlatch buckle, Quickly pull retractor to check locking function

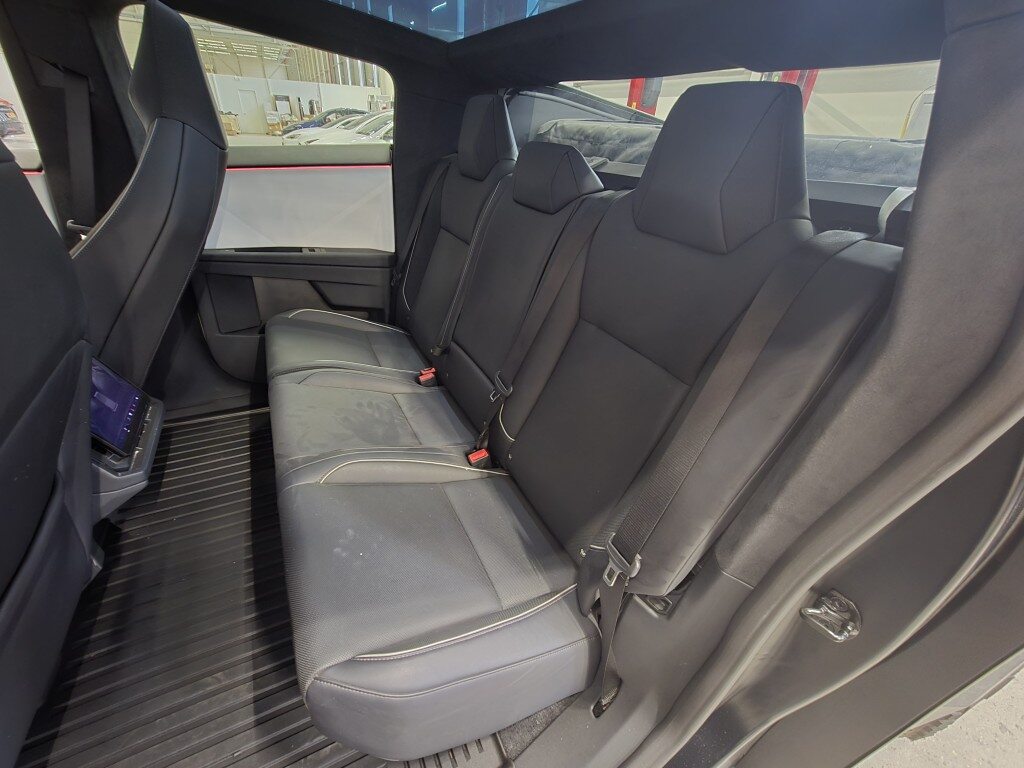

26. Function check the rear seat belts
    Remarque

    Latch and unlatch buckles, Quickly pull retractor to check locking function



27. Function check the RH front seat belt
    Remarque

    Latch and unlatch buckle, Quickly pull retractor to check locking function



28. Function check RH front seat
    Remarque

    Check full range of motion of seat, Test lumbar and seat heat/cooling



29. Function check wipers and spray jets
    Remarque

    Ensure hood and doors are closed prior to activating wipers, Inspect and note functionality for wipers and wiper jets, Check for full range of motion, speed of motion, interference with other components, noises such as creaks, groans and clicks, pauses or incomplete actions



30. Open powered front trunk
    Remarque

    Via exterior switch or UI

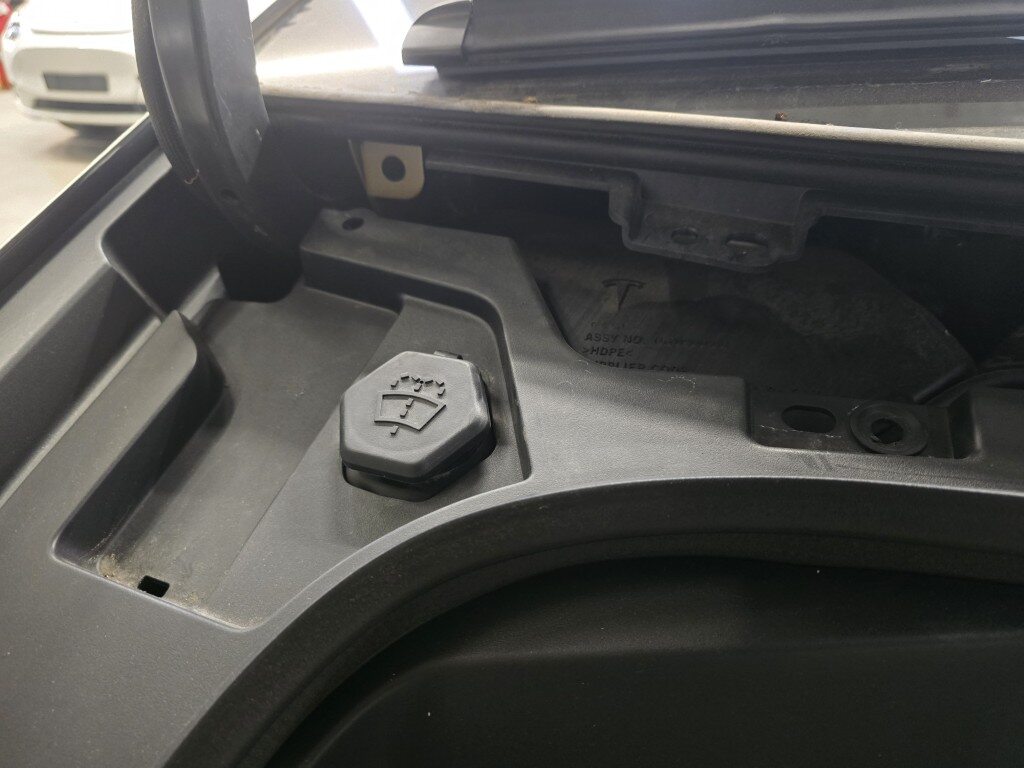

31. Fill washer reservoir with fluid



32. Remove rear underhood apron
    Remarque

    9x clips





33. Remove frunk assembly
    Remarque

    6x bolts, 10mm, 12 Nm, 2x bolt caps, 2x bumpstops, 1x connector, Remove bolt covers from frunk floor, Remove washer fluid cap by gently prying upwards, Rotate bumpstops counter clockwise to release, the 25mm socket from PT Sensor kit can be used, Avoid straining emergency frunk release connector

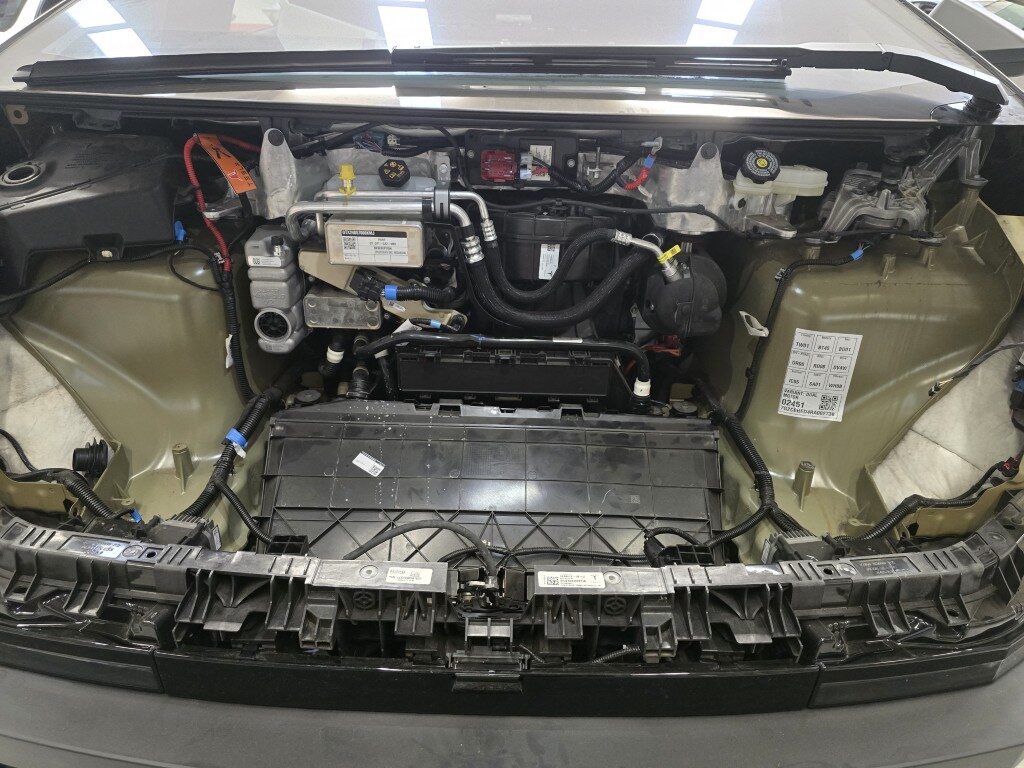

34. Perform inspection of under hood area
    Remarque

    Perform inspection of vehicle under hood area, Check for signs of abnormal damage, wear, heavy rust, wiring damage, or impact damage, Pay attention to safety related component and note any items of significance



35. Visually inspect brake fluid level

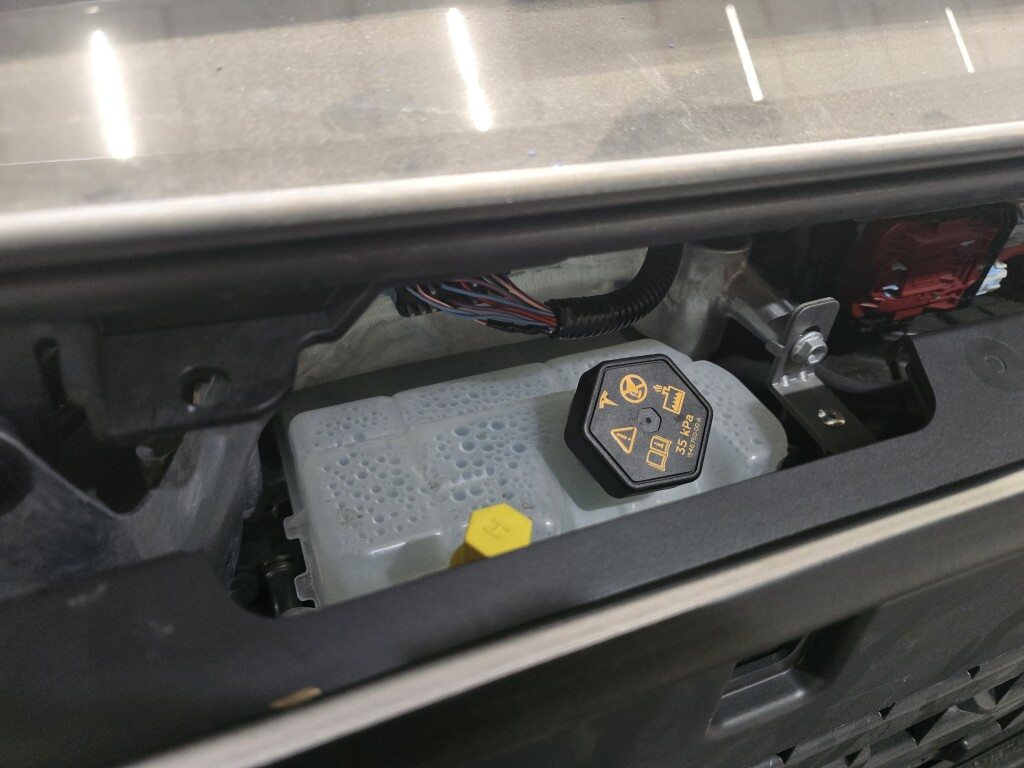

36. Inspect coolant level and top off as necessary
    Remarque

    Ensure that the fluid level is at the Max line, Top off fluid as required

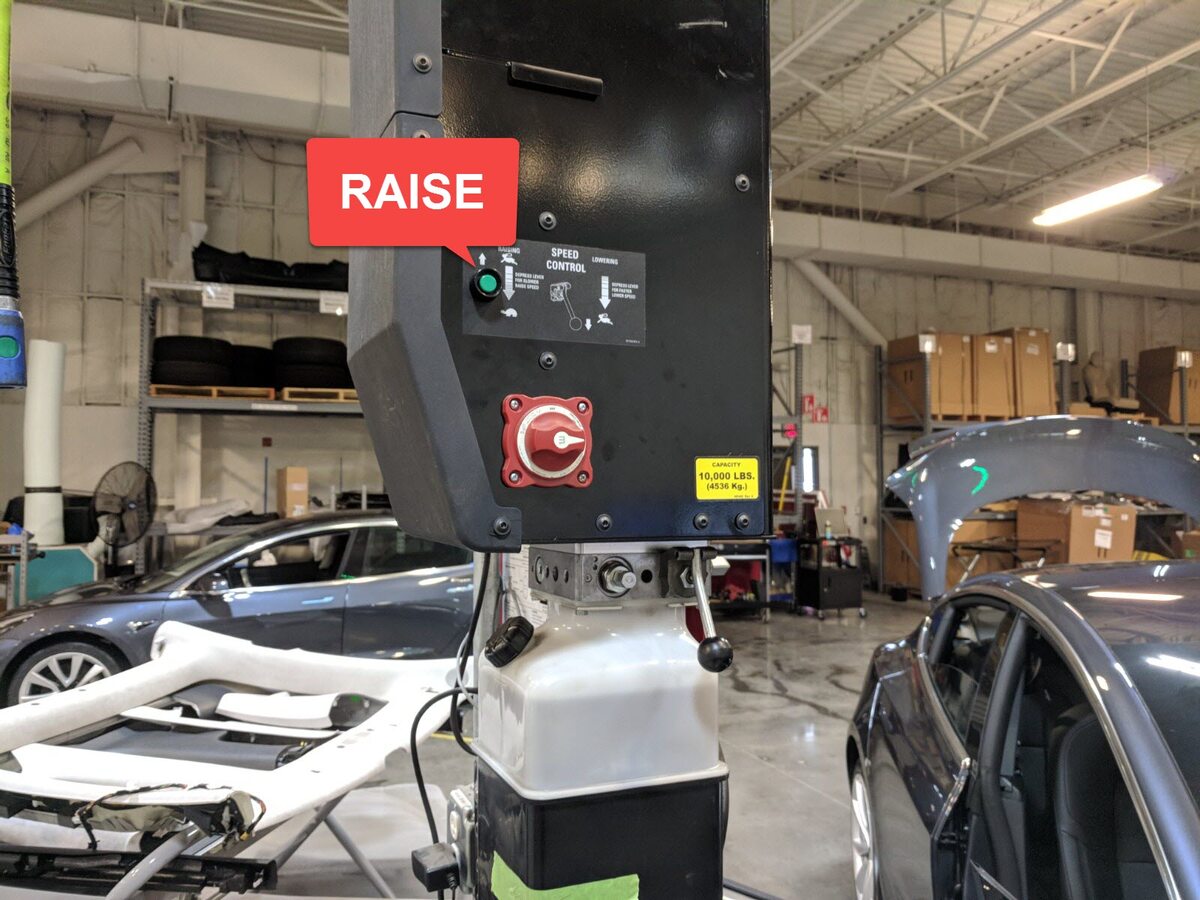

37. Raise and support vehicle
    Remarque

    Set air suspension to "Jack Mode", Align lift adapter pins with lift point holes on body



38. Remove LH front wheel cap
    Remarque

    1x cap, 8x clips, Use both hands to firmly pull wheel cap to release clips, Cap may remove with or without mounting ring attached









39. Loosen LH front wheel nuts
    Remarque

    6x nuts, 21mm, 205 Nm



40. Remove RH front wheel cap
    Remarque

    1x cap, 8x clips, Use both hands to firmly pull wheel cap to release clips, Cap may remove with or without mounting ring attached









41. Loosen RH front wheel nuts
    Remarque

    6x nuts, 21mm, 205 Nm



42. Remove RH rear wheel cap
    Remarque

    1x cap, 8x clips, Use both hands to firmly pull wheel cap to release clips, Cap may remove with or without mounting ring attached









43. Loosen RH rear wheel nuts
    Remarque

    6x nuts, 21mm, 205 Nm



44. Remove LH rear wheel cap
    Remarque

    1x cap, 8x clips, Use both hands to firmly pull wheel cap to release clips, Cap may remove with or without mounting ring attached









45. Loosen LH rear wheel nuts
    Remarque

    6x nuts, 21mm, 205 Nm

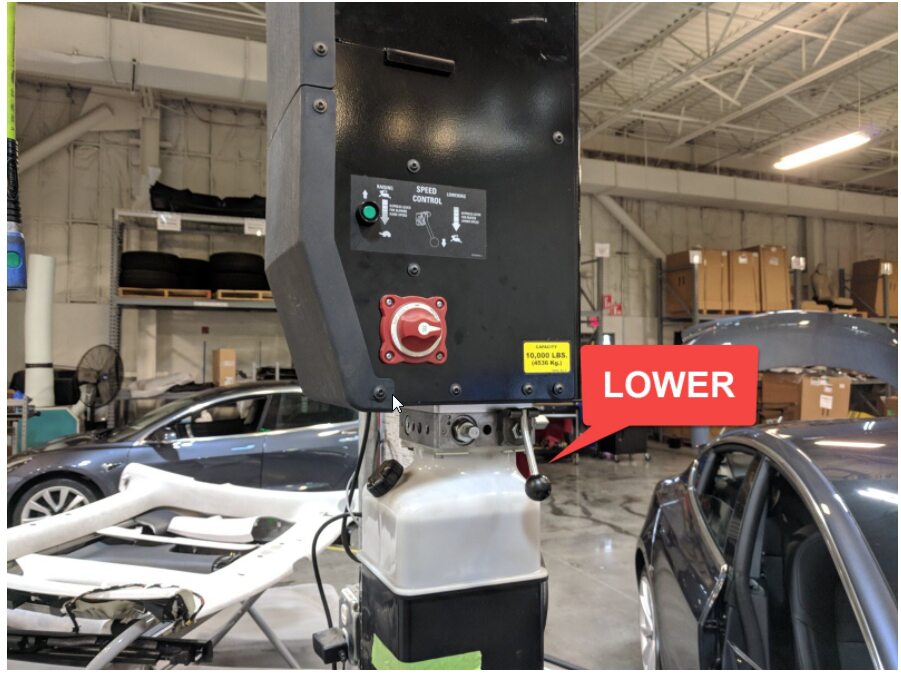

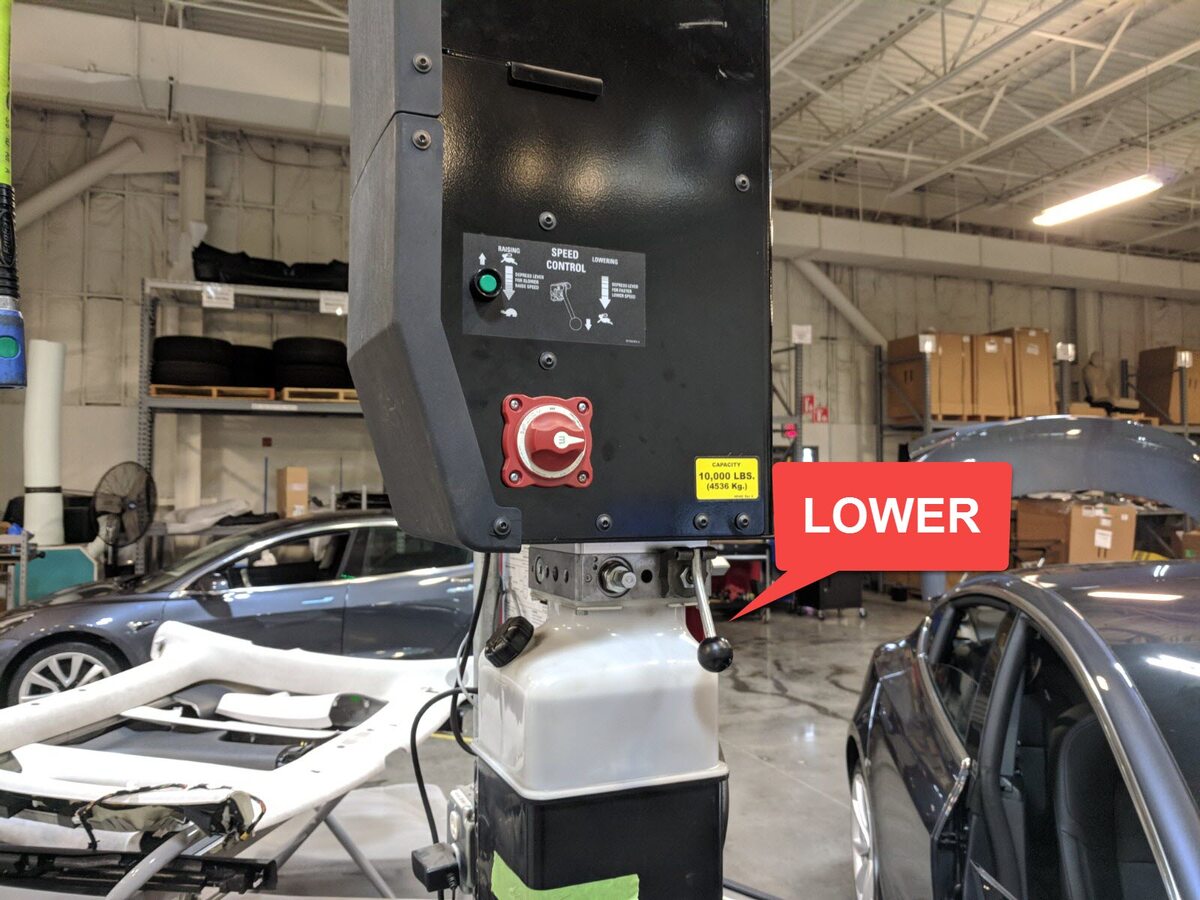

46. Raise vehicle partially and lower onto locks
    Remarque

    Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side





47. Remove LH front wheel
    Remarque

    6x nuts, 21mm, 205 Nm



48. Remove RH front wheel
    Remarque

    6x nuts, 21mm, 205 Nm



49. Remove RH rear wheel
    Remarque

    6x nuts, 21mm, 205 Nm



50. Remove LH rear wheel
    Remarque

    6x nuts, 21mm, 205 Nm

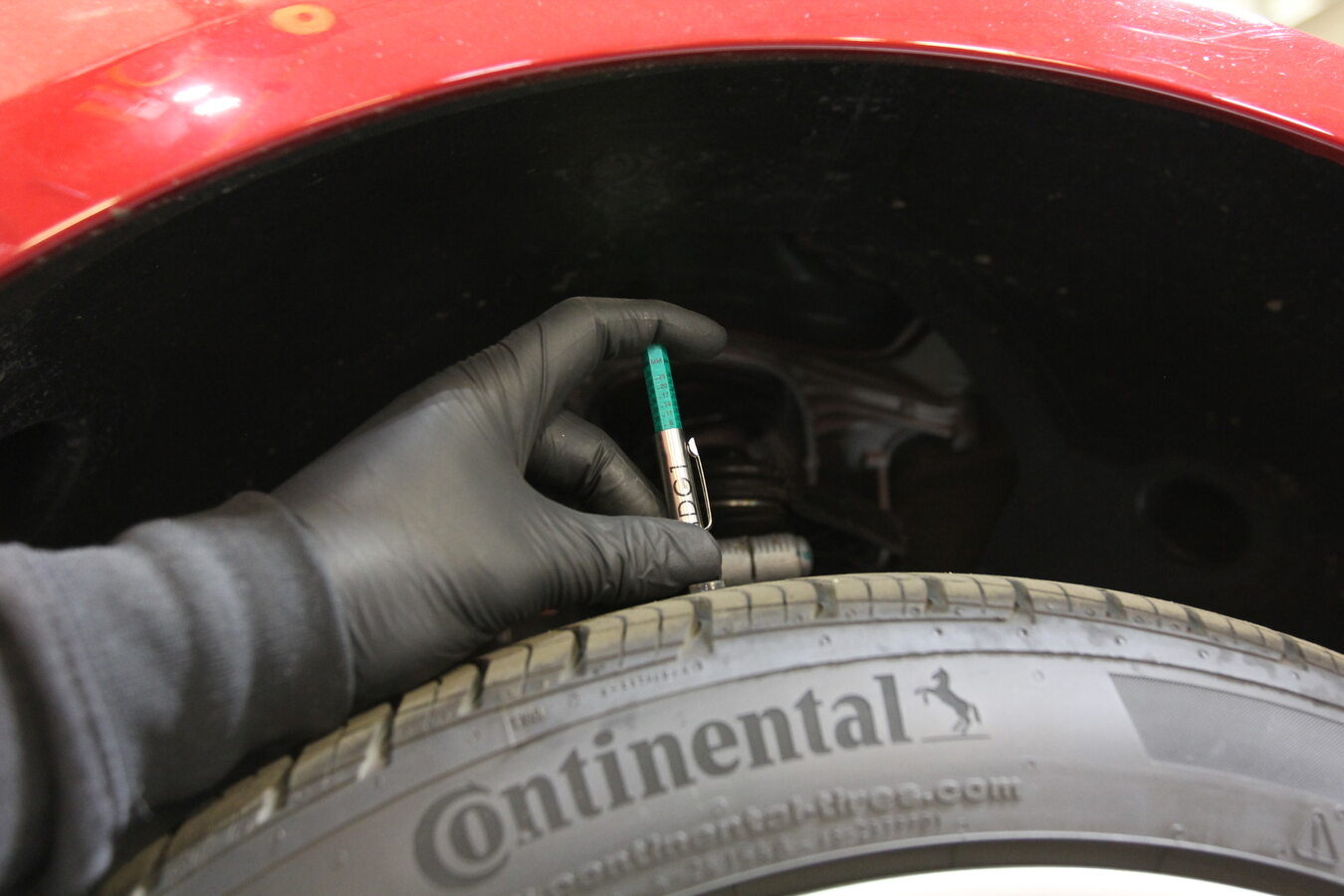

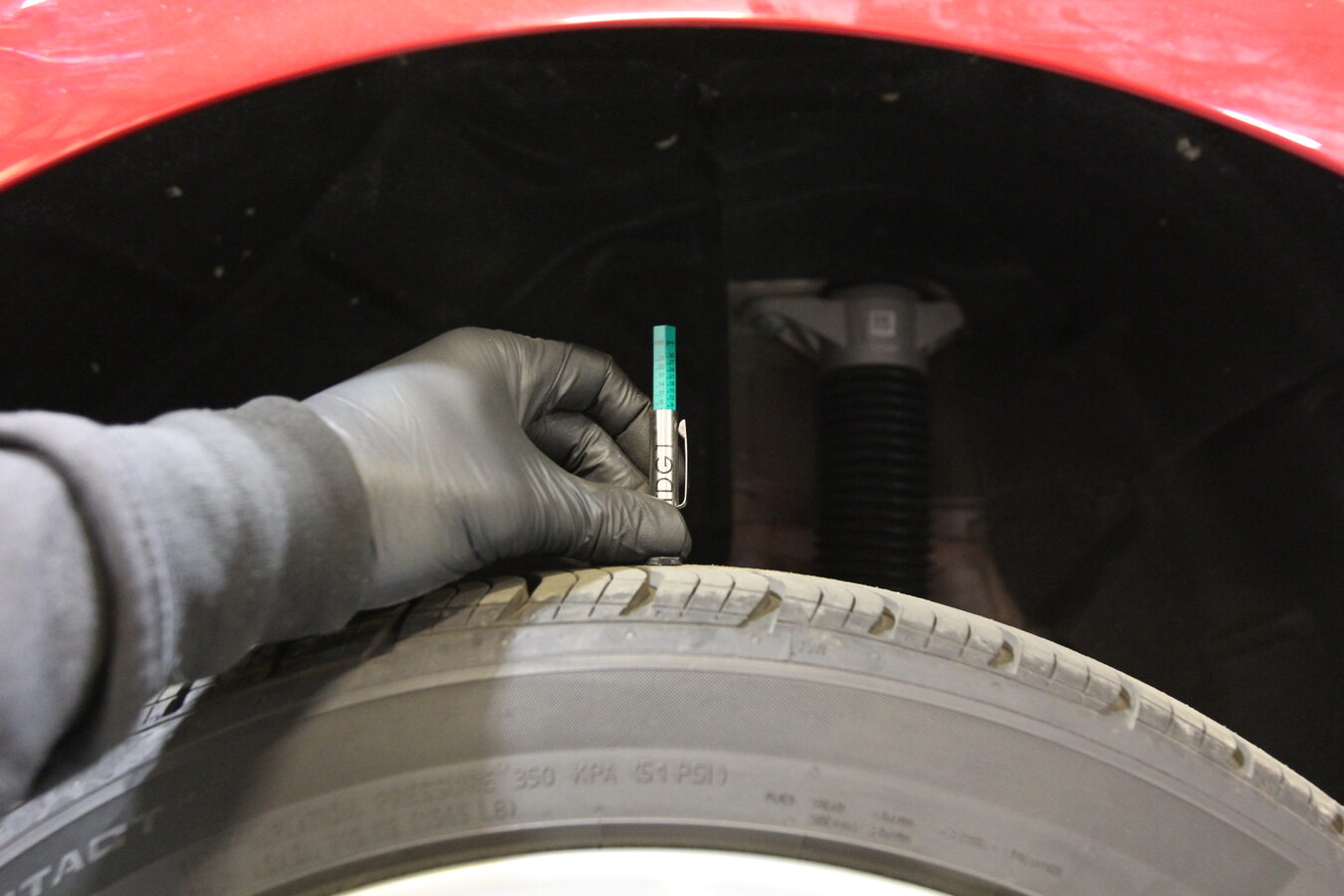

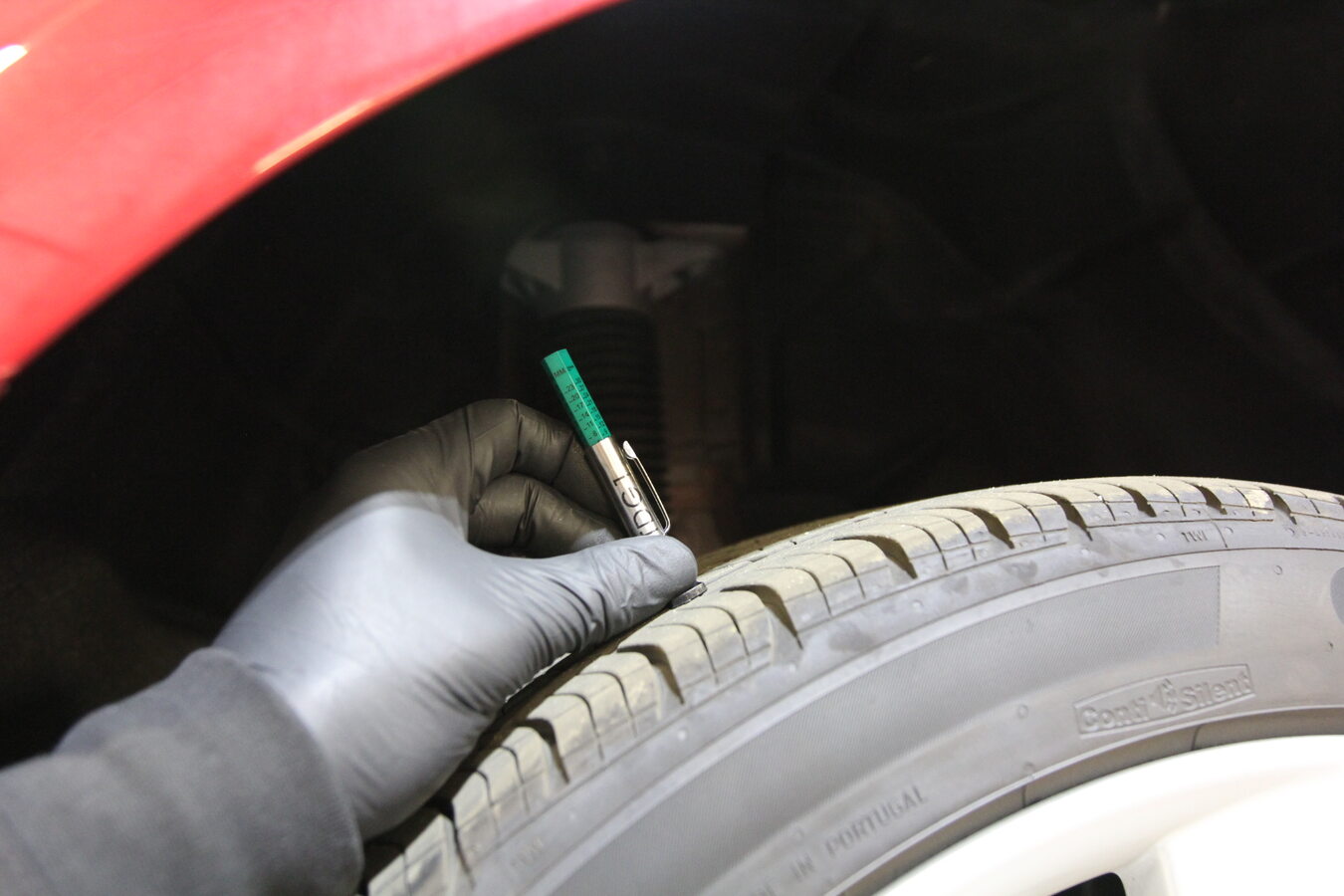

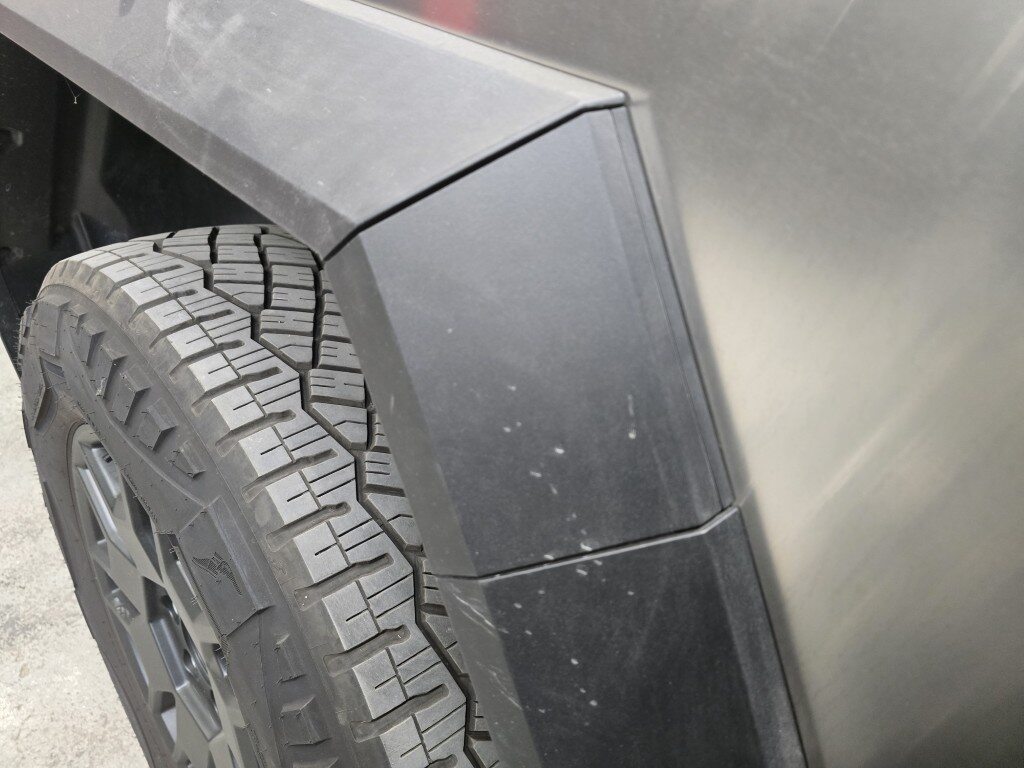

51. Record tread depth for LH rear tire
    Remarque

    Measure and record the outer, center, and inner tread depths, Measure the circumferential tire grooves only, Do not place the tire tread gauge probe on the molded treadwear indicators, Recommend replacement if tread depth is 4/32in (3mm) or less

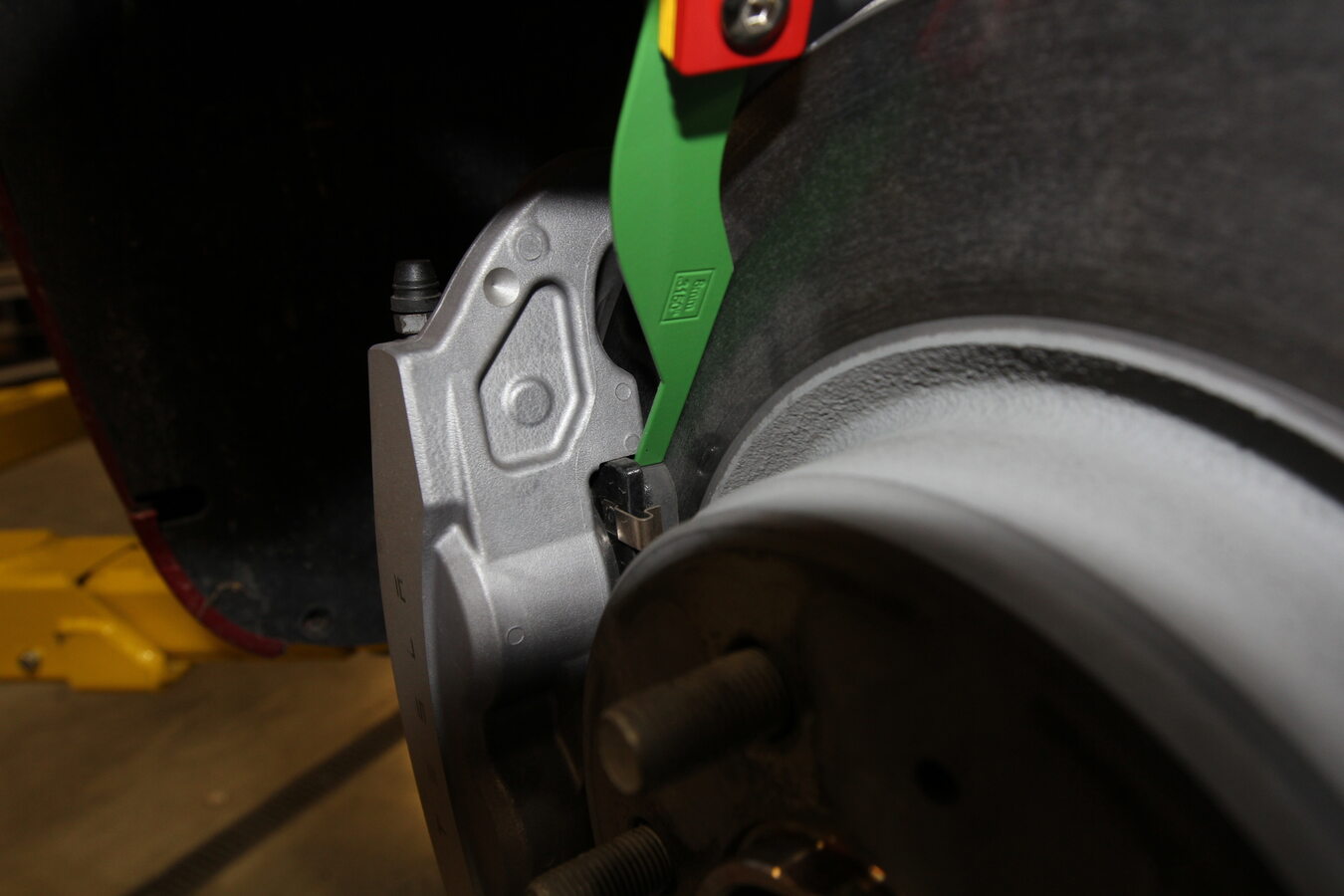

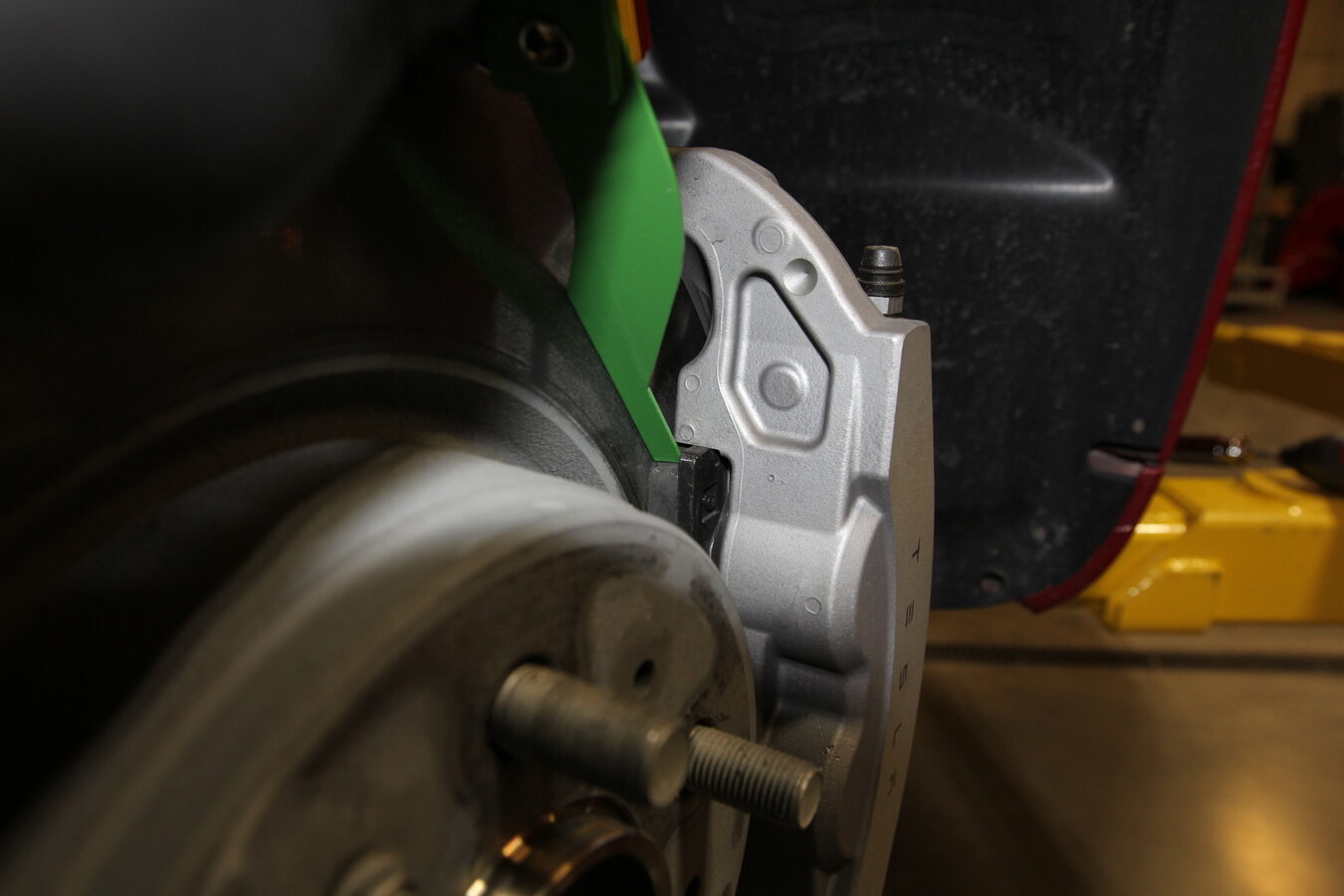

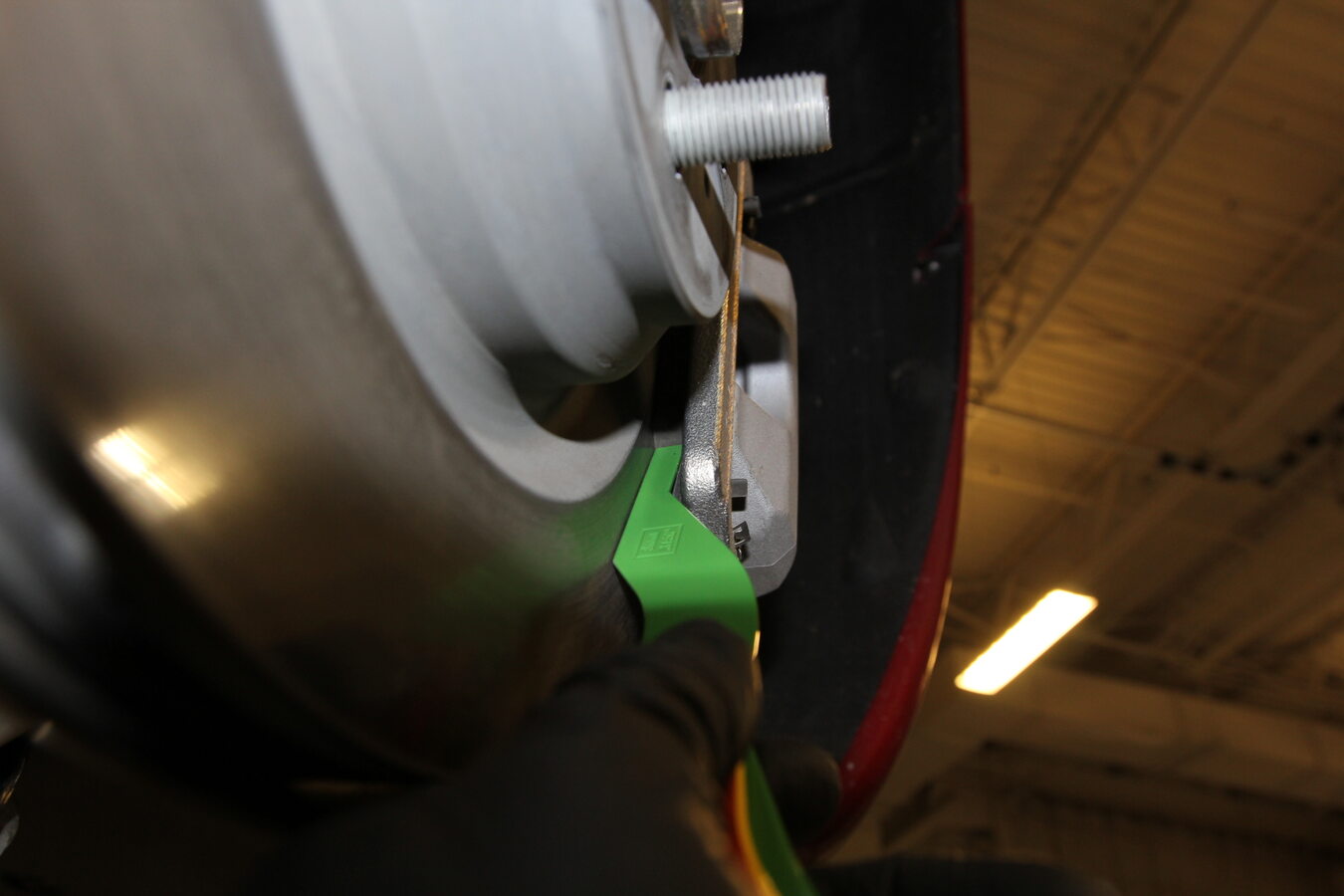

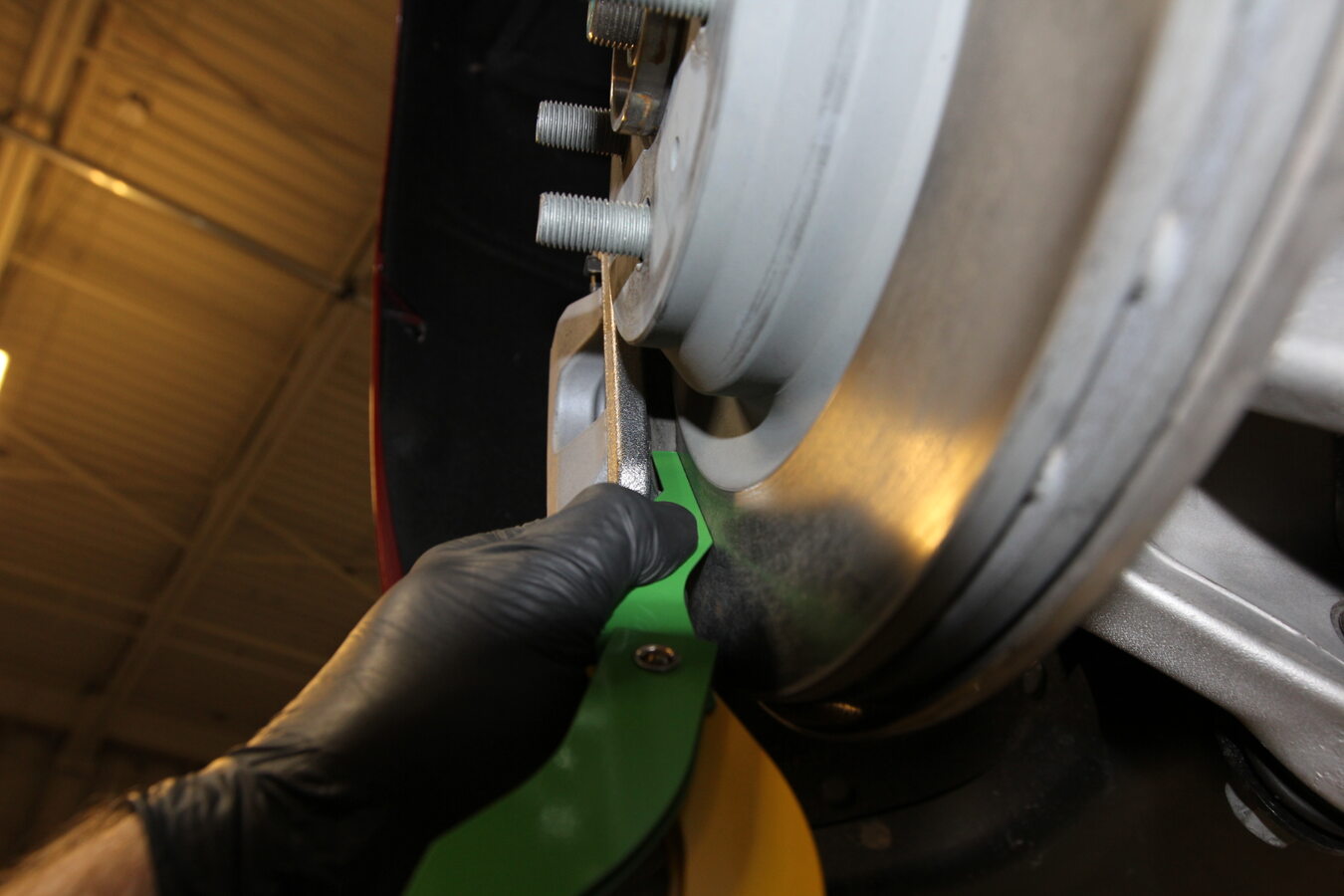

52. Measure and record LH rear brake pad thickness
    Remarque

    Recommend replacement if 2mm or less, Check both inboard and outboard pads

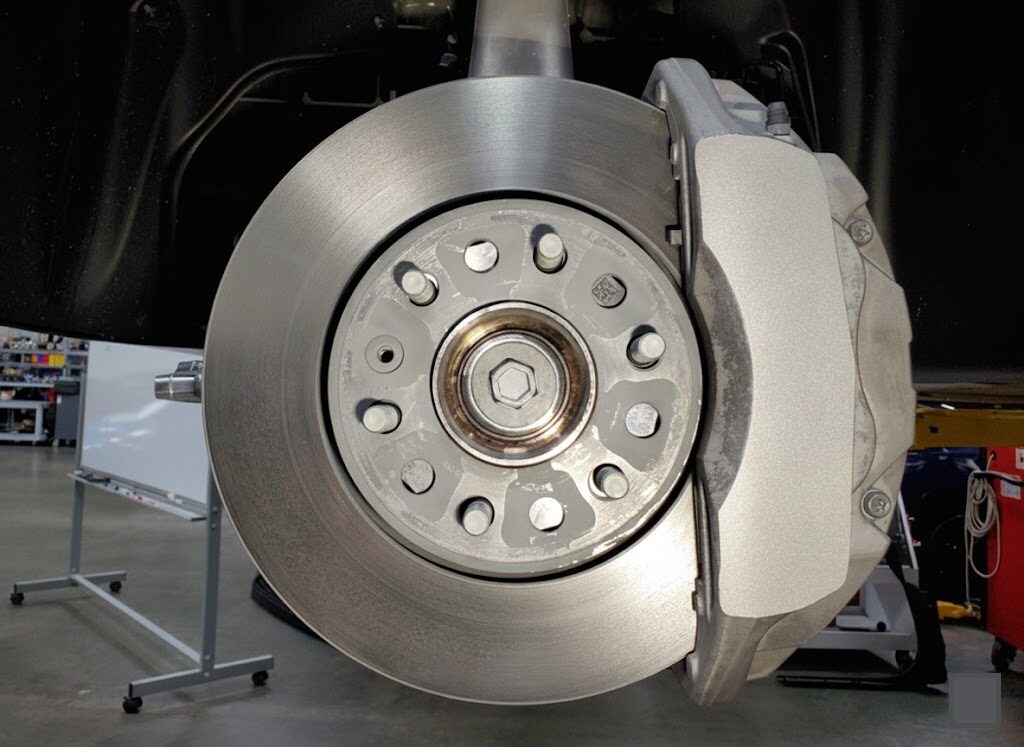

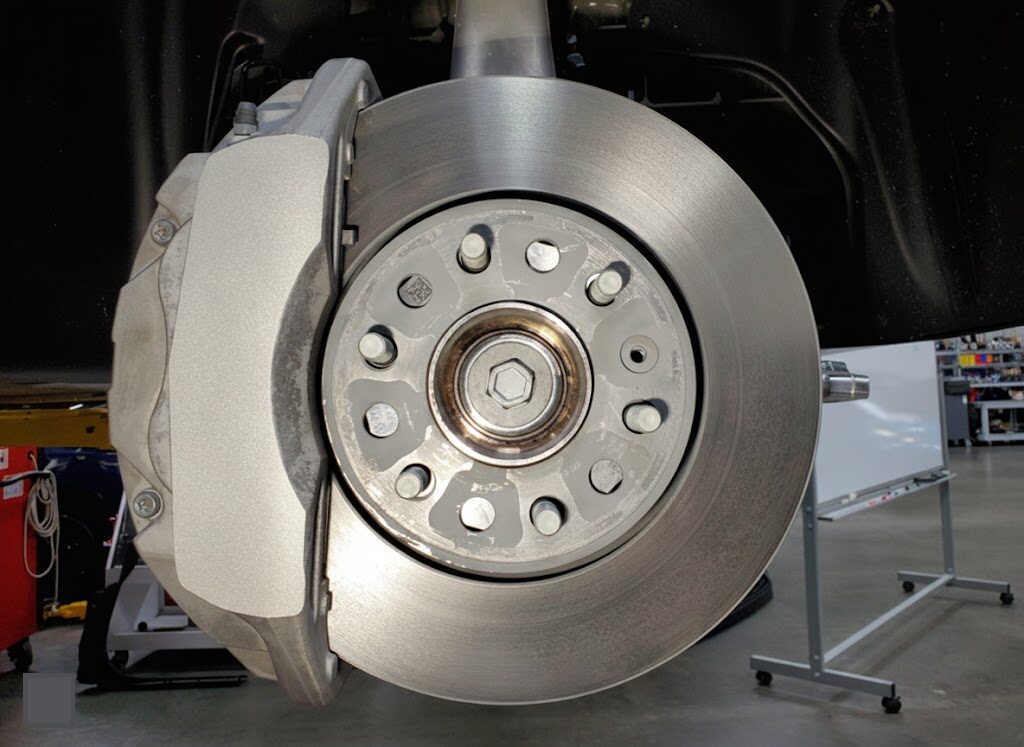

53. Inspect LH rear brake rotor condition
    Remarque

    Check for excessive rust or wear, Minimum spec 26mm



54. Record tread depth for RH rear tire
    Remarque

    Measure and record the outer, center, and inner tread depths, Measure the circumferential tire grooves only, Do not place the tire tread gauge probe on the molded treadwear indicators, Recommend replacement if tread depth is 4/32in (3mm) or less



55. Measure and record RH rear brake pad thickness
    Remarque

    Recommend replacement if 2 mm or less, Check both inboard and outboard pads



56. Inspect RH rear brake rotor condition
    Remarque

    Check for excessive rust or wear, Minimum spec 26mm

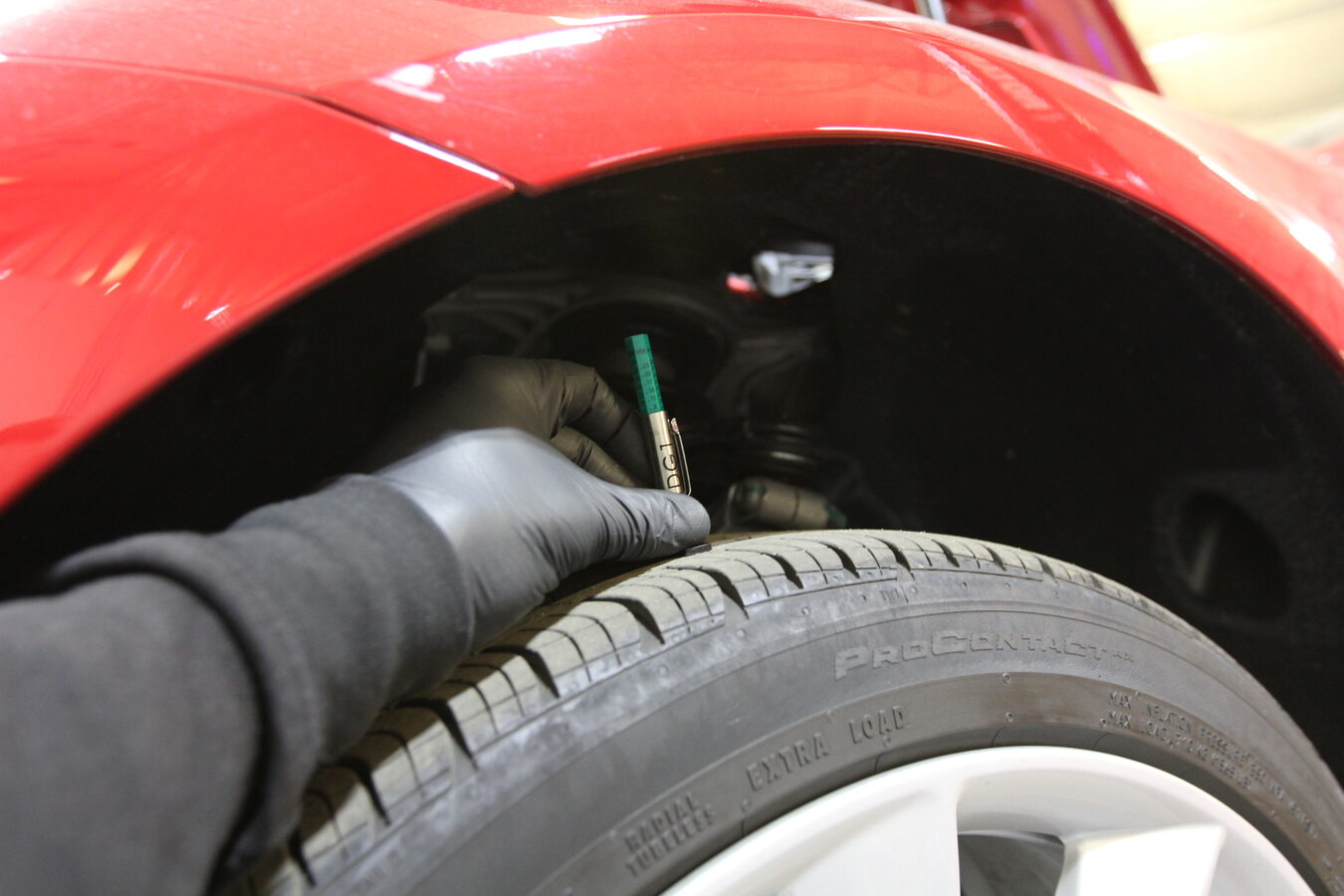

57. Record tread depth for RH front tire
    Remarque

    Measure and record the outer, center, and inner tread depths, Measure the circumferential tire grooves only, Do not place the tire tread gauge probe on the molded treadwear indicators, Recommend replacement if tread depth is 4/32in (3mm) or less



58. Measure and record RH front brake pad thickness
    Remarque

    Recommend replacement if 2mm or less, Check both inboard and outboard pads



59. Inspect RH front brake rotor condition
    Remarque

    Check for excessive rust or wear, Minimum spec 30mm



60. Record tread depth for LH front tire
    Remarque

    Measure and record the outer, center, and inner tread depths, Measure the circumferential tire grooves only, Do not place the tire tread gauge probe on the molded treadwear indicators, Recommend replacement if tread depth is 4/32in (3mm) or less



61. Measure and record LH front brake pad thickness
    Remarque

    Recommend replacement if 2mm or less, Check both inboard and outboard pads



62. Inspect LH front brake rotor condition
    Remarque

    Check for excessive rust or wear, Minimum spec 30mm

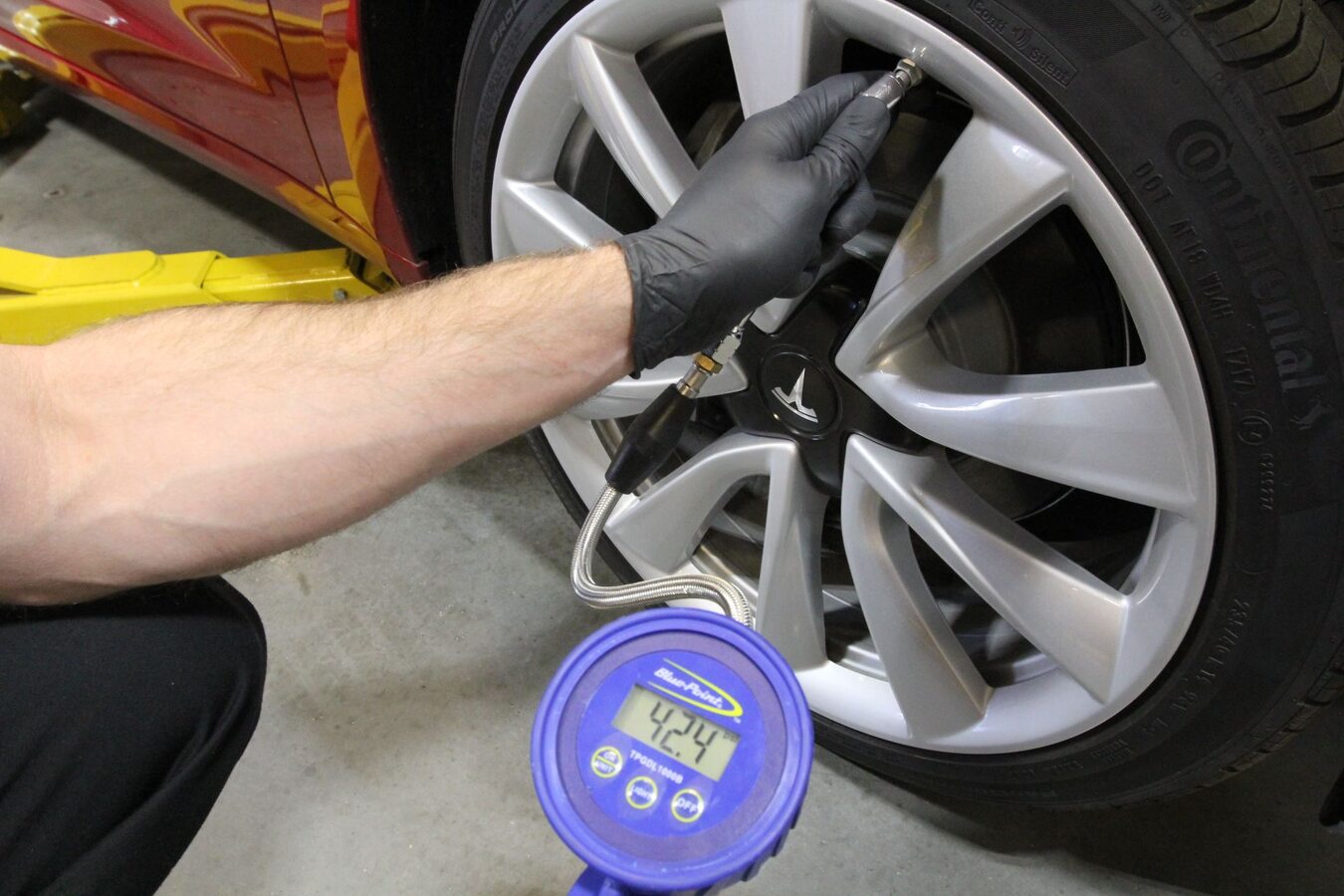

63. Check all four tire pressures manually
    Remarque

    4x tires, Set to specification if necessary, Refer to the "Tire and Loading Information" label located on the driver side B-pillar, Inspect wheels and tires for any bulges or damage while checking/setting pressures



64. Raise vehicle fully and lower lift onto locks
    Remarque

    Set vehicle to comfortable working height, Make sure there's an audible click of locks on both sides before lowering, otherwise vehicle may tilt to side

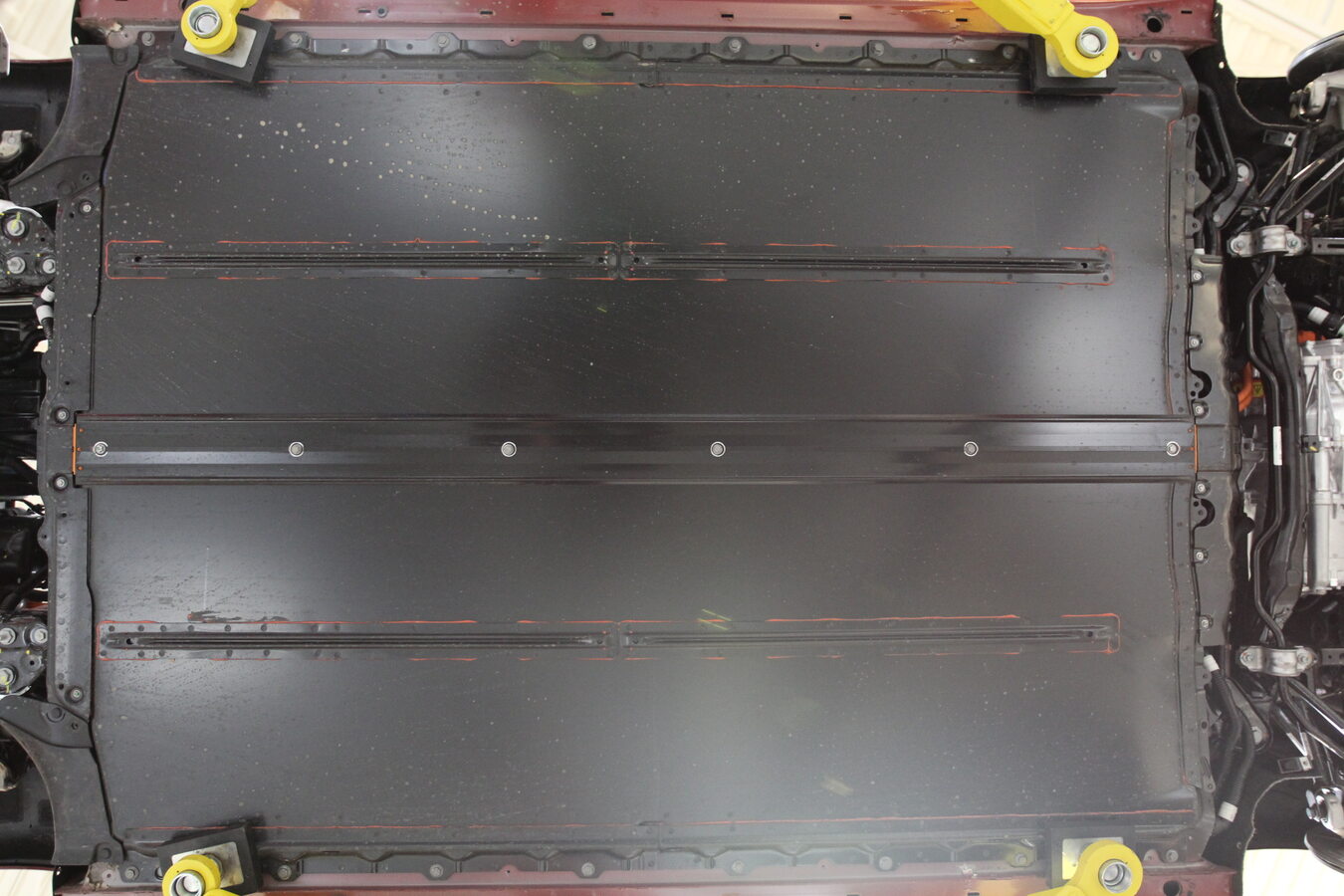

65. Perform visual inspection of HV battery enclosure
    Remarque

    Check for any dents, scrapes, or other damage

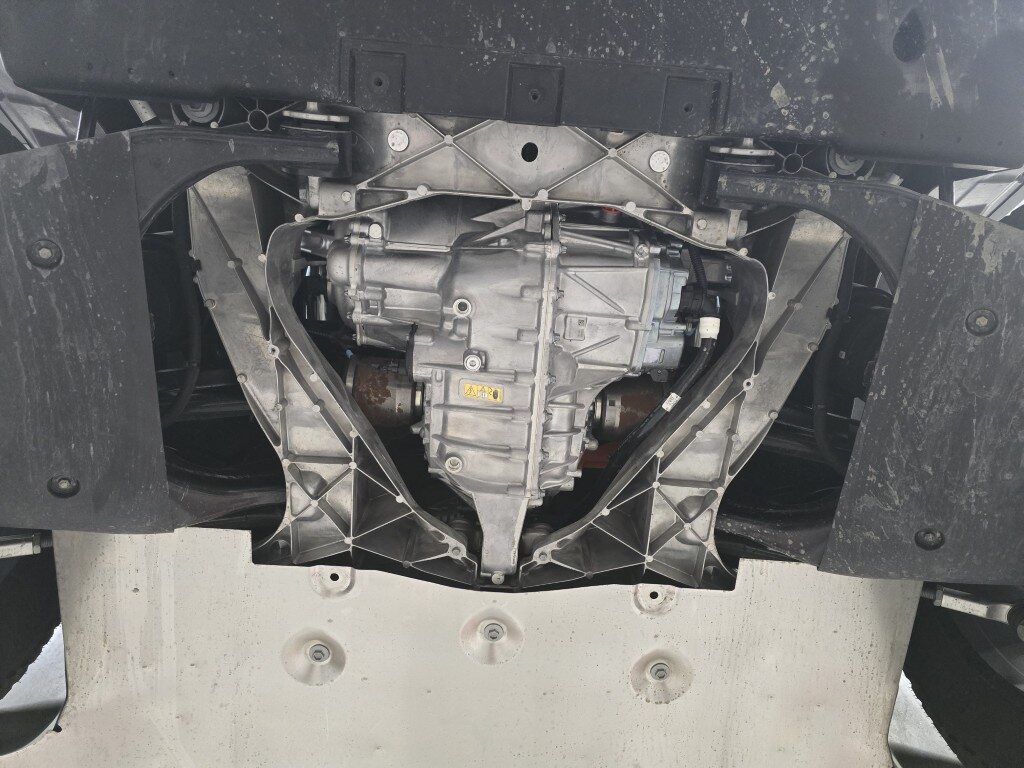

66. Remove front aero shield
    Remarque

    11x bolts, 10mm, 6 Nm



67. Remove front skid plate
    Remarque

    8x nuts, 15mm, 50 Nm, 2x bolts, 11mm, 50 Nm



68. Remove rear skid plate
    Remarque

    6x clips, 3x bolts, 15mm, 42 Nm, 5x bolts, 13mm, 28 Nm, 2x bolts, 10mm, 6 Nm











69. Remove rear aeroshield
    Remarque

    7x bolts, 10mm, 6 Nm, Slide out from under mid aeroshield



70. Remove rear aero shield
    Remarque

    5x bolts, 10mm, 6 Nm, 2x guides

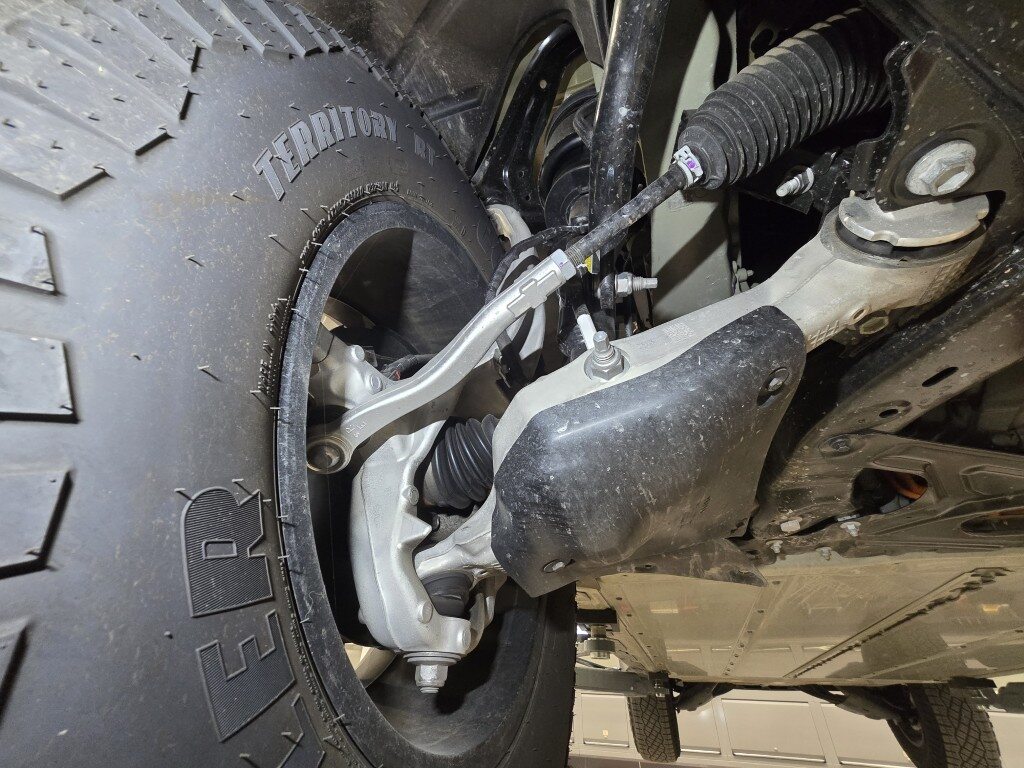

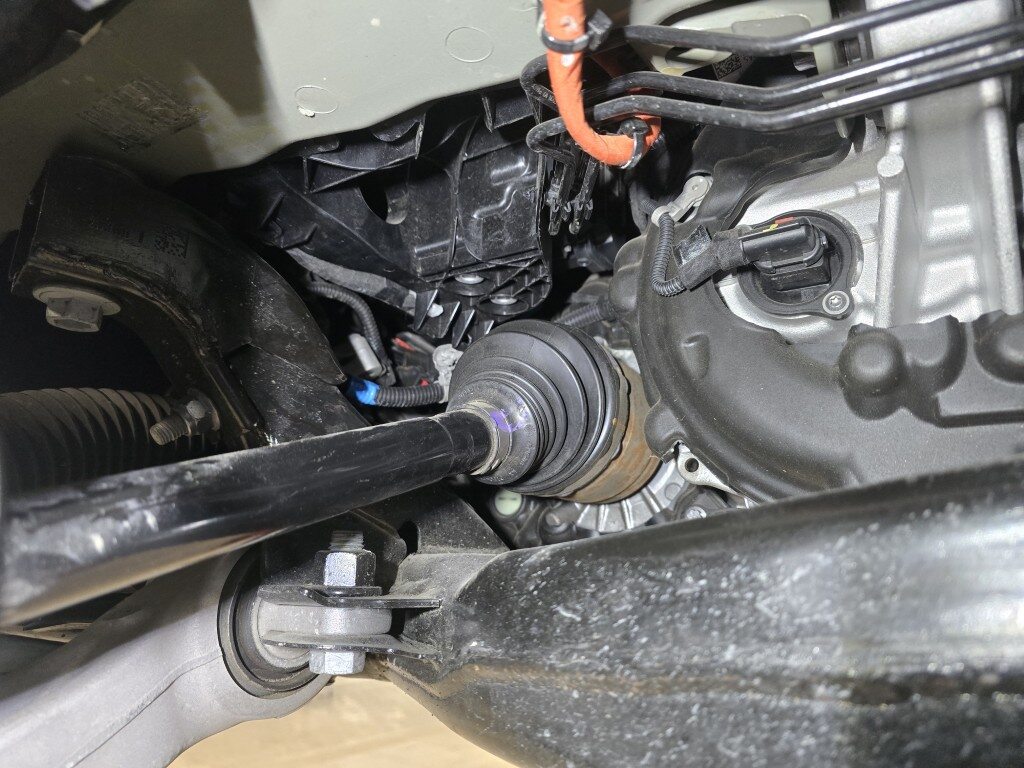

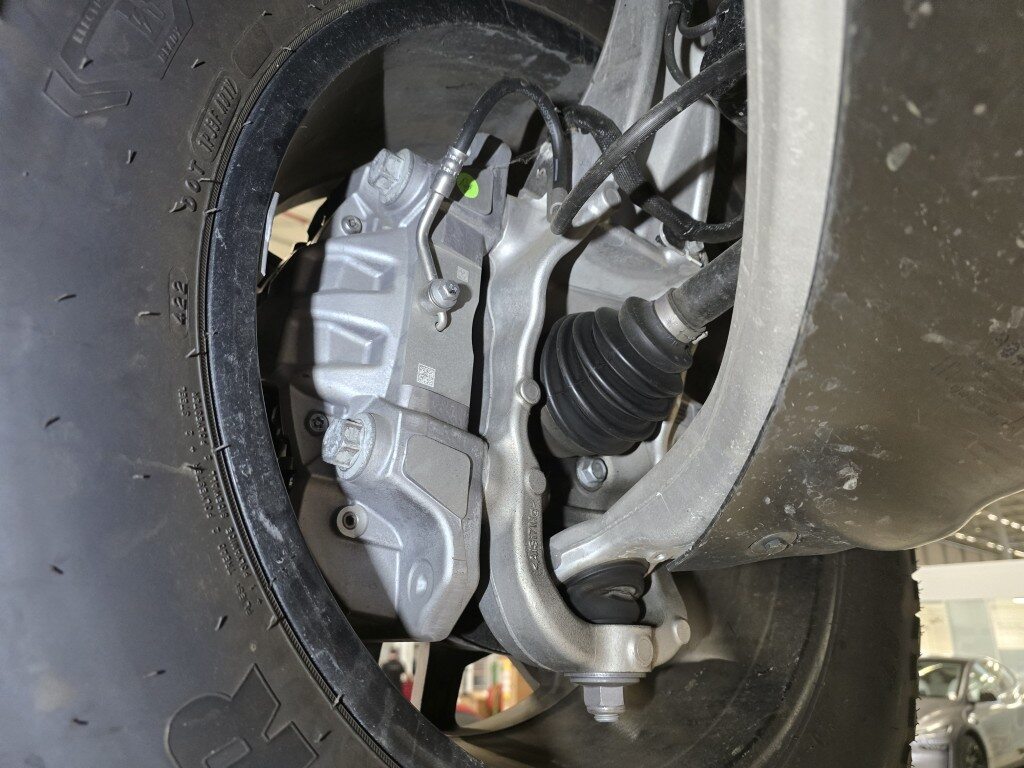

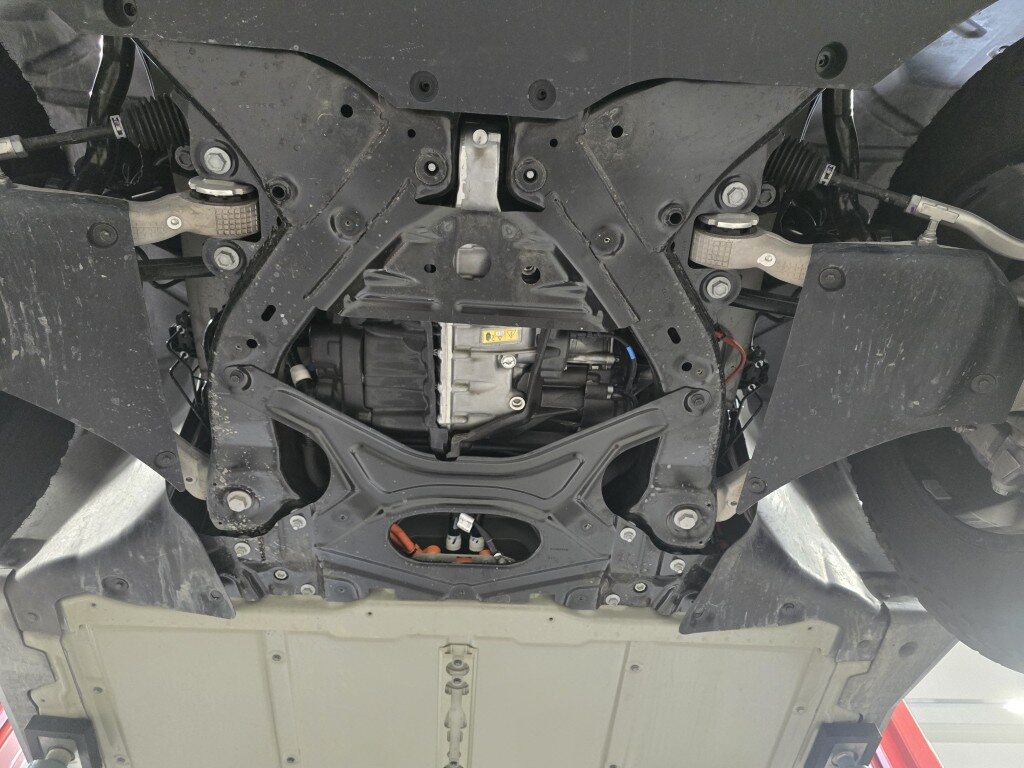

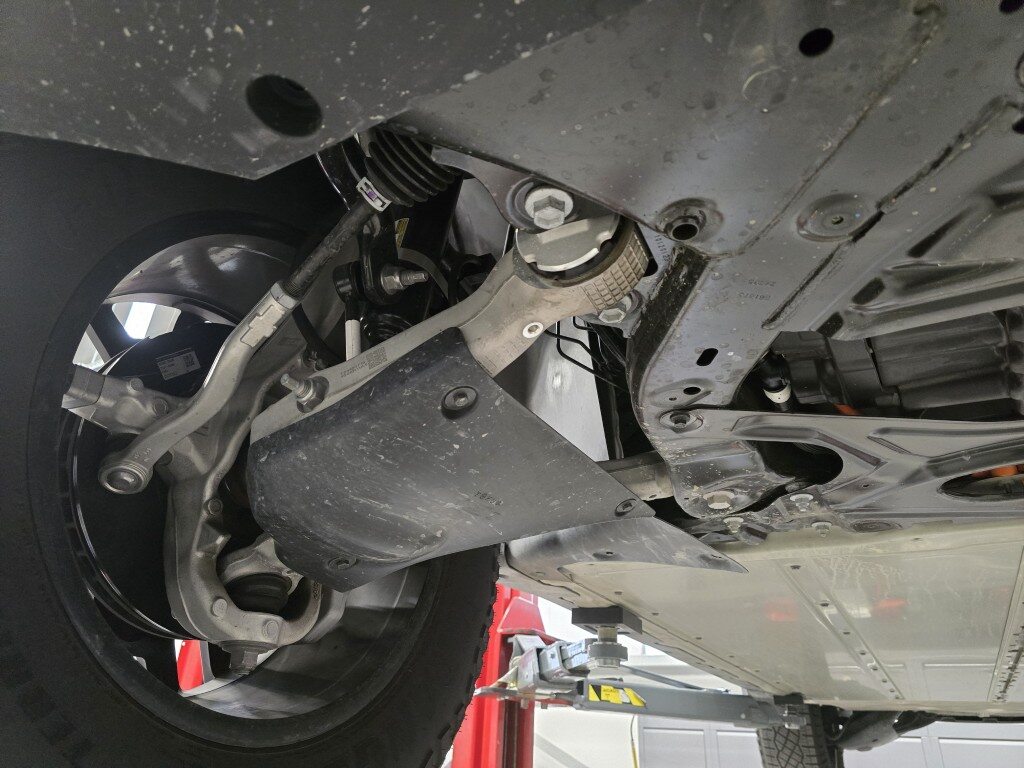

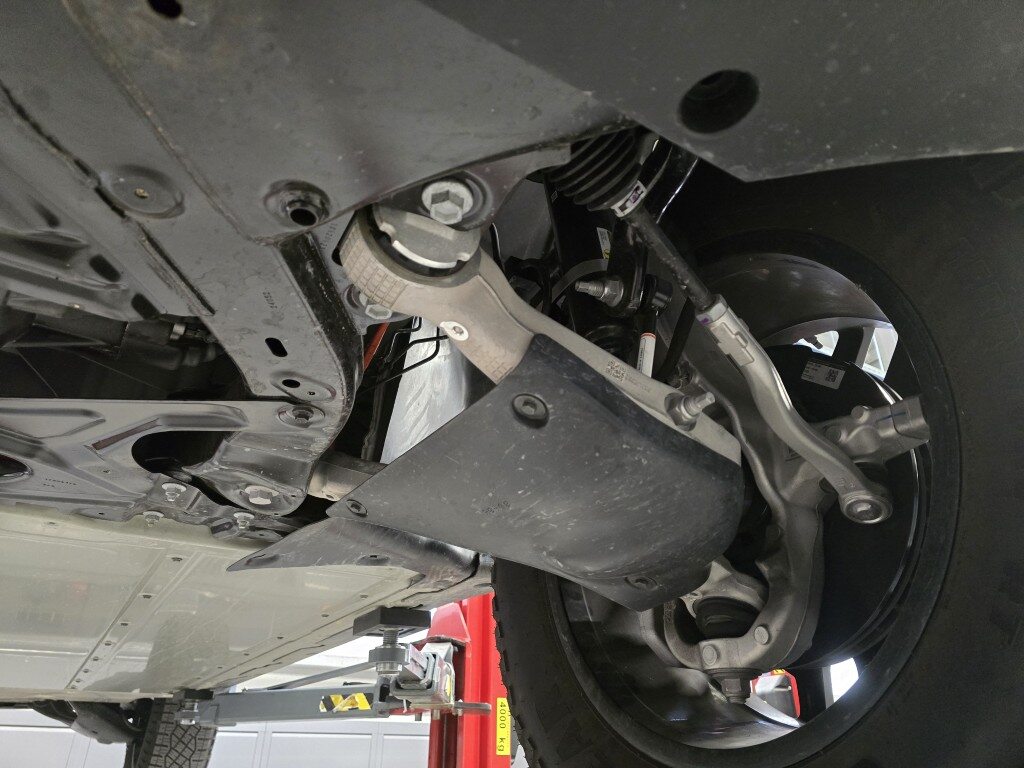

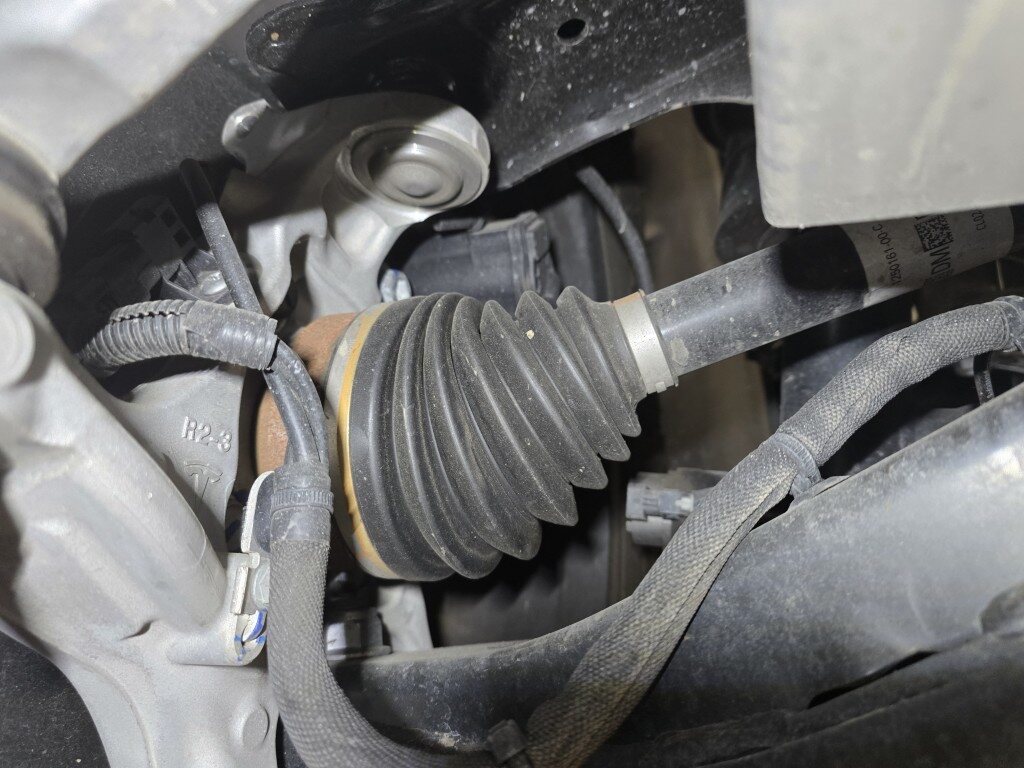

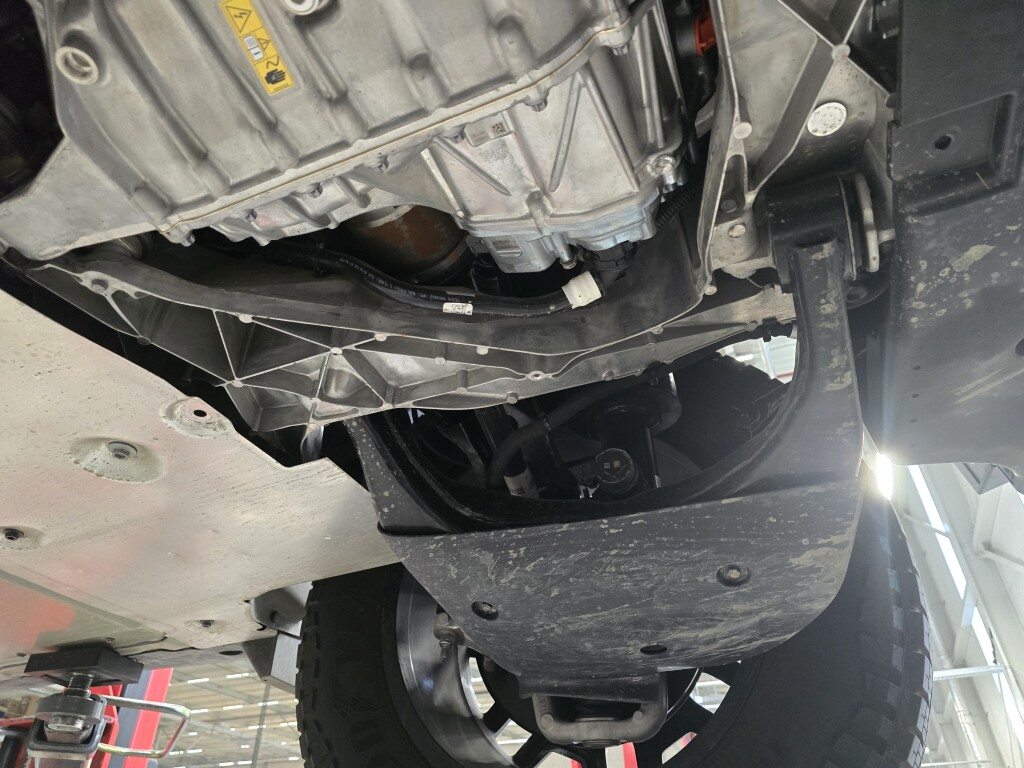

71. Perform inspection of suspension components
    Remarque

    Check conditions of ball joints and bushings, etc, Inspect for any loose fasteners, Carefully apply pressure with a pry bar as needed

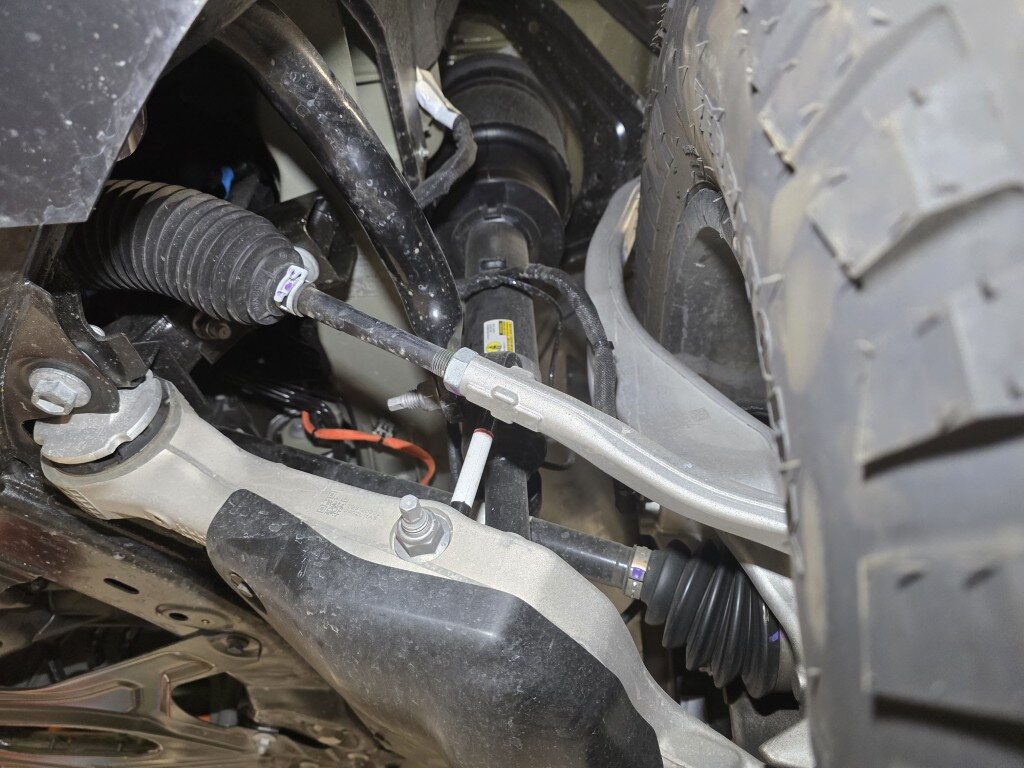

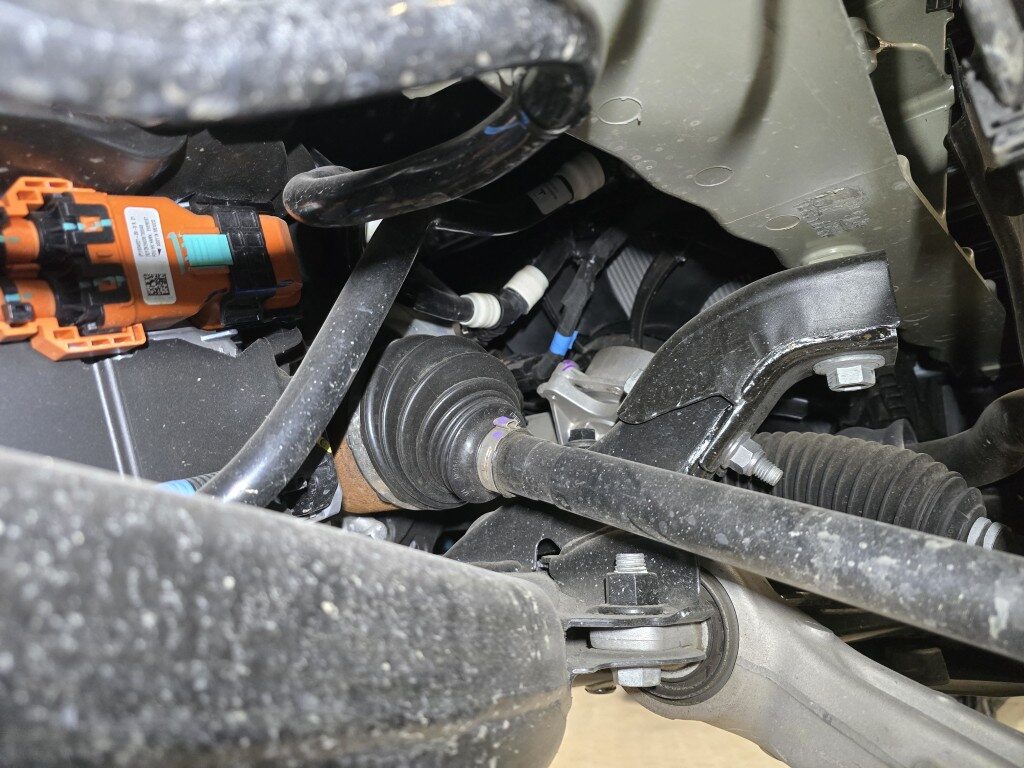

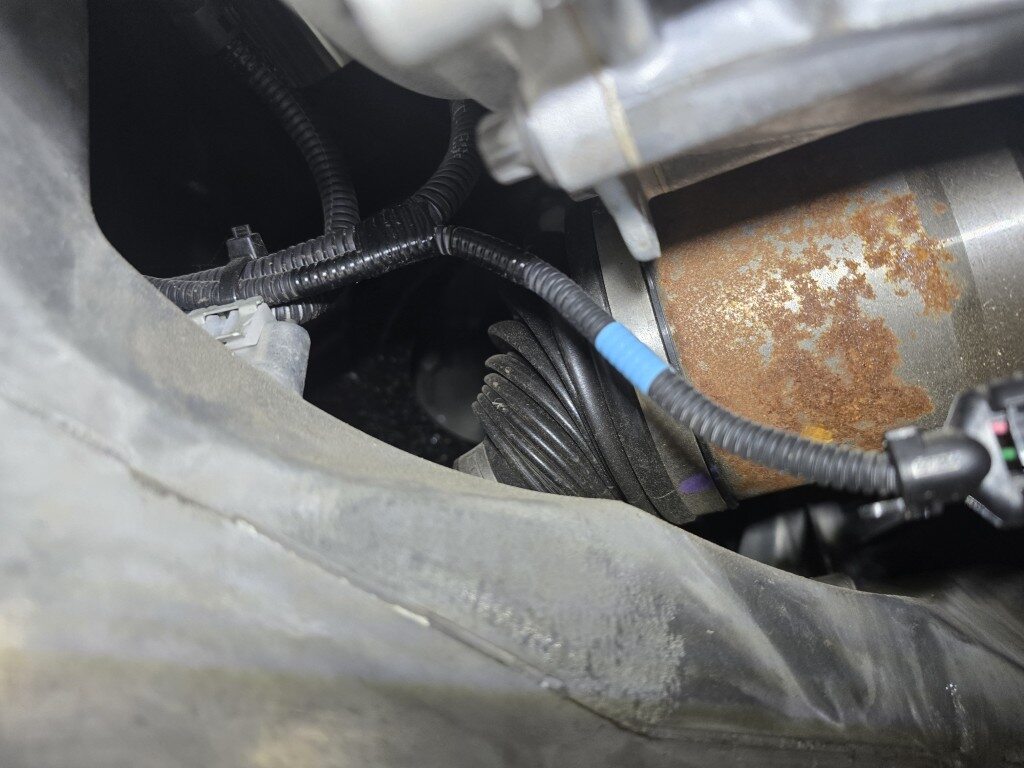

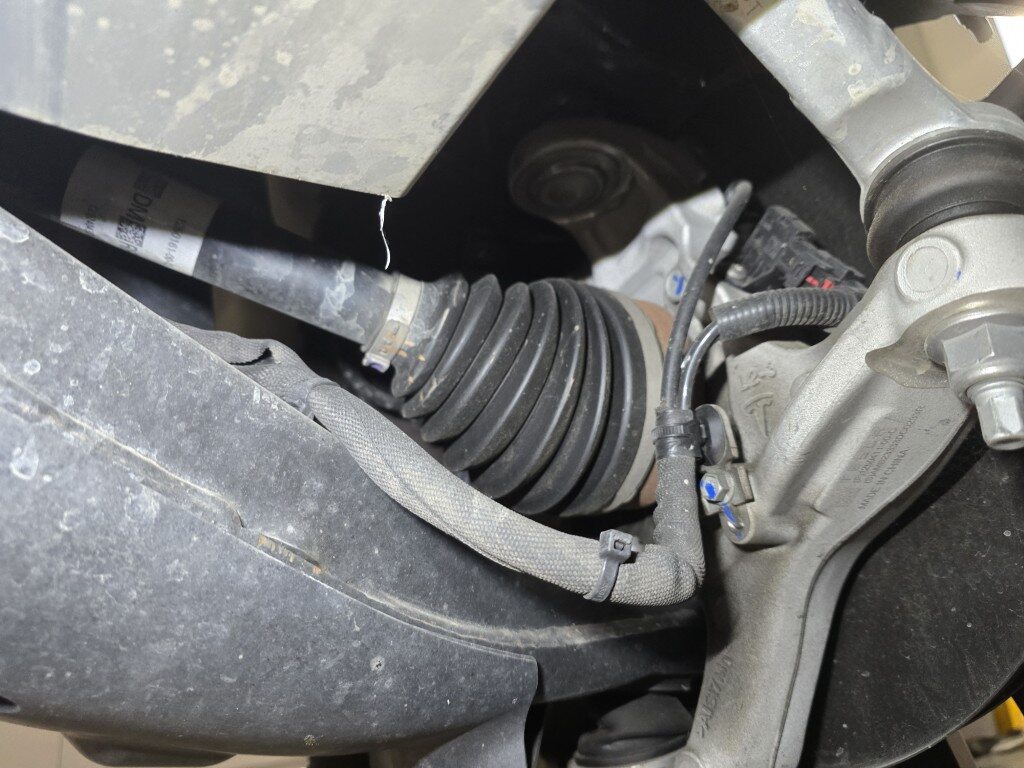

72. Perform inspection of steering components
    Remarque

    Check steering gear joints and electrical connections, Verify components are not bent or damaged







73. Perform visual inspection of underside of vehicle for any coolant leaks
    Remarque

    Pay special attention to hose connection points

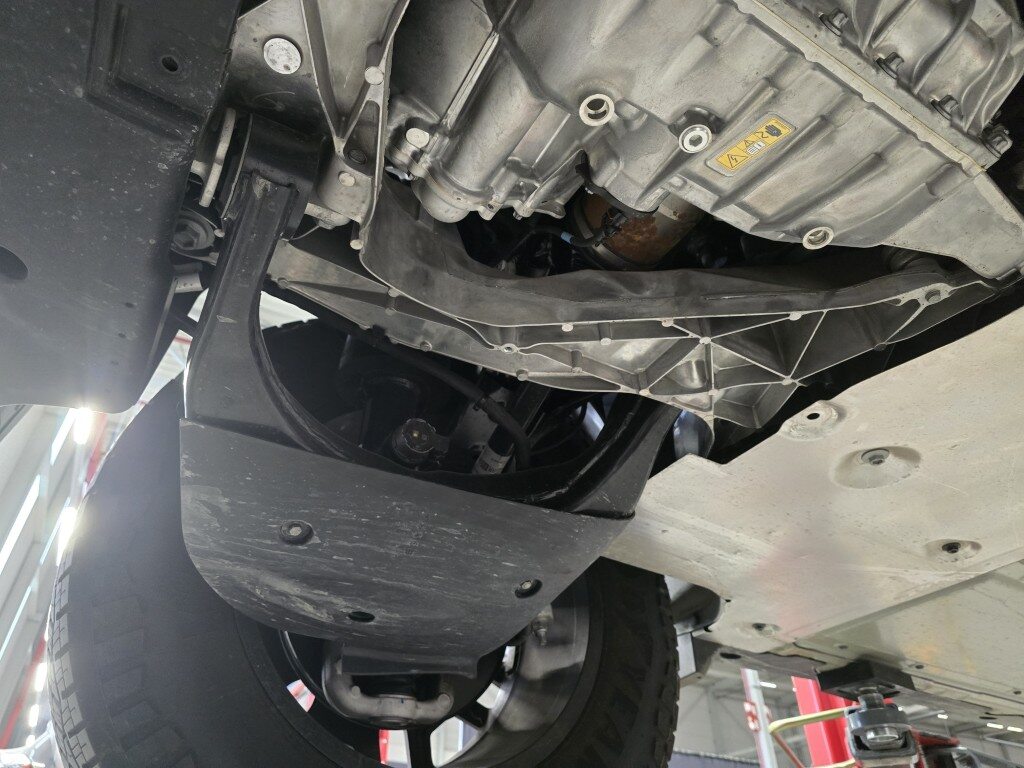

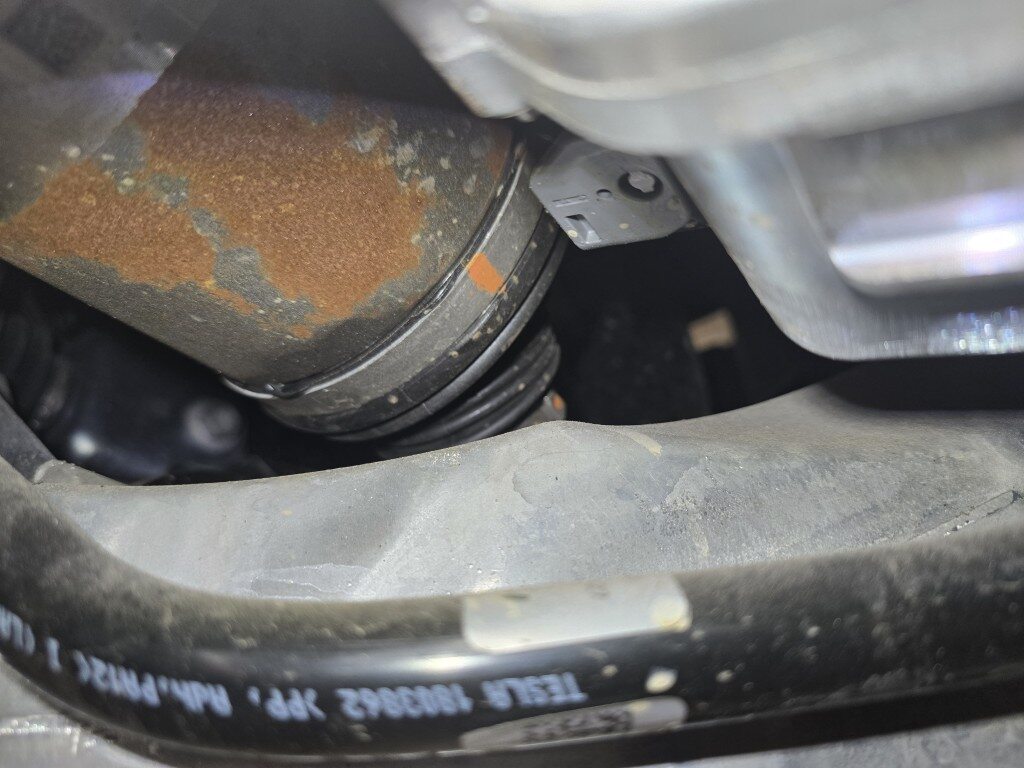

74. Perform inspection of vehicle underside components front and rear
    Remarque

    Perform inspection of vehicle underside front and rear, Check for signs of abnormal damage, wear, heavy rust, wiring damage, or impact damage, Pay attention to safety related component and note any items of significance













75. Install rear aeroshield
    Remarque

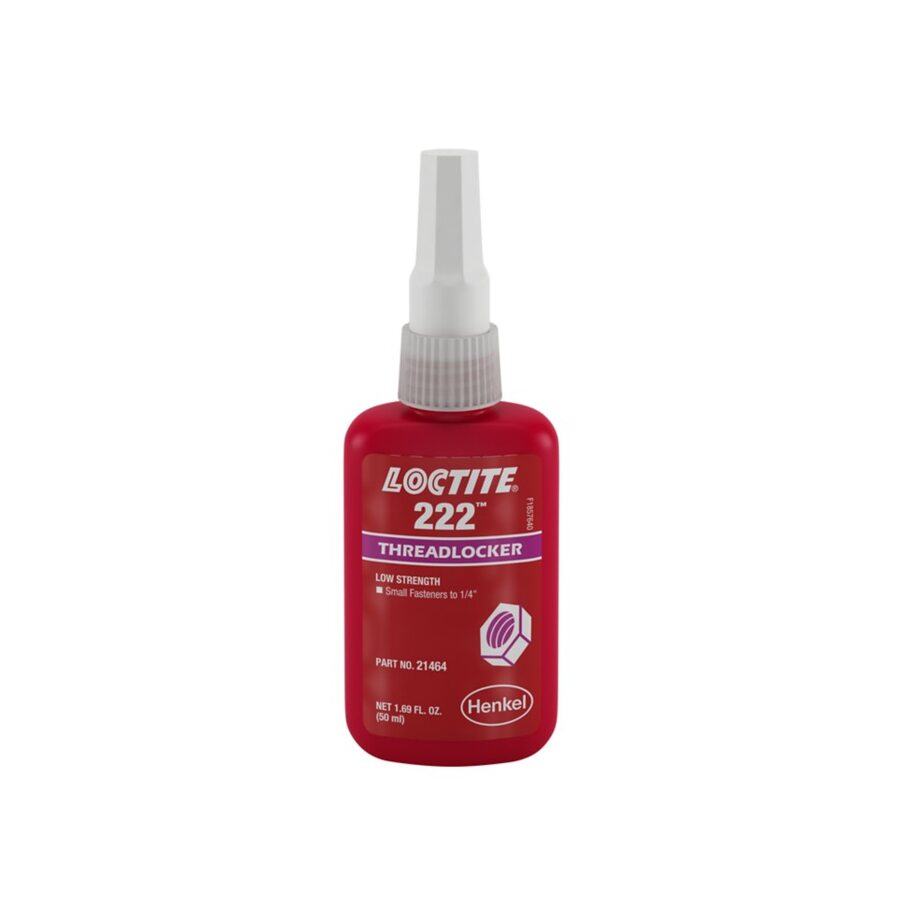

    7x bolts, 10mm, 6 Nm, Slide under mid aeroshield, Apply Loctite 222 onto mid aeroshield bolts and install fasteners





76. Install rear aero shield
    Remarque

    5x bolts, 10mm, 6 Nm, 2x guides





77. Install rear skid plate
    Remarque

    6x clips, 3x bolts, 15mm, 42 Nm, 5x bolts, 13mm, 28 Nm, 2x bolts, 10mm, 6 Nm, Apply Loctite 222 to mid aero shield bolts and install fasteners













78. Install front aero shield
    Remarque

    11x bolts, 10mm, 6 Nm, Apply loctite 222 to aeroshield fasteners

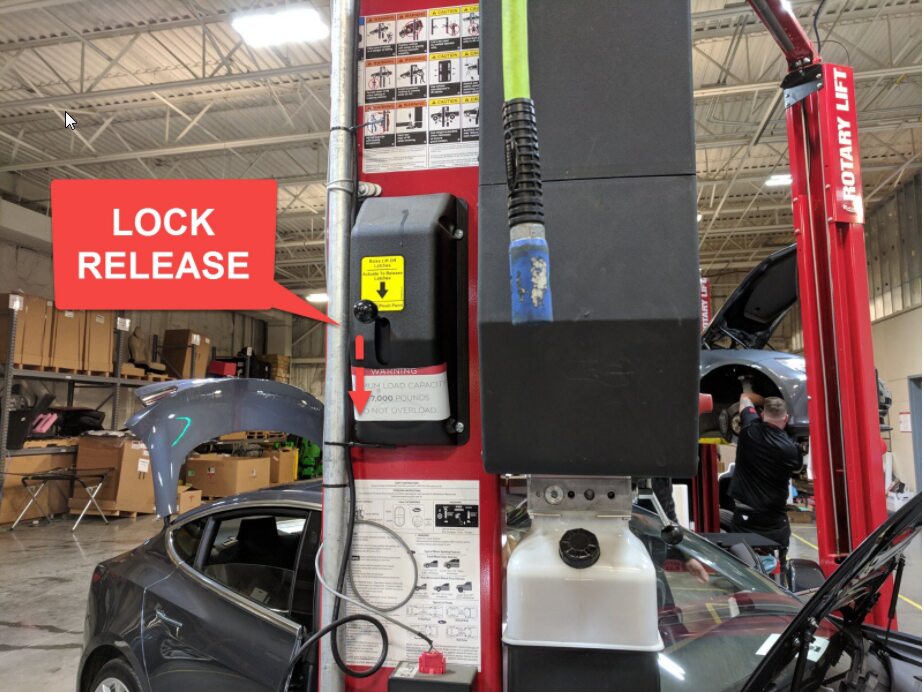

79. Lower vehicle partially and set onto locks
    Remarque

    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered, Set vehicle to comfortable working height





80. Install LH front wheel
    Remarque

    6x nuts, 21mm, 205 Nm



81. Install RH front wheel
    Remarque

    6x nuts, 21mm, 205 Nm



82. Install RH rear wheel
    Remarque

    6x nuts, 21mm, 205 Nm



83. Install LH rear wheel
    Remarque

    6x nuts, 21mm, 205 Nm



84. Lower vehicle until tires are touching the ground
    Remarque

    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered





85. Torque RH front wheel nuts
    Remarque

    6x nuts, 21mm, 205 Nm, Use star pattern



86. Torque LH front wheel nuts
    Remarque

    6x nuts, 21mm, 205 Nm, Use star pattern



87. Torque LH rear wheel nuts
    Remarque

    6x nuts, 21mm, 205 Nm, Use star pattern



88. Torque RH rear wheel nuts
    Remarque

    6x nuts, 21mm, 205 Nm, Use star pattern



89. Install RH rear wheel cap
    Remarque

    1x cap, 8x clips, Partially secure wheel cap to wheel, While partially installed wheel cover can be rotated to align with tire design, When aligned press inward from center of cap then secure all clips to mounting ring







90. Install LH rear wheel cap
    Remarque

    1x cap, 8x clips, Partially secure wheel cap to wheel, While partially installed wheel cover can be rotated to align with tire design, When aligned press inward from center of cap then secure all clips to mounting ring







91. Install LH front wheel cap
    Remarque

    1x cap, 8x clips, Partially secure wheel cap to wheel, While partially installed wheel cover can be rotated to align with tire design, When aligned press inward from center of cap then secure all clips to mounting ring







92. Install RH front wheel cap
    Remarque

    1x cap, 8x clips, Partially secure wheel cap to wheel, While partially installed wheel cover can be rotated to align with tire design, When aligned press inward from center of cap then secure all clips to mounting ring







93. Remove vehicle from lift
    Remarque

    Lower rack arms fully and remove them from under vehicle,



94. Install frunk assembly
    Remarque

    6x bolts, 10mm, 12 Nm, 2x bolt caps, 2x bumpstops, 1x connector, Install bolt covers to frunk floor, Install washer fluid cap, Install bumpstops by aligning tabs then turning clockwise, Ensure emergency frunk release functions



















95. Install rear underhood apron
    Remarque

    9x clips, Adjust windshield seal as required





96. Close powered front trunk
    Remarque

    Via exterior switch or UI



97. Exécutez la routine ODIN PROC_ICE_X_ENTER-SERVICE-MODEvia Toolbox: (link)

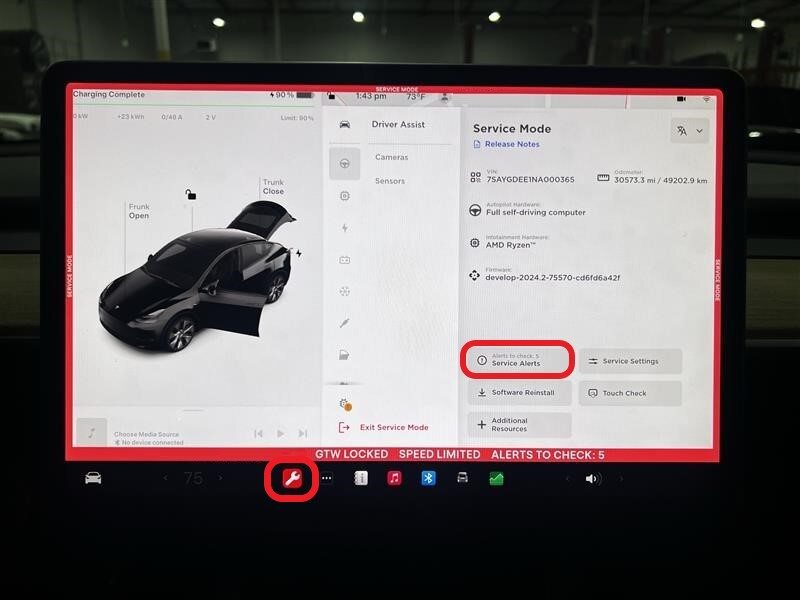

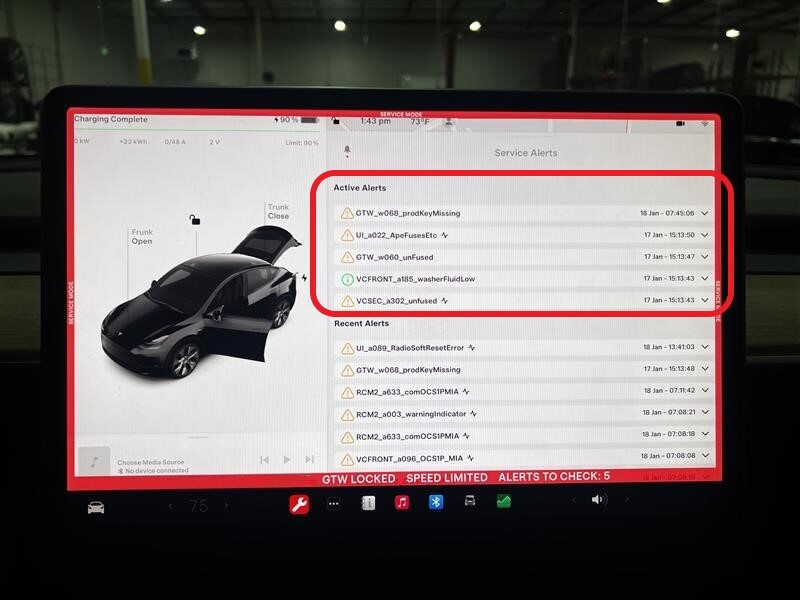

98. Check for active alerts
    Remarque

    Check alert using UI via service mode > active alerts" to "Check alerts using UI via Service Mode > Service Alerts > Active Alerts

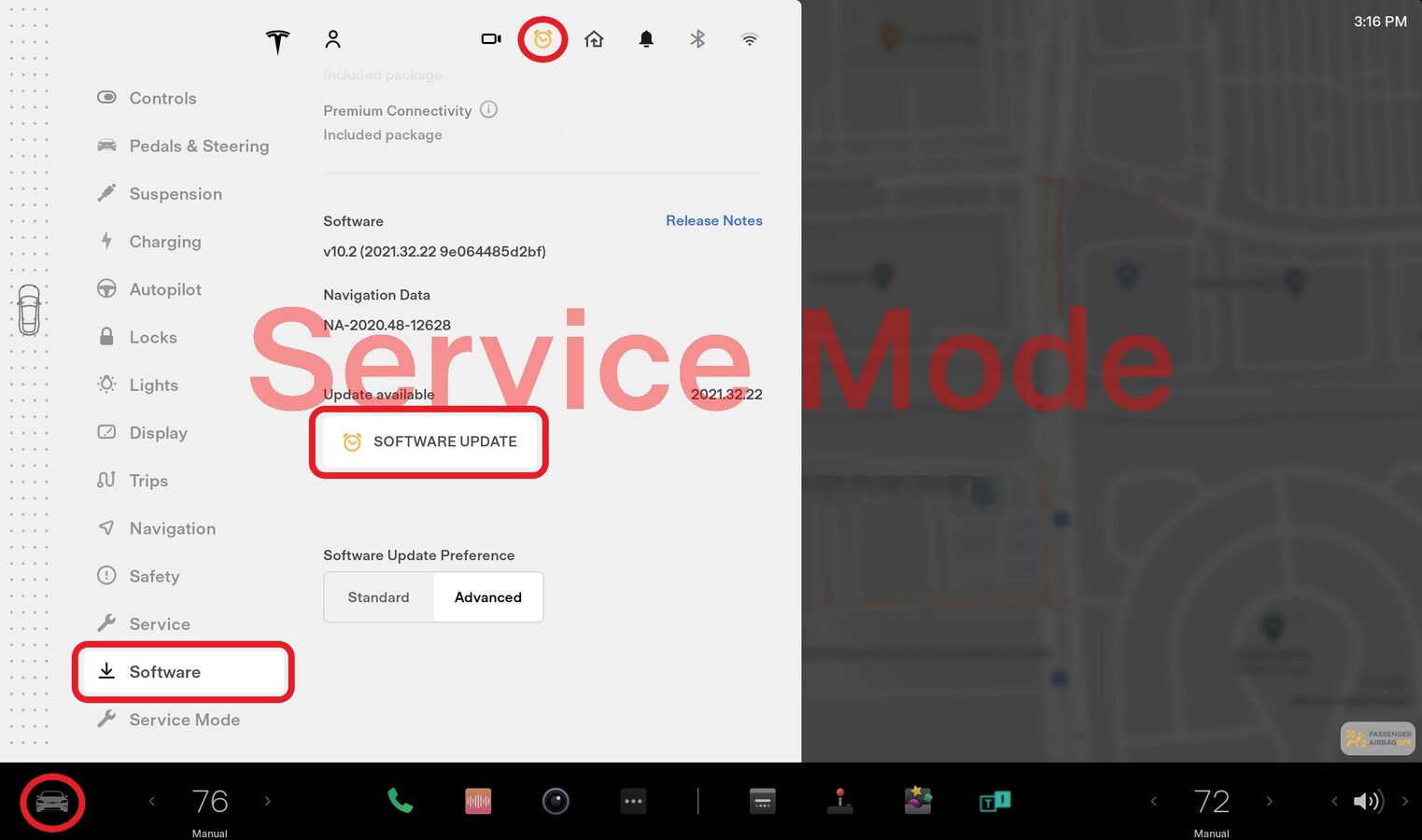

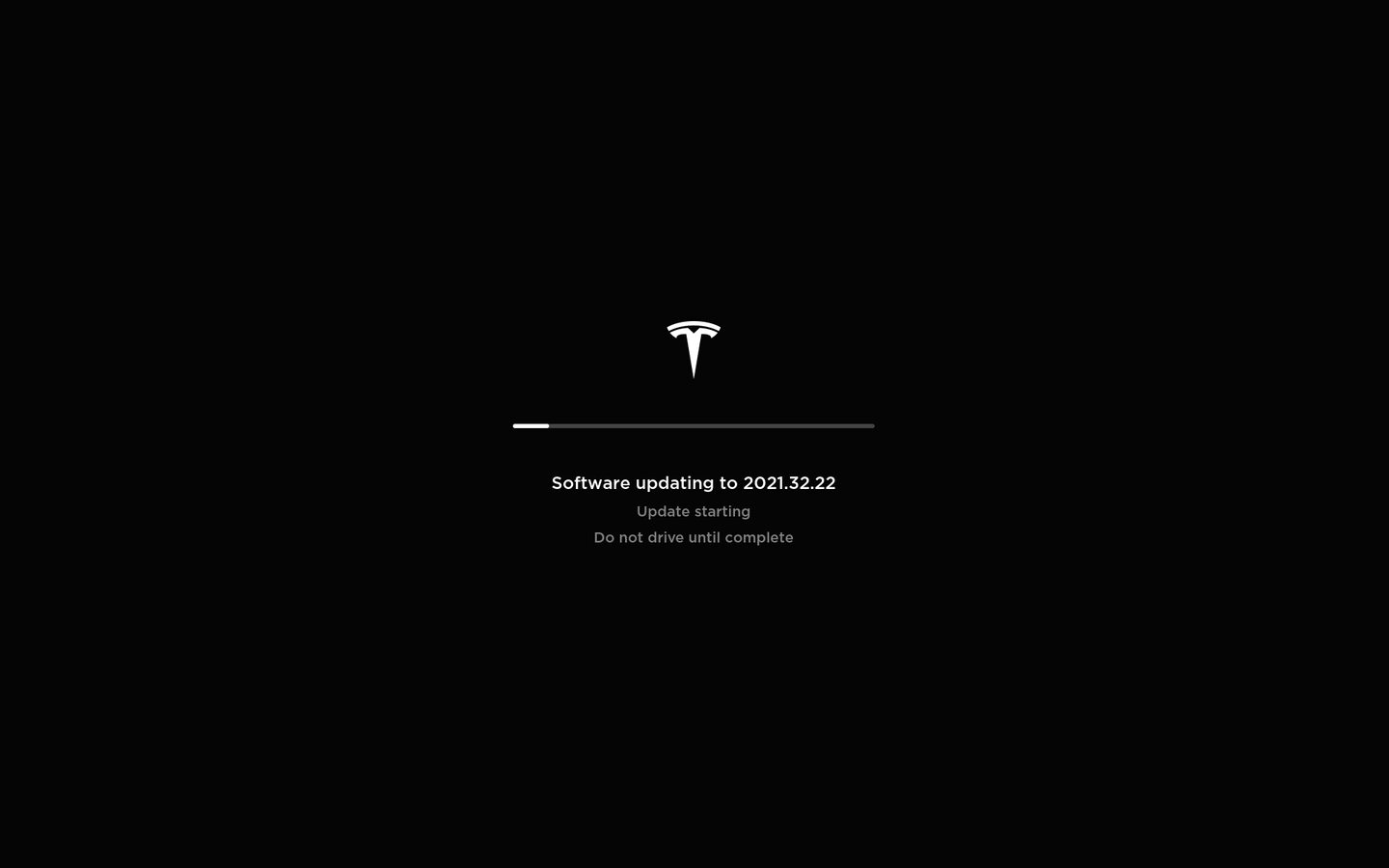

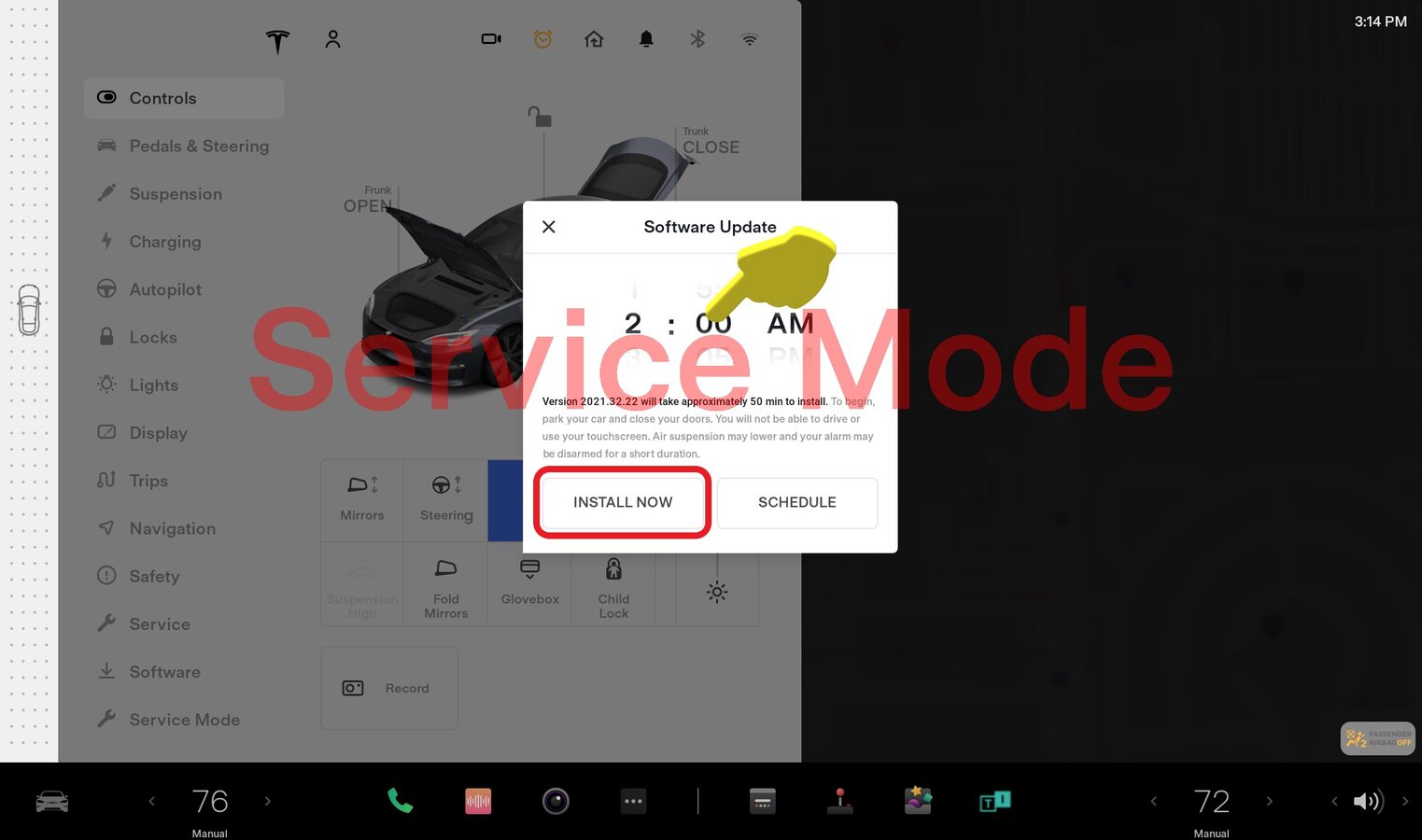

99. Update vehicle firmware if available
    Remarque

    Select the clock on the center display, or go to the Software tab, then select install now to start firmware update. Select Install Now, Tap count down timer until clock runs down to 0, Check the center display and ensure the firmware package is installing

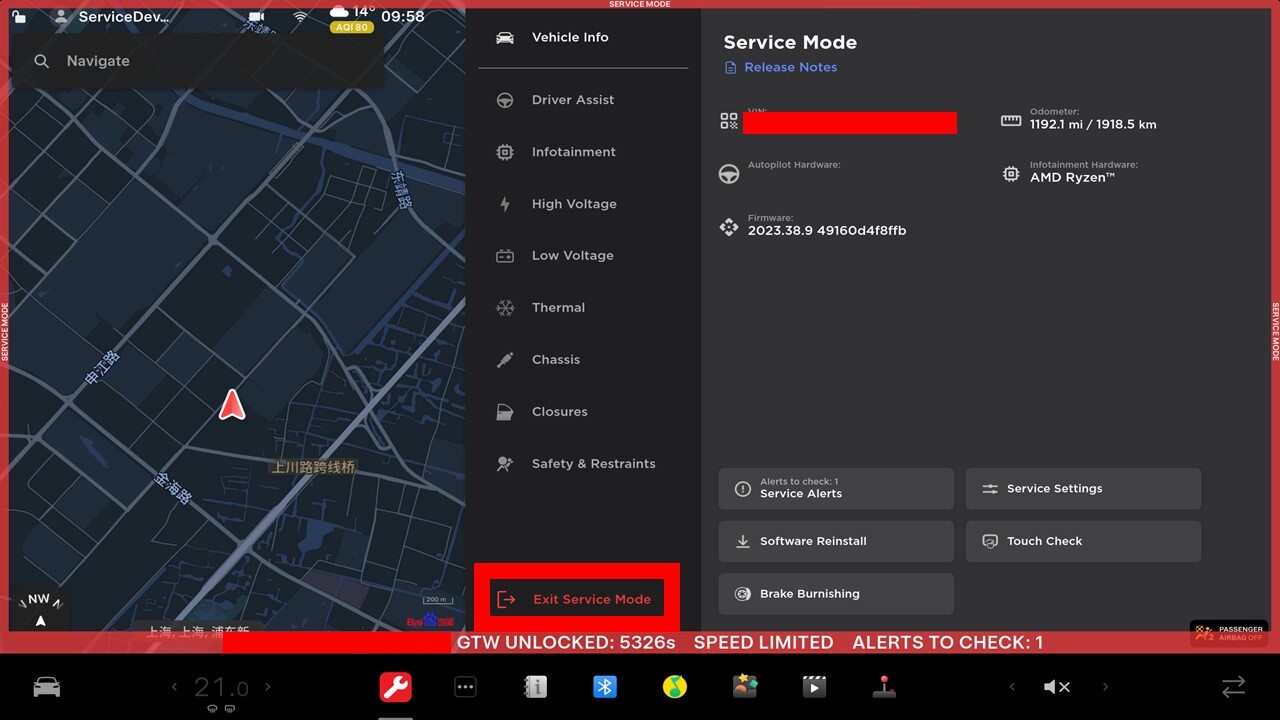

100. Exit Service Mode through UI
     Remarque

     Press and hold the Exit Service Mode button for 3 seconds
