Door - Front - LH (Remove and Replace)

Code de correction 1010025022 1010025032 0.90 REMARQUE : À moins d’indications explicites contraires dans la procédure, le code de correction et le temps forfaitaire ci-dessus représentent tout le travail à être fait pour cette procédure, notamment les procédures connexes. N’appliquez pas plusieurs codes de correction à la fois, à moins qu’il vous soit explicitement indiqué de le faire. REMARQUE : Consultez Temps forfaitaires pour en apprendre plus à propos des temps forfaitaires et de leur création. Vous pouvez transmettre par courriel vos commentaires relatifs aux valeurs des temps forfaitaires à ServiceManualFeedback@tesla.com. REMARQUE : Consultez Protection individuelle pour vous assurer de porter l’équipement de protection individuelle adéquat lors vous effectuez la procédure ci-dessous. Voir Précautions ergonomiques pour consulter les pratiques de travail sécuritaires et saines.

  • 2025-08-28: Added link to door panel procedure which includes steps for door panel rework.
Warning IconA warning icon, calling your attention to a possibly risky situation
Avertissement
Cette procédure est une PREMIÈRE VERSION. Bien qu'elle ait été validée, des avertissements et des mises en garde pourraient manquer. Respectez les exigences de sécurité et faites preuve d’une extrême prudence lorsque vous travaillez sur ou près des systèmes et des composants haute tension. Transmettez toute correction ou remarque à ServiceDevelopment@teslamotors.com.
Warning IconA warning icon, calling your attention to a possibly risky situation
Avertissement
Les composants électroniques du Cybertruck sont alimentés par une architecture  moyenne tension » ou « MT » de 48 V conçue pour améliorer l'efficacité. L'entretien des composants MT nécessite des connaissances et des soins supplémentaires afin d'éviter tout dommage corporel ou au véhicule. Lisez et comprenez les précautions relatives à la MT dans Précautions en électricité et assurez-vous que tous les cours de formation requis liés à la MT ont été suivis, le cas échéant.
  1. Ouvrez la porte avant côté gauche.
  2. Lower all 4 windows
  3. Ouvrez le coffre avant électrique.
  4. Exécutez la routine ODIN PROC_ICE_X_ENTER-SERVICE-MODEvia Toolbox: (link)
  5. Relevez la glace avant côté gauche.
  6. Manually latch LH front door
  7. Remove the LH front door panel beltline assembly. See Beltline Assembly - Door Panel - Front - LH (Remove and Install).
  8. Remove bolts securing LH front door trim
    Informational PurposesAn informational icon, calling your attention
    Remarque
    3x bolts, 8mm, 7 Nm

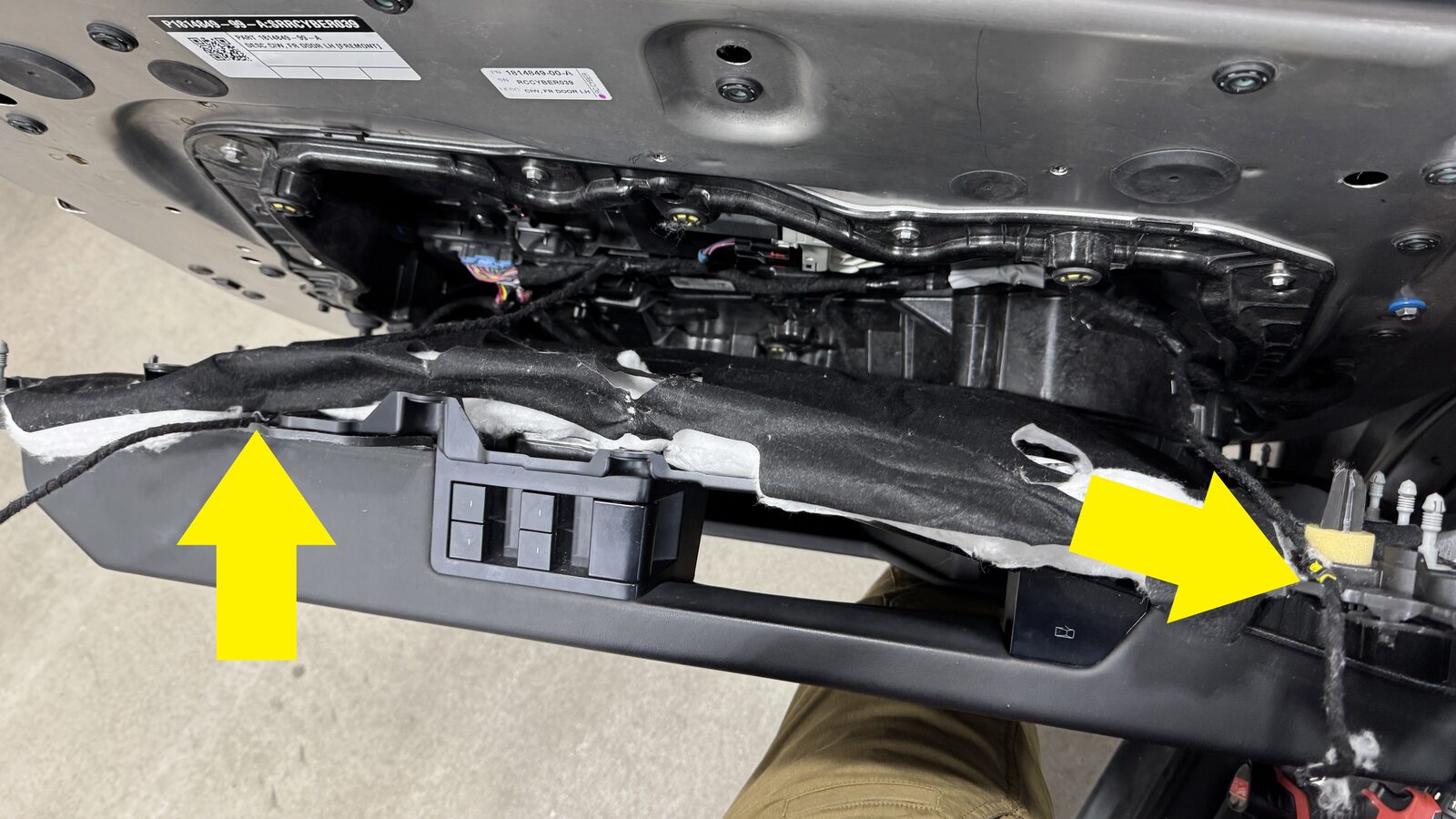

  9. Release LH front door trim
    Informational PurposesAn informational icon, calling your attention
    Remarque
    14x clips, 2x harness guides, 1x connector, 1x manual release cable, Release beltline trim harness from harness guides, Release manual release cable lock then rotate to release cable end

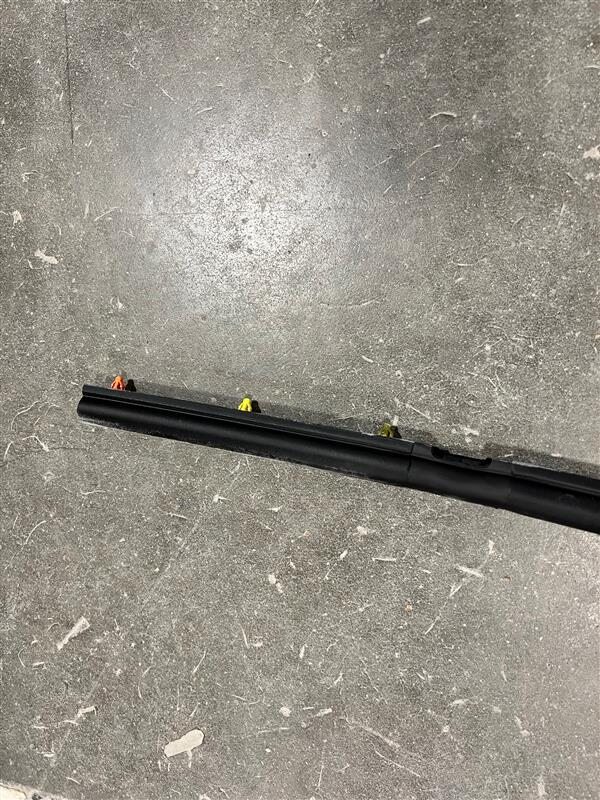

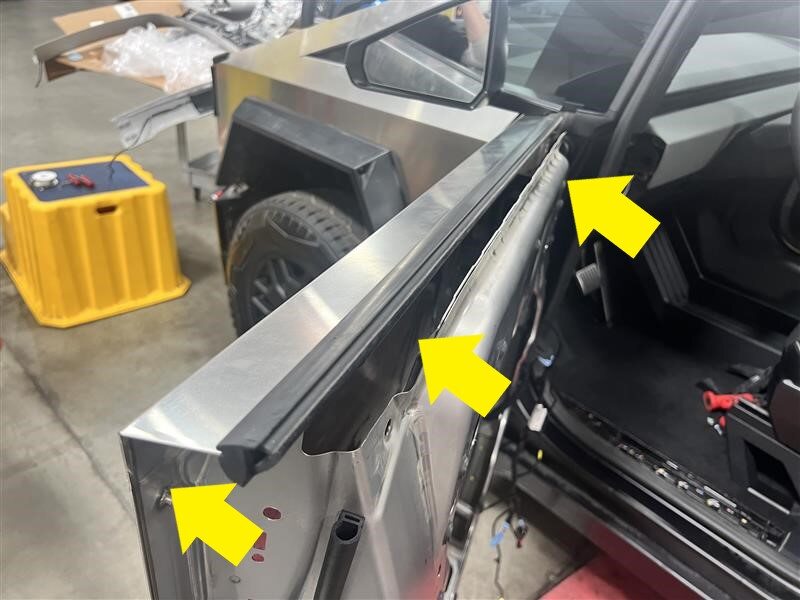

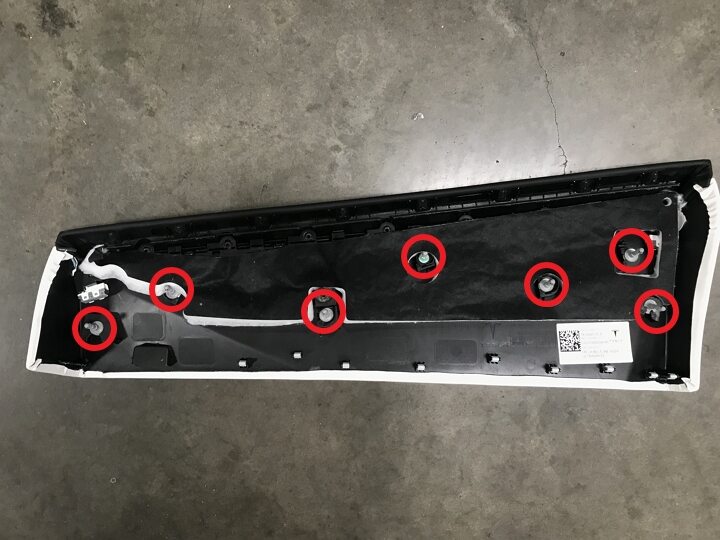

  10. Remove LH front inner waist belt seal
    Informational PurposesAn informational icon, calling your attention
    Remarque
    6x rubber datums

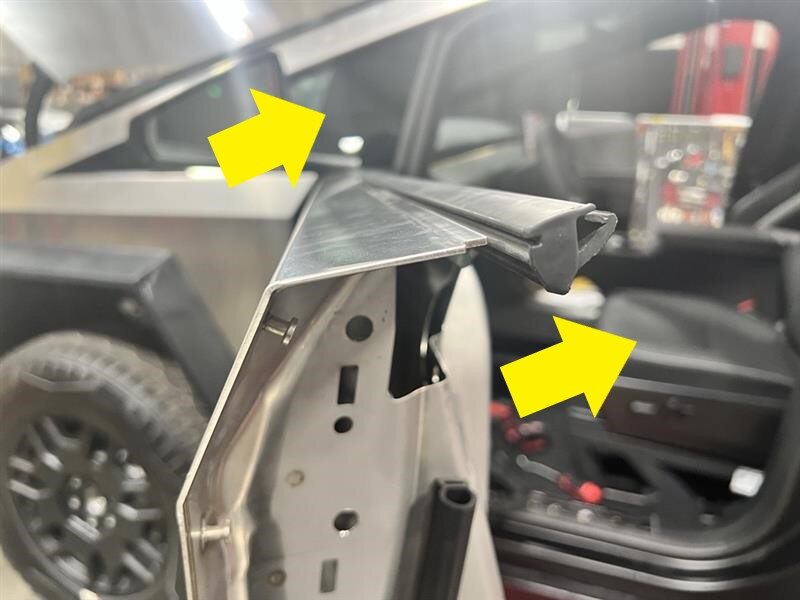

  11. Remove LH front outer waist belt seal
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Pull inwards

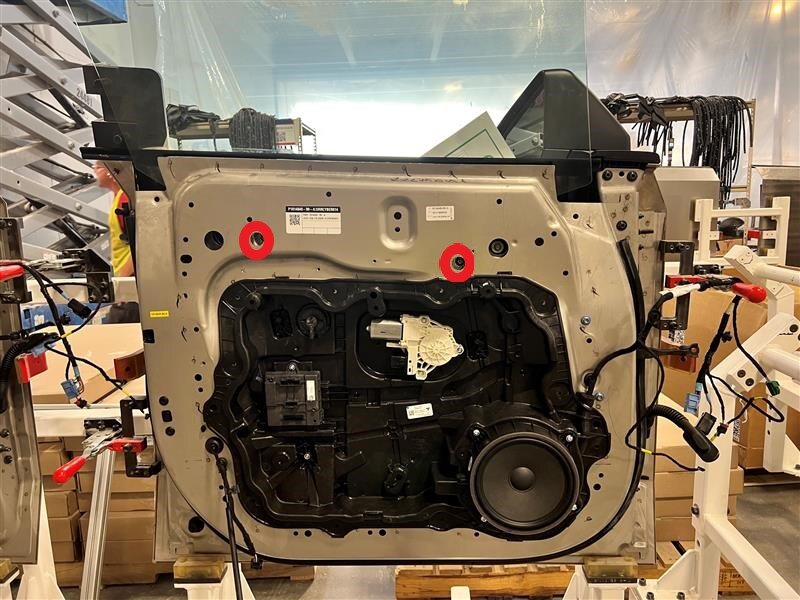

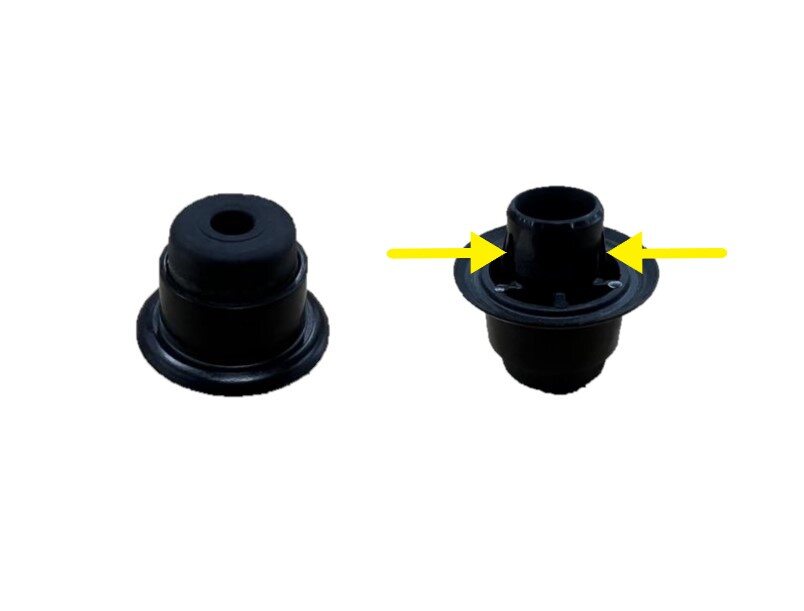

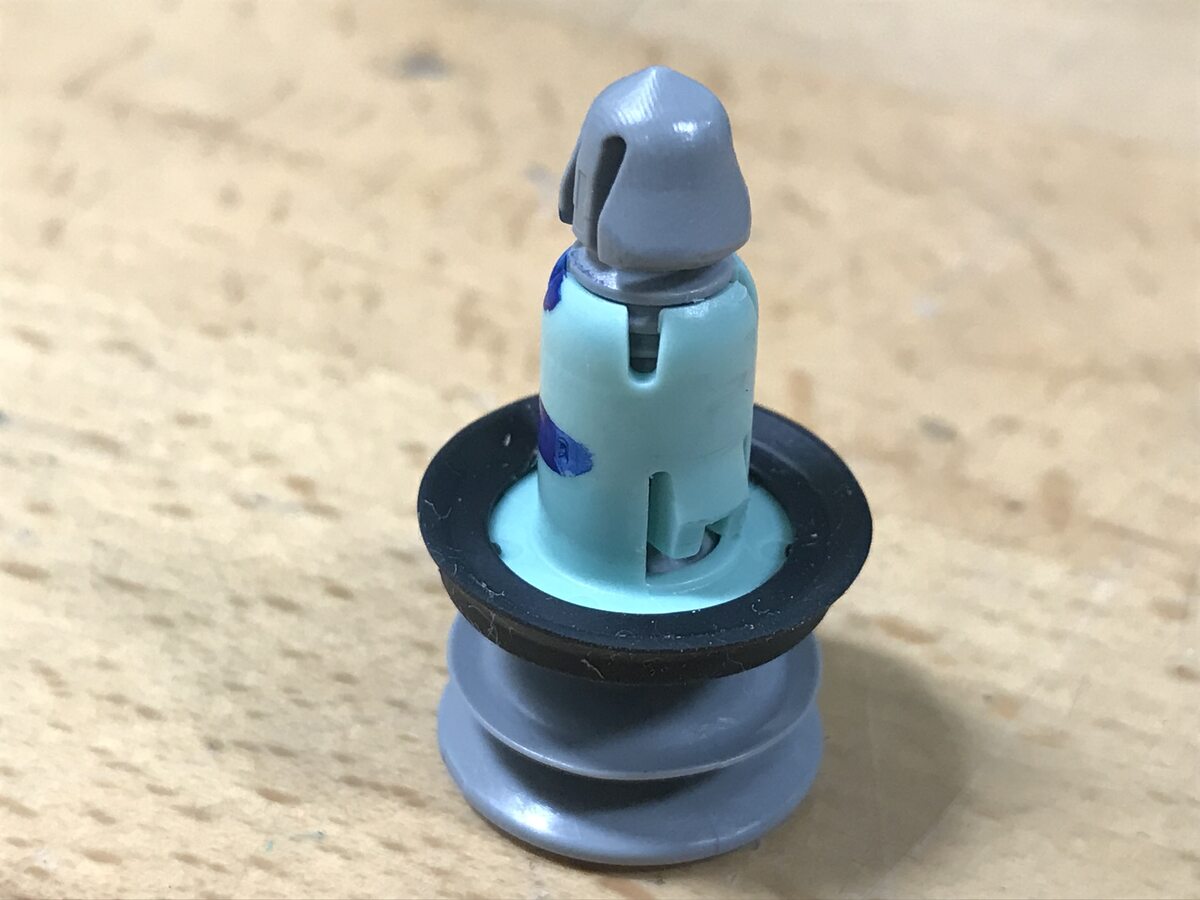

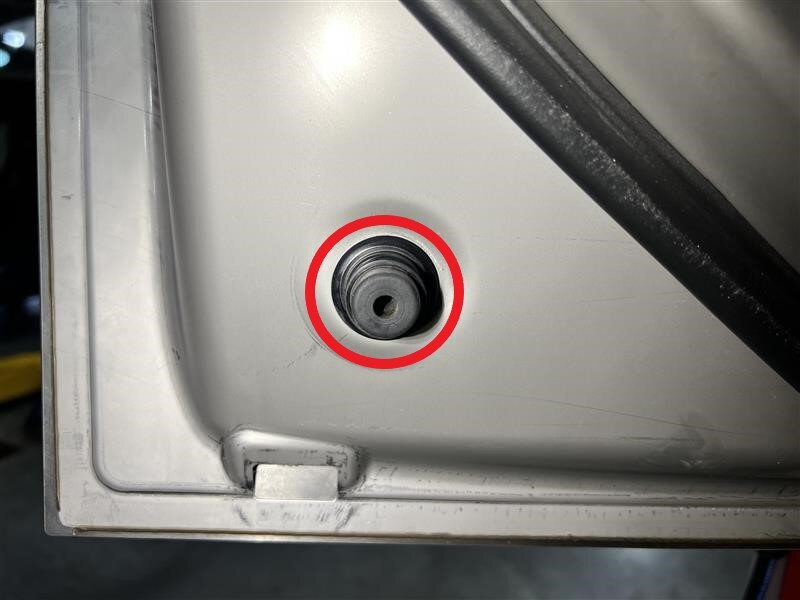

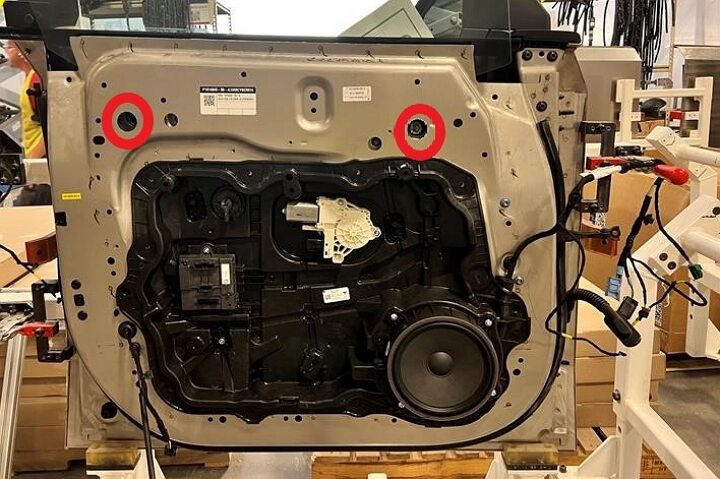

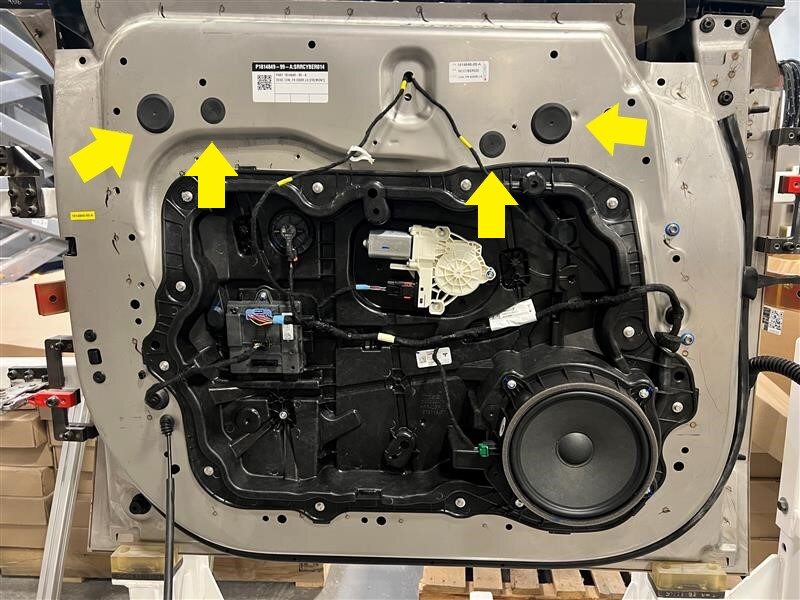

  12. Remove LH front door grommets
    Informational PurposesAn informational icon, calling your attention
    Remarque
    4x grommets

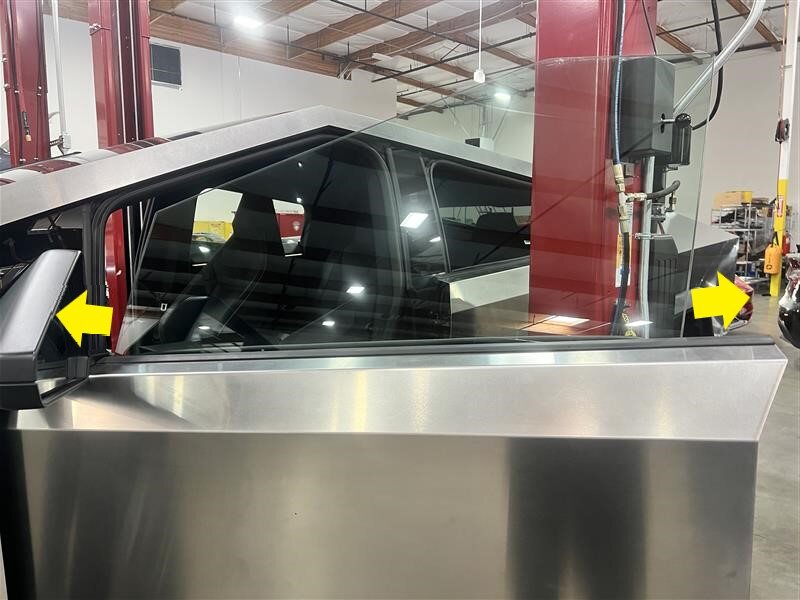

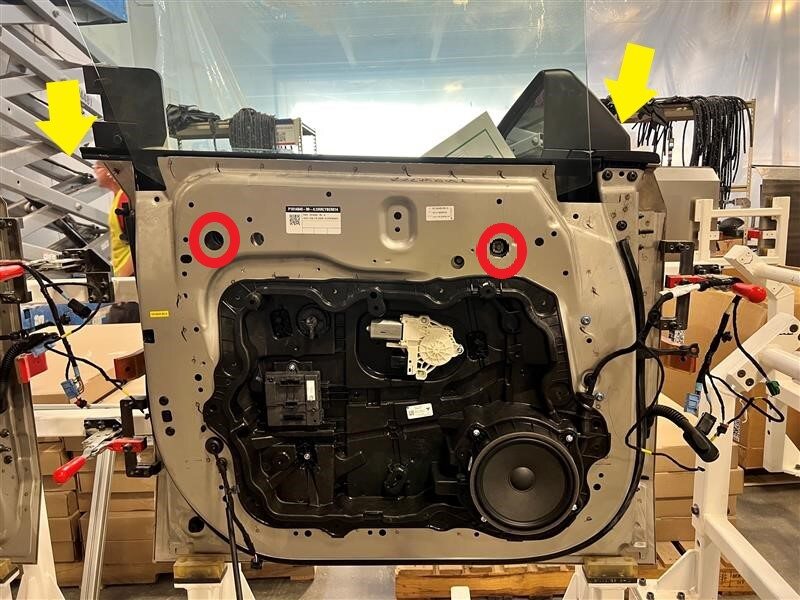

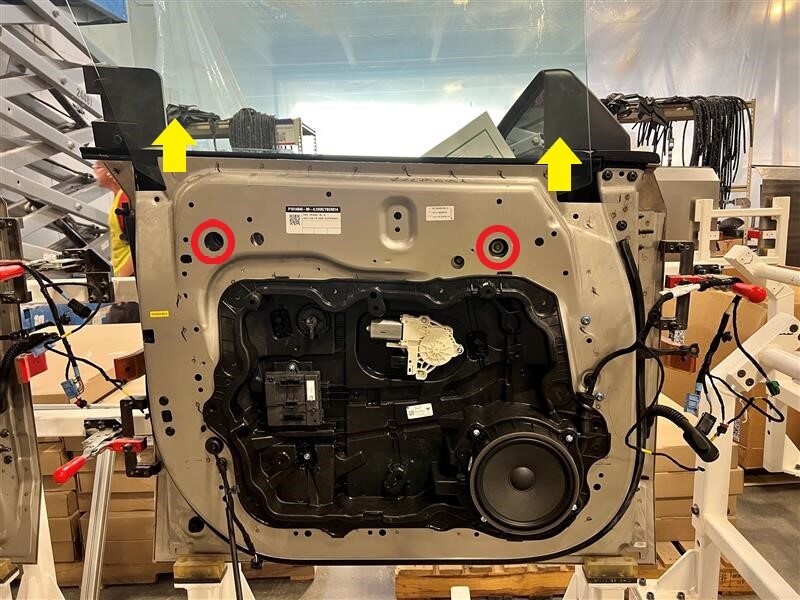

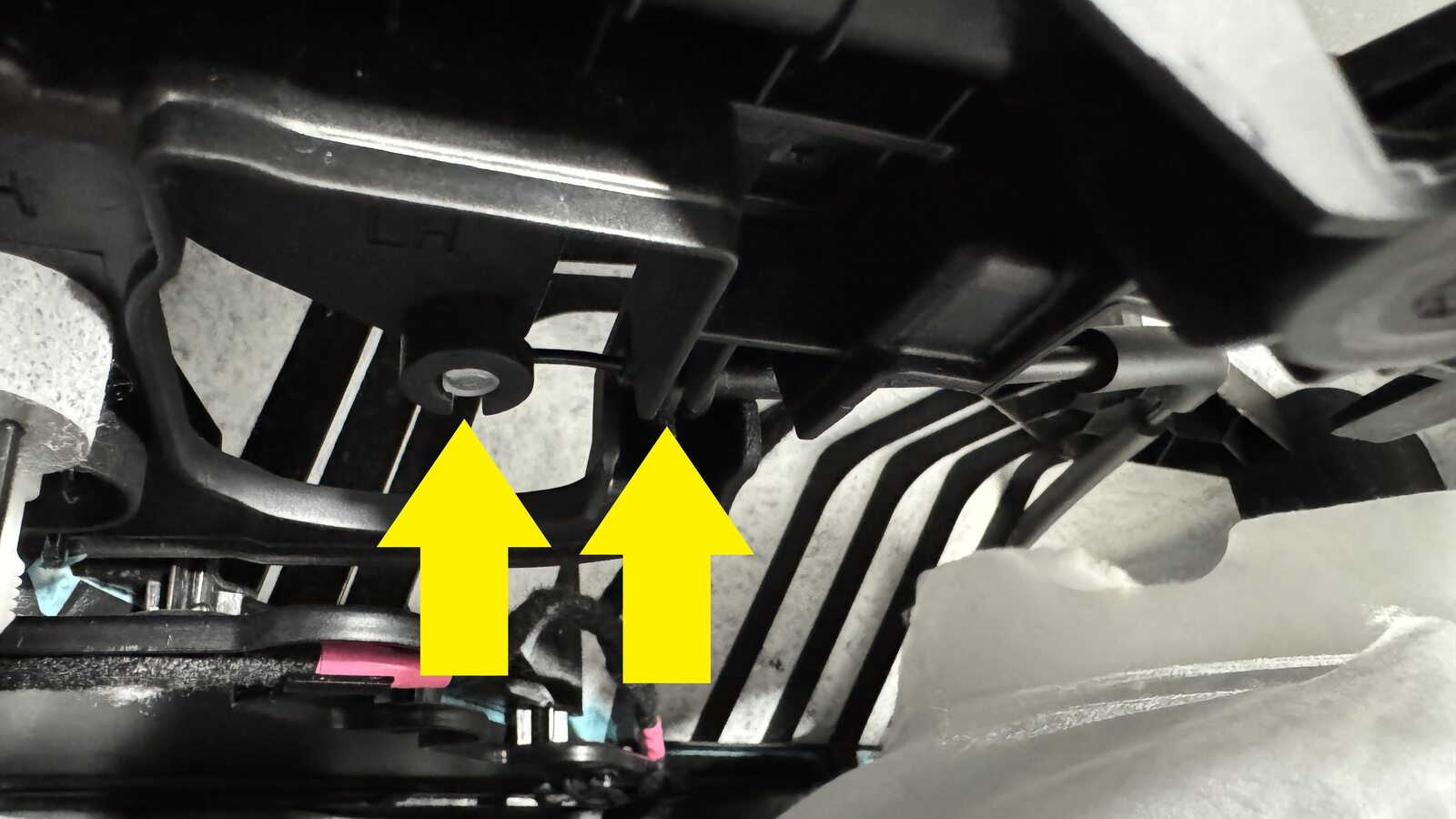

  13. Remove LH front door glass
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x bolts, 10mm, 4 Nm, The clamps do not hold the whole base of the regulator, Use assistance if needed
  14. Retirez le tablier arrière situé sous le capot. Voir Underhood Apron - Rear (Remove and Install),
  15. Débranchez l’alimentation MT. Voir Disconnect MV Power (Modify),

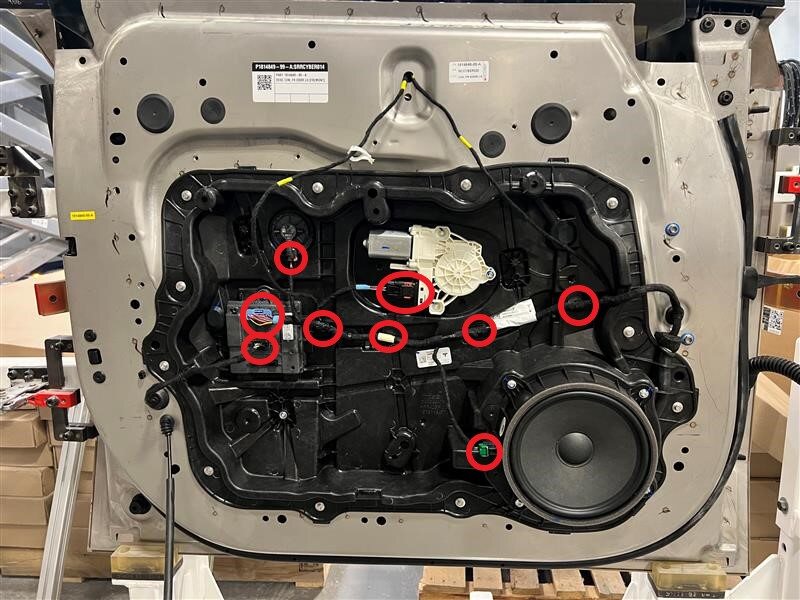

  16. Release LH front door harnesses from close out panel
    Informational PurposesAn informational icon, calling your attention
    Remarque
    4x clips, 5x connectors

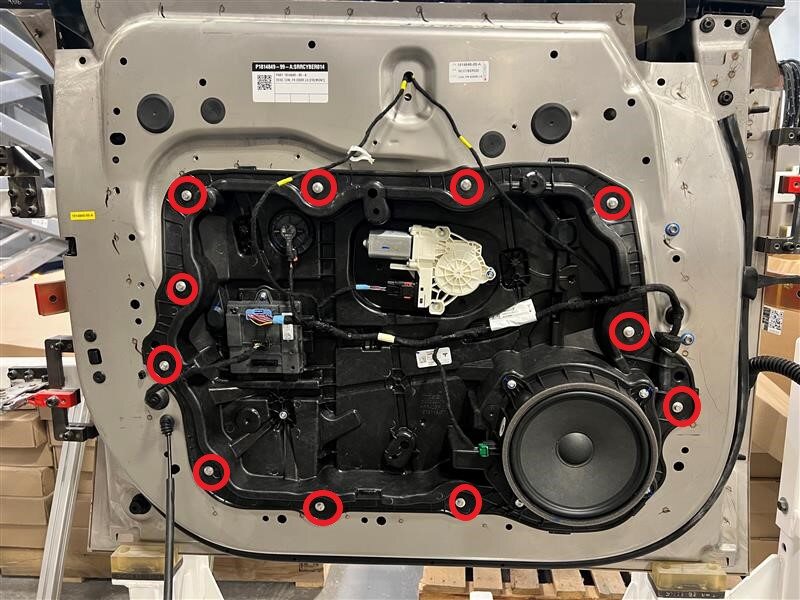

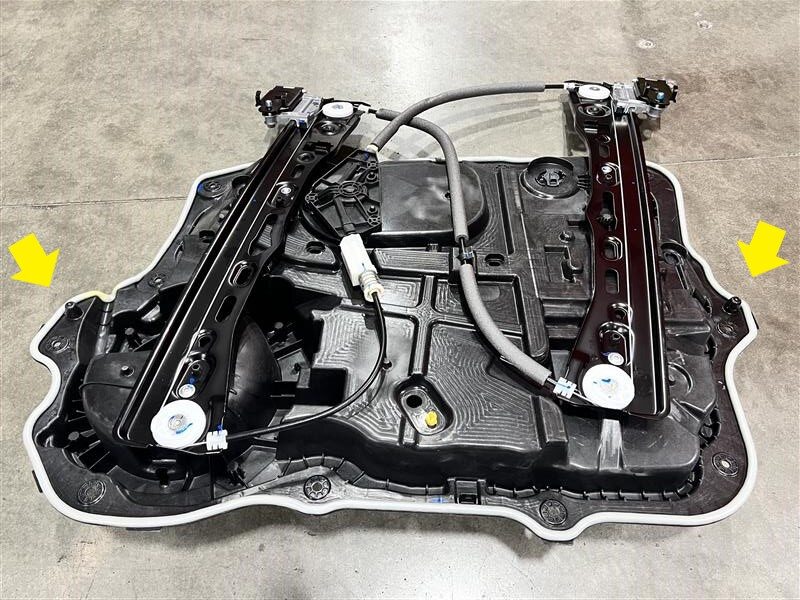

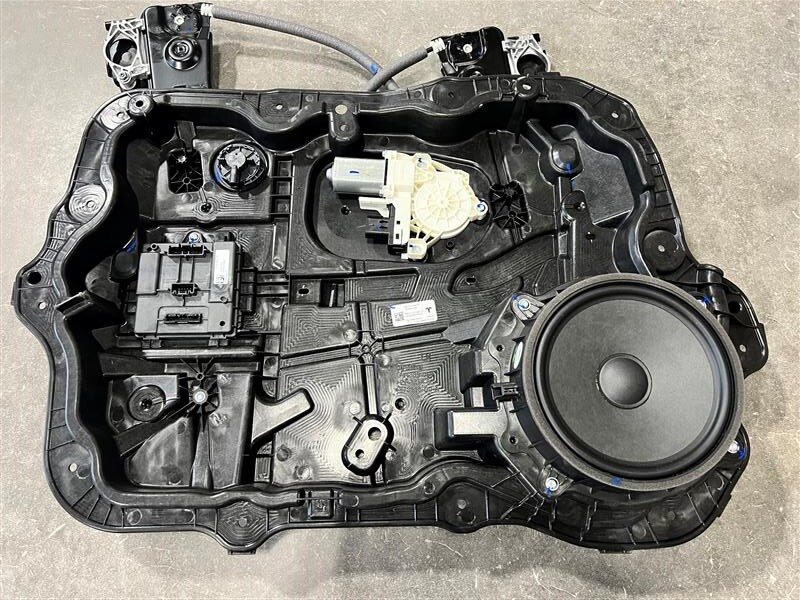

  17. Remove LH front door closeout panel
    Informational PurposesAn informational icon, calling your attention
    Remarque
    11x bolts, 8mm, 4 Nm, 2x bolts 10mm, 12 Nm, 1x harness clip, 2x locking datums, Gently pry closeout panel to release locking datums, Pull bottom portion outwards and lower assembly to allow clearance for regulator rails

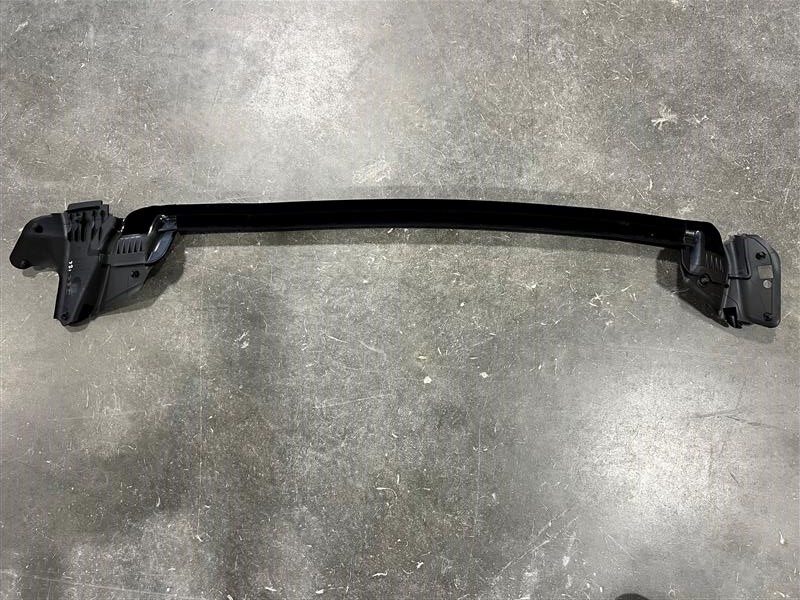

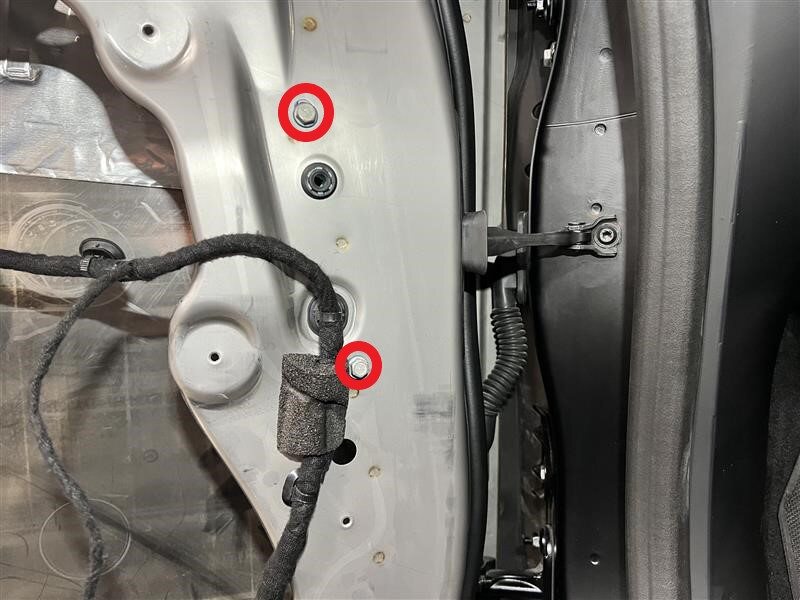

  18. Remove LH front door glass run channel
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x bolts, 10mm, 8 Nm

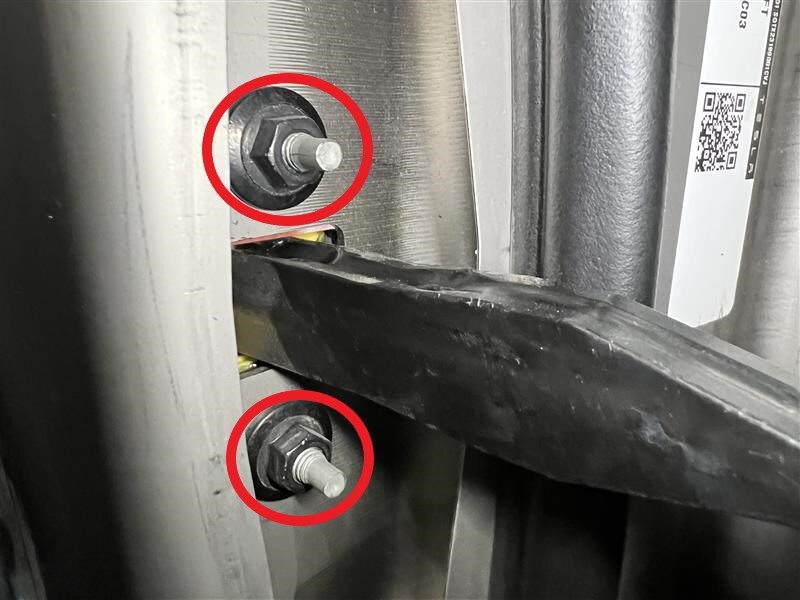

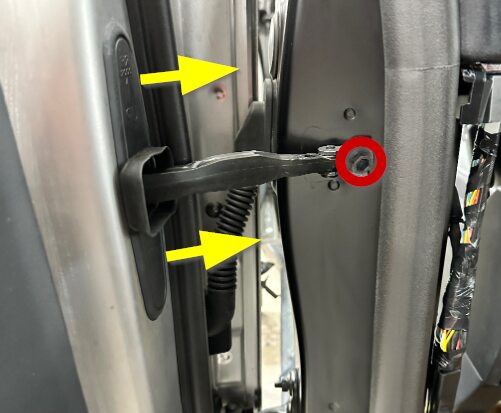

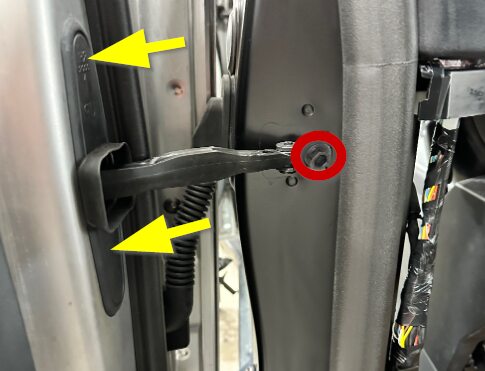

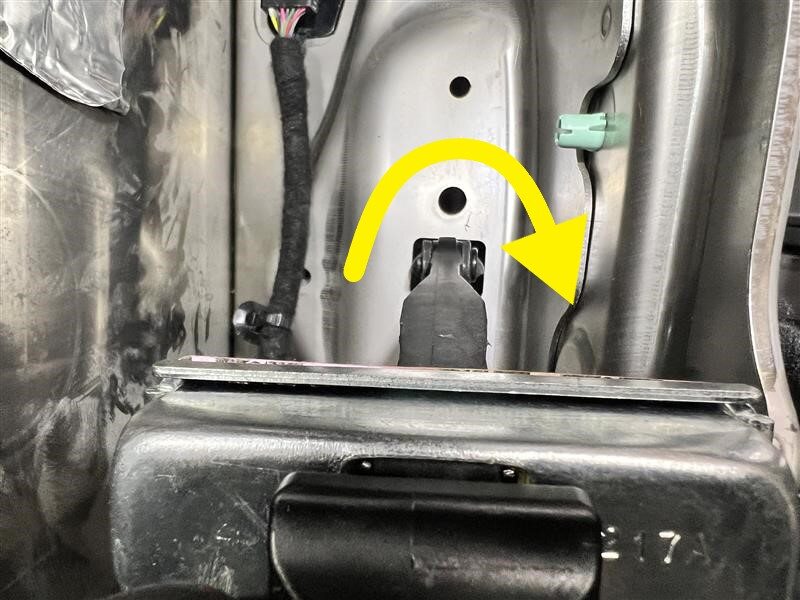

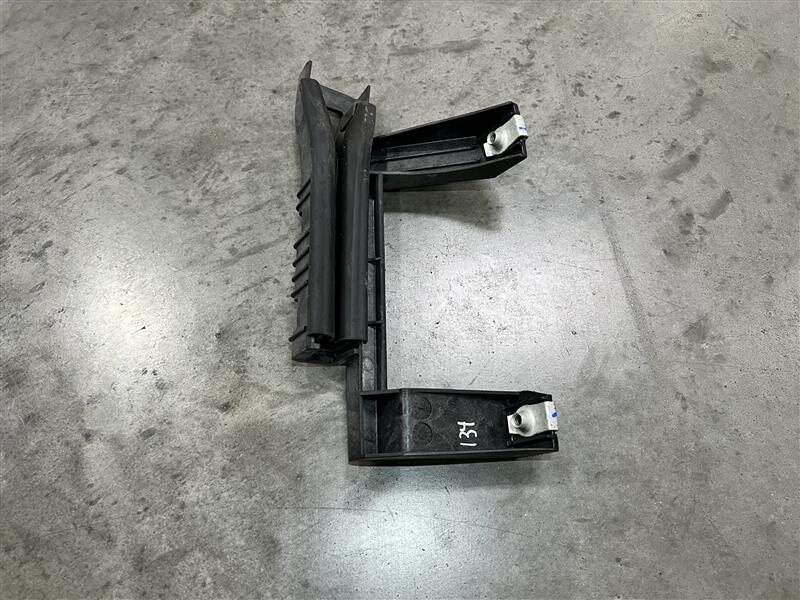

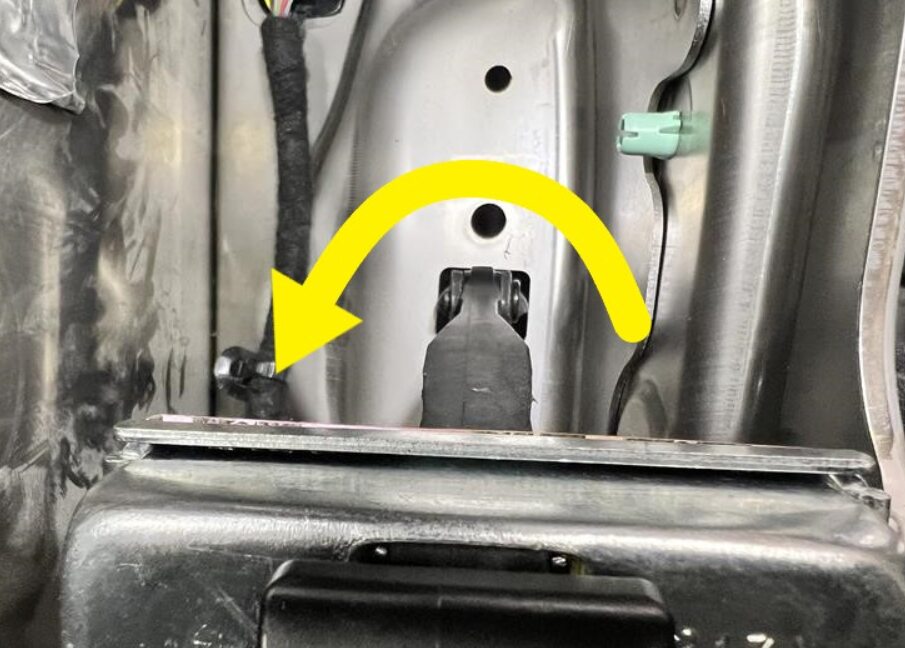

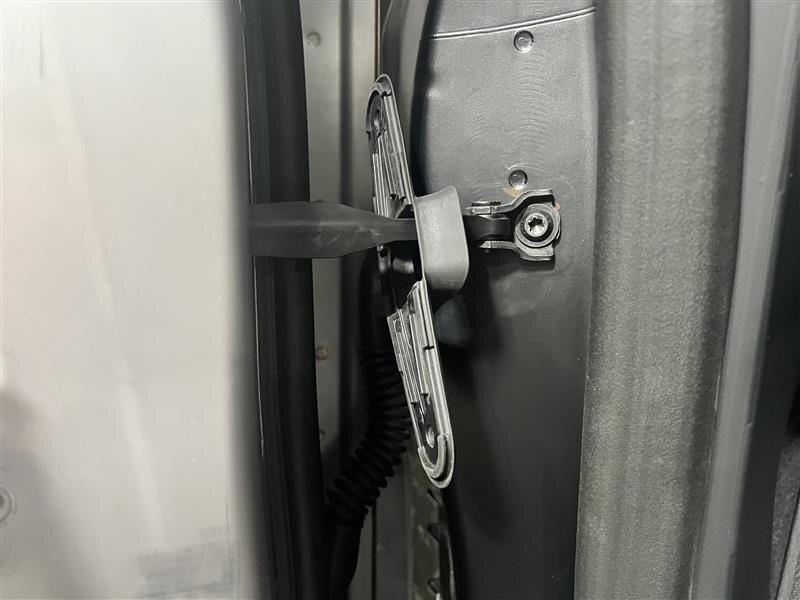

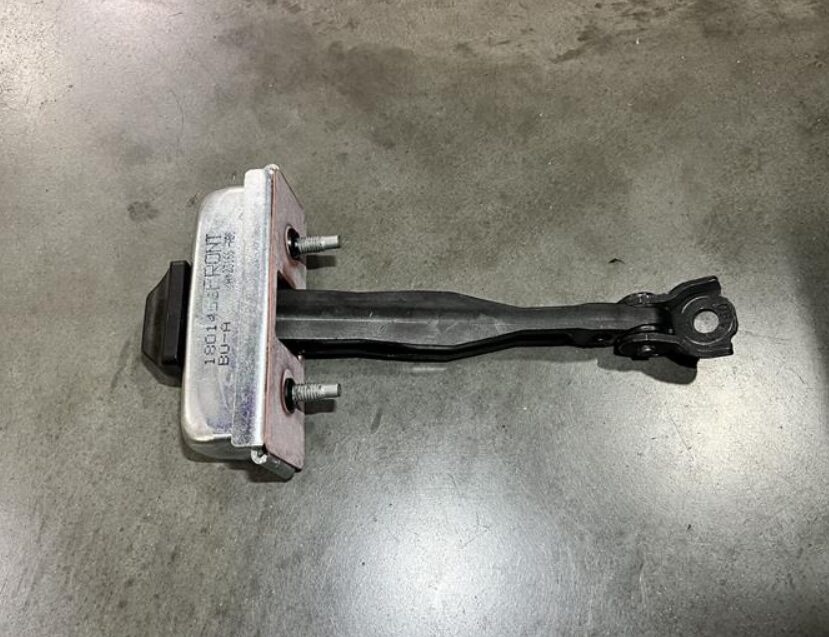

  19. Remove LH front door check strap and check strap close out
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x Bolt, 13mm, 35 +/- 2 Nm, 2x nuts, 10mm, 8.5Nm, Rotate check strap 90 degrees to remove, Some vehicles have T40 fastener securing check strap to body, Fastener must be replaced with 1623708-00-A

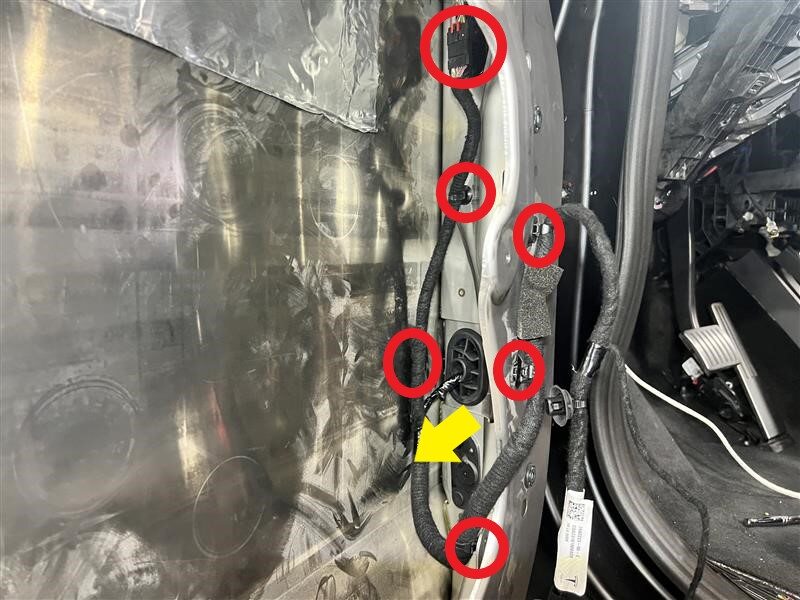

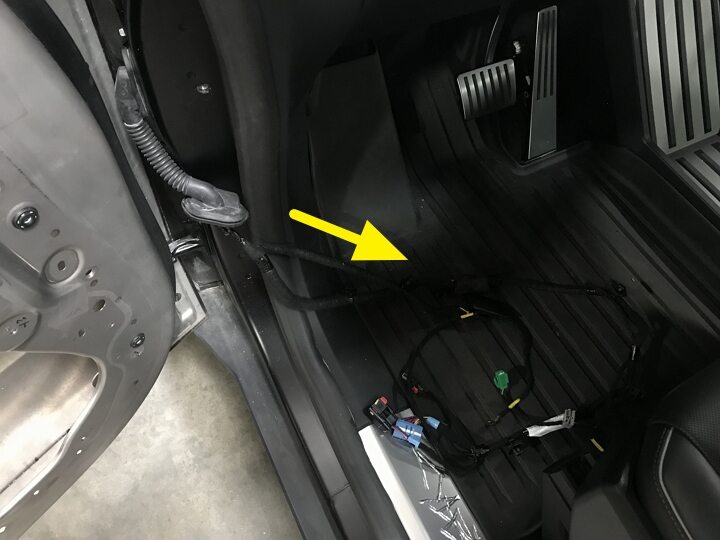

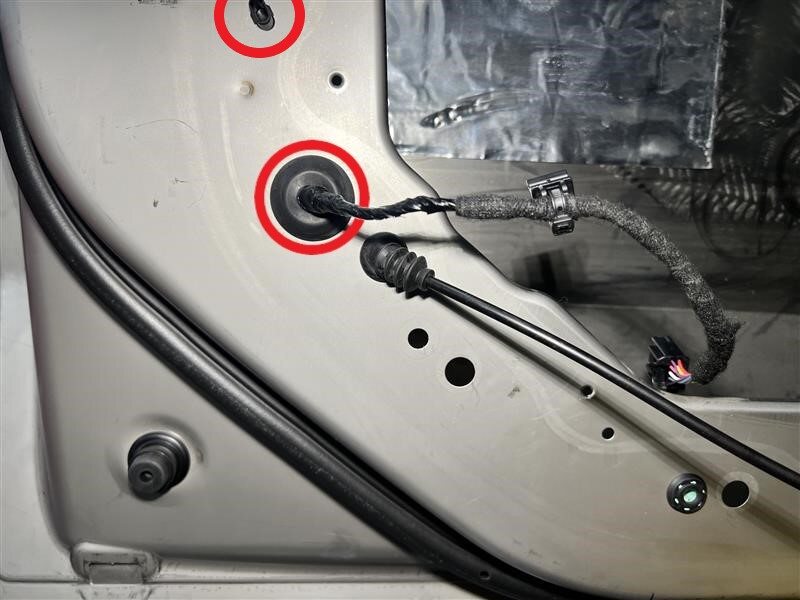

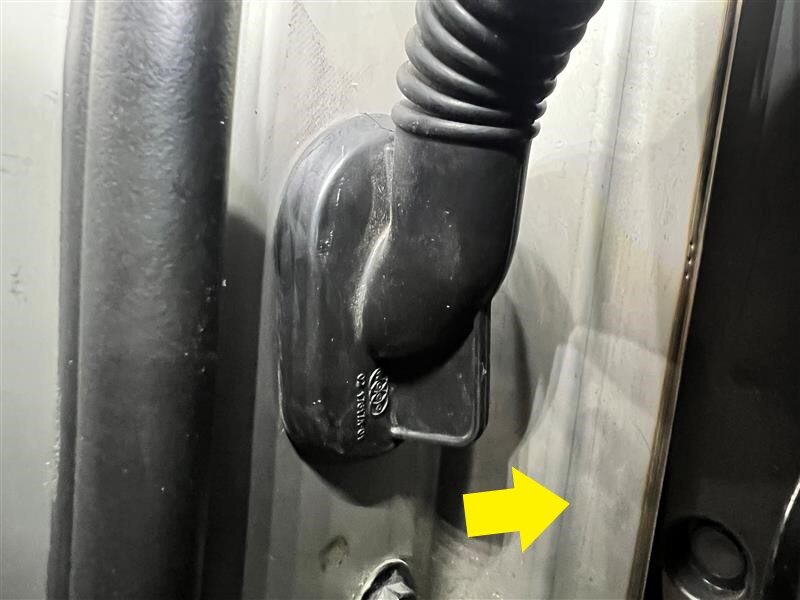

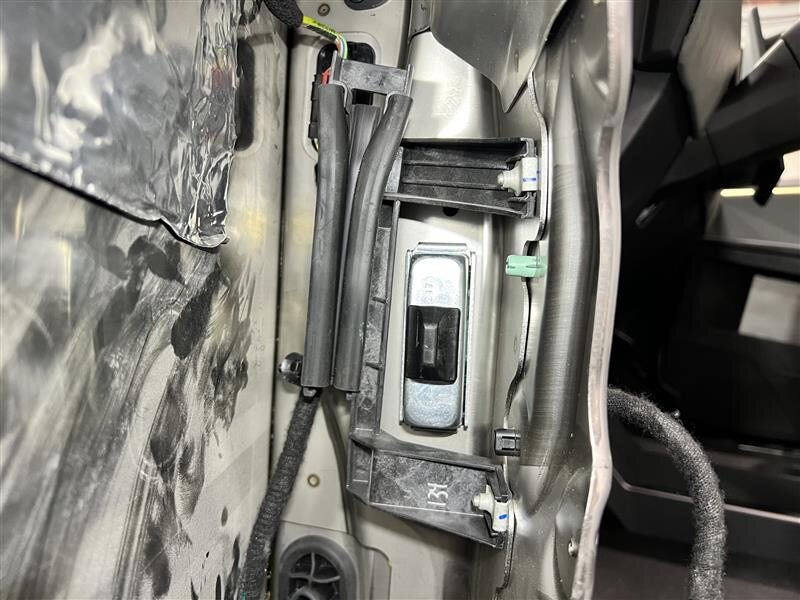

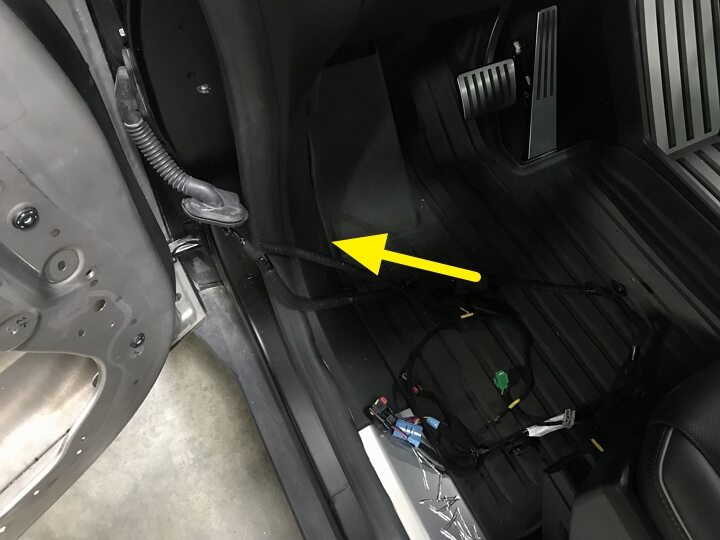

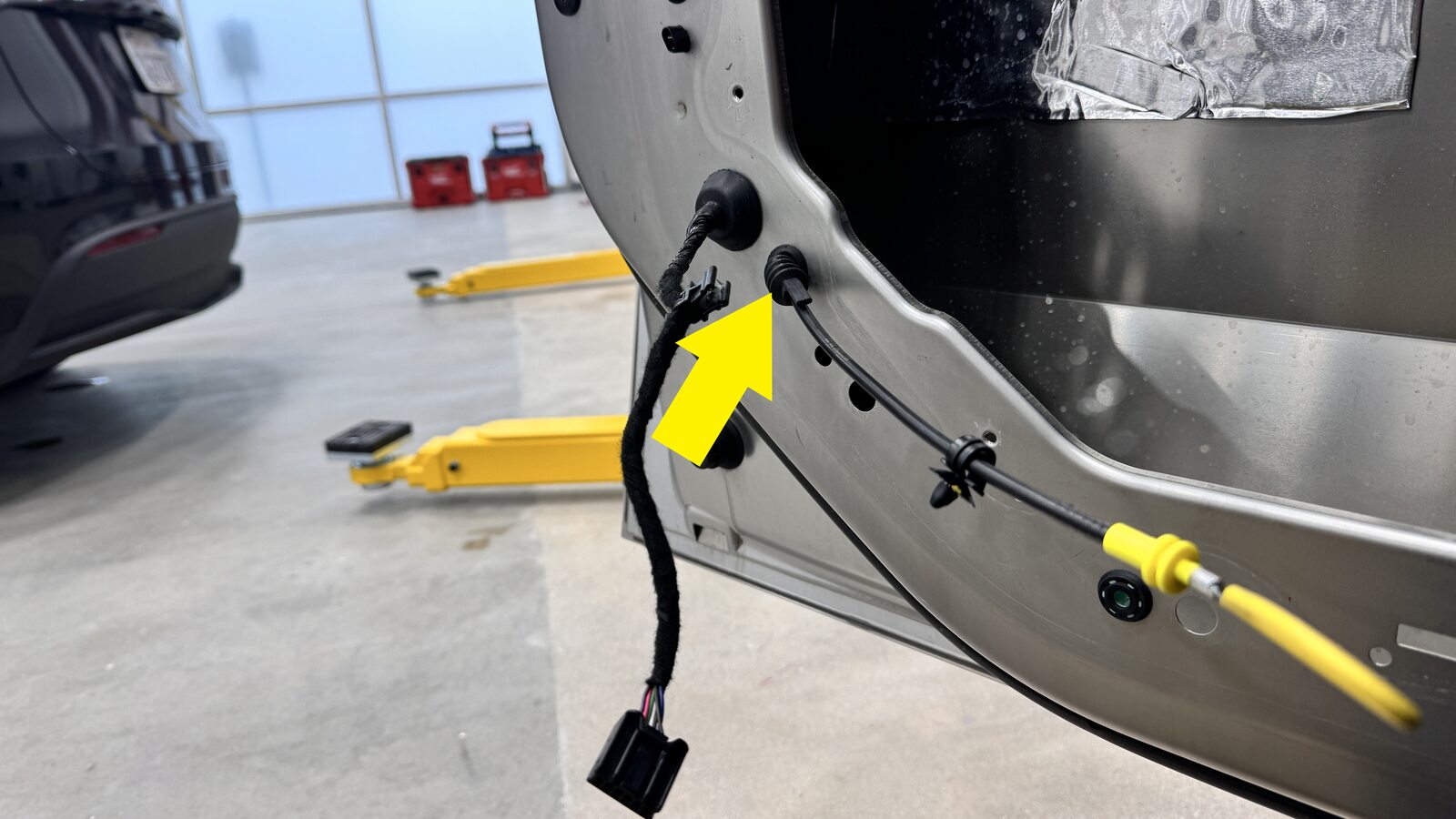

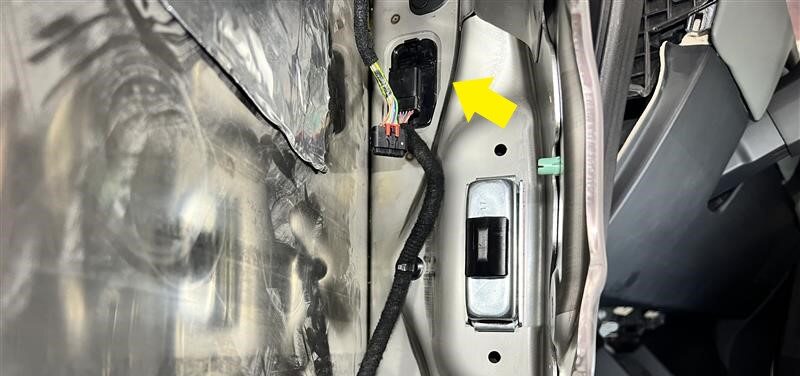

  20. Partially remove LH front door harness
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connectors, 1x grommet, 1x close out panel, 5x fir tree clips, Do not disconnect door harness to A-pillar connection, Position harness to the side

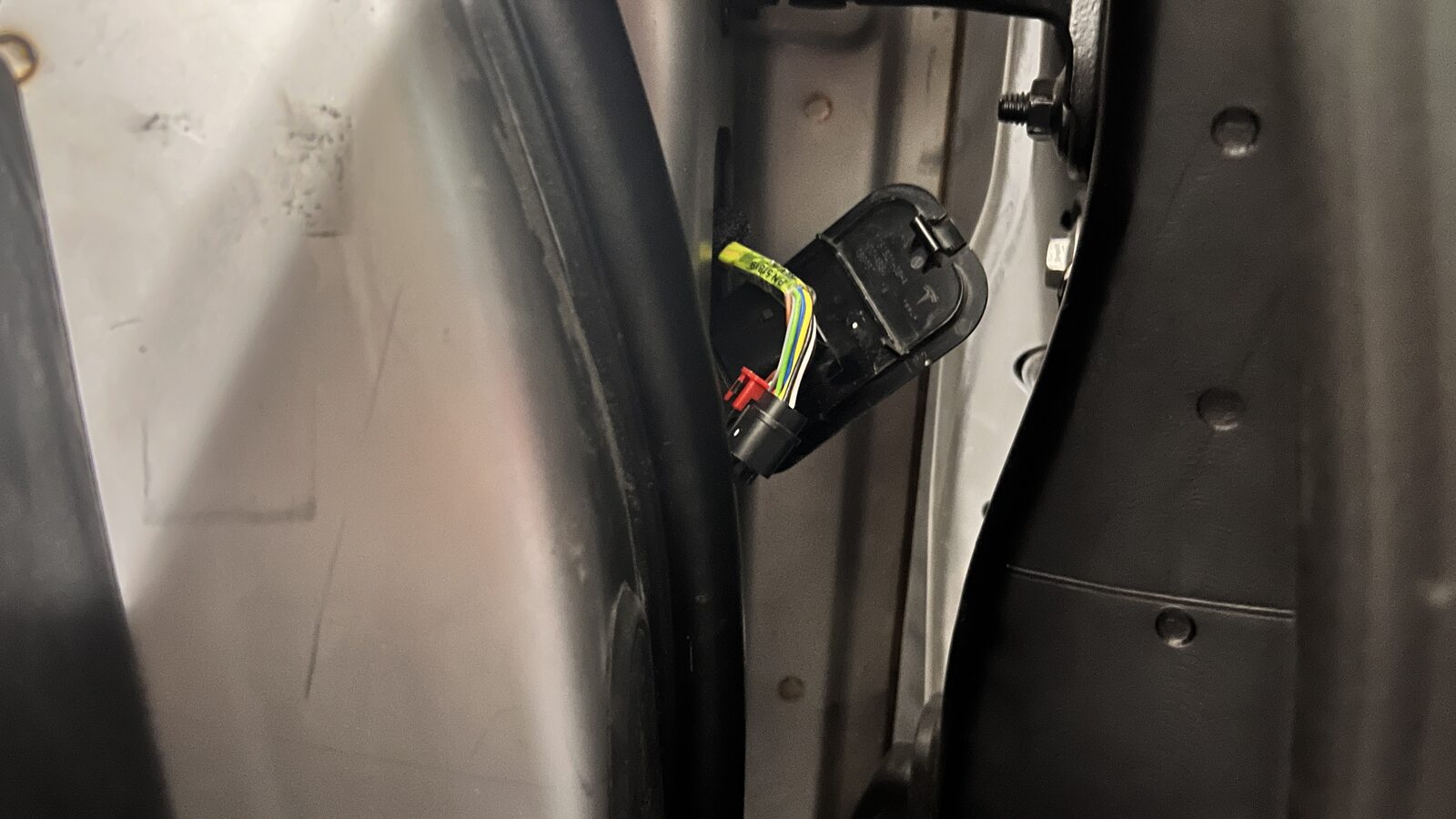

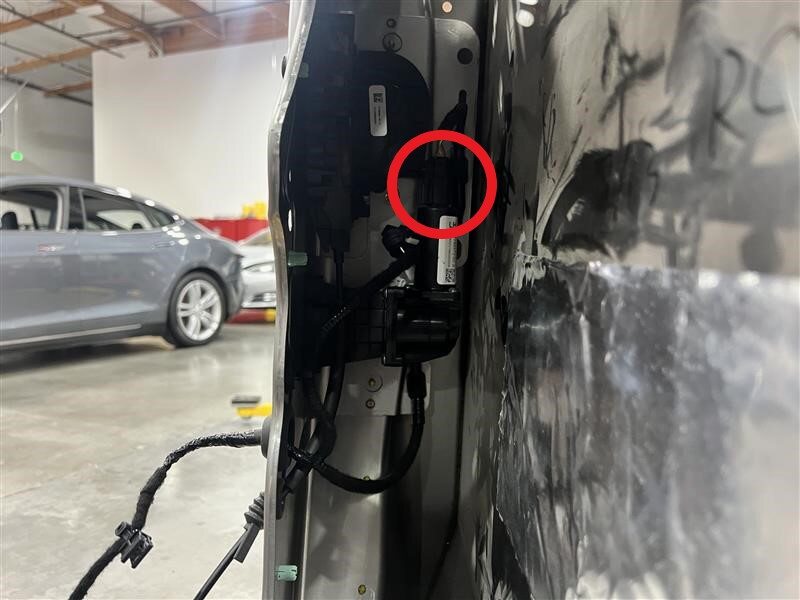

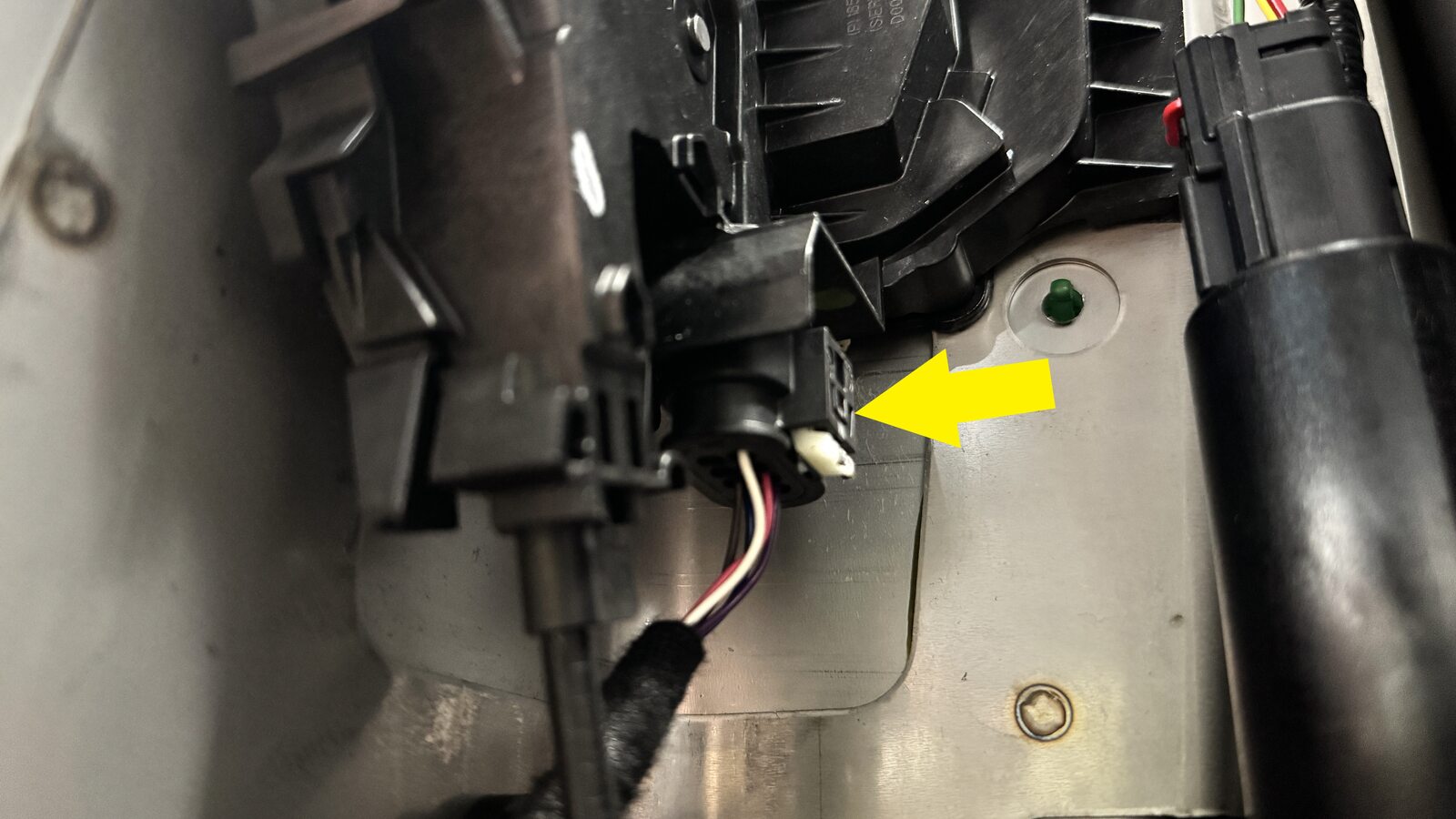

  21. Disconnect LH front door latch harness connector
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector, Release locking tab
  22. Disconnect LH front closure harness from door presenter
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector

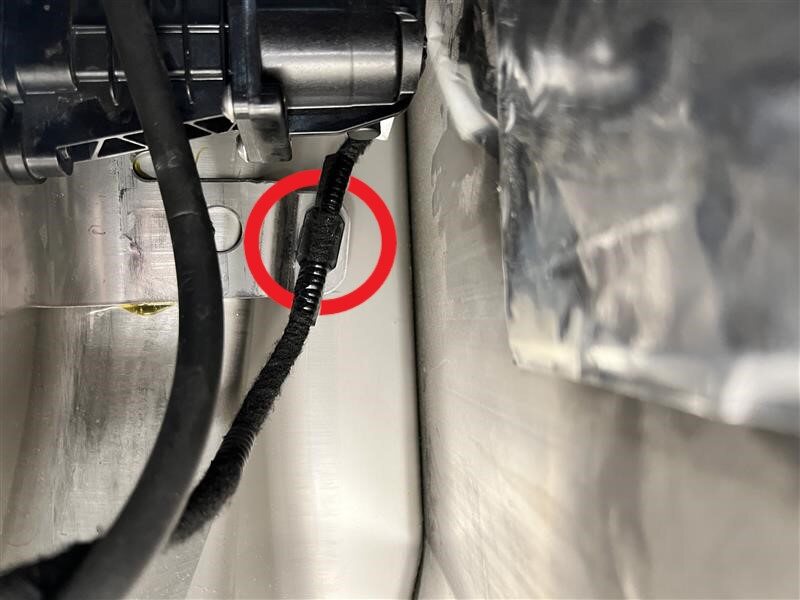

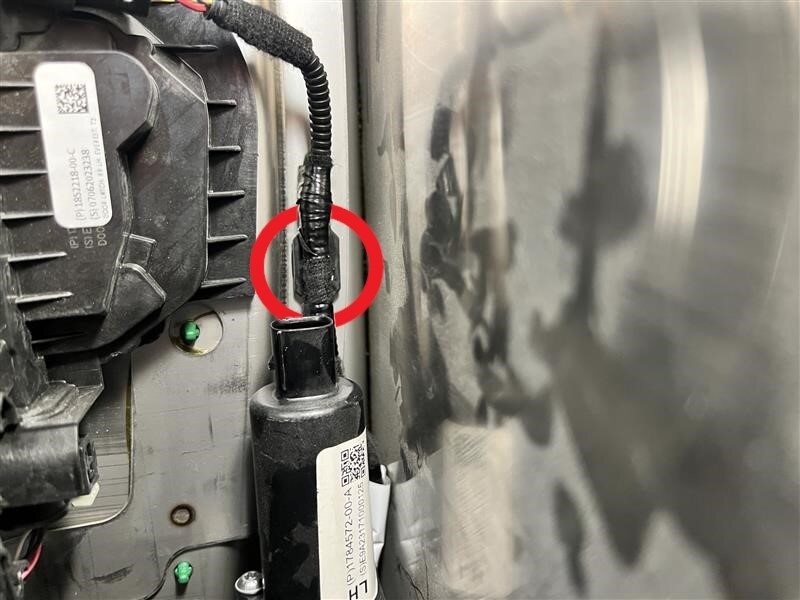

  23. Remove LH front closure device harness
    Informational PurposesAn informational icon, calling your attention
    Remarque
    3x clips 1x grommet

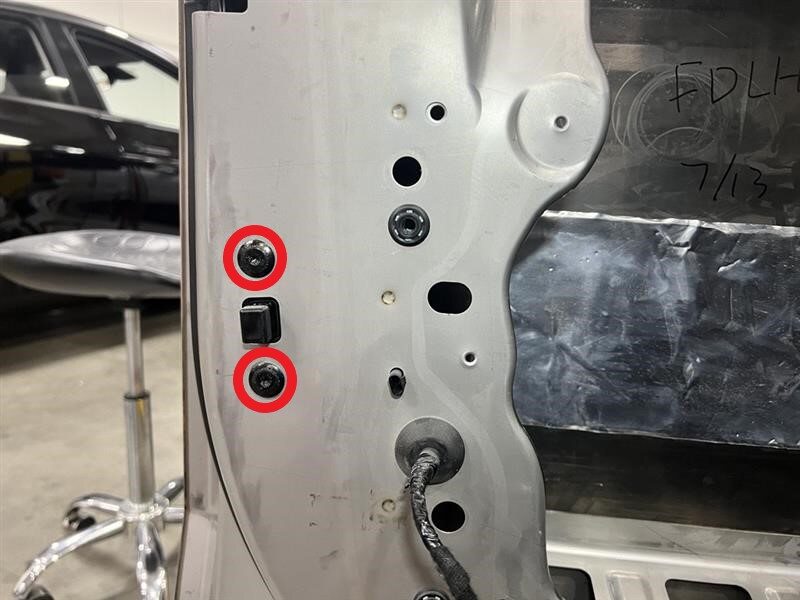

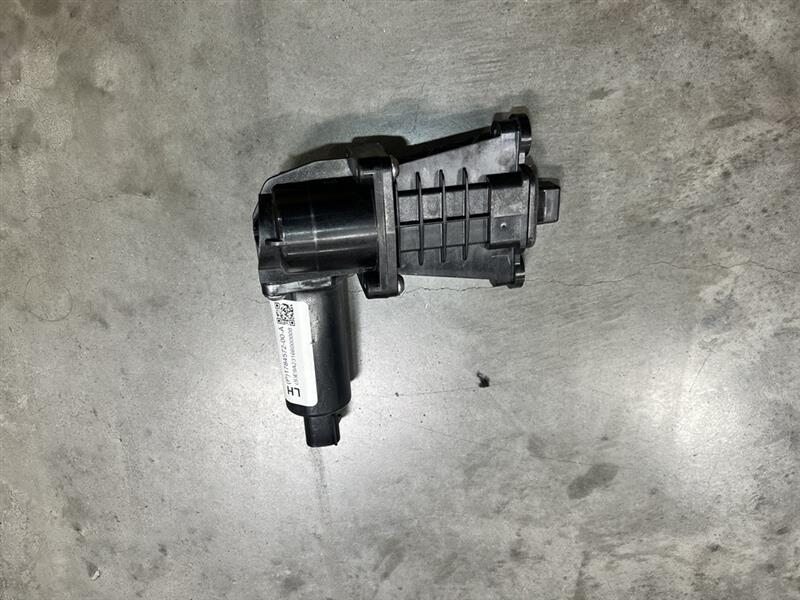

  24. Remove LH front door presenter
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x bolts, T30, 13 Nm,

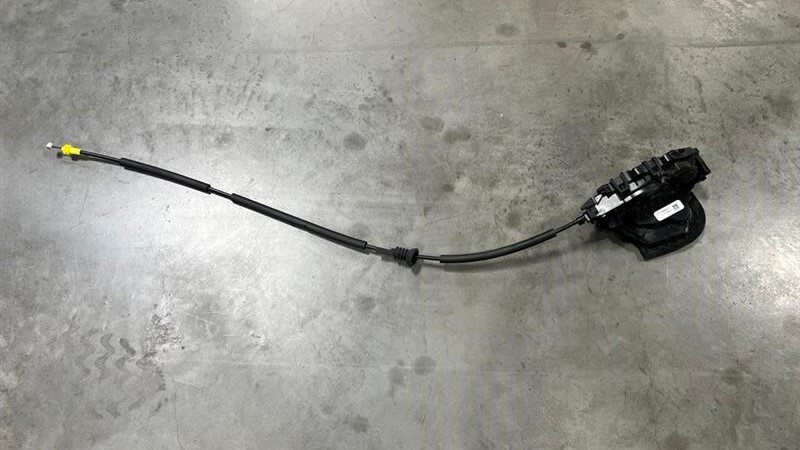

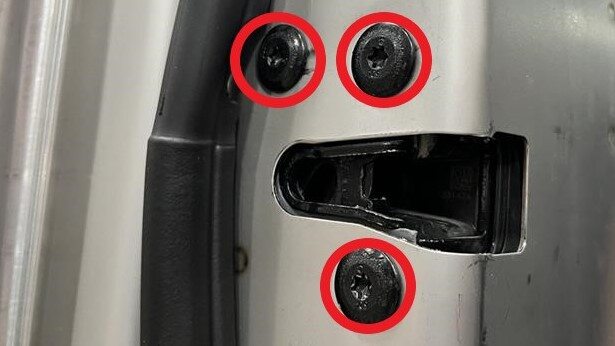

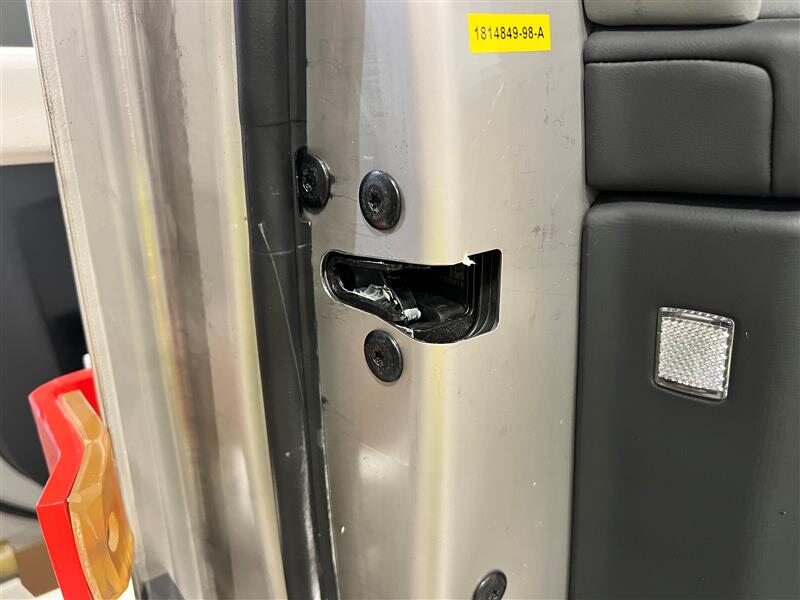

  25. Remove LH front door latch
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x grommet, 1x connector, 3x bolts, T30, 13 Nm, Release locking tab

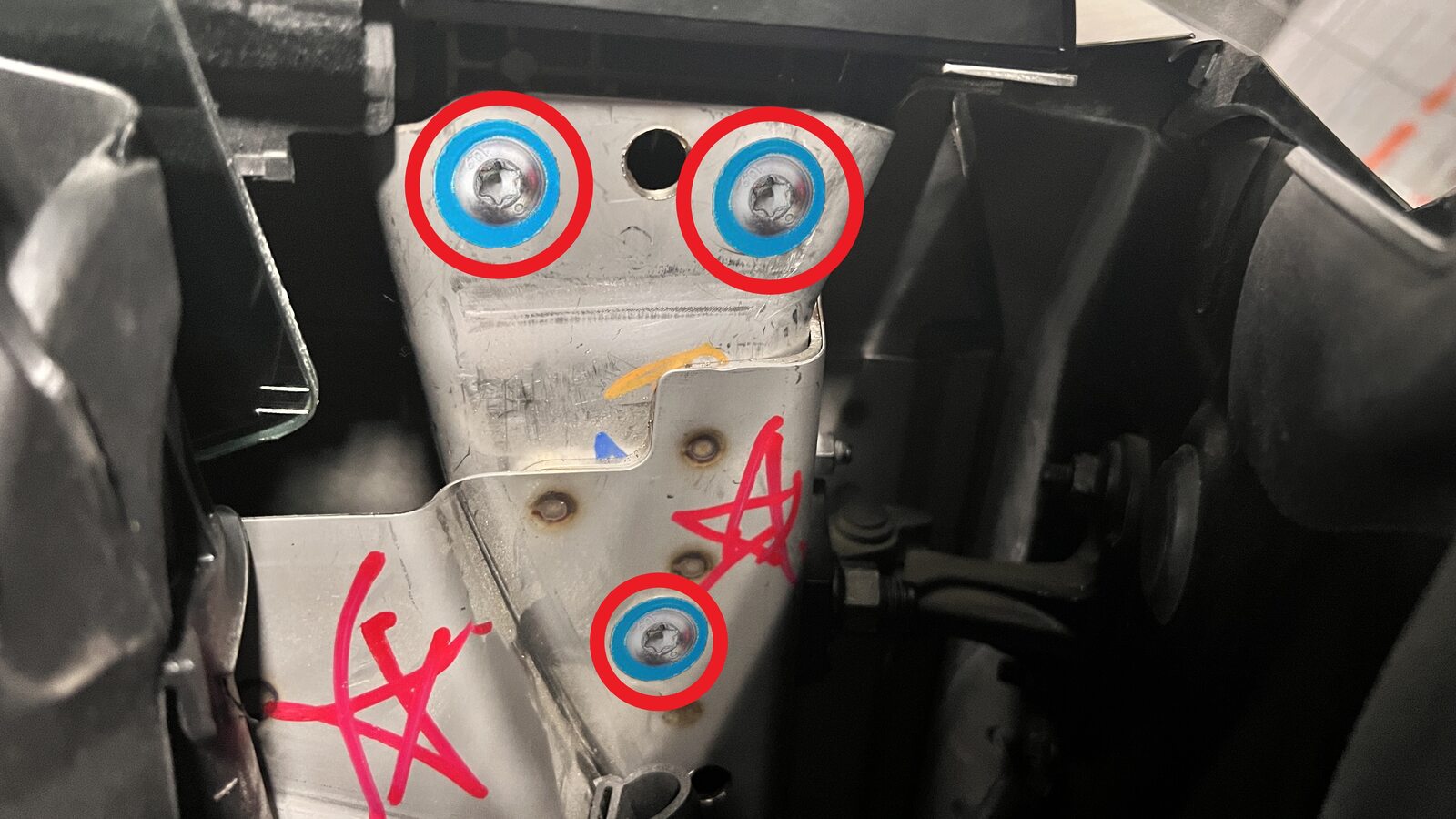

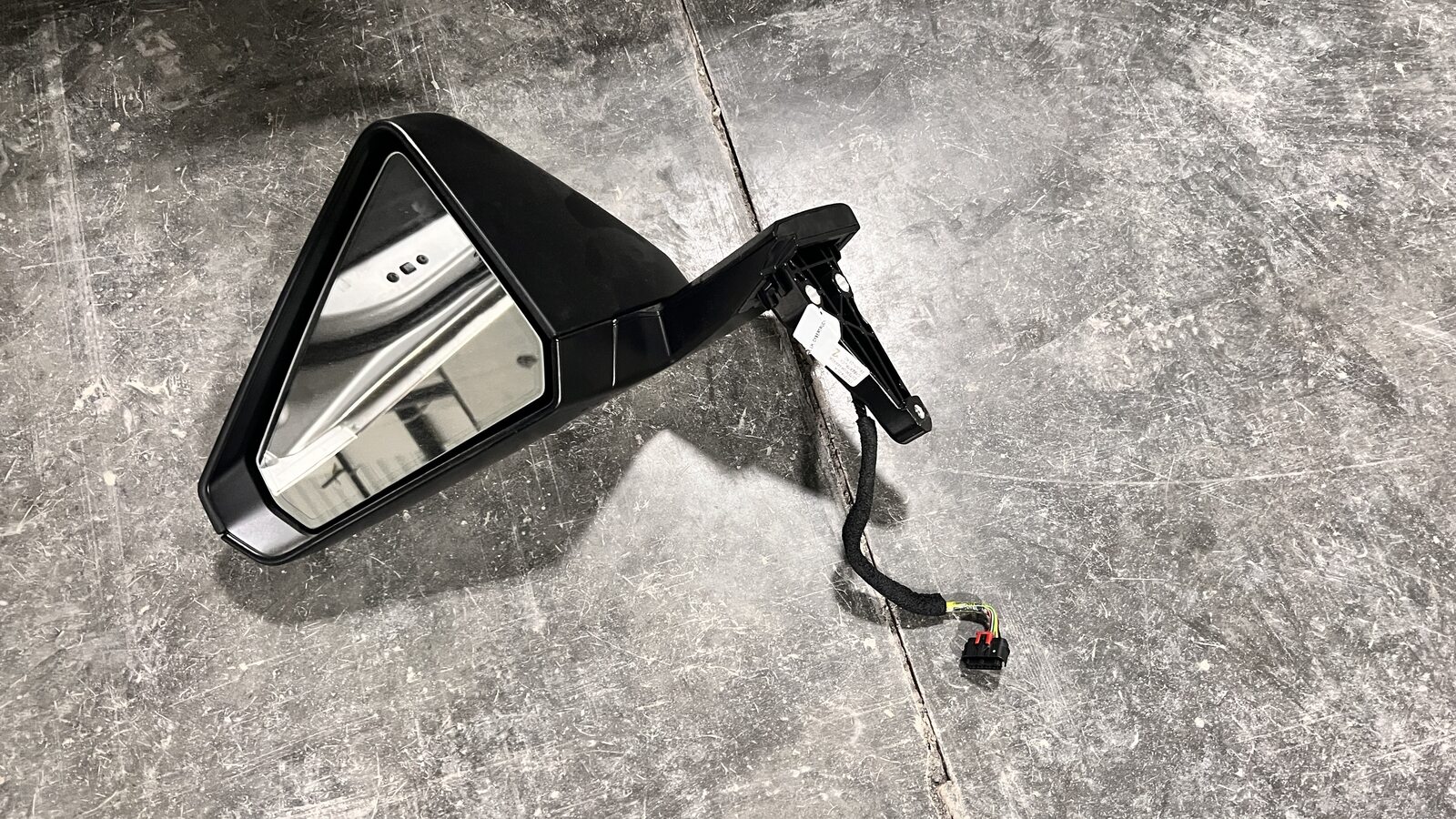

  26. Remove LH front door mirror assembly
    Informational PurposesAn informational icon, calling your attention
    Remarque
    3x bolts, T40, 18 Nm, Move belt seal as required for access, Lift mirror assembly straight up to remove, Ensure harness is not caught inside door, Discard bolts after removal
  27. Remove LH front door overslam bumper
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x tabs

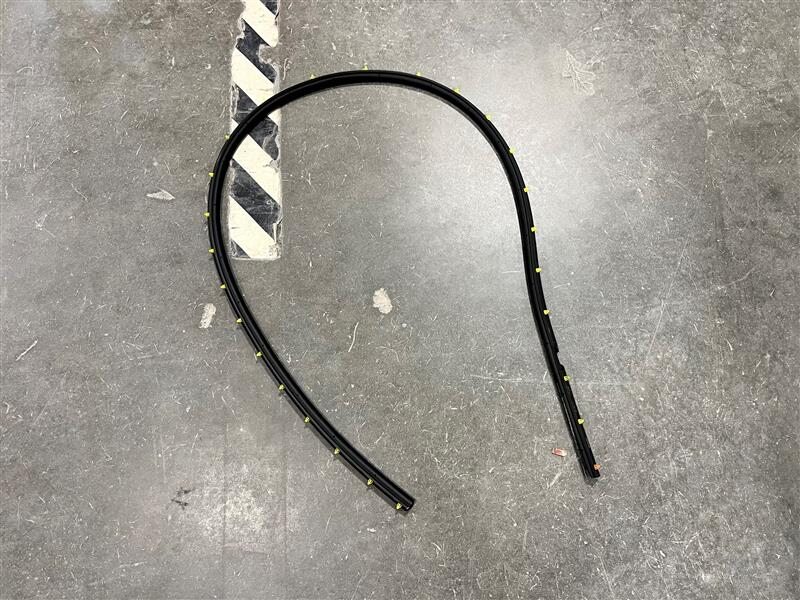

  28. Remove LH front door secondary seal
    Informational PurposesAn informational icon, calling your attention
    Remarque
    26x clips,

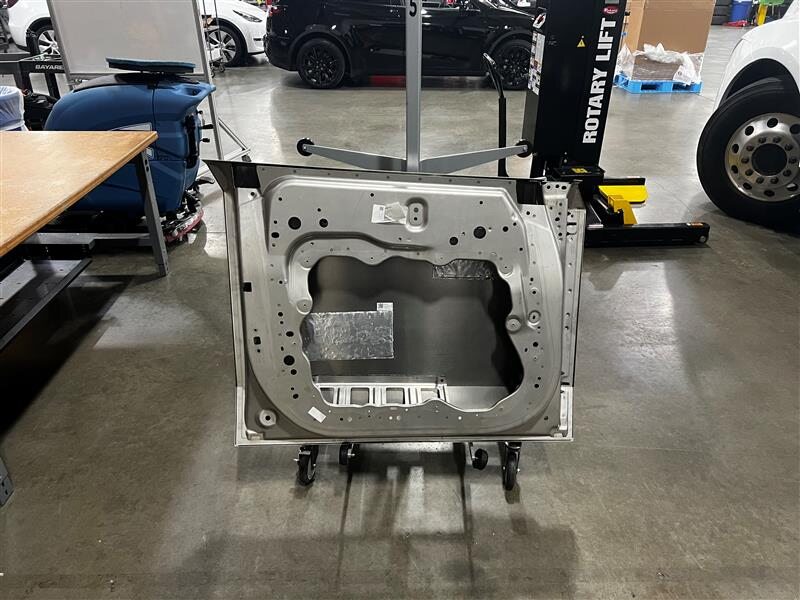

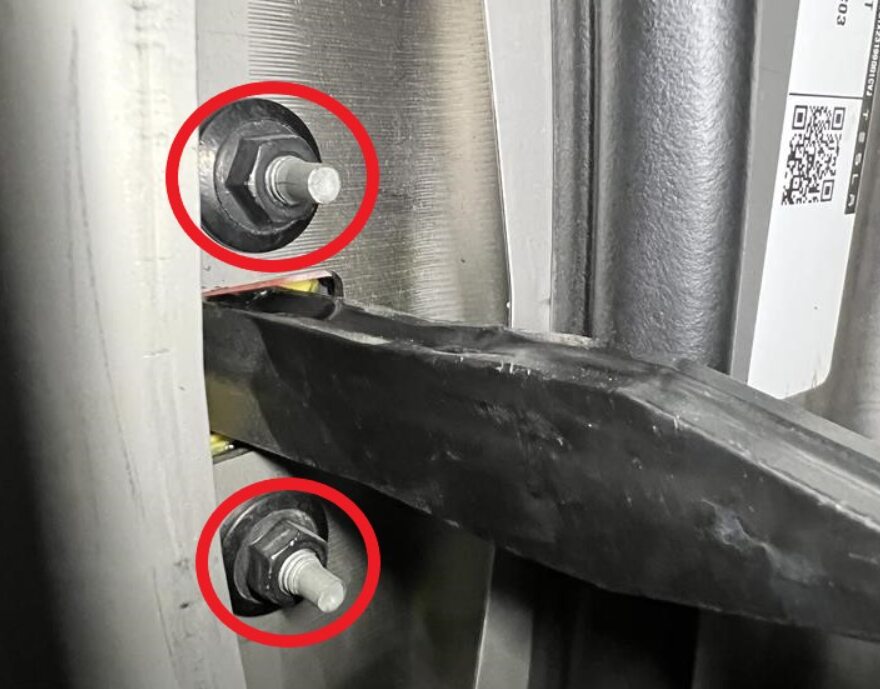

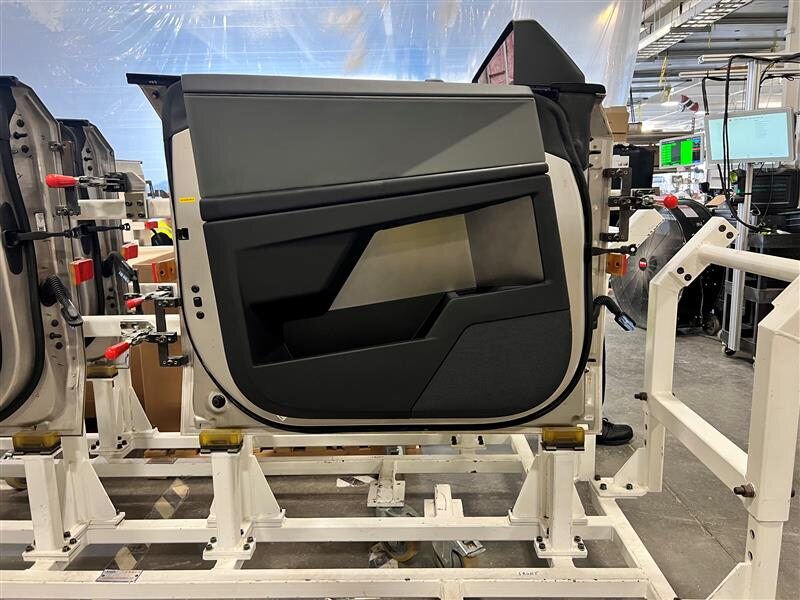

  29. Remove LH front door
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x nuts, 15mm, 38 Nm, Use assistance or rack holder to hold door

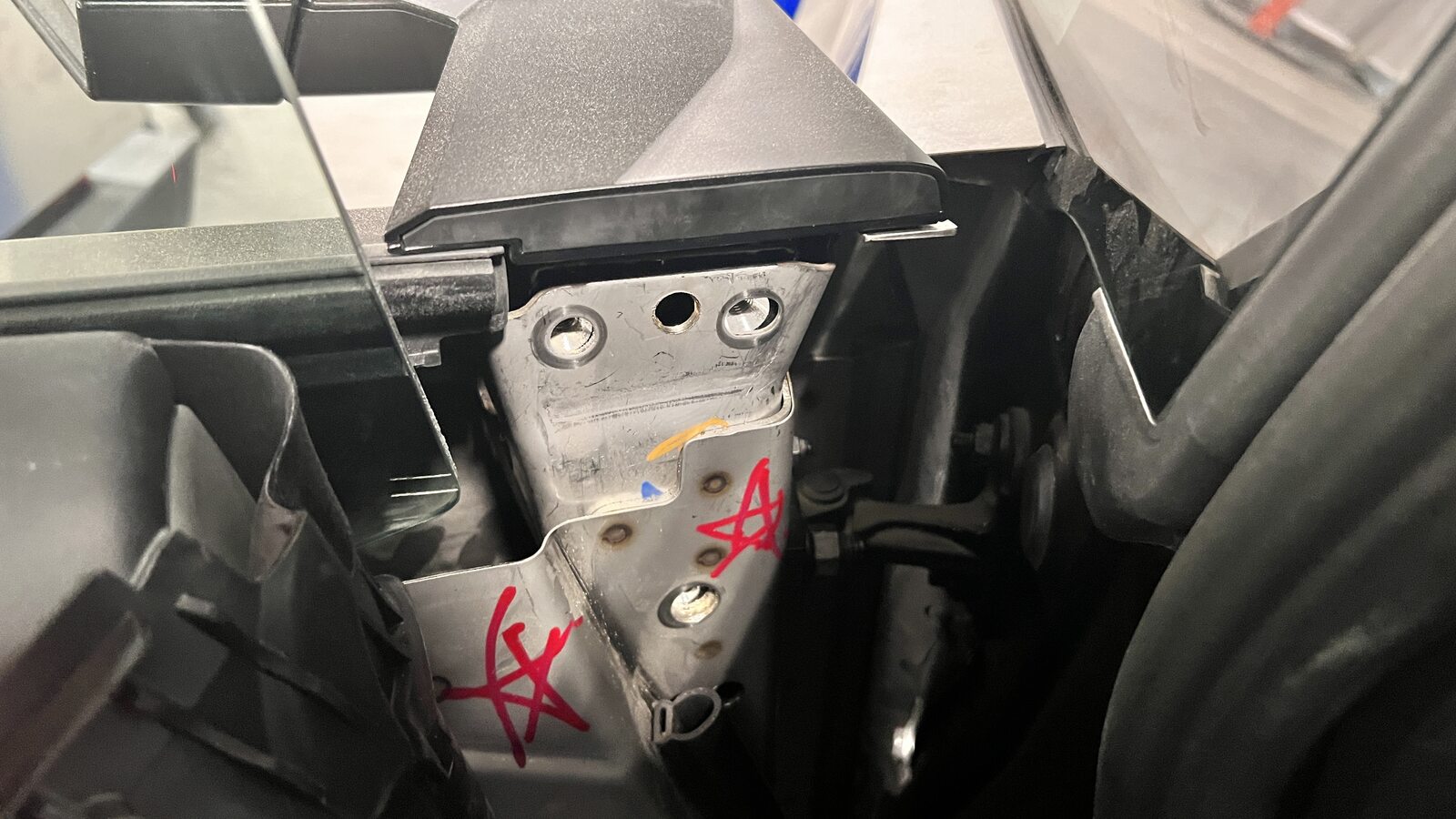

  30. Install LH front door
    Informational PurposesAn informational icon, calling your attention
    Remarque

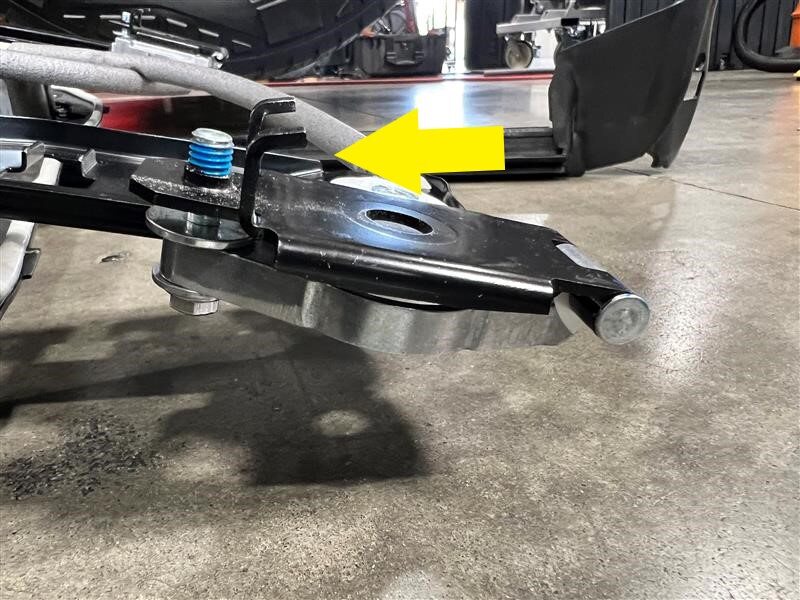

    Align hinge with door stud
  31. Install LH front door secondary seal
    Informational PurposesAn informational icon, calling your attention
    Remarque
    26x clips, Installation begins with the orange clip on the outer edge of the door. There is a slit for the latch screws
  32. Install LH rear door overslam bumper
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x tabs
  33. Install LH front door mirror assembly
    Informational PurposesAn informational icon, calling your attention
    Remarque
    3x bolts, T40, 18 Nm, Lower mirror assembly straight down, Ensure harness is accessible at door plug before securing bolts, Move belt seal as required for access, Install new bolts
  34. Install LH front door latch
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x grommet, 1x connector, 3x bolts, T30, 13 Nm, Engage locking tab
  35. Install LH front door presenter
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x bolts, T30, 13 Nm
  36. Install LH front closure device harness
    Informational PurposesAn informational icon, calling your attention
    Remarque
    3x clips, 1x grommet
  37. Connect LH front closure harness onto door presenter
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector
  38. Connect LH front door latch harness connector
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x connector, Secure locking tab

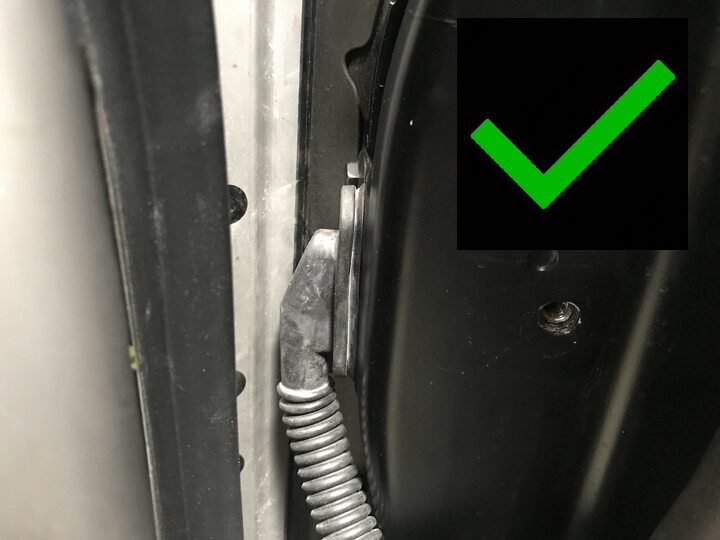

  39. Partially install LH front door harness
    Informational PurposesAn informational icon, calling your attention
    Remarque
    1x close out panel, 1x grommet, 4x clips, 1 connector, Use tab on rubber grommet to correctly seat the harness.
  40. Install LH front door check strap and check strap close out
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x nuts, 10mm, 8.5Nm, 1x Bolt, 13mm, 35 +/- 2 Nm, Rotate check strap 90 degrees to install, Slide closeout over check strap, Install fasteners then secure closeout, Some vehicles have T40 fastener securing check strap to body, Fastener must be replaced with 1623708-00-A
  41. Install LH front door glass run channel
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x bolts, 10mm, 8 Nm
  42. Install LH front door closeout panel
    Informational PurposesAn informational icon, calling your attention
    Remarque
    11x bolts, 8mm, 4 Nm, 2x bolts, 10mm, 12 Nm
  43. Secure LH front door harness onto close out panel
    Informational PurposesAn informational icon, calling your attention
    Remarque
    4x clips, 5x connectors

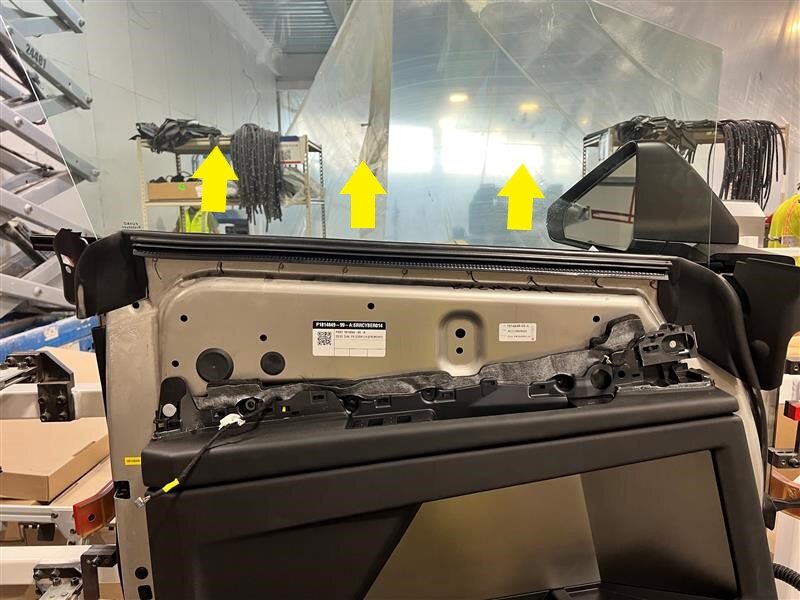

  44. Install LH front door glass
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x bolts, 10mm, 13 Nm, Hand tight, Torque at a later step, Watch for slippage of glass off mount
  45. Install LH front outer waist belt seal
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Press firmly,

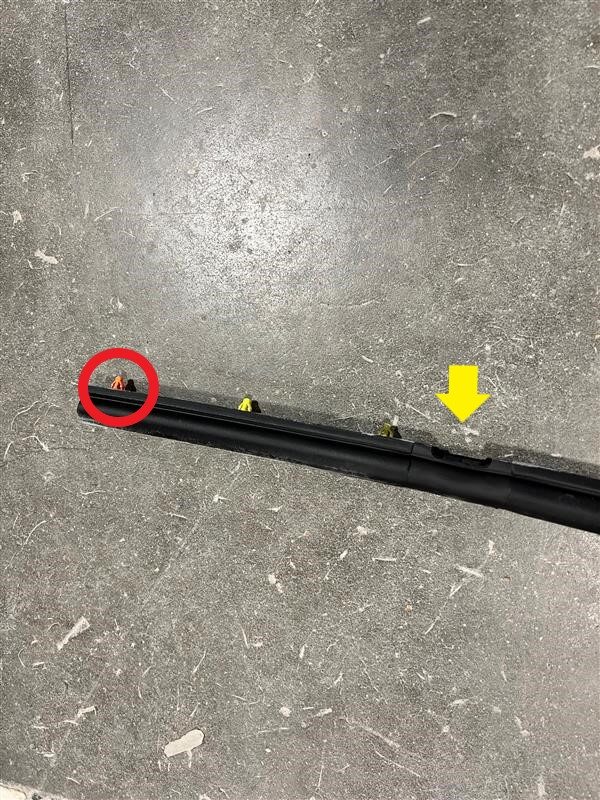

  46. Install LH front inner waist belt seal
    Informational PurposesAn informational icon, calling your attention
    Remarque
    6x rubber datums on either side
  47. Branchez l'alimentation électrique MT. Voir Disconnect MV Power (Modify),
  48. Installez le tablier sous le capot. Voir Underhood Apron - Rear (Remove and Install),
  49. Close powered front trunk
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Via exterior switch or UI
  50. Manually release the door latch
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Pull manual release cable away from vehicle to unlatch
  51. Close LH front door

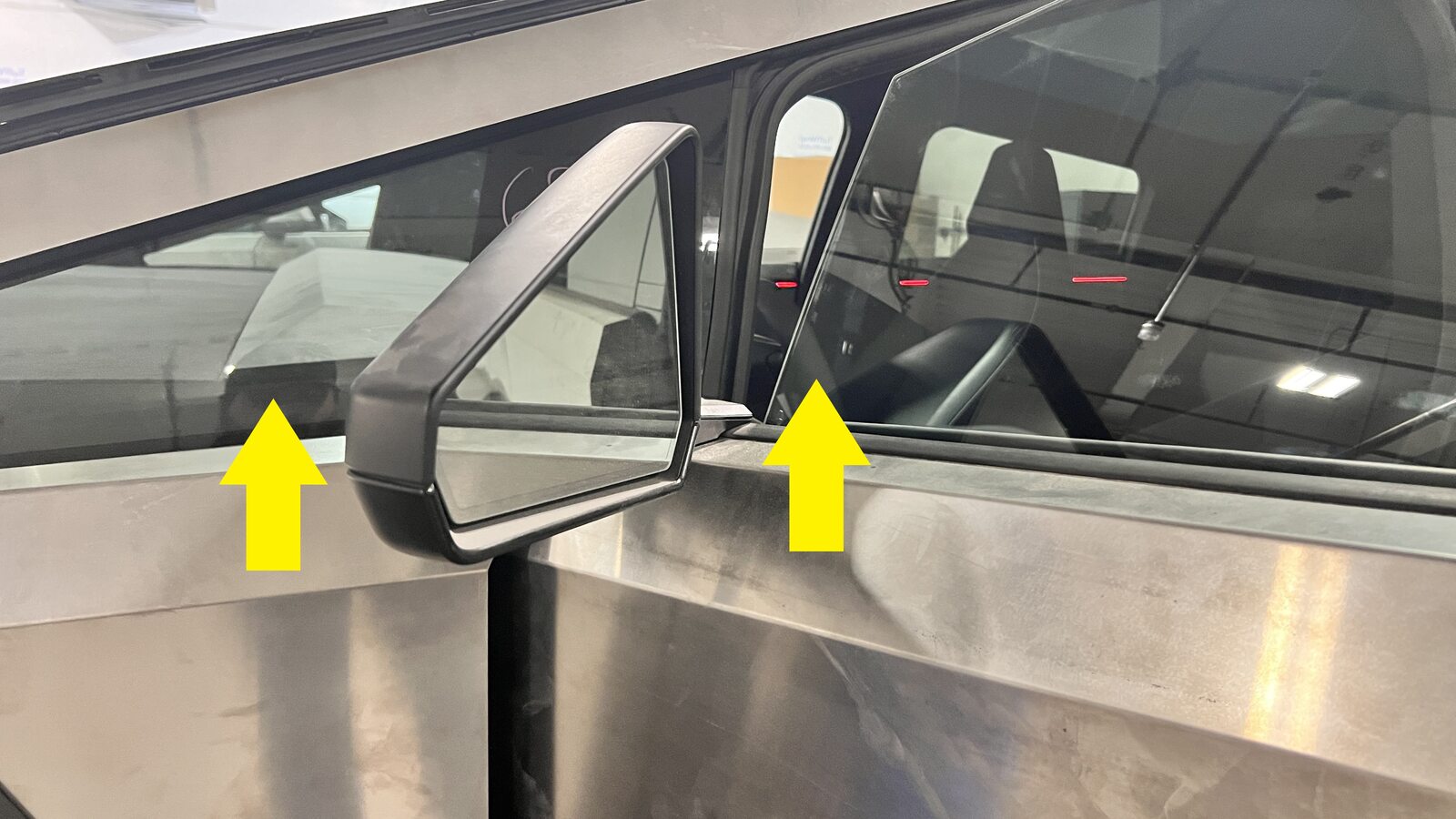

  52. Check and adjust gap and flushness
    Informational PurposesAn informational icon, calling your attention
    Remarque

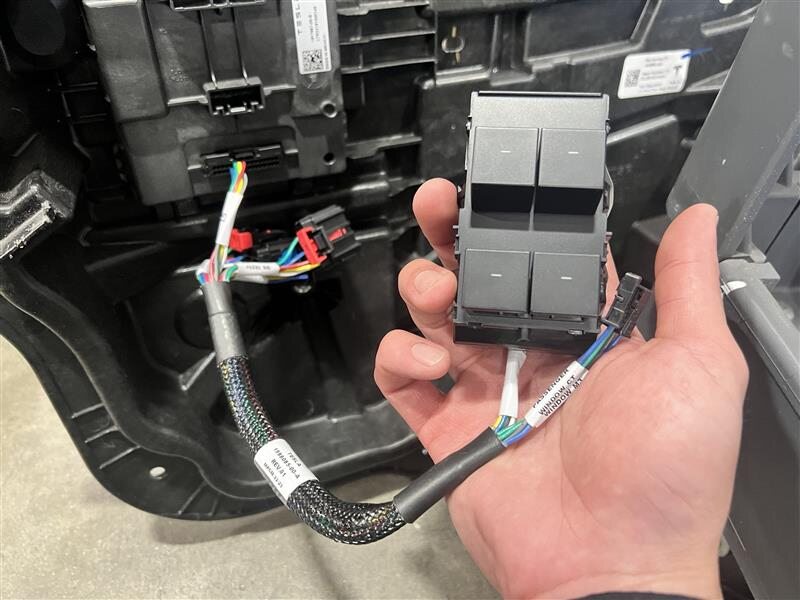

    Connect external window switch to help with adjustment, Reference CVIS for specification
  53. Open LH front door
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Push LH B-pillar door trigger to release
  54. Torque fasteners for window regulator
    Informational PurposesAn informational icon, calling your attention
    Remarque
    2x bolts, 10mm, 13Nm
  55. Install LH front door grommets
    Informational PurposesAn informational icon, calling your attention
    Remarque
    4x grommets

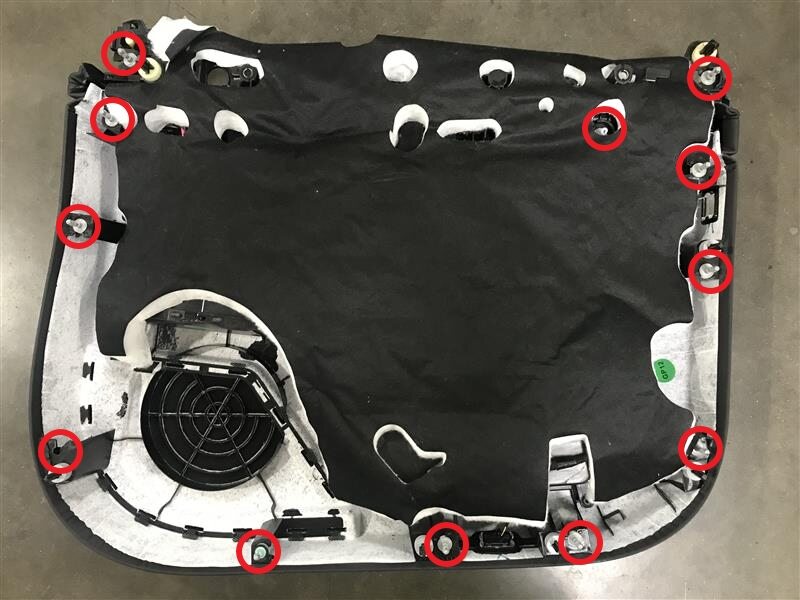

  56. Install the LH front door trim panel. See Panel - Door Trim - Front - LH (Remove and Install).
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Make sure to follow the steps in the procedure to determine if a door trim panel rework is required.
  57. Calibrate window
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Press and hold down selected window for 15 seconds, raise window and hold for 15 seconds, Test window by hard pressing to see if auto roll function works
  58. Raise all 4 windows
  59. Close LH front door

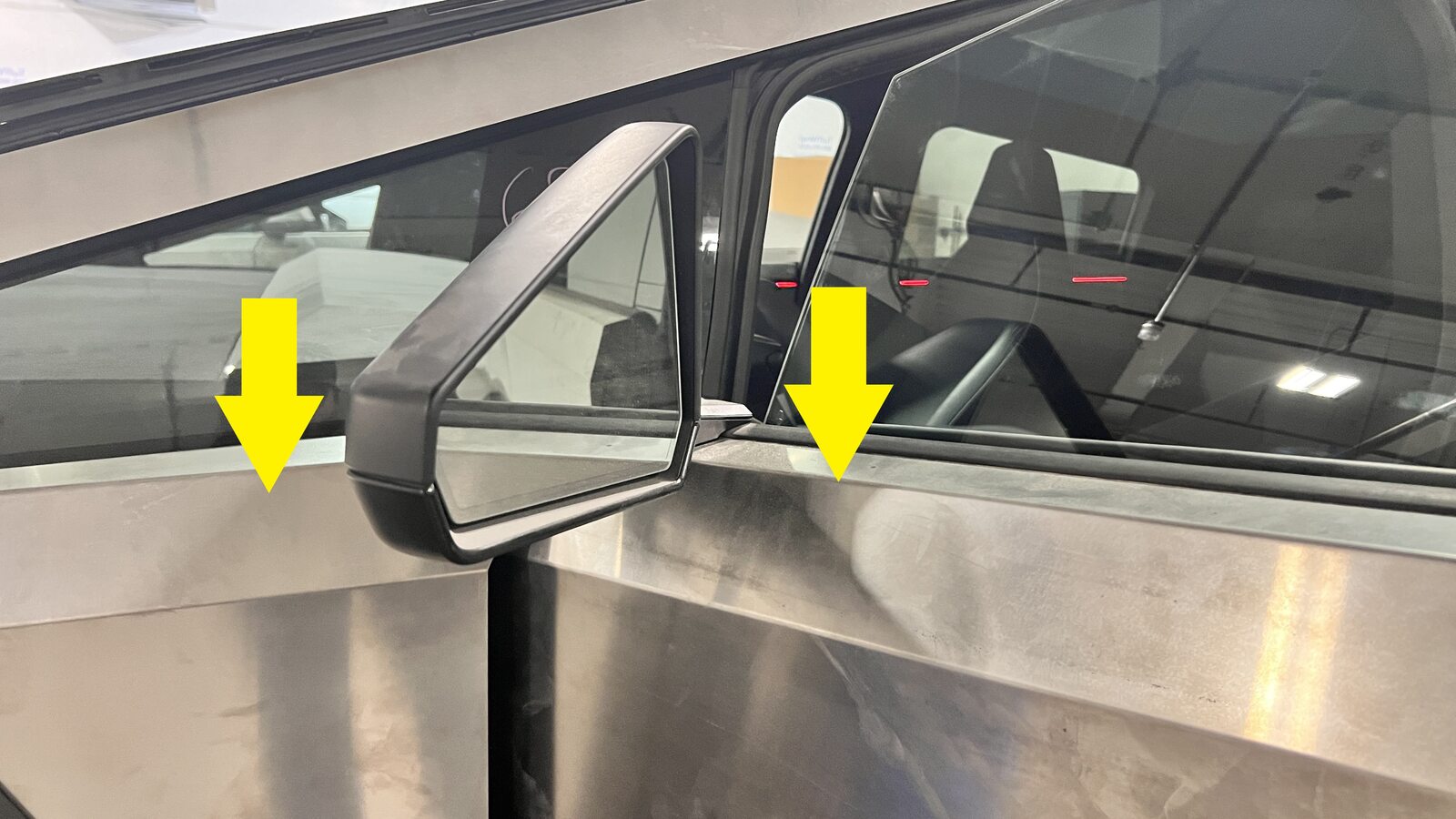

  60. Check LF door gap and flushness
    Informational PurposesAn informational icon, calling your attention
    Remarque
    Verify door alignment. Readjust if needed. Reference current specifications in CVIS.
