Code de correction NEW REMARQUE : À moins d’indications explicites contraires dans la procédure, le code de correction et le temps forfaitaire ci-dessus représentent tout le travail à être fait pour cette procédure, notamment les procédures connexes. N’appliquez pas plusieurs codes de correction à la fois, à moins qu’il vous soit explicitement indiqué de le faire. REMARQUE : Consultez Temps forfaitaires pour en apprendre plus à propos des temps forfaitaires et de leur création. Vous pouvez transmettre par courriel vos commentaires relatifs aux valeurs des temps forfaitaires à ServiceManualFeedback@tesla.com. REMARQUE : Consultez Protection individuelle pour vous assurer de porter l’équipement de protection individuelle adéquat lors vous effectuez la procédure ci-dessous.

1. Open LH front door
   Remarque

   Push LH B-pillar door trigger to release
2. Lower LH front window
3. Raise and support vehicle
   Remarque

   Set air suspension to "Jack Mode"
4. Remove LH front wheel cover
   Remarque

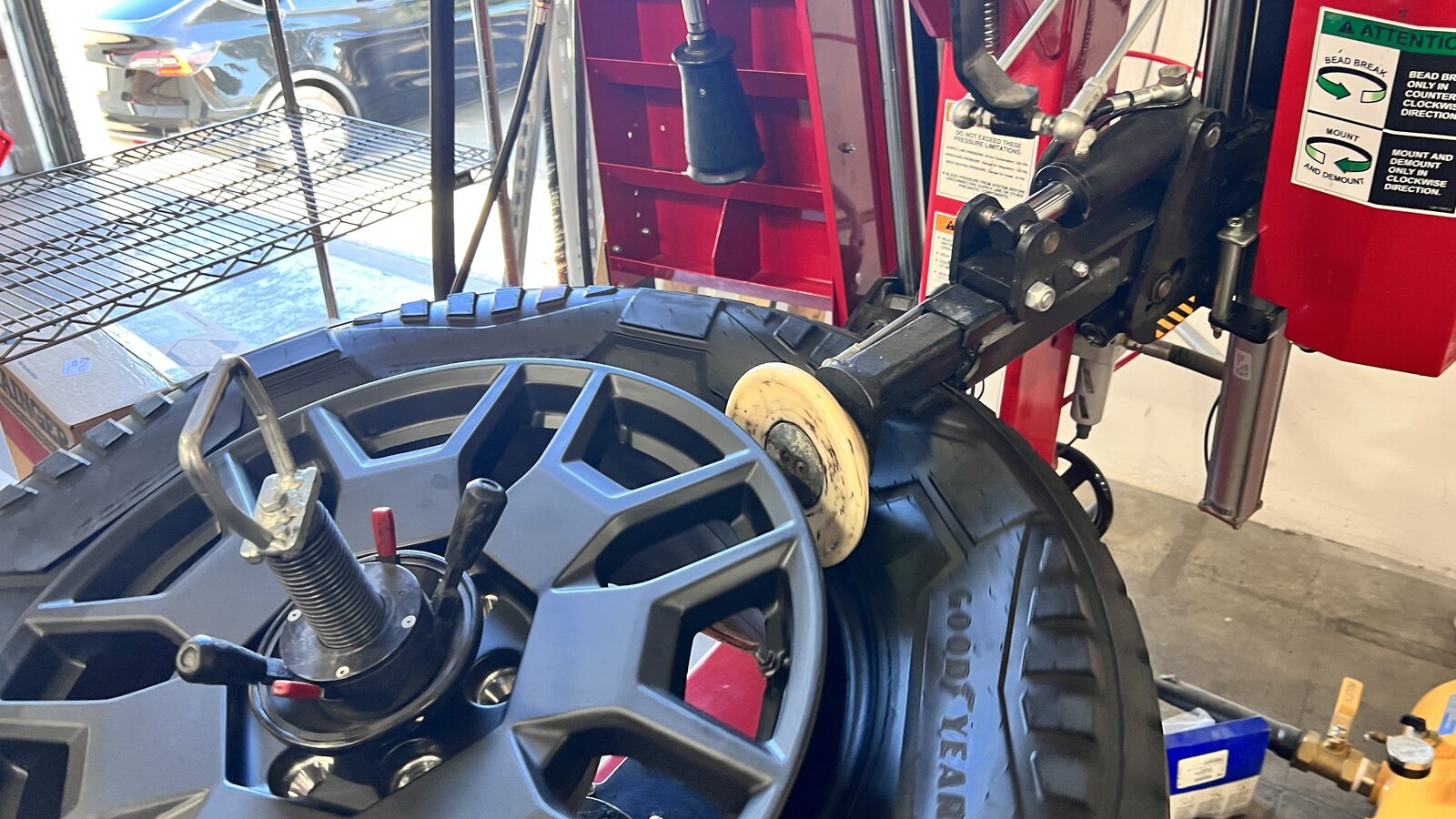

   6x tabs







5. Loosen LH front wheel nuts
   Remarque

   6x nuts, 21mm, 205 Nm



6. Raise vehicle fully
   Remarque

   Set to a comfortable working height, Lower to locks, Ensure locks engage on both sides to prevent tilting

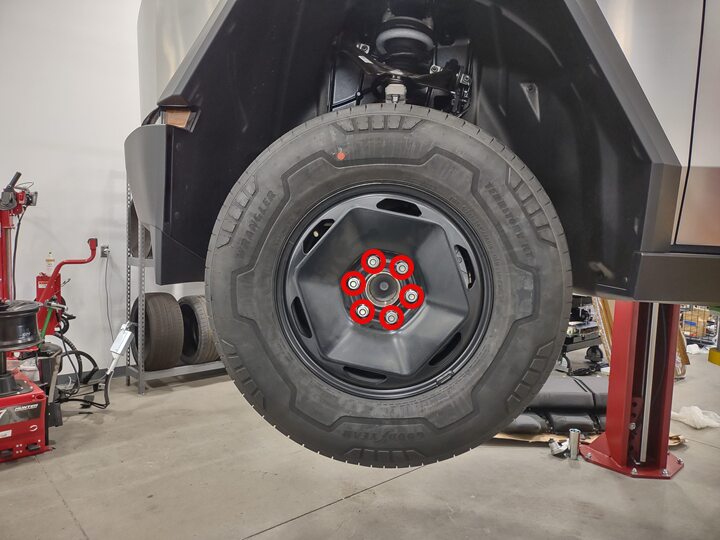

7. Remove LH front wheel
   Remarque

   6x nuts, 21mm, 205 Nm

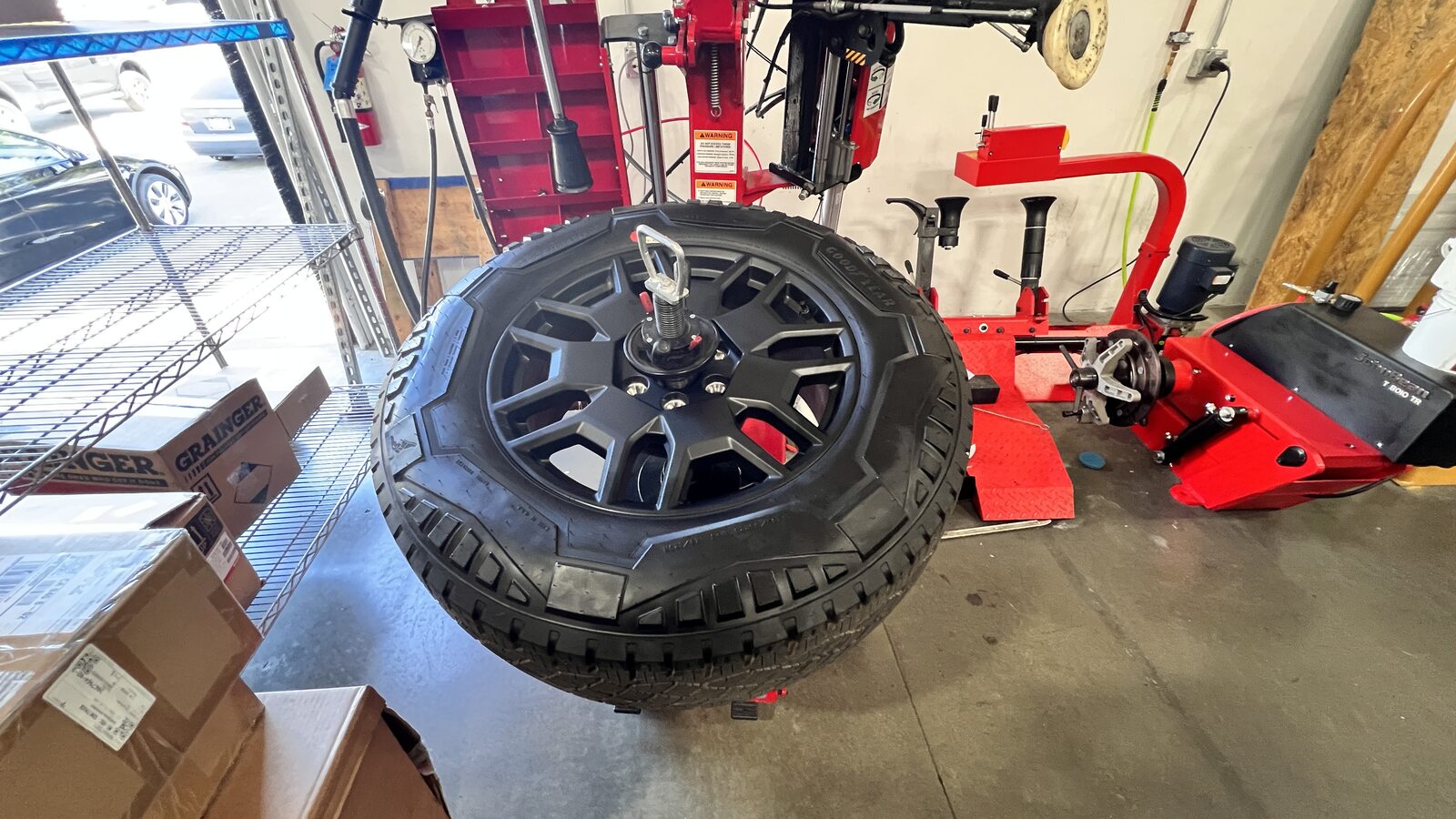

8. Place wheel and tire on tire machine and secure
   Remarque

   1x wheel clamp





9. Remove valve stem cap
   Remarque

   1x cap





10. Remove valve stem core
    Remarque

    Exercise caution as tire rapidly deflates, wear appropriate PPE

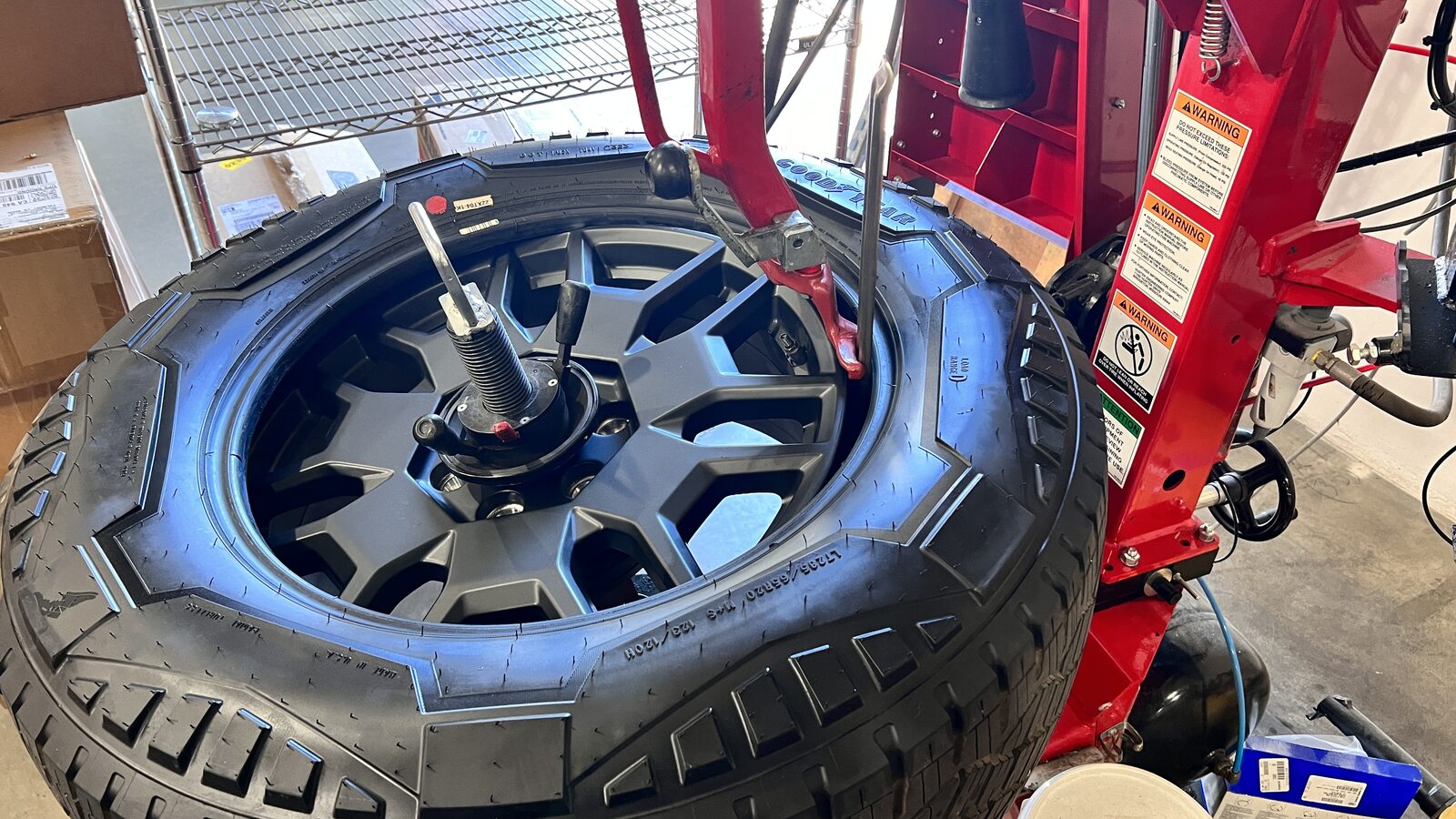

11. Rotate wheel and tire so that upper roller is ~100mm in front of the valve stem
    Remarque

    Failure to properly position valve stem can result in TPMS damage

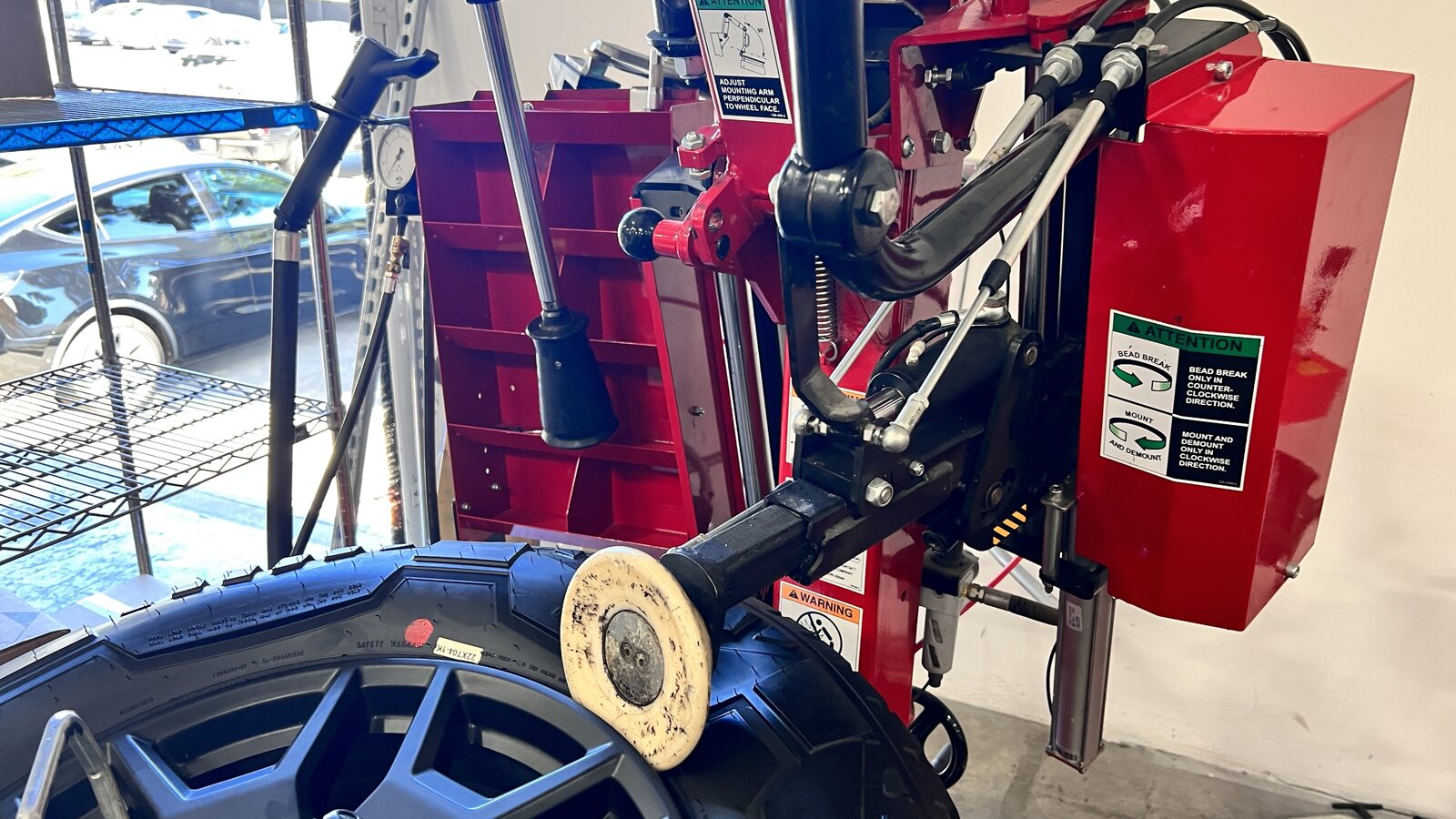

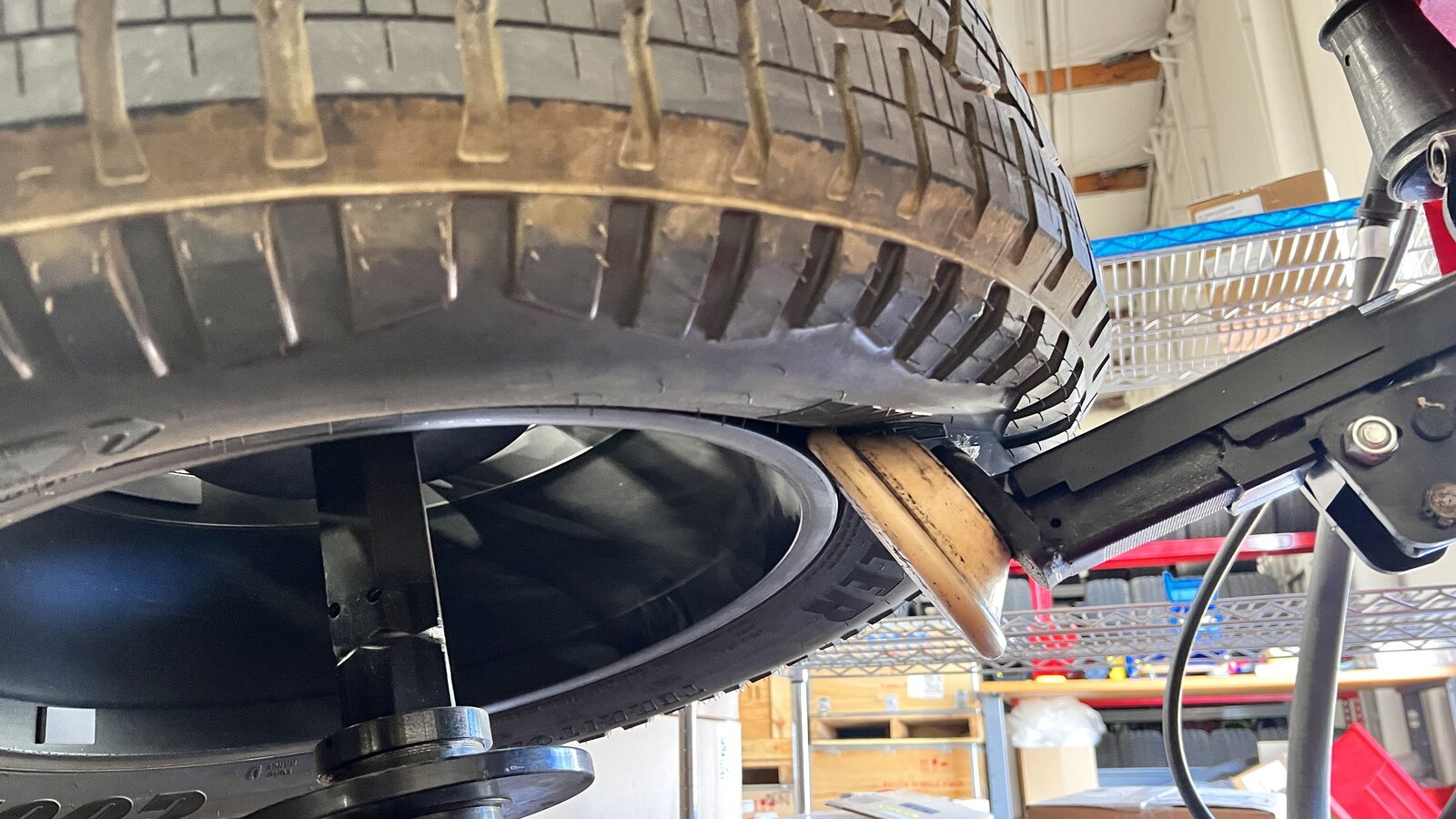

12. Break tire beads
    Remarque

    Lubricate as required

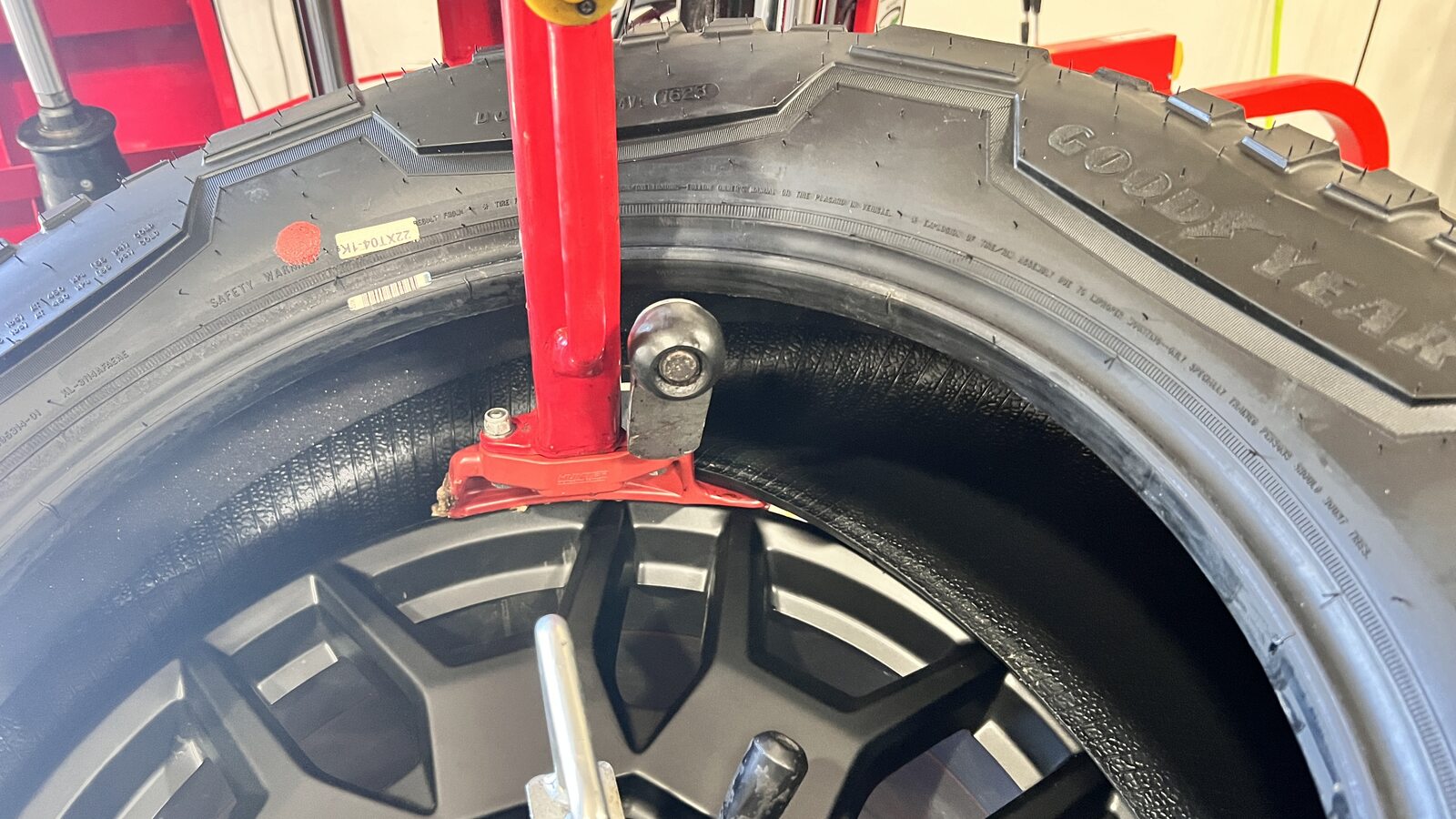

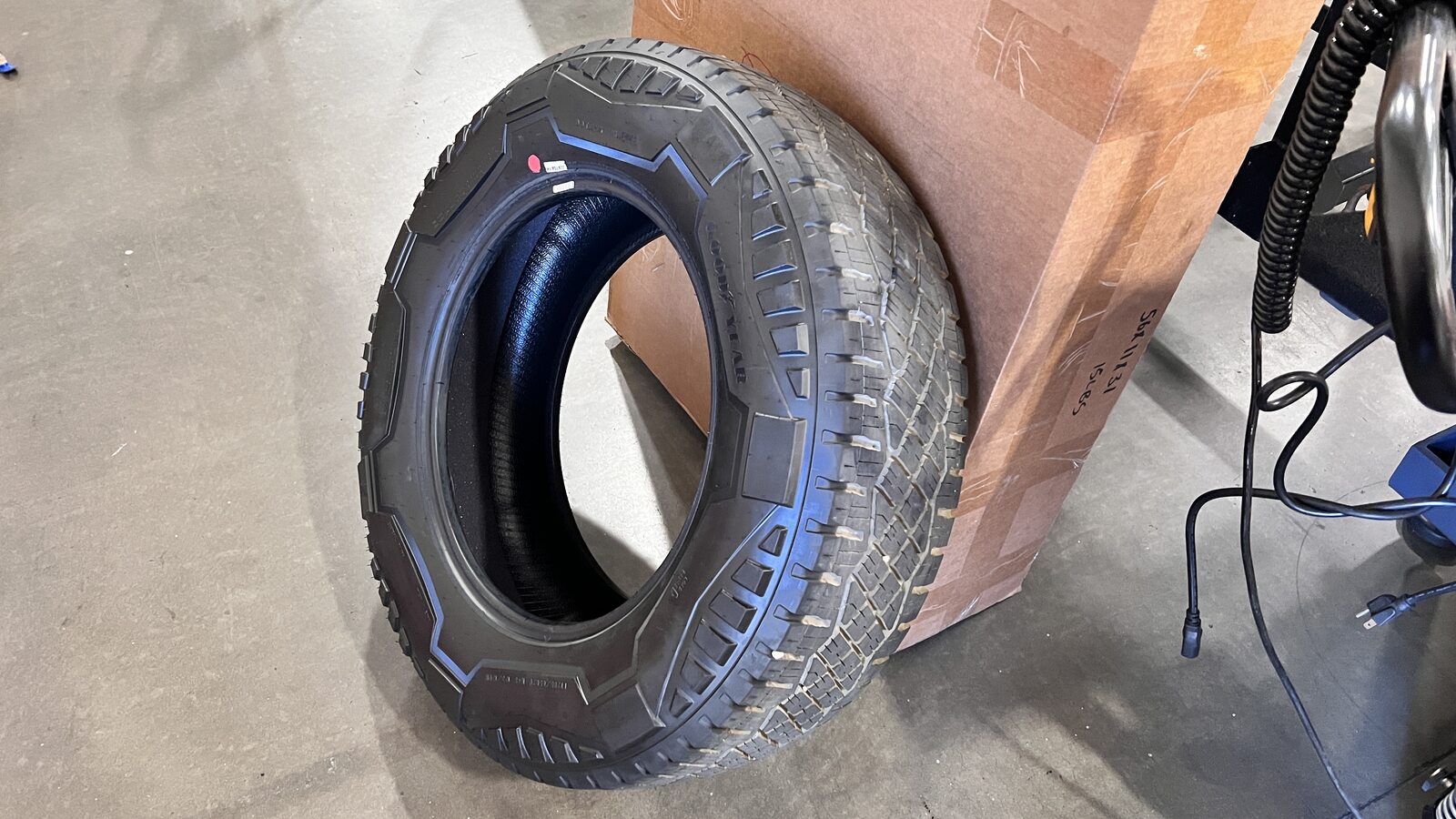

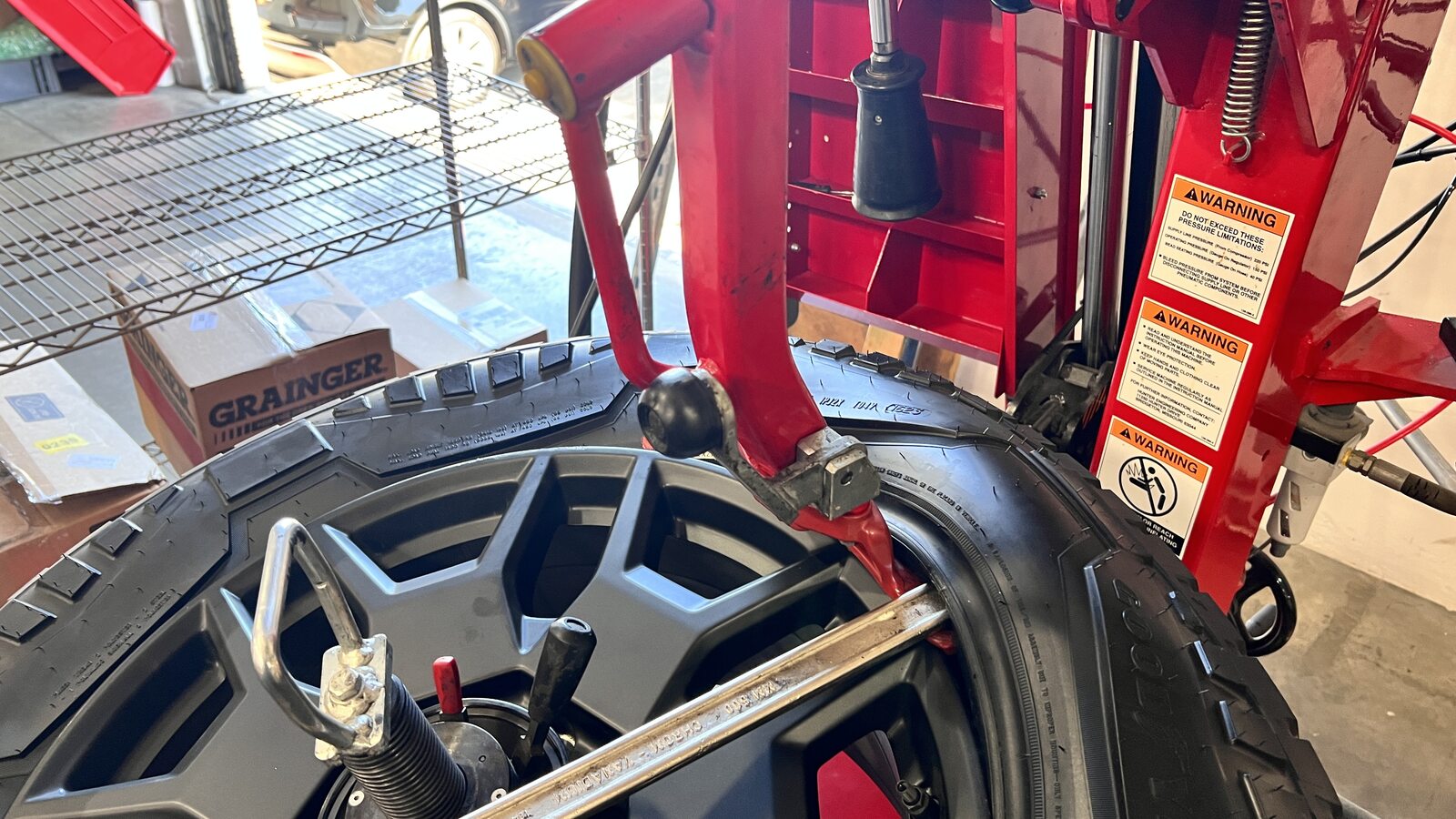

13. Remove tire from wheel
    Remarque

    Make sure to position the TPMS sensor ahead of the tire machine arm

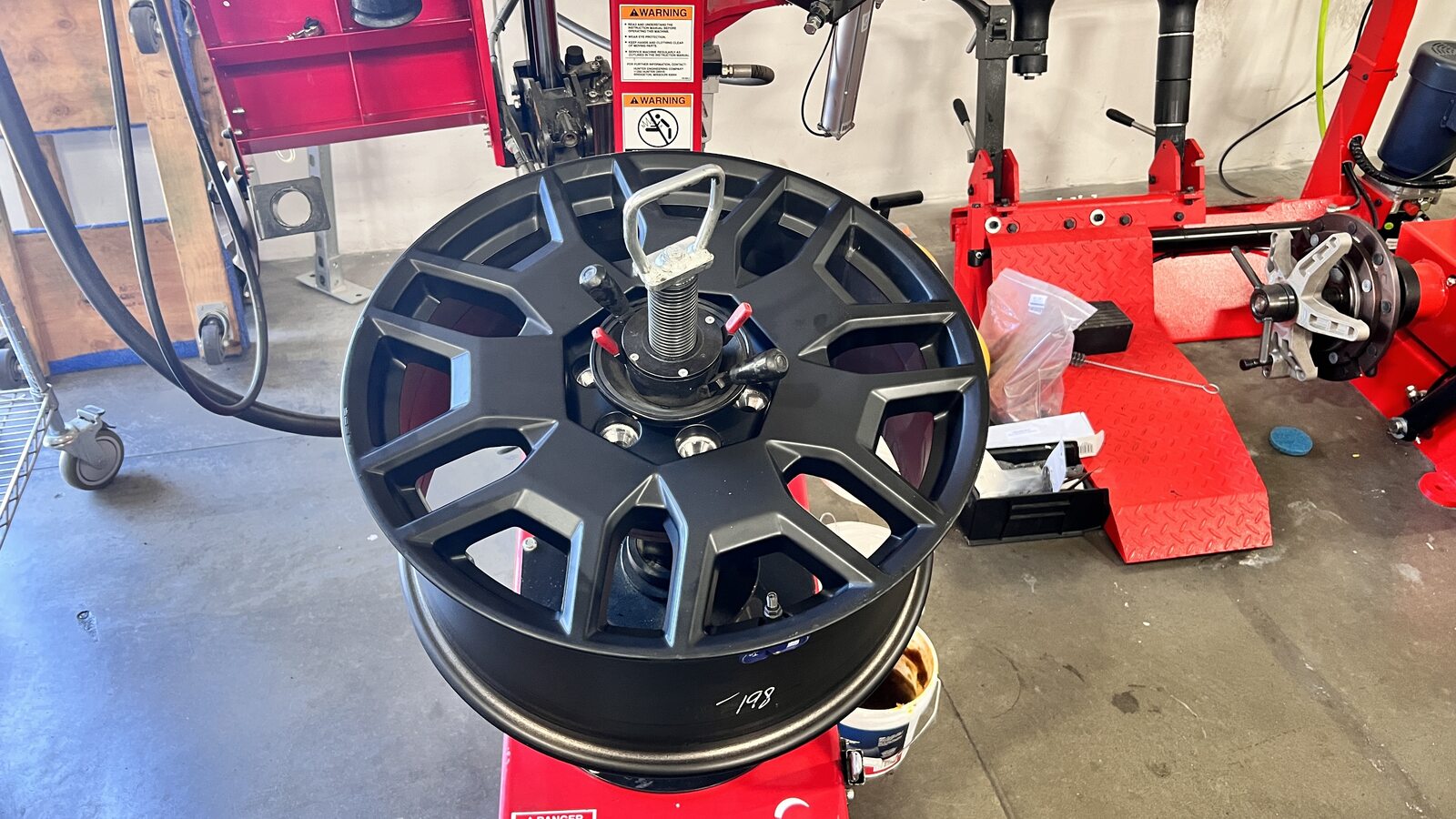

14. Remove wheel from tire changer
    Remarque

    1x clamp

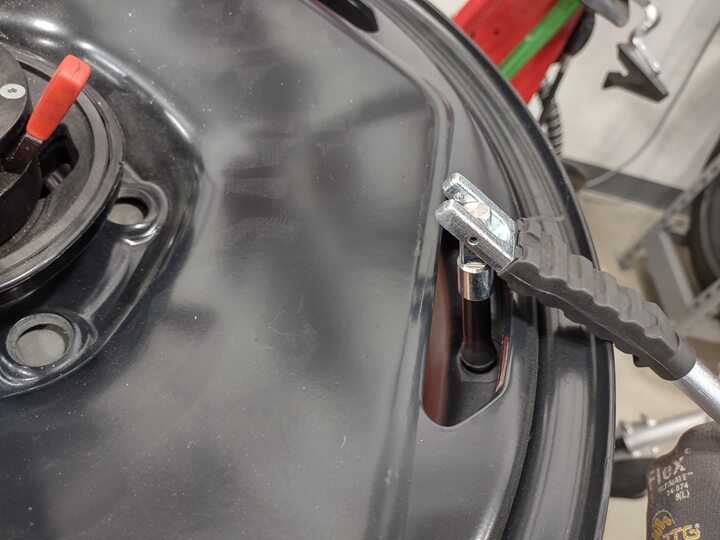

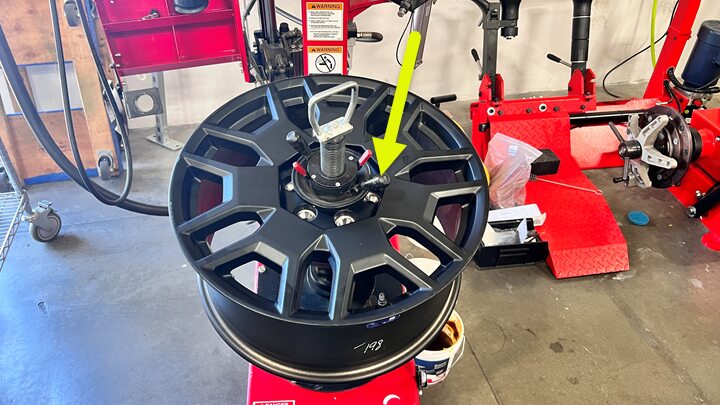

15. Install valve stem
    Remarque

    1x rubber valve stem, Insert from underneath, Pull up with installation tool until seated, Tire shown removed for clarity





16. Install wheel onto tire changer
    Remarque

    1x clamp



17. Thoroughly lubricate both tire beads then position for installation
    Remarque

    Make sure to position the TPMS sensor opposite the tire machine arm, Ensure wheel cover design side of tire is facing outwards

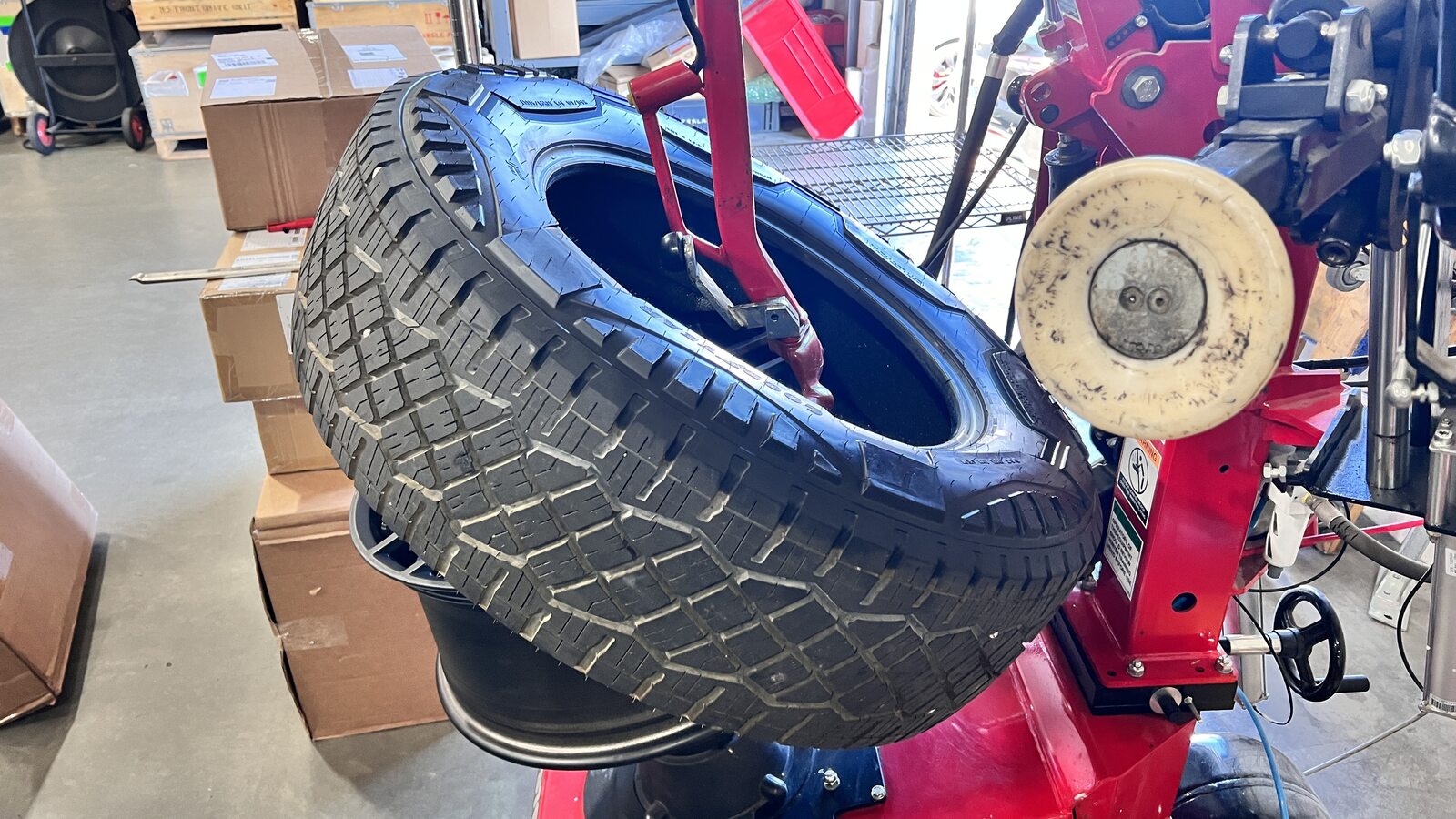

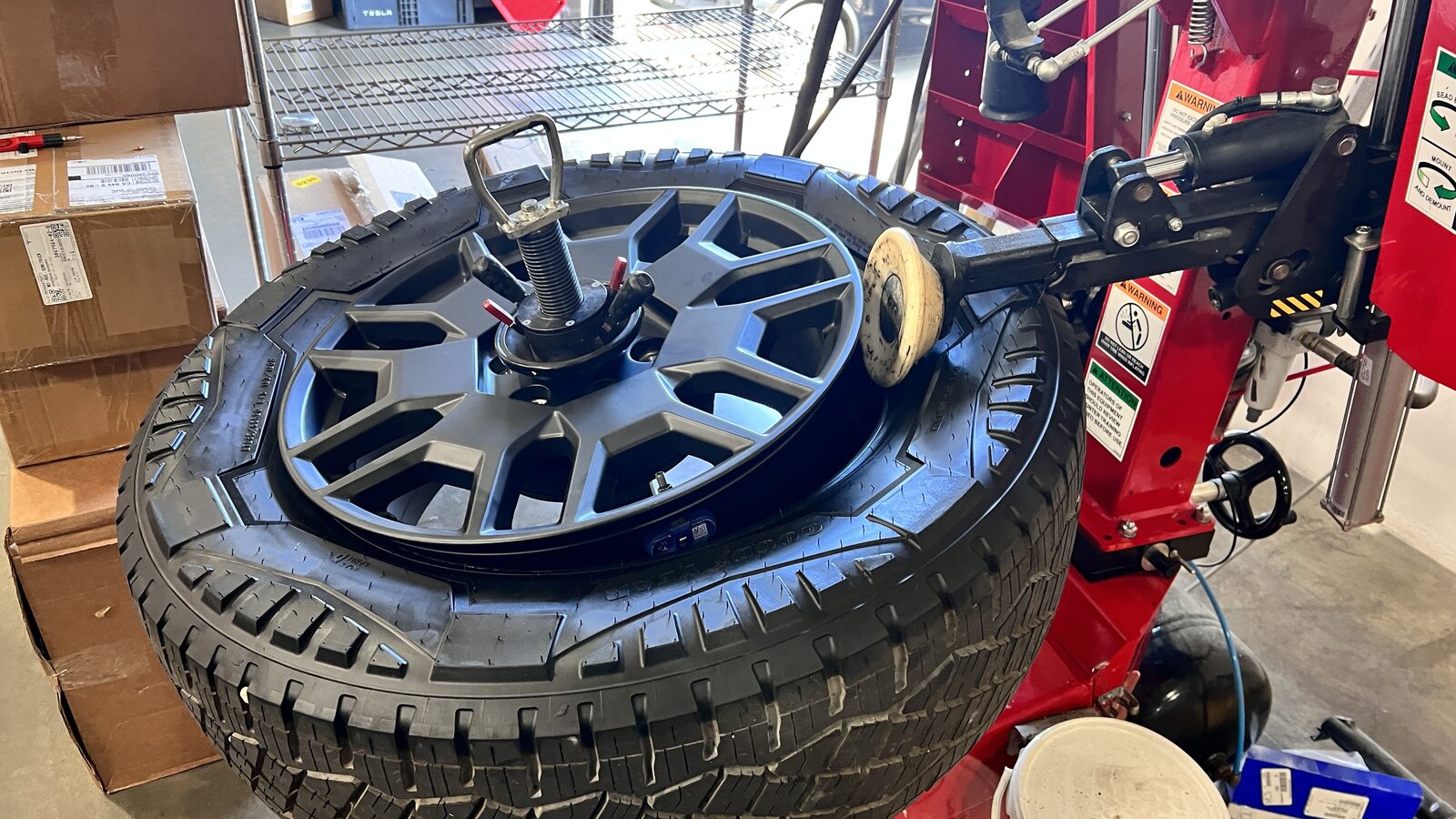

18. Install tire to wheel
    Remarque

    Use caution to avoid damage to beads, Apply additional lubricant as required

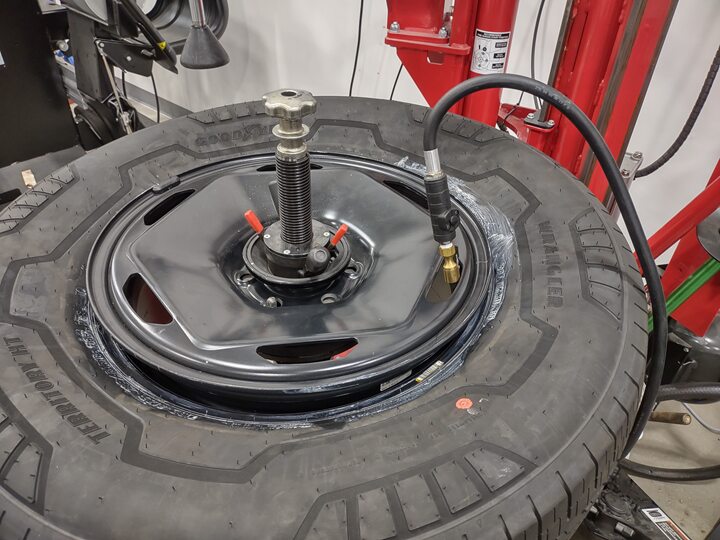

19. Inflate the tire to seat beads
    Remarque

    Do not exceed the pressure indicated on the tire sidewall, Wear PPE, Ensure inside and outside beads are seated





20. Install valve core stem
    Remarque

    Hand tight only, Do not overtighten





21. Remove wheel and tire from tire changer
    Remarque

    1x clamp

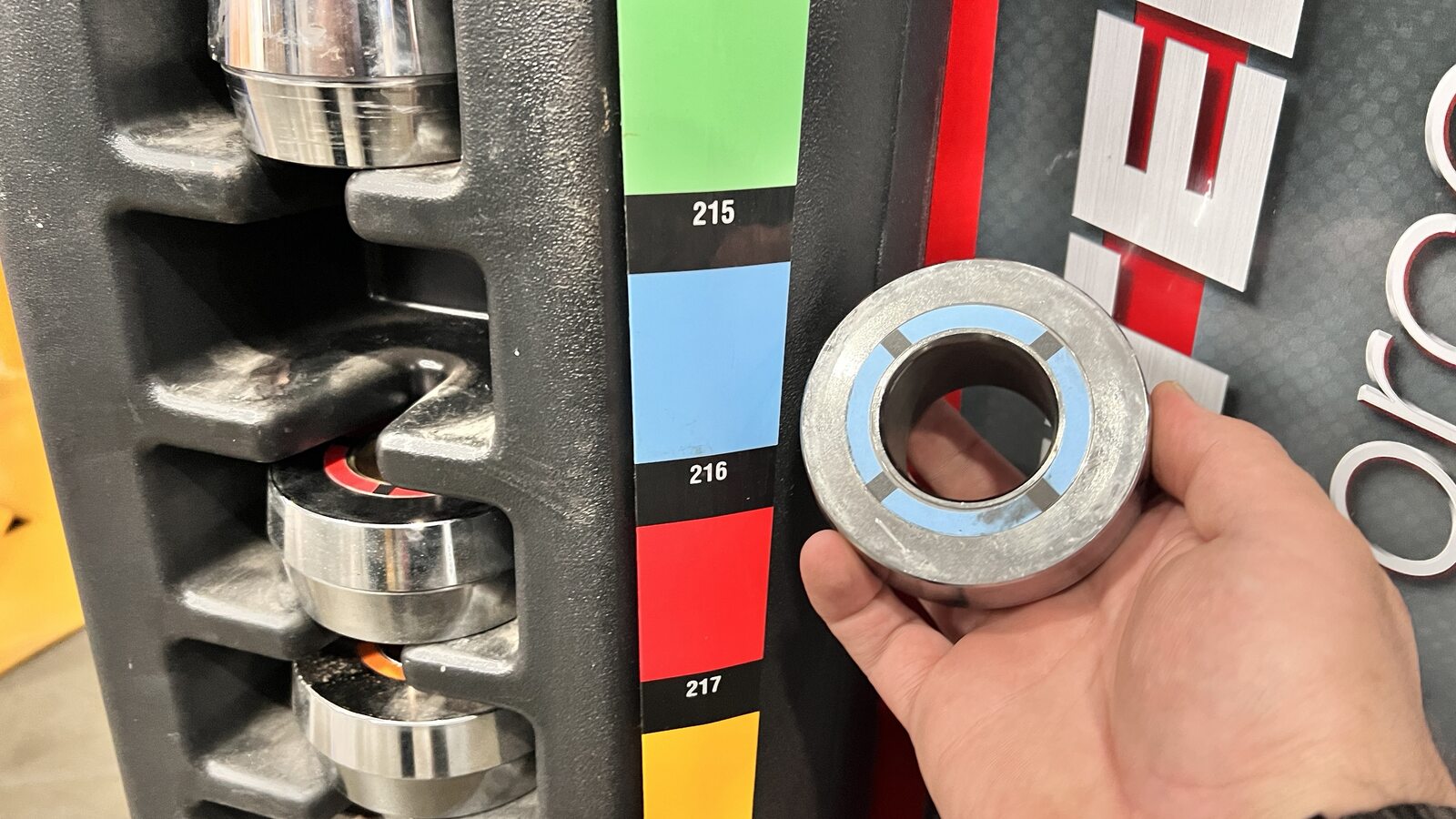

22. Install tire and wheel assembly onto balancer
    Remarque

    1x 6-lug wheel flange, Position wheel onto spindle shaft then secure wheel using flange, If 6-lug wheel flange unavailable use 216mm Blue Hunter centering cone adapter

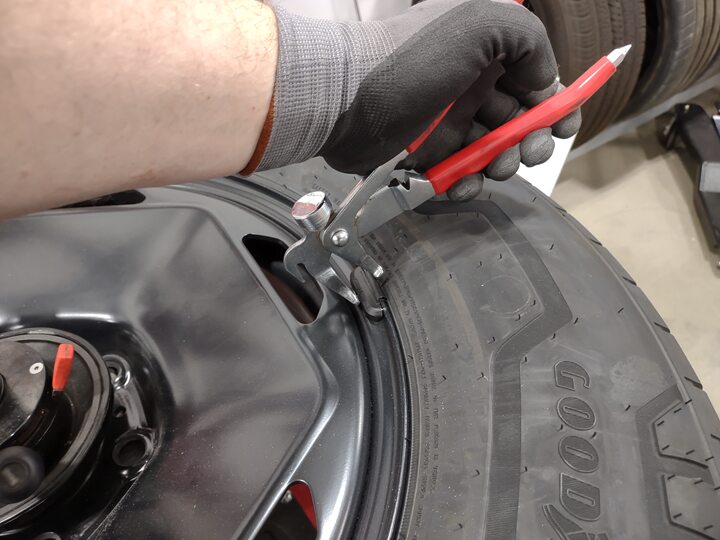

23. Remove wheel weights
    Remarque

    1x tape weight, 1x hammer-on weight





24. Verify tire pressure is set
    Remarque

    Set to specification, Refer to "Tire and Loading Information" label located on driver side B-pillar, Install valve stem cap







25. Input wheel dimensions into balancer machine
    Remarque

    If machine does not require manual input then skip this step



26. Perform road force wheel balance
    Remarque

    Follow machine instructions, Safety hood must be down to start balancing, Make sure load roller engages



27. Record road force wheel balance results
    Remarque

    If road force is within limit then skip to install wheel weights, If road force is outside limit then proceed to force match



28. Perform tire and wheel force match
    Remarque

    Measure run out then mark tire and rim for reference points, Use machine to determine points to match on tire and wheel







29. Remove tire and wheel assembly from balancer
    Remarque

    1x 6-lug wheel flange, Remove flange then remove wheel from spindle shaft



30. Install tire and wheel assembly onto tire machine
    Remarque

    1x wheel clamp, Position wheel onto wheel support then secure wheel using clamp



31. Remove valve stem cap
    Remarque

    1x cap





32. Remove valve stem core
    Remarque

    Exercise caution as tire rapidly deflates, Wear appropriate PPE



33. Break tire beads
    Remarque

    Use lubrication around tire and wheel, Break top and bottom bead





34. Remove tire from wheel
    Remarque

    Make sure to position TPMS sensor ahead of tire machine arm







35. Install tire onto wheel matching previously marked points from balancer
    Remarque

    Rotate tire to align with previously marked reference points







36. Inflate tire to seat beads
    Remarque

    Recommend assistance, Lift tire while inflating, Do not exceed pressure indicated on tire sidewall



37. Install valve stem core
    Remarque

    Exercise caution as tire rapidly deflates, Wear appropriate PPE



38. Remove tire and wheel assembly from tire machine
    Remarque

    1x wheel clamp, Remove clamp then remove wheel from wheel support





39. Install tire and wheel assembly onto balancer
    Remarque

    1x 6-lug wheel flange, Position wheel onto spindle shaft then secure wheel using flange, If 6-lug wheel flange unavailable use 216mm Blue Hunter centering cone adapter









40. Verify tire pressure is set
    Remarque

    Set to specification, Refer to "Tire and Loading Information" label located on driver side B-pillar, Install valve stem cap







41. Input wheel dimensions into balancer machine
    Remarque

    If machine does not require manual input then skip this step



42. Perform road force wheel balance
    Remarque

    Follow machine instructions, Safety hood must be down to start balancing, Make sure load roller engages



43. Install weights onto wheel
    Remarque

    1x tape weight, 1x hammer on weight, Place weights on positions indicated by balancer









44. Perform check spin
    Remarque

    Follow machine instructions, Safety hood must be down to start balancing, Make sure load roller engages







45. Remove tire and wheel assembly from balancer
    Remarque

    1x 6-lug wheel flange, Remove flange then remove wheel from spindle shaft



46. Install LH front wheel
    Remarque

    6x nuts, 21mm, 205 Nm



47. Lower vehicle until tires are touching the ground
    Remarque

    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered
48. Torque LH front wheel nuts
    Remarque

    6x nuts, 21mm, 205 Nm, Use star pattern



49. Install wheel cover







50. Remove vehicle from lift
    Remarque

    Lower rack arms fully and remove them from under vehicle, Remove air suspension from "Jack Mode"
51. Perform indirect TPMS calibration (Placeholder)
52. Road test vehicle - need to drive over 20 MPH to complete TPMS learn
    Remarque

    Per current FRT (00040100) 0.3 hrs
