Code de correction NEW REMARQUE : À moins d’indications explicites contraires dans la procédure, le code de correction et le temps forfaitaire ci-dessus représentent tout le travail à être fait pour cette procédure, notamment les procédures connexes. N’appliquez pas plusieurs codes de correction à la fois, à moins qu’il vous soit explicitement indiqué de le faire. REMARQUE : Consultez Temps forfaitaires pour en apprendre plus à propos des temps forfaitaires et de leur création. Vous pouvez transmettre par courriel vos commentaires relatifs aux valeurs des temps forfaitaires à ServiceManualFeedback@tesla.com. REMARQUE : Consultez Protection individuelle pour vous assurer de porter l’équipement de protection individuelle adéquat lors vous effectuez la procédure ci-dessous.

1. This procedure requires Refrigerant evacuation and recharge, please add specific evacuation and recharge correction code as needed
2. Set up AC machine
   Remarque

   Touch time only, Connect to power, Turn power switch on







3. Raise and support vehicle
   Remarque

   Set air suspension to "Jack Mode"





4. Open LH front door
   Remarque

   Push LH B-pillar door trigger to release





5. Lower LH front window



6. Open RH front door
   Remarque

   Push RH B-pillar door trigger to release





7. Lower RH front window



8. Exécutez la routine ODIN PROC_ICE_X_ENTER-SERVICE-MODEvia Toolbox: (link)
9. Unlock vehicle gateway
   Remarque

   After vehicle has been put into "Service Mode", place keycard on center console to turn on drive rails, hold down the brake pedal, while keep pressing right hand signal button simultaneously for at least 10 seconds, "GTW UNLOCKING" should pop up on the UI right next to the VIN during these 10 seconds, once gateway is unlocked "GTW UNLOCKED 5400" will be displayed on the UI next to the VIN, the gateway will remain unlocked for 90 minutes, follow steps on Toolbox article #5582900 for any additional information







10. Navigate to Refrigerant System through UI
    Remarque

    Select Service Mode > Thermal > Refrigerant System



11. Select "Start Thermal Fill Drain (Coolant and Refrigerant)" through UI
    Remarque

    Allow routine to complete, ensure routine is successful





12. Open powered front trunk
    Remarque

    Via exterior switch or UI





13. Power down vehicle via UI
    Remarque

    Verify EPBs are engaged, Select charge port icon to ensure drive state is disengaged then power down vehicle via Controls > Safety > Power Off



14. Remove rear underhood apron
    Remarque

    9x clips





15. Disconnect FRL connector then disconnect MV battery connector
    Remarque

    2x connectors, Release locking tab then disconnect FRL connector, Slide eCPA to left then lift lever to release MV battery connector, Early production trucks may have black FRL connector, Release eCPA by pushing down to unlock and slide red locking tab, Wait 2 minutes for electrical circuits to discharge before disconnecting modules







16. Raise vehicle fully
    Remarque

    Set to a comfortable working height, Lower to locks, Ensure locks engage on both sides to prevent tilting





17. Remove lower valence fasteners
    Remarque

    2x clips, 2x covers, 6x bolts, 10mm, 6 Nm, Release covers to expose bolts











18. Remove front aero shield
    Remarque

    11x bolts, 10mm, 6 Nm



19. Disconnect CFM connectors
    Remarque

    2x connectors, 2x clips





20. Remove fore crossmember fasteners
    Remarque

    2x bolts, 18mm, 90 Nm





21. Place coolant catcher below RH front of vehicle



22. Disconnect battery coolant supply and return hoses
    Remarque

    2x edge clips, 2x spring clips, Use caution with pick near HV harness, Release edge clips from casting, Plug Hoses, Position coolant drain as needed





23. Lower vehicle until tires are touching the ground
    Remarque

    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered





24. Remove caps from low side and high side AC ports
    Remarque

    2x caps



25. Connect A/C hoses to ports
    Remarque

    Pull back frunk wall if installed to access low side port



26. Perform refrigerant system recovery
    Remarque

    Note or print the amount of refrigerant and oil recovered, If drained oil level increased more than 1.01 oz (30 mL) refer to drained oil loss chart https://toolbox.teslamotors.com/articles/353700







27. Remove frunk assembly
    Remarque

    6x bolts, 10mm, 12 Nm, 2x bolt caps, 2x bumpstops, 1x connector, Remove bolt covers from frunk floor, Remove washer fluid cap by gently prying upwards, Rotate bumpstops counter clockwise to release, the 25mm socket from PT Sensor kit can be used, Avoid straining emergency frunk release connector



















28. Remove front center applique
    Remarque

    8x tabs, 1x connector, Release upper 4 tabs by pushing down then gently pull away, Release frunk release trigger connector





29. Remove front fascia fasteners
    Remarque

    2x covers, 6x bolts, 10mm, 4 Nm, Remove tow hook covers to expose bolts







30. Release clips securing front portion of the LH front wheel house liner
    Remarque

    4x clips



31. Remove front fascia LH side fastener
    Remarque

    1x bolt, 10mm, 6 Nm, Pull wheel liner back for access



32. Release clips securing front portion of the RH front wheel house liner
    Remarque

    4x clips



33. Remove front fascia RH side fastener and connectors
    Remarque

    1x bolt, 10mm, 6 Nm, 1x clip, 3x connectors, Pull wheel liner back for access, Pull red locking tab to release, Do not push down on locking tab





34. Remove front lower fascia assembly
    Remarque

    Place on suitable protective surface





35. Disconnect the powertrain bypass hose, radiator outlet hose, radiator inlet hose from the Supermanifold
    Remarque

    3x spring clips, This will drain the coolant reservoir





36. Disconnect radiator to manifold hose from radiator and plug connections
    Remarque

    1x spring clip, Remove from vehicle, Plug hoses



37. Disconnect manifold to radiator hose from radiator and plug connections
    Remarque

    1x spring clips, Plug hoses

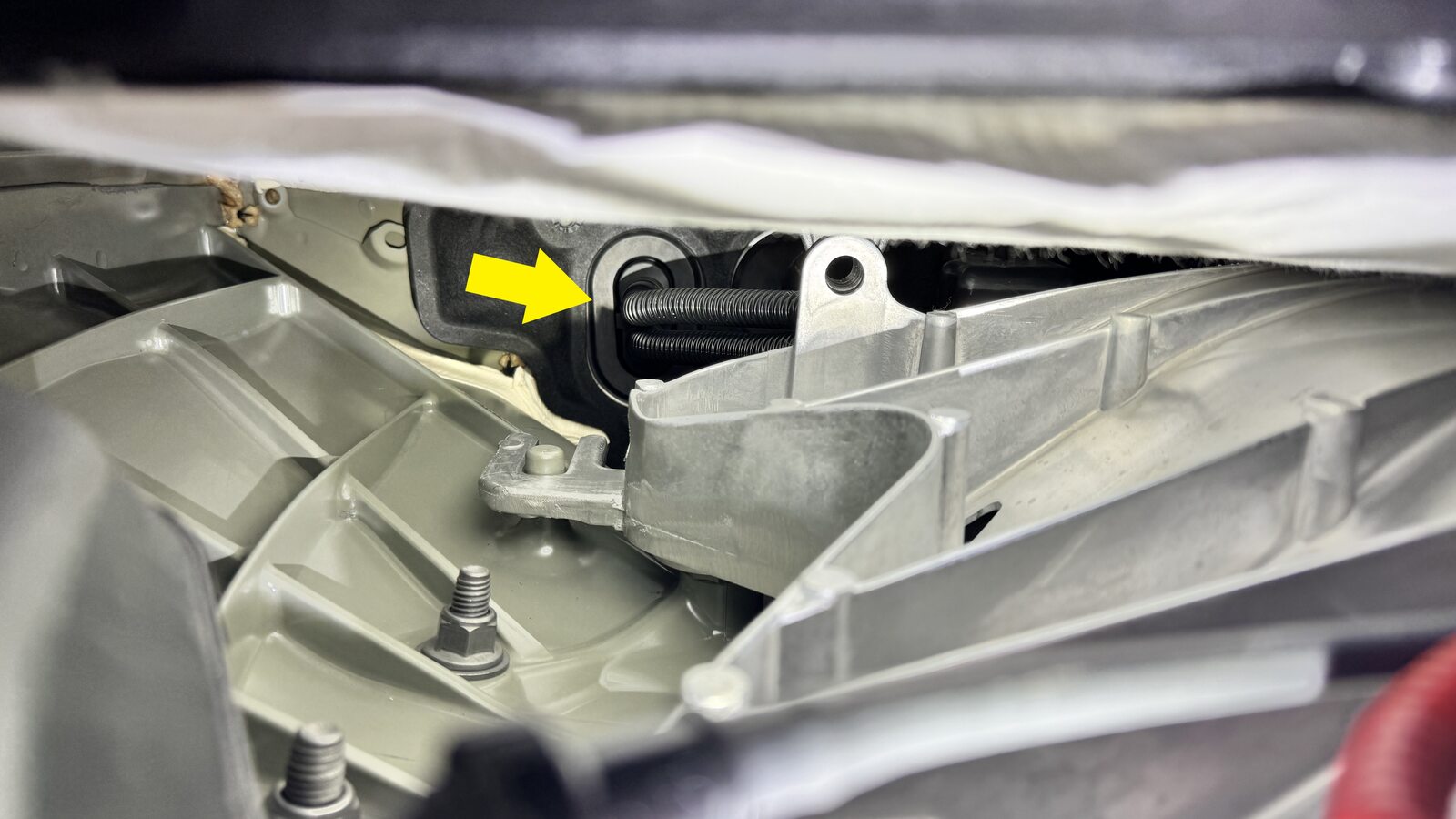

38. Release harness from CFM
    Remarque

    1x grommet, 2x connectors, 5x harness clips, Pull red locking tab to disengage louver connector, Release temperature sensor then disconnect, Release grommet and pull harness through from frunk area







39. Remove upper CFM fasteners
    Remarque

    2x bolts, 10mm, 10 Nm

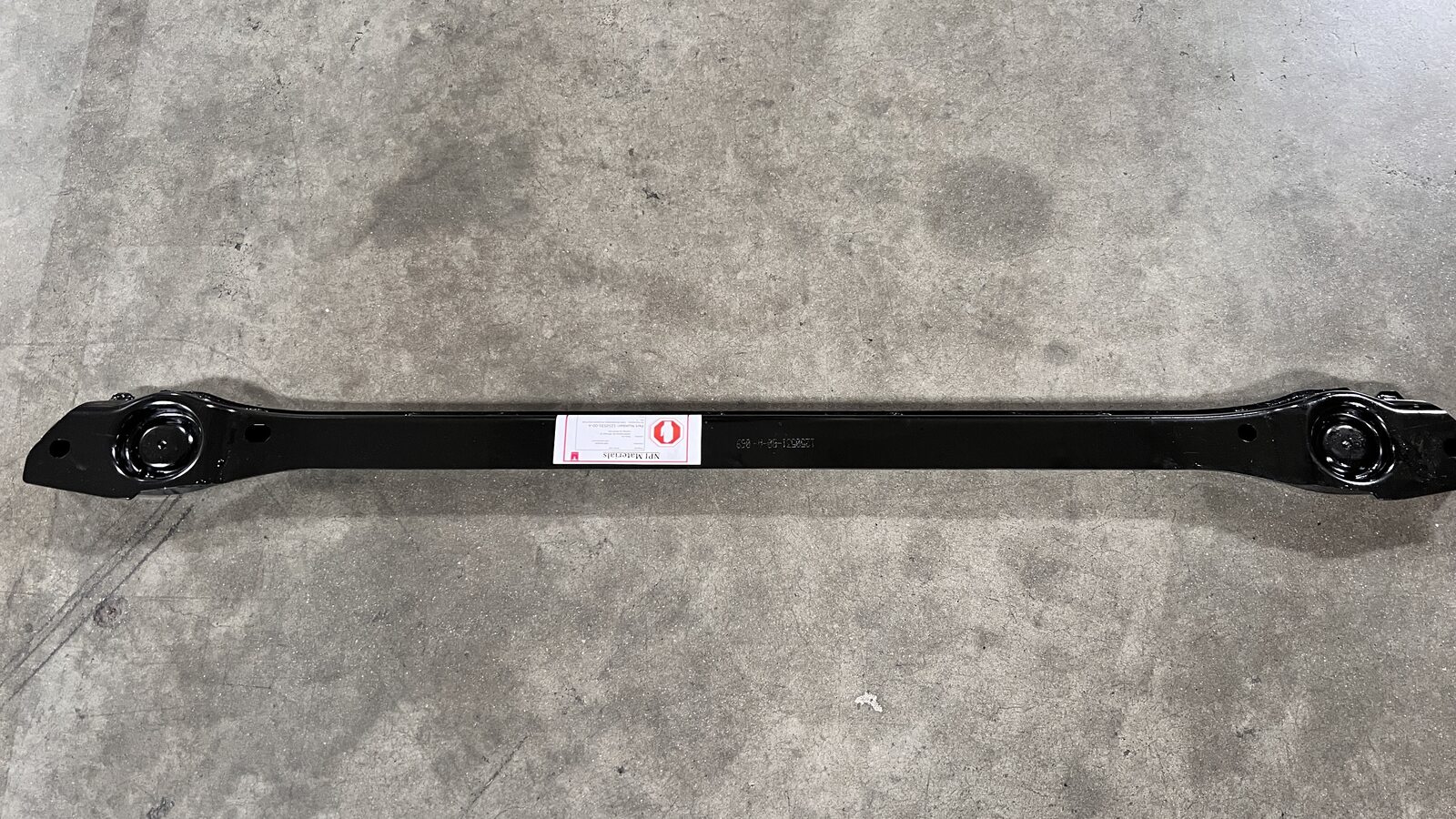

40. Remove fore crossmember
    Remarque

    Lift CFM up as required for additional clearance, Use of a dead blow hammer can aid removal



41. Remove CFM
    Remarque

    Recommend assistance, Remove from below impact beam, Ensure harness is not pinched during removal





42. Disconnect supermanifold harness
    Remarque

    1x connector



43. Remove bolts securing supermanifold
    Remarque

    2x bolts, 15mm, 33 Nm, Break free then remove by hand to avoid tool jamming, Support manifold from underneath, Lower Supermanifold until resting on HVAC case





44. Disconnect battery supply hose, powertrain supply hose, and battery return hose from supermanifold
    Remarque

    3x spring clip, 2x connectors, Do not push down on red tab, Pull red tab to disengage lock, Pull again to release connector, Pull supermanifold forward to access clips and connectors







45. Remove LH mid A-pillar trim
    Remarque

    1x clip, 3x tabs, Release tabs then slightly bend live hinge and release clip







46. Remove LH lower A-pillar trim
    Remarque

    7x clips, 3x datums, 2x tabs, Release sill plate, Pull rearward then upward







47. Remove footwell cover
    Remarque

    3x clips, 3x magnets, 1x bolt, 10mm, 3 Nm, Bolt is captive to tether









48. Remove RH mid A-pillar trim
    Remarque

    1x clip, 3x tabs, Release tabs then slightly bend live hinge and release clip







49. Remove RH lower A-pillar trim
    Remarque

    7x clips, 3x datums, 2x tabs, Release sill plate, Pull rearward then upward







50. Remove Mid IP panel
    Remarque

    19x clips







51. Remove lower IP panel
    Remarque

    4x patch bolts, 10mm, 7 Nm, 4x screws, T20, 2 Nm, 15x panel clips, 1x push clip, 4x connectors, Discard patch bolts after removal, Release LH/RH knee air bag harness from the main IP harness buddy clips, Remove blue tape to allow service slack & prevent stress to knee air bag connectors, Release connector locking tabs, Release OBD port from lower IP













52. Remove RH EPP clip
    Remarque

    1x clip, Pull back for access to car computer



53. Disconnect glovebox USB connector
    Remarque

    1x connector, Release locking tab



54. Remove glovebox
    Remarque

    1x connectors, 1x clip, 5x screws, T20, 2 Nm, 2x datums





55. Place absorbant mats under car computer
    Remarque

    Ensure coolant will not spill onto electrical components



56. Disconnect car computer coolant hoses
    Remarque

    2x spring clips, Remove lower hose first then upper hose, Plug hoses, Use a coolant jug to catch as much coolant as possible, Tuck hoses out of way once plugged





57. Remove car computer hose grommet from bulkhead
    Remarque

    Push grommet outwards into frunk area, Pull hoses through to frunk area





58. Remove AC hoses from vehicle



59. Remove nut securing Penta HVAC line assembly to the Supermanifold plate
    Remarque

    1x nut, 13mm, 36 Nm



60. Remove AC line from Supermanifold
    Remarque

    1x bolt, 13mm, 22 Nm, 1x bolt, 10mm, 8 Nm, Remove bolt at supermanifold then mounting bracket bolt near LV battery, Remove AC line assembly from supermanifold, Ensure no washers remain on supermanifold





61. Remove the Supermanifold from the vehicle
    Remarque

    Recommend assistance, Rotate the Supermanifold counter clockwise under the Megabeam, Support from underneath and at reservoir









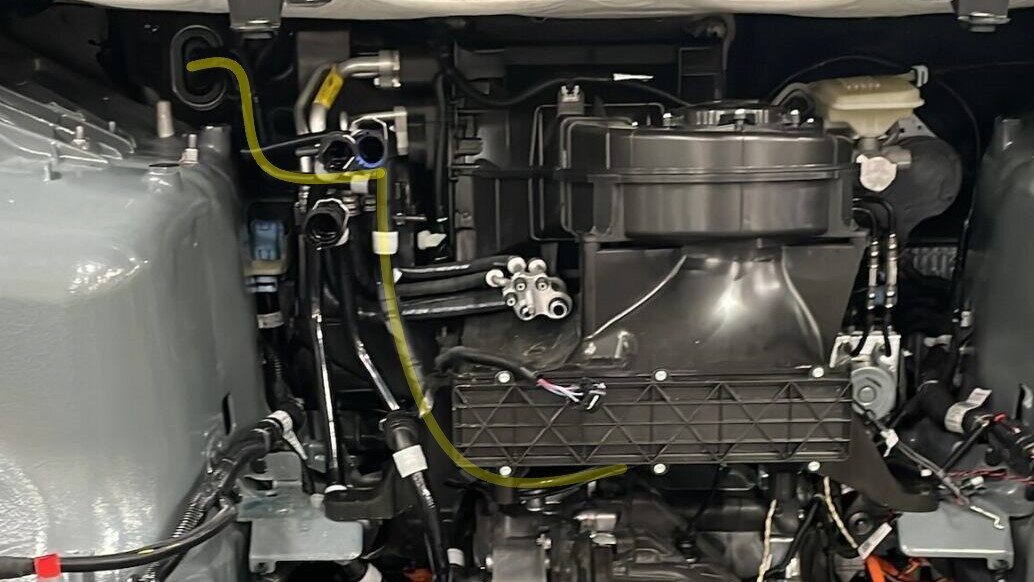

62. Remove coolant hose bundle
    Remarque

    1x breather fitting, 2x clips, Release breather from front drive unit, Release clips then remove coolant hose bundle, Pull HV battery coolant hoses upwards from behind front drive unit, Manipulate as required, Vehicle shown further disassembled for clarity

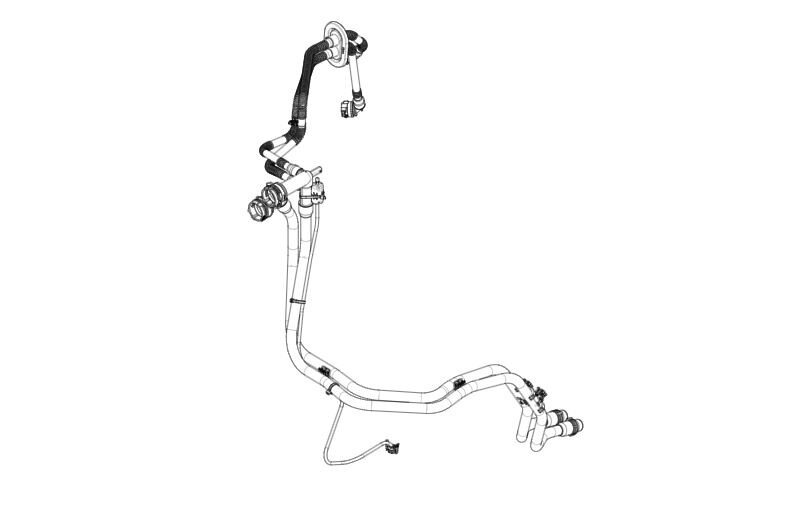

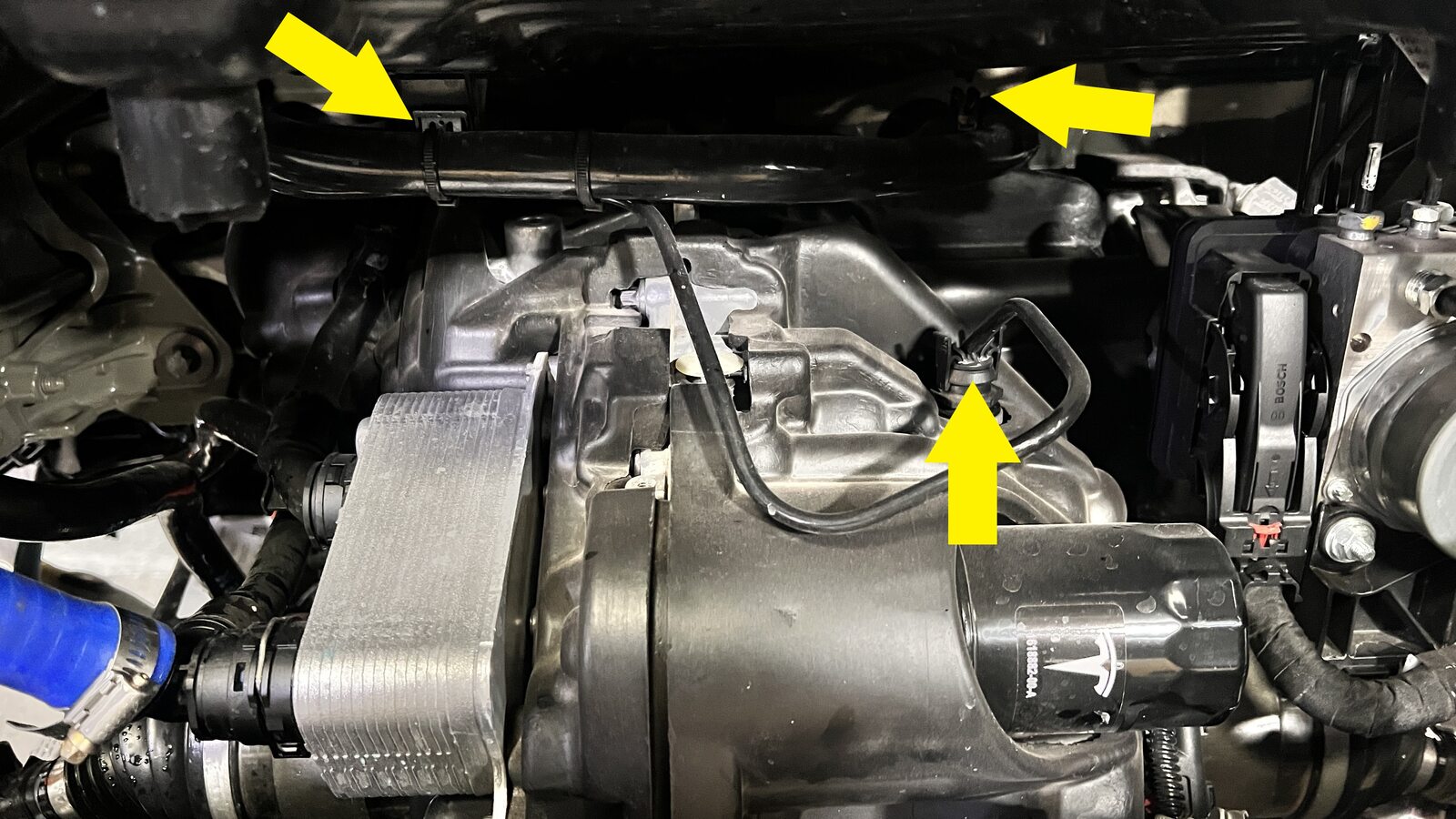

63. Install coolant hose bundle
    Remarque

    1x breather fitting, 2x clips, Manipulate hoses as required to place in position, Secure edge clips to HVAC case, Secure front drive unit breather, Vehicle shown further disassembled for clarity









64. Replace the seal washers to the Penta HVAC line on the AC manifold side
    Remarque

    5x seal washers, Lube seal washers with RB100EV POE oil



65. Install the Supermanifold to the vehicle
    Remarque

    Recommend assistance, Rotate the Supermanifold counter clockwise under the Megabeam, Support from underneath and at reservoir, Align penta HVAC line







66. Secure chiller to battery hose, powertrain supply hose, chiller to battery hose to supermanifold
    Remarque

    3x spring clip, 2x connectors, Engage locking tabs, Ensure all hoses are fully engaged with a push-pull-push test







67. Install pentaline to Supermanifold
    Remarque

    1x nut, 13mm, 36 Nm, Ensure good alignment of pipes before tightening nut





68. Install bolts securing supermanifold
    Remarque

    2x bolts, 15mm, 33 Nm, Start by hand





69. Install CFM
    Remarque

    Install from bottom, Assistance recommend Manipulate as required, Ensure harness is not pinched during install





70. Install fore crossmember
    Remarque

    Install fasteners at a later step, Lift CFM upwards as required for clearance, Tap into position with dead blow hammer if required



71. Install upper CFM fasteners
    Remarque

    2x bolts, 10mm, 10 Nm





72. Secure harness to CFM
    Remarque

    1x grommet, 2x connector, 1x harness clip, Secure grommet then connect temperature sensor, Engage locking tab on louver connector







73. Connect radiator inlet coolant hose
    Remarque

    1x spring clips,Ensure hose is fully engaged with a push-pull-push test



74. Connect radiator to manifold hose to radiator
    Remarque

    1x spring clip, Ensure hose is fully engaged with a push-pull-push test





75. Secure powertrain bypass hose, radiator outlet hose, and radiator inlet hose to Supermanifold
    Remarque

    3x spring clips, Ensure all hoses are fully engaged with a push-pull-push test





76. Connect supermanifold electrical connector
    Remarque

    1x connector



77. Replace seal washers for supermanifold to compressor AC line on supermanifold side
    Remarque

    2x seal washers, Lube seal washers with RB100EV POE oil



78. Install AC manifold line assembly to Supermanifold
    Remarque

    1x bolt, 13mm, 22 Nm, 1x bolt, 10mm, 8 Nm, Install manifold to Supermanifold then secure bracket near LV battery





79. Raise vehicle fully
    Remarque

    Set to a comfortable working height, Lower to locks, Ensure locks engage on both sides to prevent tilting





80. Connect battery supply and return coolant hoses
    Remarque

    2x edge clips, 2x spring clips, Remove plugs, Secure edge clips to casting, Perform a push-pull-push test to ensure hose is engaged





81. Connect CFM connectors
    Remarque

    2x connectors, Engage locking tab





82. Install fore crossmember fasteners
    Remarque

    2x bolts, 18mm, 90 Nm, Shift crossmember as required to align bolt holes





83. Install front aero shield
    Remarque

    11x bolts, 10mm, 6 Nm, Apply loctite 222 to aeroshield fasteners



84. Install lower valence fasteners
    Remarque

    2x clips, 2x covers, 6x bolts, 10mm, 6 Nm, Secure covers











85. Lower vehicle until tires are touching the ground
    Remarque

    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered





86. Reconnect AC hoses to vehicle



87. Perform system vacuum and refrigerant refill
    Remarque

    Select 20 mins of Vacuum, Recharge refrigerant to car's specs, add oil quantity as needed, select both HP and LP for charging











88. Remove AC hoses from vehicle



89. Remove coolant bottle cap



90. Install vacuum refill cap onto coolant bottle assembly



91. Place empty coolant container into front storage area
    Remarque

    If frunk is not installed take caution, CFM fan shroud assembly cannot support a full coolant container, Ensure overflow container is empty, Place fender cover over FEM and front fascia



92. Fill container with at least 15L of coolant



93. Place filled coolant container onto coolant drain & fill cart
    Remarque

    Do not place container with 15L of coolant on top of CFM fan shroud, Position cart as close as possible to front of vehicle



94. Setup coolant refill tool
    Remarque

    Verify all valves on refill tool are in the closed position, See image for clarity





95. Install vacuum refill hose to refill cap on coolant bottle
    Remarque

    Perform push-pull-push test to verify hose is fully installed



96. Position overflow hose into empty container



97. Place refill hose inside filled coolant container
    Remarque

    Make sure hose end is fully submerged into coolant



98. Connect shop air supply to coolant refill tool
    Remarque

    If not already done, Verify refill valve is set to off



99. Open air inlet valve to draw a vacuum, Once gauge stabilizes, Fully close valve
    Remarque

    Gauge stabilizes roughly (60-70 cmHg), Vacuum should not drop after the valves are closed





100. Slowly open the refill valve to allow coolant to be drawn into the system
     Remarque

     Make sure hose end of refill hose is fully submerged during entire process



101. Once the gauge reads zero, close the coolant refill valve





102. Remove shop air supply to coolant refill tool
     Remarque

     If not already done, Verify refill valve is set to off



103. Remove coolant refill hose from coolant container



104. Remove coolant overflow hose from coolant container



105. Remove vacuum refill hose from refill cap on coolant bottle



106. Remove vacuum refill cap from coolant bottle assembly



107. Remove coolant refill tool from vehicle
     Remarque

     Move coolant drain & fill cart away from vehicle





108. Remove coolant container from inside underhood area



109. Inspect coolant level and top off as necessary
     Remarque

     Ensure that the fluid level is at the Max line, Top off fluid as required



110. Install front lower fascia assembly
     Remarque

     Ensure no harnesses are pinched





111. Install RH fascia fastener and connectors
     Remarque

     1x bolt, 10mm, 6 Nm, 1x clip, 3x connectors, Pull wheel liner back for access, Engage locking tab





112. Secure RH wheel liner
     Remarque

     4x clips



113. Install LH fascia fastener
     Remarque

     1x bolt, 10mm, 6 Nm, Pull wheel liner back for access



114. Secure LH wheel liner
     Remarque

     4x clips



115. Install front fascia fasteners and covers
     Remarque

     2x covers, 6x bolts, 10mm, 4 Nm, Install tow hook covers







116. Install front center applique
     Remarque

     8x tabs, 1x connector, Ensure all tabs engage, Secure frunk release trigger connector





117. Connect FRL connector then connect MV battery connector
     Remarque

     2x connectors, Connect FRL connector then secure locking tab, Position lever to secure MV battery connector then slide eCPA to right, Early production trucks may have black FRL connector, If power cycling vehicle then ensure at least 60 seconds has passed since powering down







118. Access thermal system routines using the UI
     Remarque

     Select quick controls > Service mode > Thermal > Actions





119. Exécutez la routine ODIN PROC_EGGRIGHT3_X_THERMAL-FILL-DRAIN-STOPvia Toolbox: (link)via Service Mode: Thermal ➜ Actions ➜ Stop Thermal Fill/Drainvia Service Mode Plus:
     • Drive Inverter ➜ Front Drive Inverter Replacement ➜ Stop Fluid Fill/Drain
     • Drive Inverter ➜ Rear Drive Inverter Replacement ➜ Stop Fluid Fill/Drain
     • Drive Inverter ➜ Rear Left Drive Inverter Replacement ➜ Stop Fluid Fill/Drain
     • Drive Inverter ➜ Rear Right Drive Inverter Replacement ➜ Stop Fluid Fill/Drain
     • Drive Unit ➜ Front Drive Unit Replacement ➜ Stop Coolant Fill/Drain
     • Drive Unit ➜ Rear Drive Unit Replacement ➜ Stop Coolant Fill/Drain
120. Perform Heat Pump Commissioning through UI
     Remarque

     Select Thermal > Sensors and Valves > Run Heat Pump Commissioning, click Run, close once routine is passed









121. Install caps onto AC ports
     Remarque

     2x caps



122. Select "Start Coolant Air Purge" using the UI
     Remarque

     Touch time only, wait until coolant pumps stop running (audible noise), Routine Passed will appear, but pumps will run for 10 minutes, If you start next another routine during this time it will fail, Make sure vehicle is not in "Drive", Routine is still running despite the completed message, Speeds can be monitored in garage under PT Thermal tab, Idle speed = ~1500 RPM, Test will vary speeds from 3500-6500 RPM and actuate valves between SERIES and PARALLEL, Putting vehicle into "Drive" will stop this routine, If speeds hover at 7000 RPM, this indicates the pumps are air locked, perform a vacuum fill, Continue to add coolant and purge until the coolant level reaches between the NOM and MAX Lines on the bottle







123. Inspect coolant level and top off as necessary
     Remarque

     Ensure that the fluid level is at the Max line, Top off fluid as required



124. Install coolant bottle cap



125. Perform Thermal Performance through the UI
     Remarque

     Select Thermal > Actions > Test Thermal Performance, click Run, close once routine is completed, if thermal test fails follow https://toolbox.teslamotors.com/articles/206000









126. Install frunk assembly
     Remarque

     6x bolts, 10mm, 12 Nm, 2x bolt caps, 2x bumpstops, 1x connector, Install bolt covers to frunk floor, Install washer fluid cap, Install bumpstops by aligning tabs then turning clockwise, Ensure emergency frunk release functions



















127. Install rear underhood apron
     Remarque

     9x clips, Adjust windshield seal as required





128. Close powered front trunk
     Remarque

     Via exterior switch or UI



129. Raise RH front window



130. Close RH front door



131. Remove vehicle from lift
     Remarque

     Lower rack arms fully and remove them from under vehicle, Remove air suspension from "Jack Mode"





132. Exécutez la routine ODIN PROC_ICE_X_EXIT-SERVICE-MODEvia Toolbox: (link)
133. Raise LH front window



134. Close LH front door



135. This procedure requires Refrigerant evacuation and recharge, please add specific evacuation and recharge correction code as needed
     Remarque

     18200102,18033302,18033305,18200122**Always use this Step ID**
